www.csiro.au Modeling of Actual Crop Water Consumption Using Optical-Thermal Satellite and Airborne Data Over Murrumbidgee Catchment Mohsin Hafeez, Shahbaz Khan, Kaishan Song, Umair Rabbani, Jeff Walker CSIRO Land and Water Division, Wagga Wagga International Centre of Water for Food Security (IC Water), Charles Sturt University University of Melbourne, Melbourne

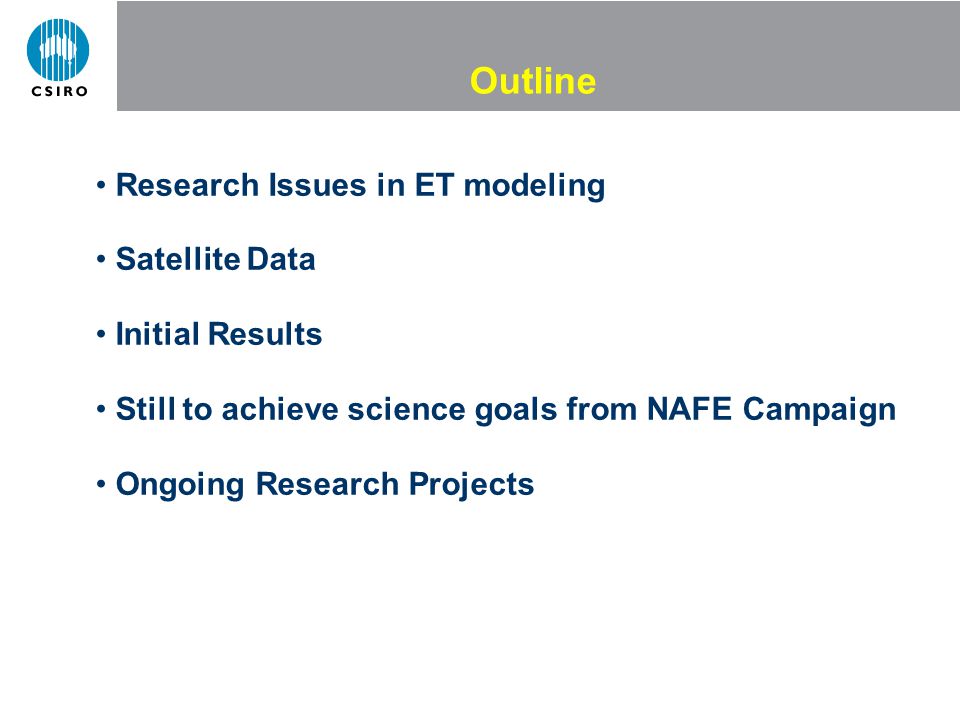

Outline Research Issues in ET modeling Satellite Data Initial Results Still to achieve science goals from NAFE Campaign Ongoing Research Projects

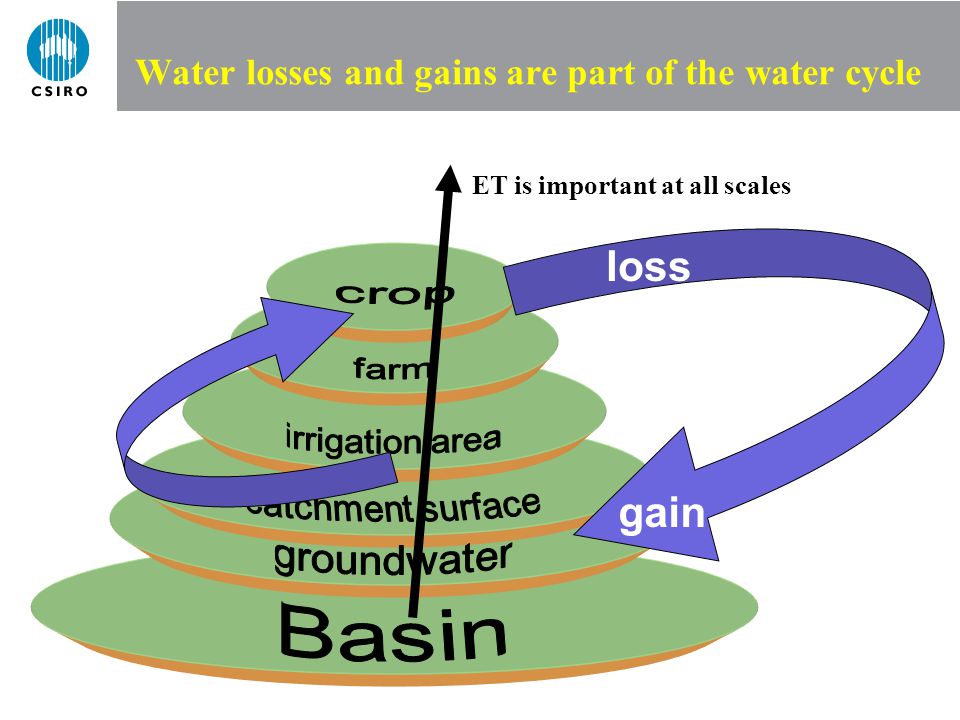

Water losses and gains are part of the water cycle gain loss ET is important at all scales

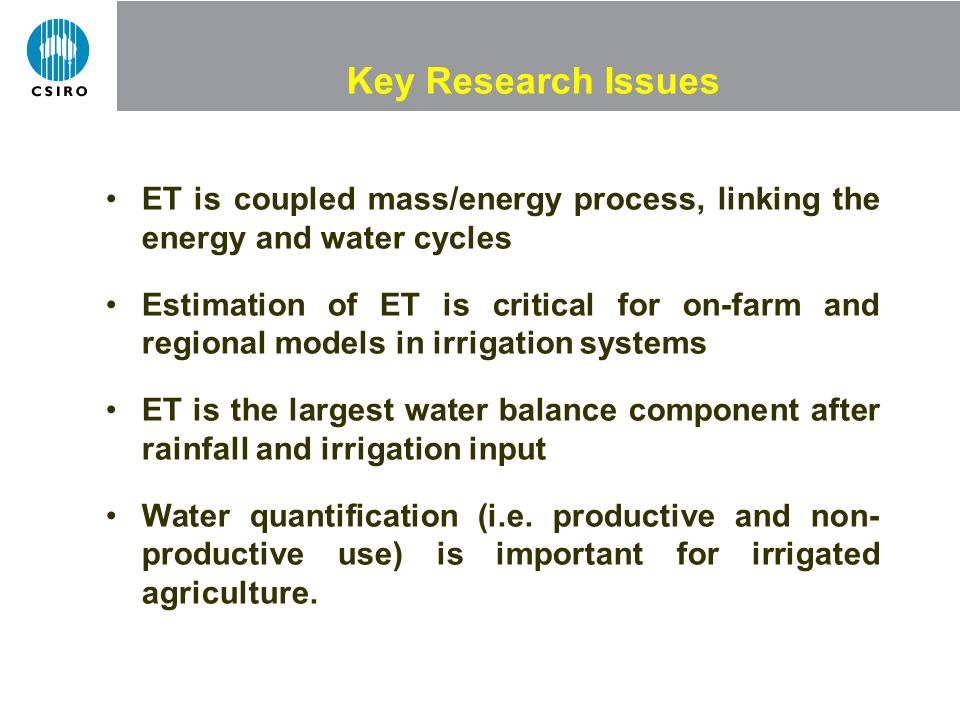

Key Research Issues ET is coupled mass/energy process, linking the energy and water cycles Estimation of ET is critical for on-farm and regional models in irrigation systems ET is the largest water balance component after rainfall and irrigation input Water quantification (i.e. productive and non- productive use) is important for irrigated agriculture.
Current state-of-the-art Approaches for measuring Actual ET In-situ measurement (Bowen ratio tower, & soil water balance, etc.) Air-borne measurement (fluxes) Satellite measurement High Spatial Resolution (ASTER and Landsat) High Temporal Resolution (MODIS and NOAA- AVHRR) Modelling Approaches (plant to catchment)

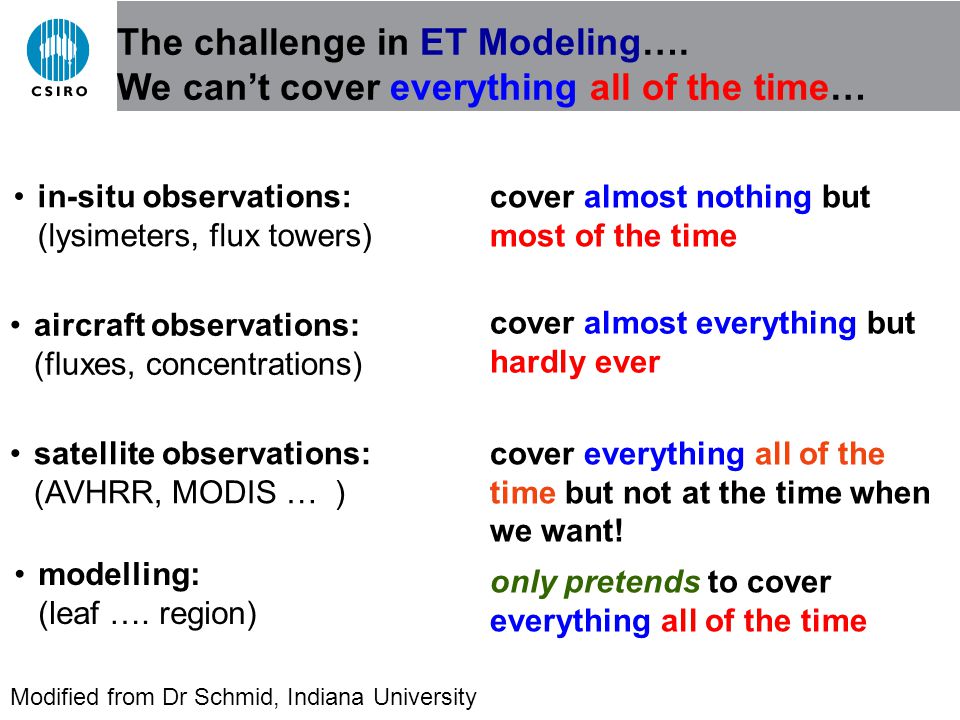

The challenge in ET Modeling…. We cant cover everything all of the time… in-situ observations: (lysimeters, flux towers) aircraft observations: (fluxes, concentrations) modelling: (leaf …. region) cover almost nothing but most of the time cover almost everything but hardly ever only pretends to cover everything all of the time satellite observations: (AVHRR, MODIS … ) cover everything all of the time but not at the time when we want! Modified from Dr Schmid, Indiana University
Methods for Quantification of Actual ET Empirical direct methods Characterizing crop water status through the cumulative temperature difference (T s -T a ) Residual methods of the energy budget Combination of empirical relationship and physical modules (SEBAL, SEBS) Deterministic methods Soil-Vegetation-Atmosphere Transfer models (SVAT) Vegetation Index methods

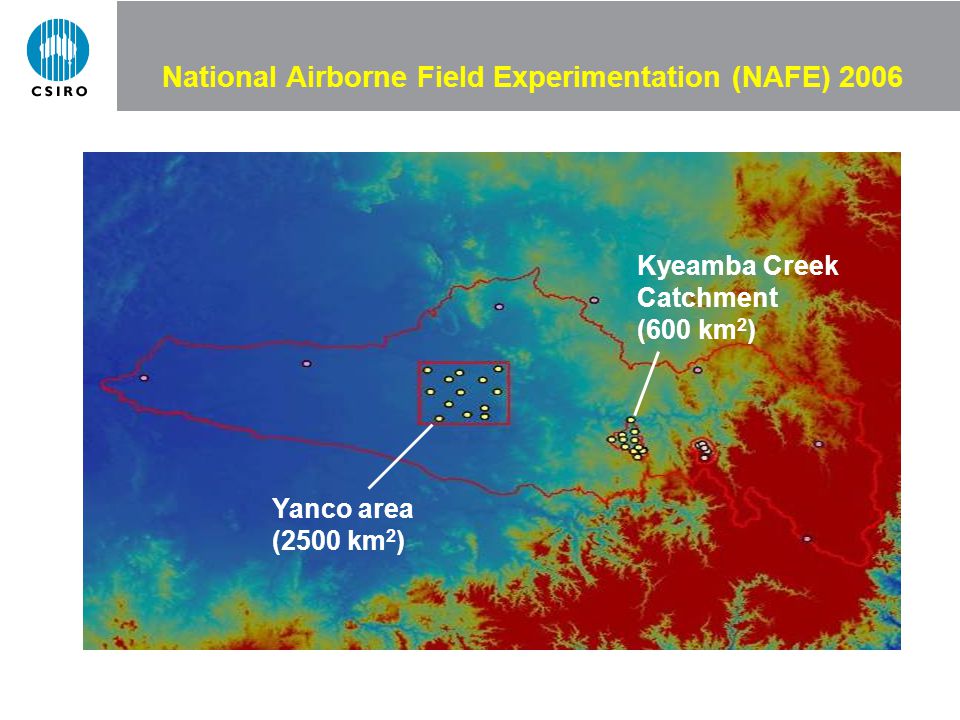

National Airborne Field Experimentation (NAFE) 2006 Yanco area (2500 km 2 ) Kyeamba Creek Catchment (600 km 2 )
Satellite Data Over NAFE Campaign

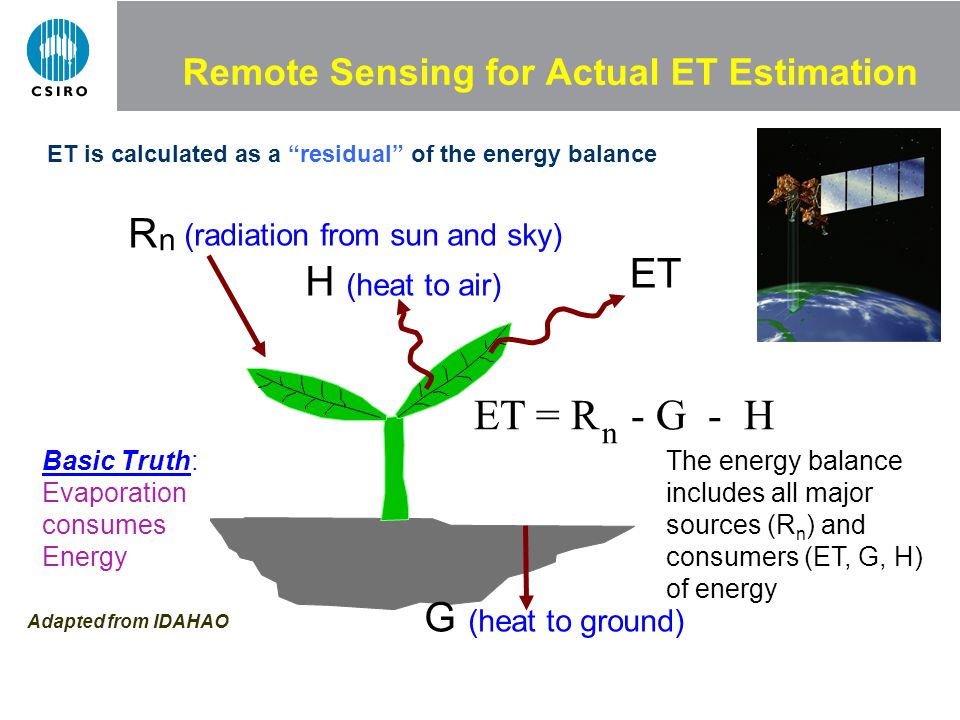

Remote Sensing for Actual ET Estimation ET is calculated as a residual of the energy balance ET = R - G - H n R n G (heat to ground) H (heat to air) ET The energy balance includes all major sources (R n ) and consumers (ET, G, H) of energy Basic Truth: Evaporation consumes Energy (radiation from sun and sky) Adapted from IDAHAO

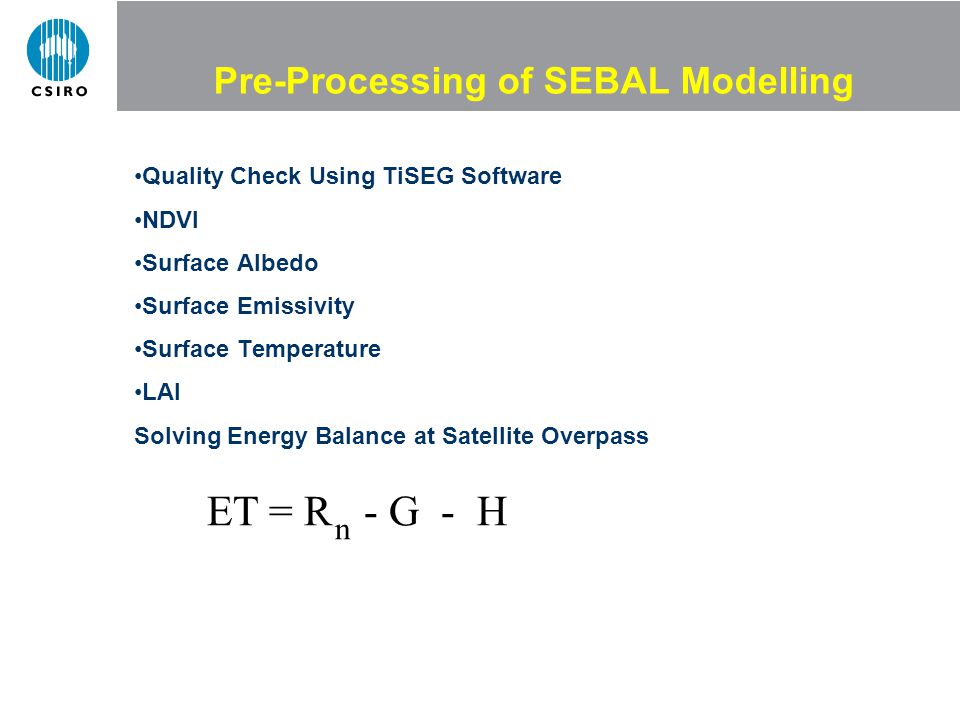

Pre-Processing of SEBAL Modelling Quality Check Using TiSEG Software NDVI Surface Albedo Surface Emissivity Surface Temperature LAI Solving Energy Balance at Satellite Overpass ET = R - G - H n

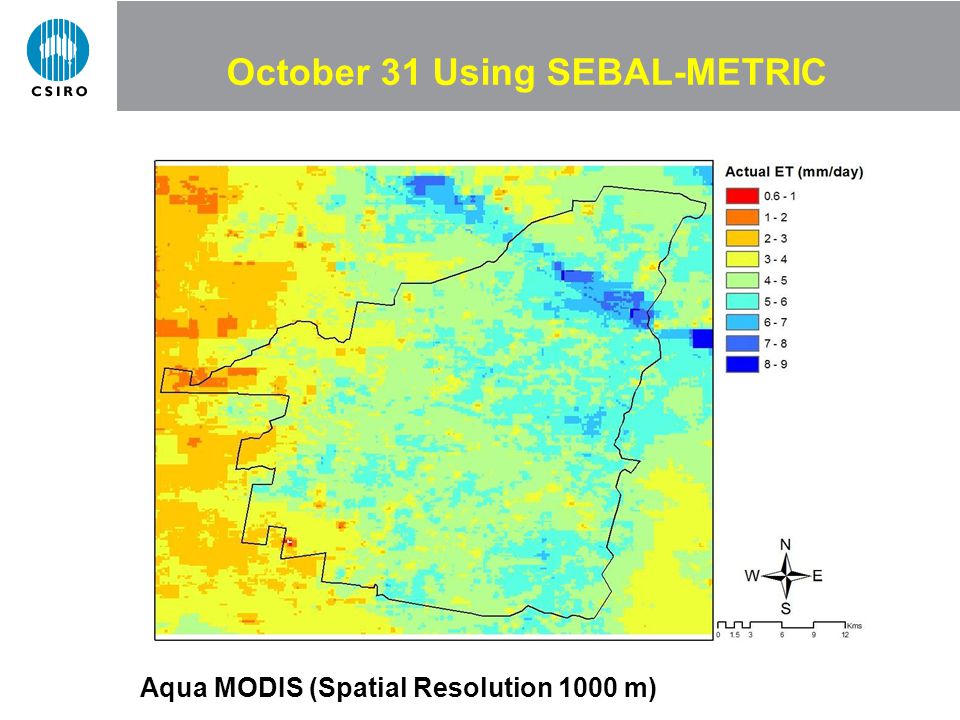

October 31 Using SEBAL-METRIC Aqua MODIS (Spatial Resolution 1000 m)

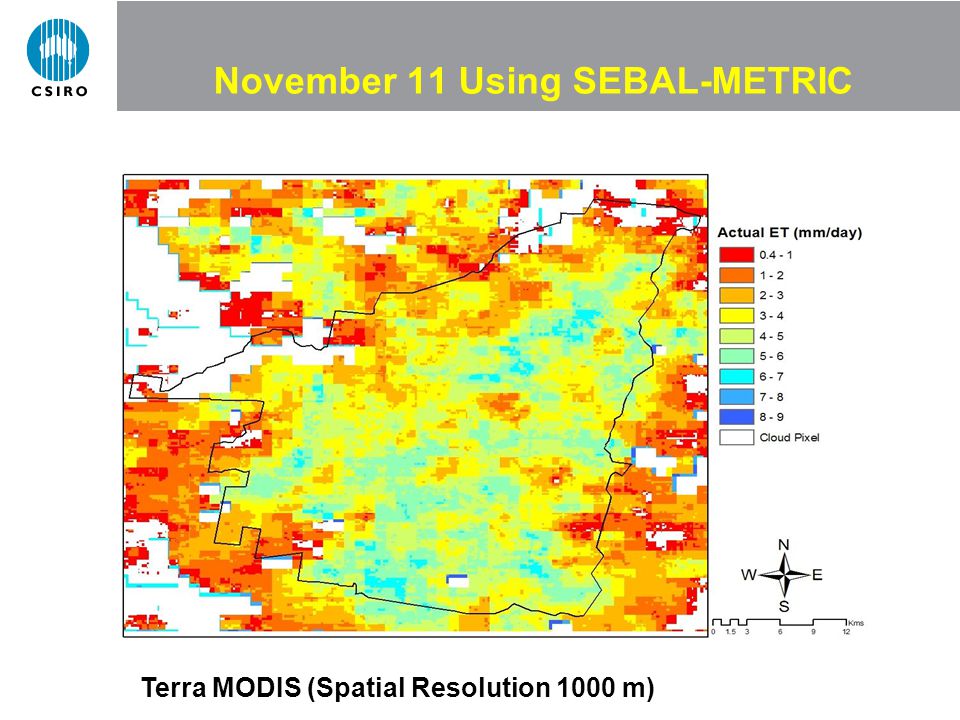

November 11 Using SEBAL-METRIC Terra MODIS (Spatial Resolution 1000 m)

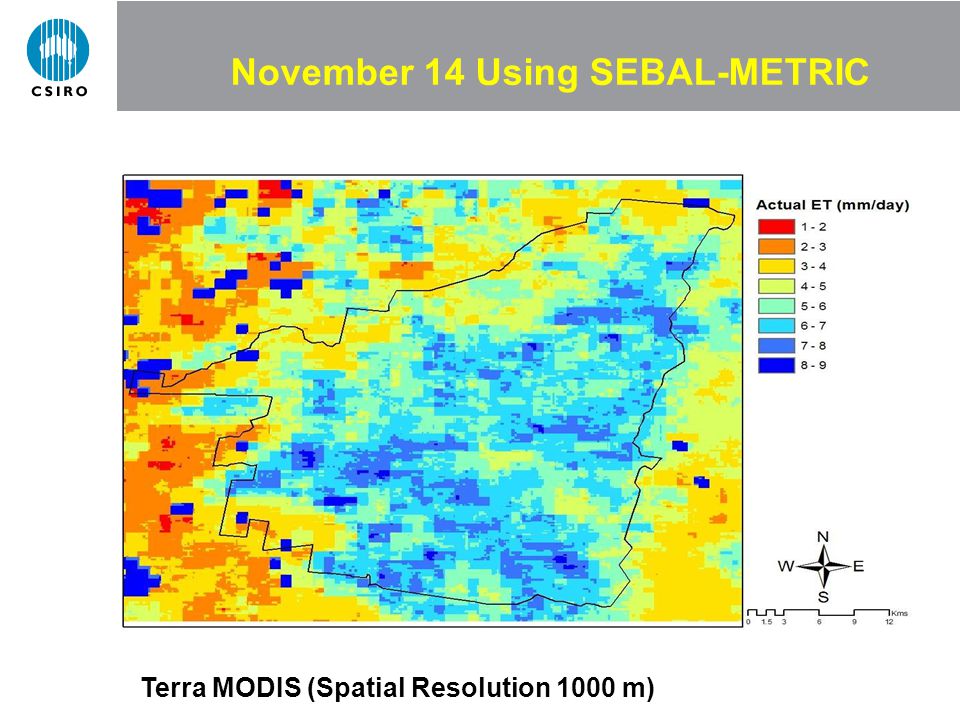

November 14 Using SEBAL-METRIC Terra MODIS (Spatial Resolution 1000 m)

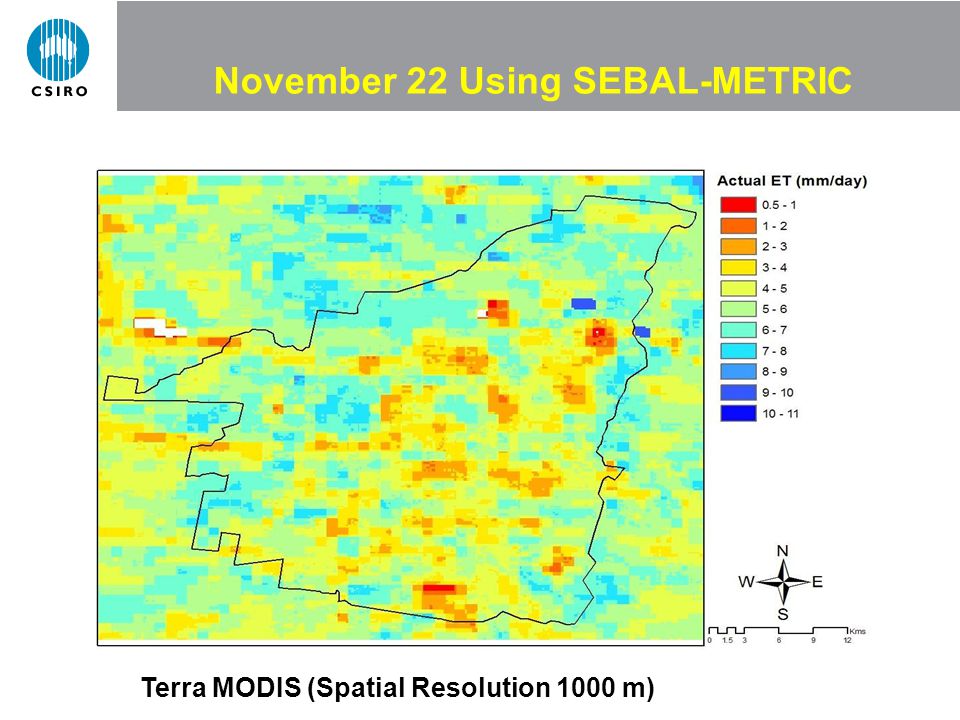

November 22 Using SEBAL-METRIC Terra MODIS (Spatial Resolution 1000 m)
Seasonal Actual Evapotranspiration Yanco Area Terra MODIS (Spatial Resolution 1000 m) April –March
Reference ET Using Penman Monteith Method CSIRO Weather Station at Y11- Morundah

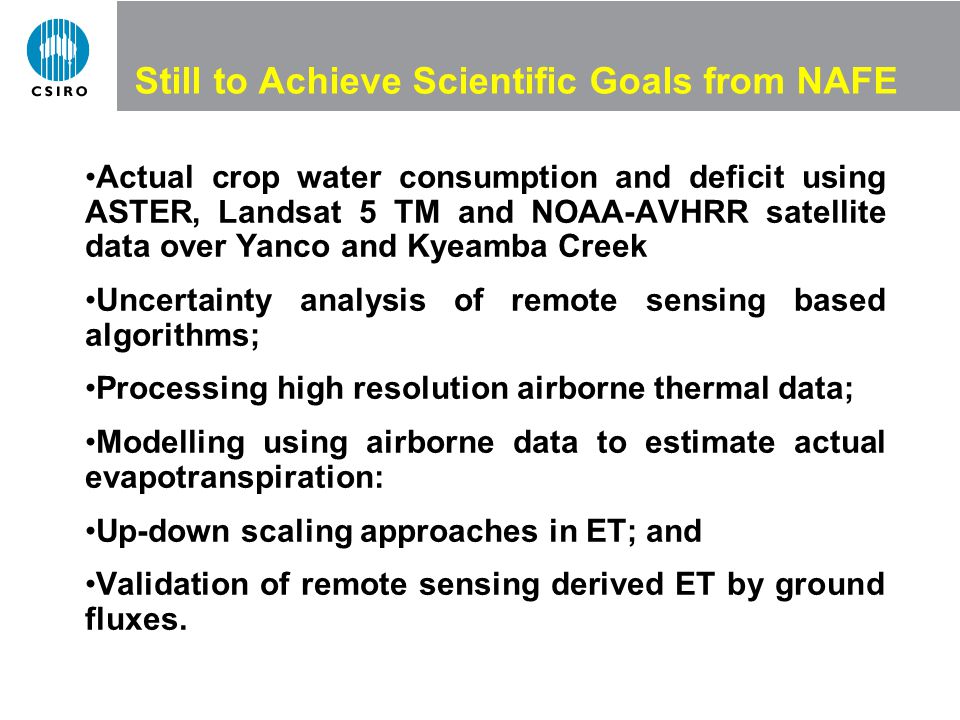

Still to Achieve Scientific Goals from NAFE Actual crop water consumption and deficit using ASTER, Landsat 5 TM and NOAA-AVHRR satellite data over Yanco and Kyeamba Creek Uncertainty analysis of remote sensing based algorithms; Processing high resolution airborne thermal data; Modelling using airborne data to estimate actual evapotranspiration: Up-down scaling approaches in ET; and Validation of remote sensing derived ET by ground fluxes.

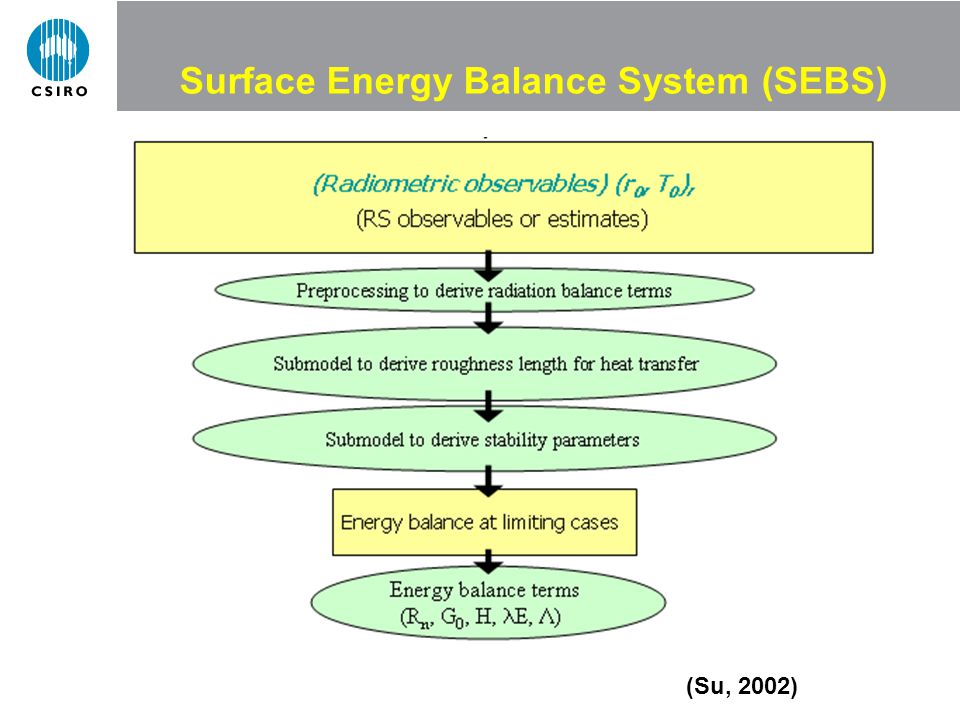

Surface Energy Balance System (SEBS) (Su, 2002)
Thermal Data on November 16, 2006

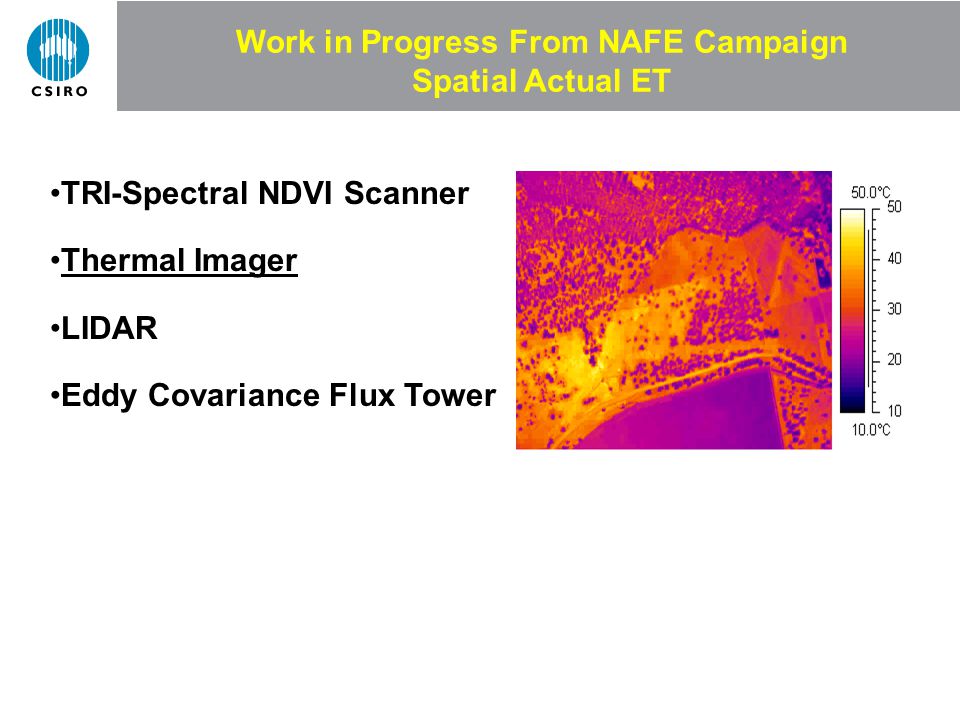

Work in Progress From NAFE Campaign Spatial Actual ET TRI-Spectral NDVI Scanner Thermal Imager LIDAR Eddy Covariance Flux Tower

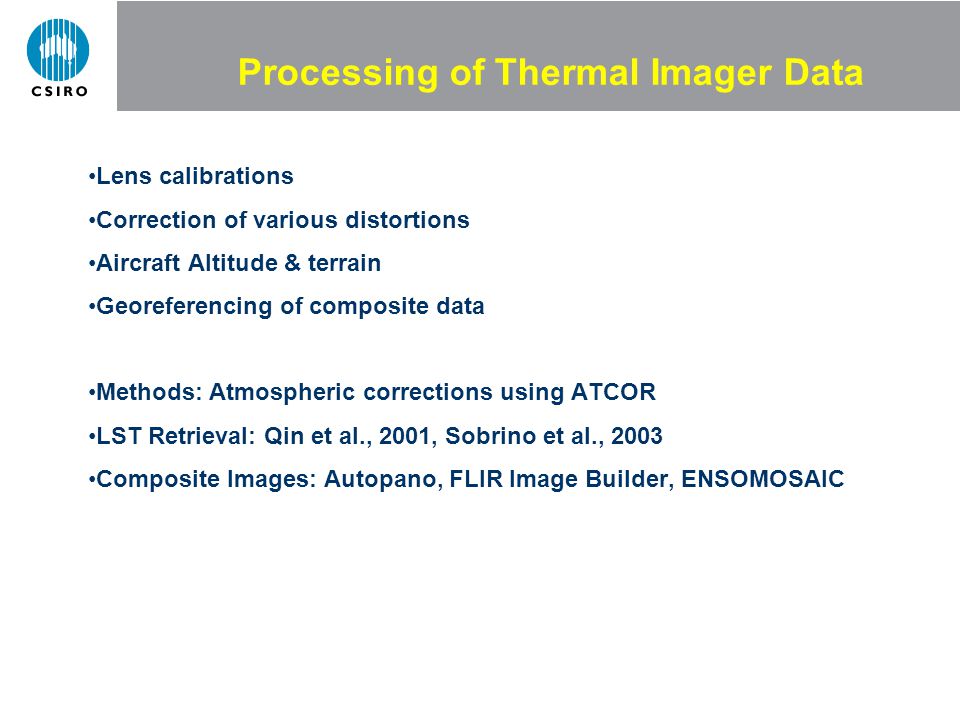

Processing of Thermal Imager Data Lens calibrations Correction of various distortions Aircraft Altitude & terrain Georeferencing of composite data Methods: Atmospheric corrections using ATCOR LST Retrieval: Qin et al., 2001, Sobrino et al., 2003 Composite Images: Autopano, FLIR Image Builder, ENSOMOSAIC
Ongoing Research Projects Mapping, Monitoring and Modelling of Hydrological Parameters in the Lower Murrumbidgee Catchment of Australia; DLR-UNESCO HELP Project Development of SAM-ET for mapping water productivity in Australian Irrigated Ecosystems; NWC Project Spatio-temporal water accounting framework through coupling of ground and remote sensing data at on-farm and regional level in a real time environment; NWC Project System Harmonisation through Regional Irrigation Business Partnerships (RIBP) across Australia; CRC IF Project

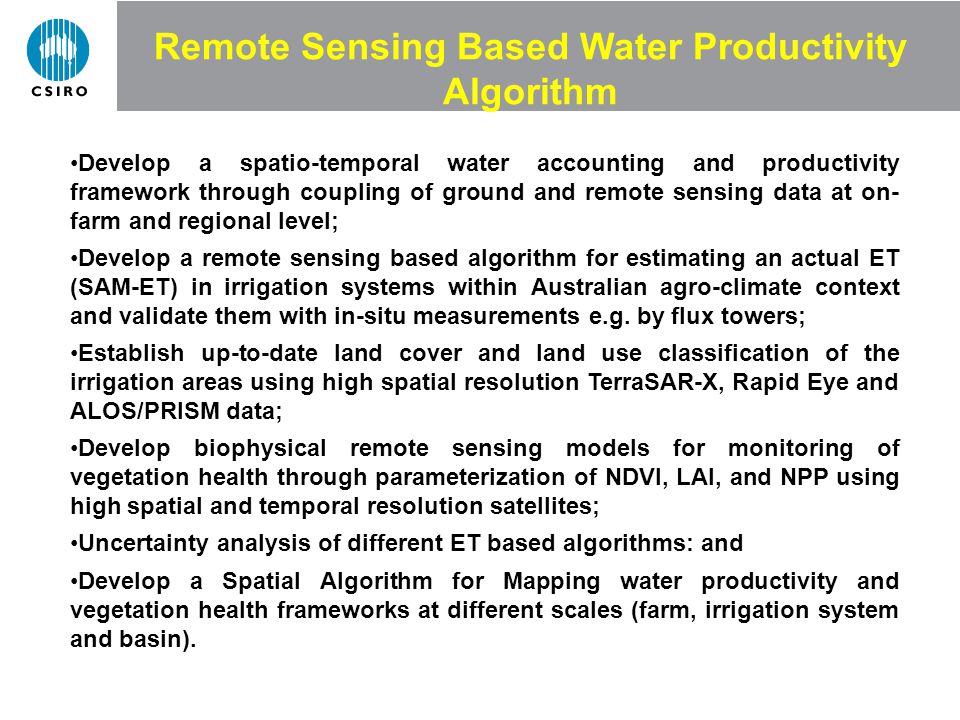

Remote Sensing Based Water Productivity Algorithm Develop a spatio-temporal water accounting and productivity framework through coupling of ground and remote sensing data at on- farm and regional level; Develop a remote sensing based algorithm for estimating an actual ET (SAM-ET) in irrigation systems within Australian agro-climate context and validate them with in-situ measurements e.g. by flux towers; Establish up-to-date land cover and land use classification of the irrigation areas using high spatial resolution TerraSAR-X, Rapid Eye and ALOS/PRISM data; Develop biophysical remote sensing models for monitoring of vegetation health through parameterization of NDVI, LAI, and NPP using high spatial and temporal resolution satellites; Uncertainty analysis of different ET based algorithms: and Develop a Spatial Algorithm for Mapping water productivity and vegetation health frameworks at different scales (farm, irrigation system and basin).
Water Accounting at Catchment Scale Water Accounting Concept (IWMI, 1998)
Scaling Issues in ET Up-Down scaling Approaches Satellites:GEOS (4000m) - Terra/MODIS (1000m) - ASTER (90m) - Landsat 5 TM/ 7 ETM+ (30m) Airborne observations at a range of altitudes (500ft to 10,000ft) equipped with Thermal Imager and NDVI scanner (1m to 20m) Drone observations at 500 ft altitudes equipped with Thermal Imager and NDVI scanner (<1m) Ground observations from sensorscope stations located at strategic points Verifications and validations with Point observation networks using weather stations Eddy covariance system (100m) Large - Very large Aperture Scintillometers (5000m to 10,000m)

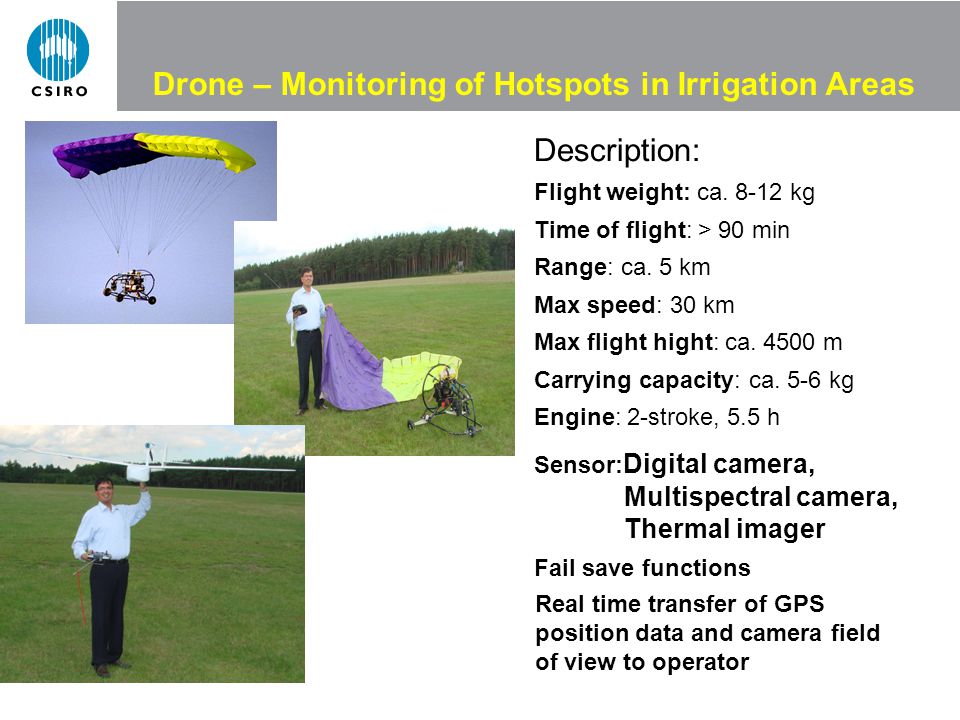

Drone – Monitoring of Hotspots in Irrigation Areas Description: Flight weight: ca. 8-12 kg Time of flight: > 90 min Range: ca. 5 km Max speed: 30 km Max flight hight: ca. 4500 m Carrying capacity: ca. 5-6 kg Engine: 2-stroke, 5.5 h Sensor: Digital camera, Multispectral camera, Thermal imager Fail save functions Real time transfer of GPS position data and camera field of view to operator

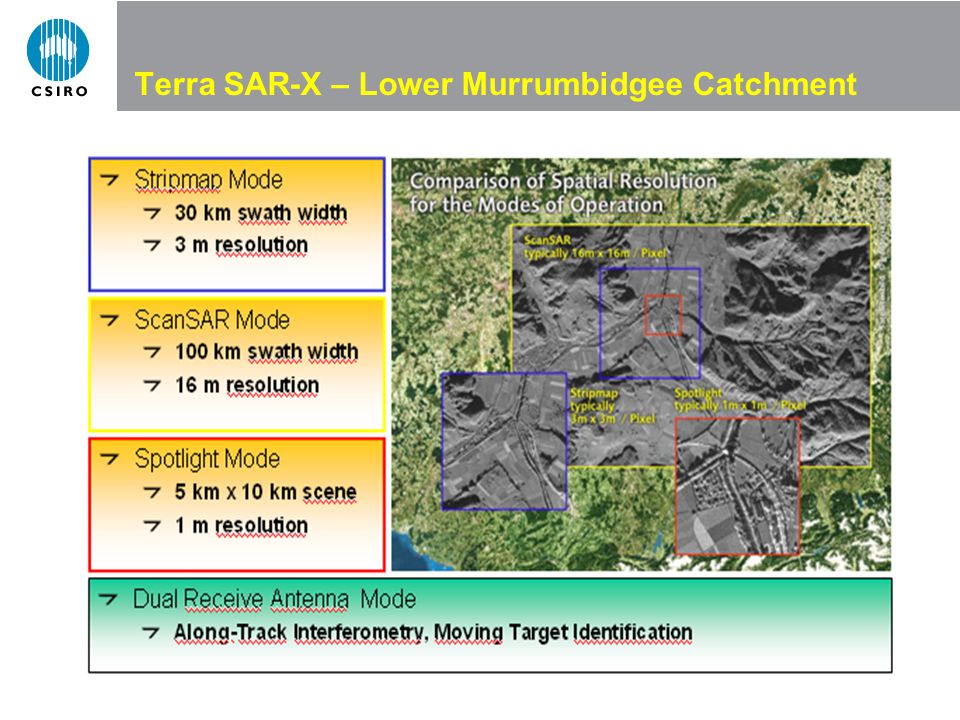

Terra SAR-X – Lower Murrumbidgee Catchment

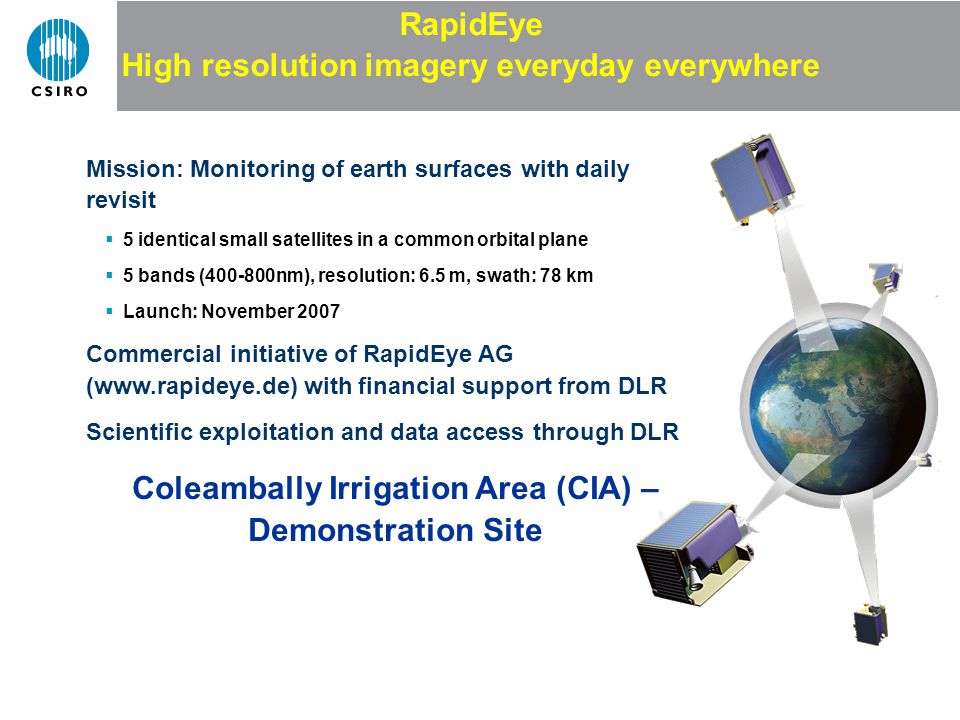

Mission: Monitoring of earth surfaces with daily revisit 5 identical small satellites in a common orbital plane 5 bands (400-800nm), resolution: 6.5 m, swath: 78 km Launch: November 2007 Commercial initiative of RapidEye AG (www.rapideye.de) with financial support from DLR Scientific exploitation and data access through DLR Coleambally Irrigation Area (CIA) – Demonstration Site RapidEye High resolution imagery everyday everywhere
Way Forward Actual crop water consumption and deficit using ASTER, Landsat 5 TM and NOAA-AVHRR satellite data over Yanco and Kyeamba Creek; Uncertainty analysis of remote sensing based algorithms and validation of derived ET by ground fluxes; Modelling using airborne data to estimate actual evapotranspiration; Mapping, Monitoring and Modelling of Hydrological Parameters in the Lower Murrumbidgee Catchment of Australia; Development of SAM-ET for mapping water productivity in Australian irrigated Ecosystems; and Spatio-temporal water accounting framework through coupling of ground and remote sensing data at on-farm and regional level in a near real time environment.
