1 Chapter 11: Drinking Water and Wastewater Treatment Drinking Water –Historical Perspective –Federal Protection of Drinking Water –Treatment Process Wastewater –Historical Perspective –Treatment Process

2 Drinking Water: Historical Perspective The Greeks and Romans recognized that poor water quality caused disease and death Bathing once or twice a year was healthy During Middle Ages conditions deteriorated Sand filters became common in 1700s in France Chlorination was introduced in 1909 in NJ.

3 Potable Water Water used for drinking, cooking, and washing Requires filtering, disinfection, desalinization Groundwater has natural filtration, may need disinfection New York City does not filter suface water because it is from forested areas. Reverse osmosis is needed to remove salts.

4 Calcutta, India, during rainy season

5 London Water Works (Thames River)

6 China

7 Water Quality Concerns Pathogens –Bacteria (E. coli, fecal strep, cholera) –Viruses (polio, hepatitus) –Protozoa (Giardia) –Dysentary (Amoeba and Shigella) Emerging Contaminants –Endocrine disruptors (contraceptives) –Antibiotic resistant pathogens, pharmaceuticals –Metals (lead, arsenic), Organics (gasoline, herbicides)

8 Federal Protection 1914: U.S. Treasury established a limit of 2 coliforms per 100 mL for drinking water 1942: U.S. Public Health Service standardized drinking water standards 1948: Federal Pollution Control Act 1974: Safe Drinking Water Act 1986: Wellhead Protection Program 1996: Source Water Assessment and Protection

9 Figure 11.4 This intake structure for the Mount Werner Water Filtration Plant is located near the mouth of Fish Creek Canyon above Steamboat Springs, Colorado.

10 Drinking Water Standards, 2004 Copper (liver and kidney damage) 1.3 mg/L Fluoride (bone disease) 4.0 mg/L Nitrate (Blue Baby syndrome) 10 mg/L Nitrite (same) 1 mg/L Dioxin (cancer) No detectible Xylenes (nervous system damage) 10 mg/L Atrazine (Cardiovascular damage) 0.003 mg/L

11 Figure 11.6 Raw water from the Mississippi River is pumped to the Carrollton Water Purification Plant, one of two such plants that serve the city of New Orleans.

12 Drinking Water Treatment Watershed and wellhead protection: prevents contamination Diversion, storage, and intake Flocculation/coagulation => settling Filtration Fluoridation Disinfection: Cl 2, O 3, UV, chloramines Distribution: storage and pressure

13

14 Figure 11.7 The water tower at Clarkson, Nebraska, is located on a hill in the farming community of 700 residents in eastern Nebraska.

15 Figure 11.5 Water intake clogged with Zebra Mussels.

16 Flouride and Tooth Decay Flouride is added to strengthen teeth and bones Many communities add F to improve teeth Dentists can tell whether you grew up on city water or not Adding too much causes brittle bones

17 Lead in Drinking Water Sources: lead solder and pipes Problem: behavior problems and learning disabilities

18 Drinking Water from Wells City wells are routinely tested Private water wells are seldom tested Sources of contamination include wastewater, landfills, junkyards

19 Leaking Underground Storage Tanks

20 NAPL: Non-Aqueous Phase Liquids DNAPL: Dense NAPL (dry cleaners, industrial) LNAPL: Light NAPL (gasoline, diesel)

21 Wellhead Protection

22 Arsenic Poisoning http://www.angelfire.com/ak/medinet/arsenic.html

23 Chicago Sanitary and Ship Canal

24

25

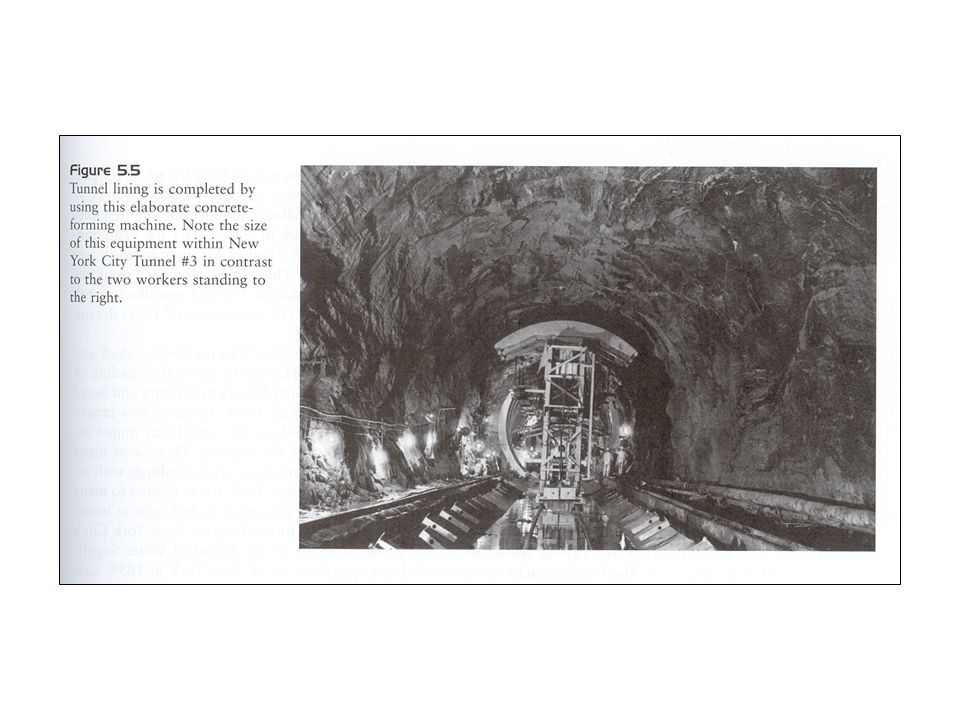

26

27

28 New York Sand Hogs http://www.youtube.com/watch?v=5gfSEj MtAochttp://www.youtube.com/watch?v=5gfSEj MtAoc

29 Wastewater: Historical Perspective A major problem since the earliest cities Most went down roads to the nearest stream 1370: First underground sewers 1867: First wastewater treatment (London) 1928: First U.S. operation (Fessenden, ND) 1964: First Athens treatment plant

30 Figure 11.8 The Fessenden, North Dakota, sewage lagoon is famous in the realm of wastewater treatment around the world.

31 Wastewater Treatment Process Primary Treatment: Remove large debris (sand, stones, garbage) Secondary Treatment: Break down organic matter by adding oxygen to promote decay –Tricking filter: Water cascades down over coarse materials (stones, balls) –Activated sludge: Large motors churn air into the water Tertiary Treatment: Nutrient Removal

32

33 Figure 11.9 The wastewater treatment process at larger facilities includes numerous steps such as bar screen, grit removal, primary and secondary settling tanks, aeration, flocculation and coagulation, sand filters, and chlorination.

34 Septic Tanks and Leach Fields Septic tank collects biosolids and breaks them down. Aerobic decay requires oxygen, anaeorobic decay does not. Facultative decay is when both are present. Leach field takes water that has gone through the septic tank, and is allowed to percolate through the soil

35

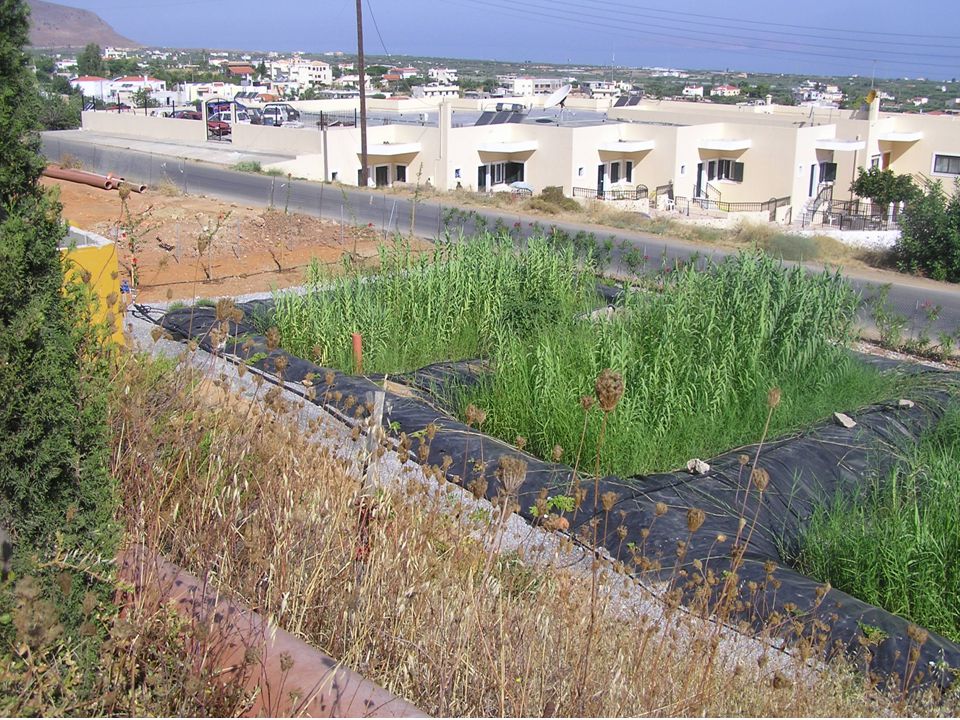

36 Wetlands and Water Treatment Similar to the original Fessenden plan. Natural biodegradation and nutrient removal. Good environment (mixed aerobic and anaerobic) for facultative bacteria. Provides habitat, increases water storage and prevents overflows during wet weather.

37

38 CSOs Combined Sewer Overflows Used to carry sewage to treatment plant during dry weather Also collects stormwater during wet weather System is overloaded during big storms, and is routed directly to the river

39

40 NPDES Permit National Pollution Discharge Elimination System Used to regulate wastewater discharges Requires a minimum treatment standard –Dissolved Oxygen, pH, BOD, ammonia, toxicity These permits get more strict over time as more users need to add to the river

41 Chapter 11: Quiz 1. Describe how large particles are removed during drinking water treatment. 2. Adding ____________ to drinking water helps to prevent cavities. 3. Name one process for disinfection: 4. Name and describe the three steps in wastewater treatment: a. b. c.
