1 © Original by Donald Acton; Changes by George Tsiknis Unix File System The Structure of the Unix file system is not covered in the text

2 Unit 13 2 Learning Objectives We have seen the physical characteristics of a disk and how data is transferred between disk and memory Now well see how OS organizes the data on the disk. You should be able to: draw a picture of the structure of a file in terms of inodes and data blocks given its size compare the structure of two files given their sizes list the actions performed when a file is created, modified or deleted estimate the number of read/write operations OS has to perform in order to read/write data from/to a file identify caching as a way to improve I/O performance

3 Unit 13 3 The File System Works directly with the view of the disk provided by the controller Provides a device independent view of a disk Further levels of abstraction on file system are what the application sees Application Unix I/O File System Disk Drive File System Layering

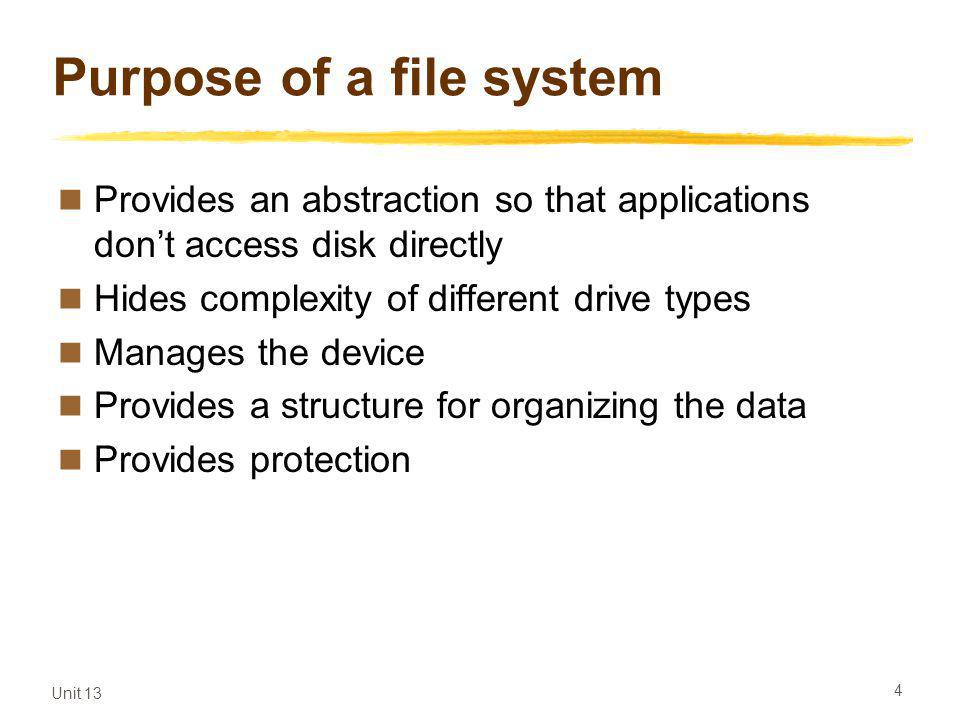

4 Unit 13 4 Purpose of a file system Provides an abstraction so that applications dont access disk directly Hides complexity of different drive types Manages the device Provides a structure for organizing the data Provides protection

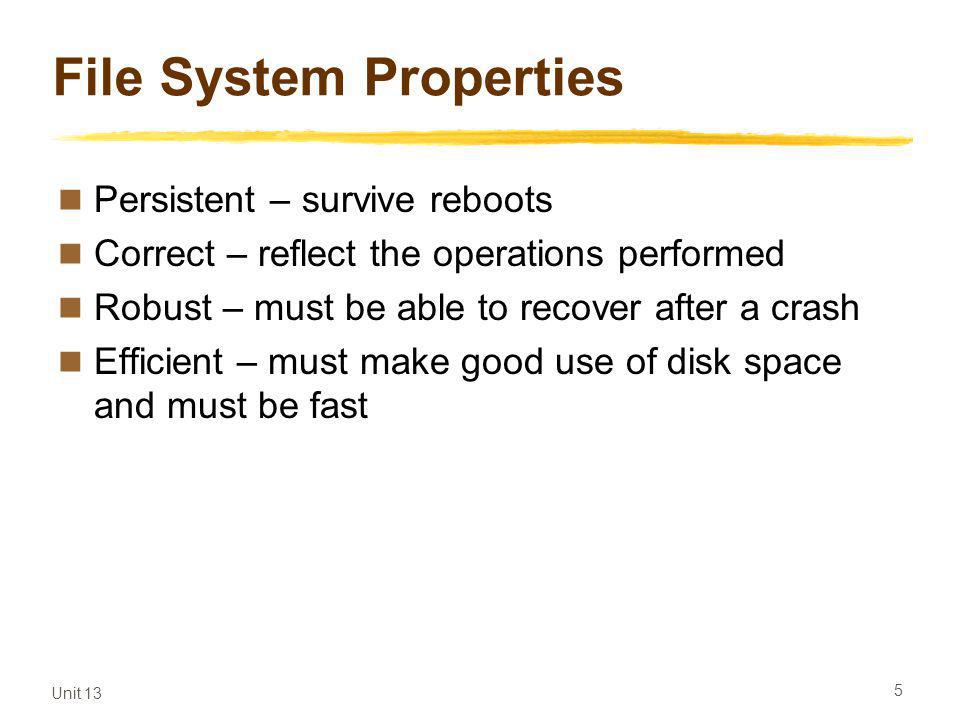

5 Unit 13 5 File System Properties Persistent – survive reboots Correct – reflect the operations performed Robust – must be able to recover after a crash Efficient – must make good use of disk space and must be fast

6 Unit 13 6 Unix File System Semantics A file is simply a sequence of m bytes B 0, B 1,...., B k,...., B m-1 Everything is a file All I/O devices are represented as files Examples: –/dev/ad0s4e (/var disk partition) –/dev/ttyd0 (terminal) –/dev/rmt0 (tape drive) Even the running kernel is represented as a file: –/dev/kmem

7 Unit 13 7 Unix File Types Regular files: Binary/text files they are all the same Directory file Its still a file but it contains names and locations of other files Special files Block (disks), character (terminal) devices Interprocess communication Named pipes Sockets

8 Unit 13 8 Blocks – the basic unit A file is a sequence of bytes stored in a set of fixed sized blocks Block sizes are multiples of the sector size (e.g. 512, 1024, 4096, 8192) The sectors comprising a particular block are contiguous All blocks in a particular file system are the same size With respect to a file, the smallest amount of data the file system transfers to or from a disk is a block Blocks are the virtualization of a disks logical blocks

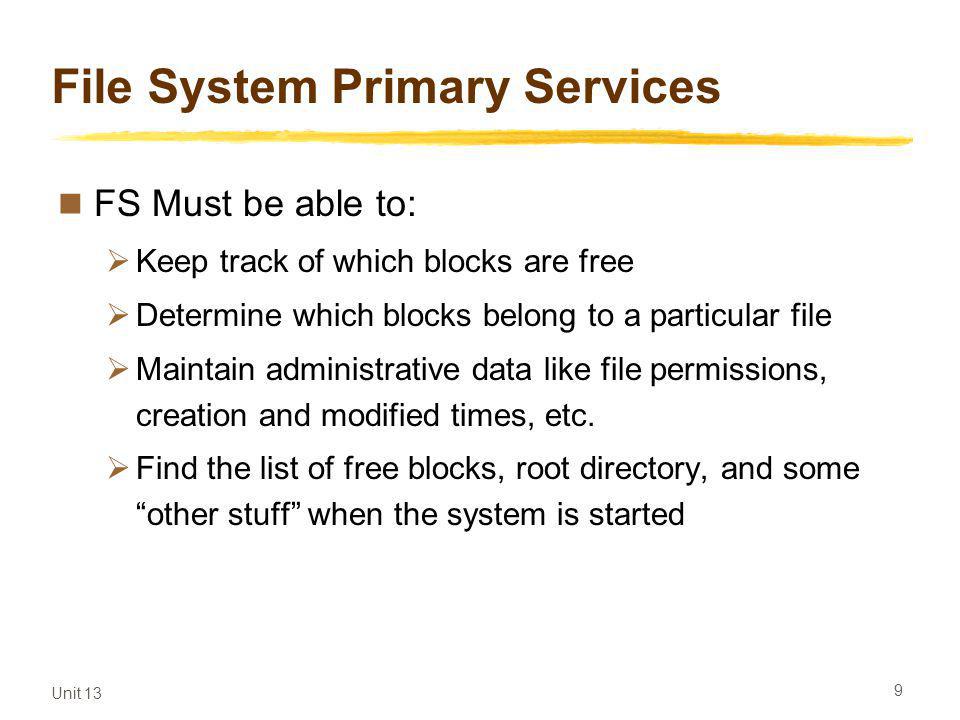

9 Unit 13 9 File System Primary Services FS Must be able to: Keep track of which blocks are free Determine which blocks belong to a particular file Maintain administrative data like file permissions, creation and modified times, etc. Find the list of free blocks, root directory, and some other stuff when the system is started

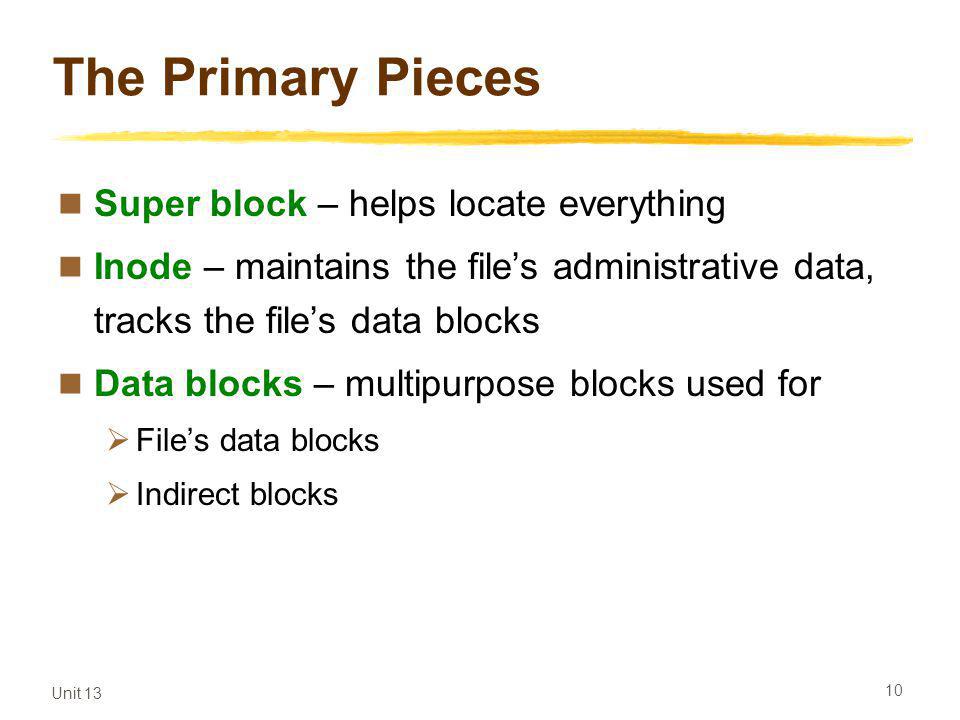

10 Unit The Primary Pieces Super block – helps locate everything Inode – maintains the files administrative data, tracks the files data blocks Data blocks – multipurpose blocks used for Files data blocks Indirect blocks

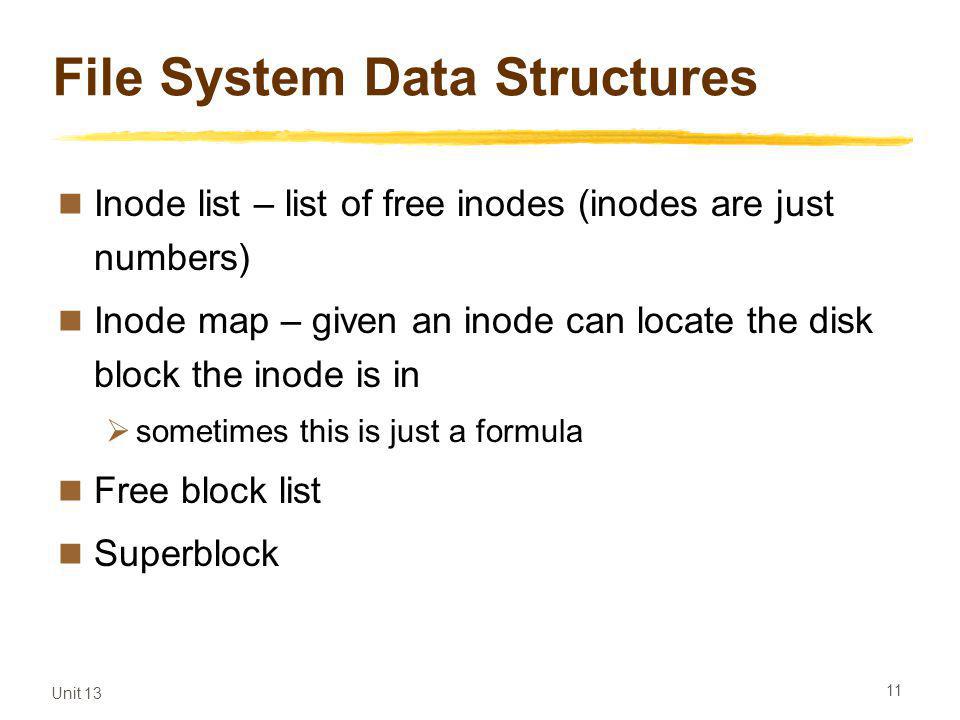

11 Unit File System Data Structures Inode list – list of free inodes (inodes are just numbers) Inode map – given an inode can locate the disk block the inode is in sometimes this is just a formula Free block list Superblock

12 Unit Single Indirect Block UNIX Inode Type/modeLink count File Size UIDGID Various modification access and creation times Direct Data Block 0 Direct Data Block 1 Direct Blocks Single Indirect Block Double Indirect Block Additional bookkeeping information Data Block 0 …… 127 Data Block 0 …… …… 127 Data Block Double Indirect Block 0 …… …… …… …… …… 127 Data Block Direct Data Block 1 Direct Data Block 0 Data Block 0 …… 127 Triple Indirect Block The indirect block is exactly the size of a block Data Block

13 Unit (Some) Inode Parts Type/Mode Type (regular file, directory, device, etc) Permissions –Group, user, other - 3 bits each (e.g. rwxr-xx, rw-r-----) Link count How many directory entries point to this file UID User ID number – identifies owner of file GID Group ID number – identifies group of file

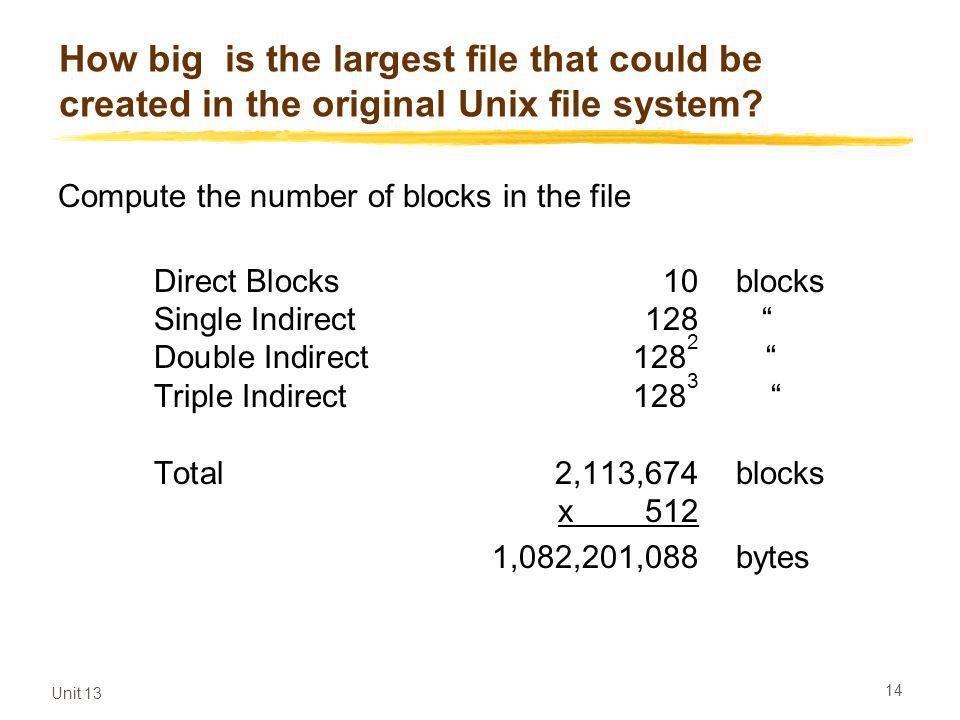

14 Unit How big is the largest file that could be created in the original Unix file system? Compute the number of blocks in the file Direct Blocks10blocks Single Indirect128 Double Indirect Triple Indirect128 3 Total 2,113,674blocks x 512 1,082,201,088bytes

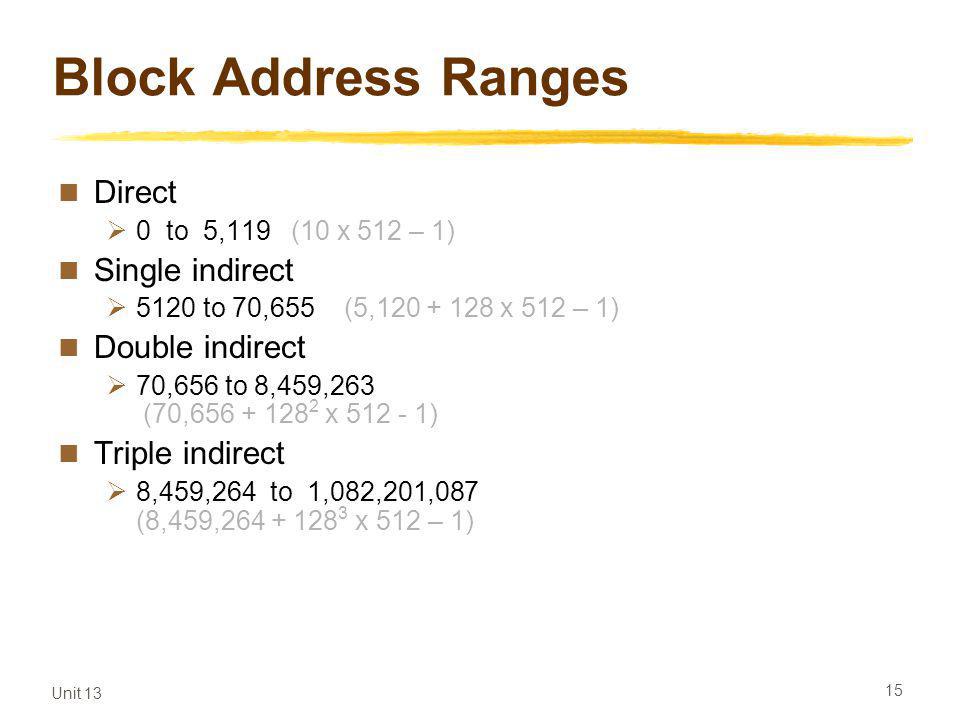

15 Unit Block Address Ranges Direct 0 to 5,119 (10 x 512 – 1) Single indirect 5120 to 70,655 (5, x 512 – 1) Double indirect 70,656 to 8,459,263 (70, x ) Triple indirect 8,459,264 to 1,082,201,087 (8,459, x 512 – 1)

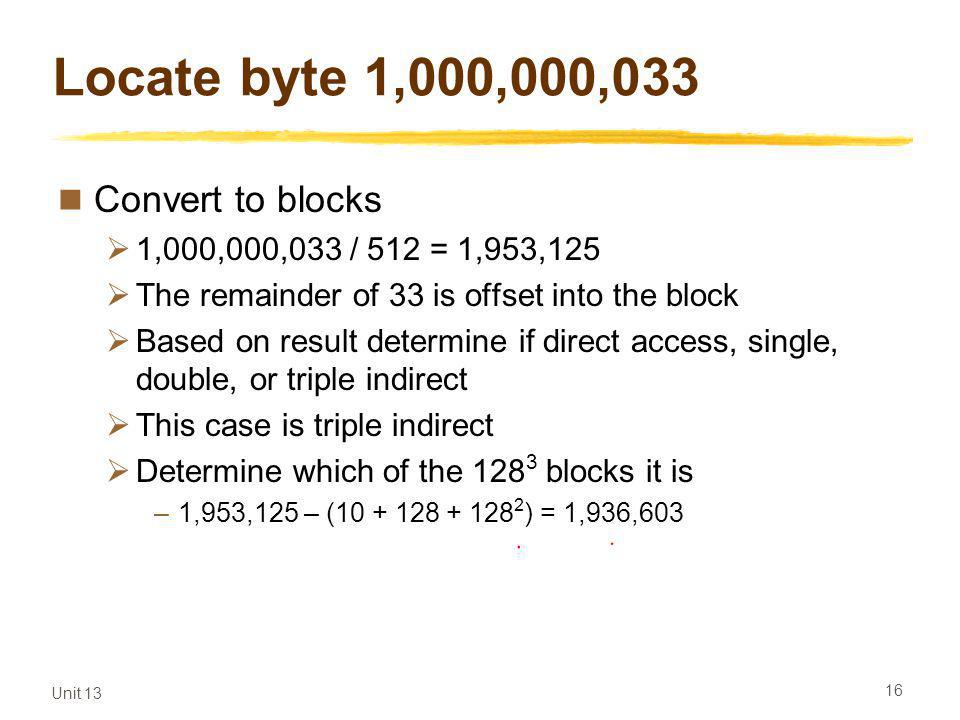

16 Unit Locate byte 1,000,000,033 Convert to blocks 1,000,000,033 / 512 = 1,953,125 The remainder of 33 is offset into the block Based on result determine if direct access, single, double, or triple indirect This case is triple indirect Determine which of the blocks it is –1,953,125 – ( ) = 1,936,603

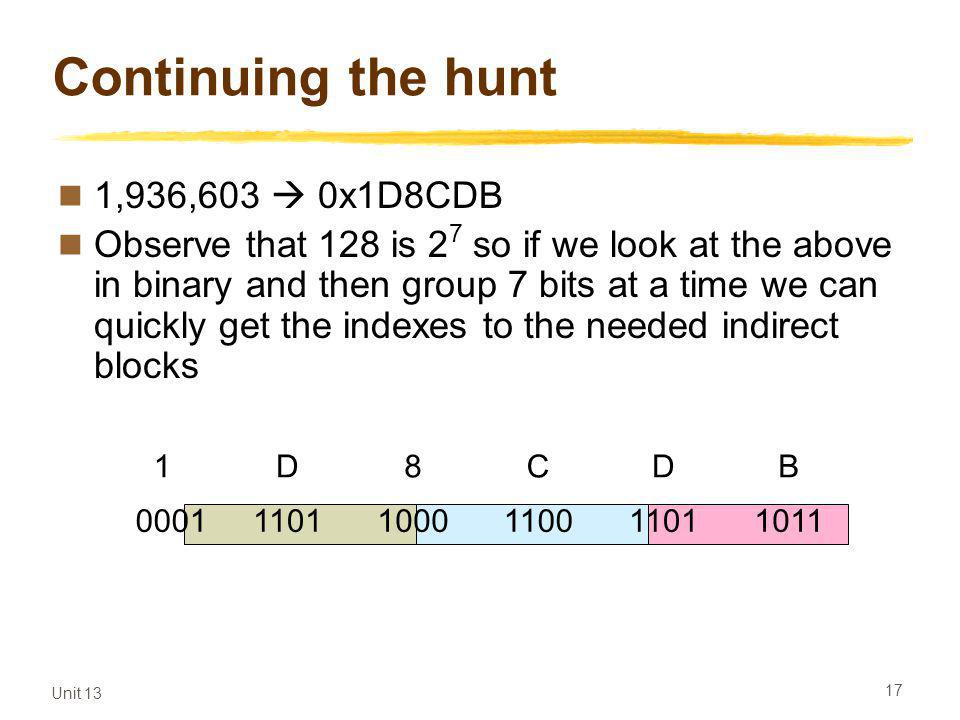

17 Unit Continuing the hunt 1,936,603 0x1D8CDB Observe that 128 is 2 7 so if we look at the above in binary and then group 7 bits at a time we can quickly get the indexes to the needed indirect blocks 1D8CDB

18 Unit FreeBSD 6.0 dinode.h struct ufs1_dinode { u_int16_tdi_mode;/* 0: IFMT, permissions; see below. */ int16_tdi_nlink;/* 2: File link count. */ union { u_int16_t oldids[2];/* 4: Ffs: old user and group ids. */ } di_u; u_int64_tdi_size;/* 8: File byte count. */ int32_tdi_atime;/* 16: Last access time. */ int32_tdi_atimensec;/* 20: Last access time. */ int32_tdi_mtime;/* 24: Last modified time. */ int32_tdi_mtimensec;/* 28: Last modified time. */ int32_tdi_ctime;/* 32: Last inode change time. */ int32_tdi_ctimensec;/* 36: Last inode change time. */ ufs1_daddr_tdi_db[NDADDR];/* 40: Direct disk blocks. */ ufs1_daddr_tdi_ib[NIADDR];/* 88: Indirect disk blocks. */ u_int32_tdi_flags;/* 100: Status flags (chflags). */ int32_tdi_blocks;/* 104: Blocks actually held. */ int32_tdi_gen;/* 108: Generation number. */ u_int32_tdi_uid;/* 112: File owner. */ u_int32_tdi_gid;/* 116: File group. */ int32_tdi_spare[2];/* 120: Reserved; currently unused */ };

19 Unit Superblock Located in first available sector after boot sector Maintains global file system information such as: Location of inode map and free inode list Location of the inode that corresponds to the root directory Location of list of free blocks Block size being used Sector size (anything except 512 is unusual) Dirty flag Loss of the super block is a catastrophe For security, it may be copied to other well known locations

20 Unit Installing a Disk As shipped the disk does not contain a file system (old disk drives didnt even contain tracks and sectors) When disk is installed must: Lay down tracks and sectors (nowadays done by manufacturer) Determine if all the sectors are good (nowadays done by manufacturer) Partition the disk into logical functional regions (optional) Create a file system in each partition (win: format, Unix: newfs ) Put down a superblock Create an inode map and free inode list Build the list of free blocks

21 Unit Metadata Data about data File metadata: Basically information in inode Describes owner of data, file size, etc File system metadata: Superblock information Block size, inode map, block lists, etc

22 Unit Directory File A directory is just a file that contains information to locate other files and directories A directory entry has a structure like the following typedef struct dirent32 { ino32_t d_ino; /* "inode number" of entry */ off32_t d_off; /* offset of disk directory entry */ uint16_t d_reclen; /* length of this record */ char d_name[1];/* name of file */ } dirent32_t; From: FreeBSD 5.2

23 Unit Superblock + Inodes + data blocks and directories Inode Map Free Blocks Inode of / Superblock Inode Inode Map Data Block Data Block Data Block Data Block Data Block Data Block Inode Block usr Directory Inode Data Block Data Block Indirect Data Block Data Block Data Block Data Block Data Block

24 Unit How it might look on disk Spindle

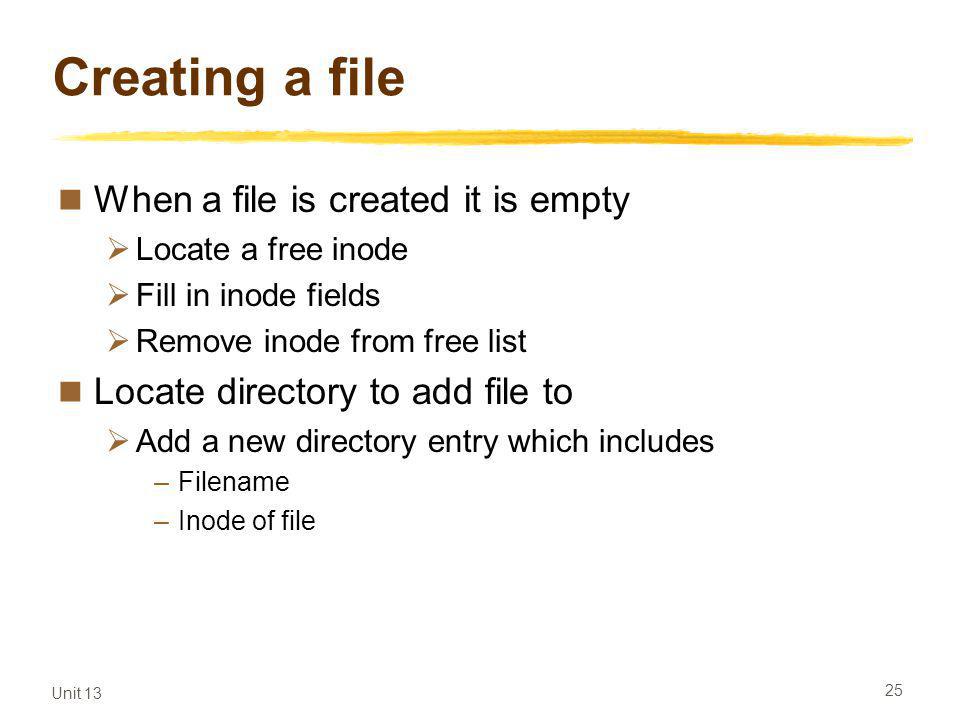

25 Unit Creating a file When a file is created it is empty Locate a free inode Fill in inode fields Remove inode from free list Locate directory to add file to Add a new directory entry which includes –Filename –Inode of file

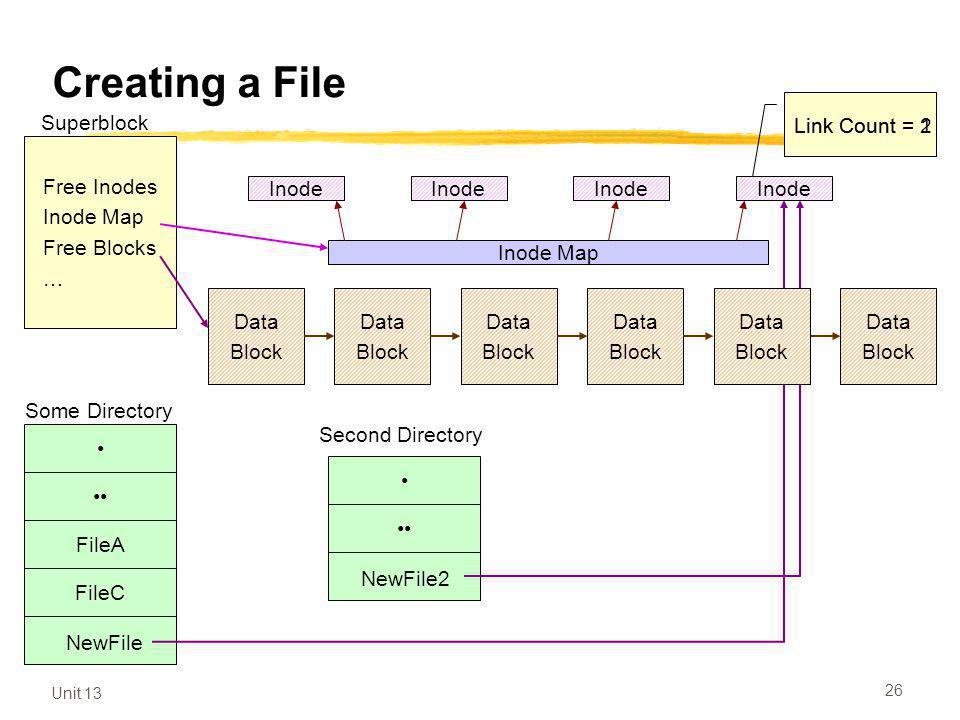

26 Unit Creating a File Free Inodes Inode Map Free Blocks … Superblock Inode Inode Map Data Block Data Block Data Block Data Block Data Block Some Directory FileA FileC NewFile Second Directory Link Count = 1 Link Count = 2 NewFile2 Data Block

27 Unit Steps in Writing a File Block If data goes into an existing block Make changes to in memory copy, write changed block Otherwise Locate a free block, write data Add free block to inode or indirect block May have to get a block to use as indirect block first

28 Unit Writing a File Block Free Inodes Inode Map Free Blocks … Superblock Inode Inode Map Data Block Data Block Data Block Data Block Data Block Data Block Some Directory FileA FileC NewFile Indirect Block

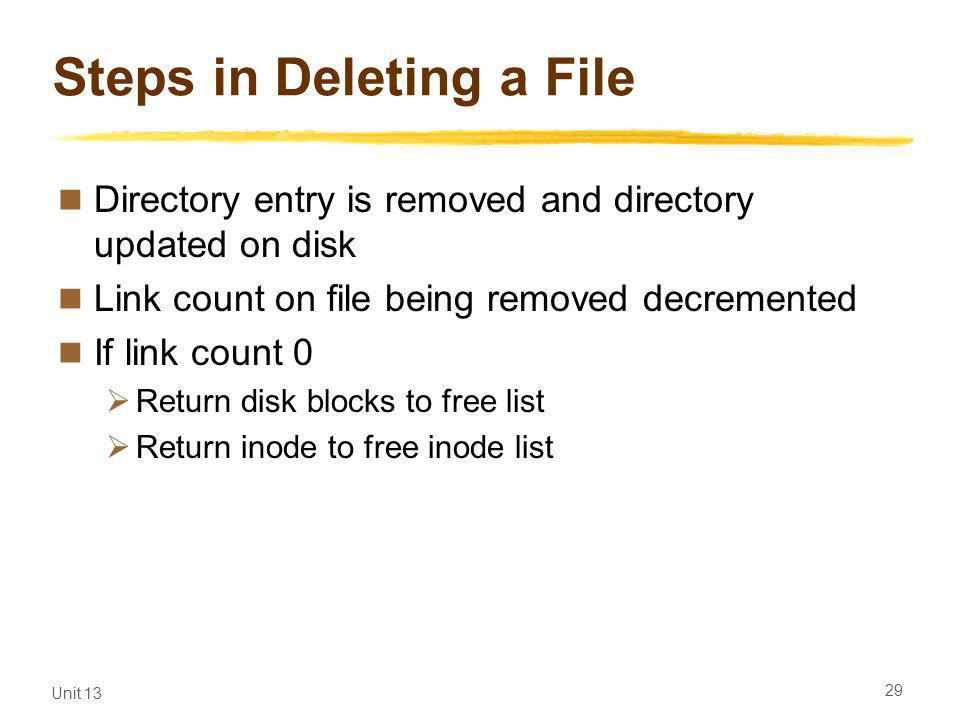

29 Unit Steps in Deleting a File Directory entry is removed and directory updated on disk Link count on file being removed decremented If link count 0 Return disk blocks to free list Return inode to free inode list

30 Unit Deleting a File Free Inodes Inode Map Free Blocks … Superblock Inode Inode Map Data Block Data Block Data Block Data Block Data Block Data Block Some Directory FileA FileC NewFile Indirect Block Link Count = 1Link Count = 0

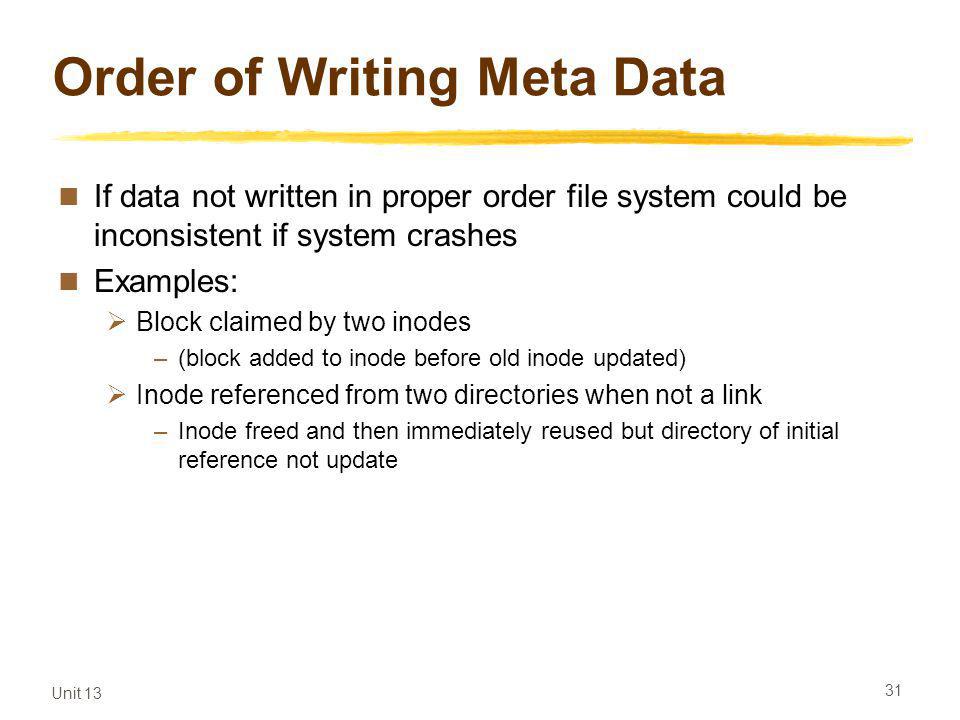

31 Unit Order of Writing Meta Data If data not written in proper order file system could be inconsistent if system crashes Examples: Block claimed by two inodes –(block added to inode before old inode updated) Inode referenced from two directories when not a link –Inode freed and then immediately reused but directory of initial reference not update

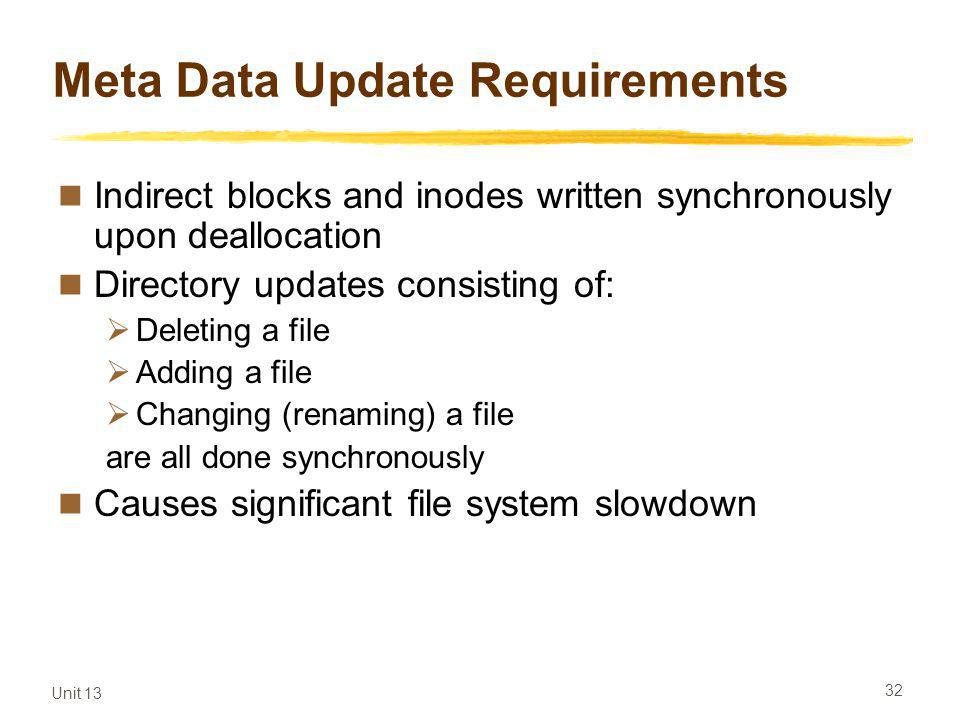

32 Unit Meta Data Update Requirements Indirect blocks and inodes written synchronously upon deallocation Directory updates consisting of: Deleting a file Adding a file Changing (renaming) a file are all done synchronously Causes significant file system slowdown

33 Unit Ordering Operations (BAD) Free Inodes Inode Map Free Blocks … Superblock Inode Inode Map Data Block Data Block Data Block Data Block Data Block Data Block Some Directory FileA FileC NewFile Indirect Block

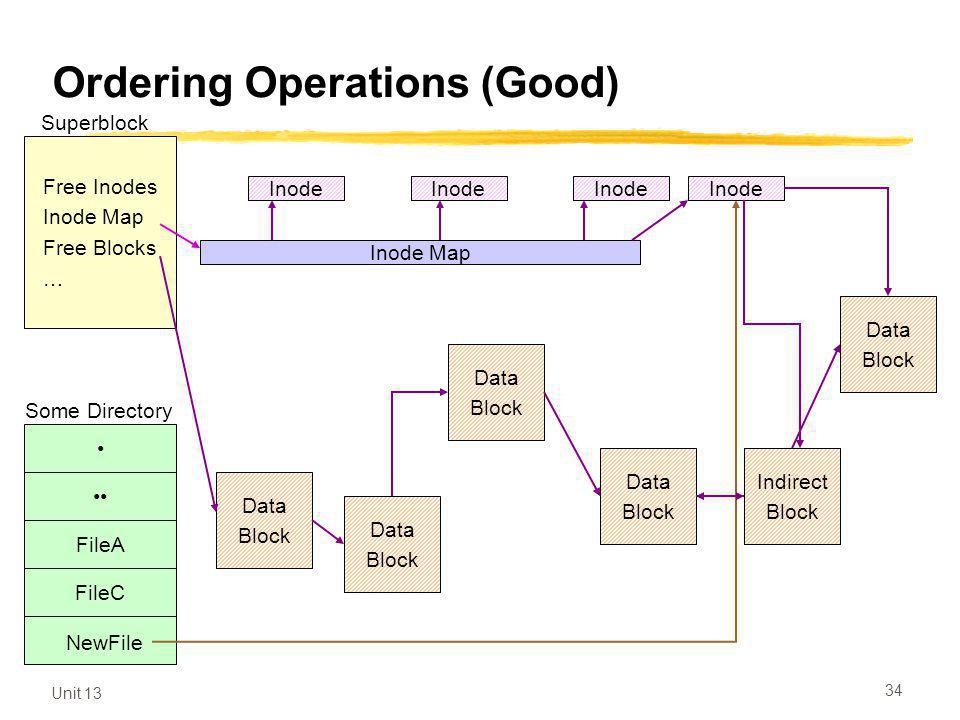

34 Unit Ordering Operations (Good) Free Inodes Inode Map Free Blocks … Superblock Inode Inode Map Data Block Data Block Data Block Data Block Data Block Data Block Some Directory FileA FileC NewFile Indirect Block

35 Unit Actions to Read File Data To open a file and read data the system must: Read the inode map Read the inode for the file Read 0 – 3 indirect blocks Read the data block With this approach 3 – 6 reads are needed

36 Unit Actions to Write File Data To open a file and write data the system must: Read the inode map Read the inode for the file Read 0 – 3 indirect blocks Allocate and insert 0 – 3 indirect blocks Read and or allocate the data block, change it, write it back

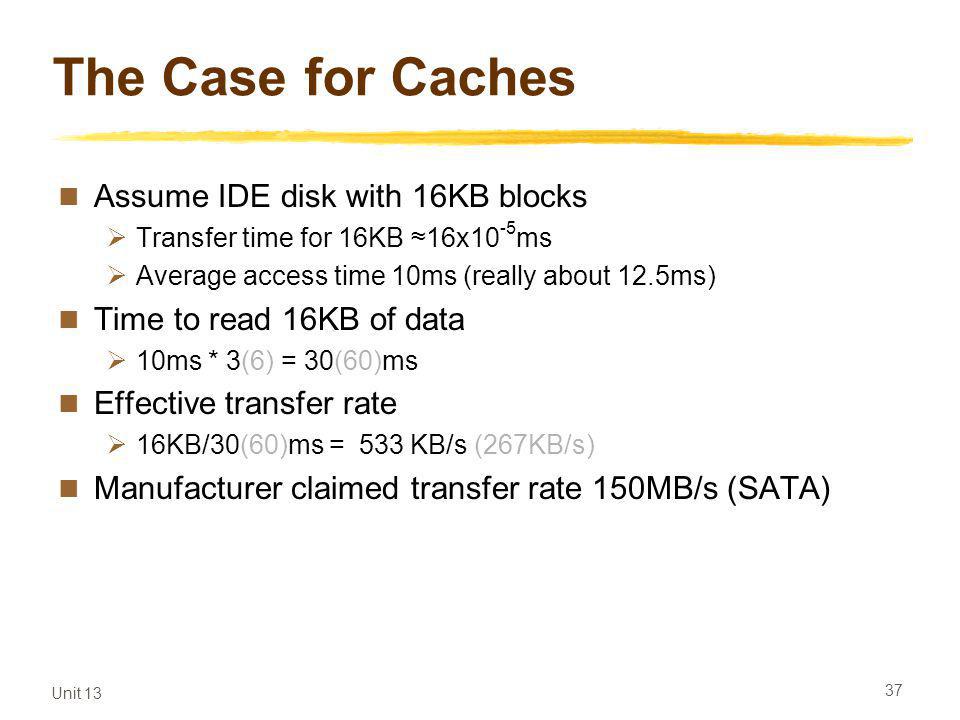

37 Unit The Case for Caches Assume IDE disk with 16KB blocks Transfer time for 16KB 16x10 -5 ms Average access time 10ms (really about 12.5ms) Time to read 16KB of data 10ms * 3(6) = 30(60)ms Effective transfer rate 16KB/30(60)ms = 533 KB/s (267KB/s) Manufacturer claimed transfer rate 150MB/s (SATA)

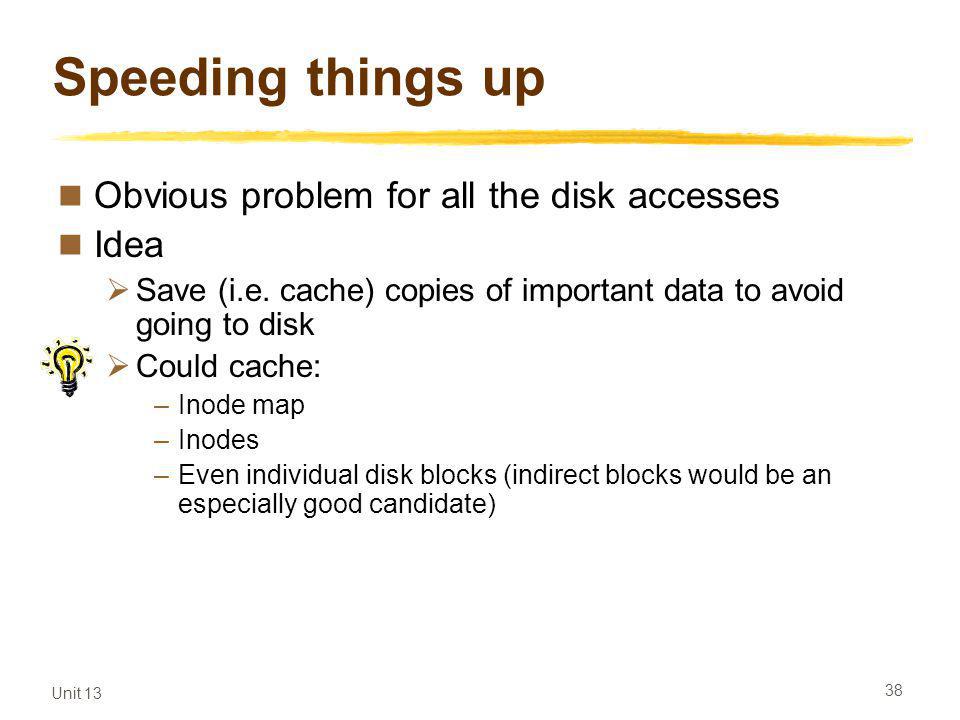

38 Unit Speeding things up Obvious problem for all the disk accesses Idea Save (i.e. cache) copies of important data to avoid going to disk Could cache: –Inode map –Inodes –Even individual disk blocks (indirect blocks would be an especially good candidate)

39 Unit Where are caches used? Adapted from: Computer Systems: A Programmers Perspective Registers On-chip L1 cache (SRAM) Main memory (DRAM) Local secondary storage (local disks) Larger, slower, and cheaper (per byte) storage devices Remote secondary storage (distributed file systems, Web servers) Local disks hold files retrieved from disks on remote network servers. Main memory holds disk blocks retrieved from local disks. Off-chip L2 cache (SRAM) L1 cache holds cache lines retrieved from the L2 cache. CPU registers hold words retrieved from cache memory. L2 cache holds cache lines retrieved from memory. L0: L1: L2: L3: L4: L5: Smaller, faster, and costlier (per byte) storage devices

40 Unit The Cost of Caching It requires storage, that storage could be used for something else If changes are made to the cached copy then the copy and entity being cached are inconsistent Keeping things consistent can be a complex task especially if there are multiple cached copies

41 Unit File System - Summary Components of a Unix file system: superblock, inodes, directories, indirect blocks, data blocks The inode does not contain the files name A file can be associated with several different names When the inodes reference count goes to 0 the resources used by the file can be reclaimed All the interesting information about a file (e.g. owner, permissions etc.) is contained in the inode To read/write a file block, need to access multiple blocks Caching can speedup access, but it is expensive to maintain consistency of cached data
