Reliability of Disk Systems

2
Reliability So far, we looked at ways to improve the performance of disk systems. Next, we will look at ways to improve the reliability of disk systems. What is reliability? –Essentially, it is the availability of data when there is a disk failure of some sort. This is achieved at the cost of some redundancy –data and/or disks.

3
Intermittent Failures In an intermittent failure, we may get several bad reads, for example, but with repeated attempts we may eventually get a good. Disk sectors are stored with some redundant bits that can be used to tell us if an I/O operation was successful. For writes, we may want to again check the status –We can, of course, re-read the sector and compare it to the original –But this is expensive –Instead, we simply re-read the sector and check the status bits

4

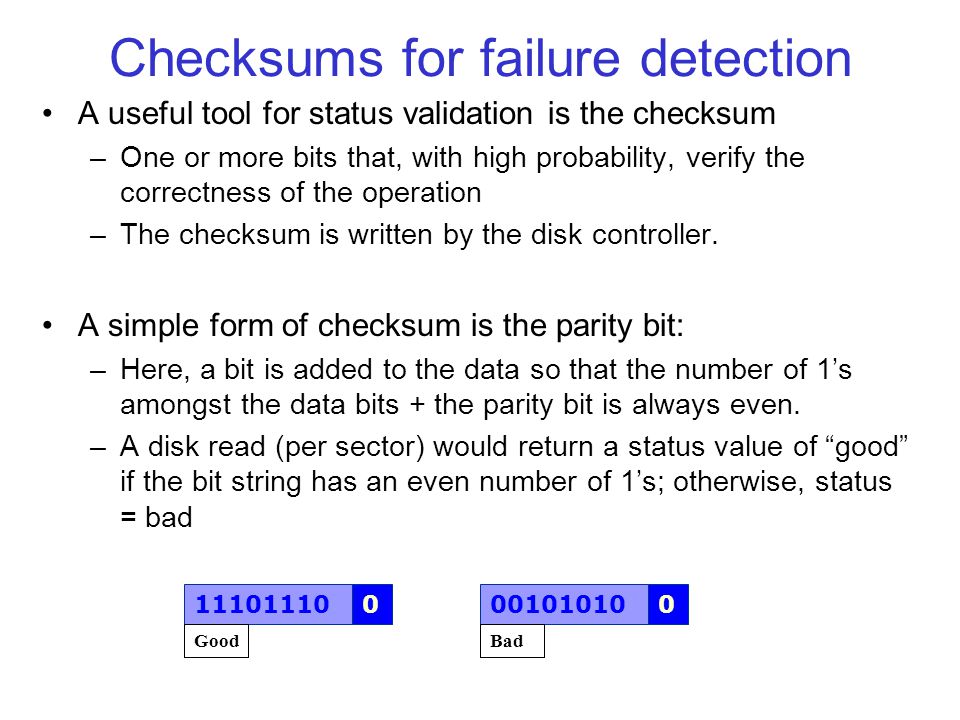

Checksums for failure detection A useful tool for status validation is the checksum –One or more bits that, with high probability, verify the correctness of the operation –The checksum is written by the disk controller. A simple form of checksum is the parity bit: –Here, a bit is added to the data so that the number of 1s amongst the data bits + the parity bit is always even. –A disk read (per sector) would return a status value of good if the bit string has an even number of 1s; otherwise, status = bad 111011100 Good 001010100 Bad

5

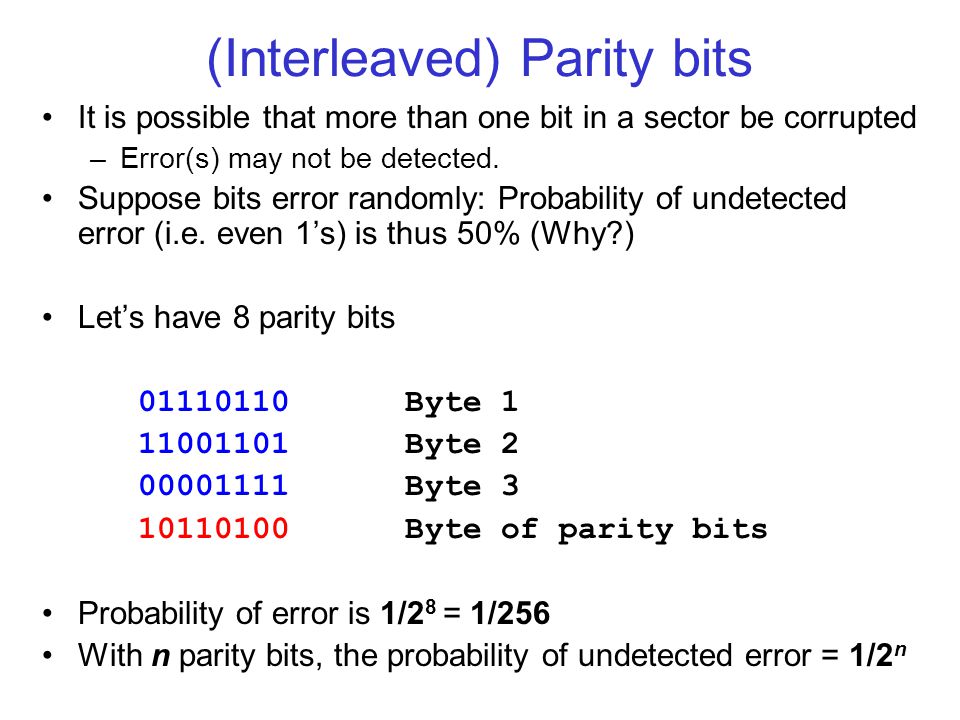

(Interleaved) Parity bits It is possible that more than one bit in a sector be corrupted –Error(s) may not be detected. Suppose bits error randomly: Probability of undetected error (i.e. even 1s) is thus 50% (Why?) Lets have 8 parity bits 01110110 Byte 1 11001101 Byte 2 00001111 Byte 3 10110100 Byte of parity bits Probability of error is 1/2 8 = 1/256 With n parity bits, the probability of undetected error = 1/2 n

6
Recovery from disk crashes Mean time to failure (MTTF) = when 50% of the disks have crashed, typically 10 years Simplified (assuming this happens linearly) –In the 1 st year = 5%, –In the 2 nd year = 5%, –… –In the 20 th year = 5% However the mean time to a disk crash doesnt have to be the same as the mean time to data loss; there are solutions.

7
Redundant Array of Independent Disks, RAID RAID 1:Mirror each disk (data/redundant disks) If a disk fails, restore using the mirror Assume: 5% failure per year; MTTF = 10 years (for disks). 3 hours to replace and restore failed disk. If a failure to one disk occurs, then the other better not fail in the next three hours. Probability of failure = 5% 3/(24 365) = 1/58400. If one disk fails every 10 years (10 5% = 50%), then one of two will fail every 5 years (5 (5% + 5%) = 50% ). One in 58,400 of those failures results in data loss; MTTF = 292,000 years (5 58,400 = 292,000). Drawback: We need one redundant disk for each data disk. This is the mean time to failure for data.

8
RAID 4 RAID 4: One redundant disk only. n data disks & 1 redundant disk (for any n) Well refer to the expression x y as modulo-2 sum of x and y (XOR) –E.g. 11110000 10101010 = 01011010 Now, each block in the redundant disk has the modulo-2 sum for the corresponding blocks in the other disks. i th Block of Disk 1: 11110000 i th Block of Disk 2: 10101010 i th Block of Disk 3: 00111000 i th Block of red. disk: 01100010 In effect this is just a distributed form of the block- interleaved parity discussed earlier.

9

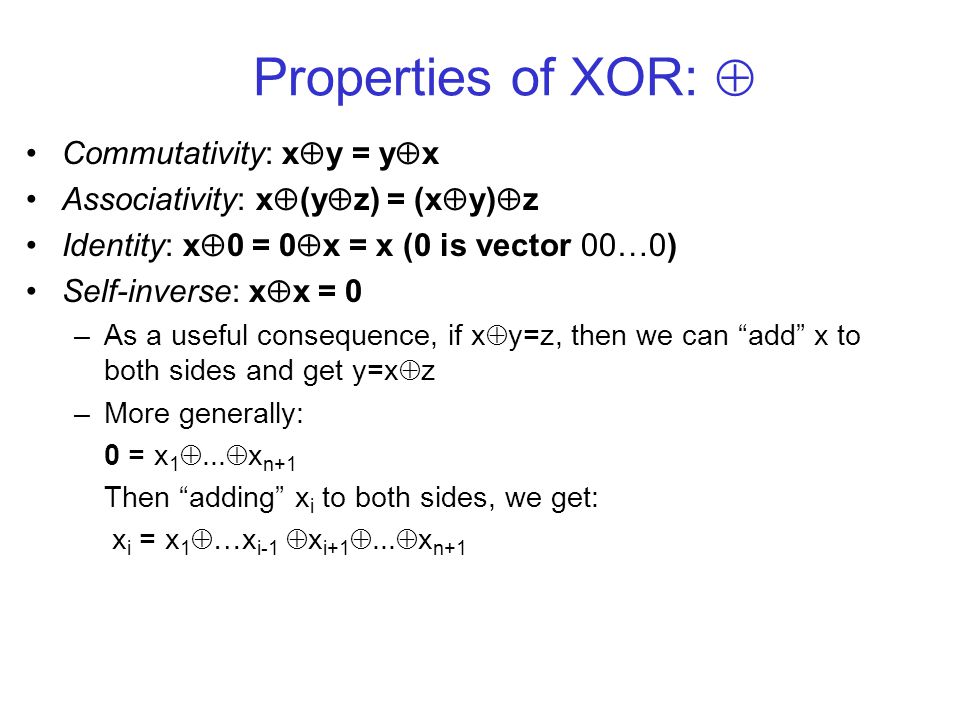

Properties of XOR: Commutativity: x y = y x Associativity: x (y z) = (x y) z Identity: x 0 = 0 x = x (0 is vector 00…0) Self-inverse: x x = 0 –As a useful consequence, if x y=z, then we can add x to both sides and get y=x z –More generally: 0 = x 1... x n+1 Then adding x i to both sides, we get: x i = x 1 …x i-1 x i+1... x n+1

10

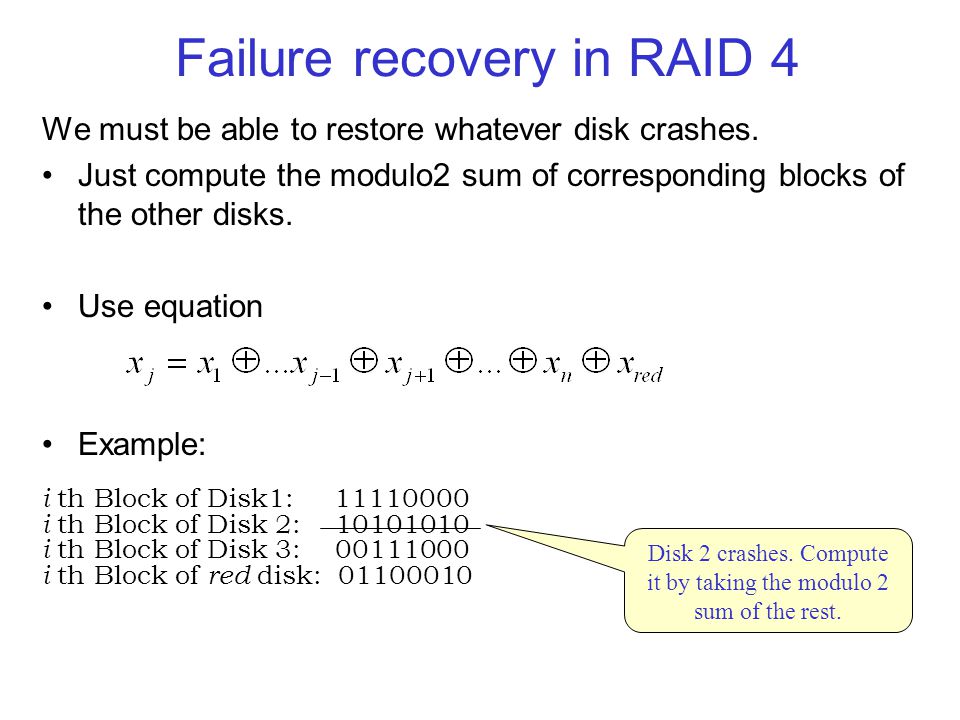

Failure recovery in RAID 4 We must be able to restore whatever disk crashes. Just compute the modulo2 sum of corresponding blocks of the other disks. Use equation Example: i th Block of Disk1: 11110000 i th Block of Disk 2: 10101010 i th Block of Disk 3: 00111000 i th Block of red disk: 01100010 Disk 2 crashes. Compute it by taking the modulo 2 sum of the rest.

11
RAID 4 (Contd) Maintaining RAID 4 is relatively easy: Reading: as usual –Interesting possibility: If we want to read from disk i, but it is busy and all other disks are free, then instead we can read the corresponding blocks from all other disks and modulo2 sum them. Writing: –Write block. –Update redundant block

12
How do we get the value for the redundant block? Naively: Read all n-1 corresponding blocks n+1 disk I/Os, which is n-1 blocks read, 1 data block write, 1 redundant block write. Better: How?

13
How do we get the value for the redundant block? Better Writing: To write block j of data disk i (new value = v): –Read old value of that block, say o. –Read the j th block of the redundant disk, value = r. –Compute w = v o r. –Write v in block j of disk i. –Write w in block j of the redundant disk. Total: 4 disk I/O; (true for any number of data disks) Problem Why does this work? –Intuition: v o is the change to the parity. –Redundant disk must change to compensate.

14
Example i th Block of Disk1: 11110000 x1 i th Block of Disk 2: 10101010 x2 = o i th Block of Disk 3: 00111000 x3 i th Block of red disk: 01100010 r Suppose we change 10101010 into 01101110 10101010 o 01101110 v 01100010 r --------------- 10100110 w 11110000 x1 01101110 x2 = v 00111000 x3 ------------- 10100110 w = new r If done the naïve way

15
RAID 5 RAID 4: Problem: The redundant disk is involved in every write Bottleneck! Solution is RAID 5: vary the redundant disk for different blocks. –Example: n+1 disks; –cylinder j is redundant on disk i if i = j mod n+1. Example: n=3. So, there are 4 disks. –First disk numbered 0, would be the redundant when considering cylinders numbered: 0, 4, 8, 12 etc. (because they leave reminder 0 when divided by 4). –Disk numbered 1, would be the redundant for its cylinders numbered: 1, 5, 9, 13. And so on Cylinder 2 Cylinder 3 1 2 3 Cylinder 1 Disk 0 Cylinder 2 Cylinder 3 0 2 3 Cylinder 0 Disk 1 Cylinder 1 Cylinder 3 0 1 3 Cylinder 0 Disk 2 Cylinder 1 Cylinder 2 0 1 2 Cylinder 0 Disk 3

16

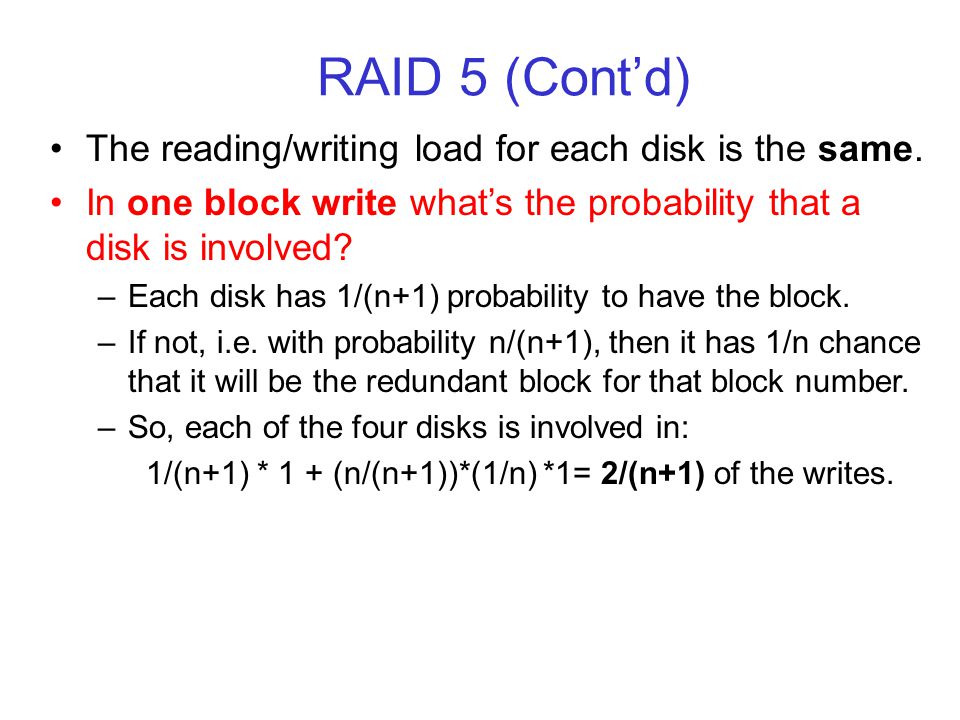

RAID 5 (Contd) The reading/writing load for each disk is the same. In one block write whats the probability that a disk is involved? –Each disk has 1/(n+1) probability to have the block. –If not, i.e. with probability n/(n+1), then it has 1/n chance that it will be the redundant block for that block number. –So, each of the four disks is involved in: 1/(n+1) * 1 + (n/(n+1))*(1/n) *1= 2/(n+1) of the writes.

17

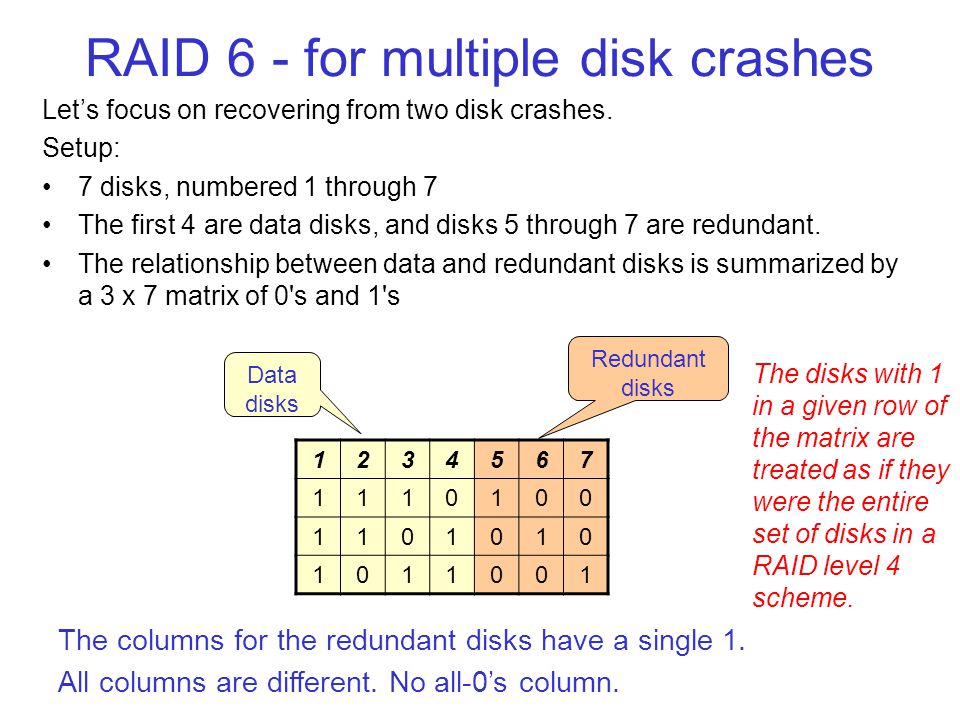

RAID 6 - for multiple disk crashes Lets focus on recovering from two disk crashes. Setup: 7 disks, numbered 1 through 7 The first 4 are data disks, and disks 5 through 7 are redundant. The relationship between data and redundant disks is summarized by a 3 x 7 matrix of 0's and 1's 1234567 1110100 1101010 1011001 The columns for the redundant disks have a single 1. All columns are different. No all-0s column. Data disks Redundant disks The disks with 1 in a given row of the matrix are treated as if they were the entire set of disks in a RAID level 4 scheme.

18
RAID 6 - example 1) 11110000 2) 10101010 3) 00111000 4) 01000001 5) 01100010 6) 00011011 7) 10001001 1234567 1110100 1101010 1011001 Redundant disks Data disks disk 5 is modulo 2 sum of disks 1,2,3 disk 6 is modulo 2 sum of disks 1,2,4 disk 7 is modulo 2 sum of disks 1,3,4

19
1234567 1110100 1101010 1011001 Why is it possible to recover from b a two disk crashes? r Let the failed disks be a and b. Since all columns of the redundancy matrix are different, we must be able to find some row r in which the columns for a and b are different. –Suppose that a has 0 in row r, while b has 1 there. Then we can compute the correct b by taking the modulo-2 sum of corresponding bits from all the disks other than b that have 1 in row r. –Note that a is not among these, so none of them have failed. Having done so, we must recompute a, with all other disks available. RAID 6 Failure Recovery

20
Example: Before failure After failure 1234567 1110100 1101010 1011001

21
RAID 6 – How many redundant disks? The number of disks can be one less than any power of 2, say 2 k – 1. Of these disks, k are redundant, and the remaining 2 k – 1– k are data disks, so the redundancy grows roughly as the logarithm of the number of data disks. For any k, we can construct the redundancy matrix by writing all possible columns of k 0's and 1's, except the all-0's column. –The columns with a single 1 correspond to the redundant disks, and the columns with more than one 1 are the data disks. Note finally that we can combine RAID 6 with RAID 5 to reduce the performance bottleneck on the redundant disks

22
Exercises

23

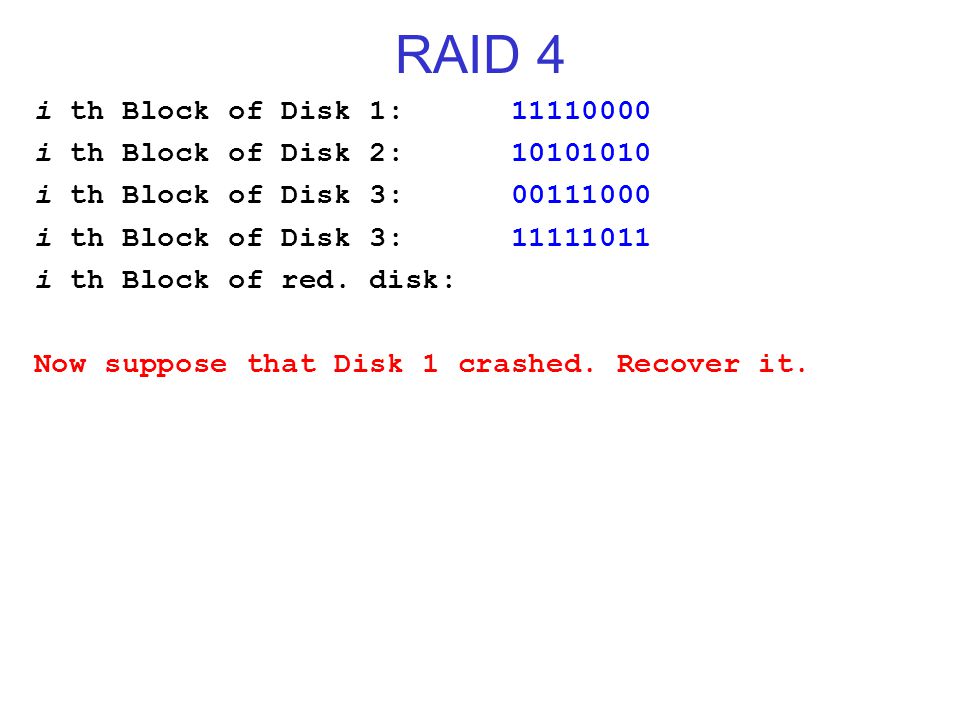

RAID 4 i th Block of Disk 1: 11110000 i th Block of Disk 2: 10101010 i th Block of Disk 3: 00111000 i th Block of Disk 3: 11111011 i th Block of red. disk: Now suppose that Disk 1 crashed. Recover it.

24
RAID 6 1) 11110000 2) 10101010 3) 00111000 4) 01000001 5) 6) 7) 1234567 1110100 1101010 1011001 Redundant disks Data disks Now suppose that Disk 2 and Disk 5 crash. Recover them.

25
RAID 6 - exercise Find a RAID level 6 scheme using 15 disks, 4 of which are redundant. 123456789101112131415 101110001111000 110110110100100 111011010010010 111101101000001

26
In-Class exercise Suppose we have four disks: 1 and 2 are data disks, 3 and 4 are redundant Disk 3 is a mirror of 1. Disk 4 holds parity check bits for disks 2 and 3 which combination of simultaneous 2-disk failures can we recover from?
