1 www.novadata.co.uk Changing Local Time on a VDO Digital Tachograph Welcome to Novadata Transport Training

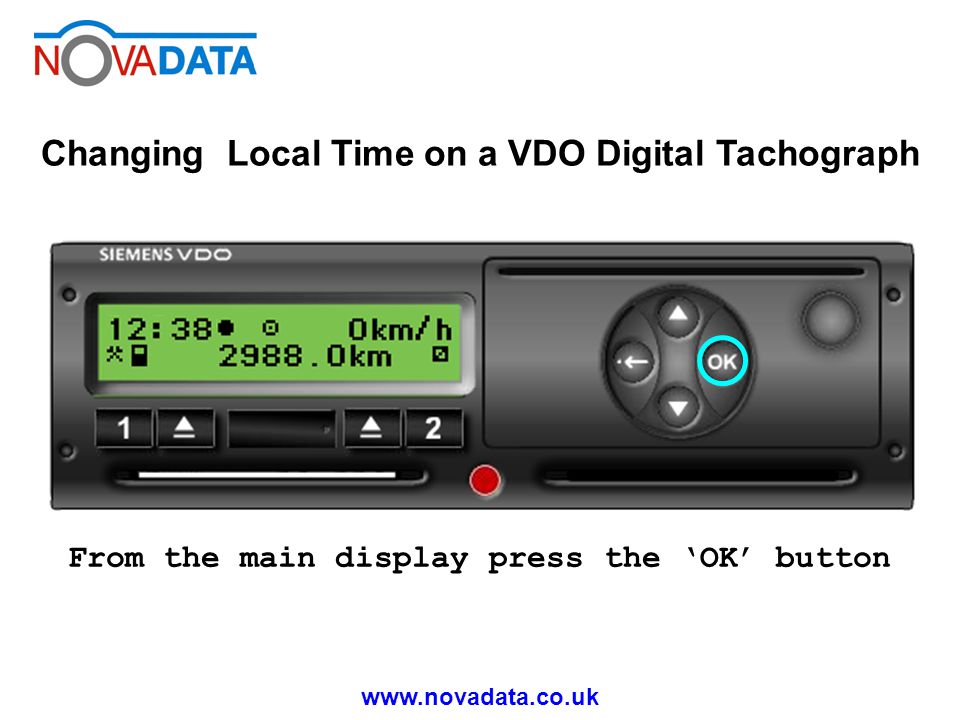

2 www.novadata.co.uk Changing Local Time on a VDO Digital Tachograph From the main display press the OK button

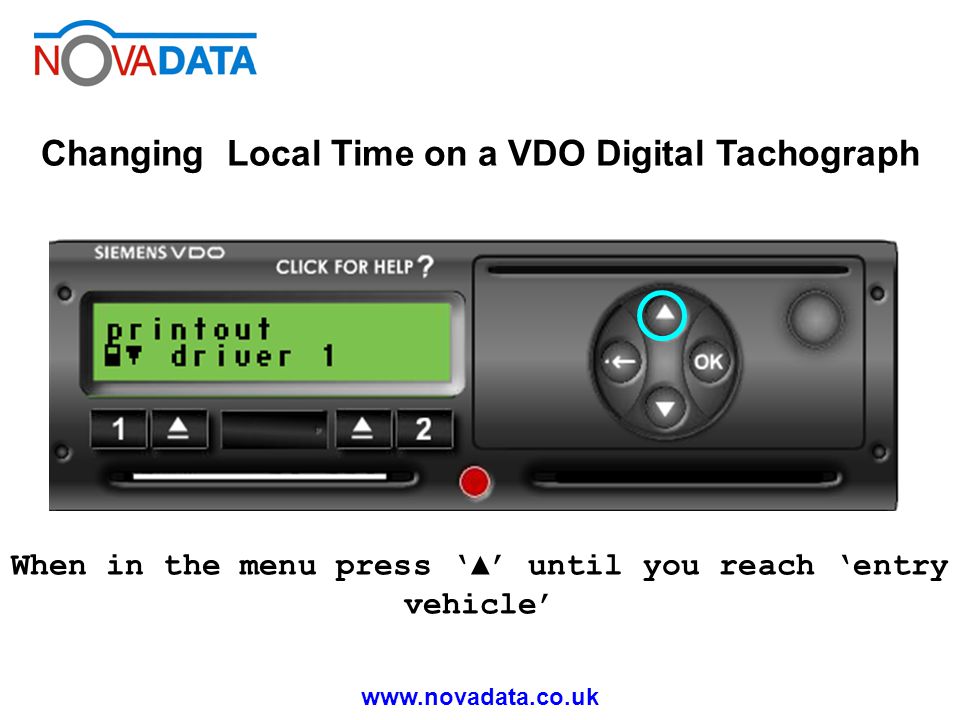

3 www.novadata.co.uk Changing Local Time on a VDO Digital Tachograph When in the menu press until you reach entry vehicle

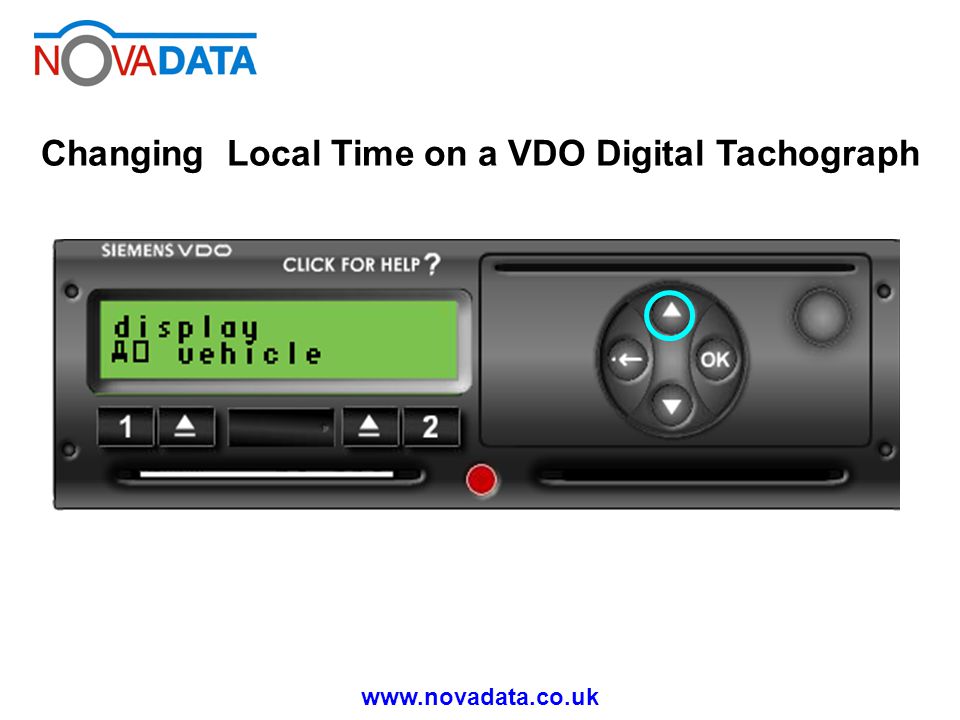

4 www.novadata.co.uk Changing Local Time on a VDO Digital Tachograph

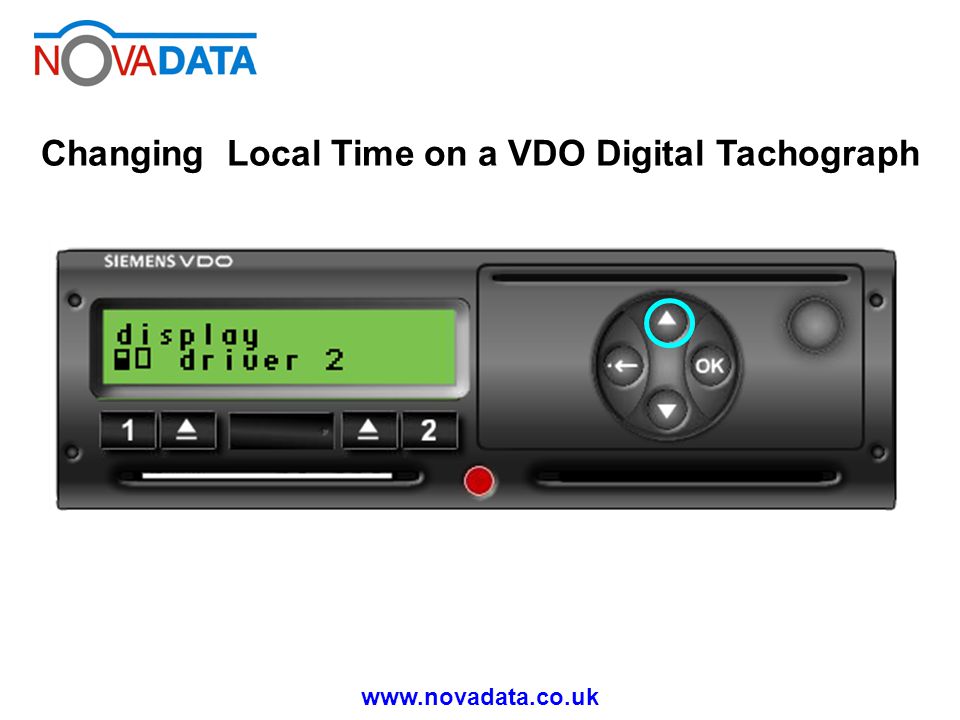

5 www.novadata.co.uk Changing Local Time on a VDO Digital Tachograph

6 www.novadata.co.uk Changing Local Time on a VDO Digital Tachograph

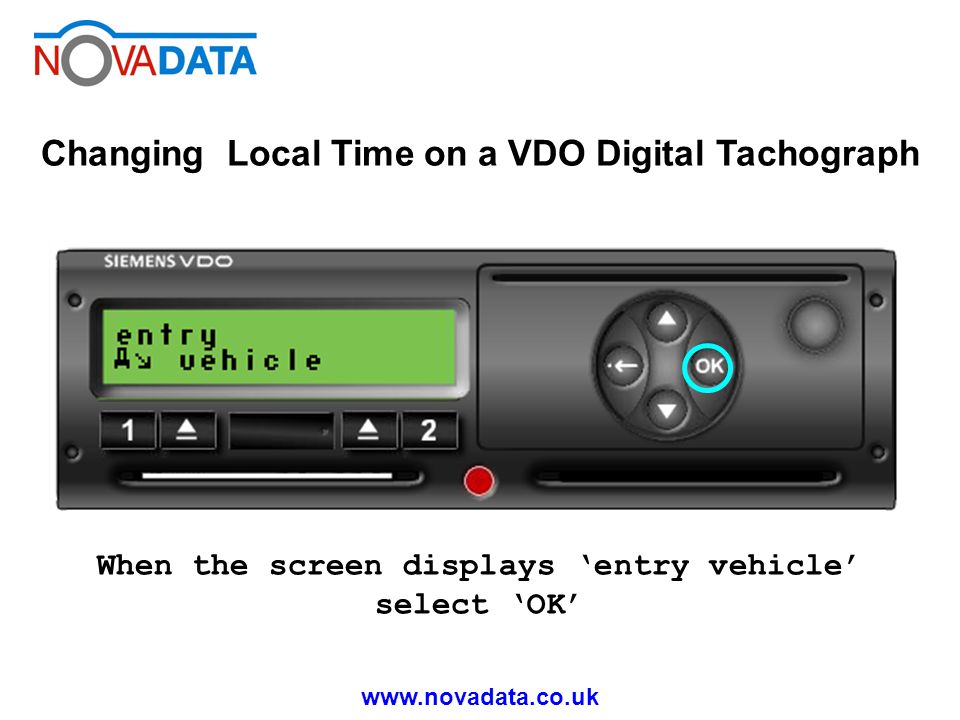

7 www.novadata.co.uk Changing Local Time on a VDO Digital Tachograph When the screen displays entry vehicle select OK

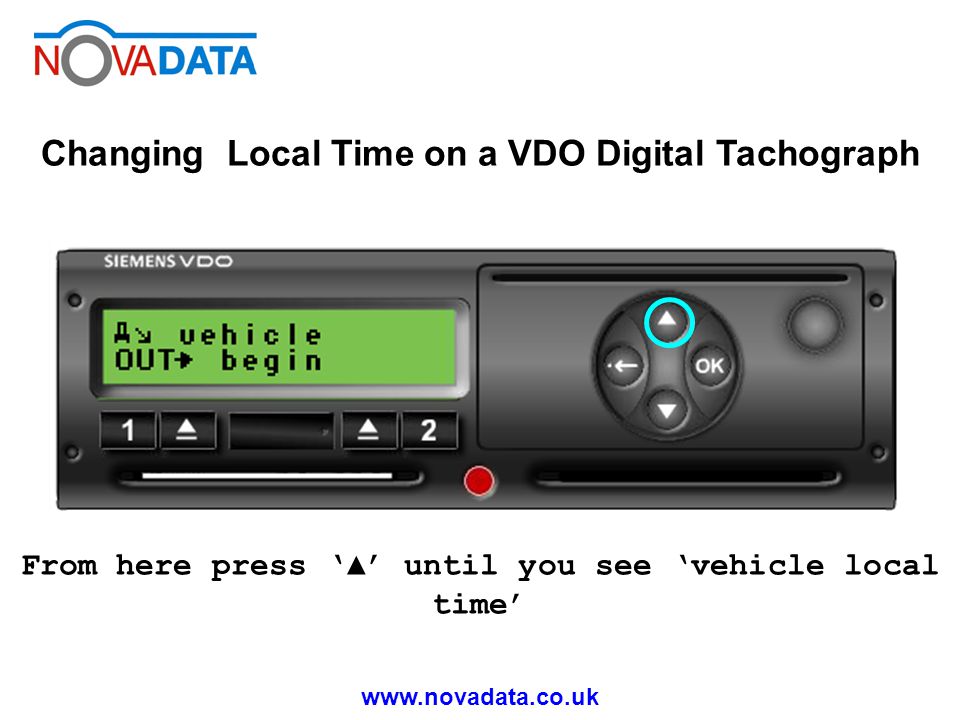

8 www.novadata.co.uk Changing Local Time on a VDO Digital Tachograph From here press until you see vehicle local time

9 www.novadata.co.uk Changing Local Time on a VDO Digital Tachograph

10 www.novadata.co.uk Changing Local Time on a VDO Digital Tachograph Select OK to change the local time

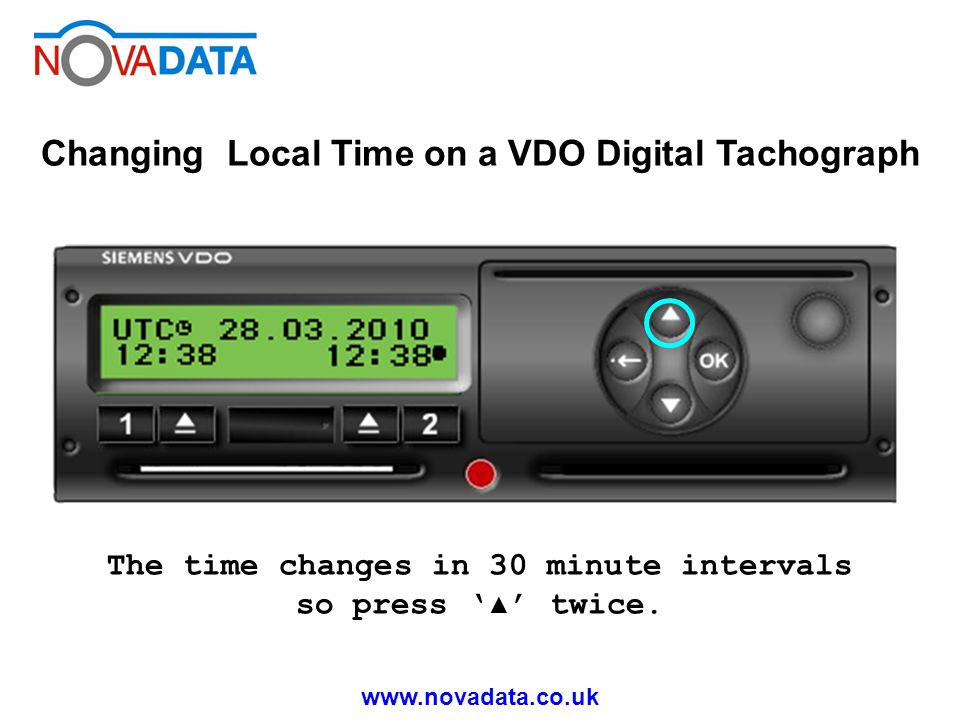

11 www.novadata.co.uk Changing Local Time on a VDO Digital Tachograph The time changes in 30 minute intervals so press twice.

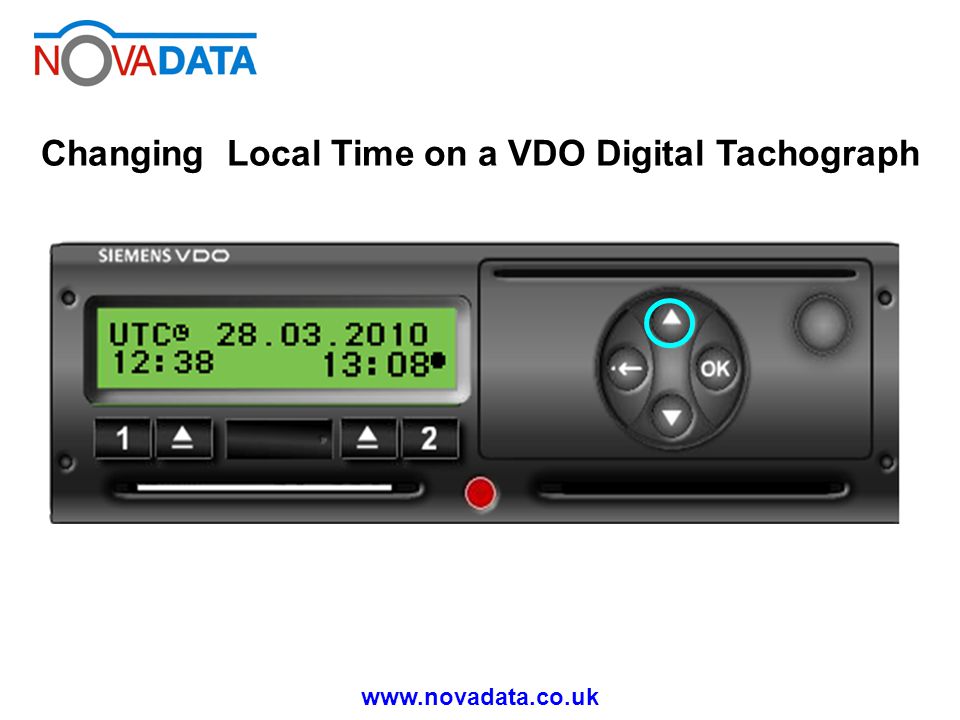

12 www.novadata.co.uk Changing Local Time on a VDO Digital Tachograph

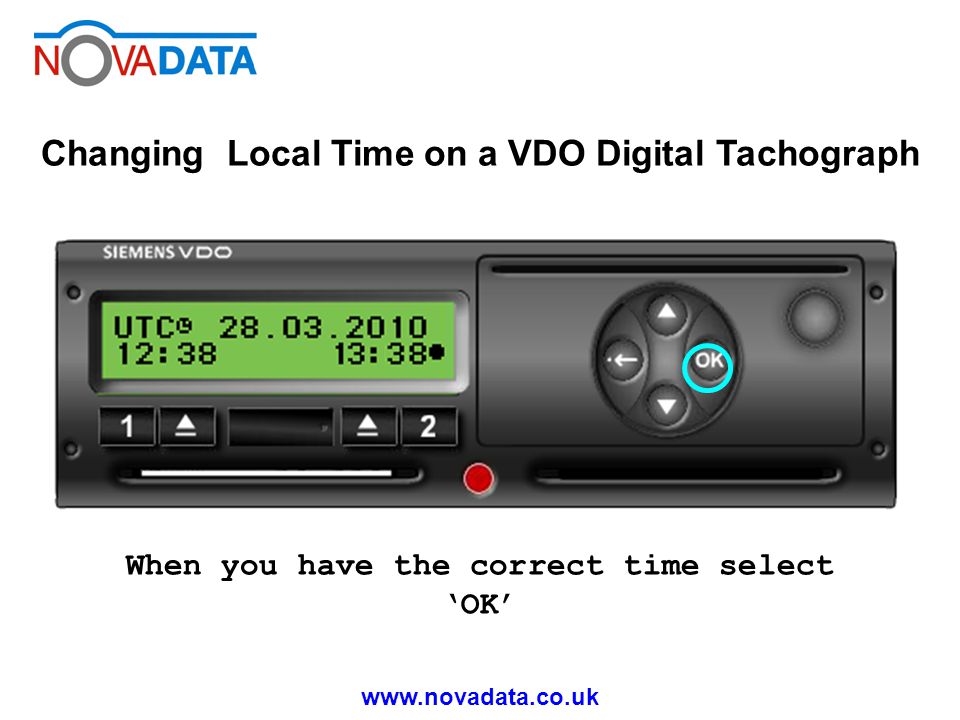

13 www.novadata.co.uk Changing Local Time on a VDO Digital Tachograph When you have the correct time select OK

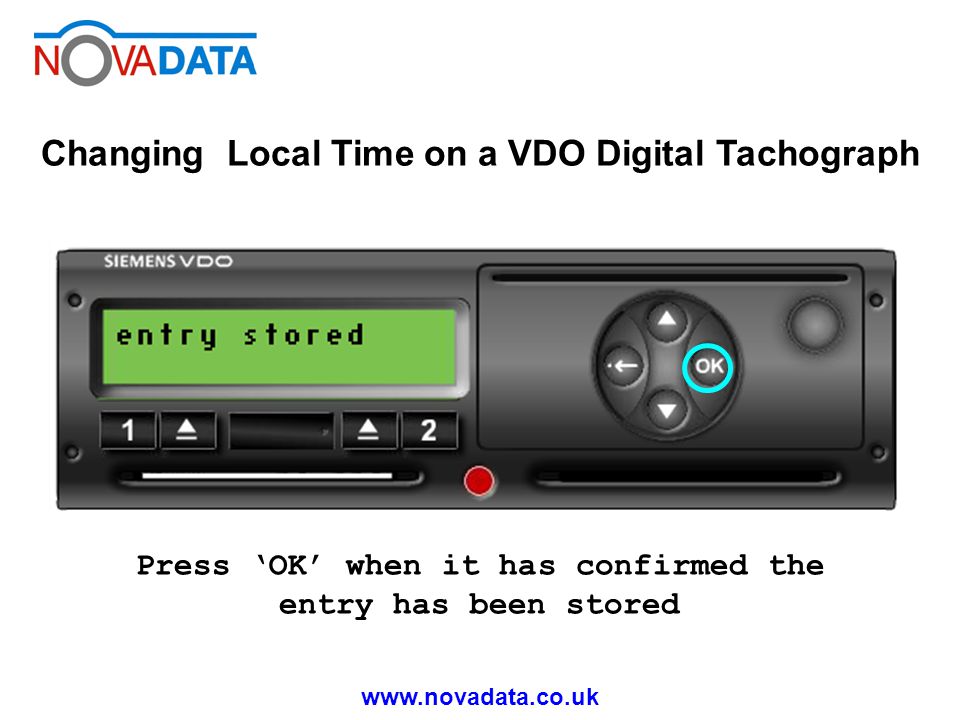

14 www.novadata.co.uk Changing Local Time on a VDO Digital Tachograph Press OK when it has confirmed the entry has been stored

15 www.novadata.co.uk Changing Local Time on a VDO Digital Tachograph Press the · button to leave the vehicle entry menu

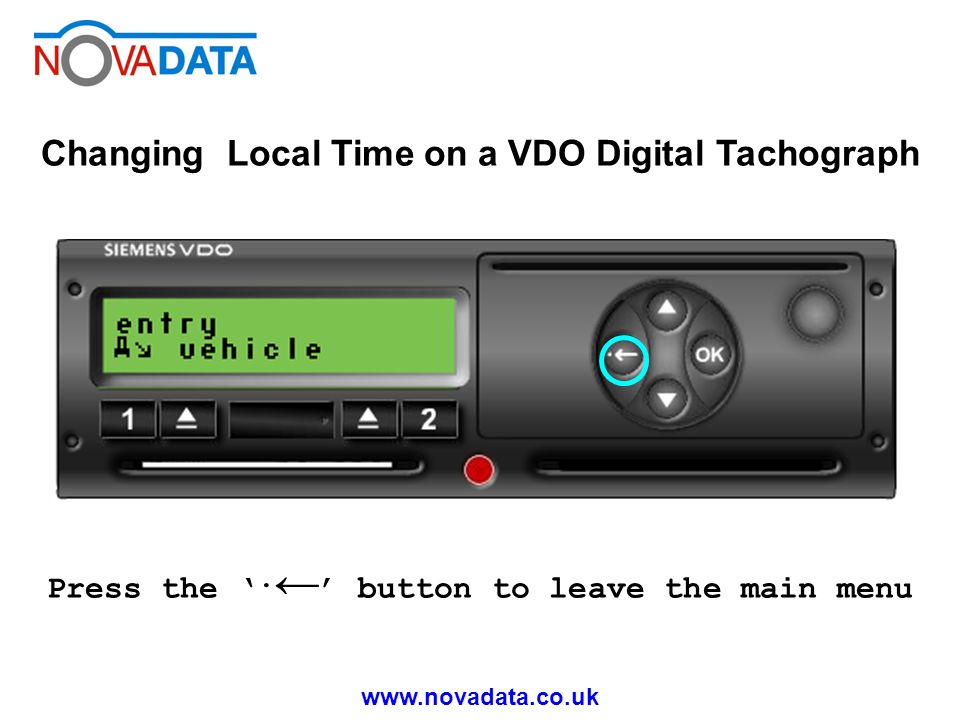

16 www.novadata.co.uk Changing Local Time on a VDO Digital Tachograph Press the · button to leave the main menu

17 www.novadata.co.uk Changing Local Time on a VDO Digital Tachograph Press OK if you wish to leave the main menu

18 www.novadata.co.uk Changing Local Time on a VDO Digital Tachograph The Local Time has now been changed

19 www.novadata.co.uk Changing Local Time on a VDO Digital Tachograph Novadata Transport Training 3 Blackwell Drive Braintree Essex CM7 2QJ 01376 552999 www.novadata.co.uk enquires@novadata.co.uk
