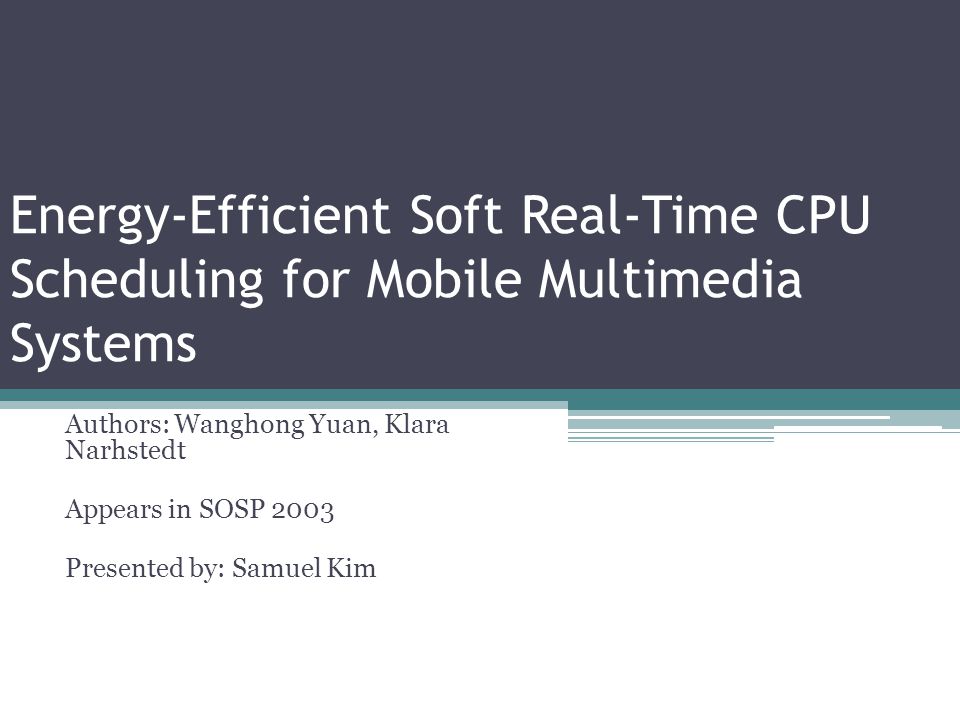

1 Energy-Efficient Soft Real-Time CPU Scheduling for Mobile Multimedia Systems Authors: Wanghong Yuan, Klara Narhstedt Appears in SOSP 2003 Presented by: Samuel Kim

2 Table of Contents About the Authors Introduction Algorithm Implementation Results Related Works Summary

3 About the Authors Wanghong Yuan B.S., M.S. Peking University Ph.D. University of Illinois at Urbana-Champaign Software Engineer at Google Klara Nahrstedt Ph.D. University of Pennsylvania Professor at University of Illinois at Urbana- Champaign

4 Table of Contents About the Authors Introduction Algorithm Implementation Experimental Results Related Works Conclusion

5 Introduction Multimedia Becoming A Standard in Mobile Computing Audio Video Data Goal on Mobile Systems Manage System Resources Quality of Service - High Performance Energy Efficiency - Battery Life

6 Greater Control Over System Resources Hardware Adaptability CPU Voltage Scaling E = aCVf 2 t Software Adaptability Application Quality levels Statistical Performance Requirements Soft Real-Time guarantees

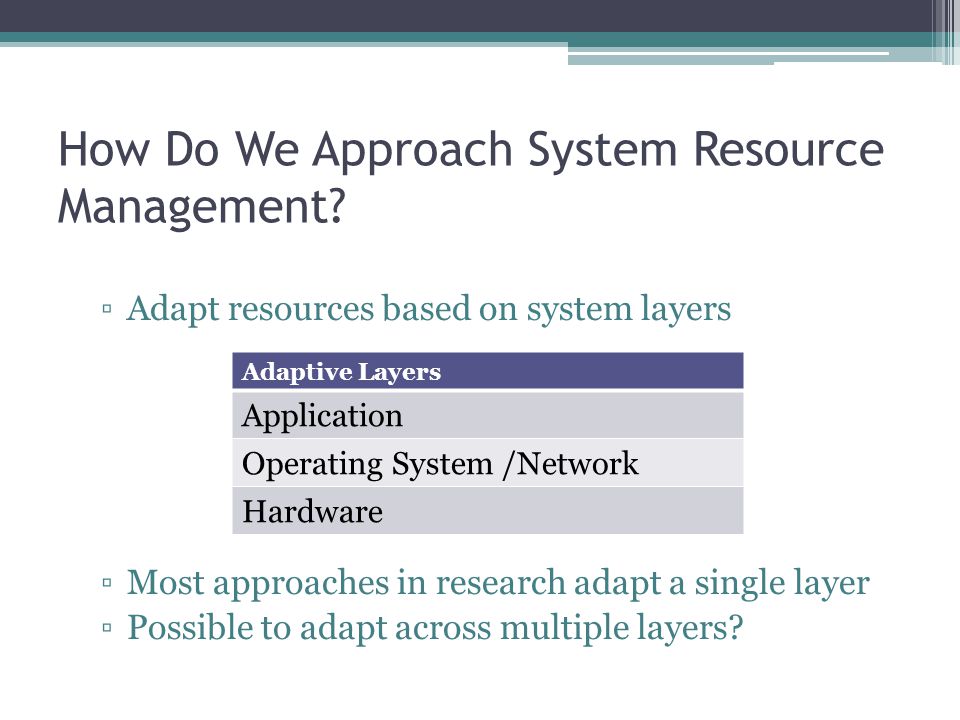

7 How Do We Approach System Resource Management? Adapt resources based on system layers Most approaches in research adapt a single layer Possible to adapt across multiple layers? Adaptive Layers Application Operating System /Network Hardware

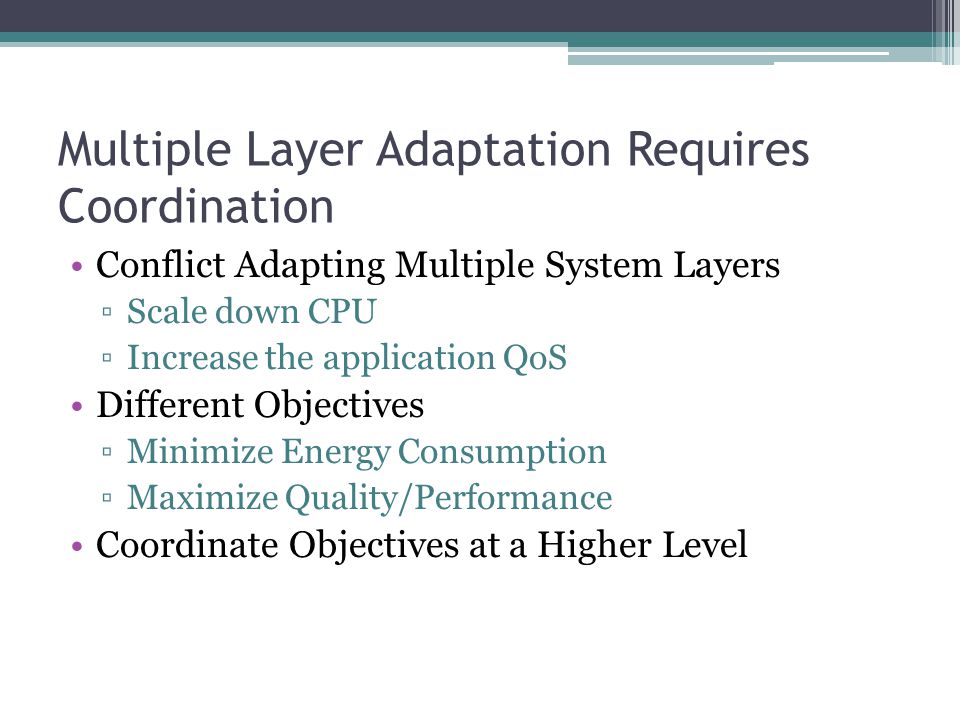

8 Multiple Layer Adaptation Requires Coordination Conflict Adapting Multiple System Layers Scale down CPU Increase the application QoS Different Objectives Minimize Energy Consumption Maximize Quality/Performance Coordinate Objectives at a Higher Level

9 The Purpose of GRACE Framework: Cross-Layer Adaptation Global Resource Adaptation via CoopEration Figures from S. Adve. The Illinois GRACE Project: Global Resource Adaptation through CoopEration, Workshop on Self-Healing Adaptive and Self-Managed Systems, 2002 Global cooperation of resources Coordinator GRACE Adaptation over 1 or 2 layers Application Network Protocols Operating System Architecture, Hardware Current Approaches

10 GRACE-OS: Enhanced CPU Scheduler Previous Methods Soft Real-Time (SRT) Scheduling Dynamic Voltage Scaling (DVS) GRACE-OS DVS is integrated into the CPU Scheduler Continue to keep performance guarantees of SRT Scheduling

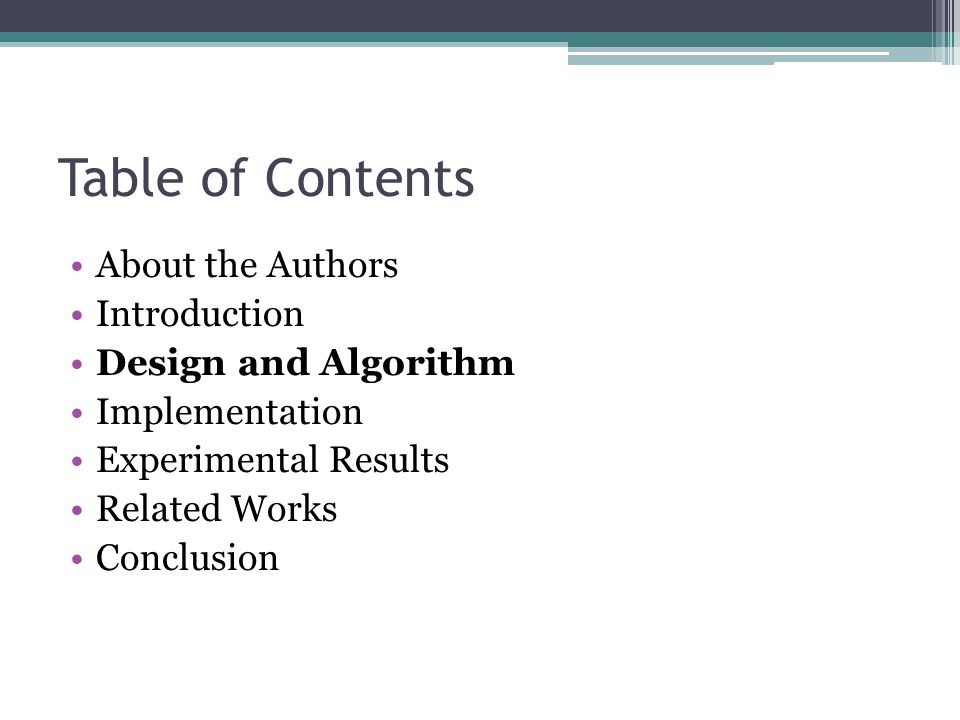

11 Table of Contents About the Authors Introduction Design and Algorithm Implementation Experimental Results Related Works Conclusion

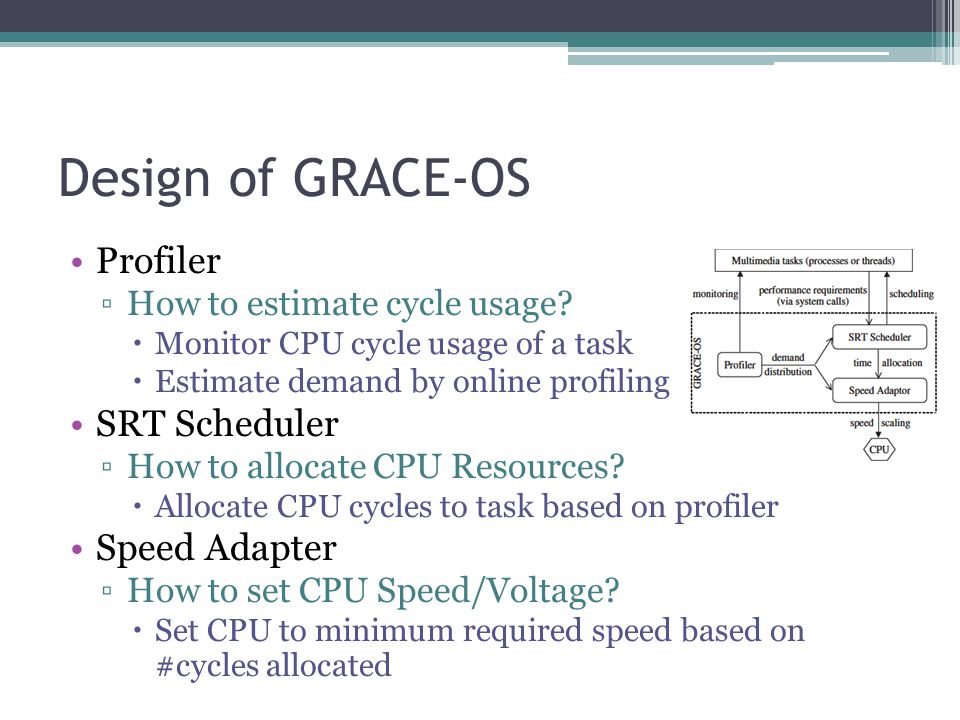

12 Design of GRACE-OS Profiler How to estimate cycle usage? Monitor CPU cycle usage of a task Estimate demand by online profiling SRT Scheduler How to allocate CPU Resources? Allocate CPU cycles to task based on profiler Speed Adapter How to set CPU Speed/Voltage? Set CPU to minimum required speed based on #cycles allocated

13 Algorithm: Profiler How to estimate the cycle usage? Estimate based on statistical distribution instead than instantaneous demand More stability in CPU speeds Meets performance requirements of SRT Profile during run-time

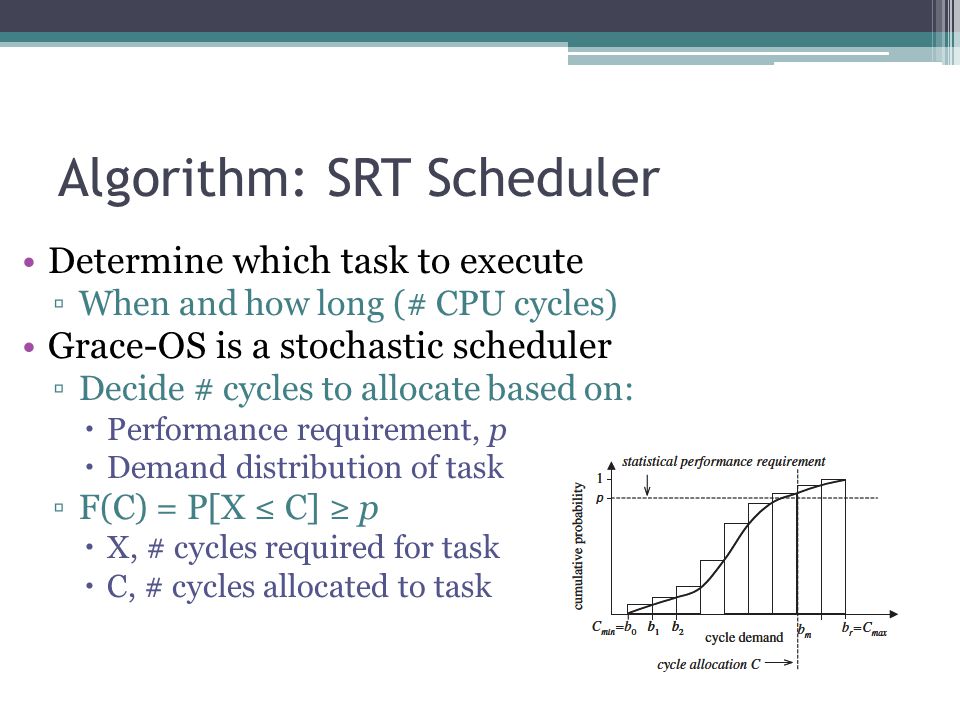

14 Algorithm: SRT Scheduler Determine which task to execute When and how long (# CPU cycles) Grace-OS is a stochastic scheduler Decide # cycles to allocate based on: Performance requirement, p Demand distribution of task F(C) = P[X C] p X, # cycles required for task C, # cycles allocated to task

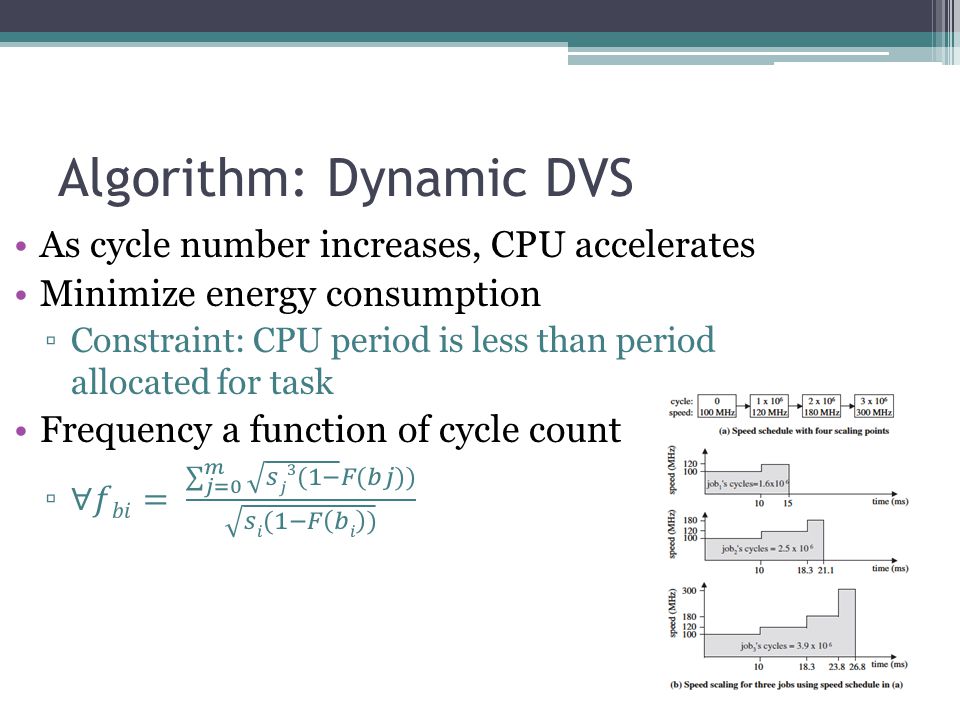

15 Algorithm: Dynamic DVS

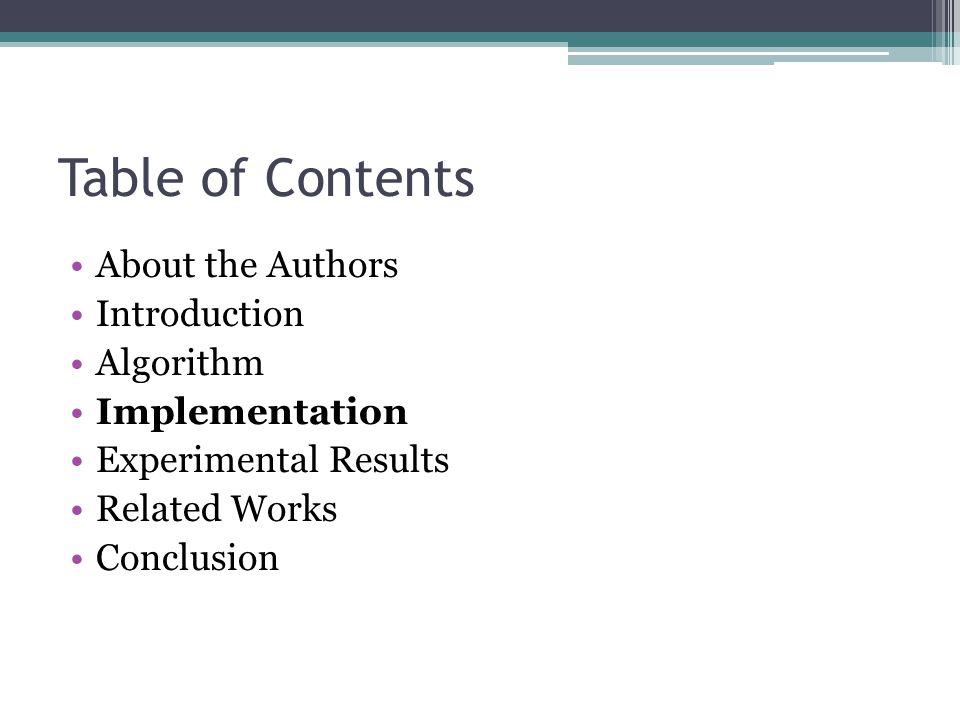

16 Table of Contents About the Authors Introduction Algorithm Implementation Experimental Results Related Works Conclusion

17 Implementation Testbed HP Pavilion N5470 Laptop (Athlon Processor) Red Hat Linux 7.2 Modified Linux kernel (GRACE-OS) Software Architecture of Implementation

18 Implementation System calls added to support SRT tasks start_srt – start real-time mode exit_srt – exit real-time mode finish_job – tell scheduler that task finished job set_budget – allocate cycles for task set_dvspnt – set CPU speed in tasks speed schedule Modifying the process control block 5 attributes

19 Table of Contents About the Authors Introduction Algorithm Implementation Experimental Results Related Works Conclusion

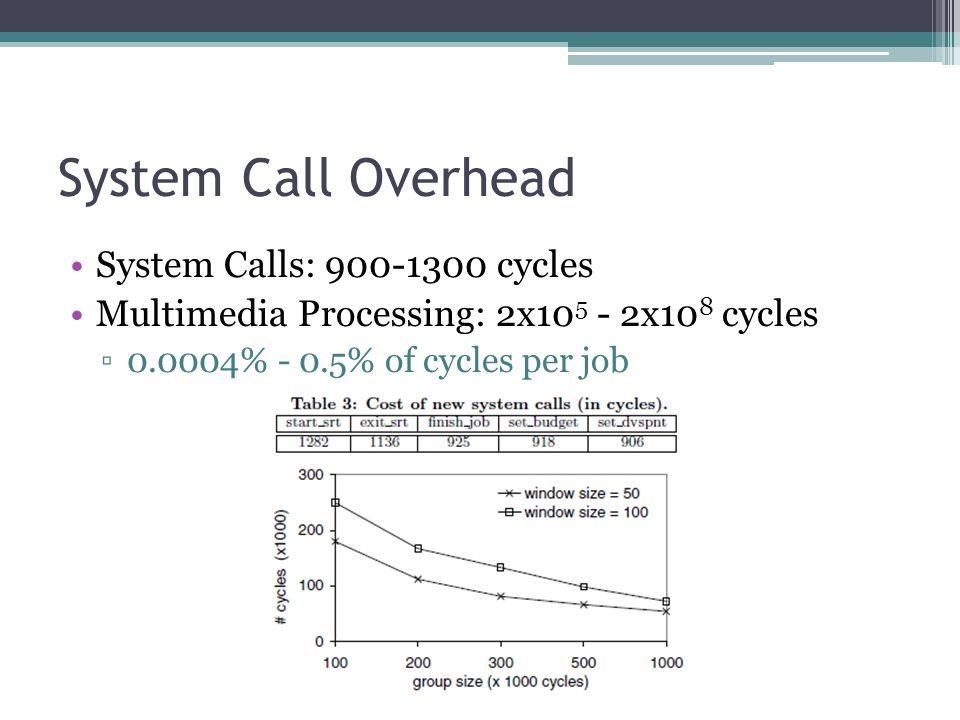

20 System Call Overhead System Calls: cycles Multimedia Processing: 2x x10 8 cycles % - 0.5% of cycles per job

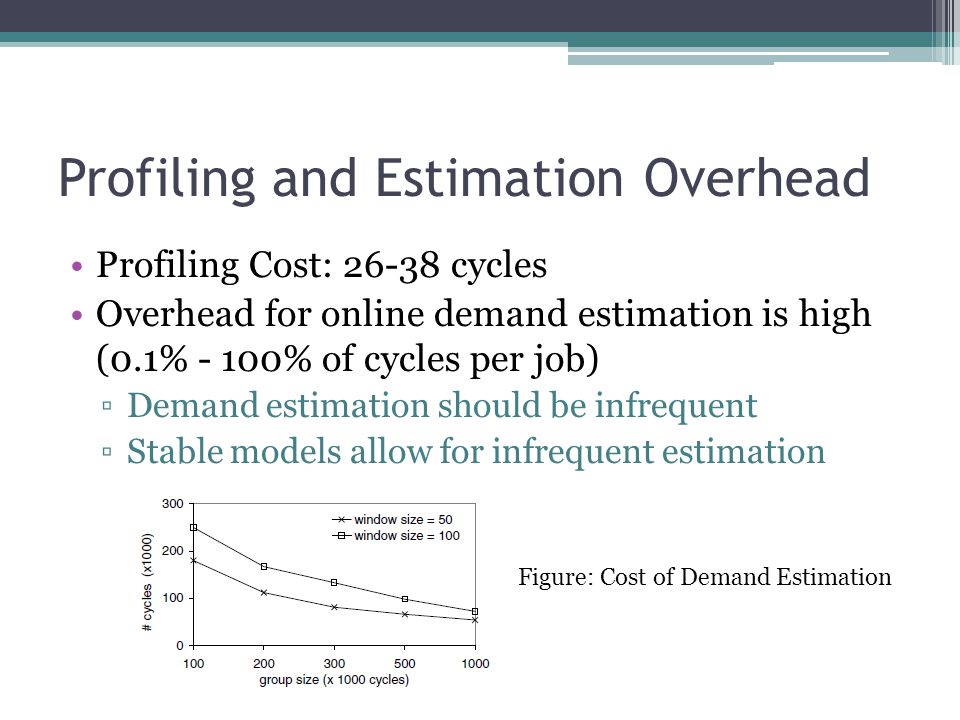

21 Profiling and Estimation Overhead Profiling Cost: cycles Overhead for online demand estimation is high (0.1% - 100% of cycles per job) Demand estimation should be infrequent Stable models allow for infrequent estimation Figure: Cost of Demand Estimation

22 Speed Scaling Overhead Costs 8,000 to 16,000 cycles (~10-50 us) Should be invoked infrequently (500 us in GRACE-OS) Speed change overhead should improve with processor design

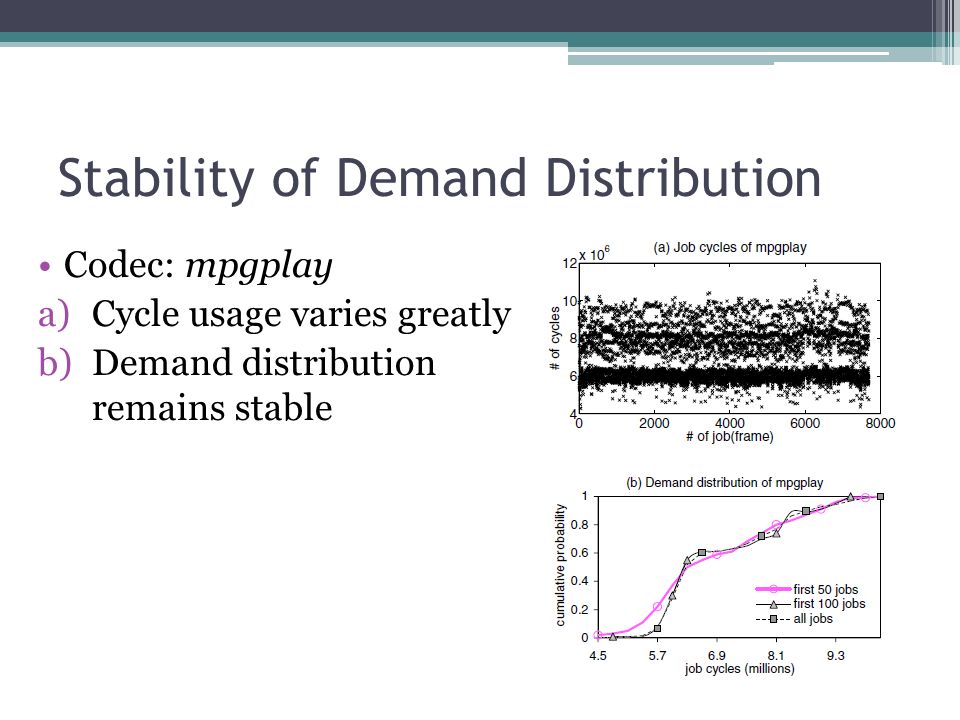

23 Stability of Demand Distribution Codec: mpgplay a)Cycle usage varies greatly b)Demand distribution remains stable

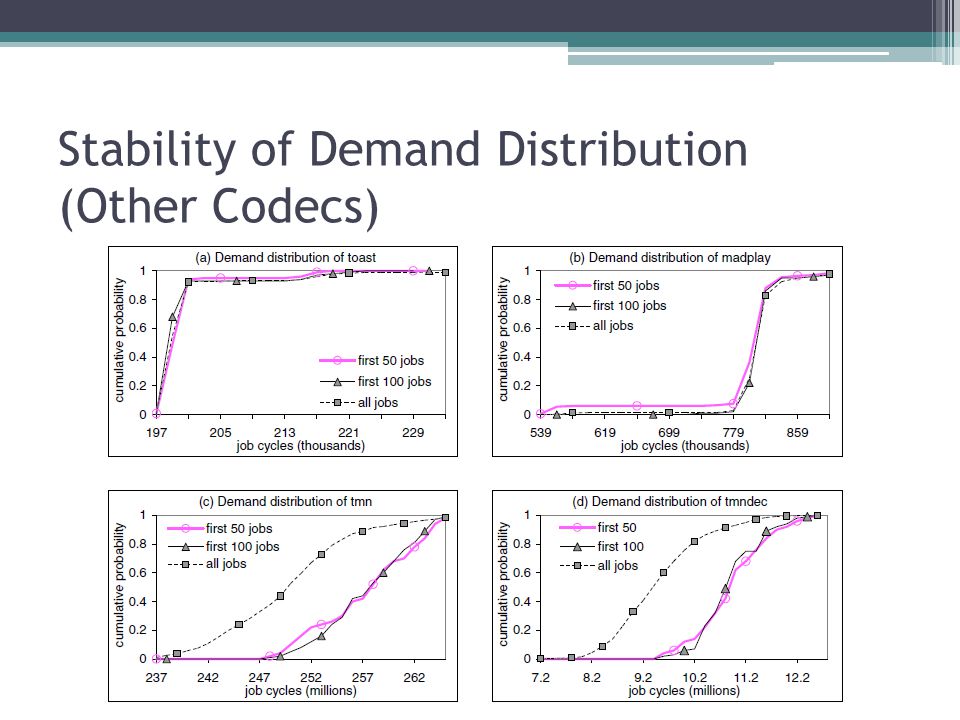

24 Stability of Demand Distribution (Other Codecs)

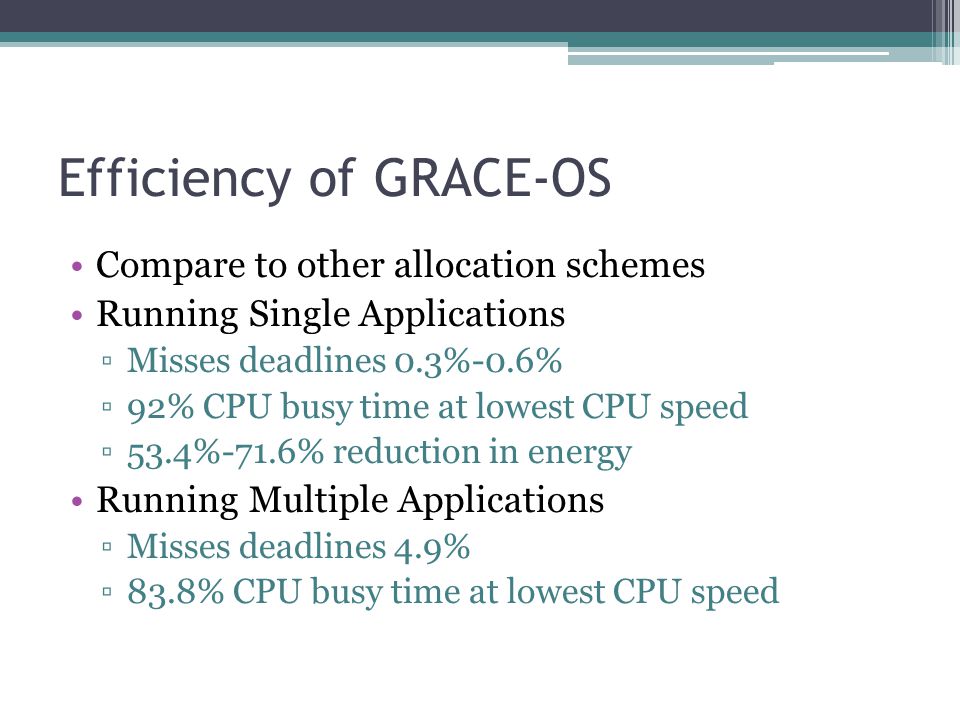

25 Efficiency of GRACE-OS Compare to other allocation schemes Running Single Applications Misses deadlines 0.3%-0.6% 92% CPU busy time at lowest CPU speed 53.4%-71.6% reduction in energy Running Multiple Applications Misses deadlines 4.9% 83.8% CPU busy time at lowest CPU speed

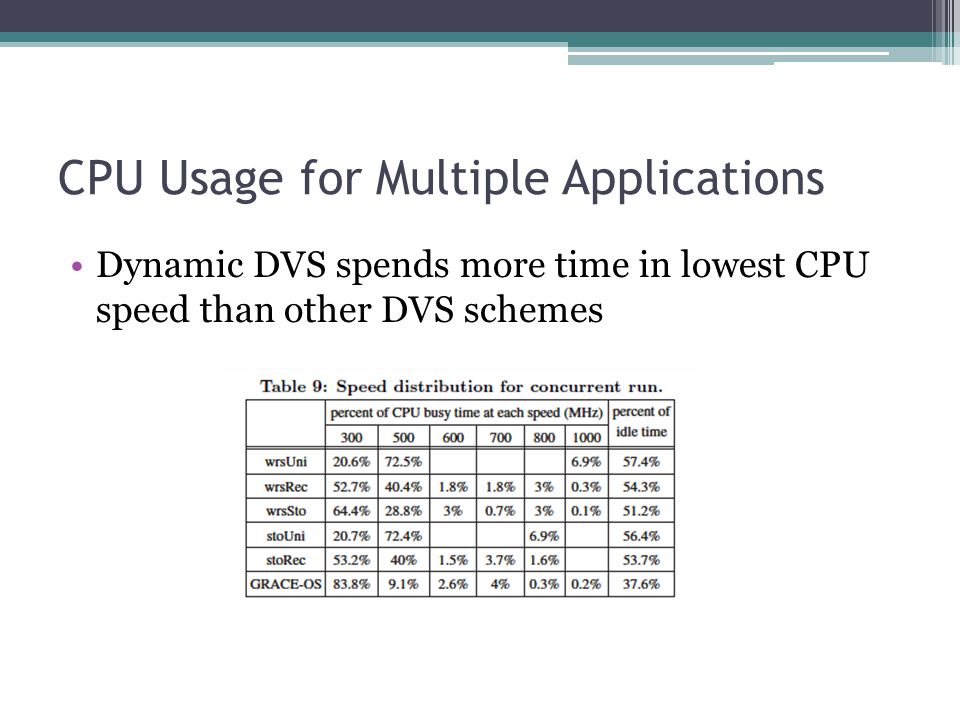

26 CPU Usage for Multiple Applications Dynamic DVS spends more time in lowest CPU speed than other DVS schemes

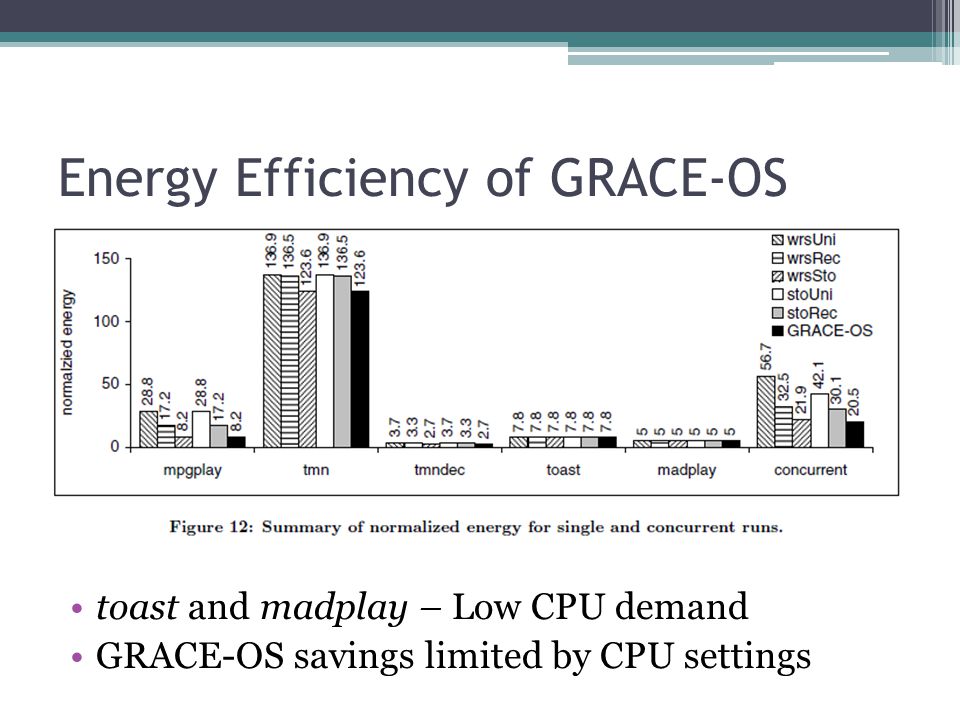

27 Energy Efficiency of GRACE-OS toast and madplay – Low CPU demand GRACE-OS savings limited by CPU settings

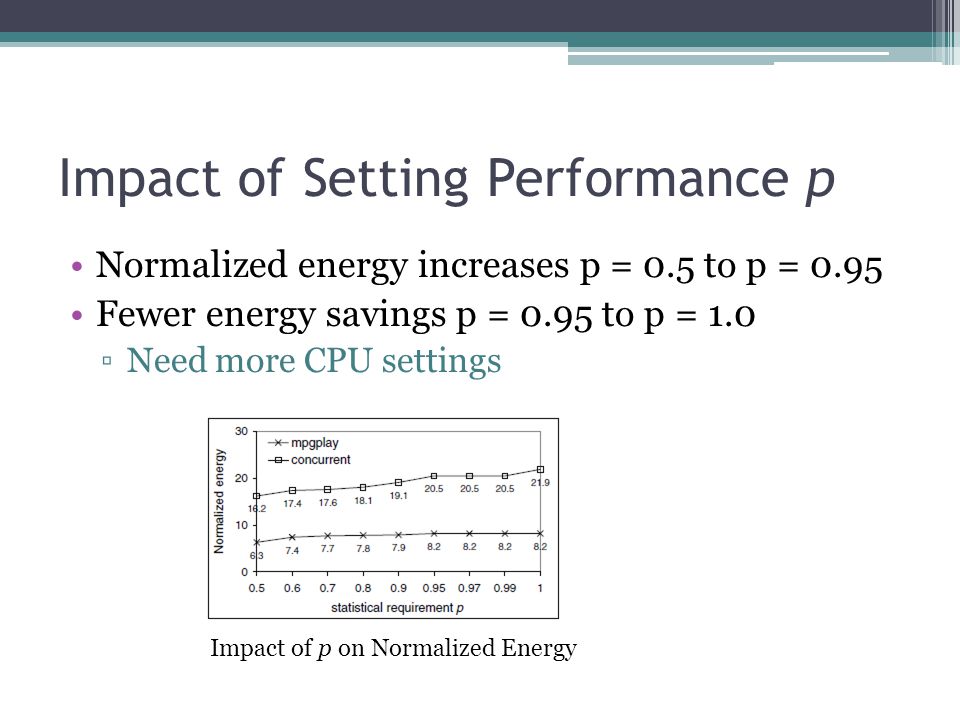

28 Impact of Setting Performance p Normalized energy increases p = 0.5 to p = 0.95 Fewer energy savings p = 0.95 to p = 1.0 Need more CPU settings Impact of p on Normalized Energy

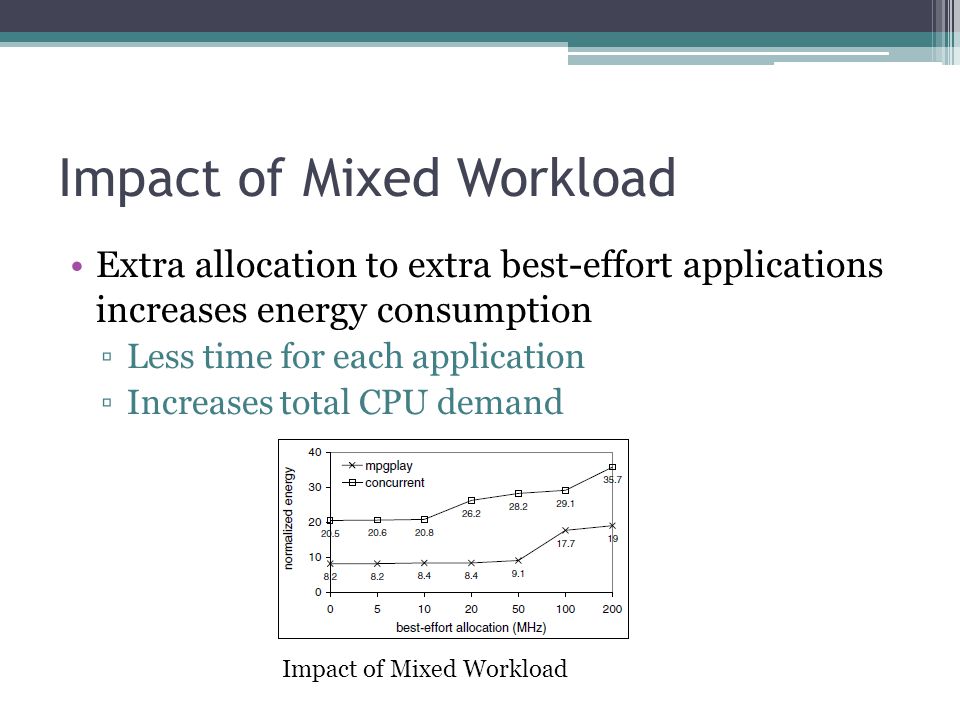

29 Impact of Mixed Workload Extra allocation to extra best-effort applications increases energy consumption Less time for each application Increases total CPU demand Impact of Mixed Workload

30 Table of Contents About the Authors Introduction Algorithm Implementation Experimental Results Related Works Conclusion

31 Related Works: Soft Real-Time Scheduling Proportional Sharing A. Chandra, M. Adler, P. Goyal, and P. Shenoy. Surplus fair scheduling: A proportional- share CPU scheduling algorithm for symmetric multiprocessors. In Proc. of 4th Symposium on Operating System Design and Implementation, Oct CPU Reservations M. Jones, D. Rosu, and M. Rosu. CPU reservations & time constraints: Efficient, predictable scheduling of independent activities. In Proc. of 16th Symposium on Operating Systems Principles, Oct Real-Time Scheduling Algorithms C. L. Liu and J. W. Layland. Scheduling algorithms for multiprogramming in a hard real-time environment. JACM, 20(1):46–61, Jan Stochastic Scheduling K. Gardner. Probabilistic analysis and scheduling of critical soft real-time systems. PhD thesis, Department of Computer Science, University of Illinois at Urbana-Champaign, 1999.

32 Related Works: Dynamic Voltage Scaling General Purpose DVS based on Average CPU Utilization D. Grunwald, P. Levis, K. Farkas, C. Morrey III, and M. Neufeld. Policies for dynamic clock scheduling. In Proc. of 4th Symposium on Operating System Design and Implementation, Oct Real Time DVS P. Pillai and K. G. Shin. Real-time dynamic voltage scaling for low-power embedded operating systems. In Proc. of 18th Symposium on Operating Systems Principles, Oct Stochastic DVS J. Lorch and A. Smith. Improving dynamic voltage scaling algorithms with PACE. In Proc. of ACM SIGMETRICS 2001 Conference, June F. Gruian. Hard real-time scheduling for low energy using stochastic data and DVS processors. In Proc. Of Intl. Symp. on Low-Power Electronics and Design, Aug

33 Table of Contents About the Authors Introduction Algorithm Implementation Experimental Results Related Works Conclusion

34 Pros Optimizes multiple layers of system resources Conserve energy while ensuring quality of service Small overhead Support for multiple tasks Thorough testing Cons Estimate energy savings without measurement Testing limited to multimedia applications Limited number of tests per codec 8 runs per test Discard largest and smallest values Limited CPU speed settings decreases energy savings
