1 Jamie Glendinning ENGL Imaging Toolkit 6 Windows XP unattended install using bootable USB

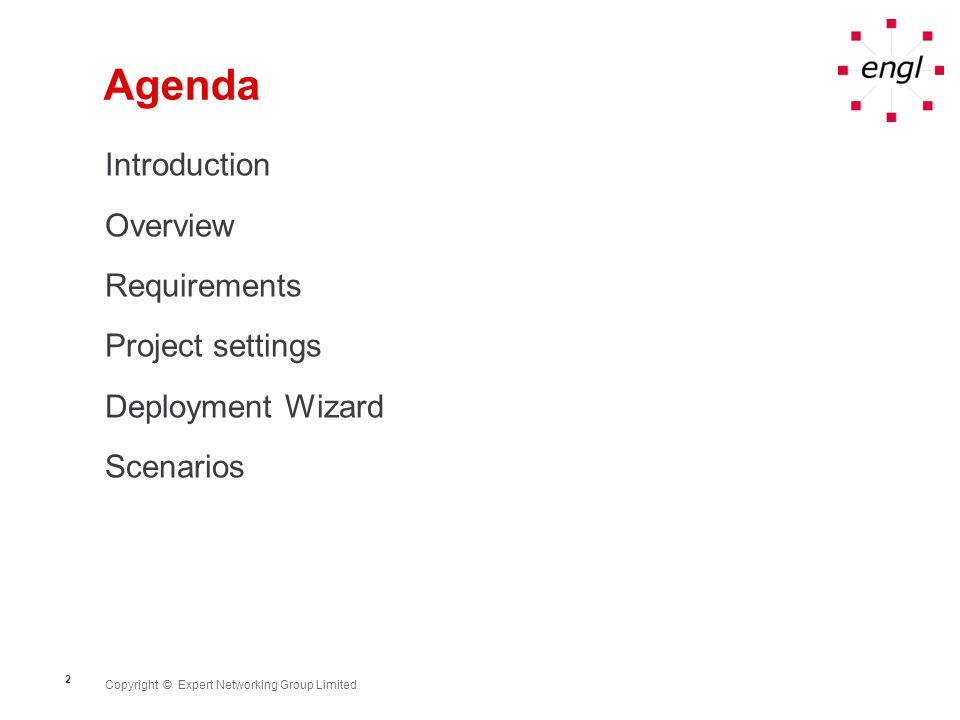

2 Copyright © Expert Networking Group Limited 2 Agenda Introduction Overview Requirements Project settings Deployment Wizard Scenarios

3 Copyright © Expert Networking Group Limited 3 Introduction

4 Copyright © Expert Networking Group Limited 4 Introduction Level Intermediate Duration 30 minutes Assumptions An understanding of the ENGL build process

5 Copyright © Expert Networking Group Limited 5 Overview

6 Copyright © Expert Networking Group Limited 6 Overview Installing Windows XP There are two main methods of creating a Windows XP base image using ENGL Imaging Toolkit. Create a Windows PE ISO image with unattended install files included. Boot from ISO/DVD and Windows XP will install. Create unattended install files. Then use Windows PE to boot to access media containing unattend files. It is important that we can use a repeatable process to create the base image as that reduces the chance of image corruption

7 Copyright © Expert Networking Group Limited 7 Overview Installing Windows XP Hardware sometimes comes without a CD-ROM/DVD drive and as such it is not always possible to use a bootcd to install Windows XP onto the device in order to create a base image. It is possible to take the Windows PE files and copy them to a USB device then use that media to boot and install Windows XP Note: There is normally a suitable workstation or laptop that does have an appropriate CD-ROM/DVD drive somewhere in the organisation

8 Copyright © Expert Networking Group Limited 8 Overview Advantages Advantages to using a USB device: DVD writer not required DVD drive not required on machine where base image is being created If configuration changes are required the OS source files are accessible without recreating ISO image Note: ENGL TID https://englnet.engl.co.uk/kb/tid htm covers Updating boot media created by ENGL Imaging Toolkit 6 if or when changes are required

9 Copyright © Expert Networking Group Limited 9 Requirements

10 Copyright © Expert Networking Group Limited 10 Requirements Windows XP Unattend File Library Windows XP SP3 Media Mass Storage Drivers Microsoft.NET Framework 3.5 Service Pack 1 (Full package) USB device Minimum 2Gb USB device

11 Copyright © Expert Networking Group Limited 11 File Library

12 Copyright © Expert Networking Group Limited 12 File Library Windows XP Media Import the appropriate Windows XP media for your environment into Build Console

13 Copyright © Expert Networking Group Limited 13 File Library Mass Storage Drivers Import the appropriate Mass Storage Drivers (MSD) for your environment into Build Console Most environments require multiple Mass Storage Drivers to be loaded to ensure all hardware types are supported with Windows XP Note: If the appropriate MSD driver for a hardware device is not built into the base image then when the image is restored you will see a Windows Stop 7B error (BSOD)

14 Copyright © Expert Networking Group Limited 14 File Library Mass Storage Drivers When adding MSD drivers to the file library ensure all appropriate versions are included, e.g. iaStor/iaAHCI (or newer) iaStor/iaAHCI (or newer) iaStor/iaAHCI (or newer) iaStor/iaAHCI (or newer) Vmscsi

15 Copyright © Expert Networking Group Limited 15 File Library Mass Storage Drivers Prior to importing the MSD it can be useful to pre- configure the folder structure within the file library.

16 Copyright © Expert Networking Group Limited 16 File Library Mass Storage Drivers When importing – start with the newest file – deselect copy source files to File Library as the files are already in the file library Then repeat until all MSD drivers have been imported.

17 Copyright © Expert Networking Group Limited 17 File Library.Net Framework Import the appropriate Microsoft.NET Framework file into the file library..NET Framework 2.0 Service Pack 1 is required for ZCM 10.x base images Microsoft.NET Framework 3.5 Service Pack 1 is required for ZCM 11 base images

18 Copyright © Expert Networking Group Limited 18 USB Device

19 Copyright © Expert Networking Group Limited 19 USB Device Format USB device before use Minimum drive size: 500Mb as a PE boot device 2Gb as a PE boot device with unattended Windows XP install files

20 Copyright © Expert Networking Group Limited 20 Project settings

21 Copyright © Expert Networking Group Limited 21 Project Settings There are no specific configuration settings required to run an unattended installation from USB media. Ensure that the Project settings are validated and that the correct Windows Product Key is configured.

22 Copyright © Expert Networking Group Limited 22 Deployment wizard

23 Copyright © Expert Networking Group Limited 23 Deployment Wizard Base image creation Scenario 1 – USB device containing Unattended installation files Scenario 2 – USB Device connects to network share. Unattended installation runs from network

24 Copyright © Expert Networking Group Limited 24 Scenario 1

25 Copyright © Expert Networking Group Limited 25 Base image creation Scenario 1 Open Windows XP Project within Build Console From the Tools menu select Deployment Wizard then click Next From the Task Selection page, select Base image preparation then click Next From the Boot Media options page select Include unattended installation files in the ISO image and Automatically start unattended installation process, then click Next

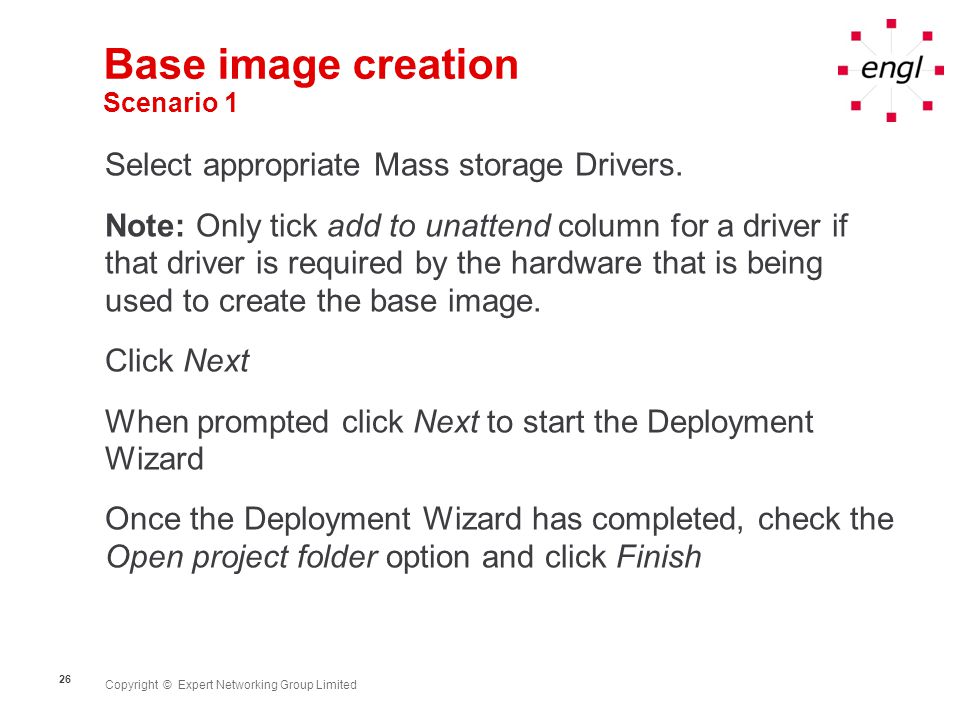

26 Copyright © Expert Networking Group Limited 26 Base image creation Scenario 1 Select appropriate Mass storage Drivers. Note: Only tick add to unattend column for a driver if that driver is required by the hardware that is being used to create the base image. Click Next When prompted click Next to start the Deployment Wizard Once the Deployment Wizard has completed, check the Open project folder option and click Finish

27 Copyright © Expert Networking Group Limited 27 Base image creation Scenario 1 Copy contents of \WinPE\ISO\ to the root of the USB device Insert USB device into appropriate hardware and on Boot select USB device Windows PE will load then will prompt with a message: This batch file will remove all partitions from this disk and begin the Windows Unattended installation Only press Y if you are certain you wish to do this! Press Y to start the process Windows XP will now install unattended from the USB device

28 Copyright © Expert Networking Group Limited 28 Scenario 1 Demonstration

29 Copyright © Expert Networking Group Limited 29 Base image creation Scenario 1

30 Copyright © Expert Networking Group Limited 30 Base image creation Scenario 1 Copy files from \WinPE\ISO\ to USB Drive

31 Copyright © Expert Networking Group Limited 31 Base image creation Scenario 1 Insert USB device into machine and then boot from the USB device

32 Copyright © Expert Networking Group Limited 32

33 Copyright © Expert Networking Group Limited 33 Base image creation Scenario 1 Create the base image Shut down the machine then PXE boot the machine into the ZCM imaging environment From Zim, select the Maintenance menu then select the Development menu Select the Make an image option and name the image winxp-sp3-x86-postsp.zmg then press OK The base image has now been created successfully

34 Copyright © Expert Networking Group Limited 34 Scenario 2

35 Copyright © Expert Networking Group Limited 35 Base image creation Scenario 2 Open Windows XP Project within Build Console From the Tools menu select Deployment Wizard then click Next From the Task Selection page, select Base image preparation then click Next From the Boot Media options page select Create Windows Preinstallation Environment installation ISO de-select Include unattended installation files in the ISO image and Automatically start unattended installation process, then click Next

36 Copyright © Expert Networking Group Limited 36 Base image creation Scenario 2 Select appropriate Mass storage Drivers. Note: Only tick add to unattend column for a driver if that driver is required by the hardware that is being used to create the base image. Click Next When prompted click Next to start the Deployment Wizard Once the Deployment Wizard has completed, check the Open project folder option and click Finish

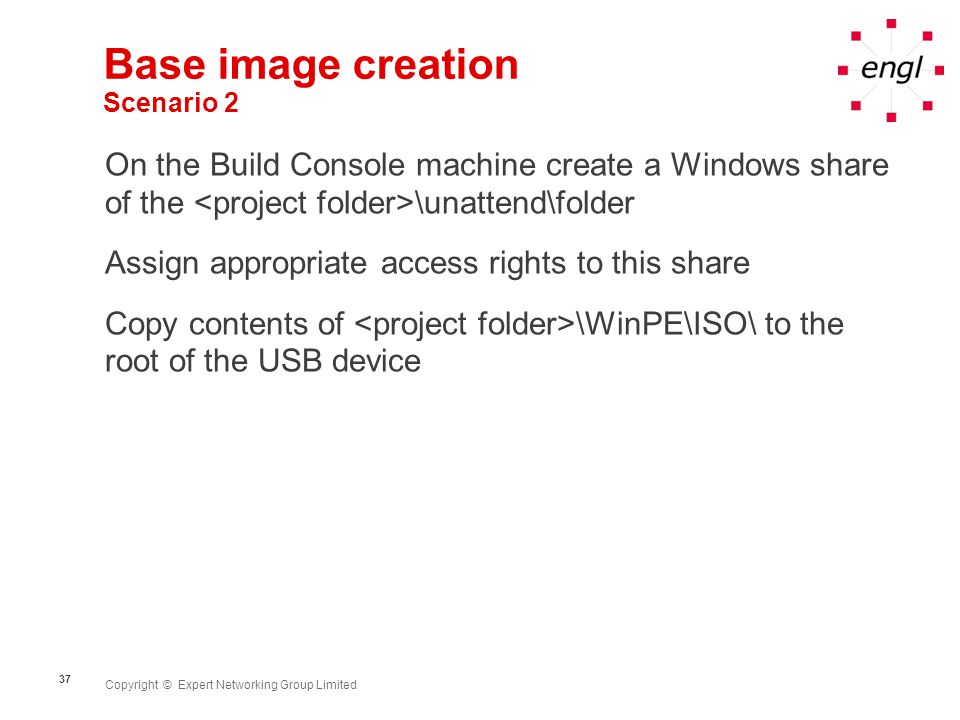

37 Copyright © Expert Networking Group Limited 37 Base image creation Scenario 2 On the Build Console machine create a Windows share of the \unattend\folder Assign appropriate access rights to this share Copy contents of \WinPE\ISO\ to the root of the USB device

38 Copyright © Expert Networking Group Limited 38 Base image creation Scenario 2 Insert USB device into appropriate hardware and on Boot select USB device Windows PE will load and display a command prompt Connect to network share created earlier net use k: \\ \ /user: Change to k: drive K:

39 Copyright © Expert Networking Group Limited 39 Base image creation Scenario 2 Launch diskpart script to partition local disk Diskpart –s diskpart.txt Launch unattend.bat to start unattended installation of Windows XP Unattend.bat

40 Copyright © Expert Networking Group Limited 40 Scenario 2 Demonstration

41 Copyright © Expert Networking Group Limited 41

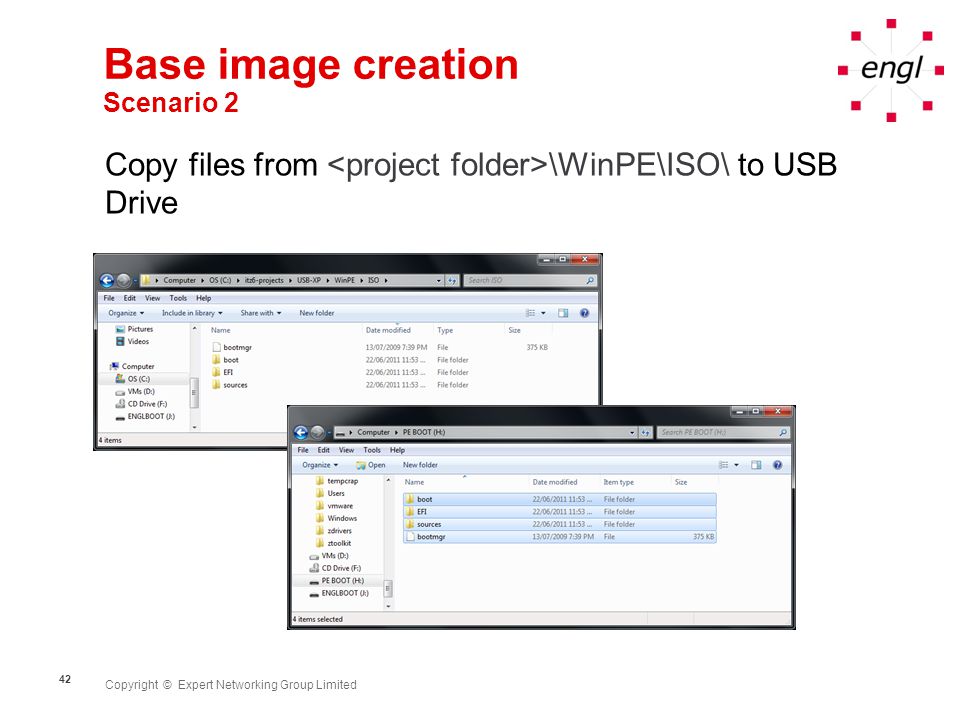

42 Copyright © Expert Networking Group Limited 42 Base image creation Scenario 2 Copy files from \WinPE\ISO\ to USB Drive

43 Copyright © Expert Networking Group Limited 43 Base image creation Scenario 2 Insert USB device into machine – then boot from the USB device

44 Copyright © Expert Networking Group Limited 44

45 Copyright © Expert Networking Group Limited 45 Base image creation Scenario 2

46 Copyright © Expert Networking Group Limited 46 Base image creation Scenario 2 Create the base image Shut down the machine then PXE boot the machine into the ZCM imaging environment From Zim, select the Maintenance menu then select the Development menu Select the Make an image option and name the image winxp-sp3-x86-postsp.zmg then press OK The base image has now been created successfully

47 Copyright © Expert Networking Group Limited 47 Summary

48 Copyright © Expert Networking Group Limited 48 Summary It is possible, by following the steps in this TechBite, to create your base image using USB boot media

49 Copyright © Expert Networking Group Limited 49 Issues

50 Copyright © Expert Networking Group Limited 50 Issues If you have any issues with the procedures detailed in this TechBite let us know! Log an incident on englnet https://englnet.engl.co.uk/nps Report an issue via support forum - engl.support.imagingtoolkit6.buildprocess

51 Copyright © Expert Networking Group Limited 51 More information

52 Copyright © Expert Networking Group Limited 52 More Information Useful links Product information and Downloads Success Stories Partners

53 Copyright © Expert Networking Group Limited 53 More Information Future Events Tech Bite sessions Brainshare
