1 Chapter 3 Code Composer Studio and the DSKs DSK6711, DSK6713 and DSK6416

2 Dr. Naim Dahnoun, Bristol University, (c) Texas Instruments 2004 Chapter 3, Slide 2 Learning Objectives Introduction to Code Composer Studio (CCS). Introduction to Code Composer Studio (CCS). Installation and setup of CCS. Installation and setup of CCS. Introduction to the DSK. Introduction to the DSK. Laboratory. Laboratory.

3 Dr. Naim Dahnoun, Bristol University, (c) Texas Instruments 2004 Chapter 3, Slide 3 Code Composer Studio The Code Composer Studio (CCS) application provides an integrated environment with the following capabilities: The Code Composer Studio (CCS) application provides an integrated environment with the following capabilities: Integrated development environment with an editor, debugger, project manager, profiler, etc. Integrated development environment with an editor, debugger, project manager, profiler, etc. C/C++ compiler, assembly optimiser and linker (code generation tools). C/C++ compiler, assembly optimiser and linker (code generation tools). Simulator. Simulator. Real-time operating system (DSP/BIOS). Real-time operating system (DSP/BIOS). Real-Time Data Exchange (RTDX) between the Host and Target. Real-Time Data Exchange (RTDX) between the Host and Target. Real-time analysis and data visualisation. Real-time analysis and data visualisation.

4 Dr. Naim Dahnoun, Bristol University, (c) Texas Instruments 2004 Chapter 3, Slide 4 CCS Installation and Setup (A)Install the CCS Software. (B)Run CCS Setup: Start CCS setup utility by using the following desktop icon: Start CCS setup utility by using the following desktop icon: Alternatively: Alternatively: Windows Start Menu -> Programs -> Texas Instruments -> Code Composer Studio 2 (C6000) -> Setup Code Composer Studio. Windows Start Menu -> Programs -> Texas Instruments -> Code Composer Studio 2 (C6000) -> Setup Code Composer Studio. Run cc_setup.exe located in: c:\ti\cc\bin\ Run cc_setup.exe located in: c:\ti\cc\bin\

5 Dr. Naim Dahnoun, Bristol University, (c) Texas Instruments 2004 Chapter 3, Slide 5 CCS Installation and Setup You should now see a screen similar to this: You should now see a screen similar to this: Note: If you dont see the Import Configuration dialog box you should open it from the menu using: File:Import.

6 Dr. Naim Dahnoun, Bristol University, (c) Texas Instruments 2004 Chapter 3, Slide 6 CCS Installation and Setup You can clear the previous configuration by selecting the configuration you wish to clear and clicking the clear button. You can clear the previous configuration by selecting the configuration you wish to clear and clicking the clear button. Next select a new configuration that you would like to add: Next select a new configuration that you would like to add: Select the C6x11DSK Port x y Mode. Select the C6x11DSK Port x y Mode. The port number, x, and port mode, y, depend on your PC setup. The port number, x, and port mode, y, depend on your PC setup.

7 Dr. Naim Dahnoun, Bristol University, (c) Texas Instruments 2004 Chapter 3, Slide 7 CCS Installation and Setup If you do not know your configuration then you can select it automatically using the Configure C6x11 DSK Utility. If you do not know your configuration then you can select it automatically using the Configure C6x11 DSK Utility.

8 Dr. Naim Dahnoun, Bristol University, (c) Texas Instruments 2004 Chapter 3, Slide 8 CCS Installation and Setup Finally save and quit the import configuration dialog box. Finally save and quit the import configuration dialog box.

9 Dr. Naim Dahnoun, Bristol University, (c) Texas Instruments 2004 Chapter 3, Slide 9 Start CCS by either: Start CCS by either: Using the desktop icon: Using the desktop icon: Start -> Programs -> Texas Instruments -> Code Composer Studio 2 -> Code Composer Studio. Start -> Programs -> Texas Instruments -> Code Composer Studio 2 -> Code Composer Studio. Run cc_app.exe in c:\ti\cc\bin\ Run cc_app.exe in c:\ti\cc\bin\ Using CCS

10 Dr. Naim Dahnoun, Bristol University, (c) Texas Instruments 2004 Chapter 3, Slide 10Troubleshooting If the following window appears on your screen then: If the following window appears on your screen then: Check that the DSK is connected properly and powered up. Check that the DSK is connected properly and powered up. Check if the port address and mode is correct (See Slide 7). Check if the port address and mode is correct (See Slide 7).

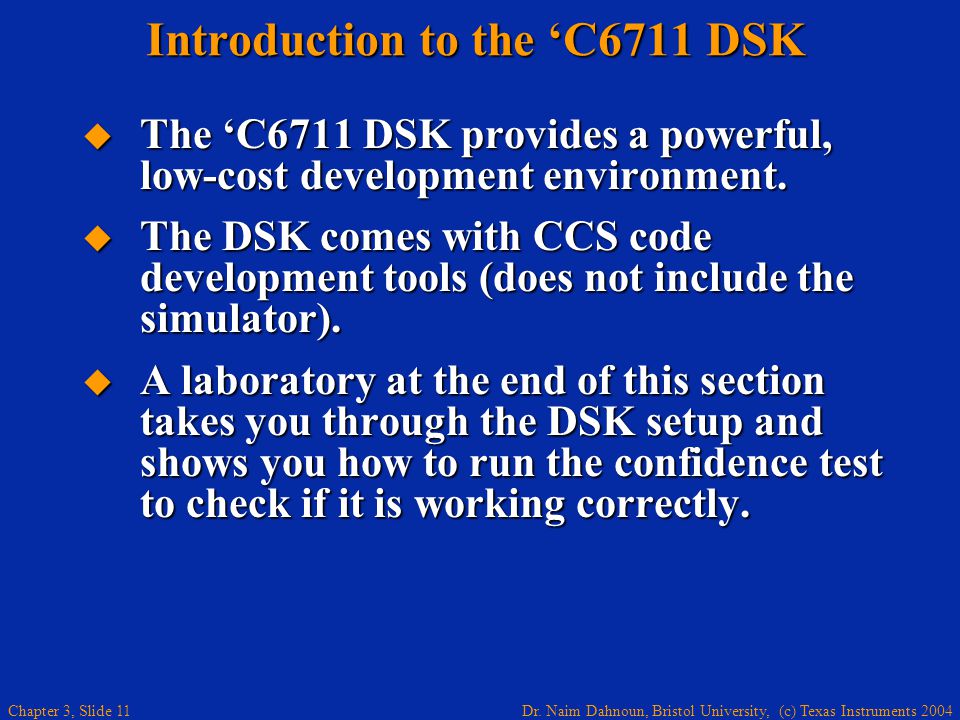

11 Dr. Naim Dahnoun, Bristol University, (c) Texas Instruments 2004 Chapter 3, Slide 11 Introduction to the C6711 DSK The C6711 DSK provides a powerful, low-cost development environment. The C6711 DSK provides a powerful, low-cost development environment. The DSK comes with CCS code development tools (does not include the simulator). The DSK comes with CCS code development tools (does not include the simulator). A laboratory at the end of this section takes you through the DSK setup and shows you how to run the confidence test to check if it is working correctly. A laboratory at the end of this section takes you through the DSK setup and shows you how to run the confidence test to check if it is working correctly.

12 Dr. Naim Dahnoun, Bristol University, (c) Texas Instruments 2004 Chapter 3, Slide 12 DSK6711 Contents Hardware (Schematics)Schematics 150 MHz C6711 DSP TI 16-bit A/D Converter (AD535) External Memory 16 MB SDRAM 128 kB Flash ROM LEDs Daughter card expansion Power Supply & Parallel Port Cable Software Code Generation Tools (C Compiler, Assembler & Linker) Code Composer Debugger (256K program limitation) Example Programs & S/W Utilities Power-on Self Test Flash Utility Program Board Confidence Test Host access via DLL Sample Program(s)

13 Dr. Naim Dahnoun, Bristol University, (c) Texas Instruments 2004 Chapter 3, Slide 13 1.8V Power Supply16M SDRAM128K FLASH Daughter Card I/F (EMIF Connector) Parallel Port I/F Power Jack Power LED 3.3V Power Supply JTAG Header Emulation JTAG Controller Reset Line Level Output (speakers) Line Level Input (microphone) 16-bit codec (A/D & D/A) Three User LEDs User DIP switches C6711 DSP D. Card I/F (Periph Con.) TMS320C6711 Hardware: (1) Overview The daughter card interface socket provides a method for accessing most of the C6711 DSP for hardware extension. The daughter card interface socket provides a method for accessing most of the C6711 DSP for hardware extension.

14 Dr. Naim Dahnoun, Bristol University, (c) Texas Instruments 2004 Chapter 3, Slide 14 Hardware: (2) DSK Connections (A)Parallel port: The PCs parallel port is connected to the parallel port on the DSK. (B)JTAG: An XDS JTAG emulator connected to the PC (either internal or external) is connected to the JTAG header on the DSK. Line-level Output Line-level Input PCDSK Parallel Cable Power Supply External Power Supply PCDSKJTAG Power Supply Line-level Output Line-level Input XDS External Power Supply

15 Dr. Naim Dahnoun, Bristol University, (c) Texas Instruments 2004 Chapter 3, Slide 15 Hardware: (3) Power On Self Test (POST) TestLED 3LED 2LED 1Description 0000Start state 1001DSP internal SRAM test 2010External SDRAM test 3011DSP McBSP0 loop back test 4100External codec read/write test 5101External codec tone generation test 6110External LED and DSP timer test 7111Unused – available for future test use B L I N K A L LAll tests completed successfully There are three LEDs to provide the user with feedback from the test procedure. There are three LEDs to provide the user with feedback from the test procedure. The test program (stored in the FLASH memory, code available on the DSK CD-ROM) runs every time DSK is powered on and reset. The test program (stored in the FLASH memory, code available on the DSK CD-ROM) runs every time DSK is powered on and reset.

16 Dr. Naim Dahnoun, Bristol University, (c) Texas Instruments 2004 Chapter 3, Slide 16 TMS320C6711 Hardware: (4) Resets Apply Power POST runs CCS Reset Menu selection: Debug DSP Reset Resets C6711 DSP Causes bootload from FLASH which overwrites internal memory Absolute Reset On rare occasions you might have to: Pull power jack Pull parallel port Reset Pushbutton Dont push when CCS is running Does not force FULL system reset To fully reset board, pull power plug Power On Self Test (POST) Counts 1 - 7 4: mic input spkr out 5: sinewave spkr out Dont start CCS until end (all 3 LEDs flash at the end) If switches are set to 0100, a fast version of POST is run

17 Dr. Naim Dahnoun, Bristol University, (c) Texas Instruments 2004 Chapter 3, Slide 17 Hardware: (5) Memory Maps FFFF_FFFF 0000_0000 64 kB Internal (Program or Data) On-chip Periph 0180_0000 128 MB External 8000_0000 9000_0000 A000_0000 B000_0000 TMS320C67119008_0000 Available via Daughter Card Connector C6711 DSK 16 MB SDRAM 128 kB FLASH 4 byte I/O Port LEDs LEDs Switches Switches DSK status DSK status DSK rev# DSK rev# Daughter Card Daughter Card

18 Dr. Naim Dahnoun, Bristol University, (c) Texas Instruments 2004 Chapter 3, Slide 18 Hardware: (5) Memory Maps DK6711 Description OriginLength Internal RAM (L2) mem0x00000000 0x00010000 EMIF control regs 0x01800000 0x00000024 Cache configuration reg 0x01840000 0x00000004 L2 base addr & count regs 0x01844000 0x00000020 L1 base addr & count regs 0x01844020 0x00000020 L2 flush & clean regs 0x01845000 0x00000008 CE0 mem attribute regs 0x01848200 0x00000010 CE1 mem attribute regs 0x01848240 0x00000010 CE2 mem attribute regs 0x01848280 0x00000010 CE3 mem attribute regs 0x018482c0 0x00000010 HPI control reg 0x01880000 0x00000004 McBSP0 regs 0x018c0000 0x00000028 McBSP1 regs 0x01900000 0x00000028 Timer0 regs 0x01940000 0x0000000c Timer1 regs 0x01980000 0x0000000c Interrupt selector regs 0x019c0000 0x0000000c EDMA parameter RAM 0x01a00000 0x00000800 EDMA control regs 0x01a0ffe0 0x00000020 QDMA regs 0x02000000 0x00000014 QDMA pseudo-regs 0x02000020 0x00000014 McBSP0 data 0x30000000 0x04000000 McBSP1 data 0x34000000 0x04000000 CE0, SDRAM, 16 MB 0x80000000 0x01000000 CE1, 8-bit ROM, 128 kB0x90000000 0x00020000 CE1, 8-bit I/O port 0x90080000 0x00000004 CE2 – Daughter card 0xA0000000 0x10000000 CE3 – Daughter card 0xB0000000 0x10000000

19 Dr. Naim Dahnoun, Bristol University, (c) Texas Instruments 2004 Chapter 3, Slide 19 Software: (1) PC Host Utilities DSK Loader dsk6ldr.exe filename.out Runs on PC host Runs on PC host Downloads.out file to DSK memory map Downloads.out file to DSK memory map Stand alone DSK loader for when you want to bypass CCS Stand alone DSK loader for when you want to bypass CCS FLASH Programming hex6x.exe f.out h.cmd flash.exe f.hex First, convert file.out to file.hex First, convert file.out to file.hex The flash utility downloads the hex file into the on-DSK FLASH The flash utility downloads the hex file into the on-DSK FLASH Both programs run on the PC host. Links\SPRA804.pdf Both programs run on the PC host. Links\SPRA804.pdfLinks\SPRA804.pdf DSK Confidence Test dsk6xtst Run from MSDOS prompt Run from MSDOS prompt Command-line utility tests proper installation of the DSK board Command-line utility tests proper installation of the DSK board Additionally, it tests: Internal SRAM, SDRAM, FLASH, McBSP, Timers, EDMA, LEDs and Audio codec Additionally, it tests: Internal SRAM, SDRAM, FLASH, McBSP, Timers, EDMA, LEDs and Audio codec

20 Dr. Naim Dahnoun, Bristol University, (c) Texas Instruments 2004 Chapter 3, Slide 20 Software: (2) CCS DSK Utilities Confidence Test 1.Unload any gel files already loaded in CCS 2.Load conftest.gel 3.Run confidence tests from GEL menu Quick Test Quick Test Run from CCS GEL menu Run from CCS GEL menu Defined in dsk6xinit.gel Defined in dsk6xinit.gel Non-intrusive test by reading and writing: Non-intrusive test by reading and writing: LEDs LEDs Switches Switches DSK board revision DSK board revision Outputs switch values Outputs switch values General Extension Language (GEL): An interpretive language that enables you to write functions to configure the IDE and access the target processor.

21 Dr. Naim Dahnoun, Bristol University, (c) Texas Instruments 2004 Chapter 3, Slide 21 Software: (3) DSK Help DSK6711 help is available via the Help menu in CCS. DSK6711 help is available via the Help menu in CCS.

22 Dr. Naim Dahnoun, Bristol University, (c) Texas Instruments 2004 Chapter 3, Slide 22 Software: (4) PC DSK Communications DSP JTAG.............. JTAGEmulationPort CCS uses parallel port to control DSP via JTAG port You can use full TI eXtended Dev System (XDS) via 14 pin header connector Use HPI via Win32 DLL Communicate from Windows program (C++, VB) via parallel port using Win32 DLL Note: You should not use the parallel port for simultaneous emulation and HPI connection.

23 Dr. Naim Dahnoun, Bristol University, (c) Texas Instruments 2004 Chapter 3, Slide 23 Software: (4) PC DSK Communications dsk6x_open( ) Open a connection to the DSK dsk6x_close( ) Close a connection to the DSK dsk6x_reset_board( ) Reset the entire DSK board dsk6x_reset_dsp( ) Reset only the DSP on the DSK dsk6x_coff_load( ) Load a COFF image to DSP memory dsk6x_hpi_open( ) Open the HPI for the DSP dsk6x_hpi_close( ) Close the HPI for the DSP dsk6x_hpi_read( ) Read DSP memory via the HPI dsk6x_hpi_write( ) Write to DSP memory via the HPI dsk6x_generate_int( ) Generate a DSP interrupt Win32 API functions for Host to DSK communications: Win32 API functions for Host to DSK communications:

24 Dr. Naim Dahnoun, Bristol University, (c) Texas Instruments 2004 Chapter 3, Slide 24 TMS320C6713 DSP Starter Kit (DSK) The TMS320C6713 DSP Starter Kit (DSK) developed jointly with Spectrum Digital is a low-cost development platform designed to speed the development of high precision applications based on TI´s TMS320C6000 floating point DSP generation. Link: tmdsdsk6713.html Link: tmdsdsk6713.html Link: Reference Manual Link: Reference Manual

25 Dr. Naim Dahnoun, Bristol University, (c) Texas Instruments 2004 Chapter 3, Slide 25 'C6713 DSK Block Diagram Daughter Card Room for Expansion Internal Memory CPU Program Cache Data Cache EMIF SDRAM (8 MB) CE2 CE3 Flash ROM (256 kB) I/O Port CE1 CE0 DSK uses all four External Memory regions CE0 for SDRAM CE1 for Flash Memory and I/O Port (switches, LEDs, etc.) CE2 and CE3 pinned-out to daughter card connector

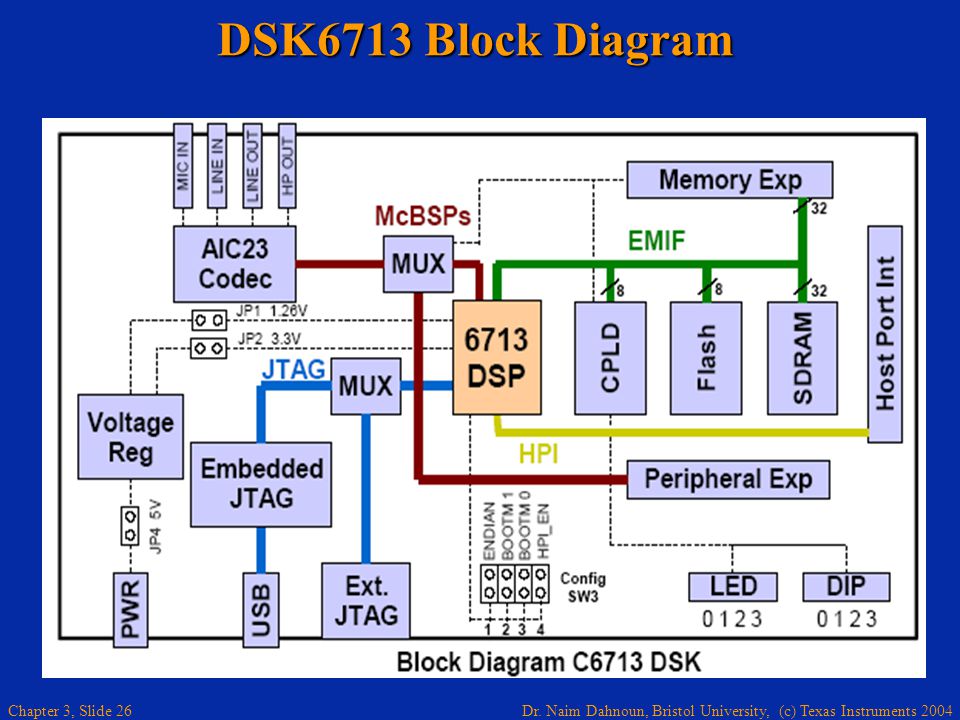

26 Dr. Naim Dahnoun, Bristol University, (c) Texas Instruments 2004 Chapter 3, Slide 26 DSK6713 Block Diagram

27 Dr. Naim Dahnoun, Bristol University, (c) Texas Instruments 2004 Chapter 3, Slide 27 FFFF_FFFF 0000_0000 256 kB Internal Program / Data Peripheral Regs 0180_0000 128 MB External 8000_0000 9000_0000 A000_0000 B000_0000 128 MB External TMS320C6713 Available via Daughter Card Connector C6713 DSK 8 MB SDRAM 256 kB FLASH CPLD C6713 DSK Memory Map CPLD: LEDs DIP Switches DSK status DSK rev# Daughter Card 9008_0000

28 Dr. Naim Dahnoun, Bristol University, (c) Texas Instruments 2004 Chapter 3, Slide 28 TMS320C6416 DSP Starter Kit (DSK) The TMS320C6416 DSP Starter Kit (DSK) developed jointly with Spectrum Digital is a low-cost development platform designed to speed the development of high performance applications based on TI´s TMS320C64x DSP generation. The kit uses USB communications for true plug-and-play functionality. Link: tmdsdsk6416.html Link: tmdsdsk6416.html Link: Reference Manual Link: Reference Manual

29 Dr. Naim Dahnoun, Bristol University, (c) Texas Instruments 2004 Chapter 3, Slide 29 TMS320C6416 DSP Starter Kit (DSK) 'C6416 DSK Block Diagram Daughter Card Room for Expansion SDRAM (16 MB) CE2 CE3 Flash ROM (512 kB) CPLD CE1 CE0 DSK uses both EMIFs (A and B) EMIFA CE0 for SDRAM CE2 and CE3 pinned-out to daughter card connector EMIFB CE1 for Flash Memory and CPLD (switches, LEDs, etc.) L2 RAM Prog/Data (1 MB) CPU EMIF A EMIF B Program Cache Data Cache CE0

30 Dr. Naim Dahnoun, Bristol University, (c) Texas Instruments 2004 Chapter 3, Slide 30 DSK6416 Block Diagram

31 Dr. Naim Dahnoun, Bristol University, (c) Texas Instruments 2004 Chapter 3, Slide 31 C6416 DSK Memory Map CPLD: LEDs DIP Switches DSK status DSK rev# Daughter Card 0000_0000 Internal RAM: 1 MB 0010_0000 Internal Peripherals or reserved 6000_0000 EMIFB CE0 : 64 MB CPLD 6400_0000 EMIFB CE1 : 64 MB Flash: 512 kB 6800_0000 EMIFB CE2 : 64 MB 6C00_0000 EMIFB CE3 : 64 MB 8000_0000 EMIFA CE0 : 256 MB SDRAM: 16 MB 9000_0000 EMIFA CE1 : 256 MB A000_0000 EMIFA CE2 : 256 MB Daughter Card B000_0000 EMIFA CE3 : EMIFA CE3 : 256 MB TMS320C6416C6416 DSK

32 Dr. Naim Dahnoun, Bristol University, (c) Texas Instruments 2004 Chapter 3, Slide 32 Laboratory Exercise: DSK Hardware Setup (1)Connect the following cables: Parallel port. Parallel port. Audio cables. Audio cables. (2)Connect the power and observe the Power On Self-Test (POST) (Refer to Slide 15). (3)A. If using the DSK6711 Configure and test the DSK with the utilities shown below: Configure and test the DSK with the utilities shown below:

33 Dr. Naim Dahnoun, Bristol University, (c) Texas Instruments 2004 Chapter 3, Slide 33 Laboratory Exercise: DSK Hardware Setup (3) B. If you are using the DSK6713 or DSK6416 Use the Diagnostics Utilities show below:

34 Dr. Naim Dahnoun, Bristol University, (c) Texas Instruments 2004 Chapter 3, Slide 34 Laboratory exercise: DSK hardware setup Notes: The SDRAM may take a while due to the large amount of SDRAM on the C6711 DSK. The SDRAM may take a while due to the large amount of SDRAM on the C6711 DSK. The CODEC test performs two operations: (1) a 1kHz tone output, and (2) an audio input to output loopback. You must have a speaker connected to the the output jack to hear the test. The CODEC test performs two operations: (1) a 1kHz tone output, and (2) an audio input to output loopback. You must have a speaker connected to the the output jack to hear the test. If the confidence test fails: If the confidence test fails: (1)Remove the power and parallel cable from the DSK. (2)Reset your PC. (3)Reconnect the power and the parallel cable. (4)Invoke CCS.

35 Dr. Naim Dahnoun, Bristol University, (c) Texas Instruments 2004 Chapter 3, Slide 35 Laboratory Exercise: Using CCS Implement: with: a i = {40, 39, …, 1} x i = {1, 2, …, 40} (1)Create a working directory and copy the following files from \Code\Chapter 03 - CCS and DSK\: (a)lab3.cdb (b)lab3.c (c)lab3cfg.cmd (2)Create a new project: (a)Start CCS. (b)Create a new project as shown on the following slide.

36 Dr. Naim Dahnoun, Bristol University, (c) Texas Instruments 2004 Chapter 3, Slide 36 Laboratory Exercise: Using CCS Note: When you type in the Project Name a directory is created in the Location. Delete this if not required.

37 Dr. Naim Dahnoun, Bristol University, (c) Texas Instruments 2004 Chapter 3, Slide 37 Laboratory Exercise: Using CCS (3)Add files to the project (lab3.c, lab3.cdb, lab3cfg.cmd).

38 Dr. Naim Dahnoun, Bristol University, (c) Texas Instruments 2004 Chapter 3, Slide 38 Laboratory Exercise: Using CCS (4)Change the build options (compile and link):

39 Dr. Naim Dahnoun, Bristol University, (c) Texas Instruments 2004 Chapter 3, Slide 39 Laboratory Exercise: Using CCS (5)Build the output program (lab3.out): (a)Build the project by: (i)Clicking the Rebuild All toolbar icon. (ii)Selecting Rebuild All in the project menu. (b)Verify that the build output window is complete with 0 errors, 0 warnings: CCS menu

40 Dr. Naim Dahnoun, Bristol University, (c) Texas Instruments 2004 Chapter 3, Slide 40 Laboratory Exercise: Using CCS (6)Load the output file lab3.out into DSP memory: (a)The program will be automatically loaded after each project build if the Program Load after Build option is selected as shown below:

41 Dr. Naim Dahnoun, Bristol University, (c) Texas Instruments 2004 Chapter 3, Slide 41 Laboratory Exercise: Using CCS (6)Load the output file lab3.out into DSP memory: (b)Load the lab3.out by selecting File:Load Program as shown below:

42 Dr. Naim Dahnoun, Bristol University, (c) Texas Instruments 2004 Chapter 3, Slide 42 Laboratory Exercise: Using CCS (7)Debug and run code: (a)Go to the beginning of the program, that is main() by selecting Debug:Go Main. (b)Watch variables: (i) Select the variable (to be watched) from the lab3.c file, right click and select Add To Watch Window. If the variable is y for instance, the following window will be shown. (ii)To add another variable to the watch select it and then drag and drop it on to the window.

43 Dr. Naim Dahnoun, Bristol University, (c) Texas Instruments 2004 Chapter 3, Slide 43 Laboratory Exercise: Using CCS (7)Debug and run code: (c) CCS will automatically add the local variables:

44 Dr. Naim Dahnoun, Bristol University, (c) Texas Instruments 2004 Chapter 3, Slide 44 Laboratory Exercise: Using CCS (7)Debug and run code: (d) You can run or step through the code by using the various icons on the toolbar or use the Debug menu:

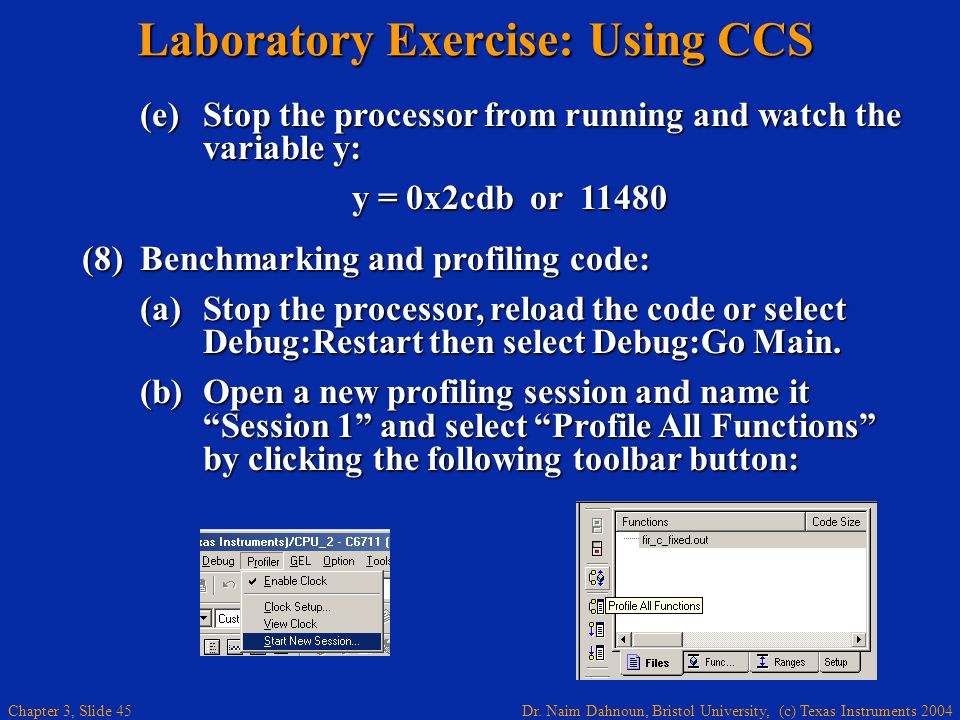

45 Dr. Naim Dahnoun, Bristol University, (c) Texas Instruments 2004 Chapter 3, Slide 45 (8)Benchmarking and profiling code: (a)Stop the processor, reload the code or select Debug:Restart then select Debug:Go Main. (b)Open a new profiling session and name it Session 1 and select Profile All Functions by clicking the following toolbar button: Laboratory Exercise: Using CCS (e)Stop the processor from running and watch the variable y: y = 0x2cdb or 11480

46 Dr. Naim Dahnoun, Bristol University, (c) Texas Instruments 2004 Chapter 3, Slide 46 Laboratory Exercise: Using CCS (8)Benchmarking and profiling code: (c)Expand the lab3.c as shown below:

47 Dr. Naim Dahnoun, Bristol University, (c) Texas Instruments 2004 Chapter 3, Slide 47 Laboratory Exercise: Using CCS (8)Benchmarking and profiling code: (d)Add a breakpoint at for(;;);. This can be done by: (i)Click the cursor on the highlighted line below. (ii)Click the Add Breakpoint toolbar button:

48 Dr. Naim Dahnoun, Bristol University, (c) Texas Instruments 2004 Chapter 3, Slide 48 Laboratory Exercise: Using CCS (8)Benchmarking and profiling code: (e)Run the program and examine the profile window:

49 Dr. Naim Dahnoun, Bristol University, (c) Texas Instruments 2004 Chapter 3, Slide 49 CCS and DSK CCS Overview: CCS Overview: \Links\spru301c.pdf \Links\spru301c.pdf \Links\spru301c.pdf Resets: Resets: \Links\ccs_dsk.pdf \Links\ccs_dsk.pdf \Links\ccs_dsk.pdf

50 Chapter 3 Code Composer Studio and the DSK - End -
