1 Fixation Disparity

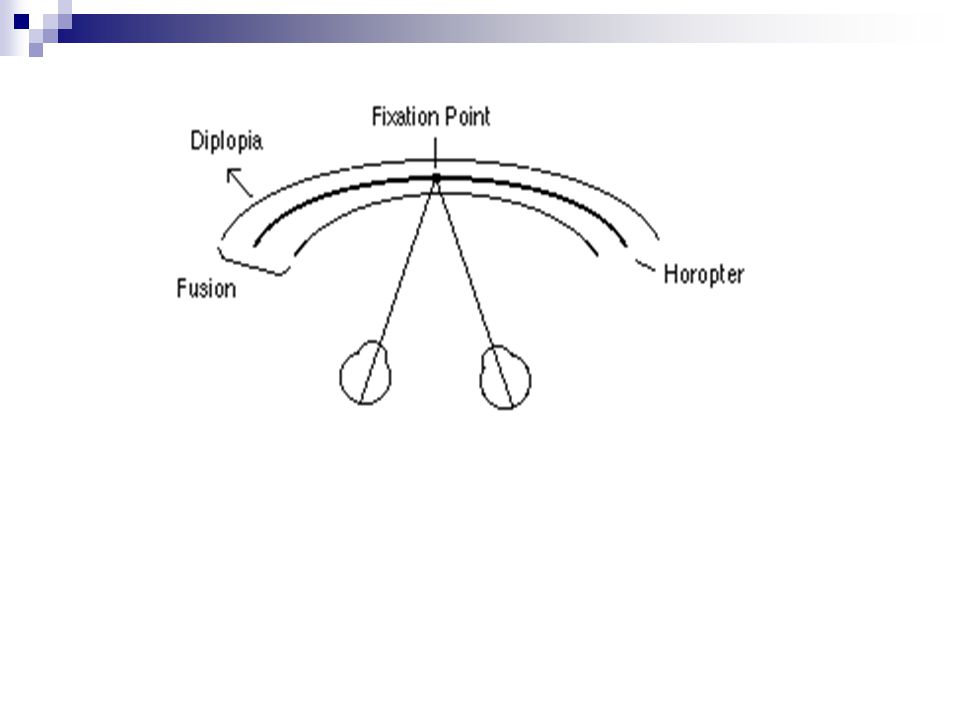

2 Fixation disparity is a small error in the visual system. Occurs as a result of Panums fusional area Small error-minutes of arc 6 to 12 minutes of arc

3

4 Fixation Disparity Depends of type of stimulus, larger for lower spatial frequencies. Acts as stimulus for the vergence system Balance between the convergence and divergence Compensation for phoria Accommodative inputs

5 Measuring Fixation Disaparity Calculate fixation disparity FD = 2a/2.9 x 10-4 x b/b 2a=PD b=target distance b=difference between target distance and convergence distance 2.9 x 10-4 = conversion factor from radians to min of arc

6 Example

7 Can be measured at distance and near Horizontal deviation Vertical deviation Uses nonius lines with a fusion lock Takes advantage of vernier acuity

8 How Tests Work Diagrams of Exo, Eso and Vertical Change nonius lines to compensate for FD Use prism to compensate for FD

9 Sheedy Disparometer

10 Mallet Unit

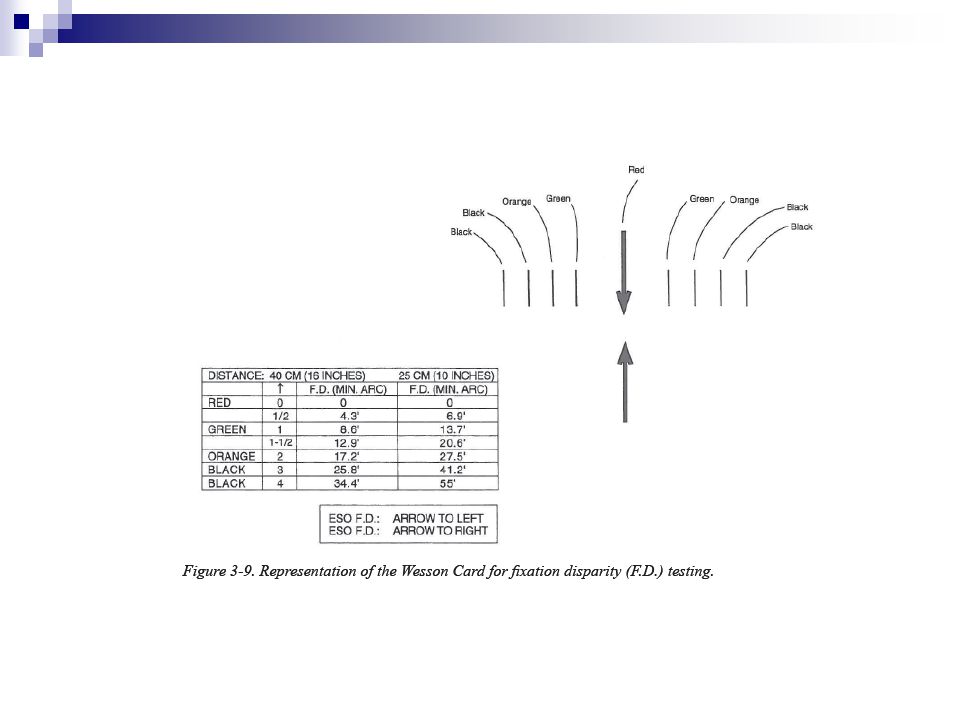

11 Wesson Card

12

13 Saladin Card

14

15

16 Generating a forced vergence disparity curve Put prism in place and measure the amount of fixation disparity Associated phoria is the amount of prism needed to eliminate the fixation disparity Y-axis is the amount of fixation disparity X-axis is the amount of prism

17 Effect of Prism on FD Base In prism Base Out prism Vergence movement

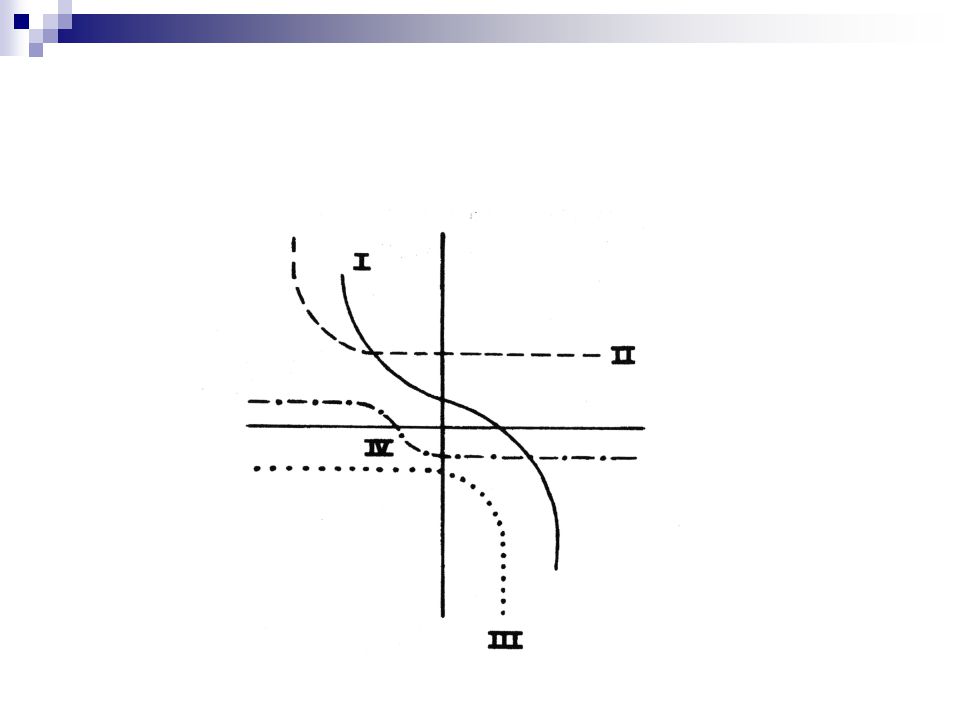

18 Types of fixation disparity curves Type I Type II Type III Type IV

19 Type I

20 Type II

21 Type III

22 Type IV

23

24 What do the curves tell us? Measure of vergence adaptation Fast or disparity vergence system Slow or vergence adaptation system

25 Vertical fixation disparity Very little adaptation in this system

26 Spherical lenses Moves curve up and down

27 Calculating AC/A ratio For each lens power find the corresponding prism power that produces the same fixation disparity value Plot each lens/prism pair of points

28 Analysis Quadrant 1 Quadrant 2 Quadrant 3 Quadrant 4

29 Characteristics of fixation disparity Fixation distance

30 Saladin Vs Wesson Card Ngan et al OVS (2005) Compared the FD and associated phoria in adults using the Saladin and Wesson cards Compared the y-intercept (FD) and x- intercept x-intercept.

31 Saladin Vs Wesson TestY-interceptX-intercept Saladin Card Wesson Cards

32 Clinical application Relationship to symptoms Prism prescriptions Effect of orthoptics
