1 SANTIAGO CALATRAVA KRATI AGRAWAL B.ARCH IV YR

2 INTRODUCTION

3 EARLY LIFE AND EDUCATION born on July 28, 1951 in a town of benimamet, near Valencia, Spain. From the age of 8, he also attended the arts and crafts school, At the age 13 he was an exchange student in France and traveled to study in Switzerland. He earned a degree in architecture and took a post-graduate course in urbanism. Being attracted by mathematics, calatrava decided to pursue post-graduate studies in civil engineering, so he was enrolled in the federal institute of technology in Zurich, Switzerland in he received his doctor rate in 1979, during that period he met and married his wife, who was a law student in Zurich.

4 A r c h I t e c t A r t I s t E n g I n e e r Santiago calatrava is a man of his time; an architect of public space, who has total conscience of the political and social function as well as the aesthetics of it. He is a monumental architect. This comes out of the result exactly because he knows what public space and modernism means. -evangelos venizelos Minister of culture Calatrava is not just an architect, he is an engineer and an artist a homo universalize of the 21 st century. -dimitrios pantermalis professor of classical archaeology

5 PHILOSOPHY

6 INSPIRATIONS The works of gothic Works of antony Gaudi human figure and natures creativity Experimentation with materials and their properties San Sebastian - Bodegas Ysios opera de Tenerife

7 STYLES blends impressive visual style and the strict rules of engineering Symbolic AND recognizable the world over for the sense of movement captureD in a stationary object. long sweeping lines, stark white materials and a flawless use of glass and light. Had a definite vision of inside and outside, the concave and convex, of how we face the specific world

8 HSB, TURNING TORSO, MALMO,SWEDEN

9 HSB Turning Torso is one of the tallest residential buildings in Europe and holds apartments, offices and meeting facilities. The vision of HSB Turning Torso is based on a sculpture called Twisting Torso by Santiago Calatrava himself. Inspiration from the human body in a twisting motion.

10 CONCEPTUAL STAGES

11

12 BUILDING FACTS 190 metres high Consists of nine cubes with five floors each. Together with intermediate floors a total of 54 floors. Each floor has 400m² of available space. 147 apartments from cube three to nine. meeting facilities on the two top floors. Each floor consists of a square part around the core and a triangular part which is supported by an external steel structure. The entire construction twists 90 degrees on its way up with each floor tilting by 1.6 degrees

13 Ground breaking 14th Feb 2001 Construction started June 2001 Casting of foundation March 2002 Foundations complete August 2002 Completion date November 2005 KEY DATES JAN 2004 MAY 2003

14 CUBE 7 CUBE 5 CUBE 3 CUBE 9

15 RECEPTION

16 Plan of a typical floor

17

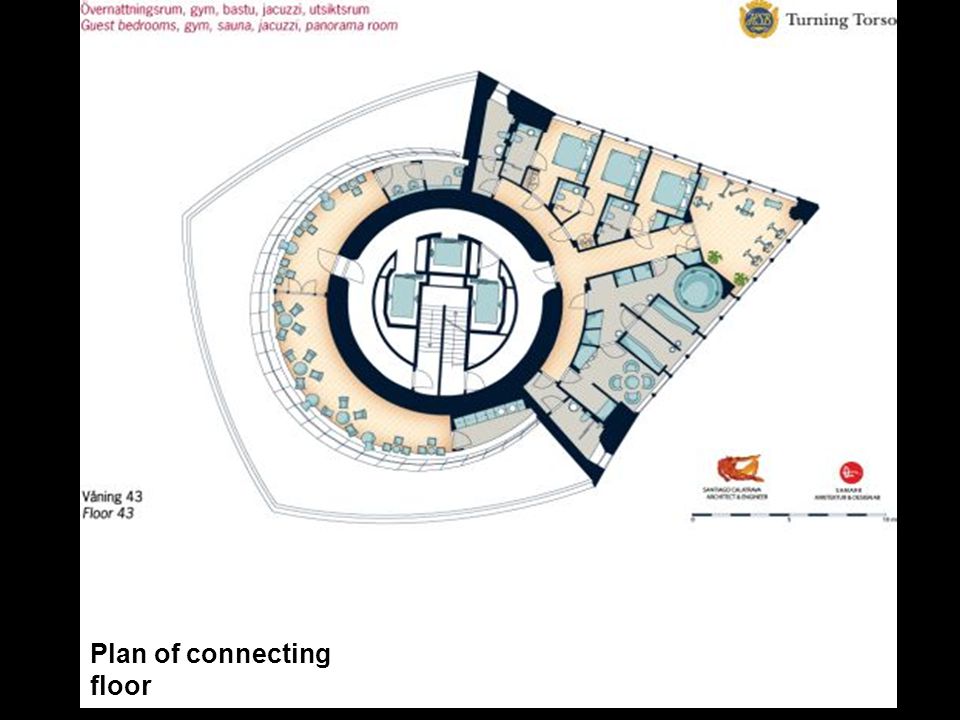

18 Plan of connecting floor

19 LOUNGES AT FLOOR 43 & 49

20 GYM, SAUNA, JACUZZI 43 RD FLOOR

21 CONFERENCE & PARTY FACILITIES 7 TH FLOOR

22 ROTATION OF FLOORS Forms for the floors were rotated approx. 1.6 degrees for each floor in order to create the characteristic twist of the building. FACADE facade is a glass and aluminum construction 2,800 panels and 2,250 windows Follow the twist of the building, the windows are leaning either inwards or outwards by 0 to 7 degrees.

23 OUTER STEEL SUPORT AND SPINE The steel support is a welded construction with a very thorough paint treatment for optimal protection against corrosion. The outer steel support consists of a steel column and 20 horizontal and 18 diagonal steel cigars

24 LIFTS 3 lifts service the residential part of the building and HSB Turning Torso Meetings Two separate lifts service the offices : ensures high capacity and minimum waiting even during rush hour and in the instances when a lift is closed for maintenance.

25 APARTMENTS

26

27 SHEETING & FOUNDATIONS Foundation: built directly on the limestone bedrock. Profiled steel plates, forming the foundation shaft, were driven 15 m. into the ground and a further 3m into the limestone bedrock Concrete beams, poured at regular intervals on the inside of the sheeting to stabilize the steel lining against the pressure of the soil outside Concrete construction was poured onto the bedrock, 30 meters in diameter and 7 meters thick

28 CLIMBING FORMS AND BEAMS each cube were made with so- called self-compacting concrete. Because of its flow capacity, this type of concrete does not need vibrating.

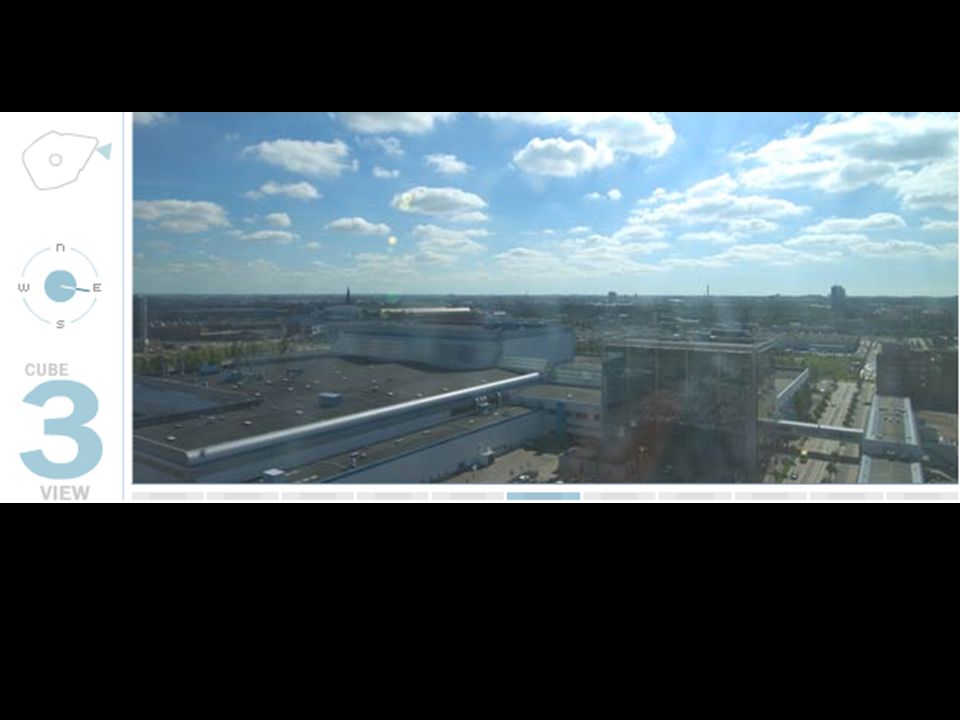

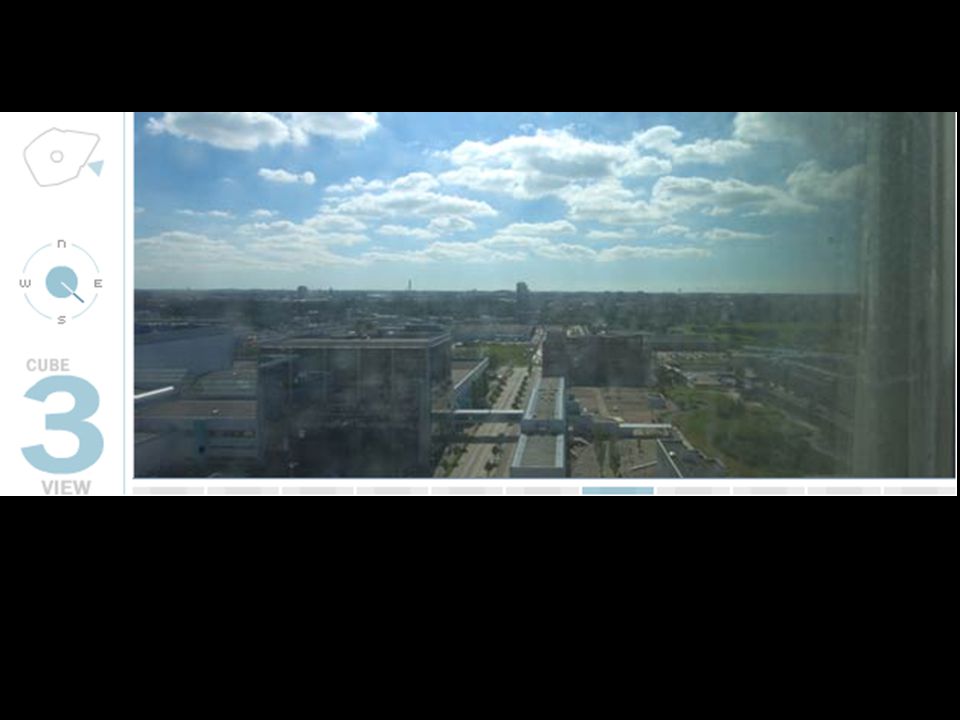

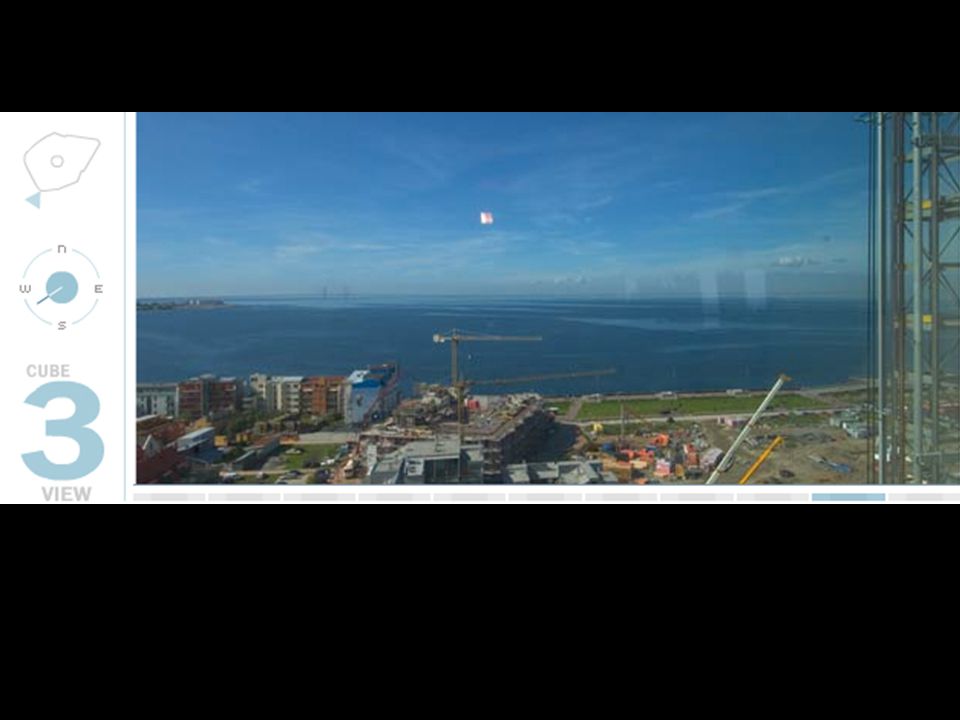

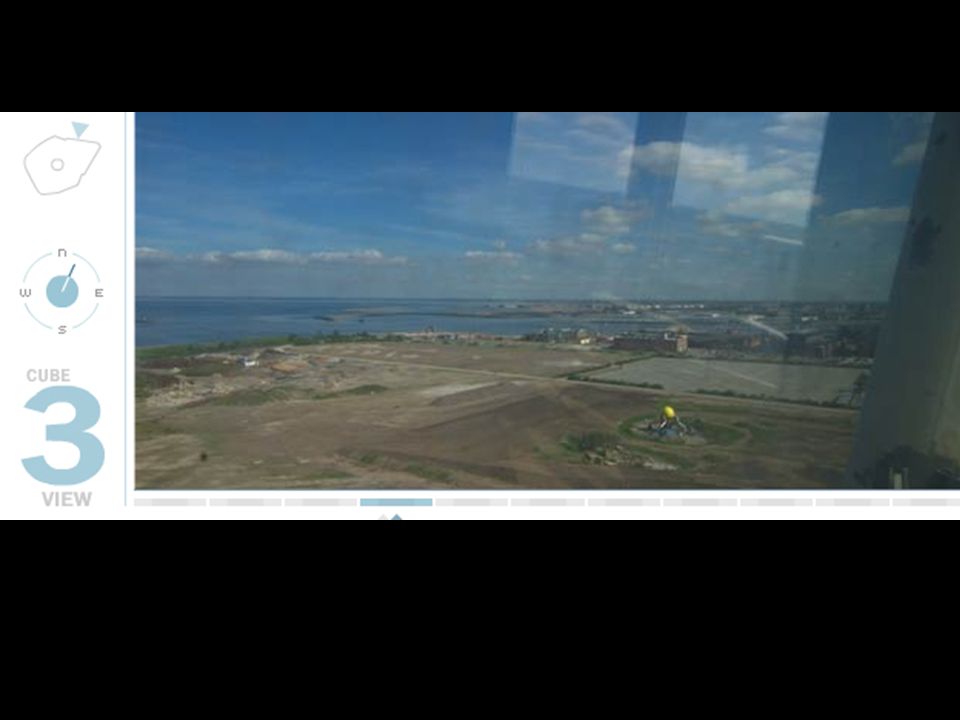

29 PANAROMIC VIEW FROM THE 3 RD CUBE: 1 ST APARTMENT LEVEL

30

31

32

33

34

35

36

37

38

39

40

41 COMMERCIAL SPACE The total commercial space is approximately 4,000 m² in the lower two cubes i.e. 10 floors. The commercial area has its own lifts and all conceivable comforts in heating, cooling and IT systems.

42 On the two top floors, 53rd and 54 th. attractive and inspiring meeting facilities. HSB Turning Torso Meetings

43 SOME OF CALATRAVAS MOST FAMOUSE STRUCTURE ALL AROUND THE WORLD.

44 Milwaukee arts museum

45 LHemisferic, Valencia Planetarium, IMEX Cinema

46 LYON AIRPORT STATION, FRANCE

47 BARCELONA COMUNICATION TOWER, BARCELONA, SPAIN

48 80 SOUTH STREET TOWER, NEW YORK CITY

49 AUDITORIO DE TENERIFE, SPAIN

50 SOME OF CALATRAVAS MOST FAMOUSE BRIDGES ALL AROUND EUROPE

51 PONT D ORLEANS, FRANCE

52 ALAMILLO BRIDGE,SEVILLE SPAIN

53 SUNDIAL BRIDGE AT TURTLE BAY, REDDING, CALIFORNIA

54 Puente de la Mujer, Buenos Aires, Argentina

55 CHORDS BRIDGE, JERUSELAM

56 conclusion

57 APPRAISAL The elemental and lyrical forms of Calatravas architecture, known and loved across the globe. Santiago Calatrava exemplifies sculptural expression and engineering through architecture. Calatravas work is like music: well orchestrated Although his buildings were known for their aesthetics, they never compromised on the grounds of functionality built energy efficient structures The fact that much of his work is centred around water which adds a further dimension to his work.

58 CRITICISM Often criticized for impracticality the mechanical instability of the structure and the excessive weight of the bridge Economy The trainstation Gare do Oriente in Lisbon is known for being very uncomfortable, especially with wind and rainy weather. TRANSTATION GARE DO ORIENTE, LISBON, PORTUGAL

59 Thank you
