Connection Machine Architecture Greg Faust, Mike Gibson, Sal Valente CS-6354 Computer Architecture Fall 2009 1.

Similar presentations

Presentation on theme: "Connection Machine Architecture Greg Faust, Mike Gibson, Sal Valente CS-6354 Computer Architecture Fall 2009 1."— Presentation transcript:

1 Connection Machine Architecture Greg Faust, Mike Gibson, Sal Valente CS-6354 Computer Architecture Fall 2009 1

2 Historic Timeline 1981: MIT AI-Lab Technical Memo on CM 1982: Thinking Machines Inc. Founded 1985: Danny Hillis wins ACM Best PhD Award 1986: CM-1 Ships 1987: CM-2 Ships 1991: CM-5 Announced 1991: CM-5 Ships 1994: TMI Chapter 11 – Sun/Oracle pick bones Heavily DARPA funded/backed $16M+ Direct Contracts plus subsidized CM sales 2

3 Involved Notables Danny Hillis – CM inventor and TMI Founder Charles Leiserson – Fat tree inventor Richard Feynman – Noble Prize winning Physicist Marvin Minsky – MIT AI Lab Visionary Guy Steele – Common Lisp, Grace Hopper Award Stephen Wolfram – Mathematica inventor Doug Lenat – Mind/Body problem philosopher Greg Papadopoulos – MIT Media lab, Sun CTO various others 3

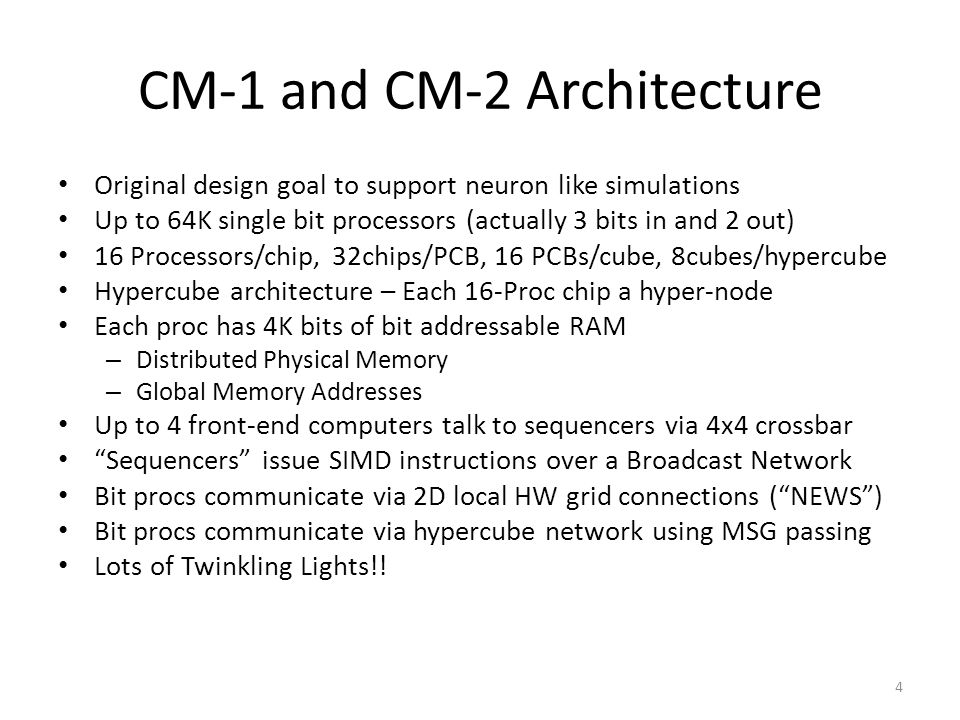

4 CM-1 and CM-2 Architecture Original design goal to support neuron like simulations Up to 64K single bit processors (actually 3 bits in and 2 out) 16 Processors/chip, 32chips/PCB, 16 PCBs/cube, 8cubes/hypercube Hypercube architecture – Each 16-Proc chip a hyper-node Each proc has 4K bits of bit addressable RAM – Distributed Physical Memory – Global Memory Addresses Up to 4 front-end computers talk to sequencers via 4x4 crossbar Sequencers issue SIMD instructions over a Broadcast Network Bit procs communicate via 2D local HW grid connections (NEWS) Bit procs communicate via hypercube network using MSG passing Lots of Twinkling Lights!! 4

5 CM-1 CM-2 Architecture 5

6 CM-1 and CM-2 Programming ISA supports: – Bit-oriented operations – Arbitrary precision multi-bit scalar Ops using bit-serial implementation on bit procs – Full Multi-Dimensional Vector Ops Virtual Processor idea similar to CUDA threads but they are statically allocated OS and Programming Tools run on front-ends *Lisp as the initial programming language Later C* and CM-Fortran 6

7 CM-2 Improvements 1 Weitek IEEE FP coprocessor per 32 1-bit procs Up to 256K bits of memory per processor Added ECC to Memory Implemented the IO subsystem – Up to 80 GByte RAID array called Data Vault uses 39 Striped Disks and ECC, plus spare disks on standby – High Speed Graphics Output En-route MSG combining in H-Cube router New implementation of Multi-Dimensional NEWS on top of H-Cube (special addressing mode) 7

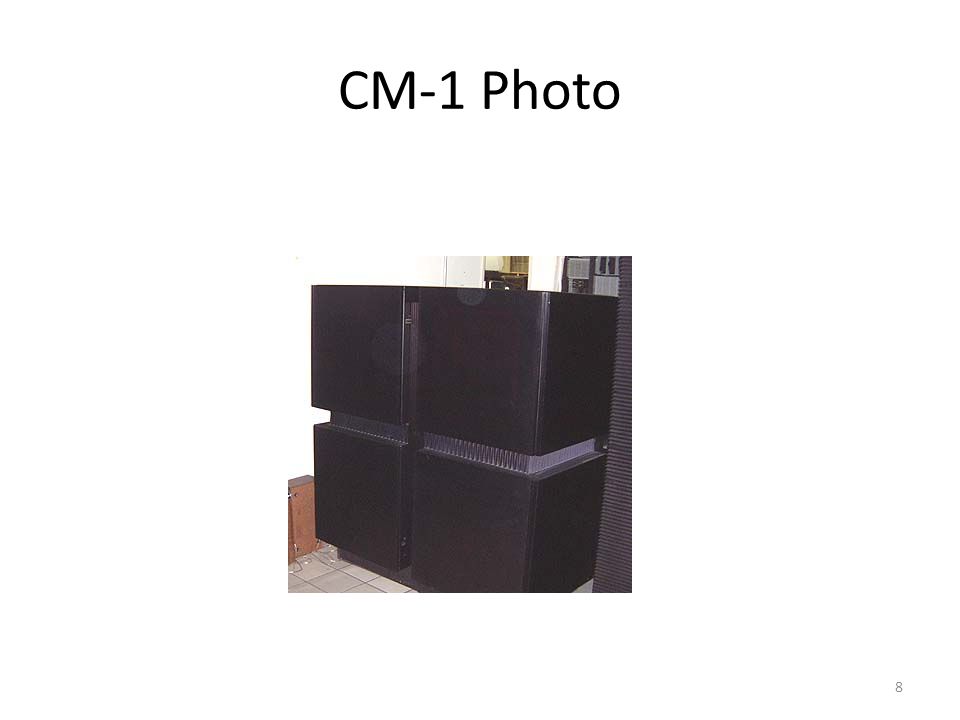

8 CM-1 Photo 8

9 CM-5 vs CM-1 and CM-2 Significant departure from CM-1 and CM-2 Targeted at more scientific and business applications More Commercial Off-The-Shelf components (COTS) Large Array of SPARC Processing Nodes – 1-bit processors are abandoned Abandoned NEWS Grid and Hyper-Cube Networks Delivered 1024 node machine, with claims 16K nodes possible Even More Twinkling Lights! 9

10 CM-5 Photo – Watch it Blink 10

11 CM-5 Overall Architecture "Coordinated Homogeneous Array of RISC Processors or CHARM Asymmetric CoProcessors Model – Large Array of Processor Nodes – Small Collection of Control Nodes 2 Separate scalable networks – One for data – One for control and synchronization Still uses striped RAID for high disk BandWidth 11

12 Division of Labor Processor Nodes can be assigned to a Partition One Control Node per Partition Control Node runs scalar code, then broadcasts parallel work to Processor Nodes Processor Nodes receive a program, not an instruction stream, have own Program Counter Processor nodes can access other node's memory by reading or writing a global memory address Processor Nodes also communicate via MSG passing Processor Nodes cannot issue system calls 12

13 Control Nodes Full Sun Workstations Running UNIX Connected to the Outside World Handles Partition Time Sharing Connected to both data and control networks Performs System Diagnostics 13

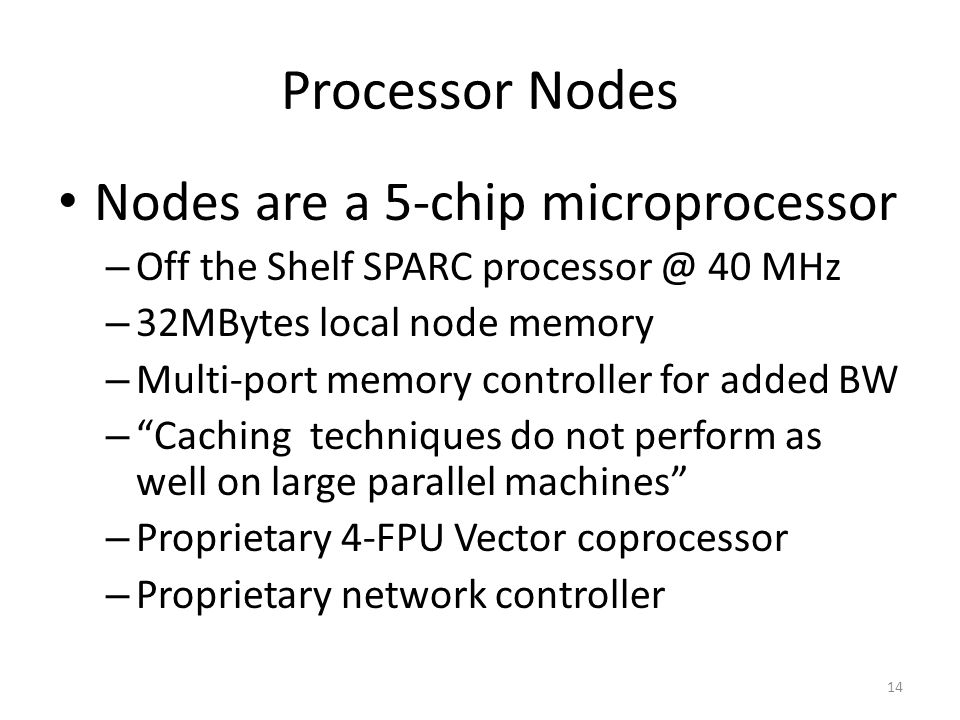

14 Processor Nodes Nodes are a 5-chip microprocessor – Off the Shelf SPARC processor @ 40 MHz – 32MBytes local node memory – Multi-port memory controller for added BW – Caching techniques do not perform as well on large parallel machines – Proprietary 4-FPU Vector coprocessor – Proprietary network controller 14

15 CM-5 Processor Node Diagram 15

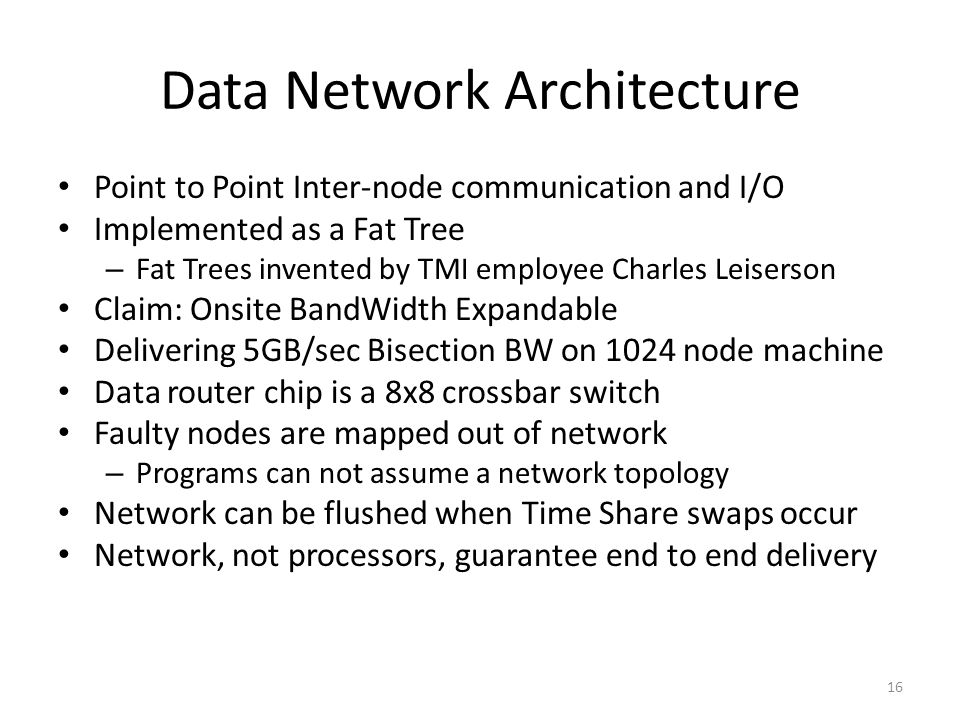

16 Data Network Architecture Point to Point Inter-node communication and I/O Implemented as a Fat Tree – Fat Trees invented by TMI employee Charles Leiserson Claim: Onsite BandWidth Expandable Delivering 5GB/sec Bisection BW on 1024 node machine Data router chip is a 8x8 crossbar switch Faulty nodes are mapped out of network – Programs can not assume a network topology Network can be flushed when Time Share swaps occur Network, not processors, guarantee end to end delivery 16

17 Fat Tree Structure 17

18 Separate Control Network Synchronization & control network Complete Binary Tree organization Provides broadcast capability Implements barrier operations Implements interrupts for timesharing Performs reduction operators (Sum, Max, AND, OR, Count, etc) 18

19 CM-5 Programming Supports multiple Parallel High Level Languages and Programming Styles – Including Data Parallel Model from CM-1 and CM-2 Goal: Hide many decisions from programmers – CM-1, CM-2 vs CM-5 ISA changes – Use of Processor Node CPU vs Vector CoProcessors – Partition Wide Synchronizations generate by Compiler Is it MIMD, SPMD, SIMD? – Globally Synchronized MIMD 19

20 Sample CM Apps Machine Learning – Neural Nets, concept clustering, genetic algorithms VLSI Design Geophysics (Oil Exploration), Plate Tectonics Particle Simulation Fluid Flow Simulation Computer Vision Computer Graphics, Animation Protein Sequence Matching Global Climate Model Simulation 20

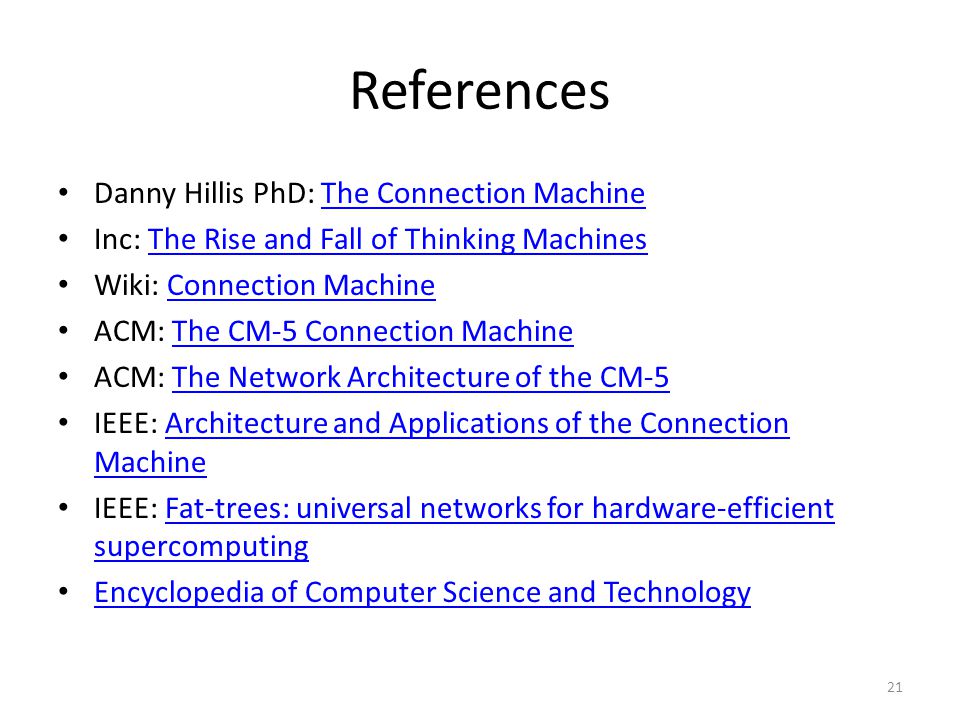

21 References Danny Hillis PhD: The Connection MachineThe Connection Machine Inc: The Rise and Fall of Thinking MachinesThe Rise and Fall of Thinking Machines Wiki: Connection MachineConnection Machine ACM: The CM-5 Connection MachineThe CM-5 Connection Machine ACM: The Network Architecture of the CM-5The Network Architecture of the CM-5 IEEE: Architecture and Applications of the Connection MachineArchitecture and Applications of the Connection Machine IEEE: Fat-trees: universal networks for hardware-efficient supercomputingFat-trees: universal networks for hardware-efficient supercomputing Encyclopedia of Computer Science and Technology 21
