1 Aerodynamics of Wind Turbine Control Systems By Chawin Chantharasenawong 21 August 2009

2 Chawin Chantharasenawong Academic staff at Department of Mechanical Engineering King Mongkuts University of Technology Thonburi (KMUTT)

3 Our work with wind energy

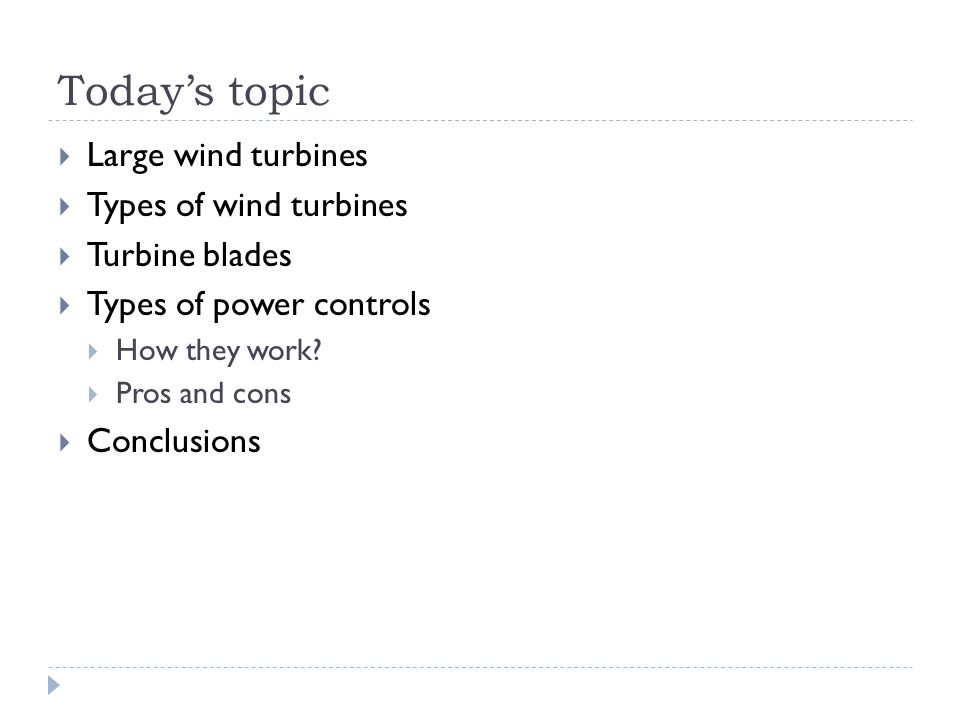

4 Todays topic Large wind turbines Types of wind turbines Turbine blades Types of power controls How they work? Pros and cons Conclusions

5 Large wind turbines Large wind turbines are wind turbines with rated power over 1MW Wind turbines are typically classified into Horizontal axis wind turbines (HAWTs) Vertical axis wind turbines (VAWTs)

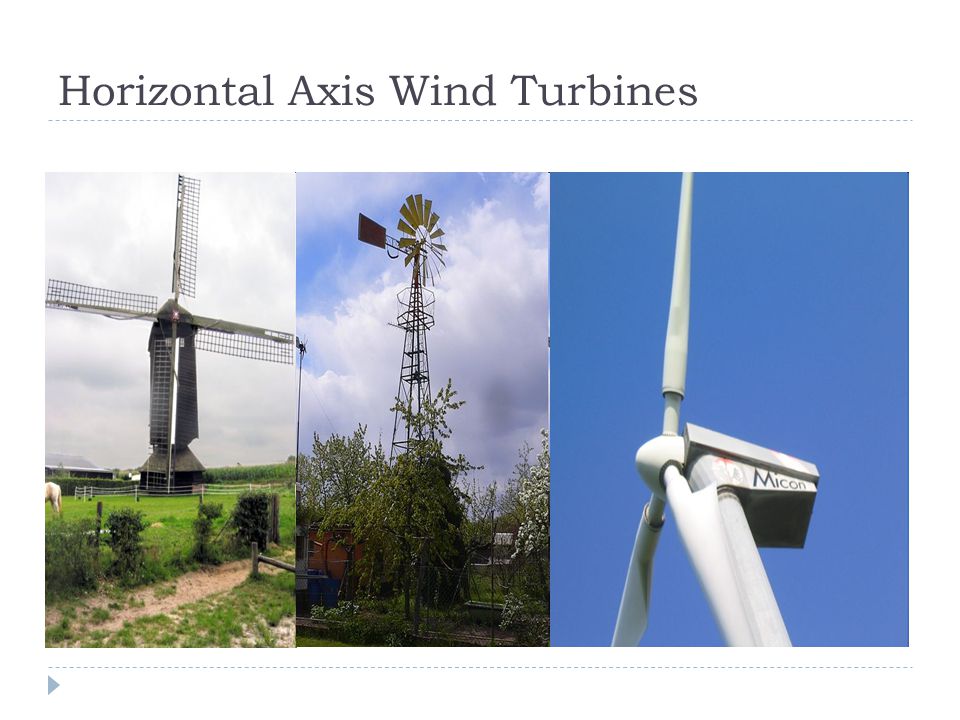

6 Horizontal Axis Wind Turbines

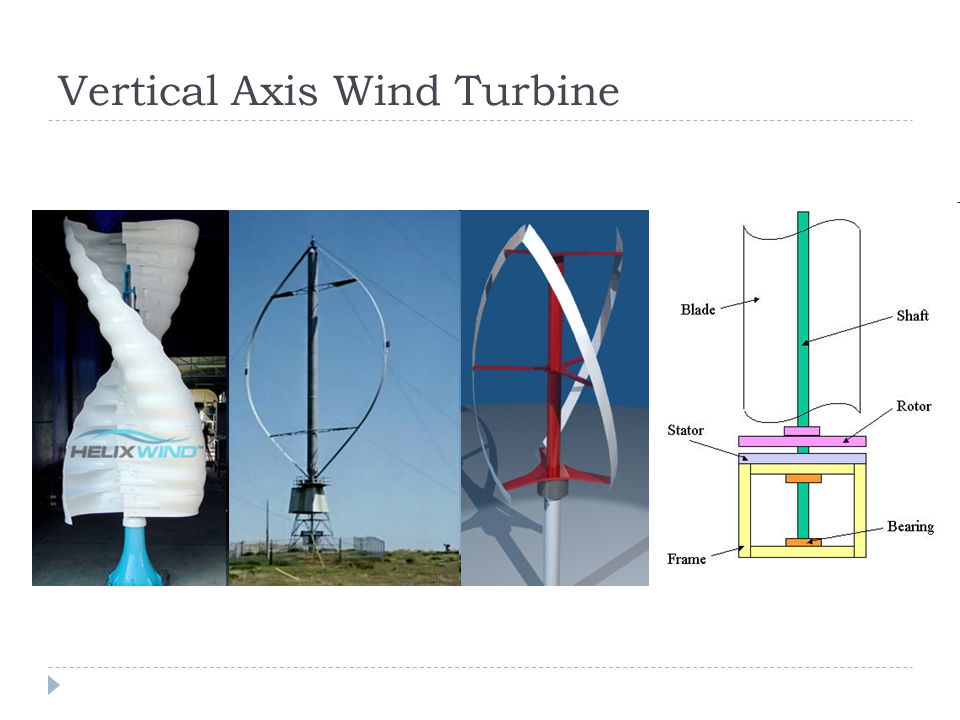

7 Vertical Axis Wind Turbine

8 Advantages of large HAWTs and VAWTs HAWTs Due to the atmospheric boundary layer, wind speeds are usually higher with altitude. The power available is proportional to the wind seed to the power of three. VAWTs Easy maintenance as it is close to ground Wind direction does not affect the power production No high tower required, hence lower initial cost

9 Disadvantages of large HAWTs and VAWTs HAWTs Large modern wind turbines consist of over 90m high towers and 40m long blades. Transportation is difficult and costly. Dangers to birds in the vicinity VAWTs Lower efficiency when compared to an equivalent HAWT because part of the VAWT is always turning against the wind without producing power VAWTs cannot be installed on a high tower to take advantage of the high speed wind due to vibration problems The turbine must be dismantled for maintenance

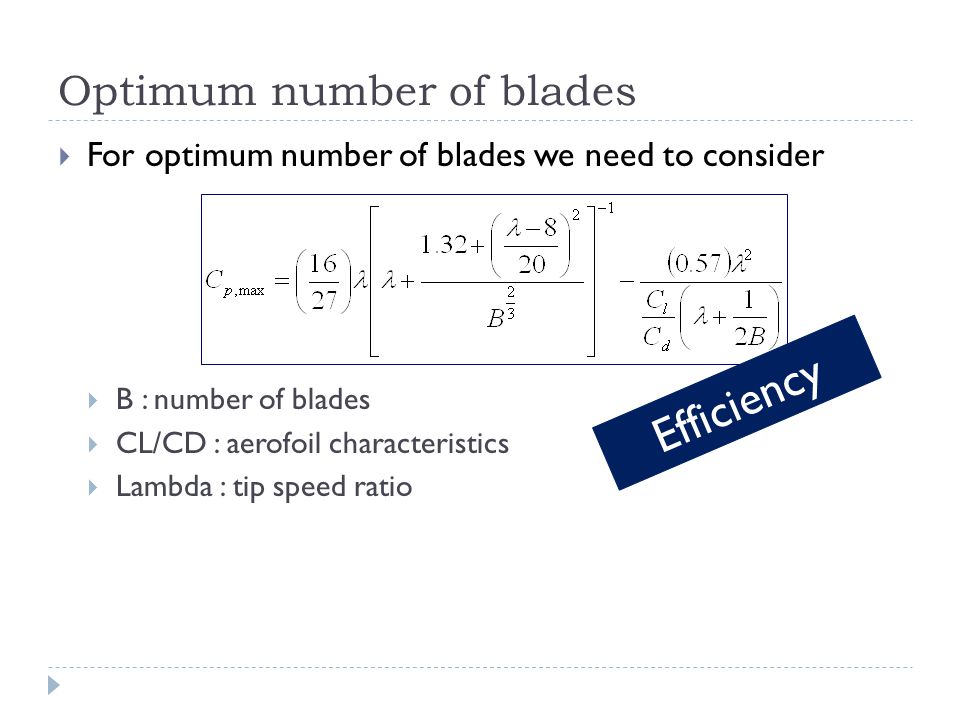

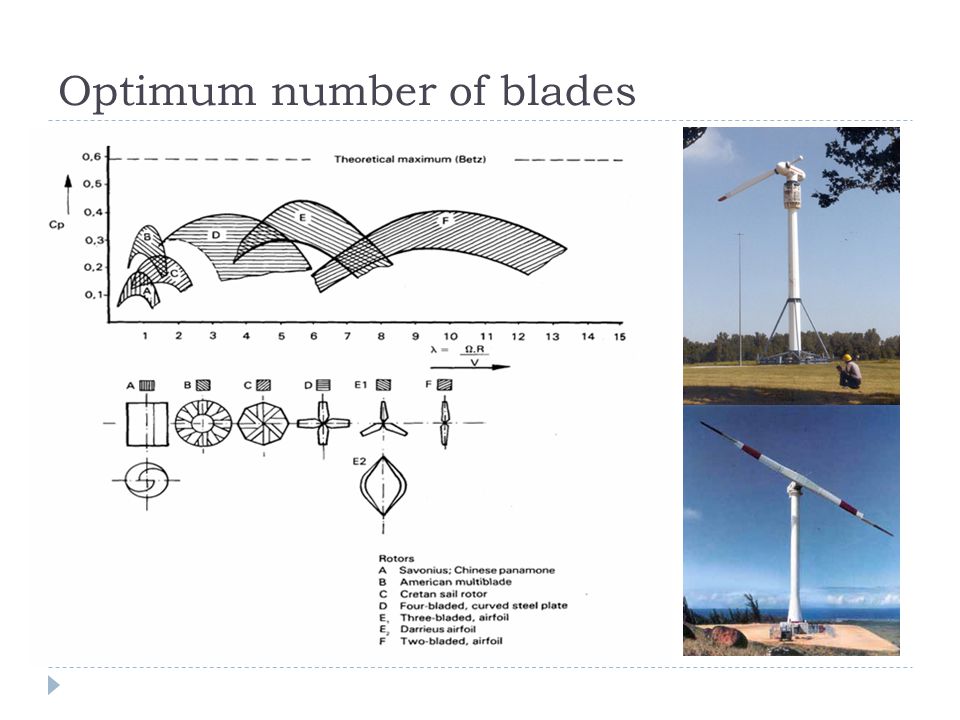

10 Optimum number of blades For optimum number of blades we need to consider B : number of blades CL/CD : aerofoil characteristics Lambda : tip speed ratio Efficiency

11 Optimum number of blades * Calculation of Cp max is performed using information from Wind Energy Explained by Manwell et al. and Wilson et al. (1976) 1 blade More blades

12 Optimum number of blades

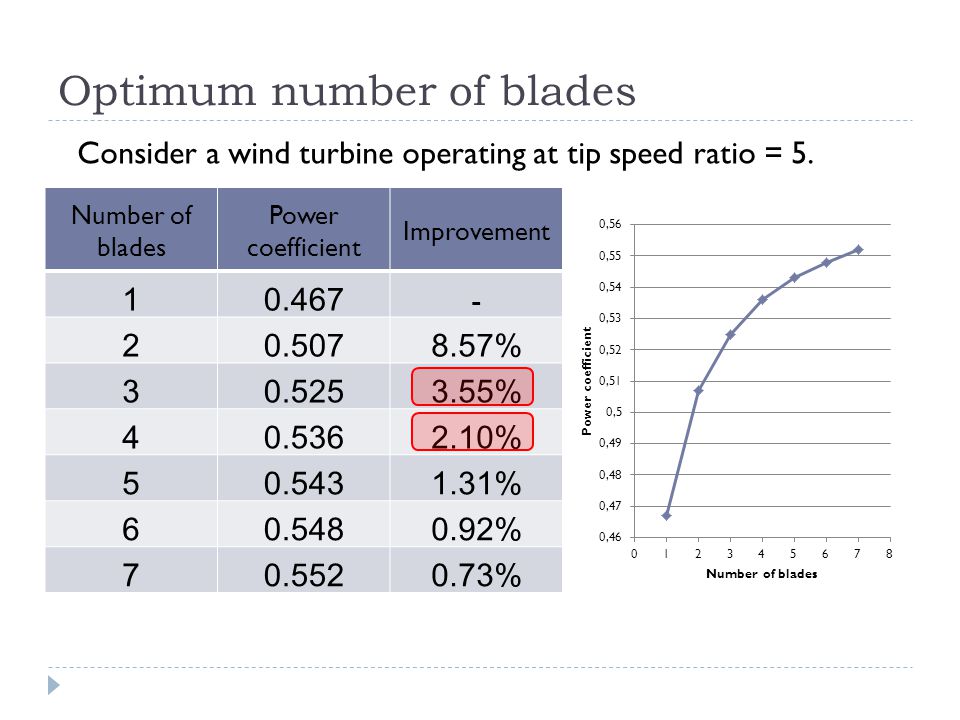

13 Number of blades Power coefficient Improvement 10.467- 20.5078.57% 30.5253.55% 40.5362.10% 50.5431.31% 60.5480.92% 70.5520.73% Consider a wind turbine operating at tip speed ratio = 5.

14 Efficiency of blade section Blade section characteristics Preference High lift to produce torque Low drag to prevent flapwise damages and reduce losses Aerofoil shape is the most suitable, ie. high lift-to-drag ratio

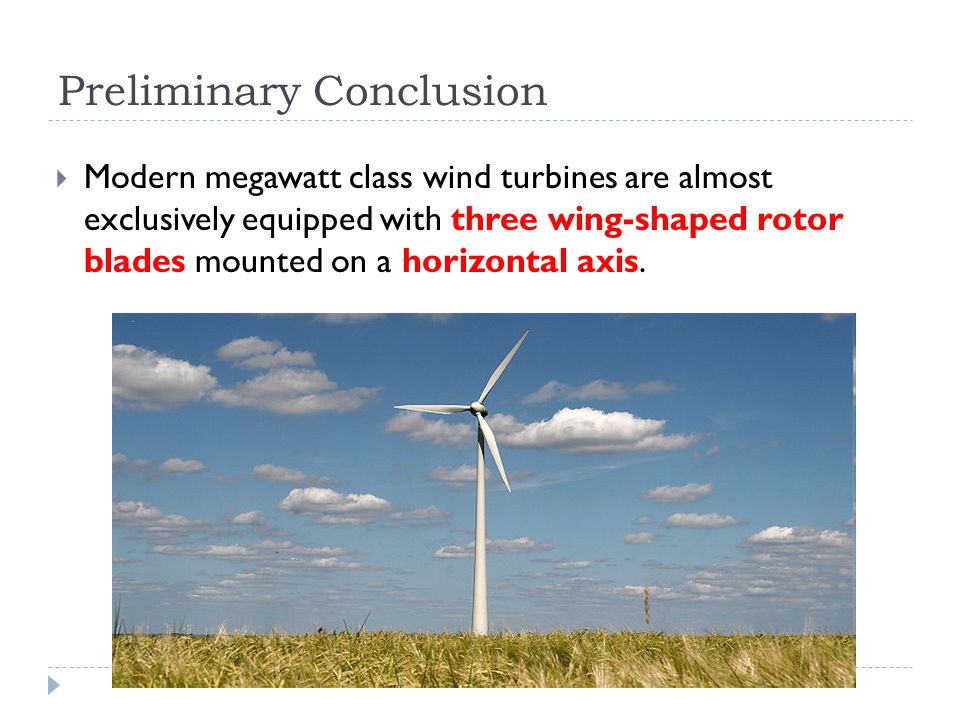

15 Preliminary Conclusion Modern megawatt class wind turbines are almost exclusively equipped with three wing-shaped rotor blades mounted on a horizontal axis.

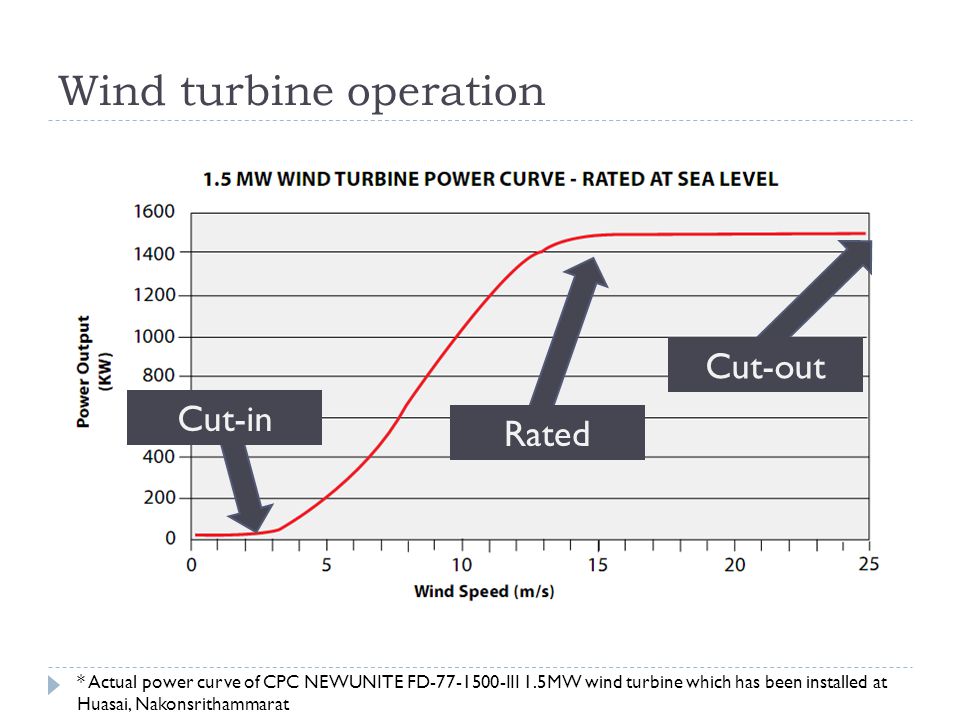

16 Wind turbine operation Cut-in Rated Cut-out * Actual power curve of CPC NEWUNITE FD-77-1500-III 1.5MW wind turbine which has been installed at Huasai, Nakonsrithammarat

17 Excess energy Calculated with air density = 1.225 kg/m 3 Excess energy

18 Power control In case of stronger winds it is necessary to waste part of the excess energy of the wind in order to avoid damaging the wind turbine. All wind turbines are therefore designed with some sort of power control. There are two different ways of doing this safely on modern wind turbines. Stall control Pitch control

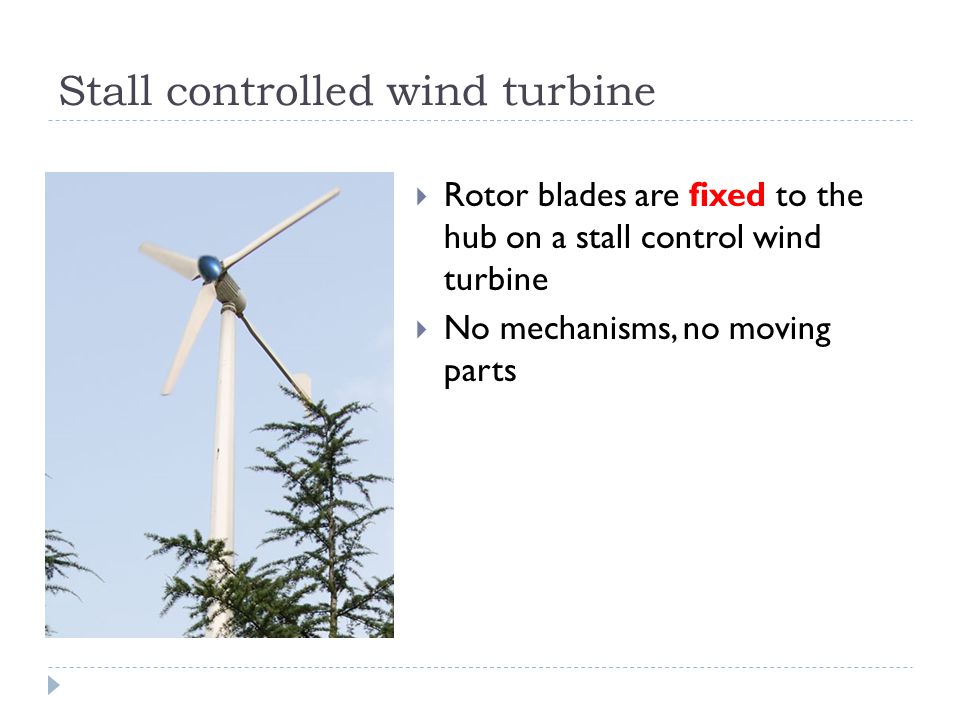

19 Stall controlled wind turbine Rotor blades are fixed to the hub on a stall control wind turbine No mechanisms, no moving parts

20 How does stall control work? Local angle of attack is a function of wind speed, ie. High wind speed = high angle of attack

21 How does stall control work? Angle of attack Lift coefficient Stall controlled wind turbine operation conditions during high wind speeds

22 How does stall control work? High wind speed High angle of attack Flow separation over upper surface Stall Lift force is broken Rotor torque is reduced Power is controlled

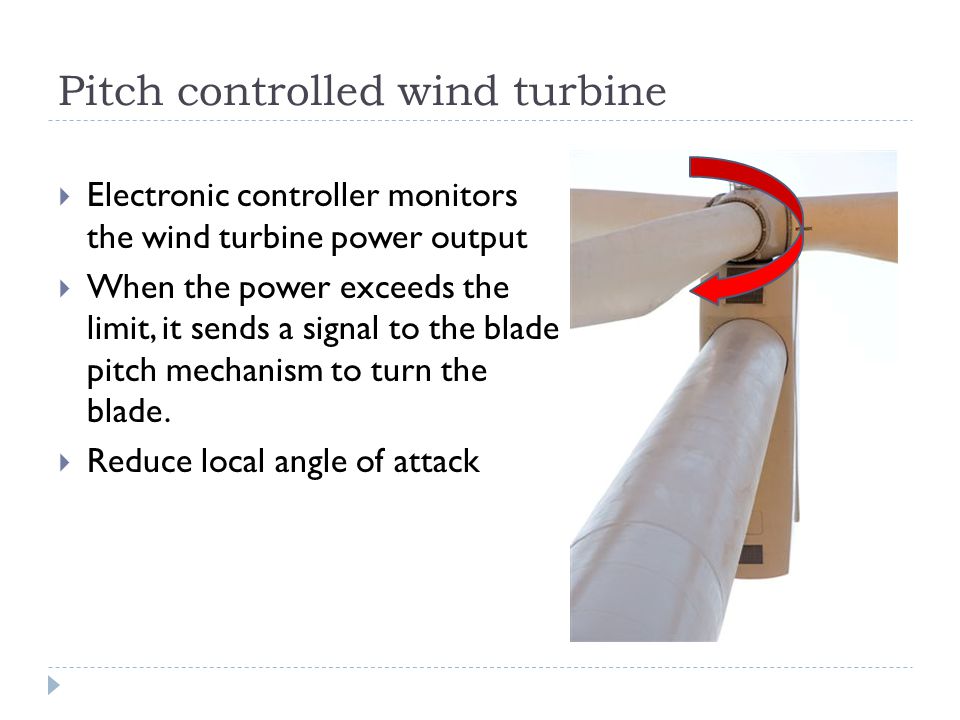

23 Pitch controlled wind turbine Electronic controller monitors the wind turbine power output When the power exceeds the limit, it sends a signal to the blade pitch mechanism to turn the blade. Reduce local angle of attack

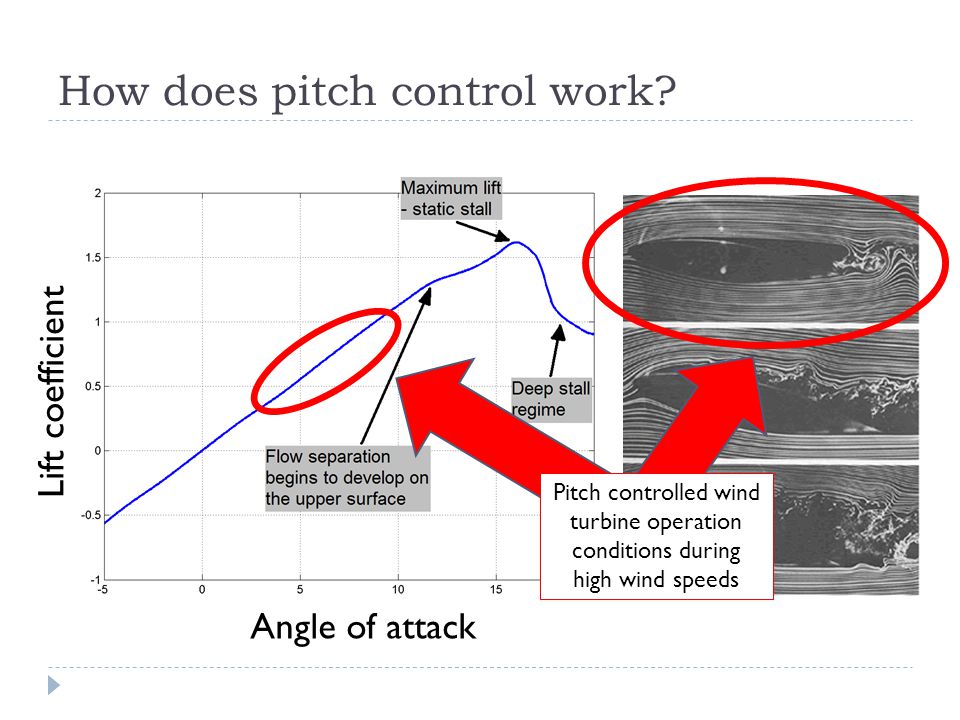

24 How does pitch control work? Angle of attack Lift coefficient Pitch controlled wind turbine operation conditions during high wind speeds

25 Advantages and disadvantages Aerofoil is most efficient (maximum lift-to-drag ratio) when operating at its designed angle of attack, which is usually below the stall angle Pitch controlled turbines operate below the stall angle during high wind speeds Drag Lift

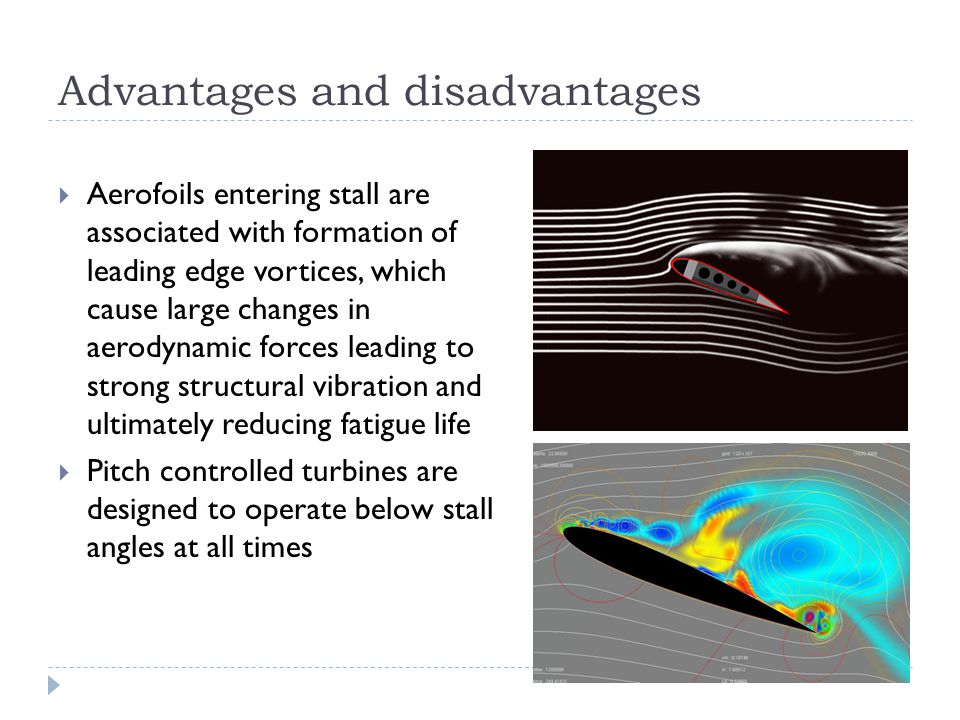

26 Advantages and disadvantages Aerofoils entering stall are associated with formation of leading edge vortices, which cause large changes in aerodynamic forces leading to strong structural vibration and ultimately reducing fatigue life Pitch controlled turbines are designed to operate below stall angles at all times

27 Advantages and disadvantages Stall controlled turbines are safer during sudden changes in angle of attack Gusts Wind shear Angle of attack Lift coefficient

28 Advantages and disadvantages Almost all modern large wind turbines are equipped with pitch control systems, hence its maintenance services and spare parts are readily available. Moving parts in the pitch mechanism require regular maintenance at a cost

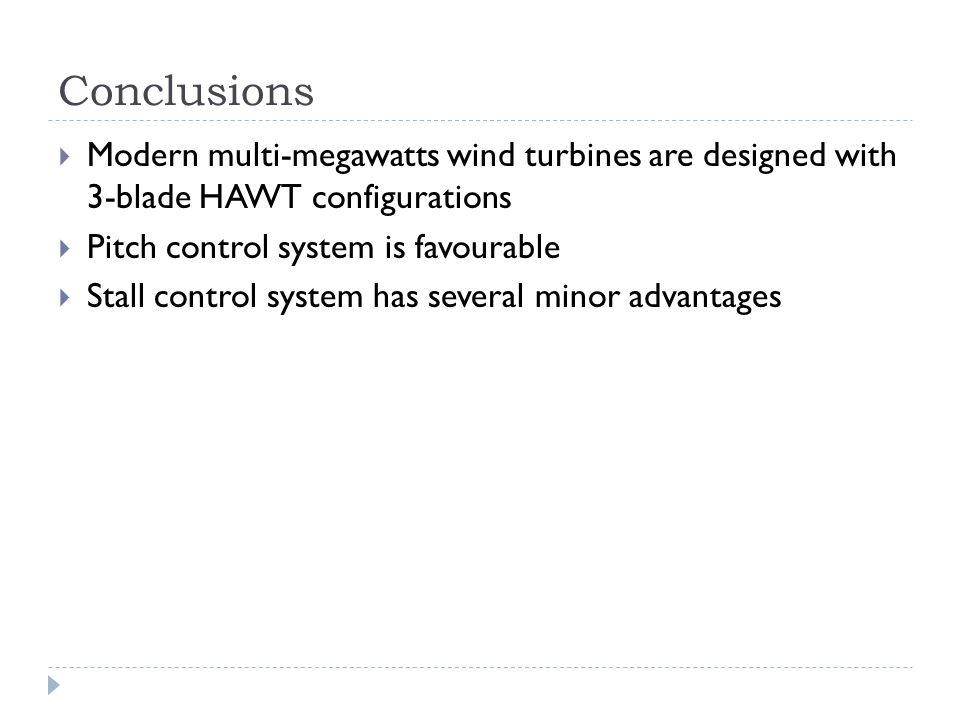

29 Conclusions Modern multi-megawatts wind turbines are designed with 3-blade HAWT configurations Pitch control system is favourable Stall control system has several minor advantages

30 Thank you for your attention Chawin Chantharasenawong Mechanical Engineering Department KMUTT
