3 Support – Part two What are profiles and an explanation of the parameters How to improve the accuracy of a capacity test Charger and cycle test on a battery Use of monitor test The possibility of recording data in a system with a load/source on a battery Can the AlfaBat break down, how can you test it (tools and technical manual) and how can you fix it (spare parts + instructions)

4 EMROL – Your power partner Profiles What are profiles? What are parameters? 3 profiles in the AlfaBat, Unlimited on the PC How to use them? Always use the same profile or choose to select one Upload to device

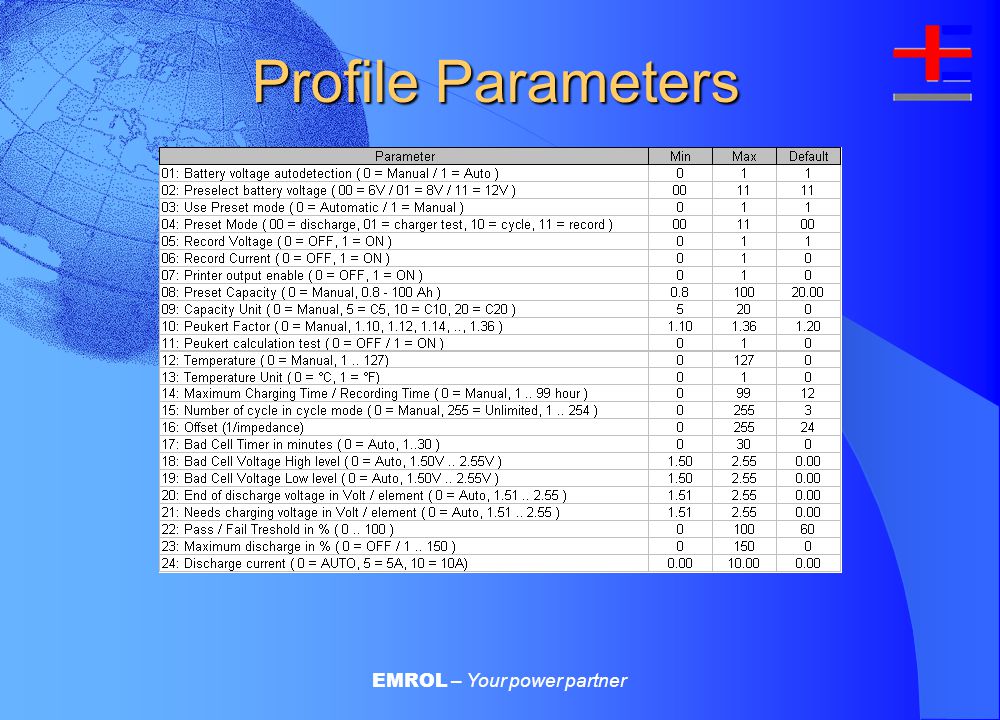

5 EMROL – Your power partner Profile Parameters

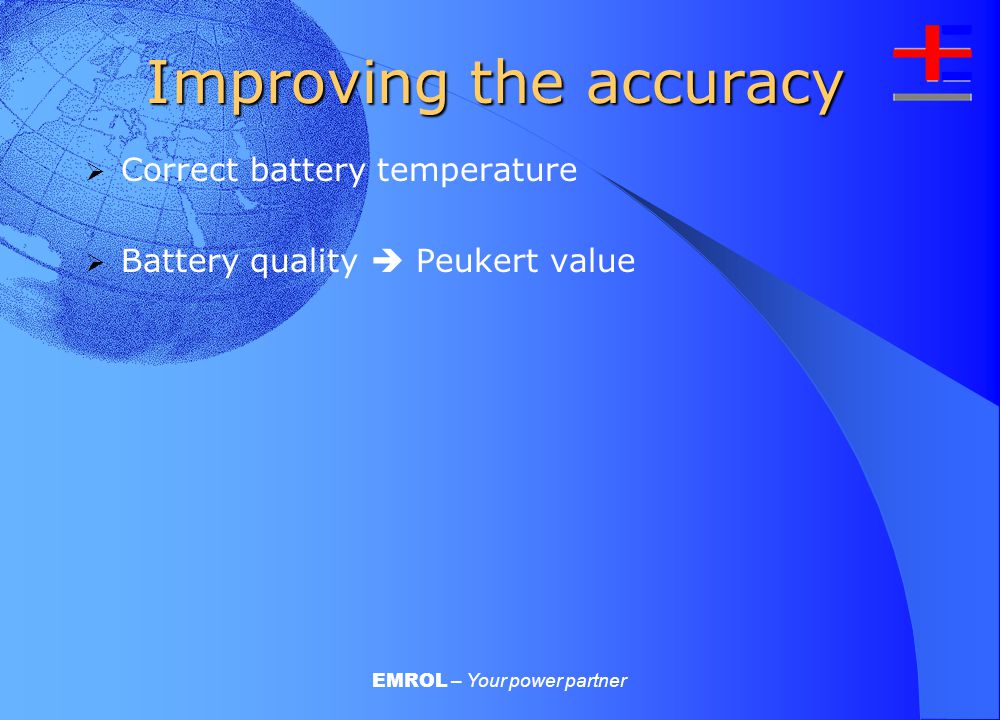

6 EMROL – Your power partner Improving the accuracy Correct battery temperature Battery quality Peukert value

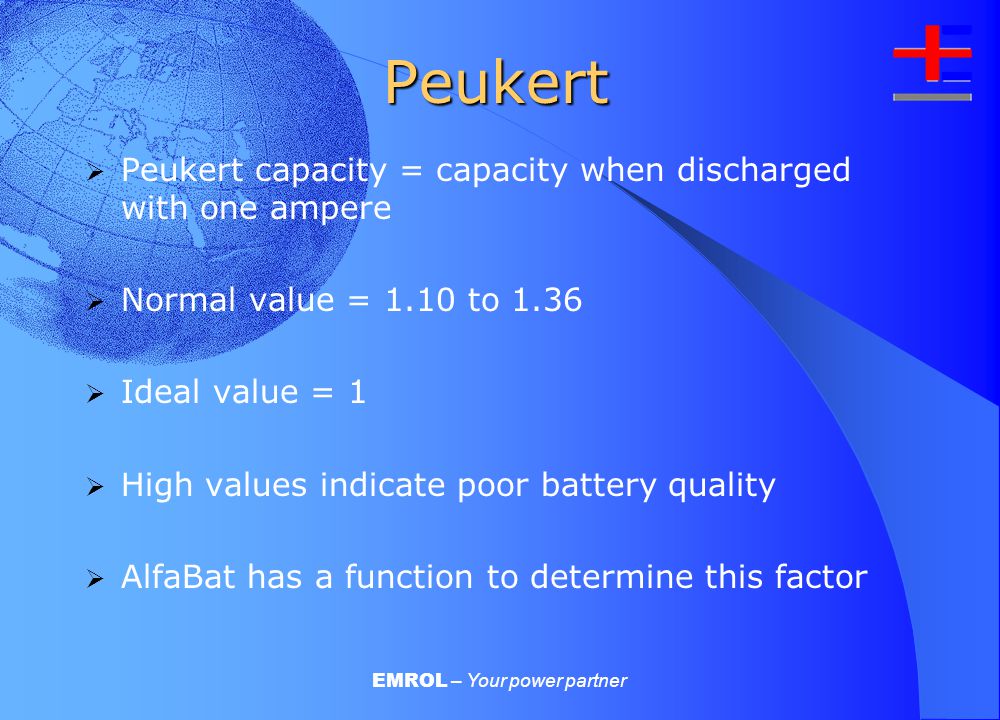

7 EMROL – Your power partner Peukert Peukert capacity = capacity when discharged with one ampere Normal value = 1.10 to 1.36 Ideal value = 1 High values indicate poor battery quality AlfaBat has a function to determine this factor

8 EMROL – Your power partner Charger and cycle test on a battery Select a correct profile Adaptor is required Connect the charger Charger test: result in Ah Usefull to record a chargers regime. Cycle discharge: result in % Cycle charge: Charge factor

9 EMROL – Your power partner Charge Factor Relation between the discharged capacity and the charged capacity > 1.10 : to compensate charge losses you need to put more energy in a battery then what was extracted.

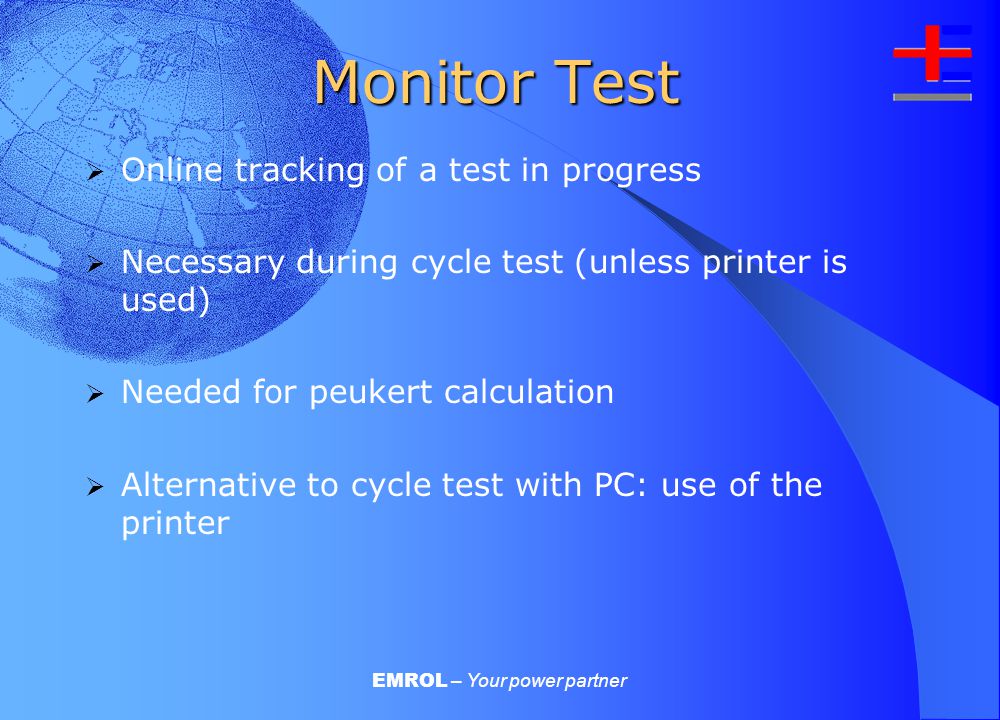

10 EMROL – Your power partner Monitor Test Online tracking of a test in progress Necessary during cycle test (unless printer is used) Needed for peukert calculation Alternative to cycle test with PC: use of the printer

11 EMROL – Your power partner Cycle test example

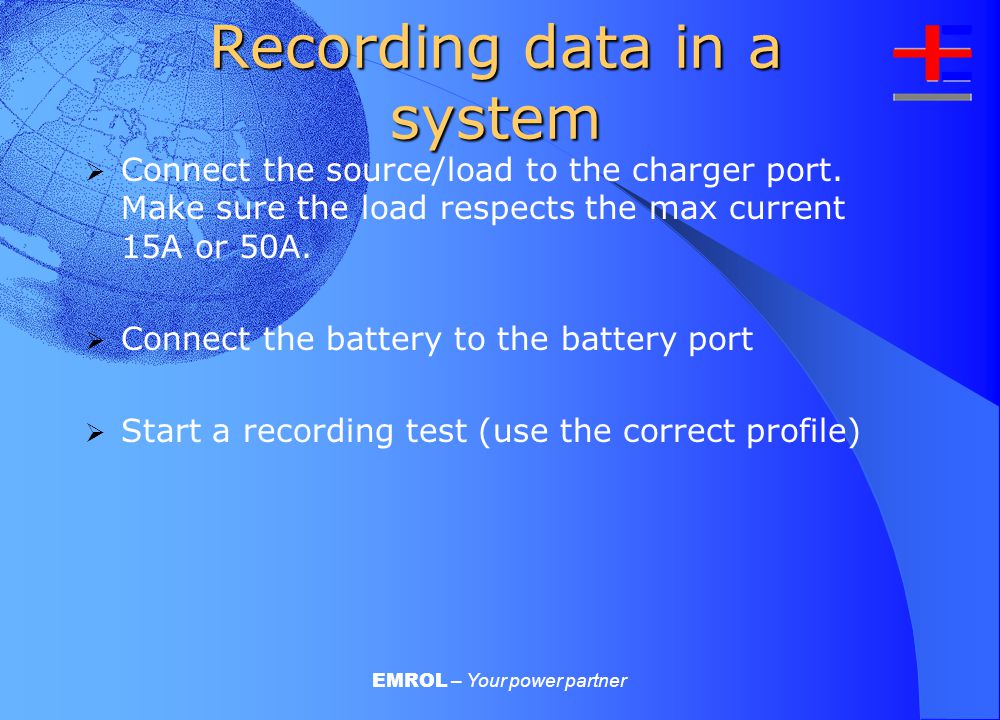

12 EMROL – Your power partner Recording data in a system Connect the source/load to the charger port. Make sure the load respects the max current 15A or 50A. Connect the battery to the battery port Start a recording test (use the correct profile)

13 EMROL – Your power partner Technical solutions 1. Simple things first: all connections are present, polarity ok, bad connection, latest firmware / software, Look in the knowledge base on the Emrol website. 3. If you are sure there is a technical problem look in the technical manual 4. Use the service tools to locate / fix the technical problem

14 EMROL – Your power partner Technical Manual Use ONLY original spare parts (FAN, Fuse, controller board,...). Use one of the tools for testing the device in combination with the Windows software.

15 EMROL – Your power partner AlfaBat Service Programming

16 EMROL – Your power partner AlfaBat Service Power supply

17 EMROL – Your power partner AlfaBat Service Measuring

18 EMROL – Your power partner AlfaBat Service Test Peripheral

19 EMROL – Your power partner AlfaBat Service Device

20 EMROL – Your power partner Thank you
