1 Václav Dajbych Microsoft Student Partner dajbych.net @Dajbych feed.dajbych.net events.dajbych.net

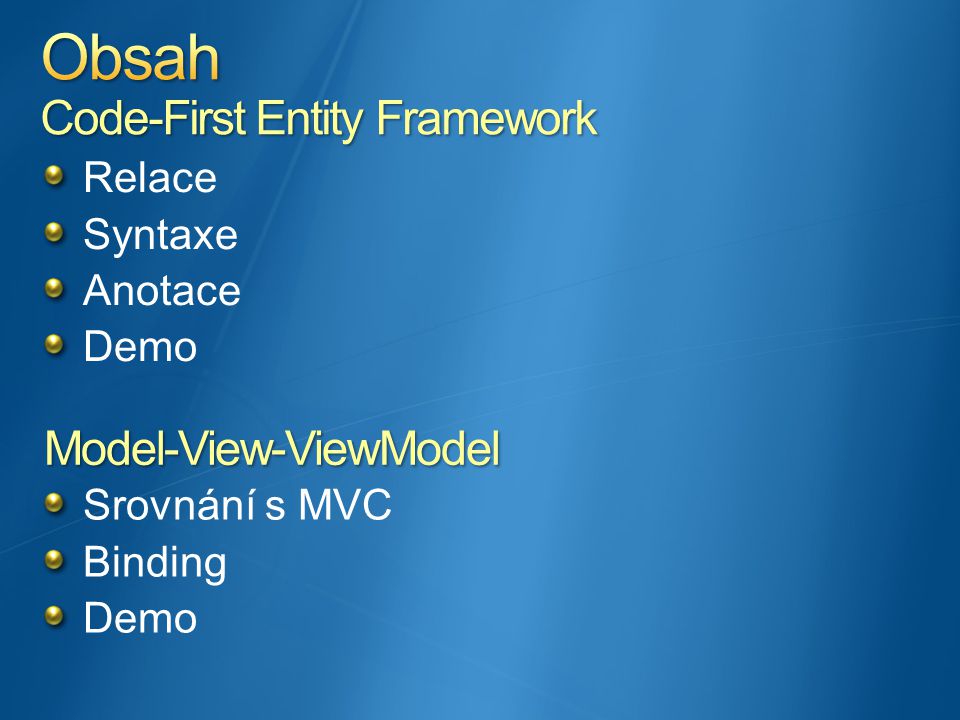

2 Relace Syntaxe Anotace Demo Model-View-ViewModel Srovnání s MVC Binding Demo

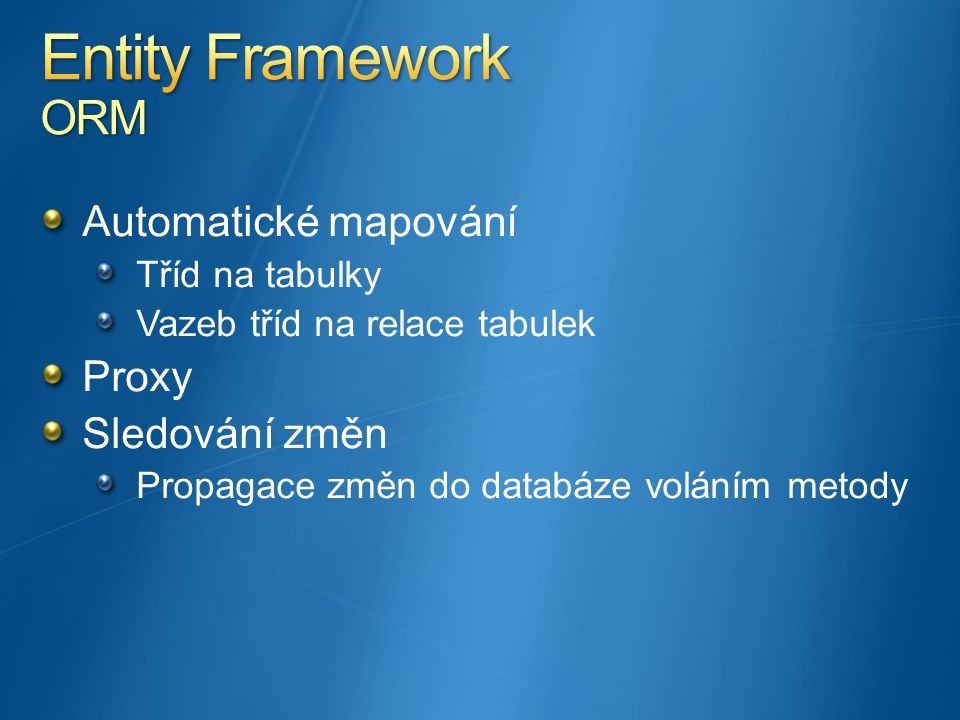

3 Automatické mapování Tříd na tabulky Vazeb tříd na relace tabulek Proxy Sledování změn Propagace změn do databáze voláním metody

4

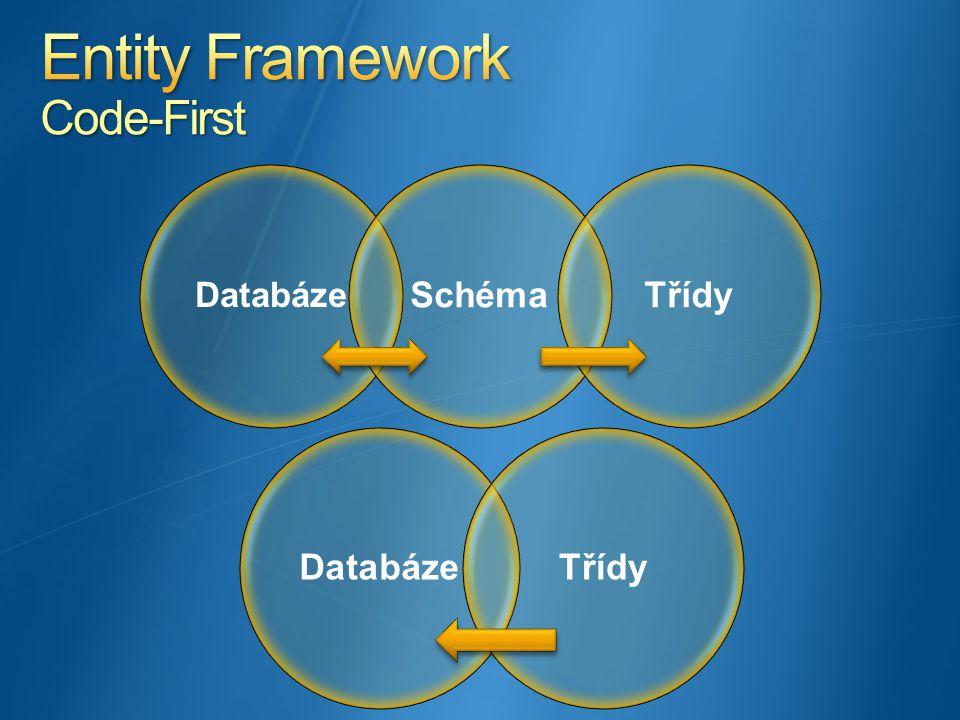

5 Databáze SchémaTřídy DatabázeTřídy

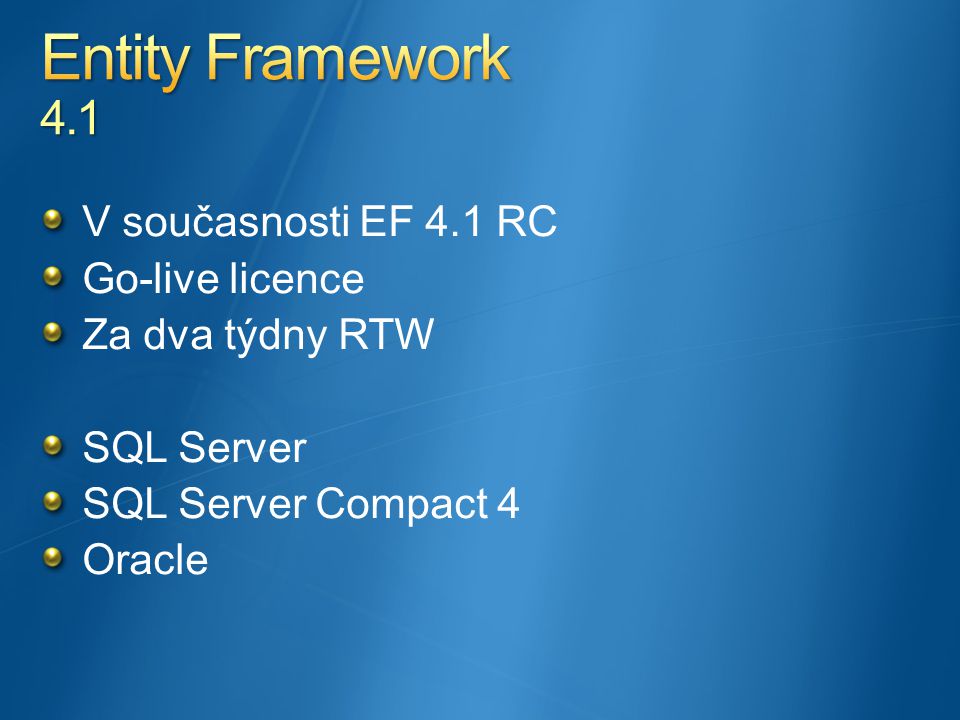

6 V současnosti EF 4.1 RC Go-live licence Za dva týdny RTW SQL Server SQL Server Compact 4 Oracle

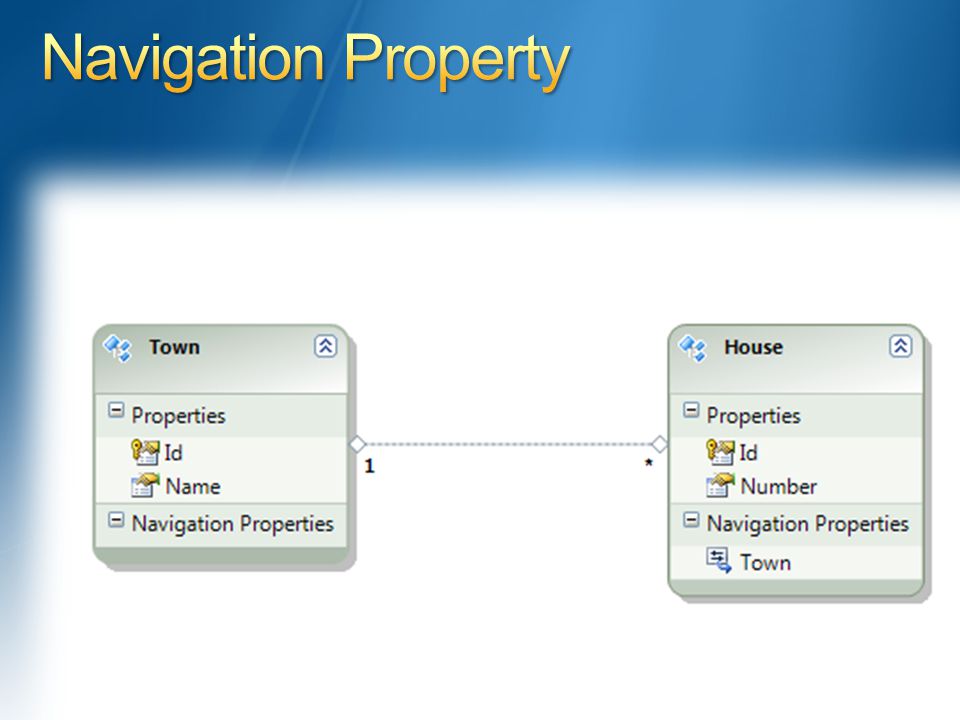

7

8 var house = ( from h in db.Houses select h).First(); var town = house ;.Town

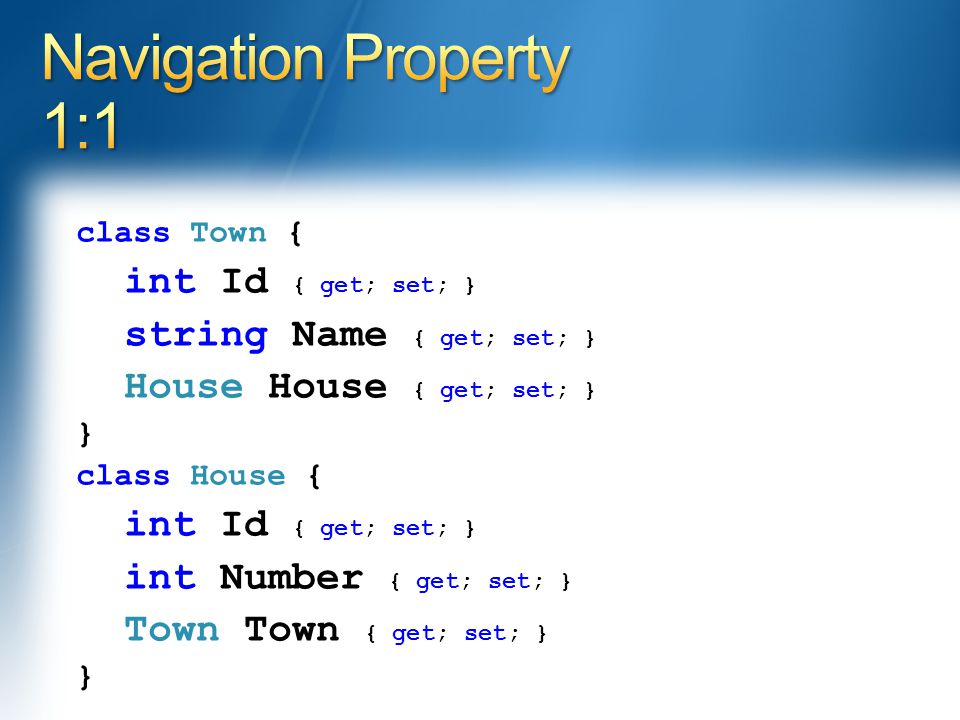

9 class Town { int Id { get; set; } string Name { get; set; } House House { get; set; } } class House { int Id { get; set; } int Number { get; set; } Town Town { get; set; } }

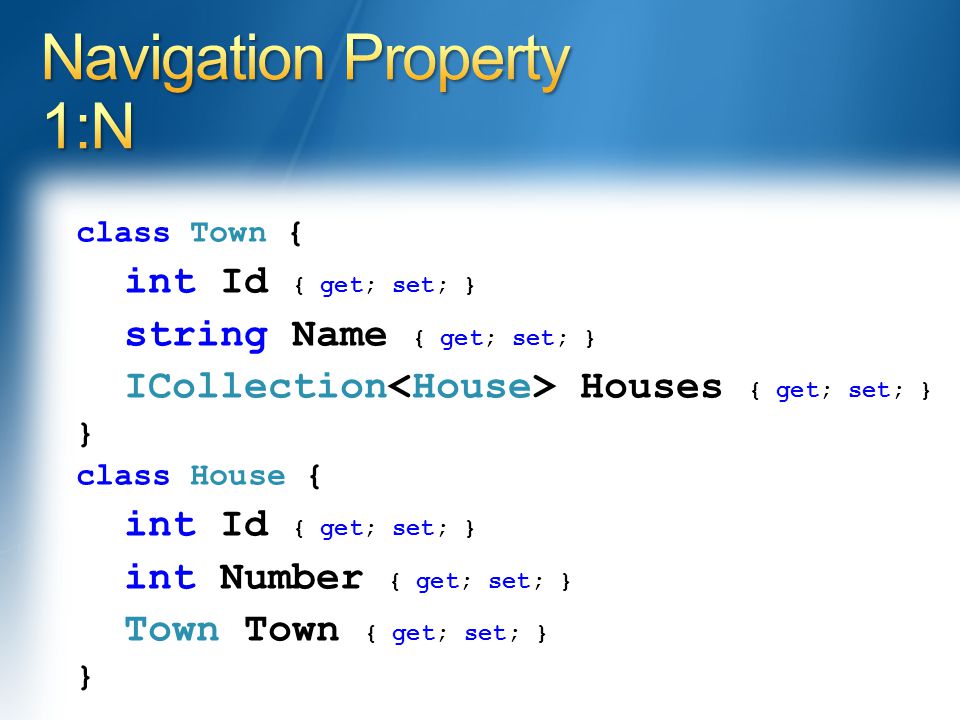

10 class Town { int Id { get; set; } string Name { get; set; } ICollection Houses { get; set; } } class House { int Id { get; set; } int Number { get; set; } Town Town { get; set; } }

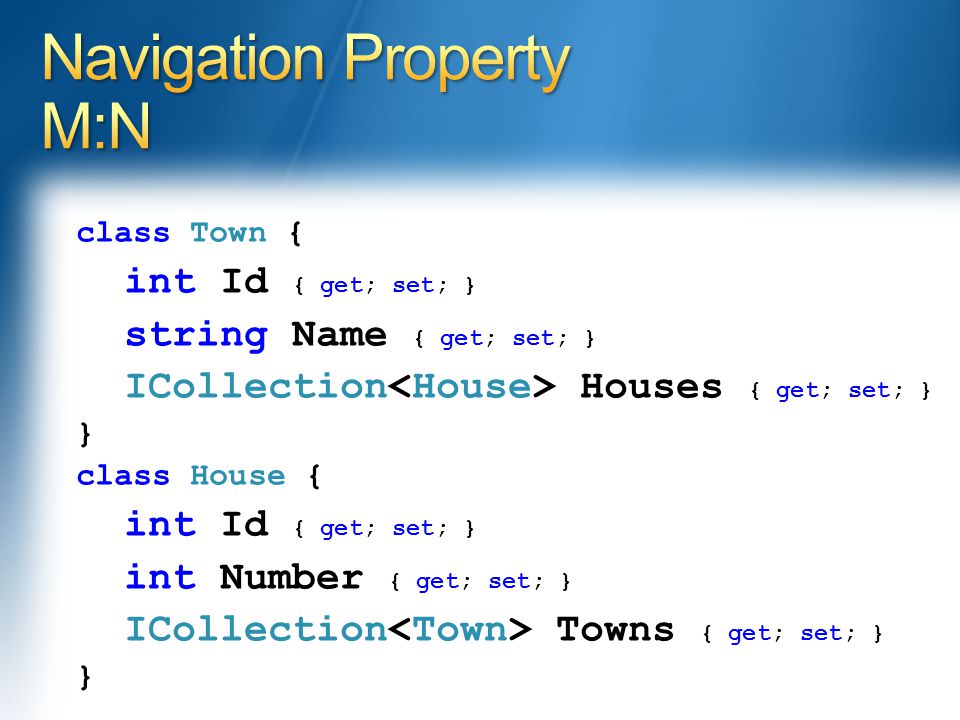

11 class Town { int Id { get; set; } string Name { get; set; } ICollection Houses { get; set; } } class House { int Id { get; set; } int Number { get; set; } ICollection Towns { get; set; } }

12 int int? string decimal DateTime bool bool? byte byte[] int, not null int nvarchar(128) decimal(18,2), not null datetime bit, not null bit tinyint, not null varbinary(max)

13 public class Town { public int Id { get; set; } public string Name { get; set; } virtual public virtual ICollection Houses { get; set; } class Entity : Town { public Entity() {...} override public override ICollection Houses { get {...} set {...} }

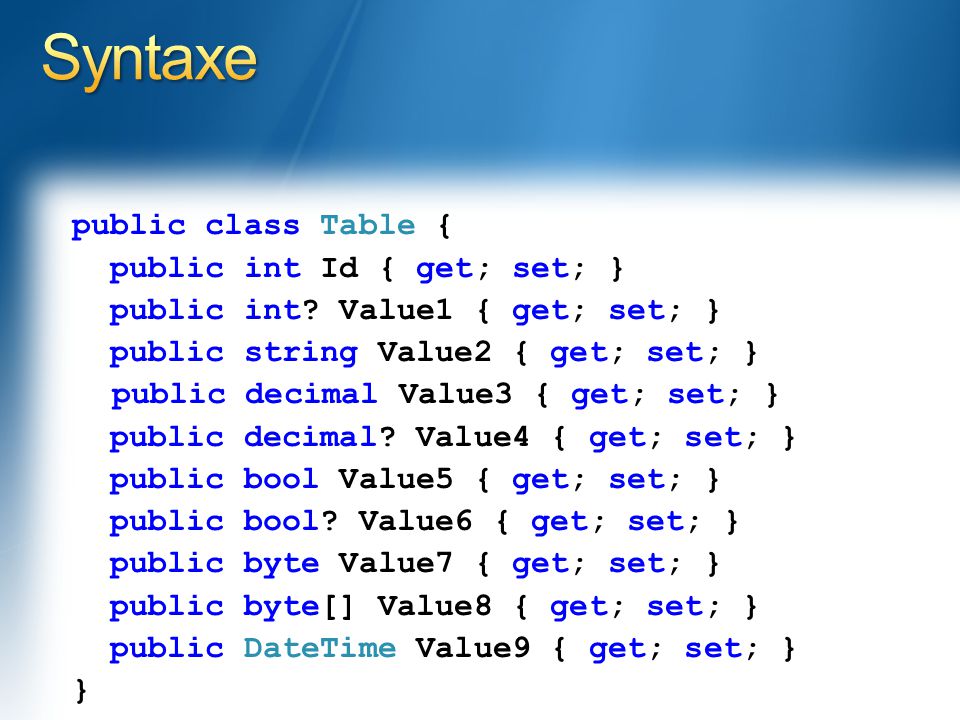

14 public class Table { public int Id { get; set; } public int? Value1 { get; set; } public string Value2 { get; set; } public decimal Value3 { get; set; } public decimal? Value4 { get; set; } public bool Value5 { get; set; } public bool? Value6 { get; set; } public byte Value7 { get; set; } public byte[] Value8 { get; set; } public DateTime Value9 { get; set; } }

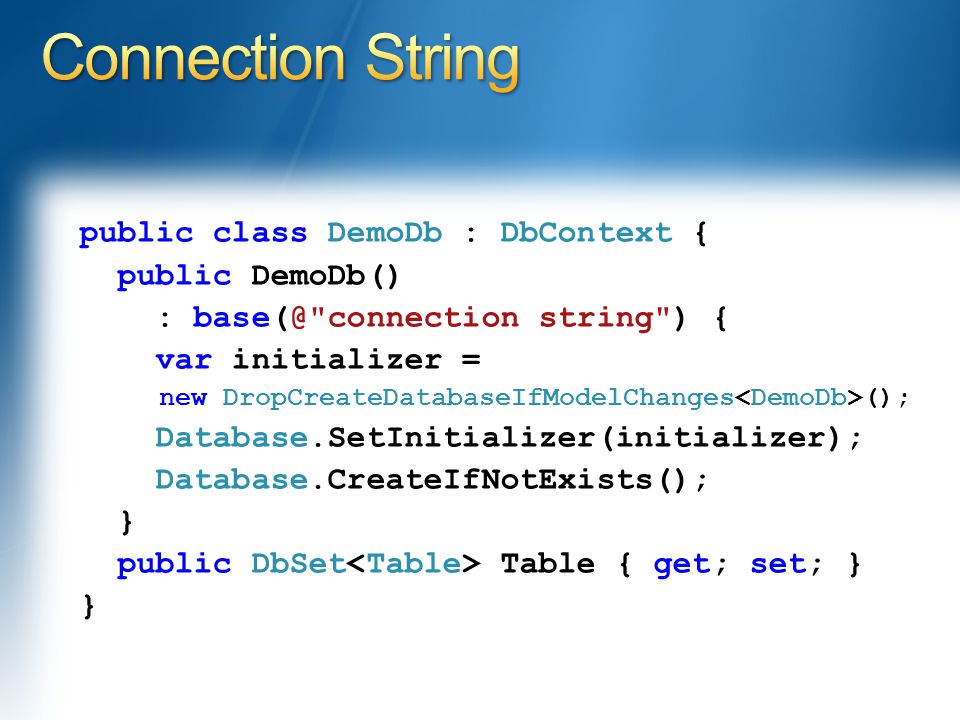

15 public class DemoDb : DbContext { public DemoDb() : base(@"connection string") { var initializer = new DropCreateDatabaseIfModelChanges (); Database.SetInitializer(initializer); Database.CreateIfNotExists(); } public DbSet Table { get; set; } }

16 : base("name=DatabaseCS")

17 DropCreateDatabaseAlways DropCreateDatabaseIfModelChanges CreateDatabaseIfNotExists IgnoreDatabaseSchema

18 DbContext OnModelCreating ShouldValidateEntity ValidateEntity IDatabaseInitializer Seed

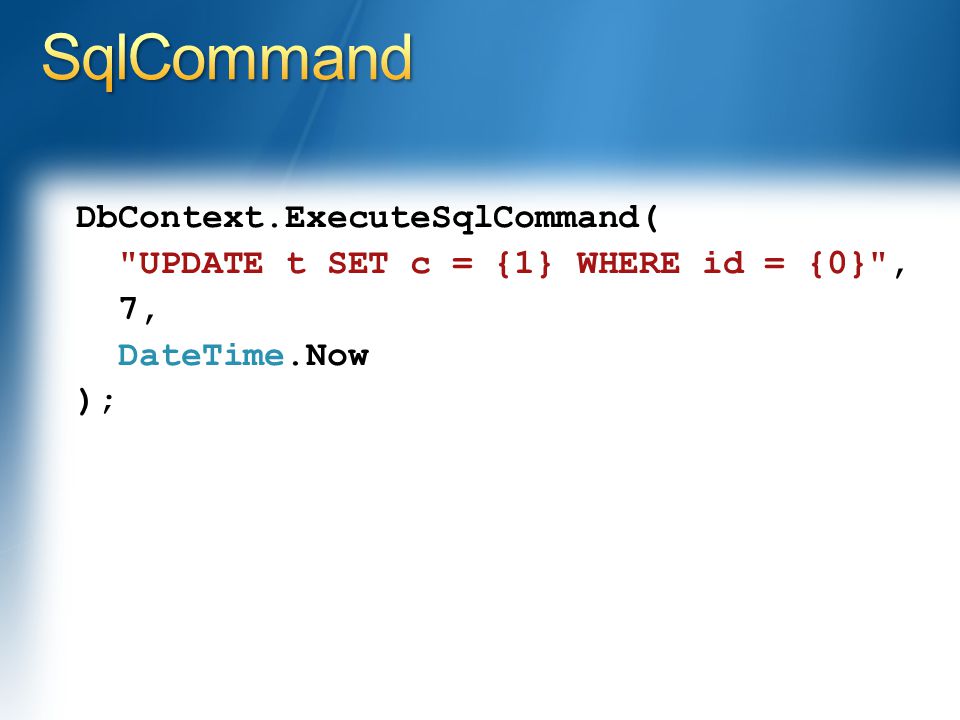

19 DbContext.ExecuteSqlCommand( "UPDATE t SET c = {1} WHERE id = {0}", 7, DateTime.Now );

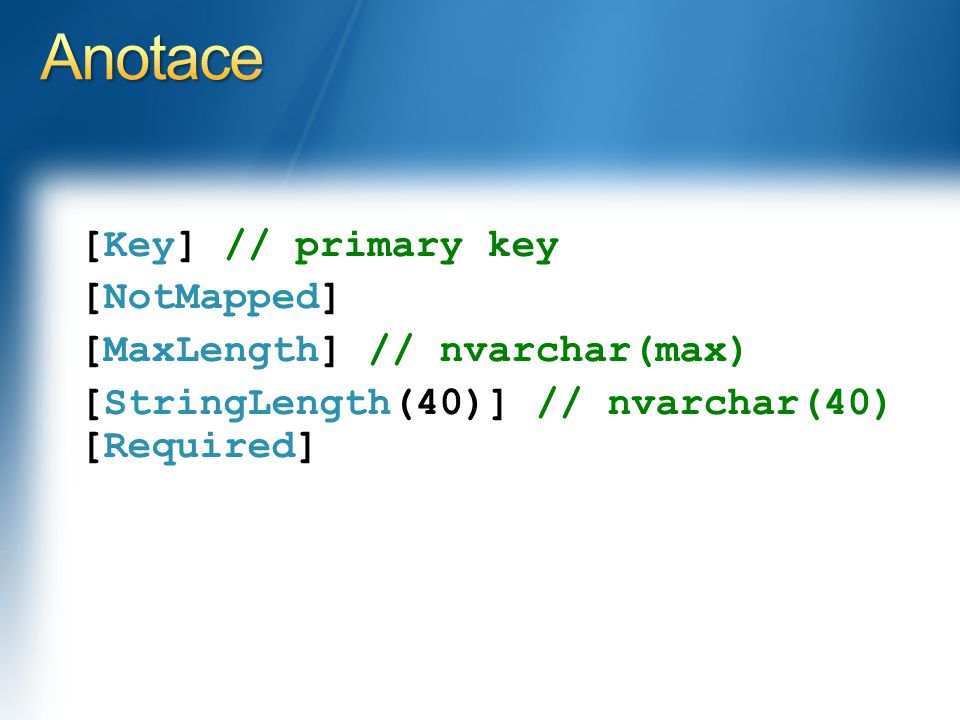

20 [Key] // primary key [NotMapped] [MaxLength] // nvarchar(max) [StringLength(40)] // nvarchar(40) [Required]

21

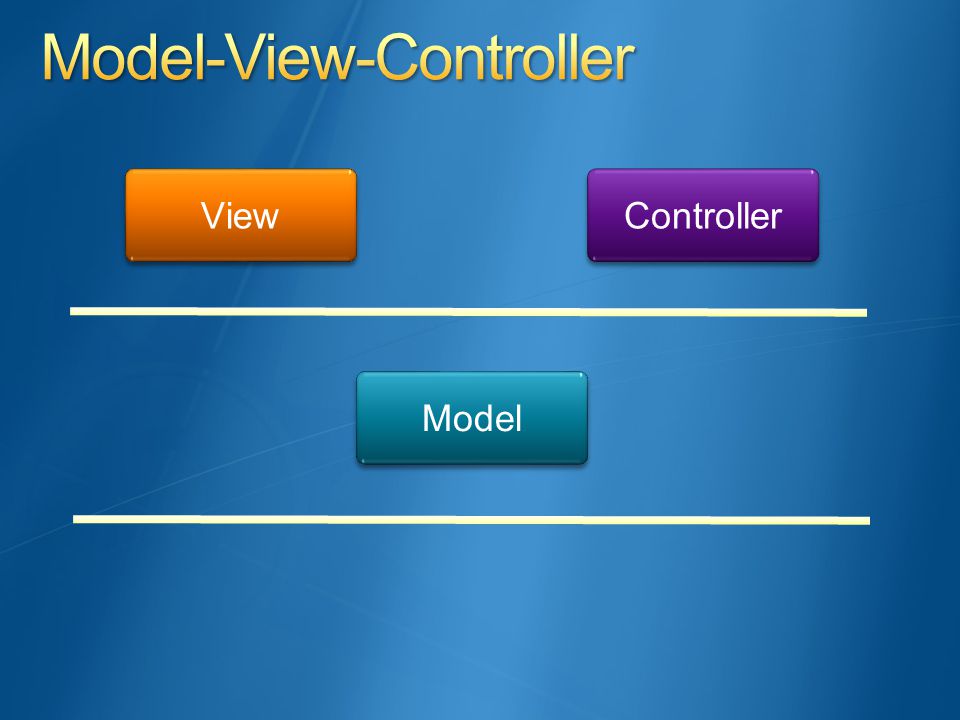

22 Model View Controller

23 View ViewModel Model

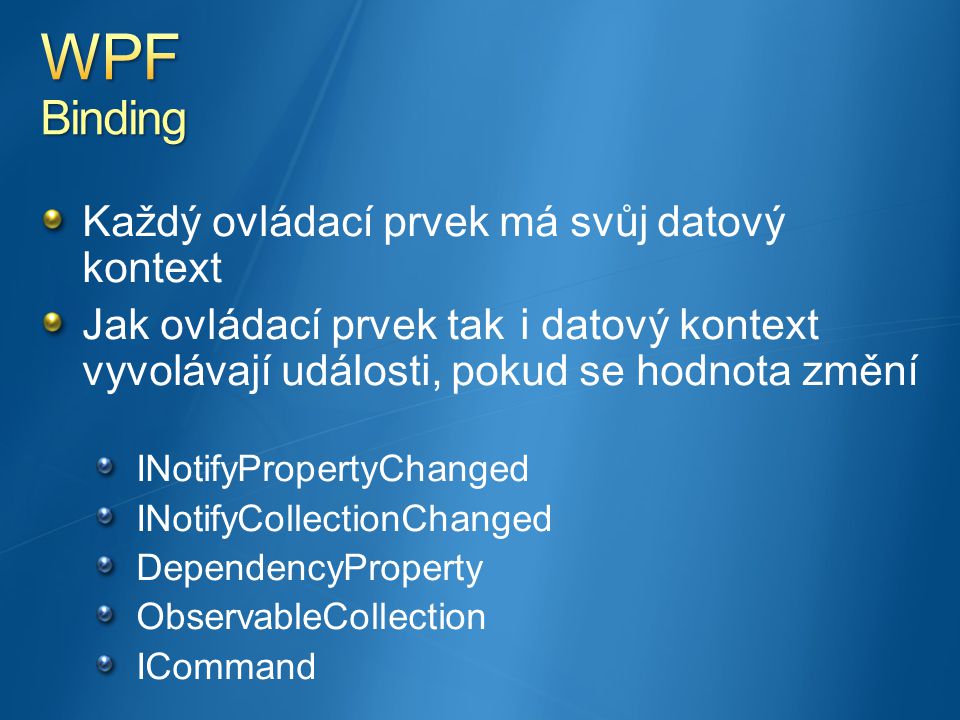

24 Každý ovládací prvek má svůj datový kontext Jak ovládací prvek tak i datový kontext vyvolávají události, pokud se hodnota změní INotifyPropertyChanged INotifyCollectionChanged DependencyProperty ObservableCollection ICommand

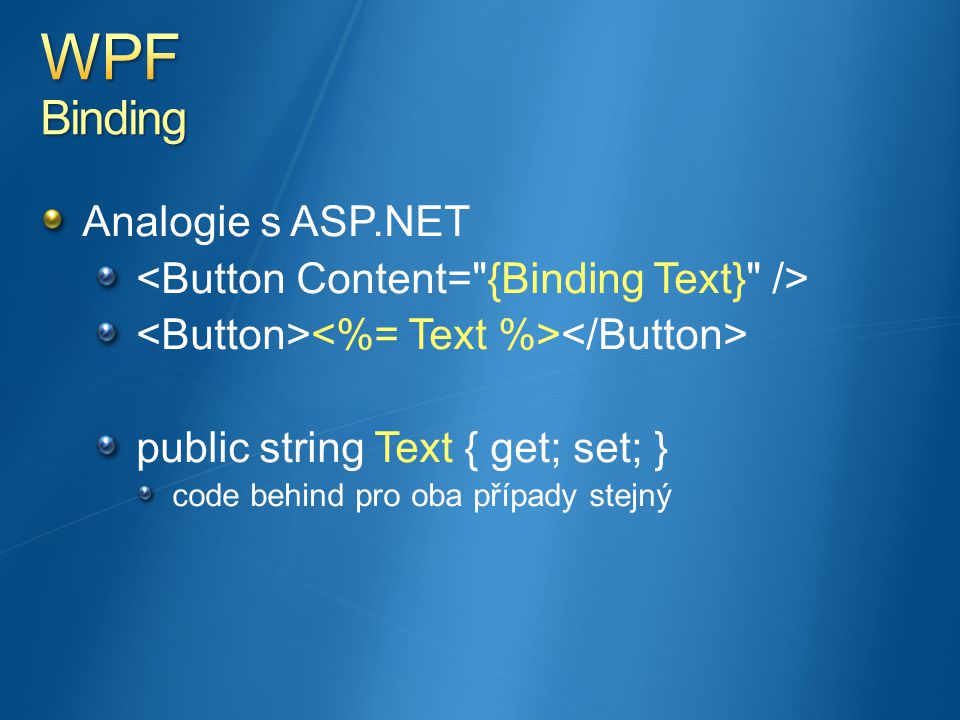

25 Analogie s ASP.NET public string Text { get; set; } code behind pro oba případy stejný

26

27 Relace Syntaxe Anotace Demo Model-View-ViewModel Srovnání s MVC Binding Demo dajbych.net @Dajbych feed.dajbych.net events.dajbych.net
