1 GET

2 Introduction, overview Best practices

3

4 Roy T Fielding, PhD dissertation, 2000 Main characteristics Client-server Stateless Caching Layered architecture Code on demand URIs

5 Image courtesy of Martin Fowler Richardsons Maturity Model

6 Plain Old XML (over HTTP) One URI, one method

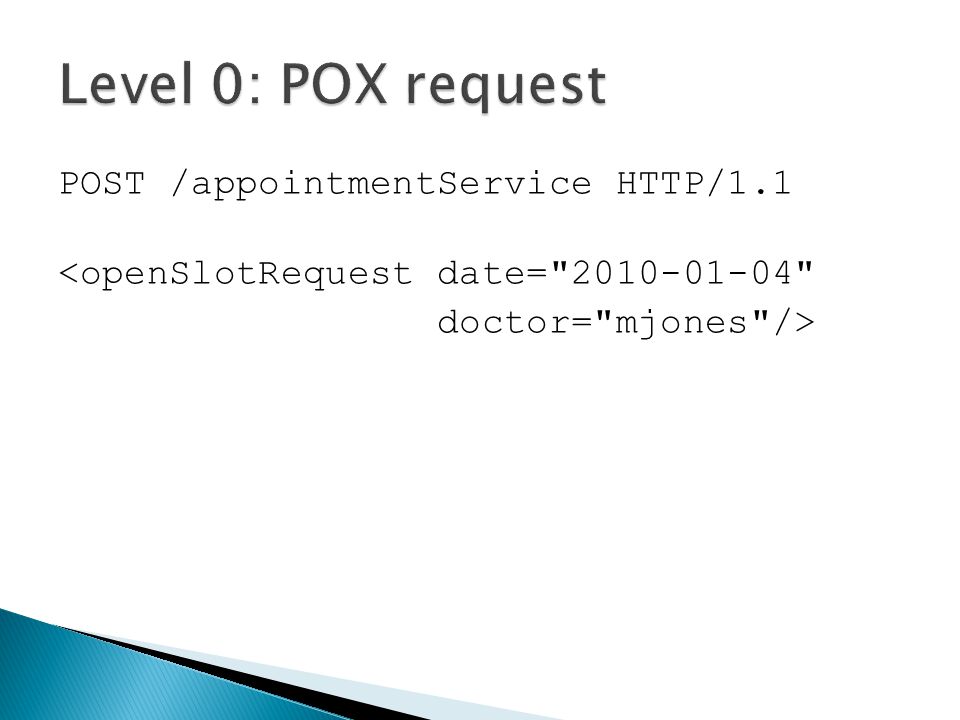

7 POST /appointmentService HTTP/1.1

8 HTTP/1.1 200 OK Level 0: POX response

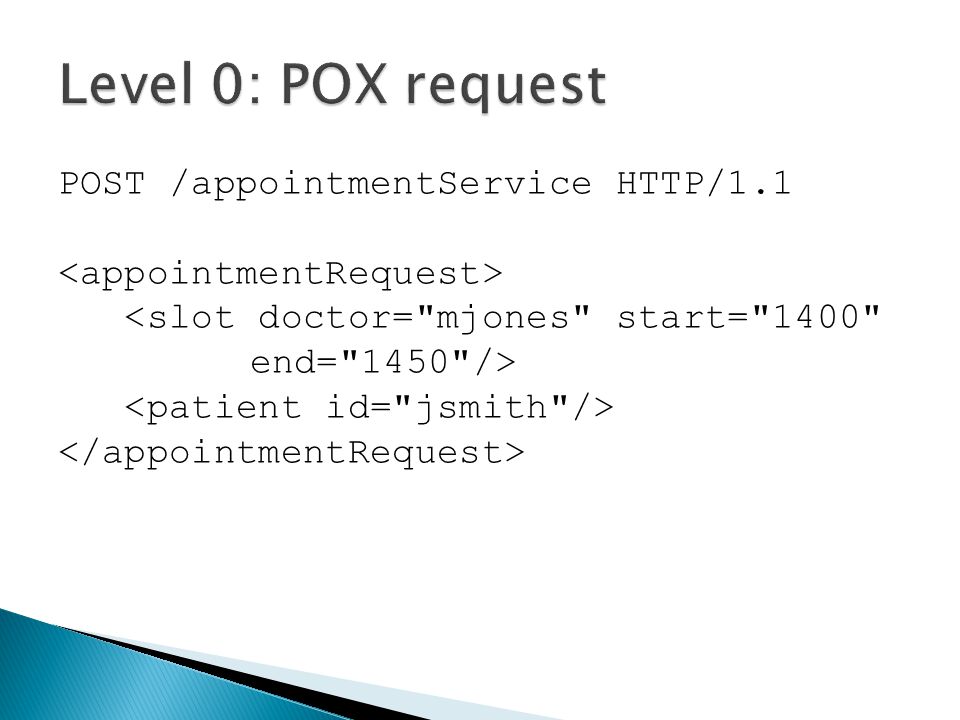

9 POST /appointmentService HTTP/1.1

10 HTTP/1.1 200 OK Level 0: POX response

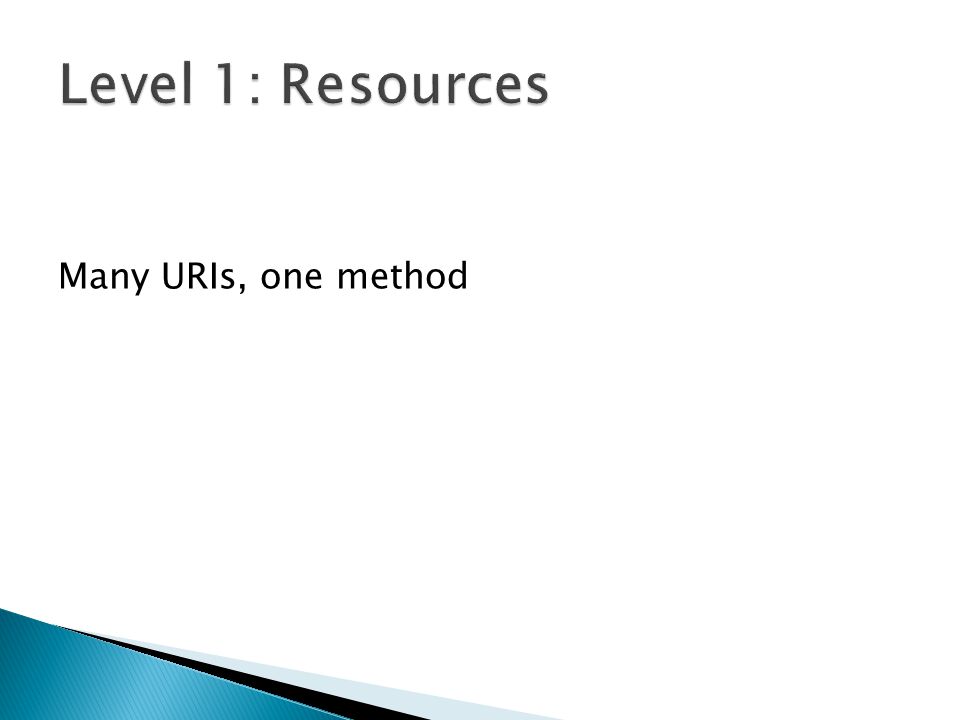

11 Many URIs, one method

12 POST /doctors/mjones HTTP/1.1

13 HTTP/1.1 200 OK Level 1: Resources response

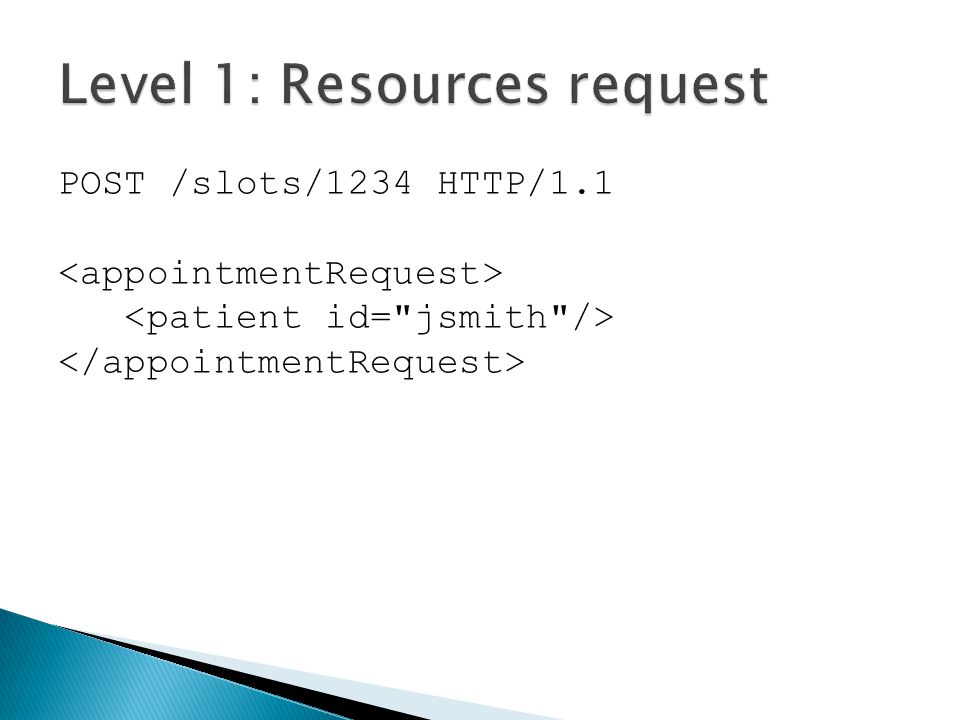

14 POST /slots/1234 HTTP/1.1

15 HTTP/1.1 200 OK Level 1: Resources response

16 Many URIs, many (HTTP) methods This is what most call REST Best practices follow

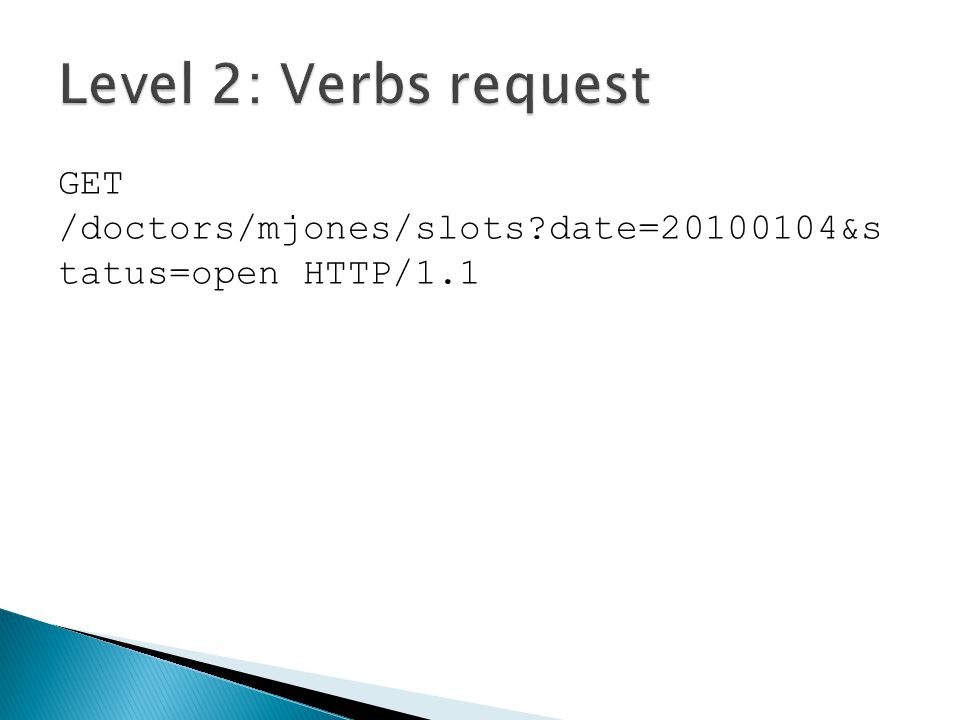

17 GET /doctors/mjones/slots?date=20100104&s tatus=open HTTP/1.1

18 HTTP/1.1 200 OK Level 2: Verbs response

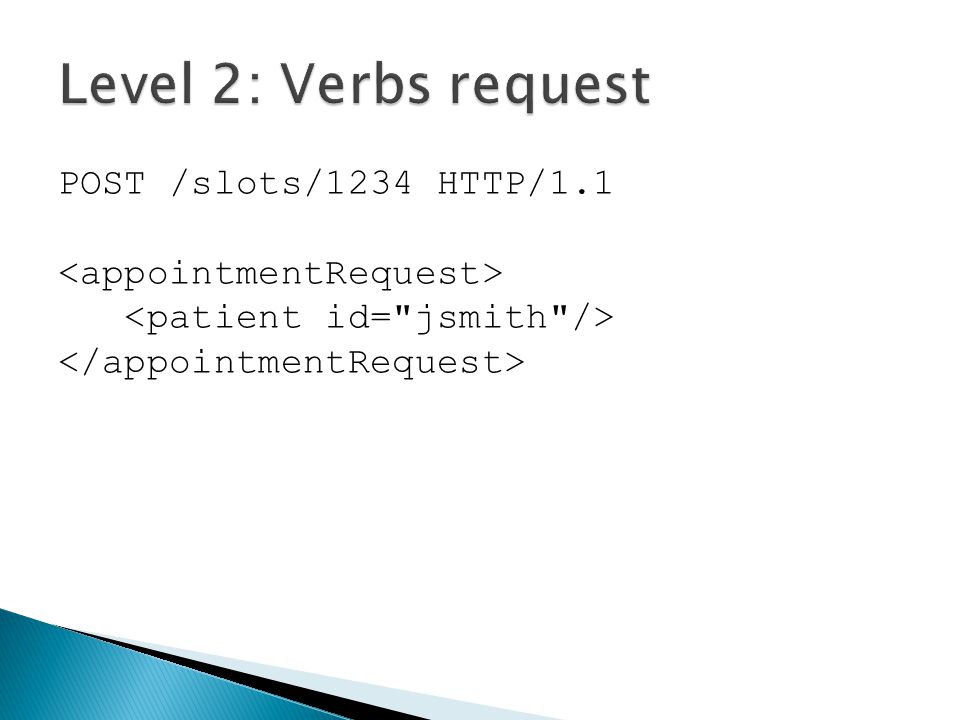

19 POST /slots/1234 HTTP/1.1

20 HTTP/1.1 200 OK Level 2: Verbs response

21 HATEOAS & self-descriptive messages Problems: peoples awareness, tools

22 HTTP/1.1 200 OK … Level 3: Hypermedia response

23 HTTP/1.1 201 Created Location: http://.../slots/1234/appointmenthttp://.../slots/1234/appointment Level 3: Hypermedia response

24

25 Resources vs actions getTickets vs /tickets getMusemTickets vs /tickets?type=museum

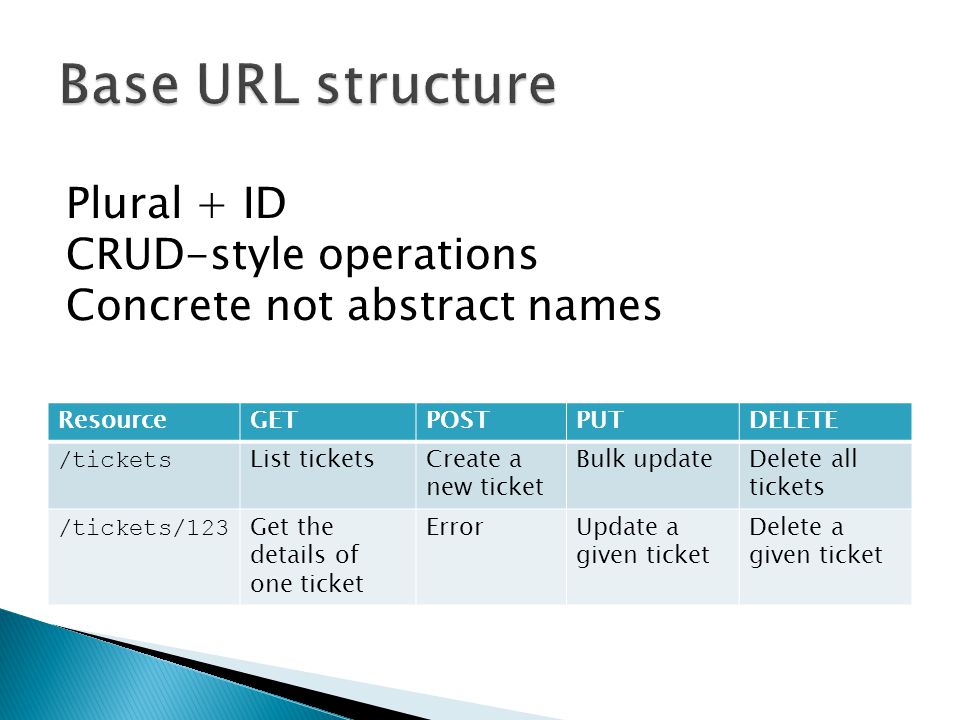

26 ResourceGETPOSTPUTDELETE /tickets List ticketsCreate a new ticket Bulk updateDelete all tickets /tickets/123 Get the details of one ticket ErrorUpdate a given ticket Delete a given ticket Plural + ID CRUD-style operations Concrete not abstract names

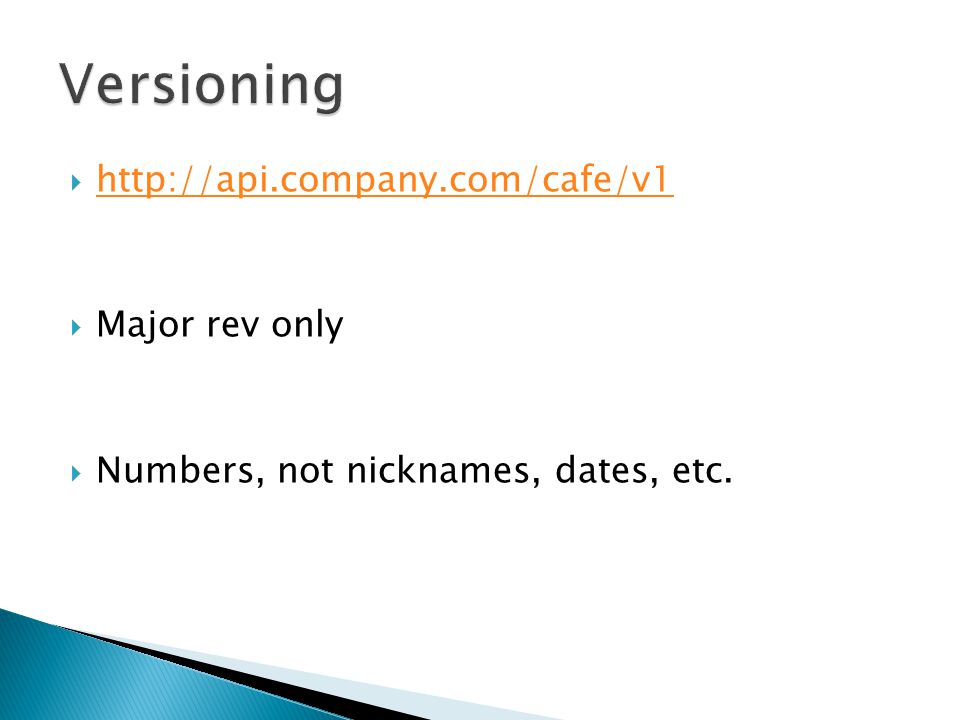

27 http://api.company.com/cafe/v1 Major rev only Numbers, not nicknames, dates, etc.

28 HTTP status codes Short description Pointer to more information 201 200 400 204 401 403 404 503 405 500 200400 500

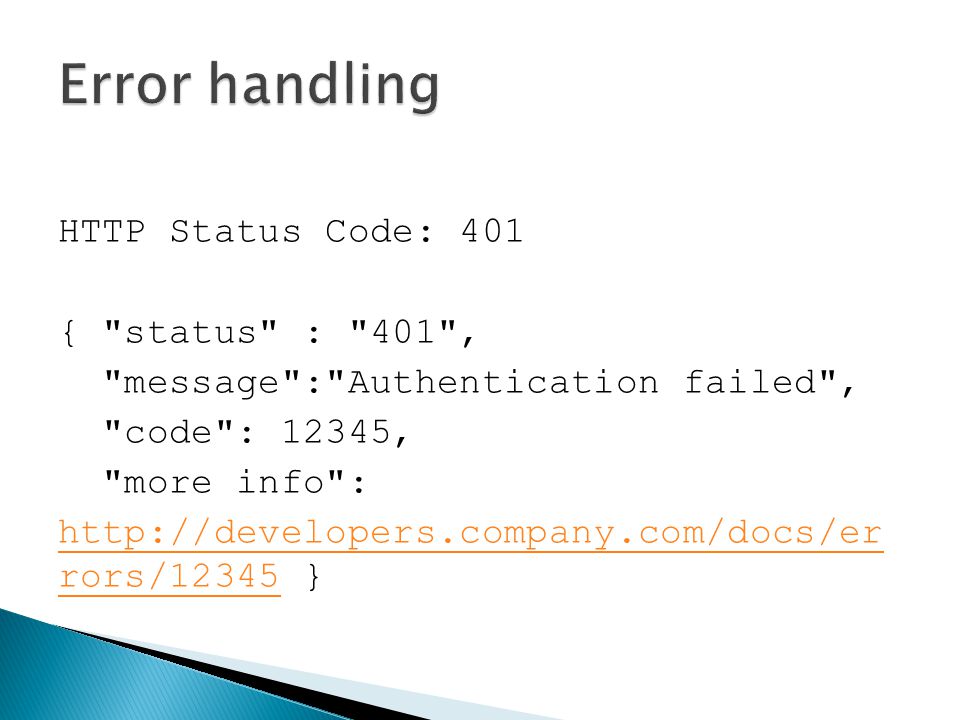

29 HTTP Status Code: 401 { "status" : "401", "message":"Authentication failed", "code": 12345, "more info": http://developers.company.com/docs/er rors/12345http://developers.company.com/docs/er rors/12345 }

30 Ways to differentiate: /tickets/123.json /tickets/123?format=json Accept: application/json Bonus: application/company.v1+json

31 Pagination: /tickets?offset=50&limit=25 Partial response: /tickets?fields=date,location Use defaults (documentation!)

32 Session management – REST is stateless Caching – its very much encouraged! What if nouns are not appropriate – use verbs

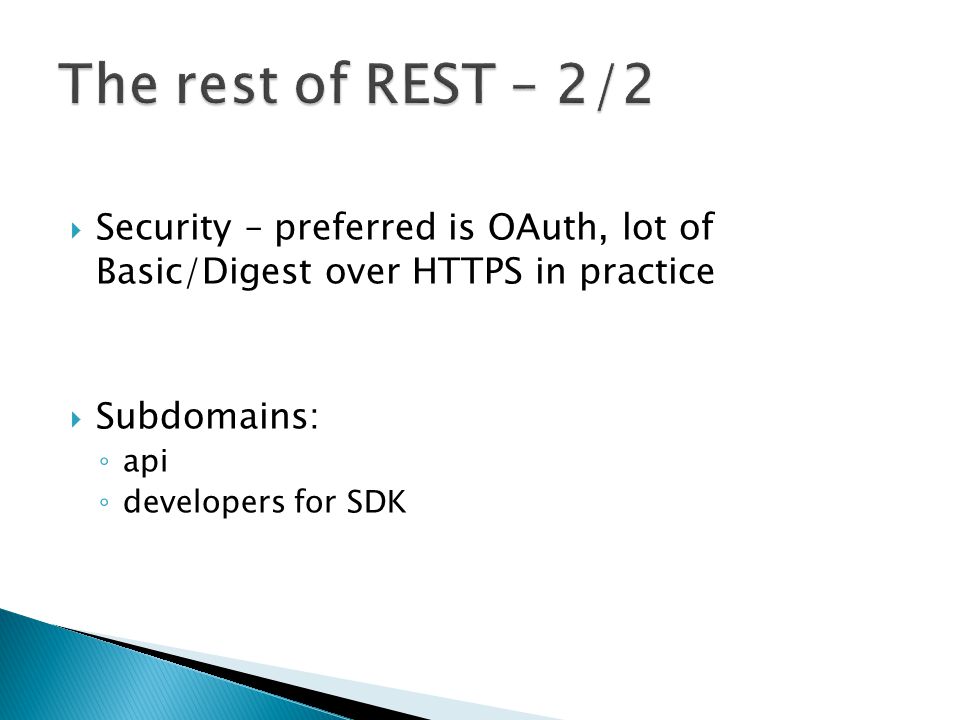

33 Security – preferred is OAuth, lot of Basic/Digest over HTTPS in practice Subdomains: api developers for SDK

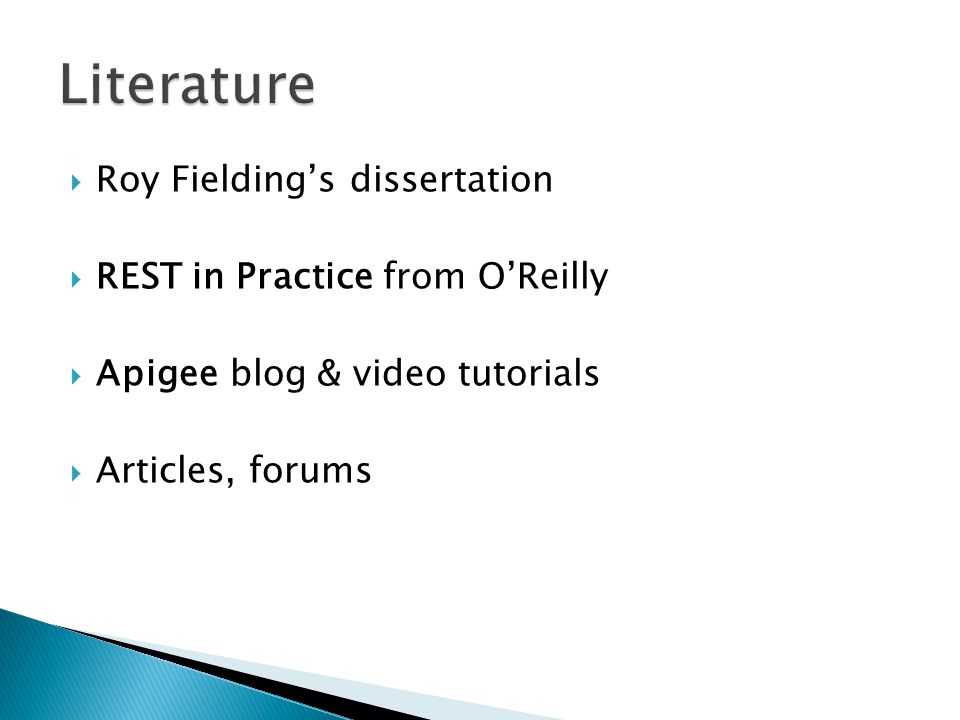

34 Roy Fieldings dissertation REST in Practice from OReilly Apigee blog & video tutorials Articles, forums

35 Levels of REST REST CRUD Consistent view of best practices

36

37 gabor.i.torok@gmail.com https://www.linkedin.com/in/gabortorok
