1 © Copyright REHAU - PIM013e - - Page rehau S mm Window/Door System

2 REHAU- Product Strategy Profile Characteristics Product Range Hardware Integral Gaskets Performance & Certification

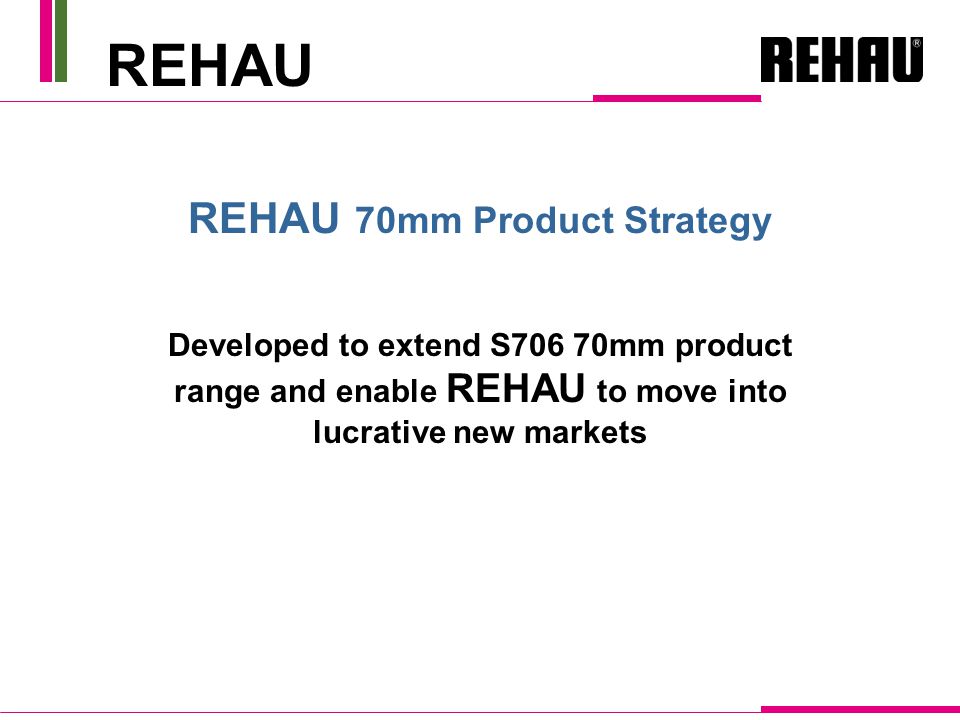

3 Developed to extend S706 70mm product range and enable REHAU to move into lucrative new markets REHAU 70mm Product Strategy REHAU

4 REHAU will appeal to consumers requiring a sympathetic replacement for timber or wanting to upgrade earlier, outdated PVC-U windows. REHAU 70MM will appeal to style conscious homeowners. REHAU 70mm Product Strategy REHAU

5 Technically Advanced Fabricator Friendly Aesthetically Pleasing High Weather Performance High Security The 70mm PVC-U System For All Markets Integral or Manual - Low Level Gaskets Easy, `Trouble Free` Installation Fully Certified REHAU Quality & REHAU Brand Strength REHAU-

6 © Copyright REHAU - PIM013e - - Page REHAU S706 - Profile Characteristics REHAU REHAU standard legs widen the range Positive friction stay location REHAU gasket groove allows Integral gaskets with soft corners REHAU standard single leg bead groove Hardware fixed into steel (if required) European standardised gasket gap

7 S706 Standard Casement Profiles S706 Doors, Tilt &Turn Profiles S706 Beads, Ancillaries, Reinforcements Product Range - is available with and without IG REHAU-

8 © Copyright REHAU - PIM013e - - Page Product Range Outer frame Profiles Art Art IG 52mm Frame Art Art IG 72mm Frame REHAU-

9 © Copyright REHAU - PIM013e - - Page REHAU- Product Range Casement Sash Profiles Art Art IG 75mm Casement T Sash Art Art IG 70mm Tilt & Turn Sash

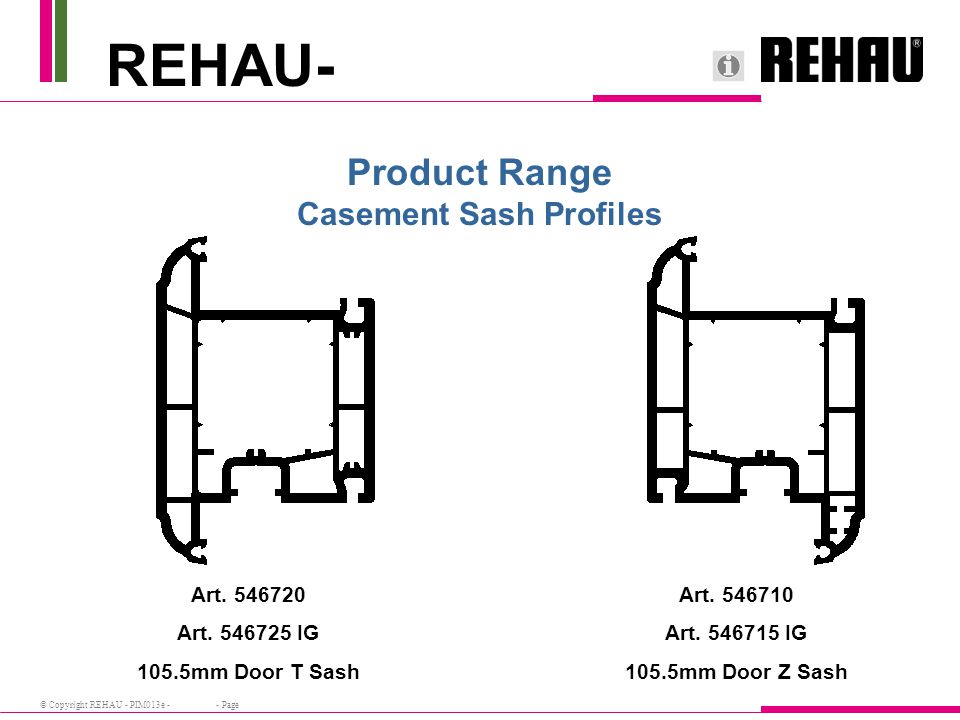

10 © Copyright REHAU - PIM013e - - Page REHAU- Product Range Casement Sash Profiles Art Art IG 105.5mm Door T Sash Art Art IG 105.5mm Door Z Sash

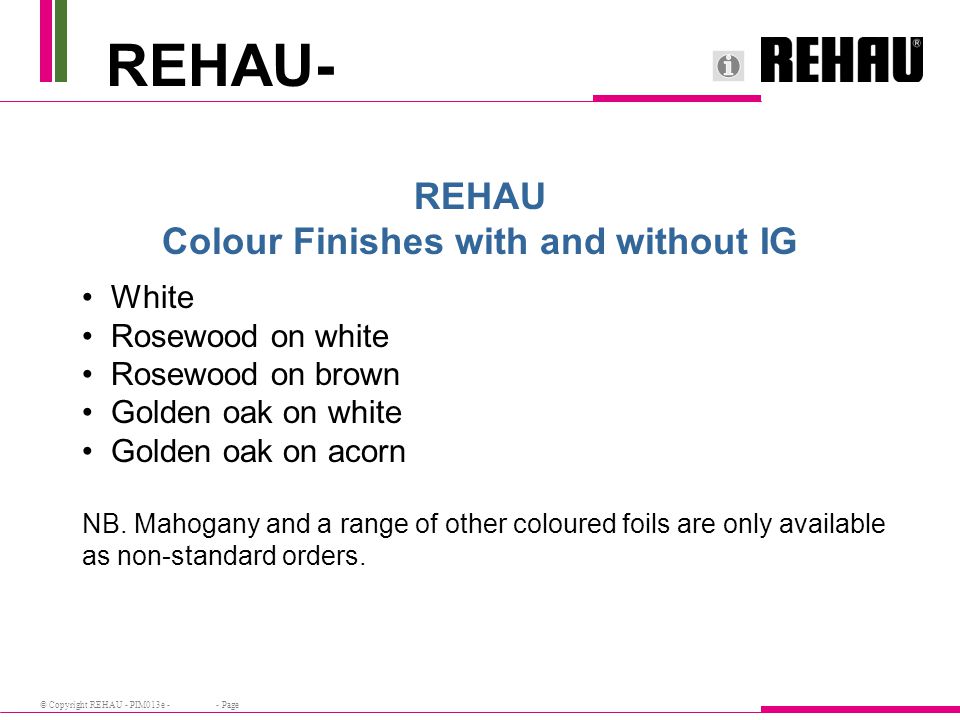

11 © Copyright REHAU - PIM013e - - Page REHAU- REHAU Colour Finishes with and without IG White Rosewood on white Rosewood on brown Golden oak on white Golden oak on acorn NB. Mahogany and a range of other coloured foils are only available as non-standard orders.

12 © Copyright REHAU - PIM013e - - Page What can you make with REHAU Outward Opening Casement Windows Outward Opening French Windows Inward Opening Tilt & Turn Windows Outward Opening Doors - single & French Inward Opening Doors - single & French Doors with Side Panels & Fanlights Conservatory Walls Screen /Curtain Walls (when used with an appropriate screen/curtain walling system) REHAU-

13 © Copyright REHAU - PIM013e - - Page REHAU- Casement Windows Windows Internally Glazed Windows with Fixed Lights Windows with Opening Sashes Windows with Combinations of Fixed lights + Opening Sashes Windows with Glazing from 4mm to 42mm Windows with Slim or Large Outerframes (to suit plasterline) Windows in Colour (Acryl II - over 150 colours available) Windows with Sash Horns & Georgian Bars REHAU-

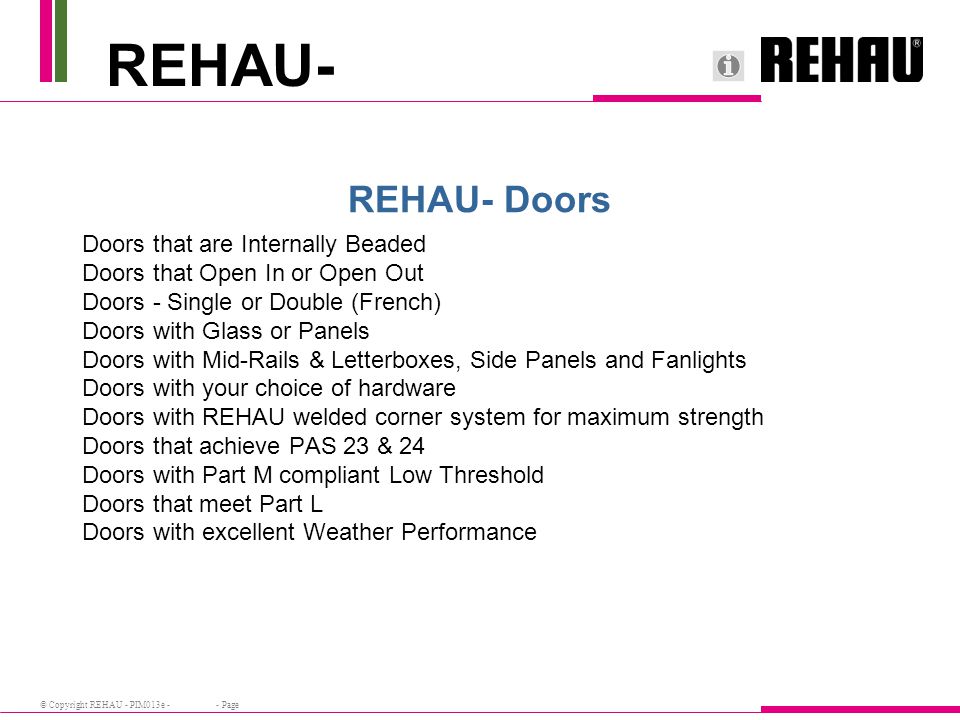

14 © Copyright REHAU - PIM013e - - Page REHAU- Doors Doors that are Internally Beaded Doors that Open In or Open Out Doors - Single or Double (French) Doors with Glass or Panels Doors with Mid-Rails & Letterboxes, Side Panels and Fanlights Doors with your choice of hardware Doors with REHAU welded corner system for maximum strength Doors that achieve PAS 23 & 24 Doors with Part M compliant Low Threshold Doors that meet Part L Doors with excellent Weather Performance REHAU-

15 © Copyright REHAU - PIM013e - - Page Hardware Selection The choice of locks, friction stays, hinges and handles is yours : Locks Cockspur Espagnollette Shoot Bolt and Shoot Bolt equivalent Friction Stay Hinges - normal, heavy duty & egress Stylish Handles White, Gold/Brass effect, Pewter. Door Hinges - A selection of both Flag and Butt Hinges with suitable packers are available. Gearing is available from a large range of leading manufacturers who have products that fit with REHAU Systems REHAU-

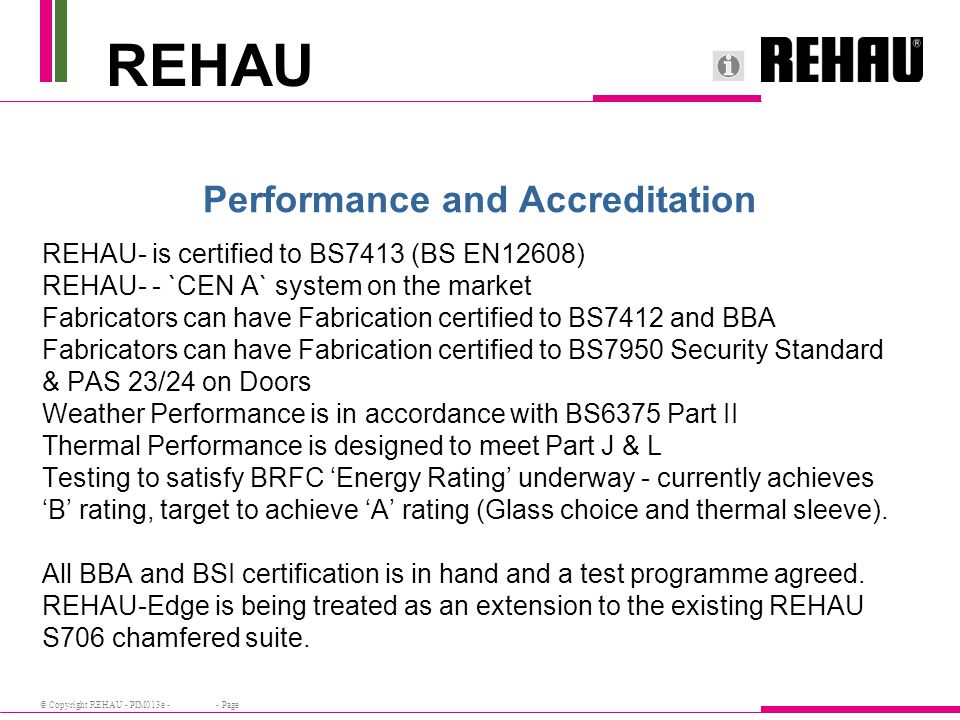

16 © Copyright REHAU - PIM013e - - Page Performance and Accreditation REHAU- is certified to BS7413 (BS EN12608) REHAU- - `CEN A` system on the market Fabricators can have Fabrication certified to BS7412 and BBA Fabricators can have Fabrication certified to BS7950 Security Standard & PAS 23/24 on Doors Weather Performance is in accordance with BS6375 Part II Thermal Performance is designed to meet Part J & L Testing to satisfy BRFC Energy Rating underway - currently achieves B rating, target to achieve A rating (Glass choice and thermal sleeve). All BBA and BSI certification is in hand and a test programme agreed. REHAU-Edge is being treated as an extension to the existing REHAU S706 chamfered suite. REHAU
