1 Trystar Generator Docking Stations & Portable Power Cable

2 Trystar Generator and/or Load Bank Docking Stations Solutions to the problems associated with quickly, safely and legally hooking up and disconnecting portable generators before, during and after extended power outages, safely and economically load testing permanent generators and maintaining automatic transfer switches.

3 Standard Docking Station - Used to safely integrate a portable generator or load bank into an existing electrical system that already has the necessary switching means available. 100A -200A 400A – 800A 1000A – 3200A Pad Mount with Cam-Lok and hard wire, or extra buss for feed thru applications

4 Features and Options Tamper Resistant - Patented Rake System prohibits removal or tampering with Cam-Lok cables while in use and bottom door eliminates unwanted pests when locked and not in use. Tuffcoat Textured Powder Coating – Standard ANSI Gray or specific color, tough scratch and UV resistant. Aluminum or Stainless Steel Construction Kirk Key Interlocks for access or on breakers Phase Rotation Monitor – Indicates correct phase rotation of generator hookup for phase sensitive equipment such as A/C, chillers and pumps. All required lugs for building, utility and/or generator – specify mechanical or crimp Utility On LED – Lets you know that utility power is back on. Leg Kits – Allows for pad mounting wall units Extra Depth Units – Allows for additional wiring and/or bottom conduit access for wall units. Power Outlets – When required for battery chargers and block heaters 2 Wire Auto Start – Required for ATS interface SCADA Monitoring Port

5 Various Switching Methods Kirk Key Access Docking Station – Utilizes a captive key interlock in a building or permanent generators existing Main Breaker or disconnect as the means of isolating the primary power source. Manual Rotary - Docking Station and manual transfer switch are in one common enclosure. Available in Service or Non Service Entrance Rated. Available up to 1200A. Automatic – Docking Station is wired to ATS and setup with 2 wire auto start, 120V outlet for battery charger and block heater. If intercepting utility feed, the switch must be Service Entrance Rated with a Main Breaker. No amperage restriction. Main Breaker Kirk Key Access Docking Station - If a facility or generator has no single Main Breaker, this unit supplies the Kirk Key Main and the Kirk Key Accessible Cam-Loks. Single or Dual Breaker Kirk Key Docking Station – Used when a combination of Main Breaker, portable generator breaker, permanent generator breaker, load bank or ATS By-Pass Isolation breaker is needed. Combinations of the above - The Trystar Docking Station System is designed to integrate all of the individual features to meet any type of application, giving the projects owner, engineer, contractor and salesmen the versatility and flexibility to get the best, safest and most economical system available.

6 Kirk Key Accessible Generator Docking Station

7 Kirk Key Accessible Wall or Pad Mount Docking Stations

8

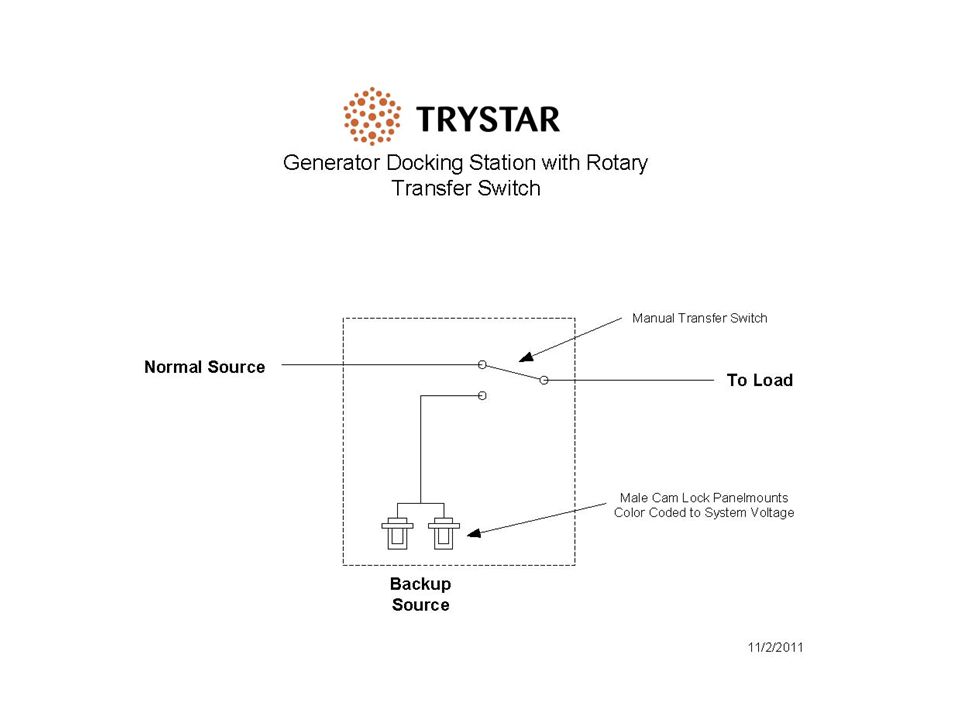

9 Rotary Transfer Switch Docking Stations Manual Rotary - Docking Station and manual transfer switch are in one common enclosure. Available as Service or Non Service Entrance Rated. Available up to 1200A UL and 3000A Non UL IEC. Compact Stacked Open Transition Rotary Transfer Switch. Breaker for Service Entrance Rated, no bulky fuses to locate if blown. NEMA 3R and 4X UL listed. Available in aluminum or stainless and powder coated any color. Available with lockable external load bank receptacles for permanent generator. Available in wall or pad mount designs.

10

11 Automatic Transfer Switch with Docking Station Automatic Transfer Switch with Docking Station - Docking Station mounted and wired to any automatic transfer switch. Available as Service or Non Service Entrance Rated. Available up to 4000A. Includes 2 wire auto start terminal and phase rotation monitor. Available with battery charger and water heater outlets. Available in NEMA 3R and 4X UL listed. Available in aluminum or stainless and powder coated any color. Available with lockable external load bank receptacles for permanent generator. Available in wall or pad mount designs. Customer can drop ship their ATS, have Trystar mount and wire the Docking Station, repackage and then deliver to the job site.

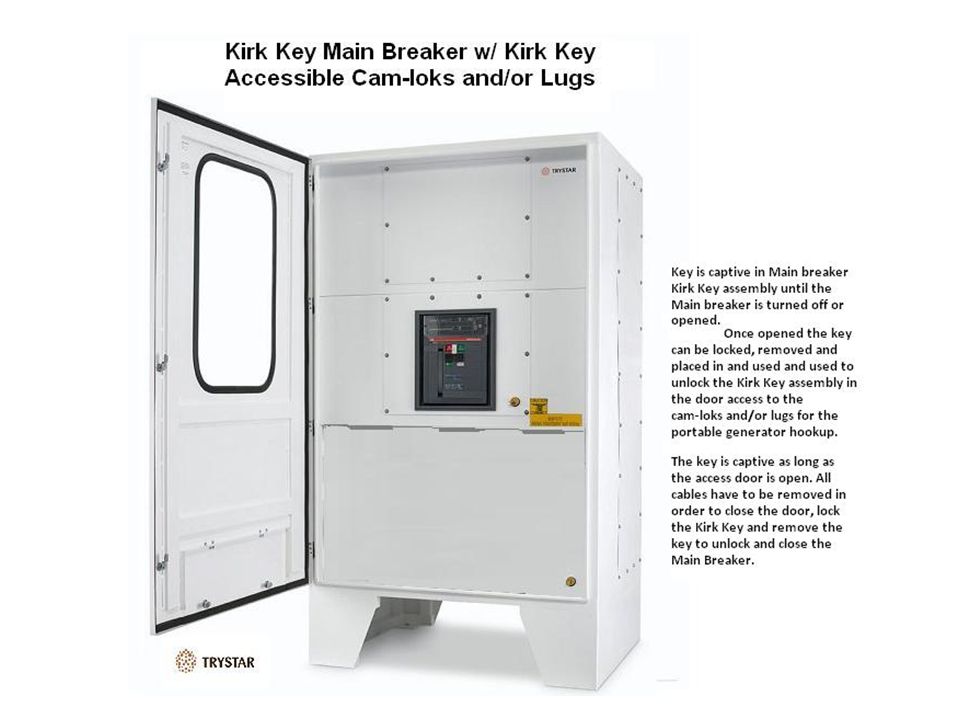

12 Main Breaker & Kirk Key Accessible Portable Generator Docking Stations Main Breaker and Kirk Key Accessible Portable Generator Docking Station- Pad mount Generator Docking Station with Kirk Keyed Utility Main Breaker and Kirk Key Accessible Portable Generator input cam-loks and hardwire lugs. For buildings that have multiple (up to 6) main disconnects on one utility feed or building that have their main in a centrally located and hard to access part of the building. Recommended by Fire and Electrical Inspectors for easy and quick external disconnect in the case of a building fire. Service Entrance Rated. Available up to 4000A UL. NEMA 3R and 4X UL listed. Phase Rotation Monitor. Lockable and tamper resistant while in use. Side and back access panels. Available in aluminum or stainless and powder coated any color. Available with load bank receptacles for permanent generator.

13

14

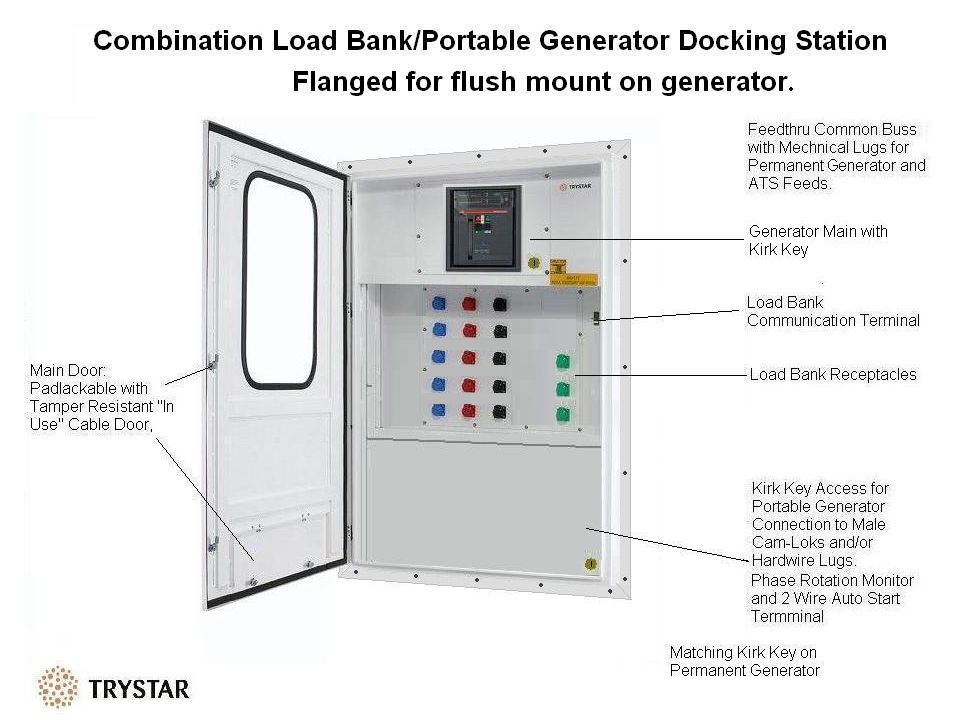

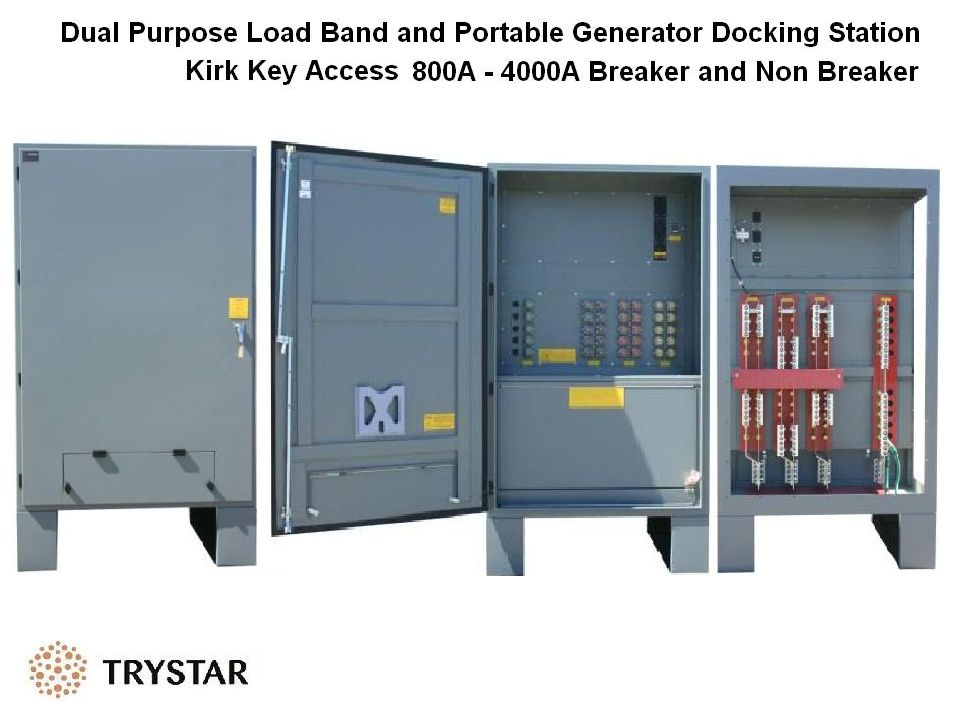

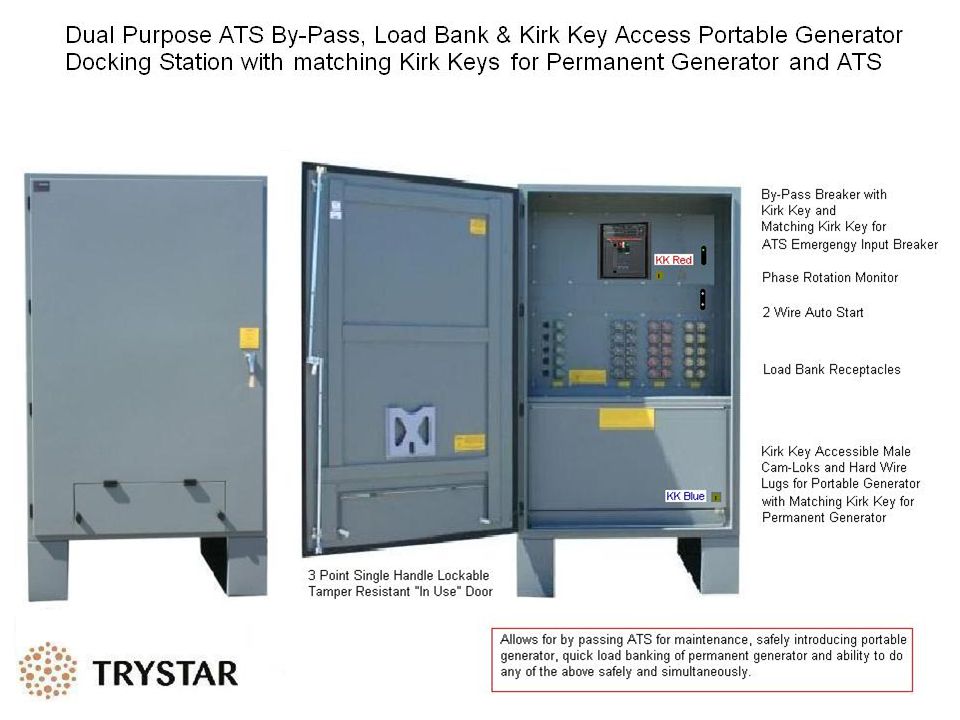

15 Wall, pad or generator mounted Load bank receptacles – significantly reduces service and down time, eliminates chance of incorrect wiring. Allows service company to do more load tests per week. Allows for quick access to portable generator while permanent unit is being serviced. Optional ATS By-Pass Kirk Key Breaker System Optional SCADA communication port available for load bank load drop, leaves fans running to cool down load bank. Portable generator Kirk Key Breaker or Kirk Key Access. Portable generator cam-lok inlets and internal hardwire access door. Phase Rotation Monitor, 2 wire auto start terminal, auxiliary power outlets. Feed through bussing and lugs. Dual Purpose Combination Units

16

17

18

19

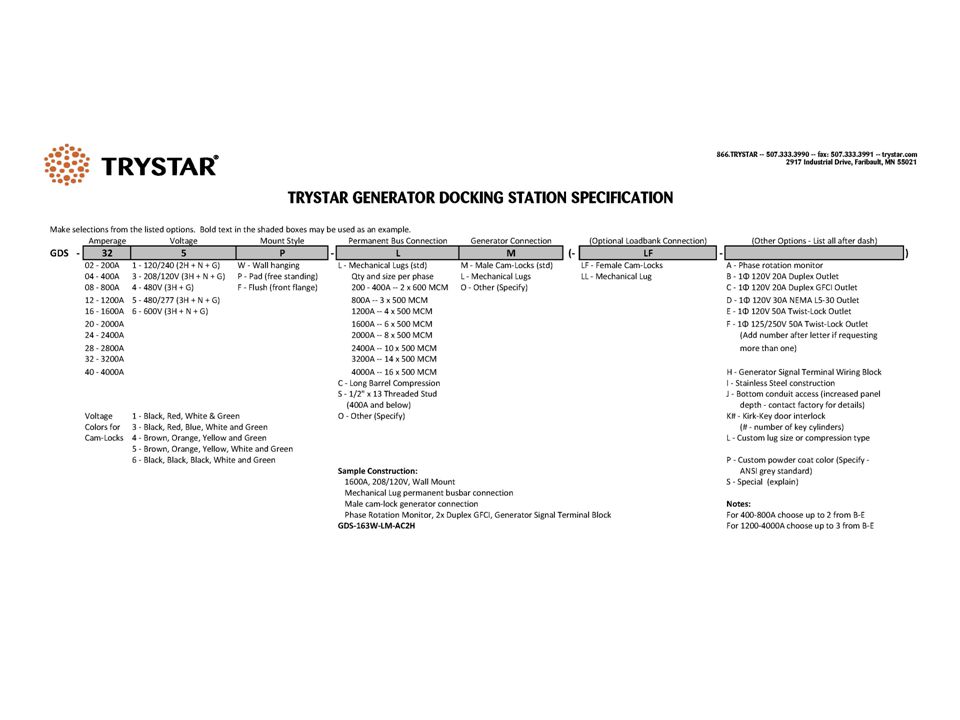

20

21

22 QUESTIONS??? It has been our pleasure to meet with you all today. Thank-you!
