1 Bi-Level and Non-invasive Intermittent Postive Pressure Ventilation. Bi-Level and Non-invasive Intermittent Postive Pressure Ventilation. M.A. King Respiratory Support & Sleep Centre, Papworth Hospital, Cambridge, CB3 8RE, UK CB3 8RE, UK

2 Bi-level and NIPPV Volumetric mechanical ventilation is usually reserved for the unconscious patient and is delivered by an endotracheal tube. Volumetric mechanical ventilation is usually reserved for the unconscious patient and is delivered by an endotracheal tube. Non-invasive Intermittent Positive Pressure Ventilation is delivered by a mask. Non-invasive Intermittent Positive Pressure Ventilation is delivered by a mask. Bi-level and NIPPV

3 Plan Avoid mentioning CPAP and Bi-Level in OSA ! Avoid mentioning CPAP and Bi-Level in OSA ! Focus in non-invasive ventilatory support. Focus in non-invasive ventilatory support. What is ventilatory failure? What is ventilatory failure? Who needs this treatment? Who needs this treatment? What do the machines do? What do the machines do? What are the outcomes? What are the outcomes? Discusion Discusion : Do Sleep Technologists need to be involved in these treatments? : Do Sleep Technologists need to be involved in these treatments?

4 Technological developments since the invention of CPAP OSA CPAP OSA with lung problems Bi-Level Ventilatory insufficiency Ventilatory Failure Bi-Level Pressure support ventilators < <1987

5 Ventilatory Failure. Lung Function = Ventilation and gas exchange Minute Ventilation is a function of respiratory rate and tidal volume Ventilatory Failure causes a rise in CO2 and drop in O2 Gas Exchange (respiratory) failure causes hypoxia alone

6 Pump Failure. Respiratory control centres. Respiratory control centres. Neurological system ( Nerves and synapses) Neurological system ( Nerves and synapses) Muscle Muscle Mechanics ( Thoracic cage). Mechanics ( Thoracic cage). RESTRICTIVE VENTILATORY DEFECT RESTRICTIVE VENTILATORY DEFECT

7 Restrictive defect. Small lungs in a rigid chest cage. Small lungs in a rigid chest cage. Normal lungs which can not be expanded. Normal lungs which can not be expanded. Lung mechanics are altered and efficiencey lost. Lung mechanics are altered and efficiencey lost.

8 Ventilatory Pump. Cerebral cortex Brainstem Respiratory muscles Ventilation Airflow resistance Restrictive lung defect. Chemoreceptors Mechanoreceptors WAKE Sleep-wake Minute ventilation = MV

9

10 Respiratory Muscle Weakness Begin AJRCCM

11 MV reduced TV RR Control work Hypercapnoea Hypoxia (hypersomnia) Prolonged hypoventilation + or – events (AHI), Desats, Arousals, WASO, poor sleep architecture. Acidosis Ventilatory Failure Muscle fatigue Progressive and insidious pump

12 MV reduced TV RR Control work HypercapnoeaHypoxia Prolonged hypoventilation + or – events (AHI), Desats, Arousals, WASO, poor sleep architecture. Acidosis Ventilatory Failure Neuro-Muscle insult Acute CVA Trauma Neuro disease Infection

13 Obesity epidemic hits Europe (not France).

14 Nocturnal ventilatory insufficiency Reduced tidal volume and reduced frequency. Reduced tidal volume and reduced frequency. Reduced minute volume = hypercapnoea and hypoxia. Reduced minute volume = hypercapnoea and hypoxia.

15 Indications for NIPPV. Ventilatory pump failure. Ventilatory pump failure. Chronic or acute. Chronic or acute. Reduced MV, hypoxia with hypercapnoea. Reduced MV, hypoxia with hypercapnoea. ( potential for normal gas exchange – single system failure).

16 Assessment. Arterial blood gases (ABGs). Arterial blood gases (ABGs). Overnight oximetry and CO2 Overnight oximetry and CO2 Lung Function.( volumes and muscle strength) Lung Function.( volumes and muscle strength) Medical exam ( cardio-vascular) Medical exam ( cardio-vascular) AHI and sleep stages have little diagnostic or prognostic value. AHI and sleep stages have little diagnostic or prognostic value.

17 Simple overnight oximetry.

18 What do the machines do?

19 Non-invasive ventilation- objectives 1. Improve alveolar ventilation & oxygenation. 2. Reduction of work of breathing. 3. Airway support.

20 Objective:Improve alveolar ventilation & oxygenation. The physiological mechanism is complex & dependent upon the pathology/disease mechanism. 1. paO2=[(Pb-SWVP)xFiO2]-PaCO2/RQ 2. Increased Tidal volume and rate = minute Ventilation.

21 Work of breathing Work increases when FRC reduced or when TV = VC

22 Work of breathing When FRC and lung compliance are reduced more work is required to inflate the lung. By applying PEEP, the lung volume at the end of exhalation is increased. The already partially inflated lung requires less pressure and energy than before for full inflation TV

23 FiO2 & improved MV ( TV & RR) TV RR Ti Te FiO2 rco

24 Mechanical Ventilatory Support Invasive – endo-tracheal tube. Non- invasive ventilation (NIV). Negative Pressure NIV Negative Pressure NIV Positive Pressure NIV * Positive Pressure NIV *

25 Negative Pressure NIV precedes positive pressure ventilation by 100 years. - Patient lays inside a rigid cylinder with neck and head outside cylinder. - Patient lays inside a rigid cylinder with neck and head outside cylinder. A vacuum pump creates a negative pressure within the chamber (outside of chest) A vacuum pump creates a negative pressure within the chamber (outside of chest) - this causes expansion of the patient's chest. This change in chest geometry reduces intrapulmonary pressure and ambient air flows into the lungs. - this causes expansion of the patient's chest. This change in chest geometry reduces intrapulmonary pressure and ambient air flows into the lungs. When the vacuum ends, the negative pressure applied to the chest drops to zero, and the elastic recoil of the chest and lungs results in passive exhalation. When the vacuum ends, the negative pressure applied to the chest drops to zero, and the elastic recoil of the chest and lungs results in passive exhalation. Pump – Adjustable rate and adjustable negative pressure. Pump – Adjustable rate and adjustable negative pressure.

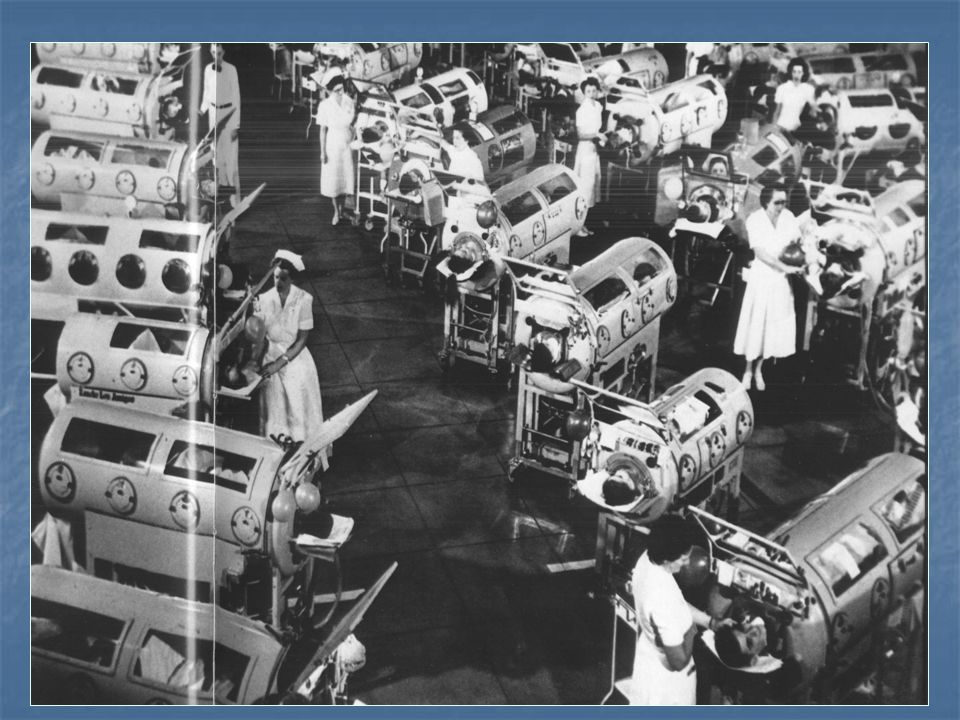

26 Iron lung.

27

28 Limitations of Negative Pressure NIV Unsupported upper airway- obstruction induced with high transluminal pressure gradients. Unsupported upper airway- obstruction induced with high transluminal pressure gradients. Can reduce cardiac OP and peripheral oedema. Can reduce cardiac OP and peripheral oedema. CONTROLLED ventilation. CONTROLLED ventilation. Limited technologies. Limited technologies.

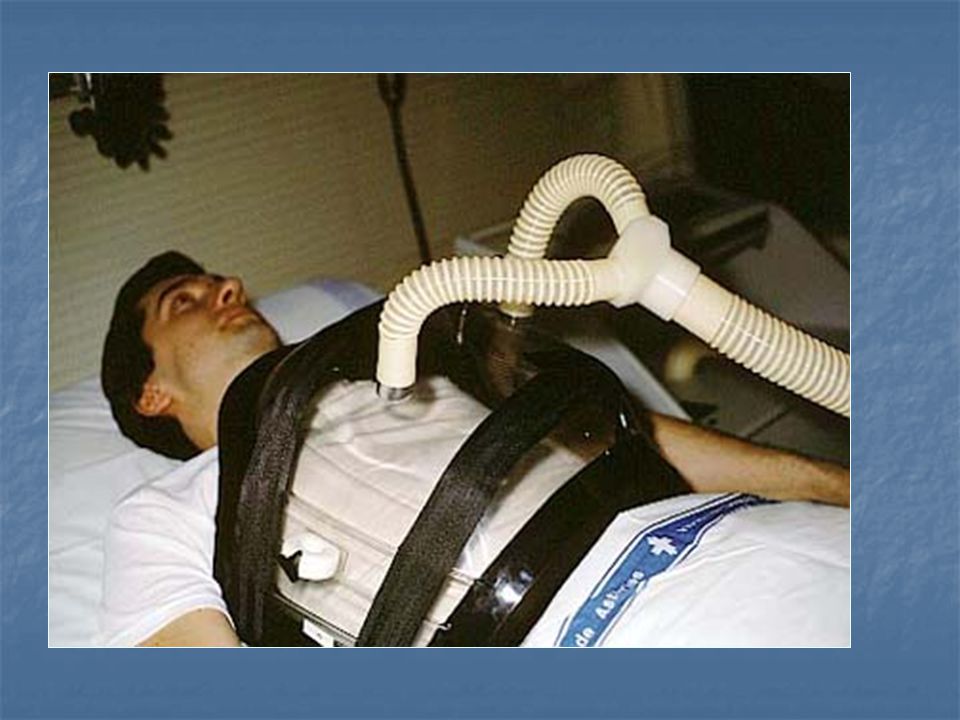

29

30 Positive Pressure NIV 1. Delivery of positive pressure to lungs without intubation. 2. Delivery of air is patient controlled (with machine back up delivery). 3. Air is delivered via a nasal mask or oro- naso mask ( full face mask). NIPPV

31 Nomenclature of Positive pressure systems CPAP CPAP Bi-level Bi-level NIPPV NIPPV IPAP IPAP EPAP EPAP PEEP PEEP Ventilating – peak pressure (pressure support) Ventilating – peak pressure (pressure support) Triggers - Cycling Triggers - Cycling Ti. Te, I/E ratio Ti. Te, I/E ratio Mode S, ST, T Mode S, ST, T Rise Time Rise Time Ramps Ramps

32 FiO2, tidal volume & rate. FiO2 – room air 20.8%, facility to add oxygen. O2 % not measured. FiO2 – room air 20.8%, facility to add oxygen. O2 % not measured. TV – Patient controlled breath enhanced by delivery of air to a target pressure level. Missed breaths recognised. TV – Patient controlled breath enhanced by delivery of air to a target pressure level. Missed breaths recognised. RR- apnoea recognised. Back up rate. delivered. Tachypnea reduced by control of inspiratory time and expiratory time. RR- apnoea recognised. Back up rate. delivered. Tachypnea reduced by control of inspiratory time and expiratory time.

33 Improved alveolar ventilation & oxygenation. The physiological mechanism is dependent upon the pathology/disease mechanism. paO2=[(Pb-SWVP)xFiO2]-PaCO2/RQ paO2=[(Pb-SWVP)xFiO2]-PaCO2/RQ Increased Tidal volume and rate = minute Ventilation. Increased Tidal volume and rate = minute Ventilation.

34 Basic summary Trigger level= spontaneous patient effort to trigger a machine breath. Trigger level= spontaneous patient effort to trigger a machine breath. IPAP = expands the lungs more. IPAP = expands the lungs more. EPAP = supports small airways and allows for PEEP. EPAP = supports small airways and allows for PEEP. PEEP= increases the volume held in the lungs after passive recoil. Holds open alveoli & improves gas exchange.Reduces work. PEEP= increases the volume held in the lungs after passive recoil. Holds open alveoli & improves gas exchange.Reduces work. T or back up rate- ensures machine breaths if the patient does not trigger. T or back up rate- ensures machine breaths if the patient does not trigger. Status/progress measured with CO2 & O2 measurements

35 FiO2 & improved MV ( TV & RR) TV RR Ti Te FiO2 rco

36 Bi-level Technology has developed from CPAP over several years. Technology has developed from CPAP over several years. Splints upper airway. Splints upper airway. Supplements Spontaneous breathing, synchronisation, improves comfort. Supplements Spontaneous breathing, synchronisation, improves comfort. Reduces work of breathing. Reduces work of breathing. Time. Missed breaths delivered. Time. Missed breaths delivered. Range of features and settings added in recent times. Alarms – essentially a ventilator.NIPPV Range of features and settings added in recent times. Alarms – essentially a ventilator.NIPPV

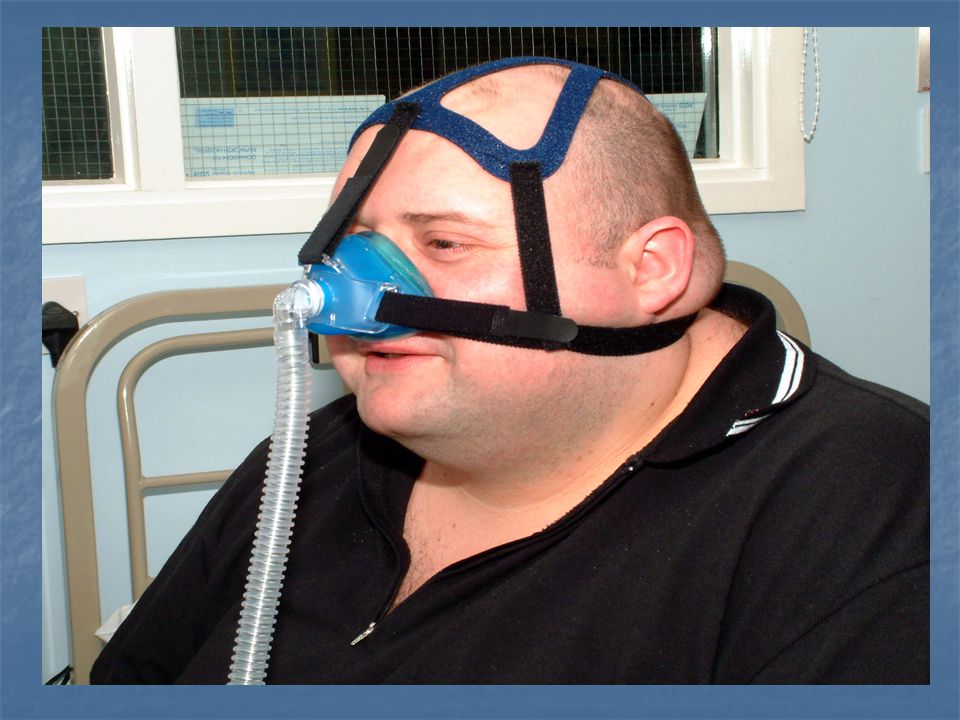

37

38 Unrecognised ventilatory insufficiency leads to big problems

39 Problems with Home nocturnal NIV Cost of ventilator. Cost of ventilator. Choice of ventilator- locked settings. Choice of ventilator- locked settings. Mask problems. Mask problems. Compliance ( nights and hrs used) Compliance ( nights and hrs used) Need to monitor efficacy and share medical care with local doctor. Need to monitor efficacy and share medical care with local doctor. Rare diseases, physical disability, mental disability, agitation, poor sleep. Rare diseases, physical disability, mental disability, agitation, poor sleep.

40 Clinical Outcomes & observational studies. Physiology – ABGs, TcCO2, SpO2. Lung Function. Lung Function. Psg – AHI little value. WASO and better sleep. Quality of Life – Activities of Living. Health care utility (cost) Survival

41 Post NIV

42 Mean overnight oximetry before and after NIV electivePost exacerbation Mode of Referral Sleep Study Baseline Mean O 2 Discharge Mean O 2

43 NIV : Wake ABGs in Myotonic Dystrophy Nugent Chest

44 Numerous publications: NIV in Restrictive lung and neuromuscular disease No prospective randomised controlled trials No prospective randomised controlled trials Multiple case series and 2 withdrawal trials all showing similar treatment effects Multiple case series and 2 withdrawal trials all showing similar treatment effects

45 Should NIV be used in COPD ?

46 UK: 30,000 COPD deaths each year · By 2020 COPD is predicted to be the third biggest killer in the world and will be responsible for the deaths of over six million people · COPD is a major cause of medical admissions, particular in winter. 308,355 emergency hospital admissions per year. · Of those that are admitted to hospital for COPD, 1 in 10 will die in hospital, one in three will die within six months, and 43% will die within twelve months of their admission to hospital · 600,000 patients diagnosed with COPD in the UK

47 Cochrane Systematic Review Nocturnal NIPPV for at least 3 months in hypercapnic patients with stable COPD had no consistent clinically or statistically significant effect on lung function, gas exchange, respiratory muscle strength, sleep efficiency or exercise tolerance. The small sample sizes of these studies precludes a definite conclusion regarding the effects of NIPPV in COPD. More evidence is required.

48 Summary Bi Level is needed for some OSA patients. Bi Level is needed for some OSA patients. Bi-Level machines have some features of pressure support ventilators but may not be appropriate for all patients. Bi-Level machines have some features of pressure support ventilators but may not be appropriate for all patients. Ventilatory Failure is common in some diseases. Ventilatory Failure is common in some diseases. Long term NIV is more effective for some patient groups than others. Long term NIV is more effective for some patient groups than others. Potential for dramatic increase of Obesity Hypopnoea Syndrome across Europe. Potential for dramatic increase of Obesity Hypopnoea Syndrome across Europe.

49 Should Psg technologists be involved in NIV services? Nocturnal (sleep related) Ventilatory insufficiency. Nocturnal (sleep related) Ventilatory insufficiency. Diagnostics. (type of abnormality) Diagnostics. (type of abnormality) Ventilatory Failure is not determined by events (AHI) Ventilatory Failure is not determined by events (AHI) Treatment – medical speciality. Treatment – medical speciality. Outcomes. (efficacy of NIV) Outcomes. (efficacy of NIV)

50 Is our speciality led by technologies ? CPAP (OSA is one of 87 sleep disorders) Ventilatory Failure Bi-level machines ?

51 Equipment by disorder ( few patients with OSA develop Ventilatory failure) Papworth,Cambridge,Sept 2006 CPAP=3503 (OSA is one of 87 sleep disorders) Ventilatory Failure = 385 Bi-level machines used for OSA and in 78 COPD
