Presentation on theme: "Clovis Community Medical Center Campus Expansion OSHPD Phased Review Meeting #1 April 22nd, 9:00 AM – 11:00 AM."— Presentation transcript:
Clovis Community Medical Center Campus Expansion OSHPD Phased Review Meeting #1 April 22nd, 9:00 AM – 11:00 AM

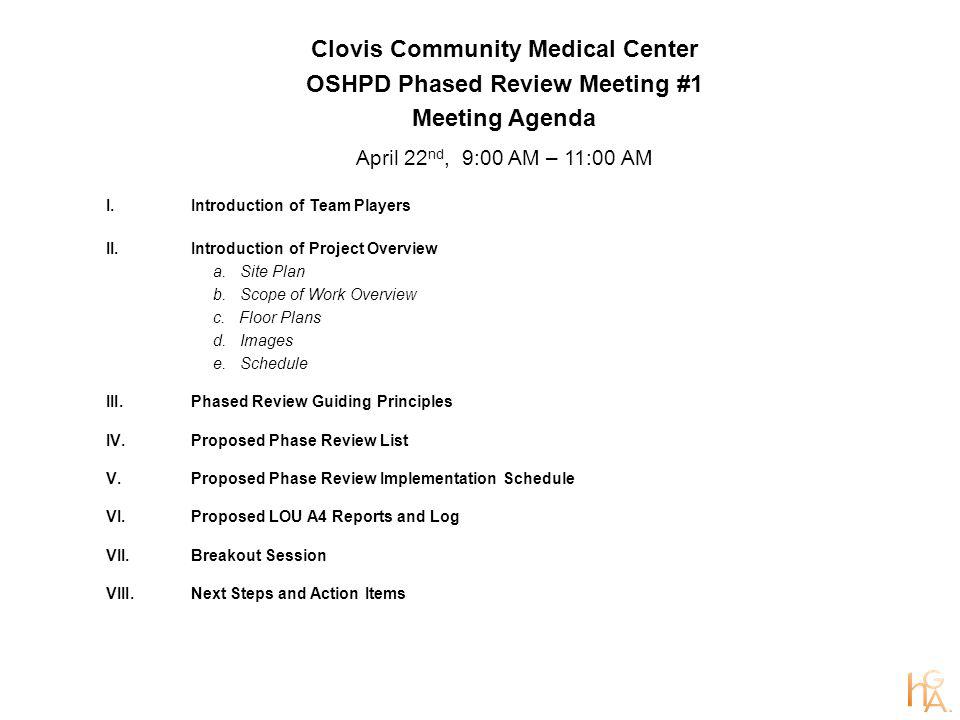

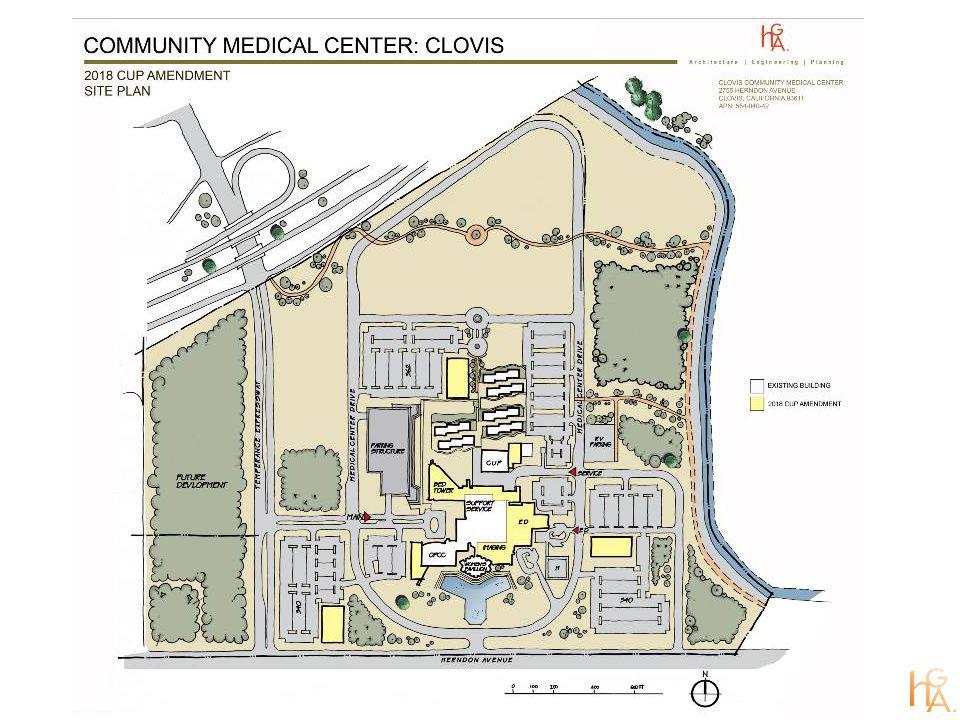

Clovis Community Medical Center OSHPD Phased Review Meeting #1 Meeting Agenda April 22 nd, 9:00 AM – 11:00 AM I.Introduction of Team Players II.Introduction of Project Overview a. Site Plan b. Scope of Work Overview c. Floor Plans d. Images e. Schedule III.Phased Review Guiding Principles IV.Proposed Phase Review List V.Proposed Phase Review Implementation Schedule VI.Proposed LOU A4 Reports and Log VII.Breakout Session VIII.Next Steps and Action Items

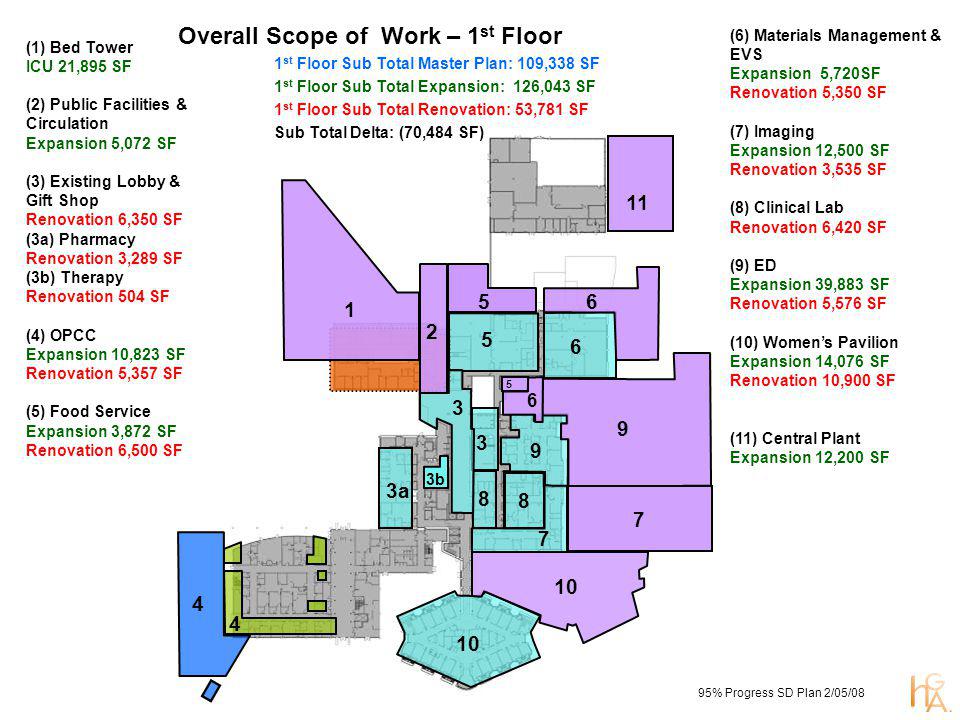

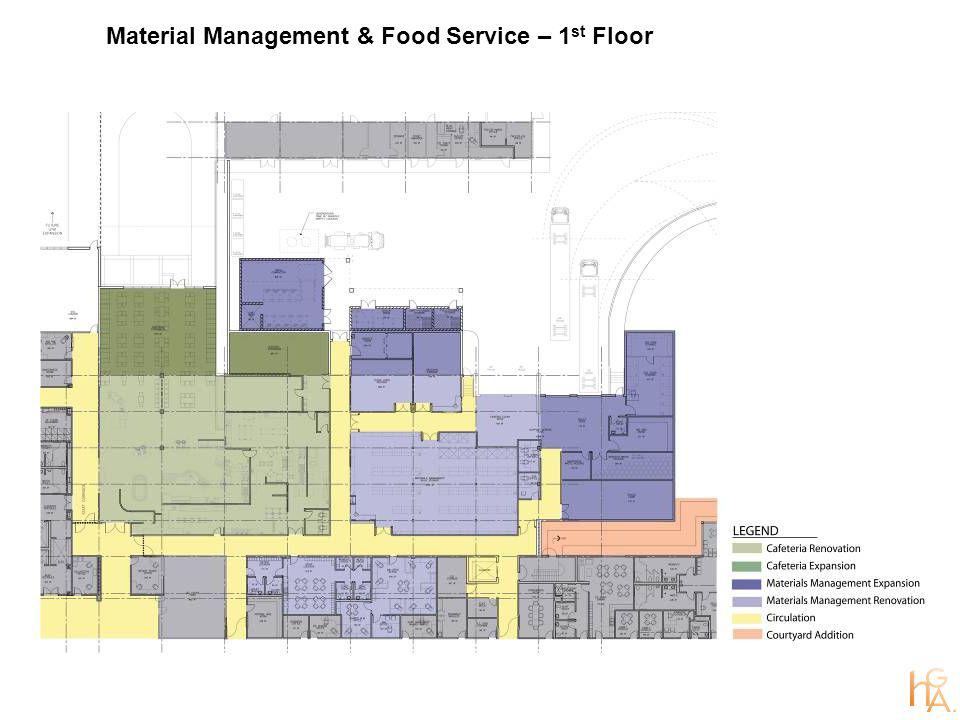

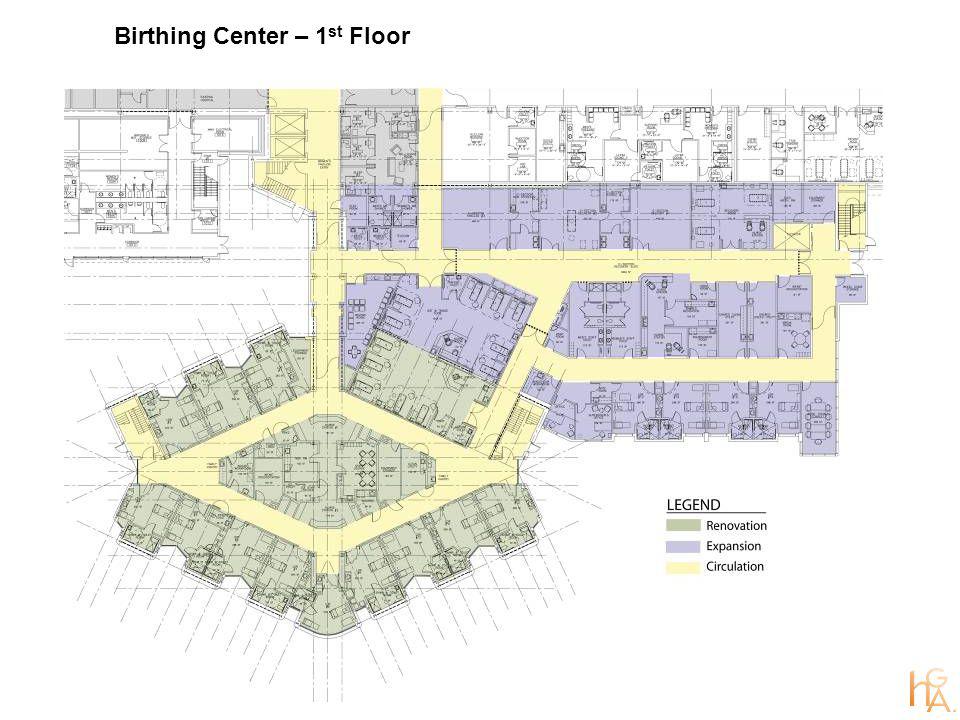

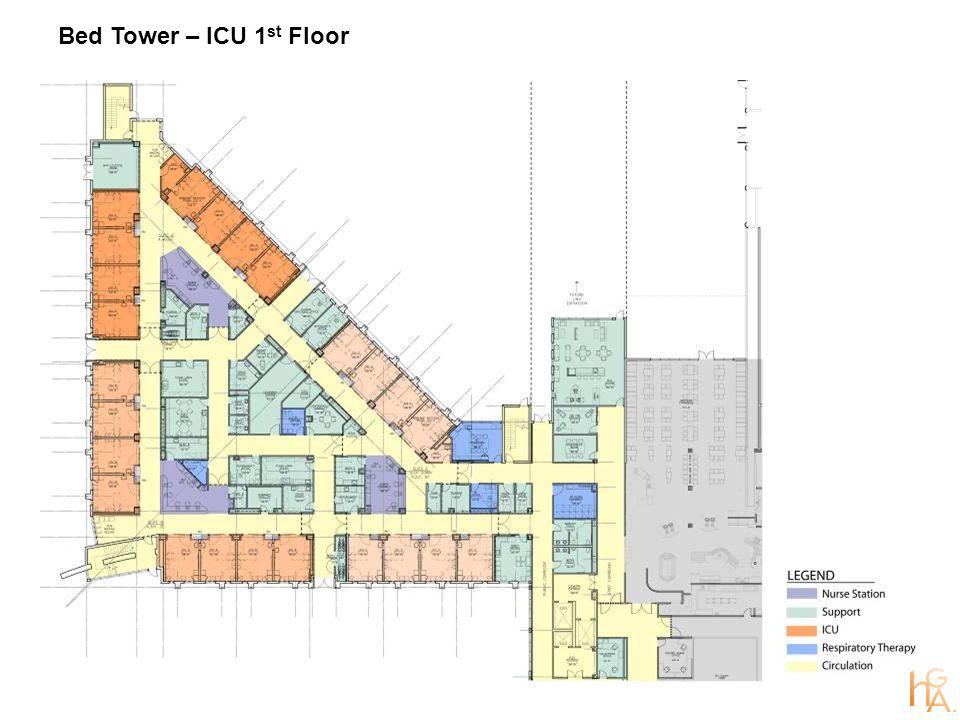

Overall Scope of Work – 1 st Floor (6) Materials Management & EVS Expansion 5,720SF Renovation 5,350 SF (7) Imaging Expansion 12,500 SF Renovation 3,535 SF (8) Clinical Lab Renovation 6,420 SF (9) ED Expansion 39,883 SF Renovation 5,576 SF (10) Womens Pavilion Expansion 14,076 SF Renovation 10,900 SF (11) Central Plant Expansion 12,200 SF (1) Bed Tower ICU 21,895 SF (2) Public Facilities & Circulation Expansion 5,072 SF (3) Existing Lobby & Gift Shop Renovation 6,350 SF (3a) Pharmacy Renovation 3,289 SF (3b) Therapy Renovation 504 SF (4) OPCC Expansion 10,823 SF Renovation 5,357 SF (5) Food Service Expansion 3,872 SF Renovation 6,500 SF 7 1 2 3 4 5 6 5 9 9 10 6 8 3 11 4 10 8 7 1 st Floor Sub Total Master Plan: 109,338 SF 1 st Floor Sub Total Expansion: 126,043 SF 1 st Floor Sub Total Renovation: 53,781 SF Sub Total Delta: (70,484 SF) 6 3a 3b 5 95% Progress SD Plan 2/05/08

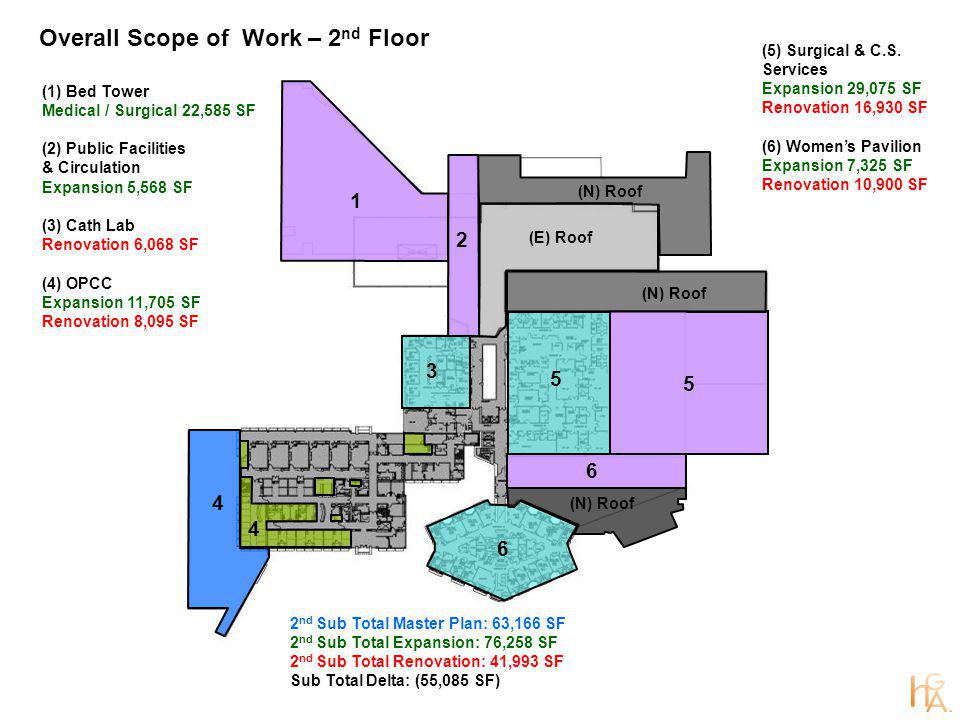

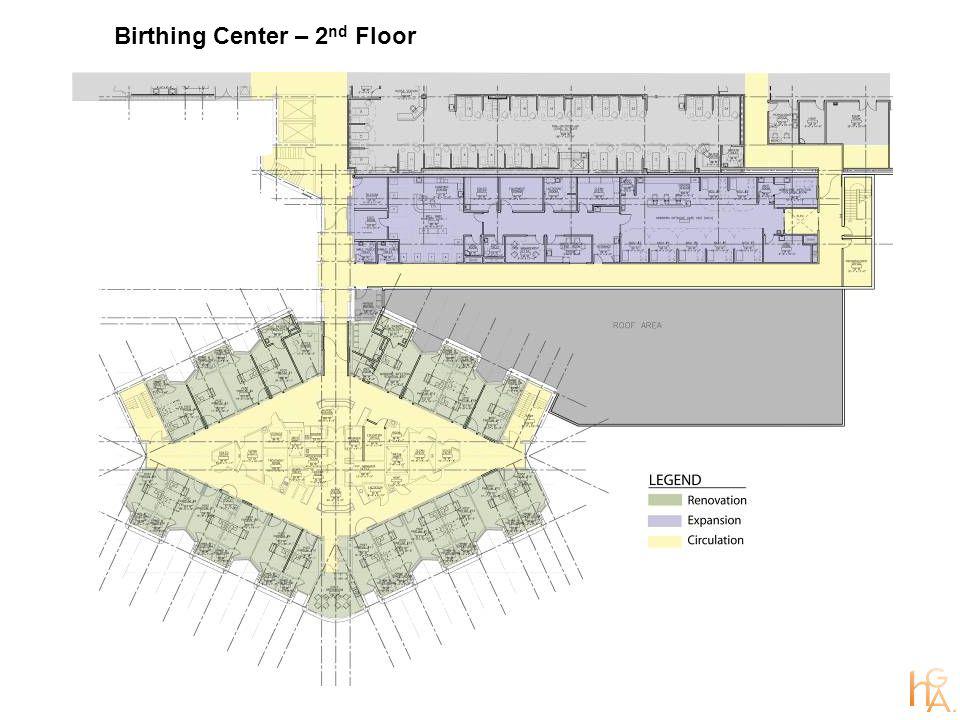

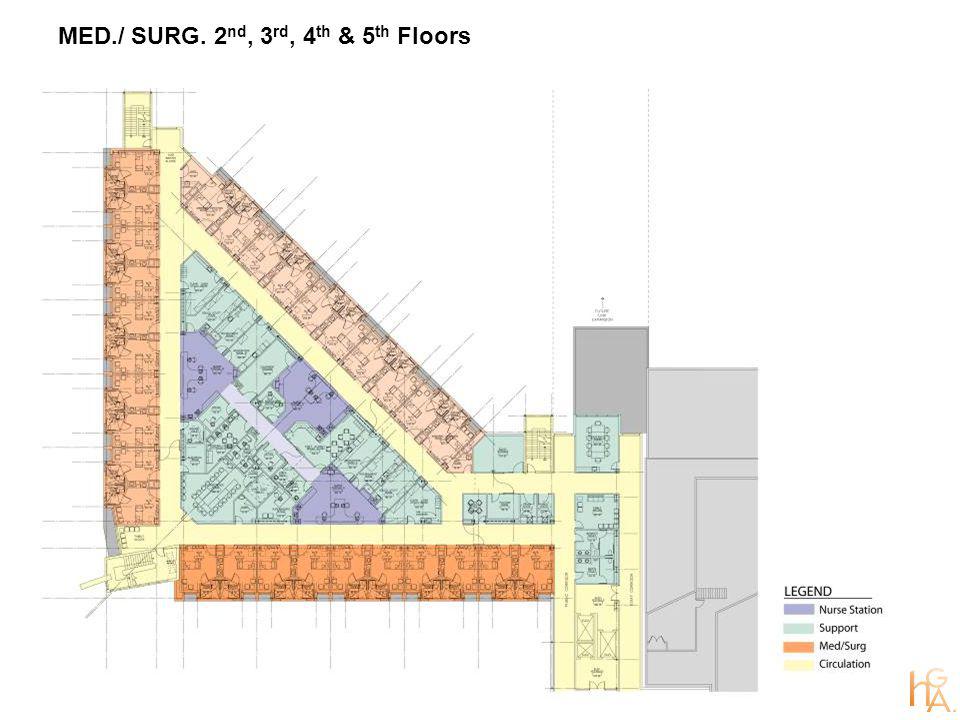

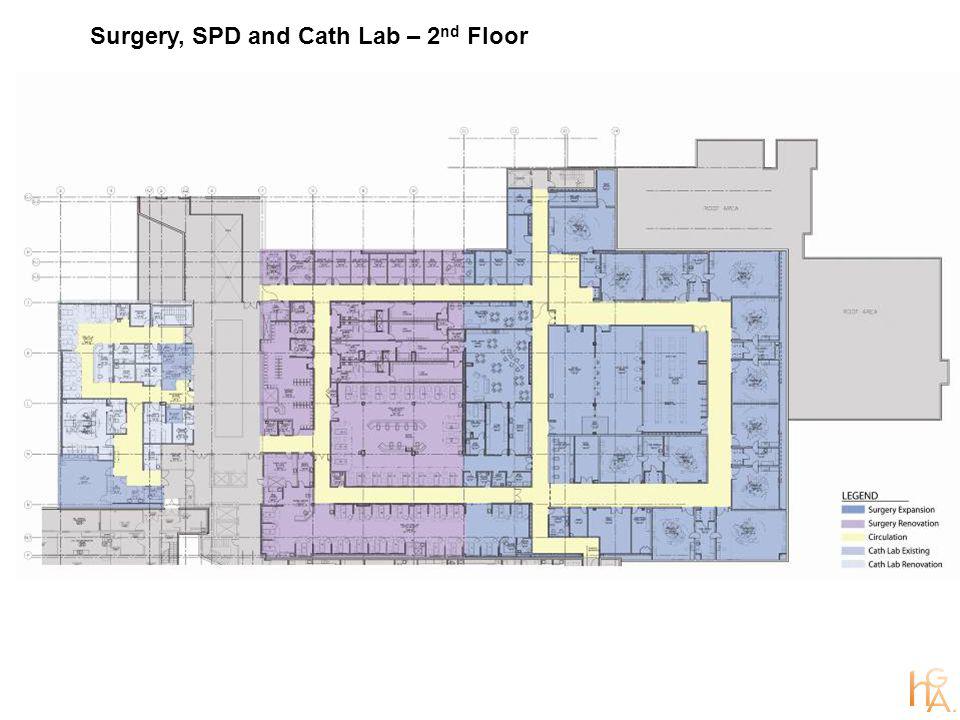

Overall Scope of Work – 2 nd Floor 5 (N) Roof (E) Roof (1) Bed Tower Medical / Surgical 22,585 SF (2) Public Facilities & Circulation Expansion 5,568 SF (3) Cath Lab Renovation 6,068 SF (4) OPCC Expansion 11,705 SF Renovation 8,095 SF (5) Surgical & C.S. Services Expansion 29,075 SF Renovation 16,930 SF (6) Womens Pavilion Expansion 7,325 SF Renovation 10,900 SF 1 2 3 4 4 5 6 6 (N) Roof 2 nd Sub Total Master Plan: 63,166 SF 2 nd Sub Total Expansion: 76,258 SF 2 nd Sub Total Renovation: 41,993 SF Sub Total Delta: (55,085 SF)

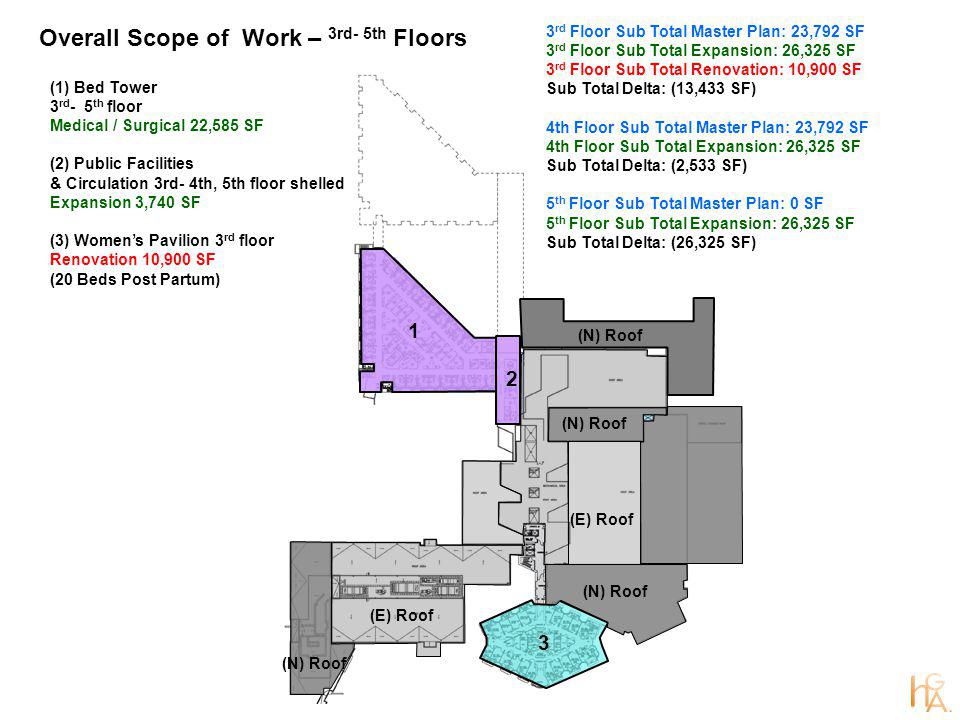

Overall Scope of Work – 3rd- 5th Floors (1) Bed Tower 3 rd - 5 th floor Medical / Surgical 22,585 SF (2) Public Facilities & Circulation 3rd- 4th, 5th floor shelled Expansion 3,740 SF (3) Womens Pavilion 3 rd floor Renovation 10,900 SF (20 Beds Post Partum) 1 2 3 (N) Roof (E) Roof (N) Roof (E) Roof (N) Roof 3 rd Floor Sub Total Master Plan: 23,792 SF 3 rd Floor Sub Total Expansion: 26,325 SF 3 rd Floor Sub Total Renovation: 10,900 SF Sub Total Delta: (13,433 SF) 4th Floor Sub Total Master Plan: 23,792 SF 4th Floor Sub Total Expansion: 26,325 SF Sub Total Delta: (2,533 SF) 5 th Floor Sub Total Master Plan: 0 SF 5 th Floor Sub Total Expansion: 26,325 SF Sub Total Delta: (26,325 SF)

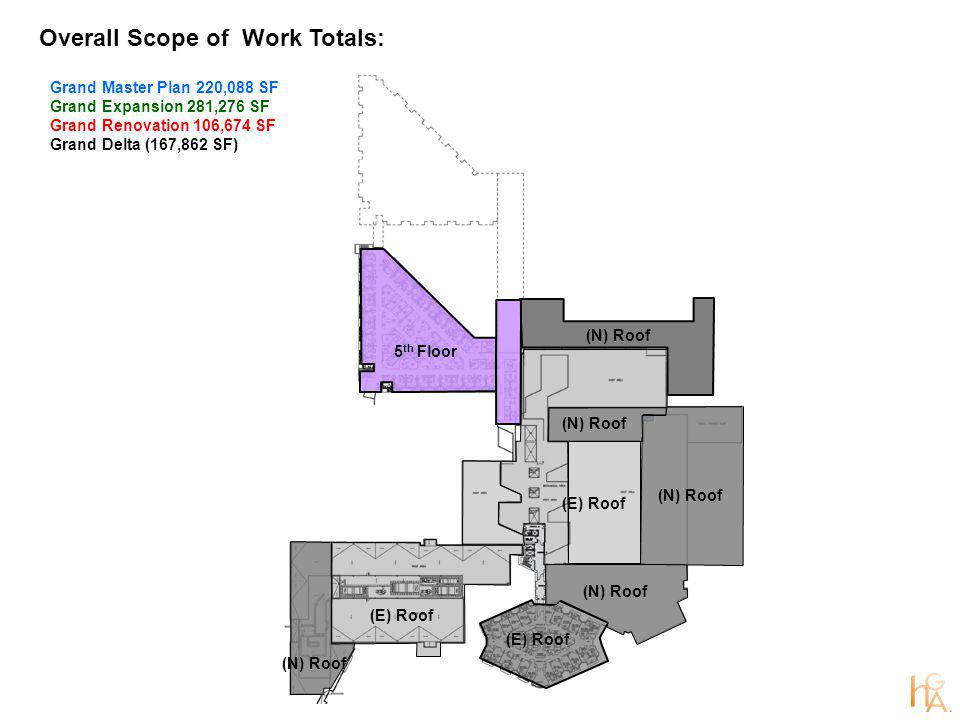

Overall Scope of Work Totals: Grand Master Plan 220,088 SF Grand Expansion 281,276 SF Grand Renovation 106,674 SF Grand Delta (167,862 SF) (N) Roof (E) Roof (N) Roof (E) Roof (N) Roof (E) Roof 5 th Floor (N) Roof

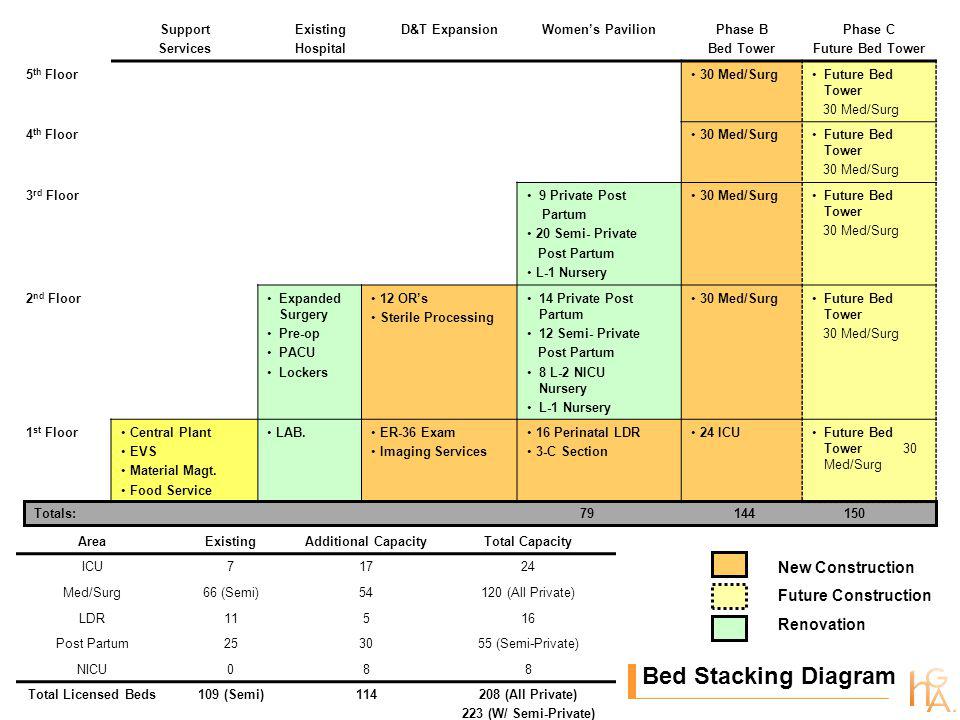

Bed Stacking Diagram Support Services Existing Hospital D&T ExpansionWomens PavilionPhase B Bed Tower Phase C Future Bed Tower 5 th Floor 30 Med/SurgFuture Bed Tower 30 Med/Surg 4 th Floor 30 Med/SurgFuture Bed Tower 30 Med/Surg 3 rd Floor 9 Private Post Partum 20 Semi- Private Post Partum L-1 Nursery 30 Med/SurgFuture Bed Tower 30 Med/Surg 2 nd FloorExpanded Surgery Pre-op PACU Lockers 12 ORs Sterile Processing 14 Private Post Partum 12 Semi- Private Post Partum 8 L-2 NICU Nursery L-1 Nursery 30 Med/SurgFuture Bed Tower 30 Med/Surg 1 st Floor Central Plant EVS Material Magt. Food Service LAB. ER-36 Exam Imaging Services 16 Perinatal LDR 3-C Section 24 ICUFuture Bed Tower 30 Med/Surg Totals: 79 144 150 AreaExistingAdditional CapacityTotal Capacity ICU71724 Med/Surg66 (Semi)54120 (All Private) LDR11516 Post Partum253055 (Semi-Private) NICU088 Total Licensed Beds109 (Semi)114208 (All Private) 223 (W/ Semi-Private) New Construction Future Construction Renovation

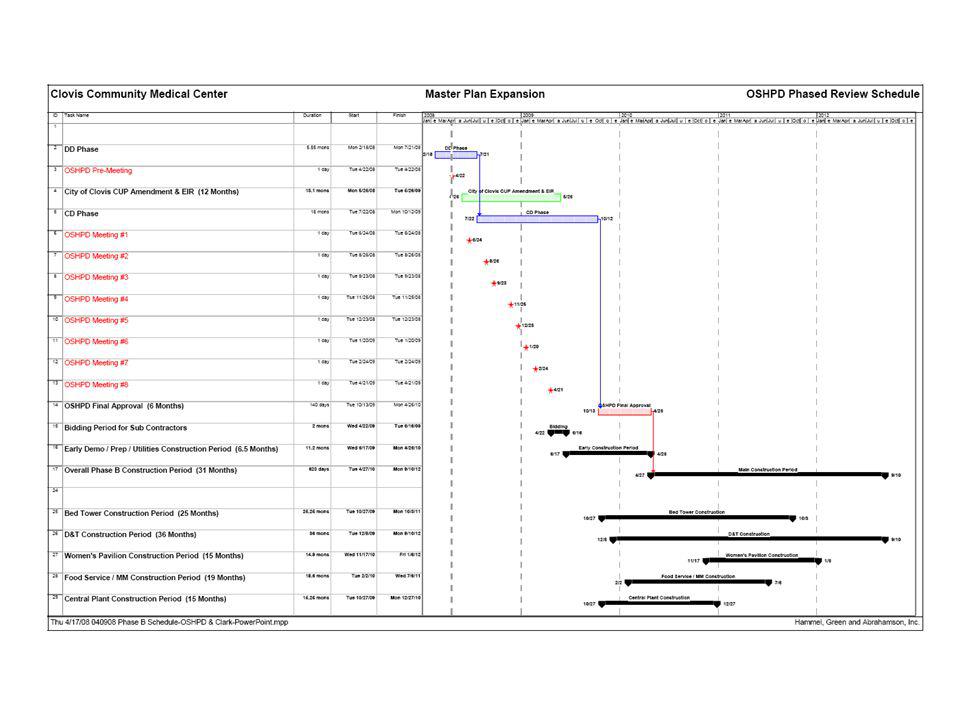

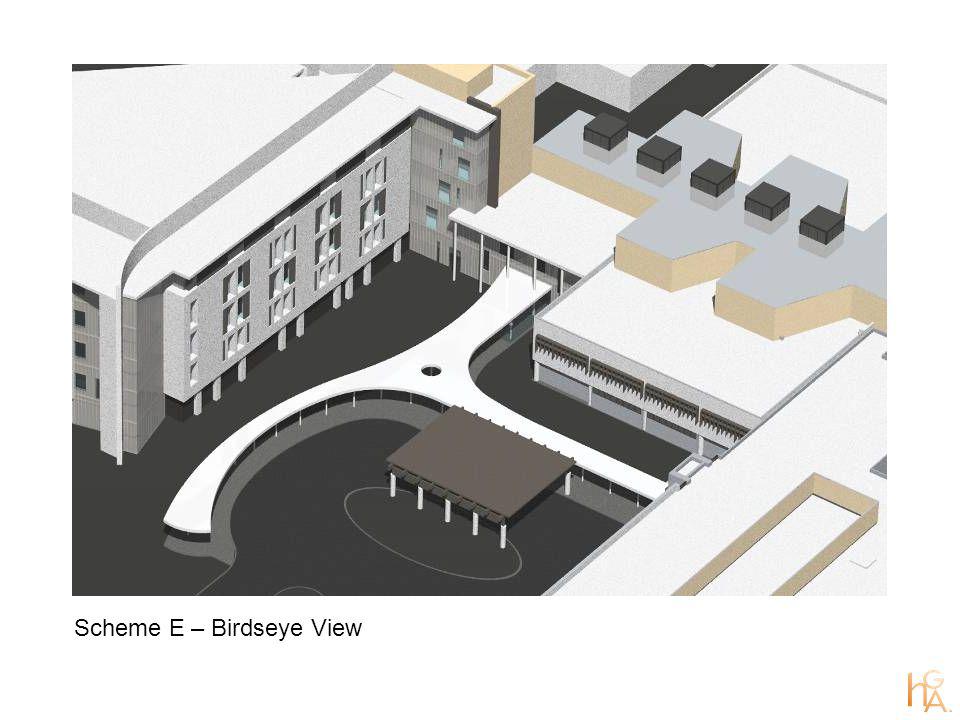

Guiding Principles 1.To Improve Communication Between the Core Group (Representing the Architect, Contractor and Owner) and OSHPD. Collaborate, Really Collaborate and Eliminate Critical Issues Early OSHPD to Utilize Color Pencil Concept 2.Optimize the Project Whole, Not the Pieces. Big Picture Schedule, Must be Efficient Process for Owner and OSHPD. Utilize Over the Counter Backchecks if Comment / Response Time is Deemed 8 Hours or Less. 3.Projects are Networks of Commitment. Owner and Design Team Commit to No Major Changes. Once Submitted, Approved Phased Review Elements Will be Frozen. Serious Code Issues (Deal Breakers) Must be Resolved and Ultimately Accepted by OSHPD prior to Progressing to the Next Phased Review. Resolution May Occur Through Phone Calls, Meeting or E-Mail and Followed Up with Drawings. 4.Increase Relatedness and Build Trust. Keep the Same Individuals on the Project for Its Duration (As Much As Possible). 5.Tightly Couple Learning with Action. Make Changes in the Process as Needed to Improve Over Time. Document Agreements / Approvals Clearly Utilizing LOU (Letter of Understanding) A4s.

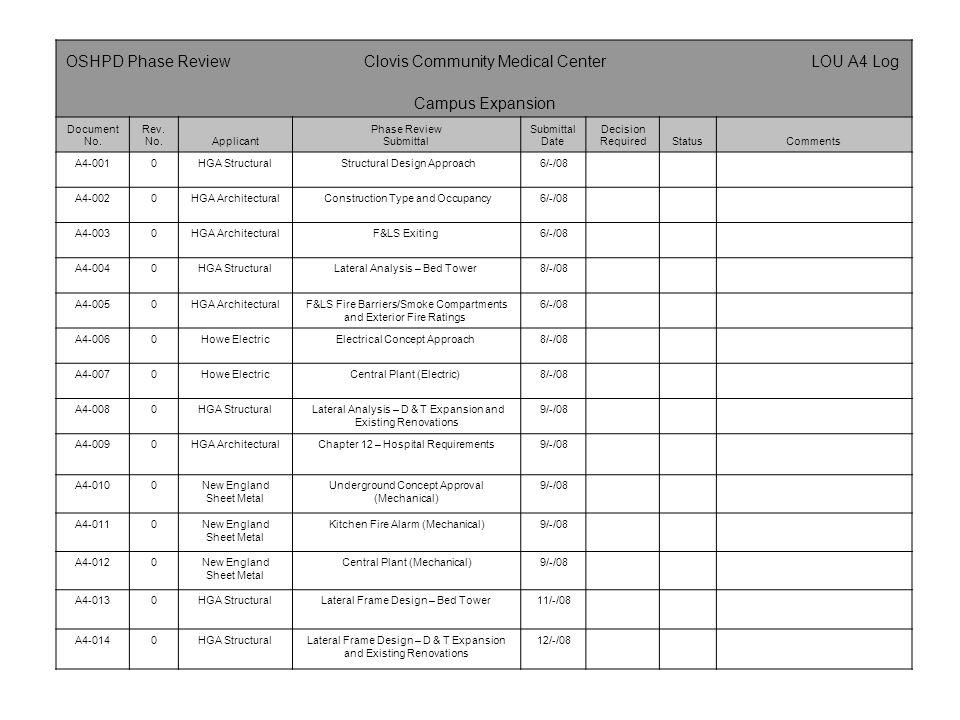

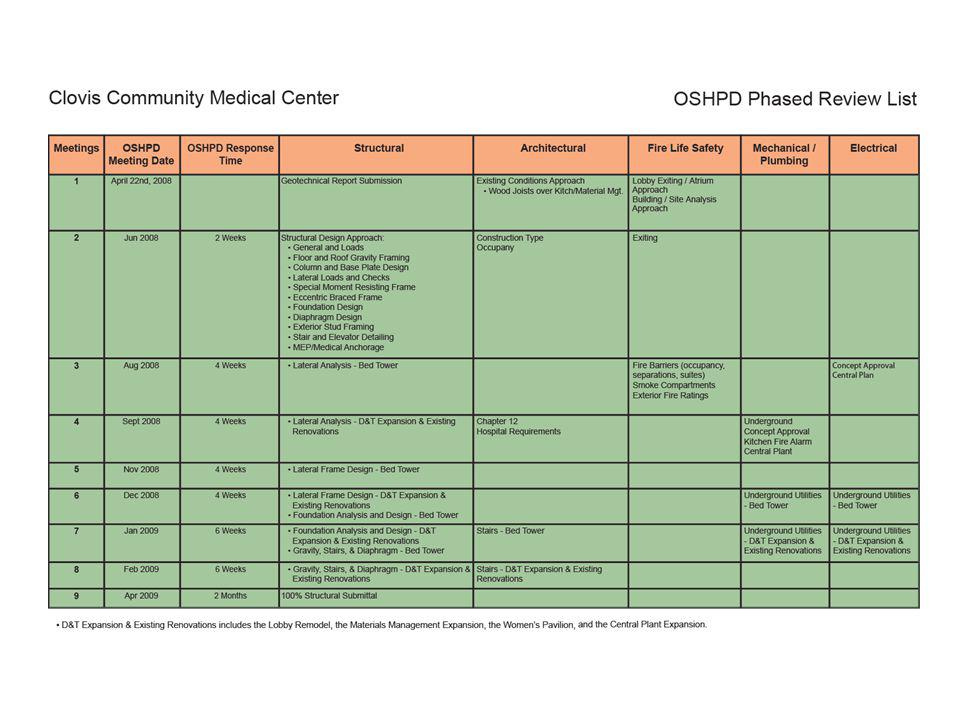

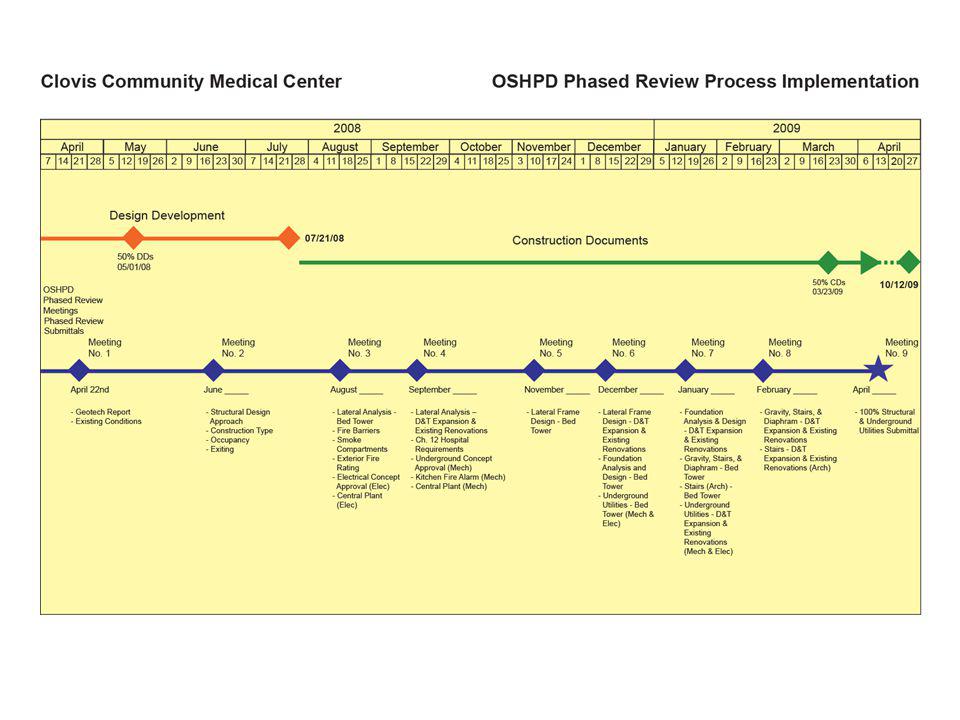

OSHPD Phase Review Clovis Community Medical Center LOU A4 Log Campus Expansion Document No. Rev. No.Applicant Phase Review Submittal Date Decision RequiredStatusComments A4-0010HGA Structural Structural Design Approach 6/-/08 A4-0020HGA Architectural Construction Type and Occupancy 6/-/08 A4-0030HGA ArchitecturalF&LS Exiting 6/-/08 A4-0040HGA StructuralLateral Analysis – Bed Tower 8/-/08 A4-0050HGA ArchitecturalF&LS Fire Barriers/Smoke Compartments and Exterior Fire Ratings 6/-/08 A4-0060Howe ElectricElectrical Concept Approach 8/-/08 A4-0070Howe ElectricCentral Plant (Electric) 8/-/08 A4-0080HGA Structural Lateral Analysis – D & T Expansion and Existing Renovations 9/-/08 A4-0090HGA ArchitecturalChapter 12 – Hospital Requirements 9/-/08 A4-0100New England Sheet Metal Underground Concept Approval (Mechanical) 9/-/08 A4-0110New England Sheet Metal Kitchen Fire Alarm (Mechanical) 9/-/08 A4-0120New England Sheet Metal Central Plant (Mechanical) 9/-/08 A4-0130HGA StructuralLateral Frame Design – Bed Tower 11/-/08 A4-0140HGA StructuralLateral Frame Design – D & T Expansion and Existing Renovations 12/-/08

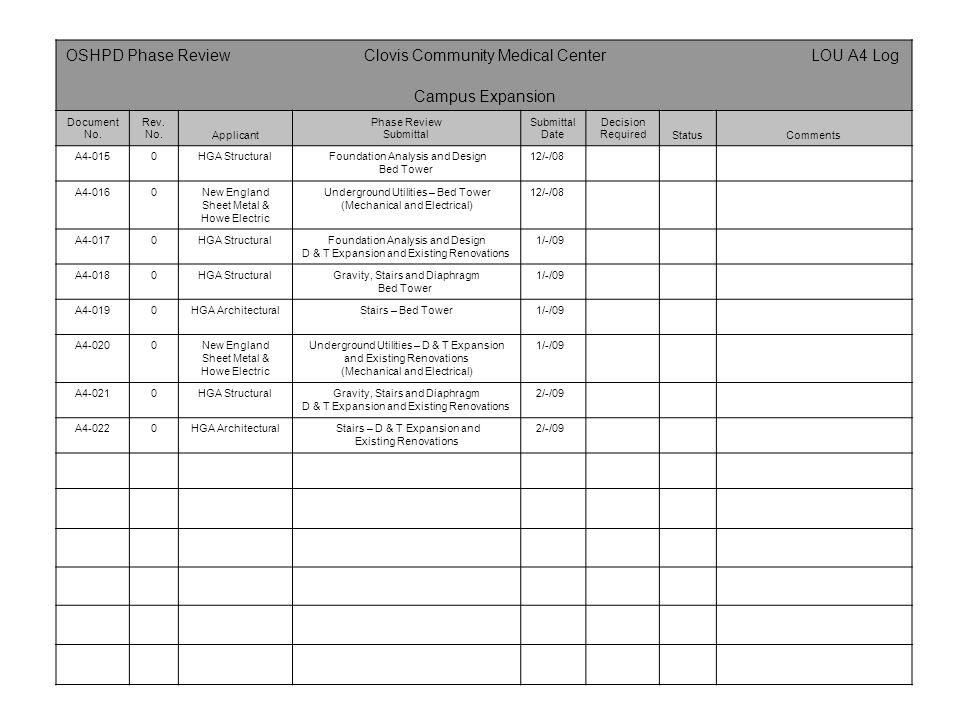

OSHPD Phase Review Clovis Community Medical Center LOU A4 Log Campus Expansion Document No. Rev. No.Applicant Phase Review Submittal Date Decision RequiredStatusComments A4-0150HGA Structural Foundation Analysis and Design Bed Tower 12/-/08 A4-0160New England Sheet Metal & Howe Electric Underground Utilities – Bed Tower (Mechanical and Electrical) 12/-/08 A4-0170HGA StructuralFoundation Analysis and Design D & T Expansion and Existing Renovations 1/-/09 A4-0180HGA StructuralGravity, Stairs and Diaphragm Bed Tower 1/-/09 A4-0190HGA ArchitecturalStairs – Bed Tower1/-/09 A4-0200New England Sheet Metal & Howe Electric Underground Utilities – D & T Expansion and Existing Renovations (Mechanical and Electrical) 1/-/09 A4-0210HGA StructuralGravity, Stairs and Diaphragm D & T Expansion and Existing Renovations 2/-/09 A4-0220HGA Architectural Stairs – D & T Expansion and Existing Renovations 2/-/09
