1 Design Foundation Professor Tango Site Analysis and Context

2 bibliography Site Analysis / Edward T. White (recommended class text)

3 definition context, contextual: the whole situation, background or environment relevant to some event or product. In our case, the product is the building. derivation of the word is to weave together

4

5 consequence triangle walls floors ceilings structure mechanical lighting owners workers customers visitors renters maintenance context

6

7 elements of context / site analysis

8 location contours zoning noise traffic utilities drainage neighborhood pedestrians demographics property shape property size setbacks easements climate views vegetation man-made features

9 hard data usually relates to physical site data which involves no judgments site location dimensions contours on site features climate zoning vegetation

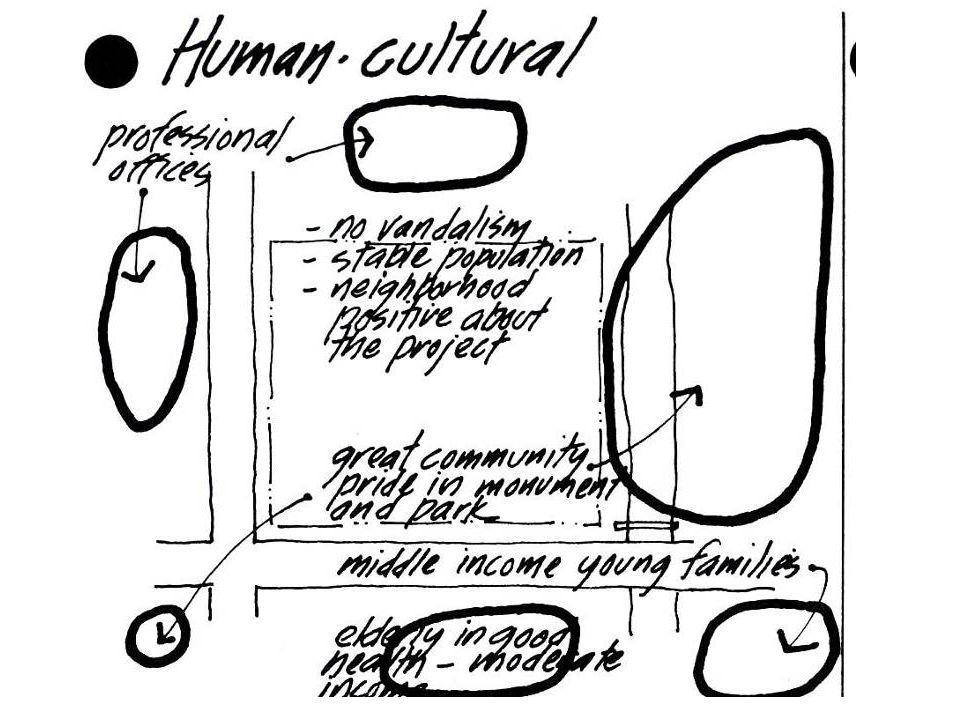

10 soft data sensory and human aspects of the site that usually involve value judgments views from the site views to the site best approaches to the site existence of odors existence of noise existence of human activity type of neighborhood demographics

11

12 elements of context / site analysis Media: Thinking Paper Format: Hand drawings / no instruments Equal size / scale base drawings of site Color: Appropriate color to hierarchal element. General color uniformity across drawing set. Lettering: Uniformity and hierarchy in lettering

13

14

15

16

17

18

19

20

21

22

23

24 Climate

25

26

27

28 Wind

29

30

31

32 Special Regional Conditions Marilee Thomas of Beaver City, NE took this photograph of her daughter Audra about two miles from a Furnas County tornado in April This photograph is from a special edition of NEBRASKAland Magazine, entitled "WEATHER AND CLIMATE OF NEBRASKA" published in January 1996 with content prepared by the UNL Geoscience Climatology faculty and graduate students.

33 Sun

34

35

36 Website: Sun Altitude and Azimuth

37

38

39

40

41

42

43

44 Watt hours per sq. meter per day Solar Resource for Flat Plate Solar Collectors

45

46 3d model of site analysis

47 3d model of site analysis + building

48 Library Site

49

50 Site

51

52

53

54

55

56

57

58 Base Model

59

60

61

62

63

64

65

66

67

68 SITE
