1 Photo-based Data Collection From field data collection to final reports

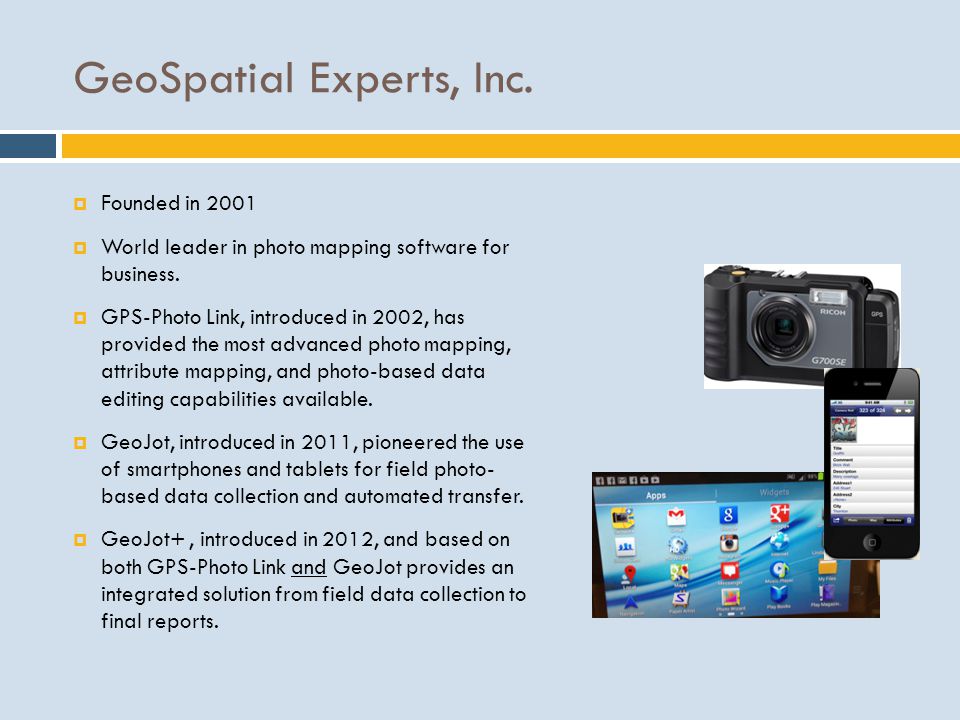

2 GeoSpatial Experts, Inc. Founded in 2001 World leader in photo mapping software for business. GPS-Photo Link, introduced in 2002, has provided the most advanced photo mapping, attribute mapping, and photo-based data editing capabilities available. GeoJot, introduced in 2011, pioneered the use of smartphones and tablets for field photo- based data collection and automated transfer. GeoJot+, introduced in 2012, and based on both GPS-Photo Link and GeoJot provides an integrated solution from field data collection to final reports.

3 Photo-based Compliance Management Assessment, Action Planning, Proof of Performance

4 Mapped photos help solve business problems: Speed mandated compliance milestones Provide mission critical information Provide visual, complete, accurate information Provide time sensitive, actionable information Speed revenue & cash flow Improve staff effectiveness Meet project deadlines Reduce project expenses

5 A complete asset identification system: Photographs Barcodes Descriptive Attributes Data QA/QC Mapped locations and reports Input into Database Field Photo / Data Collection

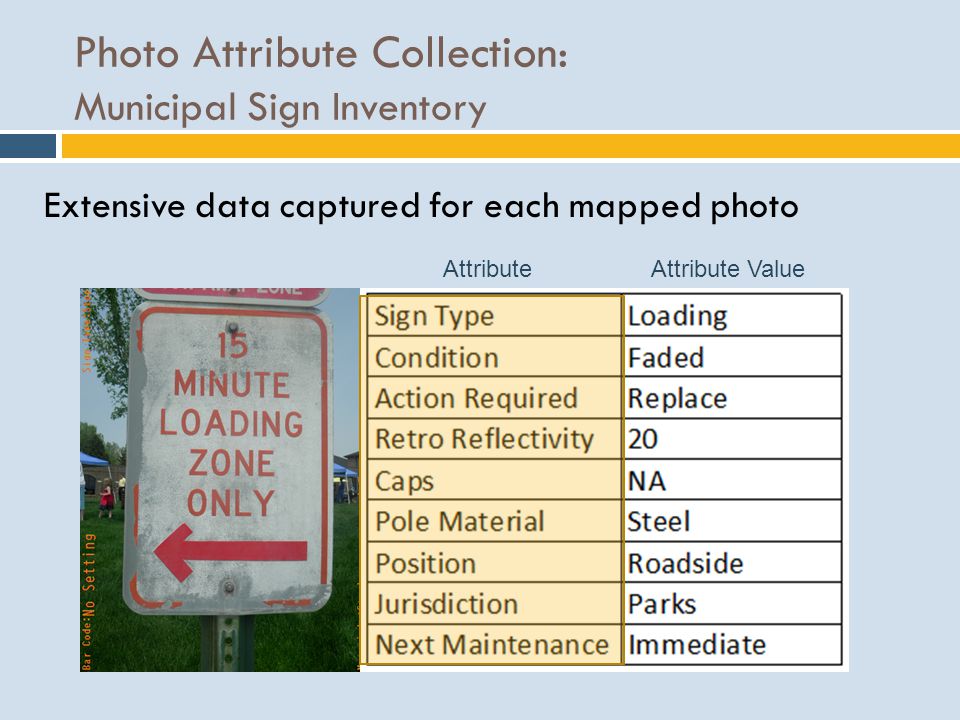

6 Photo Attribute Collection: Municipal Sign Inventory Extensive data captured for each mapped photo Attribute Attribute Value

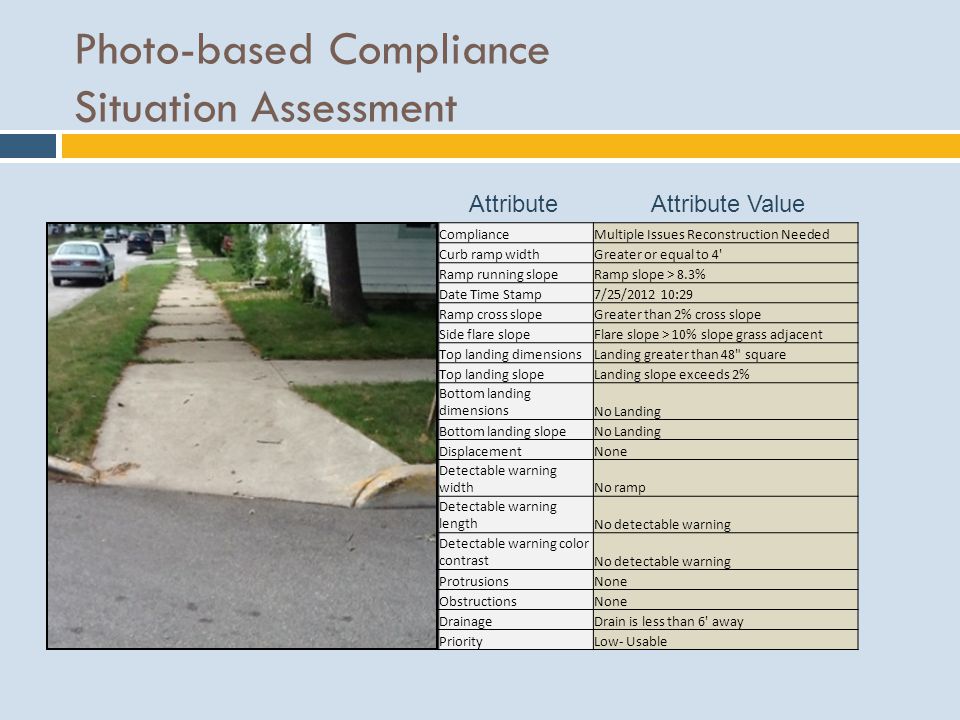

7 Photo-based Compliance Situation Assessment Attribute Attribute Value ComplianceMultiple Issues Reconstruction Needed Curb ramp widthGreater or equal to 4' Ramp running slopeRamp slope > 8.3% Date Time Stamp7/25/ :29 Ramp cross slopeGreater than 2% cross slope Side flare slopeFlare slope > 10% slope grass adjacent Top landing dimensionsLanding greater than 48" square Top landing slopeLanding slope exceeds 2% Bottom landing dimensionsNo Landing Bottom landing slopeNo Landing DisplacementNone Detectable warning widthNo ramp Detectable warning lengthNo detectable warning Detectable warning color contrastNo detectable warning ProtrusionsNone ObstructionsNone DrainageDrain is less than 6' away PriorityLow- Usable

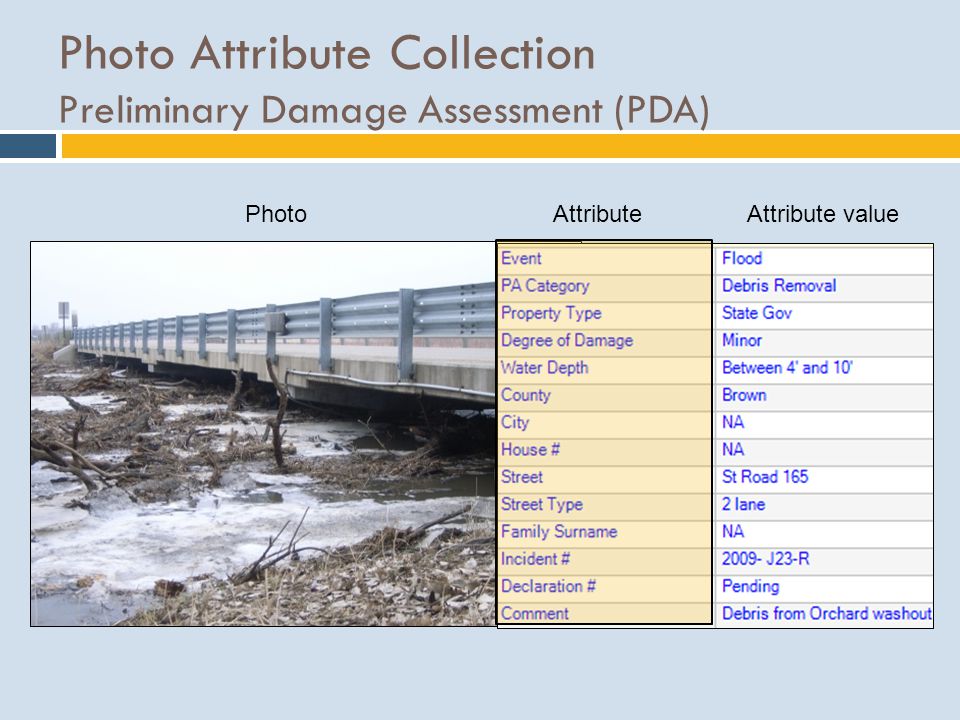

8 Photo Attribute Collection Preliminary Damage Assessment (PDA) Photo Attribute Attribute value

9 End User Output: Watermarked photos Values Watermarked on Photos Attribute Attribute Value

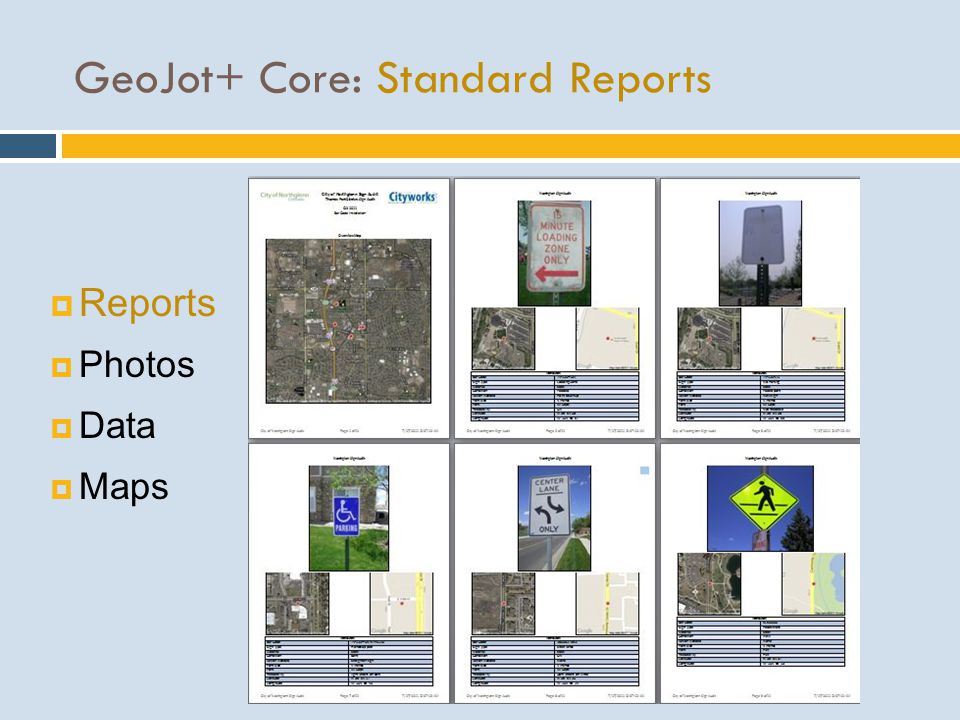

10 GeoJot+ Core: Standard Reports Reports Photos Data Maps

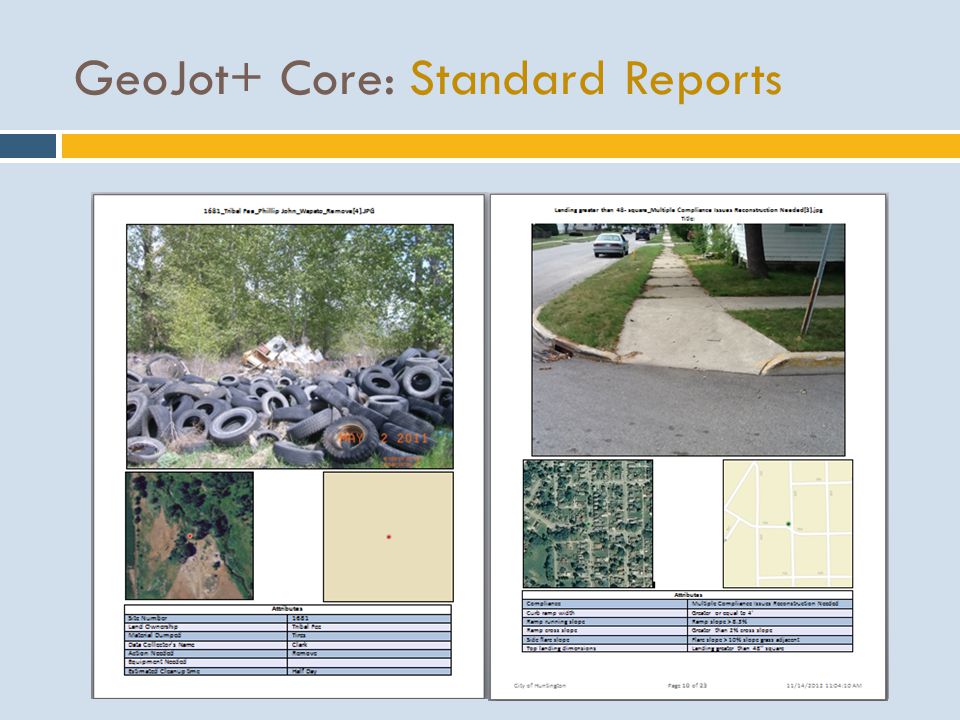

11 GeoJot+ Core: Standard Reports

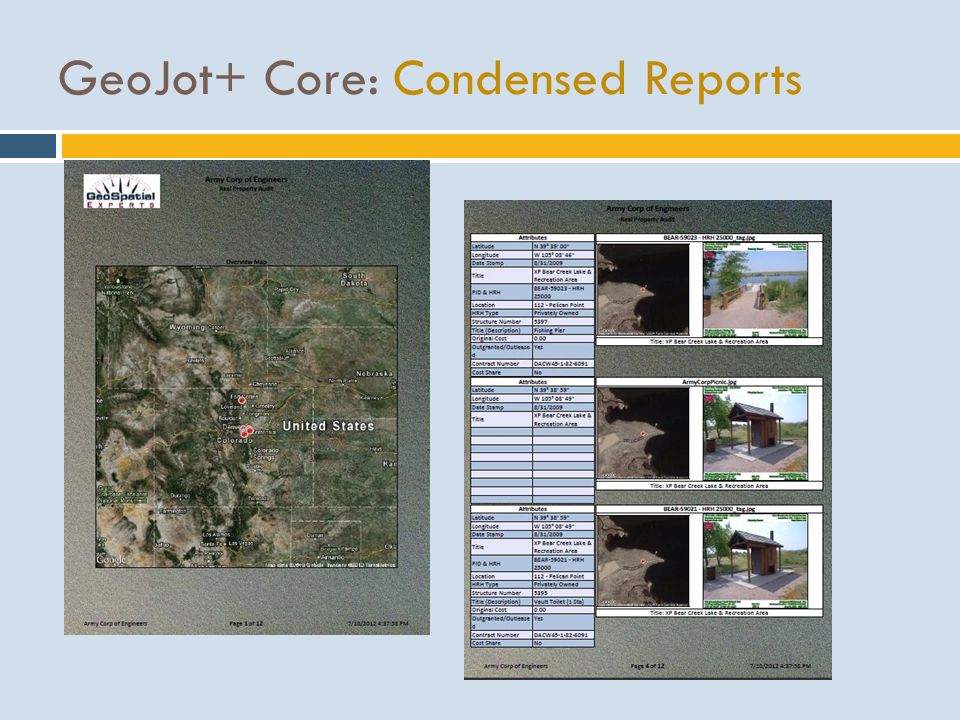

12 GeoJot+ Core: Condensed Reports

13

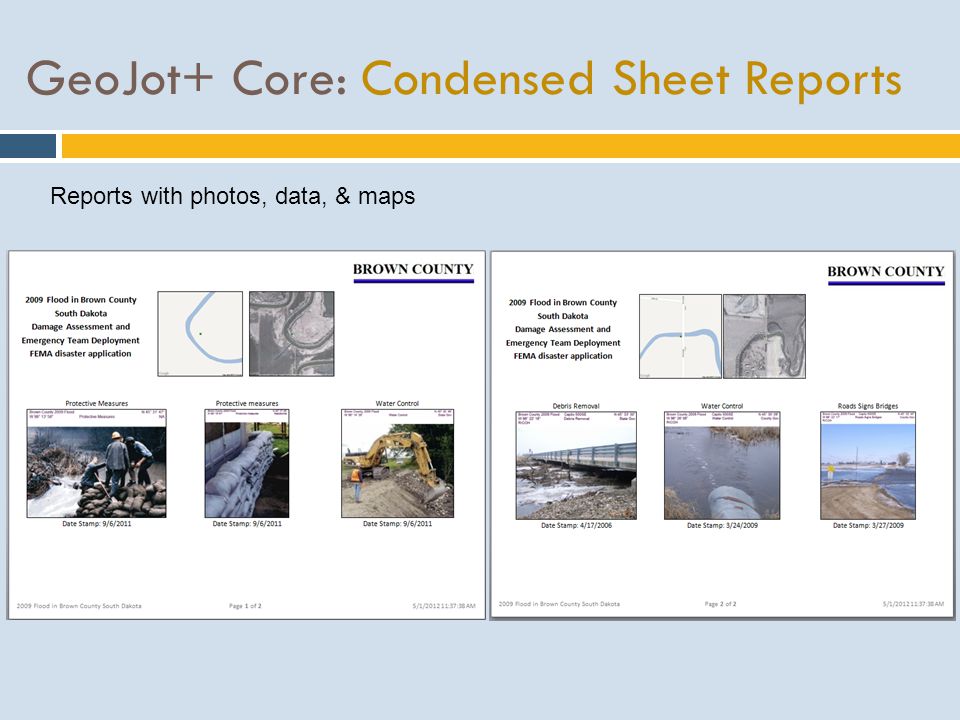

14 GeoJot+ Core: Condensed Sheet Reports Reports with photos, data, & maps

15 End User Output: Esri and Google Earth Map layers

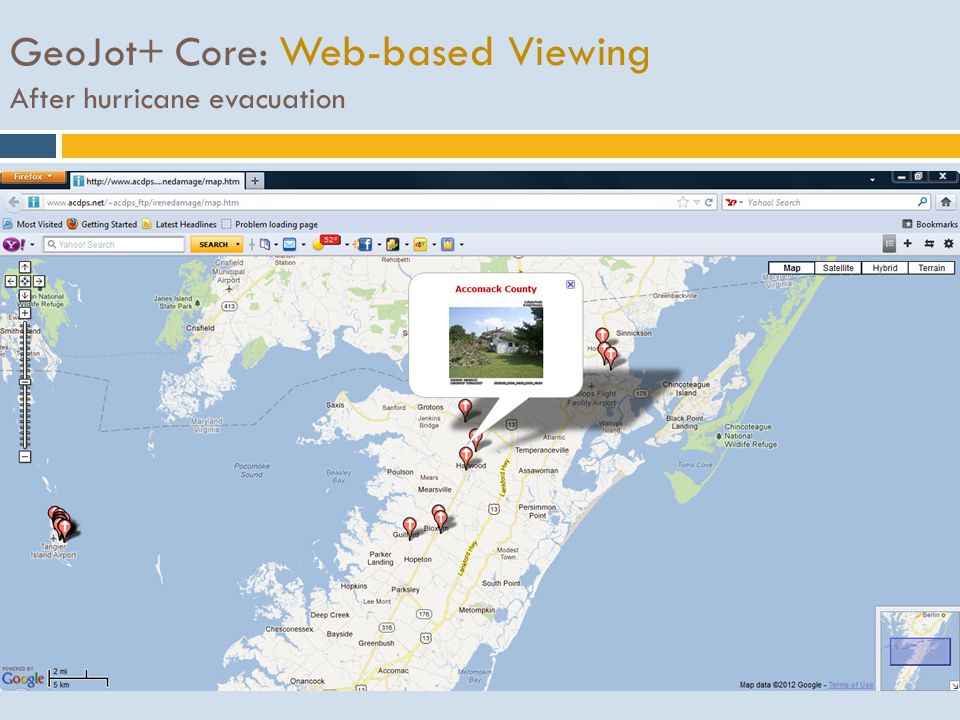

16 GeoJot+ Core: Web-based Viewing After hurricane evacuation

17 End user Output: RDBMS & Systems Integration Database-ready data for: Oracle, SQL Server, IBM DB2, MS Access. Photo-data ready for enterprise systems: SAP, asset management, ESRI Enterprise GeoDatabase, IBM Maximo

18 GeoJot+ Core: Private websites

19 GeoJot+ Core: Output for Every User Need Watermarked Photos Web Pages ArcGIS Shape Files & Geodatabases ArcGIS Explorer files Google Earth files RDBMS files Management & Client Reports

20 Create attribute lists on the desktop using the GeoJot+ Core: List Editor

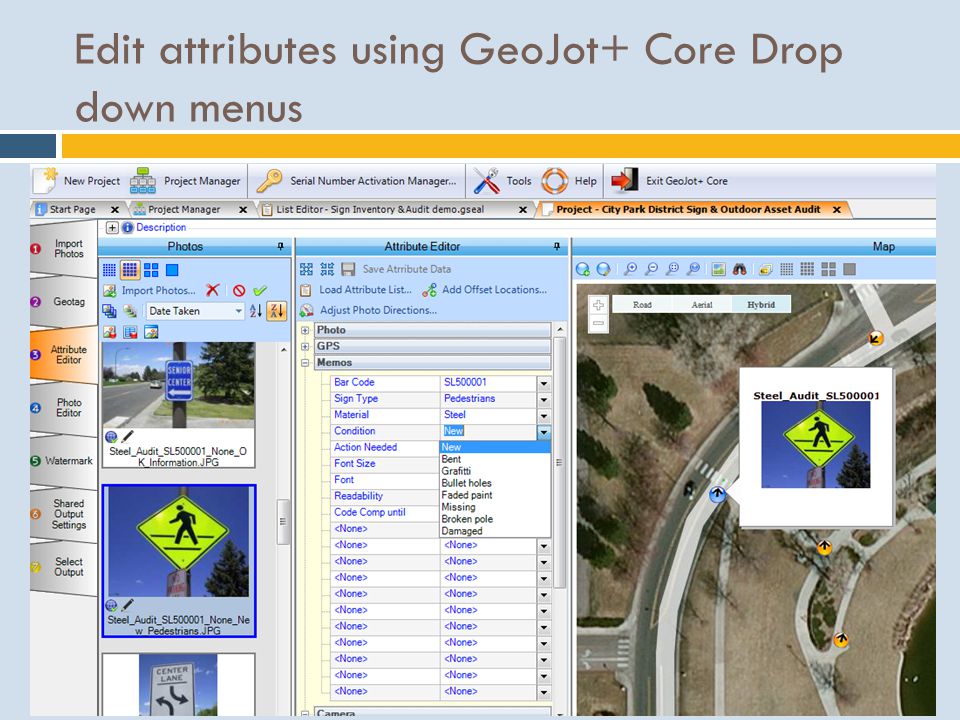

21 Edit attributes using GeoJot+ Core Drop down menus

22 GeoSpatial Experts, Inc. Founded in 2001 World leader in photo mapping software for business. GPS-Photo Link, introduced in 2002, has provided the most advanced photo mapping, attribute mapping, and photo-based data editing capabilities available. GeoJot, introduced in 2011, pioneered the use of smartphones and tablets for field photo- based data collection and automated transfer. GeoJot+, introduced in 2012, and based on both GPS-Photo Link and GeoJot provides an integrated solution from field data collection to final reports.

23 John Clark Director, Business Development office: cell: Contact Infomation
