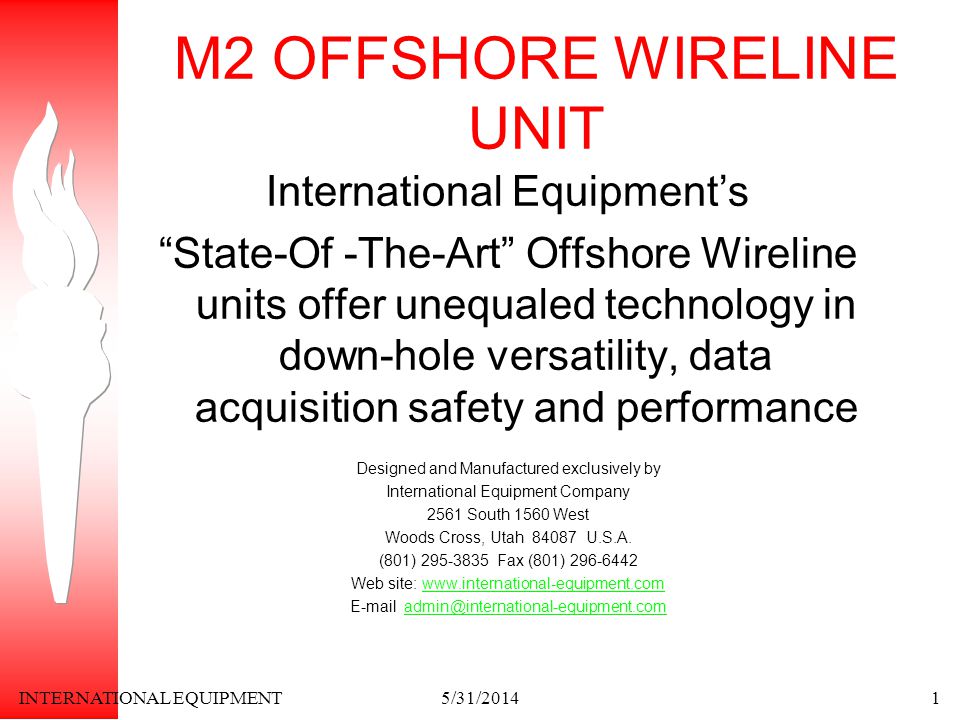

1 INTERNATIONAL EQUIPMENT5/31/20141 M2 OFFSHORE WIRELINE UNIT International Equipments State-Of -The-Art Offshore Wireline units offer unequaled technology in down-hole versatility, data acquisition safety and performance Designed and Manufactured exclusively by International Equipment Company 2561 South 1560 West Woods Cross, Utah U.S.A. (801) Fax (801) Web site:

2 INTERNATIONAL EQUIPMENT5/31/20142 IED Self Contained, Full-Service Modular M2 Offshore Wireline Unit This heavy duty M2 series skid- mounted wireline hoist unit is specifically outfitted for working in offshore environments. The proven and versatile direct driven hoist is powered by a dependable diesel- engine driven hydraulic power- pack.This power-pack is a fully self contained transportable unit offering multi-tasking service capability in either open or cased hole services. The unit is constructed to meet A60 regulations. An auxiliary hoist drum is available for completion services. The skid unit has complete fluid containment systems.

3 INTERNATIONAL EQUIPMENT5/31/20143 FEATURES and BENEFITS Logging cabin constructed to meet A60 fire rating Air-conditioners that use non CFC-12 refrigerant Upgradeable to Zone II Protected by a crash frame to minimize damage while in transit. The all-steel welded construction is built from A-36 structural steel and hot galvanized to prevent corrosion All aluminum cabin materials coated and painted to resist corrosion common to the marine environment Self contained, stand alone power-pack provided all necessary hydraulic, pneumatic and electrical power Wall mounted instrument racks accommodate any acquisition system Interchangeable open-hole and split drum is available, as well as auxiliary drum for cased hole operations

4 INTERNATIONAL EQUIPMENT5/31/20144 FEATURES and BENEFITS Personal safety and protection for data and equipment are incorporated in the advanced ergonomic designs. Operational efficiency and performance insured by separate work surfaces. Adequate interior storage space.

5 INTERNATIONAL EQUIPMENT5/31/20145 FEATURES and BENEFITS Built in lifting frame Built in fork lift stabs Built in tie down tubes Designed balance points for all components Shock isolated cabin and shock mounted engine pack Quick change drum w/protective covers Fold away protected hydraulic steering arm Two AC units w/crash frames for protection

6 INTERNATIONAL EQUIPMENT5/31/20146 FEATURES and BENEFITS IECs proven direct drive hoist has protective safety covers w/service door. (Sprockets, chains and other high service parts are eliminated.) Slip ring enclosed in protective cover w/service door All hydraulic interfaces are stainless steel quick disconnect. Electrical connections use MS/O-ring connectors for watertight reliability

7 INTERNATIONAL EQUIPMENT5/31/20147 FEATURES and BENEFITS Large reflection free safety glass operator window Window has pneumatic lift protective in-transit cover Low profile drum improves spooling visibility Hydraulic spooling system Electronic Tensiometer fully integrated to all acquisition systems. Explosion proof rig-lights Safe-arm flashing gun light

8 INTERNATIONAL EQUIPMENT5/31/20148 FEATURES and BENEFITS Dependable Diesel powered system w/electronic controls, spark arrestor muffler and air intake shutdown is used Easily serviceable components Engine shock mounted for quiet operation Engine pack module easily disconnected for remote operation via 25 umbilical kw AC hydraulic generator w/epoxy sealant for marine environment. Fluid containment tray w/drain for any excess oil spill

9 INTERNATIONAL EQUIPMENT5/31/20149 FEATURES and BENEFITS The IEC M2 skid unit is designed to be economical, lighter in weight, require less rig space and require lighter capacity lifting apparatus Flexible full service capabilities Close and high angle rig-up spooling system Modular design for single lift or three separate section modules

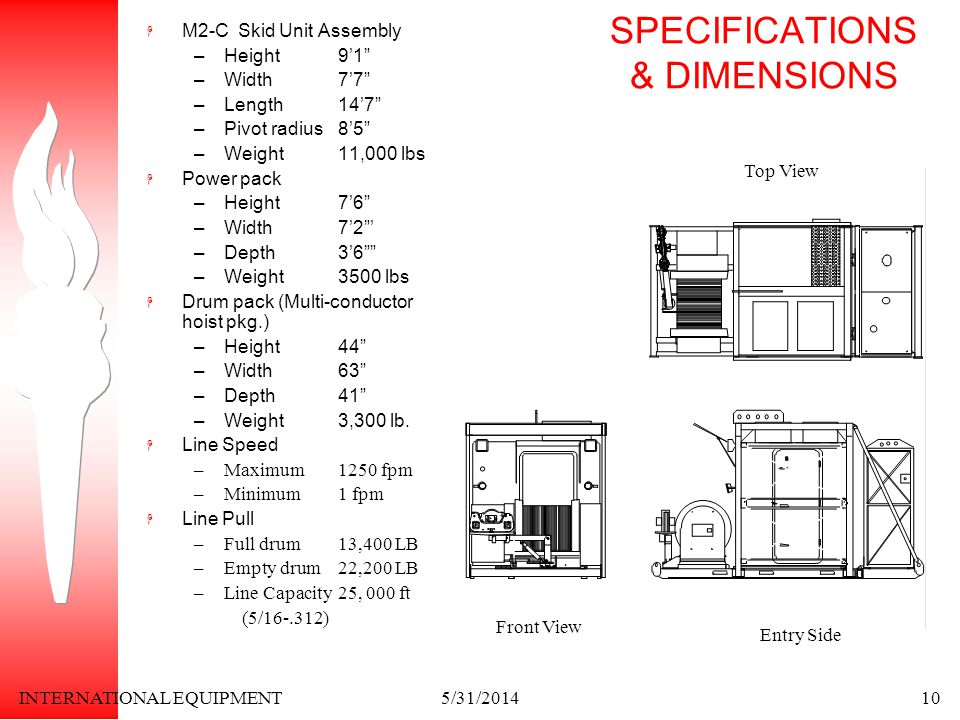

10 INTERNATIONAL EQUIPMENT5/31/ SPECIFICATIONS & DIMENSIONS M2-C Skid Unit Assembly –Height91 –Width77 –Length147 –Pivot radius85 –Weight 11,000 lbs Power pack –Height76 –Width72 –Depth36 –Weight3500 lbs Drum pack (Multi-conductor hoist pkg.) –Height44 –Width63 –Depth41 –Weight3,300 lb. Line Speed –Maximum1250 fpm –Minimum1 fpm Line Pull –Full drum13,400 LB –Empty drum22,200 LB –Line Capacity 25, 000 ft (5/ ) Front View Entry Side Top View

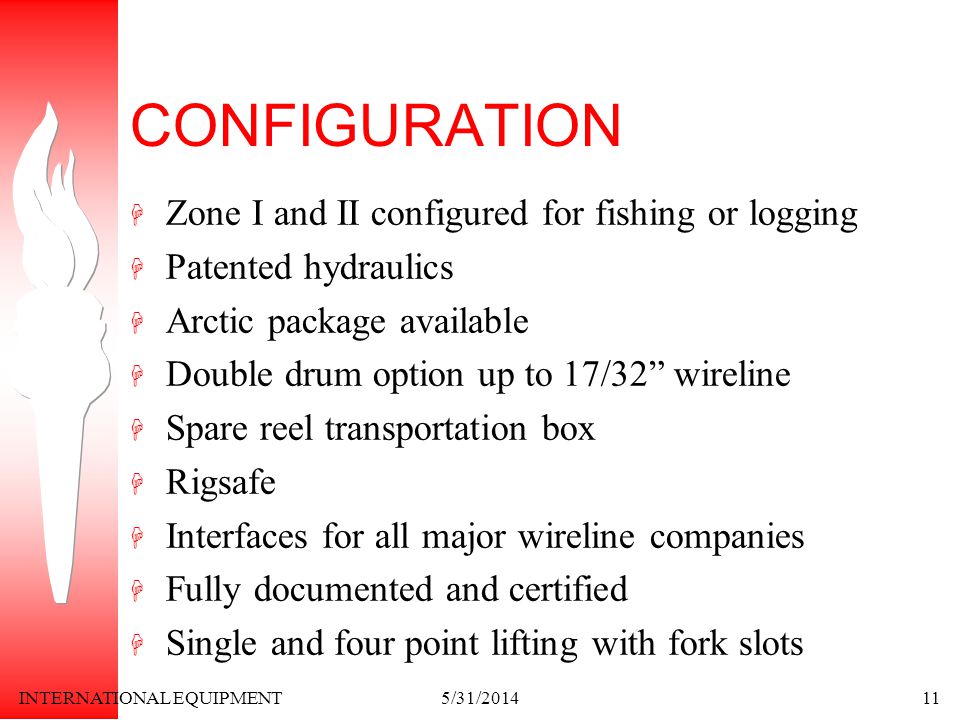

11 INTERNATIONAL EQUIPMENT5/31/ CONFIGURATION Zone I and II configured for fishing or logging Patented hydraulics Arctic package available Double drum option up to 17/32 wireline Spare reel transportation box Rigsafe Interfaces for all major wireline companies Fully documented and certified Single and four point lifting with fork slots
