Presentation on theme: "Multi-Function control Panel (MFP) AKCmed. service menu parameters setting Control panel MENU selection ( click on the selected MENU option) main menu."— Presentation transcript:

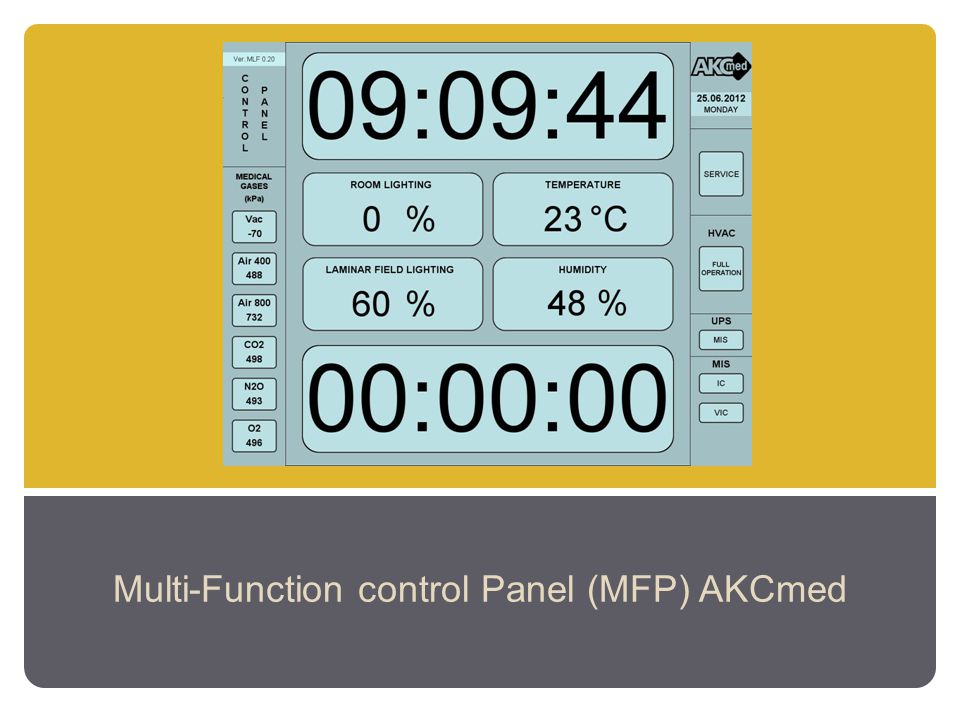

1 Multi-Function control Panel (MFP) AKCmed

2 service menu parameters setting Control panel MENU selection ( click on the selected MENU option) main menu

3 BACK to menu selection

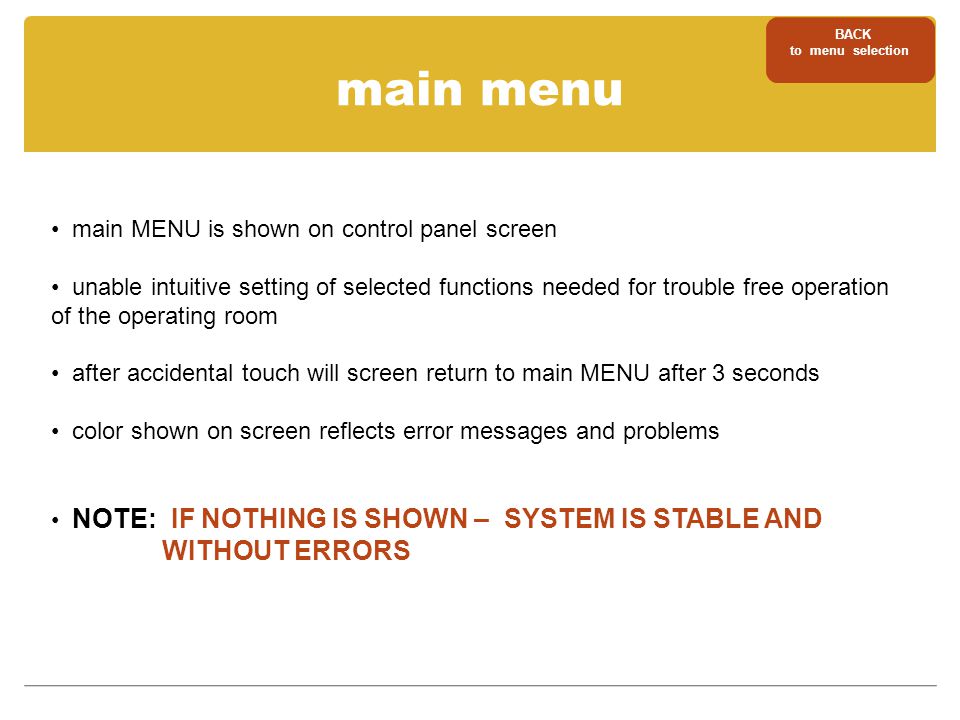

4 main menu main MENU is shown on control panel screen unable intuitive setting of selected functions needed for trouble free operation of the operating room after accidental touch will screen return to main MENU after 3 seconds color shown on screen reflects error messages and problems NOTE: IF NOTHING IS SHOWN – SYSTEM IS STABLE AND WITHOUT ERRORS BACK to menu selection

5 main menu OT lighting ( click on the selected button) laminar flow unit lighting OT temperature setting stopwatch medical gases control ventilation mode full/reduced operation UPS and ZIS control SERVICE clock humidity monitoring in the OT BACK to menu selection

6 clock BACK to main menu BACK to menu selection

7 after touching the lighted button will new screen appear by touching on arrow you can adjust lighting intensity after required intensity is set system switch back to main menu OT lighting BACK to menu selection BACK to main menu

8 BACK to menu selection BACK to main menu OT lighting

9 BACK to menu selection BACK to main menu OT lighting

10 after touch on lighted button will new screen appear by clicking on the arrow you are able to adjust lighting intensity system will return to main menu once the required lighting intensity is set (same as accidental touch) laminar flow unit lighting BACK to menu selection BACK to main menu

11 laminar flow unit lighting BACK to menu selection BACK to main menu

12 laminar flow unit lighting BACK to menu selection BACK to main menu

13 after touch on lighted button new screen will appear by touching on arrow you are able to adjust temperature in the operating theatre (required increase/decrease of the temperature in degrees) after required temperature is set – system will return to main menu during the temperature setting period is value of the temperature figure white ( delay is caused by ventilation construction and it is not possible to make it faster) temperature setting in the OT BACK to menu selection BACK to main menu

14 BACK to menu selection BACK to main menu temperature setting in the OT

15 BACK to menu selection BACK to main menu temperature setting in the OT

16 humidity is only displayed and is not possible to be set (ventilation function) humidity monitoring in the OT BACK to menu selection BACK to main menu

17 BACK to menu selection BACK to main menu humidity monitoring in the OT

18 after touch on stopwatch button will system switch to stopwatch menu three buttons are used – START, STOP, RESET during the stopwatch function is button lighted in yellow color to delete the value by using RESET button you will be to do so only after you stop the stopwatch stopwatch BACK to menu selection BACK to main menu

19 stopwatch BACK to menu selection BACK to main menu

20 BACK to menu selection BACK to main menu stopwatch

21 BACK to menu selection BACK to main menu stopwatch

22 ventilation is able to be switched between full and reduced mode operation reduced mode is shown in orange color after touching the button for switching the ventilation mode will appear window with question, if user like to continue to switch to change the ventilation mode – must confirm its decision (protection against accidental touch) in case, that selection is not confirmed within 3 seconds will system return to original situation ventilation mode switching BACK to menu selection BACK to main menu

23 ventilation mode switching BACK to menu selection BACK to main menu

24 BACK to menu selection BACK to main menu ventilation mode switching

25 BACK to menu selection BACK to main menu ventilation mode switching

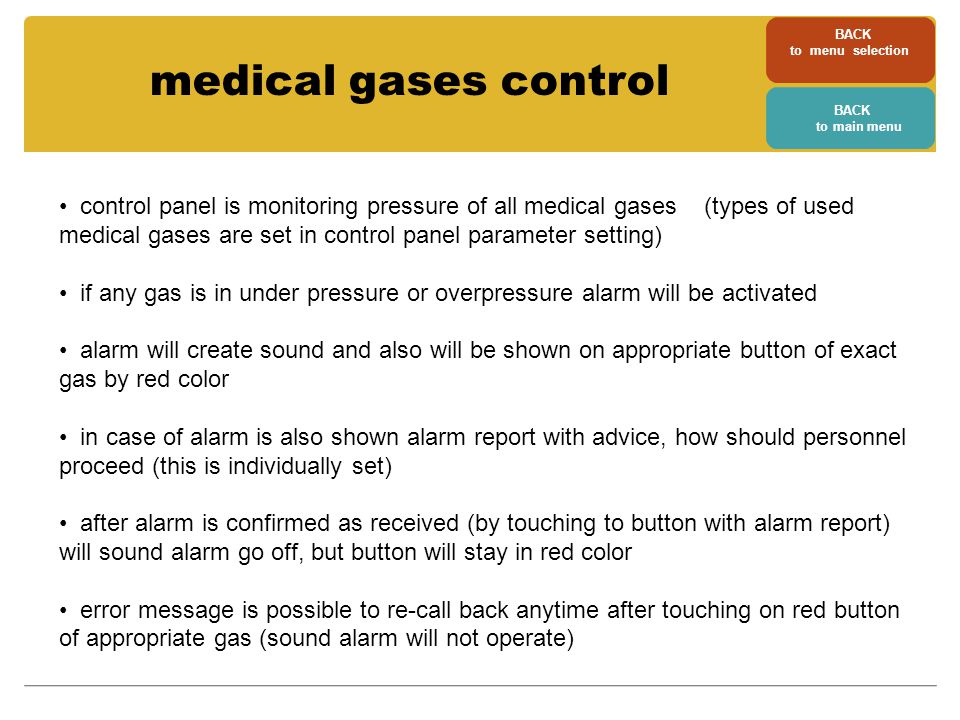

26 control panel is monitoring pressure of all medical gases (types of used medical gases are set in control panel parameter setting) if any gas is in under pressure or overpressure alarm will be activated alarm will create sound and also will be shown on appropriate button of exact gas by red color in case of alarm is also shown alarm report with advice, how should personnel proceed (this is individually set) after alarm is confirmed as received (by touching to button with alarm report) will sound alarm go off, but button will stay in red color error message is possible to re-call back anytime after touching on red button of appropriate gas (sound alarm will not operate) medical gases control BACK to menu selection BACK to main menu

27 BACK to menu selection BACK to main menu medical gases control

28 BACK to menu selection BACK to main menu medical gases control

29 BACK to menu selection BACK to main menu medical gases control

30 control panel is monitoring medical isolated system status in case of error ( UPS, IC, VIC) alarm will be activated alarm will create sound as well as is shown in color (yellow, red – depends on type of error) – appropriate MIS button is in color in case of alarm is also displayed alarm report with advice, how should personnel proceed (individual setting) after alarm is confirmed (by touching on button with error message) sound alarm will go off but appropriate button of MIS is in red color alarm report can be re-called back anytime by touching red button MIS (without sound alarm) UPS a MIS control BACK to menu selection BACK to main menu

31 BACK to menu selection BACK to main menu UPS a MIS control

32 BACK to menu selection BACK to main menu UPS a MIS control

33 UPS and MIS control BACK to menu selection BACK to main menu

34 service by using service button you can access to SERVICE MENU BACK to menu selection BACK to main menu

35 service BACK to menu selection BACK to main menu

36 service menu BACK to menu selection BACK to main menu

37 service menu service menu can be accessed by touching on SERVICE button if someone touch accidently button SERVICE the system will return back to main menu after 3 seconds if we are in service menu we can return back after touching button BACK in this menu is possible to test IC and VIC, set time and date, shown alarm history and to find status of some control panel parts by touching button PARAMETERS SETTING you can access to another menu BACK to menu selection BACK to main menu

38 service menu IC and VIC circuits alarm history date and time adjustment other error reports PARAMETER SETTINGS BACK to menu selection BACK to main menu

39 IC and VIC testing IC and VIC testing buttons able to do regular control of isolated status after touching button you can hear sound signal during the testing period if test will be successful, there will be button lighted in green color, if test was not successfully completed, the button will be lighted in red color result of the test is also stored in so called history alarm section BACK service menu BACK tu menu selection

40 IC and VIC testing BACK to menu selection BACK service menu

41 IC and VIC testing BACK to menu selection BACK service menu

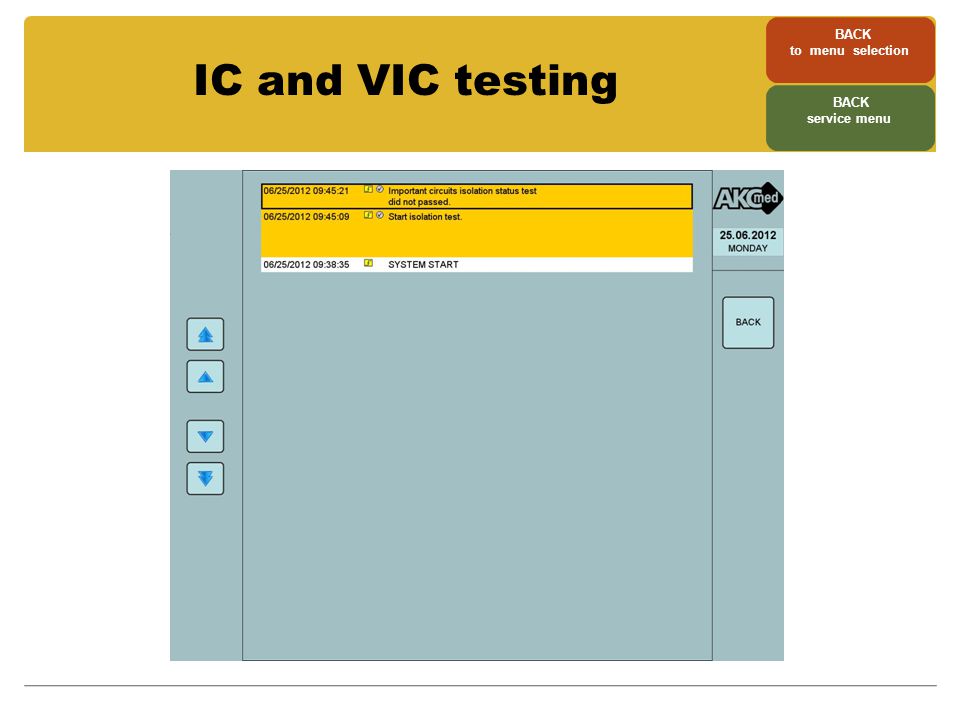

42 IC and VIC testing BACK to menu selection BACK service menu

43 alarm history display by pressing button – ALARM HISTORY whole alarm history and testing of medical isolated systems will be displayed in menu you can move by using arrows in left part of the screen by pressing button BACK you will return to service menu BACK to menu selection BACK service menu

44 alarm history display BACK to menu selection BACK service menu

45 History alarm display BACK to menu selection BACK service menu

46 date and time settings after touch on the button Date and time settings we can set up required values thanks to button BACK we can return to service menu BACK to menu selection BACK service menu

47 date and time settings BACK to menu selection BACK service menu

48 other error reports buttons show if all functions are in order (green color) in case of error are buttons in red color, it is necessary to call service after problem is found red color buttons are not showing critical errors, but errors which you are unable to find by other way BACK to menu selection BACK service menu

49 other error report BACK to menu selection BACK service menu

50 parameters setting by using button PARAMETERS SETTING we can access to other menu, which is selected for setting of individual parameters of the control panel BACK to menu selection BACK service menu

51 parameters setting BACK to menu selection BACK service menu

52 parameters setting BACK to menu selection BACK service menu

53 parameters setting menu parameter setting is accessible from service menu once password is entered in this menu you are able to set up all the functions of control panel also functions not mentioned in this presentation are accessible (operating light control, LCD TV control, monitor control, CODE BLUE, etc.) 200 alternatives of different parameters can be set this menu is normally not accessible by customer BACK to menu selection BACK service menu

54 parameters setting BACK to menu selection BACK service menu

55 Multifunction control panel AKCmed AKC konstrukce, s.r.o. Pivovarska 10 Roznov pod Radhostem Czech Republic Tel: Fax:
