1 5-1 5 Tour of ArcMap and ArcCatalog ArcGIS for Assessors 1

2 5-2 Chapter Overview Working with Catalog Window Viewing Item Description (Metadata) Understanding the Home Folder Shortcut Understanding the Default Geodatabase Shortcut The ArcMap Table of Contents The Attribute Table Docking and Autohiding Windows Using the Pan/Zoom Tools Using Identify to See the Data Behind a Polygon Finding Features with the Find tool Measuring Distances on the Map Customizing the Toolbars (the basics)

3 5-3 Tour of ArcCatalog

4 5-4 Working with Catalog Window The Catalog window for organizing and managing GIS data by grouping it collectively. From the Catalog window you can: –Browse and add data directly to the map –Establish folder connections –Designate default geodatabases –Access the Home Folder

5 5-5 Working with Catalog Window Always use ArcCatalog, not Windows Explorer to manage GIS data ArcCatalog understands and maintains the relationships of files that compose GIS layers

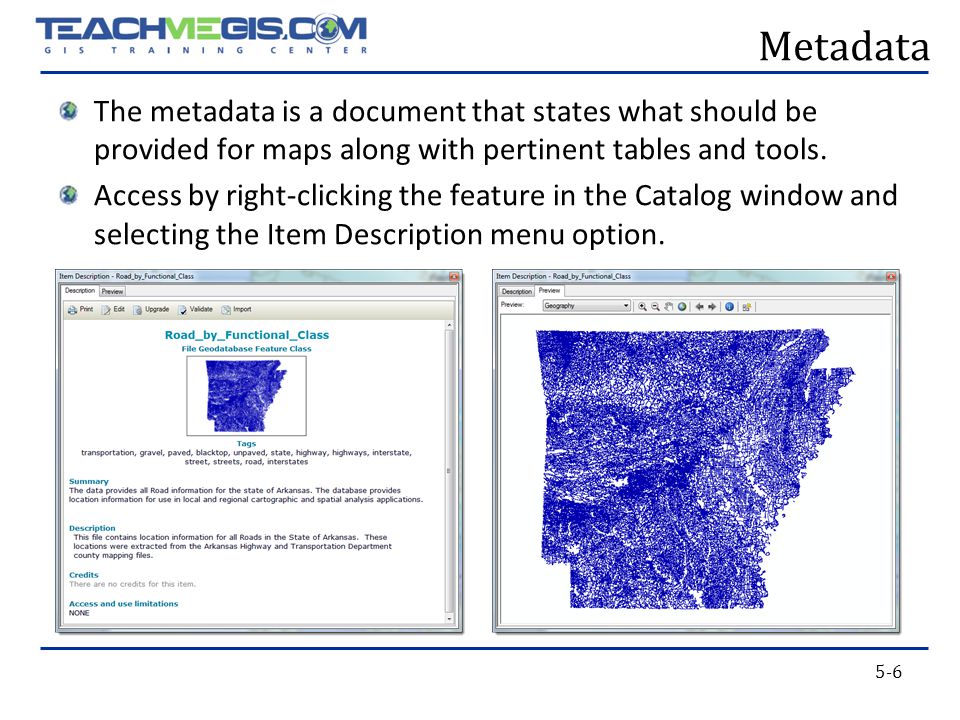

6 5-6 Metadata The metadata is a document that states what should be provided for maps along with pertinent tables and tools. Access by right-clicking the feature in the Catalog window and selecting the Item Description menu option.

7 5-7 Home Folder Shortcut Each map has a Home folder, this is the directory where the map document is stored

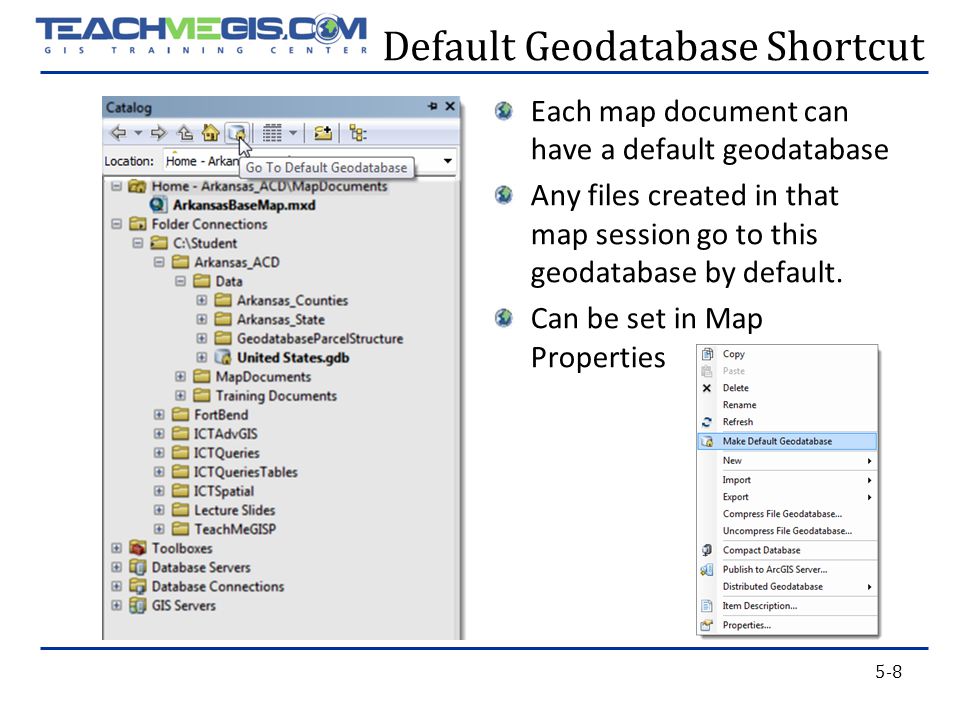

8 5-8 Default Geodatabase Shortcut Each map document can have a default geodatabase Any files created in that map session go to this geodatabase by default. Can be set in Map Properties

9 5-9 The ArcMap Table of Contents The Table of Contents lists all the layers in your map. Four different ways to display. List By Drawing Order List By Source List By Visibility List By Selection

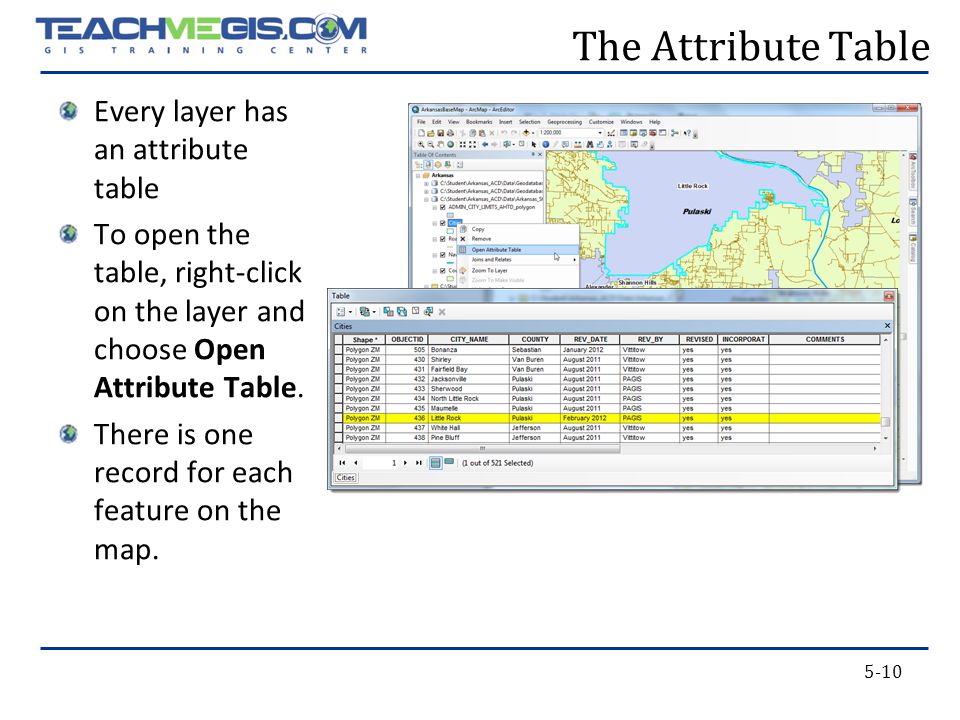

10 5-10 The Attribute Table Every layer has an attribute table To open the table, right-click on the layer and choose Open Attribute Table. There is one record for each feature on the map.

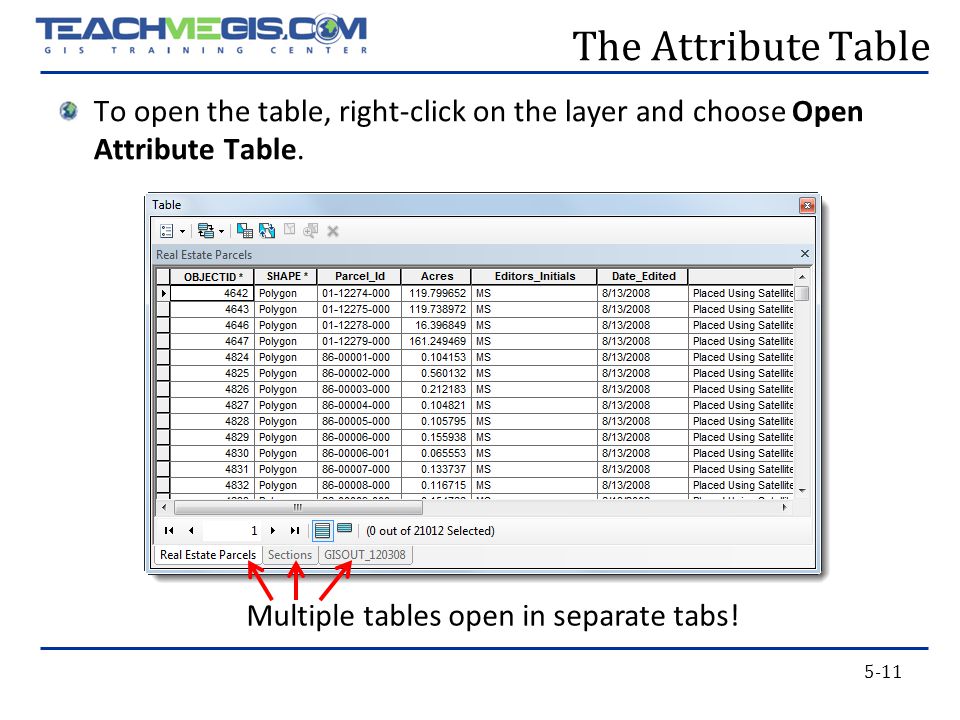

11 5-11 The Attribute Table To open the table, right-click on the layer and choose Open Attribute Table. Multiple tables open in separate tabs!

12 5-12 Docking Windows Almost every window is dockable. –Table window, Identify tool, Attributes window. –Double-click a title-bar to dock/undock the window. –Blue targets for docked position. Hover over a target for a preview. Dock left, right, above, or below other windows. Stack windows for tabbed display. –Not selecting a target will keep the window floating on top.

13 5-13 Autohiding Windows Hover mouse over the tab or click on it to unhide the window. Use the pushpin to set visibility. –Always visible –Set to autohide

14 5-14 Using the Pan/Zoom Tools Pan and Zoom tools accessed by: –Tools toolbar –Layer context menu

15 5-15 Identify The identify tool lets the user view attribute values for a feature By selecting the county of Arkansas you will receive data stored in the attribute table The Identify from: drop-down specifies which layer(s) to identify

16 5-16 Find Find a feature –Parcel –Section Township Range Find an address using GeoStor_Locator.

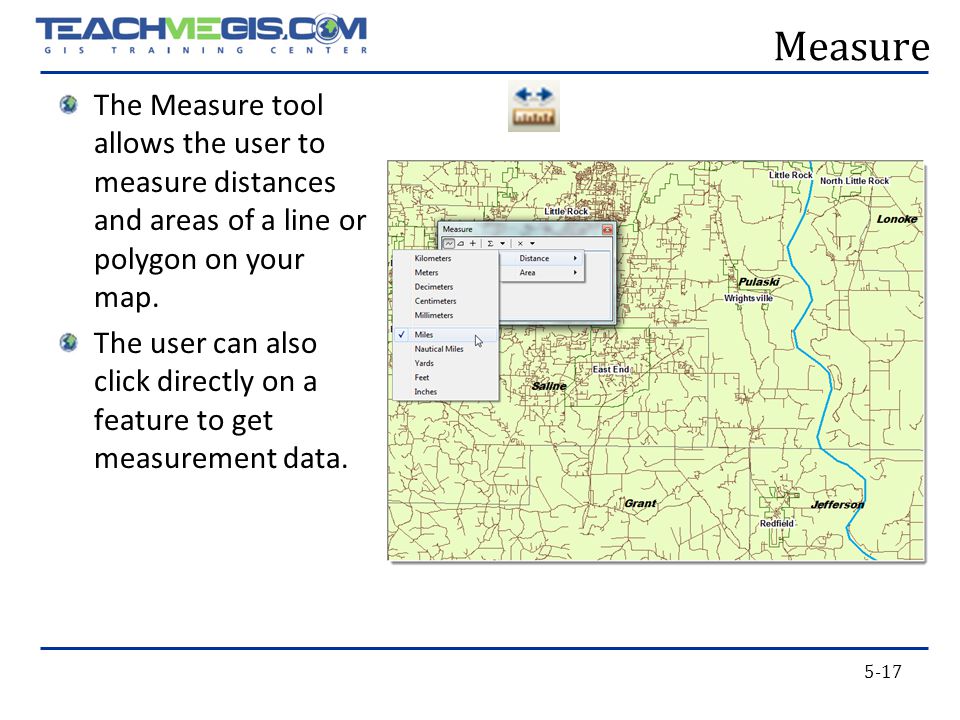

17 5-17 Measure The Measure tool allows the user to measure distances and areas of a line or polygon on your map. The user can also click directly on a feature to get measurement data.

18 5-18 Toolbars There are many toolbars in ArcMap, such as the Editor toolbar, and the Georeferencing toolbar To turn toolbars on: select Customize -> Toolbars -> check the desired toolbar

19 5-19 Customize Toolbars Toolbars can be customized by adding additional tools 1 2 3 Search for command (tool), choose category, and select command Drag tool to toolbar End result: You can also drag tools off a toolbar while in Customize Mode

20 5-20 Tour of ArcMap and ArcCatalog Exercise 5
