DECISION SUPPORT SYSTEMS FOR PLANNING AND SCHEDULING IN PRACTICE Michael Pinedo Stern School of Business New York University

2
DECISION SUPPORT SYSTEMS FOR PLANNING AND SCHEDULING IN PRACTICE I.Application Areas, Infrastructures, General Architectural Issues II.System Requirements III.Planning and Scheduling Techniques IV.System Implementations Commercial Packages

3

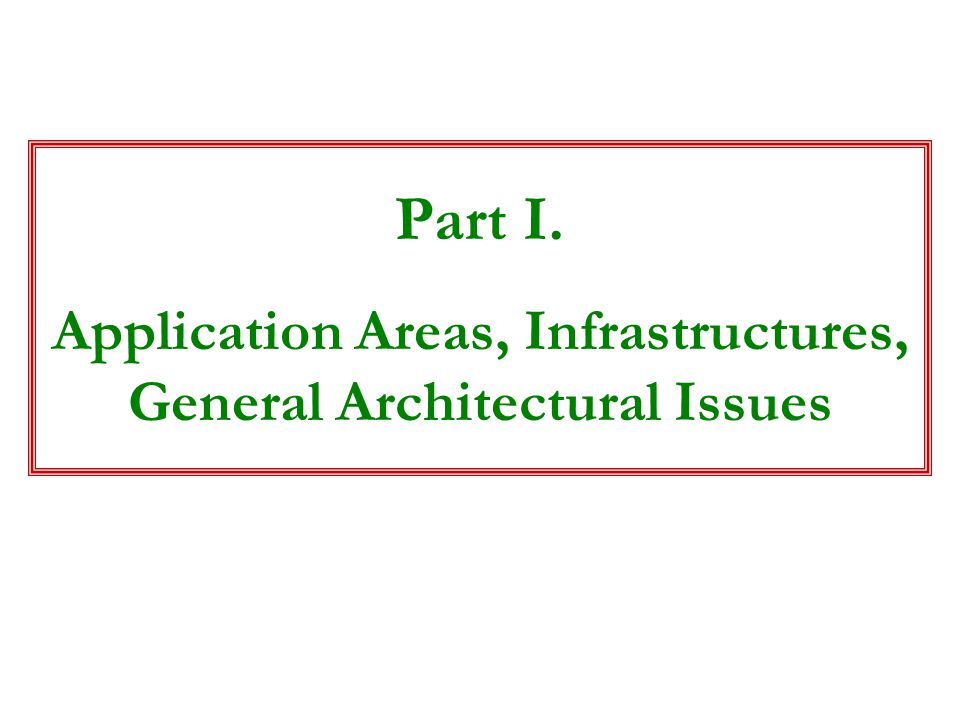

Part I. Application Areas, Infrastructures, General Architectural Issues

4
Application Areas –Planning and Scheduling in Manufacturing and Services Infrastructures –In Manufacturing –In Supply Chain Management –In Services General Issues regarding –Systems Architecture –For Production Scheduling –For Workforce Scheduling

5
APPLICATION AREAS OF PLANNING AND SCHEDULING Manufacturing –Process –Discrete –Automotive –Food and Snacks Services: –Crew Scheduling (Airlines) –Workforce Scheduling (Call Centers) –Reservation Systems and Yield Management

6
INFORMATION SYSTEM INFRASTRUCTURE IN MANUFACTURING ENVIRONMENTS Interfaces with Forecasting, Medium Term, and Long Term Planning Interfaces with Product Design and Facility Layout

7
Workforce Scheduling in –Cell Centers –Hospitals Reservation Systems in –Airlines –Hotels –Car Rentals INFORMATION SYSTEM INFRASTRUCTURE IN SERVICE ENVIRONMENTS

8
Part II. Important Issues in Design of Decision Support Systems

9
IMPORTANT ISSUES IN DESIGN OF DECISION SUPPORT SYSTEMS Module Design and Interfacing GUI Design Design of Link Between GUI and Algorithm Library Internal Reoptimization External Reoptimization

10
MODULAR (OBJECT-ORIENTED) DESIGN Standardization of Data Transfers Between Modules. Data Concerning: –Jobs (Operations) –Work Centers (Machines) –Schedules Have to be Properly Organized in order to make Transfer of Data Easy. EXAMPLE: Plugging in New Algorithm in Existing System should be Easy.

11
GUIS SHOULD ALLOW: Interactive Optimization –Freezing Jobs and Reoptimize –Creating New Schedules by Combining Different Parts from Different Schedules Cascading and Propagation Effects After a Change or Mutation by the User, the System –does Feasibility Analysis –takes care of Cascading and Propagation Effects, –does Internal Reoptimization

12
GRAPHICS USER INTERFACES FOR SCHEDULING PRODUCTION PROCESSES Gantt Chart Interface Dispatch List Interface Time Buckets Throughput Diagrams

13

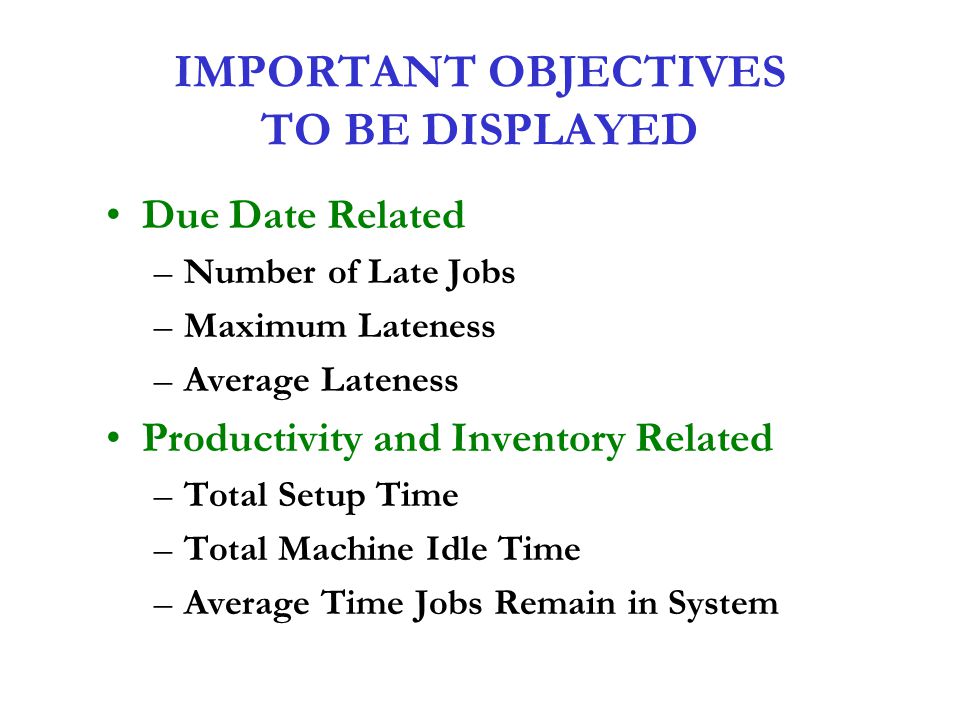

IMPORTANT OBJECTIVES TO BE DISPLAYED Due Date Related –Number of Late Jobs –Maximum Lateness –Average Lateness Productivity and Inventory Related –Total Setup Time –Total Machine Idle Time –Average Time Jobs Remain in System

14
SEQUENCE DEPENDENT SETUP TIMES S ijk = The Time it Takes to Setup for Job k at the Completion of Job j on Machine i. One way to Retrieve These Data is Through a Table Look-up Another way is Through a Formula Job j Carries a Number of Parameters in its Data String a ij, b ij, c ij (color, sizes, etc.) S ijk = f i (a ij, a ik ) + g i (b ij, b ik ) + h i (c ij, c ik ) or S ijk = MAX ( f I (a ij, a ik ), g i (b ij, b ik ), h i (c ij, c ik ) )

15
INTERNAL RE OPTIMIZATION AFTER A CHANGE BY THE USER Internal Reoptimization Should Satisfy Certain Conditions: C.U. = Change by the User I. R. = Internal Reoptimization Internal Reoptimizaton Should be Reversible C. U.I. R.Reverse C. U.I. R. Original Schedule Internal Reoptimization Should be Commutative C. U. 1 I. R.C. U. 2 I. R. Same Schedule C. U. 2 I. R.C. U. 1 I. R.

16
Part III. Planning and Scheduling Optimization Techniques

17
PLANNING AND SCHEDULING OPTIMIZATION TECHNIQUES Dispatching Rules Composite Dispatching Rules Dynamic Programming Integer Programming Column Generation Branch and Bound Beam Search

18
Local Search Decomposition Techniques –Temporal –Machine (Shifting Bottleneck) Drum-Buffer-Rope Hybrid Methods PLANNING AND SCHEDULING OPTIMIZATION TECHNIQUES (continued)

19
IMPORTANT CHARACTERISTICS OF OPTIMIZATION TECHNIQUES Quality of Solutions Obtained (How Close to Optimal?) Amount of CPU-Time Needed (Real-Time on a PC?) Ease of Development and Implementation (How much time needed to code, test, adjust and modify)

20
Local Search Value Objective Function Dispatching Rules Beam Search Branch and Bound CPU - Time

21
COMPOSITE PRIORITY RULE THAT IS MIXTURE OF THREE BASIC PRIORITY RULES: Weighted Shortest Processing Time First Earliest Due Date First Shortest Setup Time First

22
DYNAMIC PROGRAMMING Characterizing Equations: (i)Initial Conditions (ii)Recursive Relation (iii)Optimal Value Function Example: Consider a Single Machine and Objective Function Let J Denote a Subset of the n Jobs. Assume J is Processed First. LetV(J) =h j (C j )

23
Initial Conditions: V({j}) = h j (p j )j = 1, …, n Recursive Relation: V(J) = min ( V(J- {j}) + h j ( p k ) ) j J Optimal Value Function: V({1,…., n})

24
INTEGER PROGRAMMING FORMULATIONS Hard Problems can often be Formulated as I.P.s. These I.P.s are often Solved via Branch and Bound Many Applications of I.P. Formulations in –Workforce scheduling –Crew Scheduling

25
I.P. FORMULATION OF WORKFORCE SCHEDULING PROBLEM Predetermined Cycle of m Periods During Period i presence of b i needed n Different Shift Patterns Shift Pattern j a 1j 0 a 2j 1.1.0 a mj 0 c j is Cost of Assigning one Person to Shift j x j is Integer Decision Variable Representing Number Assigned to Shift j

26

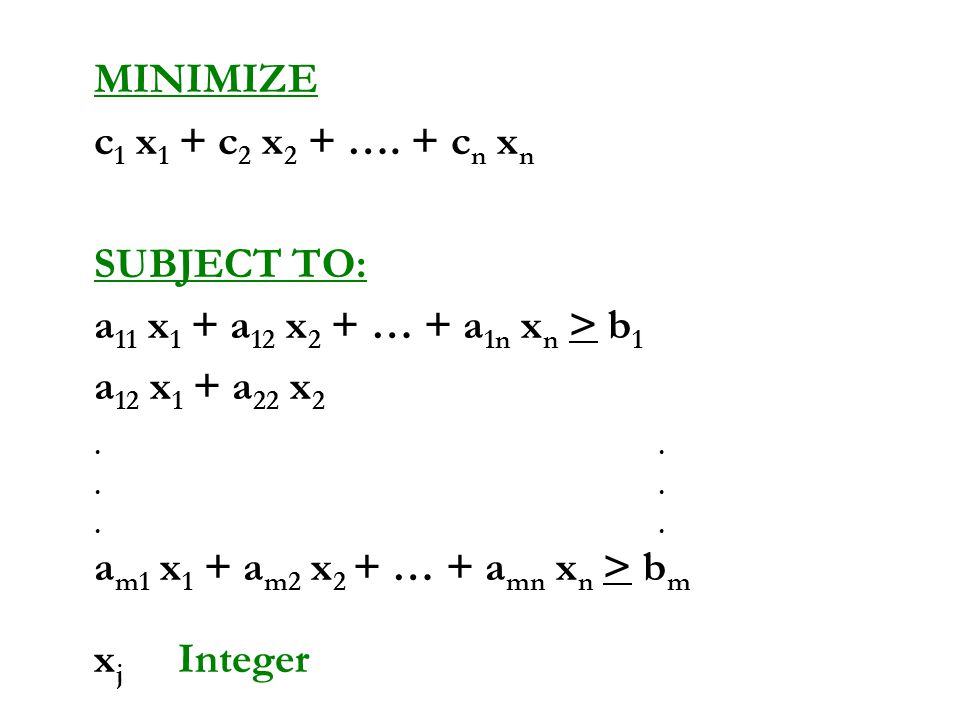

MINIMIZE c 1 x 1 + c 2 x 2 + …. + c n x n SUBJECT TO: a 11 x 1 + a 12 x 2 + … + a 1n x n > b 1 a 12 x 1 + a 22 x 2... a m1 x 1 + a m2 x 2 + … + a mn x n > b m x j Integer

27
I.P. FORMULATION OF CREW SCHEDULING PROBLEM m Jobs (Flight Legs) n Feasible Combinations of Jobs one Crew can Handle (Round Trips) c j Cost of Round Trip j INTEGER PROGRAM min c 1 x 1 + x 2 x 2 + …. + c n x n S.T. a 11 x 1 + a 12 x 2 + …. + a in x n > 1 a m1 x 1 + a m2 x 2 + ….+ a mn x n > 1 x j {0, 1} Each Column is a Round Trip Each Row is a Job that must be Covered SET PARTITIONING PROBLEM

28
DISJUNCTIVE PROGRAMMING FORMULATIONS Hard Problems can often be Formulated as Disjunctive Programs These Programs are often Solved via Branch and Bound Many Applications of Disjunctive Programs in Job Shop Scheduling

29
MINIMIZING THE MAKESPAN IN A JOB SHOP p ij = processing time of job j on machine i y ij = starting time of job j on machine i DISJUNCTIVE PROGRAM MinimizeC max Subject to y kj - y ij > p ij For All (i, j) (k, j) C max - y ij > p ij For All (i, j) y ij - y i > p i or y i - y ij > p ij For All (i, ) ( i, j) y ij > 0For All (i,j) There are Disjunctive Programs for Job Shops with other Objectives

30
LOCAL (NEIGHBORHOOD) SEARCH METHODS Simulated Annealing (Probabilistic Method) Tabu-Search (Deterministic Method) Genetic Algorithms

31
IMPORTANT CHARACTERISTICS OF LOCAL SEARCH PROCEDURES Schedule Representation Needed for Procedure The Neighborhood Design The Search Process within the Neighborhood The Acceptance-Rejection Criterion

32
DECOMPOSITION TECHNIQUES Machine Decomposition (Shifting Bottleneck Techniques) Temporal Decomposition IMPORTANT CHARACTERISTICS OF DECOMPOSITION TECHNIQUES Select as the next Subproblem to Solve always the one that Appears the Hardest (Follow the Path of the Most Resistance) After the Completion of Each Step, Reoptimize all the Steps that were Done Before

33
HYBRID METHODS Scheduling techniques can be Combined in Series E.G., FIRST USE A DISPATCHING RULE, THEN FOLLOW UP WITH A LOCAL SEARCH Scheduling Techniques can be Combined in an Integrated Manner E.G., A DISPATCHING RULE CAN BE USED WITHIN A BRANCH AND BOUND TO OBTAIN UPPER BOUNDS. DYNAMIC PROGRAMMING ROUTINE CAN BE USED FOR A SINGLE MACHINE SUBPROBLEM WITHIN A MACHINE DECOMPOSITION TECHNIQUE

34
Part IV. System Implementation Issues Commercial Packages

35
ERP-SYSTEMS SAP, Baan, JD Edwards, People Soft GENERAL OPTIMIZATION Ilog, Dash GENERAL SCHEDULING (Often in Framework of Supply Chain Management) I2, Cybertec, AutoSimulation, IDS Professor Scheer SCHEDULING OIL AND PROCESS INDUSTRIES Haverly Systems, Chesapeake, Finity SCHEDULING CONSUMER PRODUCTS Manugistics, Numetrix SCHEDULING WORKFORCE IN CALL CENTERS AIX, TCS, Siebel

36
ROBUSTNESS Unexpected (Random) Events Inaccuracy of Data CAUSES OF PERTURBATIONS: Value Objective Solution Space

37

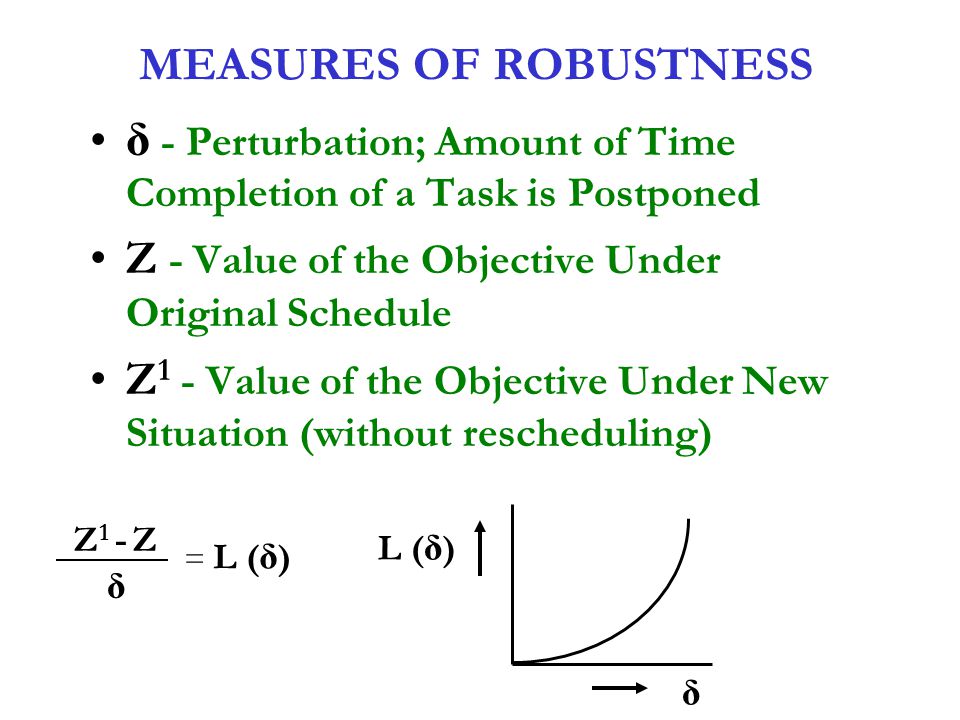

MEASURES OF ROBUSTNESS δ - Perturbation; Amount of Time Completion of a Task is Postponed Z - Value of the Objective Under Original Schedule Z 1 - Value of the Objective Under New Situation (without rescheduling) Z 1 - Z δ = L ( δ ) L ( δ ) δ

38
OPTION: Reschedule After Perturbation Local Rescheduling Global Rescheduling PRACTICAL CONSIDERATION: New Schedule Should be Similar to Old Schedule (Distance Measure)

39
RULES TO FOLLOW IN ORDER TO GENERATE ROBUST SCHEDULES Insert Idle times (Especially Where Perturbations are to be Expected) Less Flexible Job First More Flexible Jobs Later Do NOT Postpone Processing when Possible (NOTE: This Would Go Against JIT Principles)

40
LEARNING MECHANISMS Rote Learning (When Solution Space is Relatively Small) Classifier Systems (Often Based on Genetic Algorithms) Case Based Reasoning (Parameter Adjustment Methods) Induction Methods and Neural Nets

41
PARAMETER ADJUSTMENT ATCS - Rule I j (t, ) = w j exp (- (d j -p j -t) + ) exp (- s j ) p j k 1 p k 2 s k 1 and k 2 are hard to determine k 1 and k 2 Functions of –Due Date tightness τ –Due Date Range R –Setup Time Severity η

42

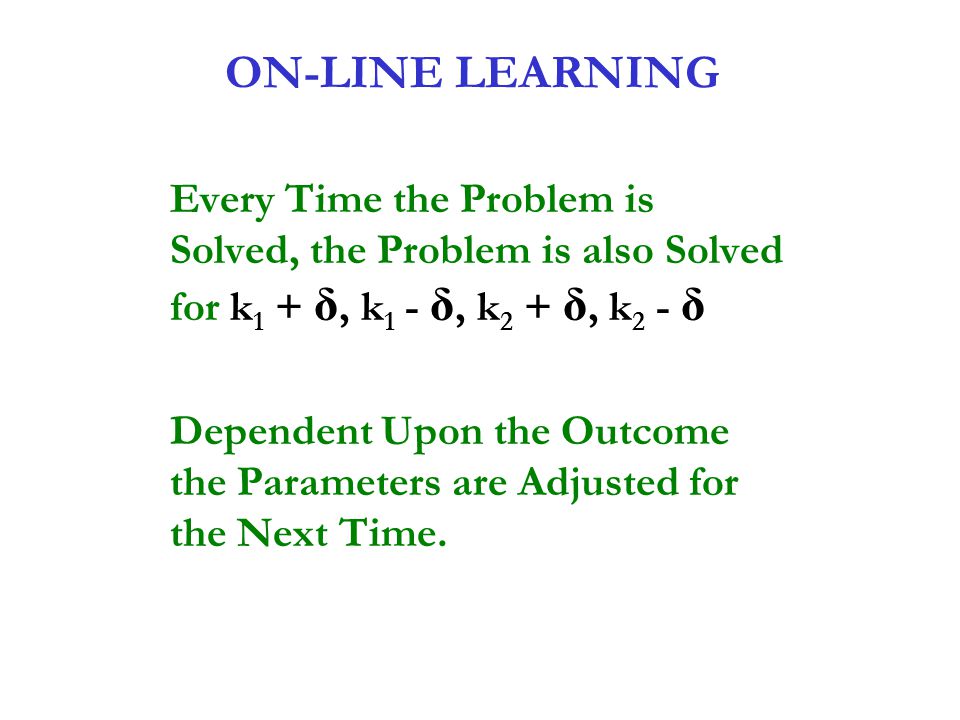

ON-LINE LEARNING Every Time the Problem is Solved, the Problem is also Solved for k 1 + δ, k 1 - δ, k 2 + δ, k 2 - δ Dependent Upon the Outcome the Parameters are Adjusted for the Next Time.

43
NEURAL NET Application: m Resources in Parallel Different Speeds Setups INPUT UNIT OUTPUT UNIT HIDDEN UNITS Jobs Arrive at Different Times Jobs Have Due Dates Machines have Attributes Increase in Total Weighted Completion Time Increase in Number of Late Jobs Current Number of Jobs on Machine

44
OFF-LINE TRAINING BY AN EXPERT Expert Plus Learning Algorithm (Back Propagation) Determine the Connection Weights

45
MULTIPLE OBJECTIVES EXAMPLE: m Resources in Parallel n Jobs Due Dates Sequence Dependent Setups OBJECTIVES: Minimize Sum of Setup Times Minimize Penalties Due to Late Delivery Weights of the Two Objectives Vary over Time and Depend on Status Quo.

46
GENERAL FRAMEWORK: Mixing of Priority Rules Switching Over Between Rules Scaling Parameters and Switch-Over Times Depend on the Data Set Framework Above can be Combined with Local Search Heuristic.

47
DESIGN ISSUES WITH REGARD TO DECISION SUPPORT SYSTEMS FOR PLANNING AND SCHEDULING Robustness Multiple Objectives Learning mechanisms Michael Pinedo Stern School of Business New York University

48
DECISION SUPPORT SYSTEMS Forecasting Facility Location Supply Chain Management Routing and Distribution

49
PLANNING AND SCHEDULING Characteristics: –Engines Often Based on Combinatorial Algorithms –Systems Often have to Operate in Real Time

50
IMPORTANCE OF PLANNING AND SCHEDULING SYSTEMS 150 Software Companies –I2 –Manugistics –Bender-Synquest –IDS - Scheer –SAP –Bran

51
PLANNING AND SCHEDULING FRAMEWORK Resources (Machines) Tasks (Jobs) Due Dates Objectives GOAL: Determine a Schedule (solution) That Minimizes the Objective(s)
