Crown XTi Control Click the Crown Logo at the top of any the screen to return to this Menu Interactive Main Menu Interactive Front Panel Display Updating.

Similar presentations


Presentation on theme: "Crown XTi Control Click the Crown Logo at the top of any the screen to return to this Menu Interactive Main Menu Interactive Front Panel Display Updating."— Presentation transcript:

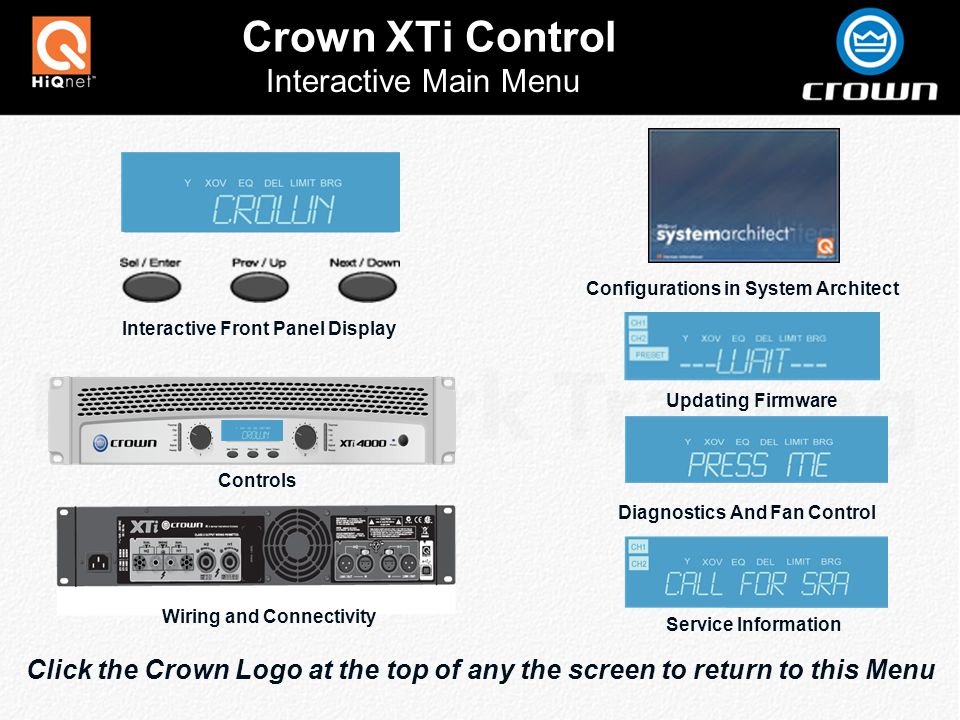

1 Crown XTi Control Click the Crown Logo at the top of any the screen to return to this Menu Interactive Main Menu Interactive Front Panel Display Updating Firmware Service Information Controls Wiring and Connectivity Configurations in System Architect Diagnostics And Fan Control

2 Click to edit Master title style Crown XTi Control Use your mouse to navigate the front panel as if you were pressing the actual buttons Welcome to the XTi Front Panel

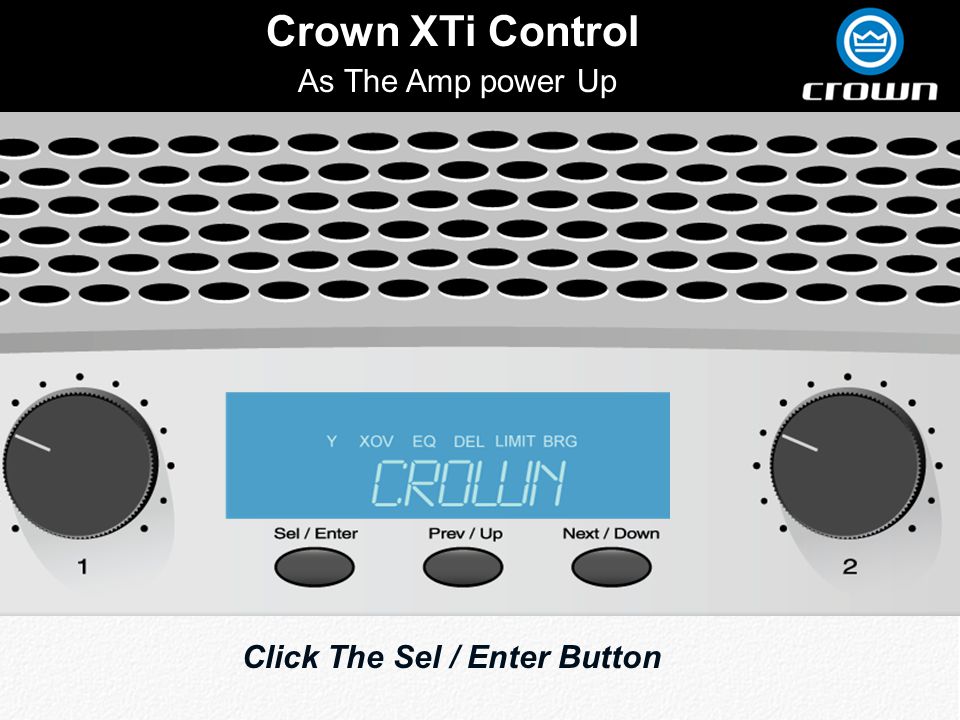

3 Crown XTi Control As The Amp power Up Click The Sel / Enter Button

4 Click to edit Master title style Crown XTi Control Factory Default Screen Click on the Sel / Enter Button To Begin

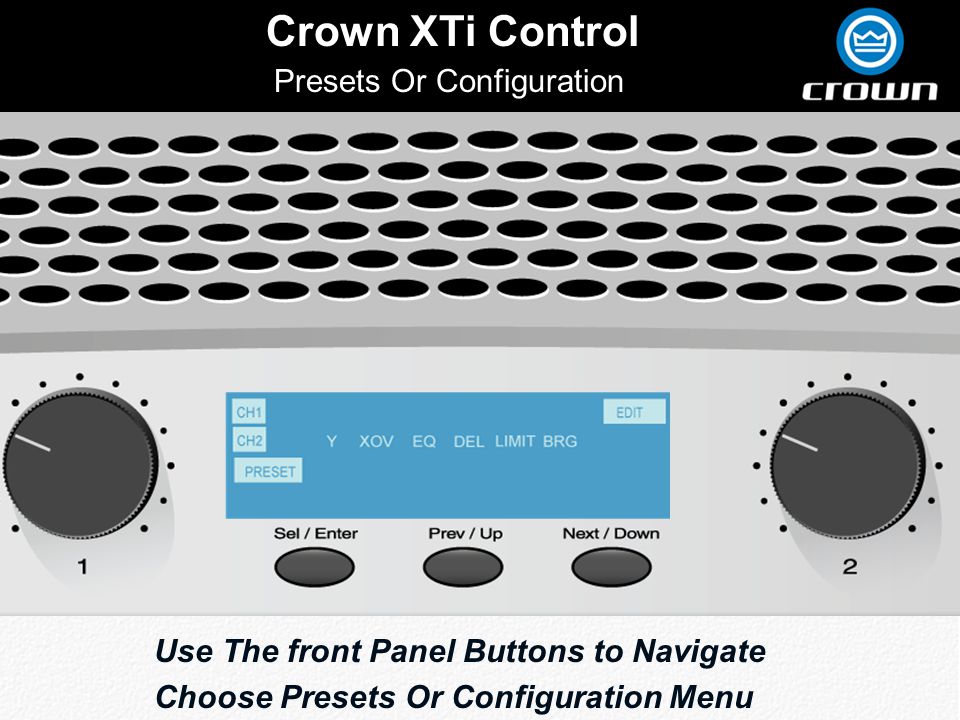

5 Click to edit Master title style Crown XTi Control Use The front Panel Buttons to Navigate Choose Presets Or Configuration Menu Presets Or Configuration

6 Crown XTi Control Preset 1 Factory Defaults

7 Crown XTi Control Preset 2 Bridge-mono

8 Crown XTi Control Preset 3 2-Way Crossover Internal Crossover Is Engaged With Lows To Channel 1 and Mid/Highs To Channel 2 Click to View Crossover In System Architect

9 Crown XTi Control Preset 4 Bridge-mono Subs Amplifier Is Configured For Bridge-Mono Operation With A 90Hz Crossover Click to View Crossover In System Architect

10 Crown XTi Control Preset 5 Subsynth Both Channel Sub Output (Below 90Hz)With A Subsynth Boost Click to View Crossover In System Architect

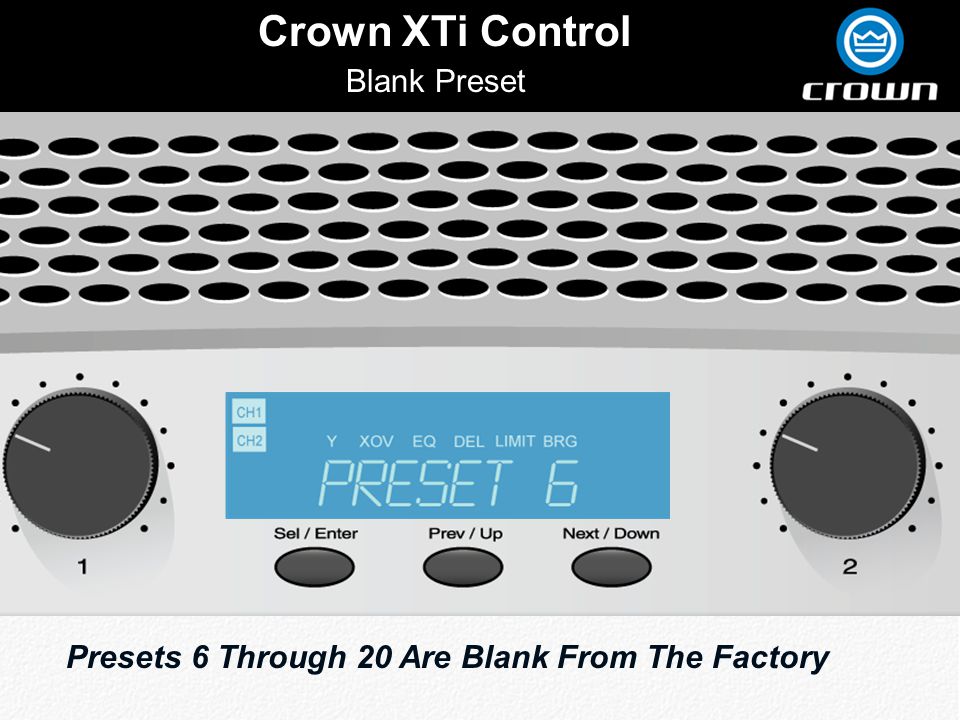

11 Crown XTi Control Blank Preset Presets 6 Through 20 Are Blank From The Factory

12 Crown XTi Control Blank Preset

13 Crown XTi Control Blank Preset

14 Crown XTi Control Blank Preset

15 Crown XTi Control Blank Preset

16 Crown XTi Control Blank Preset

17 Crown XTi Control Blank Preset

18 Crown XTi Control Blank Preset

19 Crown XTi Control Blank Preset

20 Crown XTi Control Blank Preset

21 Crown XTi Control Blank Preset

22 Crown XTi Control Blank Preset

23 Crown XTi Control Blank Preset

24 Crown XTi Control Blank Preset

25 Crown XTi Control Blank Preset

26 Click to edit Master title style Crown XTi Control Configuration Menu

27 Click to edit Master title style Crown XTi Control Stereo Input Channel 1 And Channel 2 Inputs Are Independent And Controlled By Individual Gain Controls

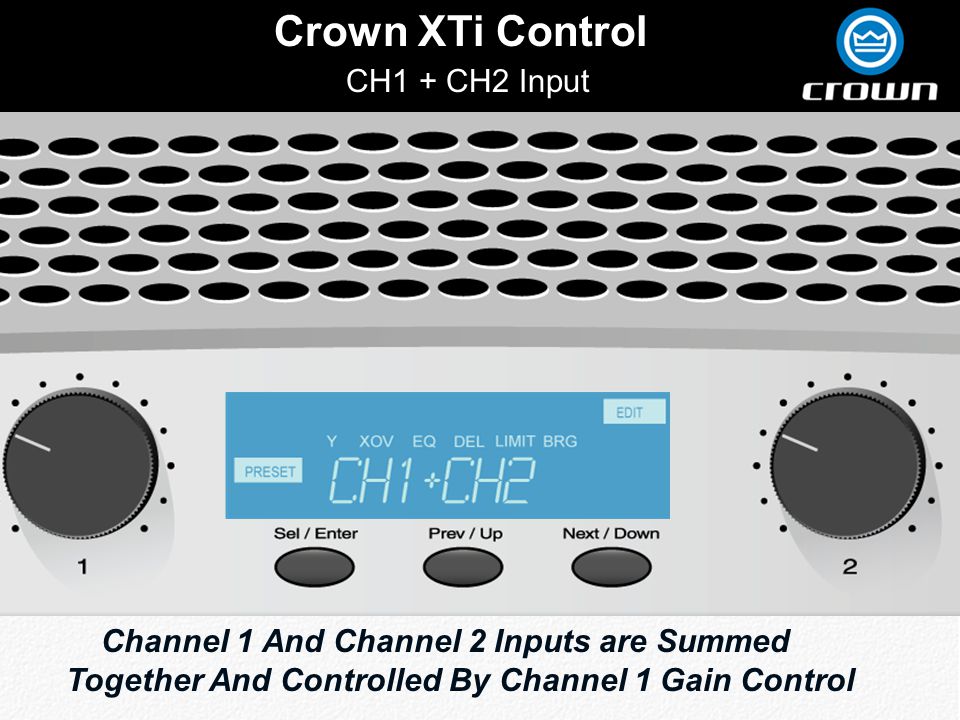

28 Click to edit Master title style Crown XTi Control CH1 + CH2 Input Channel 1 And Channel 2 Inputs are Summed Together And Controlled By Channel 1 Gain Control

29 Click to edit Master title style Crown XTi Control Blank Input Y Enabled Channel 1 Input Is Paralleled to Channel 2s Input Path And Both Are Controlled By Channel 1 Gain Control

30 Click to edit Master title style Crown XTi Control Amplifier Crossover Off

31 Click to edit Master title style Crown XTi Control Amplifier Crossover At 90 Hz Click to View Crossover In System Architect

32 Click to edit Master title style Crown XTi Control Amplifier Crossover AT 100Hz Click to View Crossover In System Architect

33 Click to edit Master title style Crown XTi Control Amplifier Crossover At 1.2kHz Click to View Crossover In System Architect

34 Click to edit Master title style Crown XTi Control Amplifier Crossover At 1.5kHz Click to View Crossover In System Architect

35 Click to edit Master title style Crown XTi Control Amplifier Crossover At 2.0kHz Click to View Crossover In System Architect

36 Click to edit Master title style Crown XTi Control Amplifier Crossover At 90Hz Both Channels Output for Subs Click to View Crossover In System Architect

37 Click to edit Master title style Crown XTi Control Channel 1 EQ Enabled Enables Channel 1 EQ Created In System Architect Click to View EQ In System Architect

38 Click to edit Master title style Crown XTi Control Channel 1 EQ Disabled Disables Channel 1 EQ Created In System Architect

39 Click to edit Master title style Crown XTi Control Channel 2 EQ Enabled Enables Channel 2 EQ Created In System Architect Click to View EQ In System Architect

40 Click to edit Master title style Crown XTi Control Channel 2 EQ Disabled Disables Channel 2 EQ Created In System Architect

41 Click to edit Master title style Crown XTi Control Channel 1 Delay 0.0ms Channel 1 Delay In Milliseconds

42 Click to edit Master title style Crown XTi Control Channel 1 Delay 1ms Channel 1 Delay In Milliseconds

43 Click to edit Master title style Crown XTi Control Channel 1 Delay 2ms Channel 1 Delay In Milliseconds

44 Click to edit Master title style Crown XTi Control Channel 1 Delay 3ms Channel 1 Delay In Milliseconds

45 Click to edit Master title style Crown XTi Control Channel 1 Delay 4ms Channel 1 Delay In Milliseconds

46 Click to edit Master title style Crown XTi Control Channel 1 Delay 5ms Channel 1 Delay In Milliseconds

47 Click to edit Master title style Crown XTi Control Channel 1 Delay 6ms Channel 1 Delay In Milliseconds

48 Click to edit Master title style Crown XTi Control Channel 1 Delay 7ms Channel 1 Delay In Milliseconds

49 Click to edit Master title style Crown XTi Control Channel 1 Delay 8ms Channel 1 Delay In Milliseconds

50 Click to edit Master title style Crown XTi Control Channel 1 Delay 9ms Channel 1 Delay In Milliseconds

51 Click to edit Master title style Crown XTi Control Channel 1 Delay 10ms Channel 1 Delay In Milliseconds

52 Click to edit Master title style Crown XTi Control Channel 1 Delay 20ms Channel 1 Delay In Milliseconds

53 Click to edit Master title style Crown XTi Control Channel 1 Delay 30ms Channel 1 Delay In Milliseconds

54 Click to edit Master title style Crown XTi Control Channel 1 Delay 40ms Channel 1 Delay In Milliseconds

55 Click to edit Master title style Crown XTi Control Channel 1 Delay 50ms Channel 1 Delay In Milliseconds

56 Click to edit Master title style Crown XTi Control Channel 1 Delay Off

57 Click to edit Master title style Crown XTi Control Channel 2 Delay 0.0ms Channel 2 Delay In Milliseconds

58 Click to edit Master title style Crown XTi Control Channel 2 Delay 1ms Channel 2 Delay In Milliseconds

59 Click to edit Master title style Crown XTi Control Channel 2 Delay 2ms Channel 2 Delay In Milliseconds

60 Click to edit Master title style Crown XTi Control Channel 2 Delay 3ms Channel 2 Delay In Milliseconds

61 Click to edit Master title style Crown XTi Control Channel 2 Delay 4ms Channel 2 Delay In Milliseconds

62 Click to edit Master title style Crown XTi Control Channel 2 Delay 5ms Channel 2 Delay In Milliseconds

63 Click to edit Master title style Crown XTi Control Channel 2 Delay 6ms Channel 2 Delay In Milliseconds

64 Click to edit Master title style Crown XTi Control Channel 2 Delay 7ms Channel 2 Delay In Milliseconds

65 Click to edit Master title style Crown XTi Control Channel 2 Delay 8ms Channel 2 Delay In Milliseconds

66 Click to edit Master title style Crown XTi Control Channel 2 Delay 9ms Channel 2 Delay In Milliseconds

67 Click to edit Master title style Crown XTi Control Channel 2 Delay 10ms Channel 2 Delay In Milliseconds

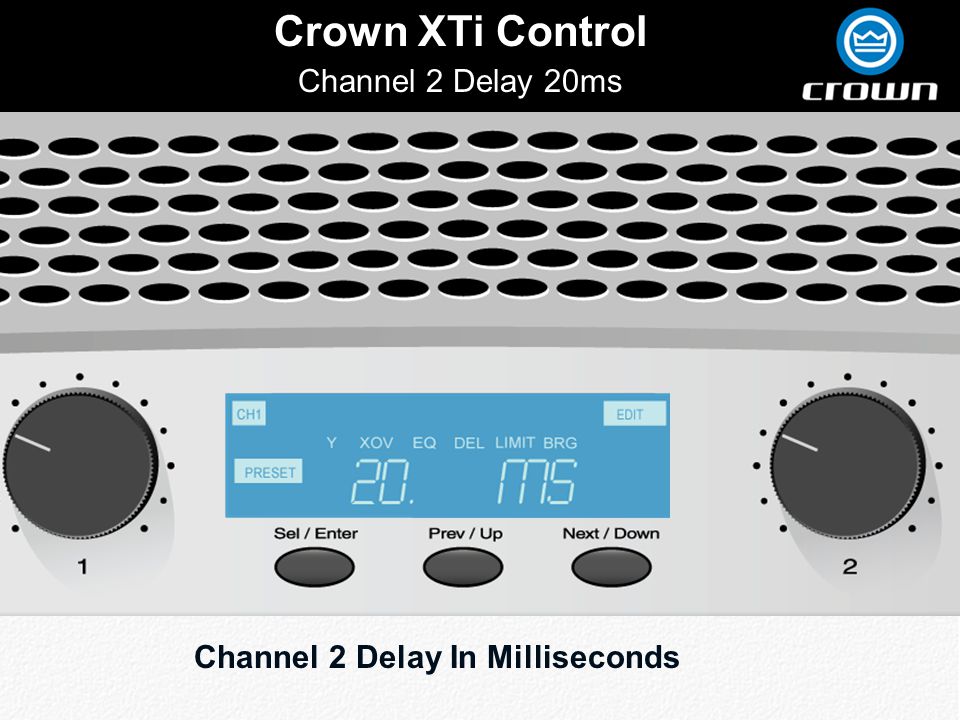

68 Click to edit Master title style Crown XTi Control Channel 2 Delay 20ms Channel 2 Delay In Milliseconds

69 Click to edit Master title style Crown XTi Control Channel 2 Delay 30ms Channel 2 Delay In Milliseconds

70 Click to edit Master title style Crown XTi Control Channel 2 Delay 40ms Channel 2 Delay In Milliseconds

71 Click to edit Master title style Crown XTi Control Channel 2 Delay 50ms Channel 2 Delay In Milliseconds

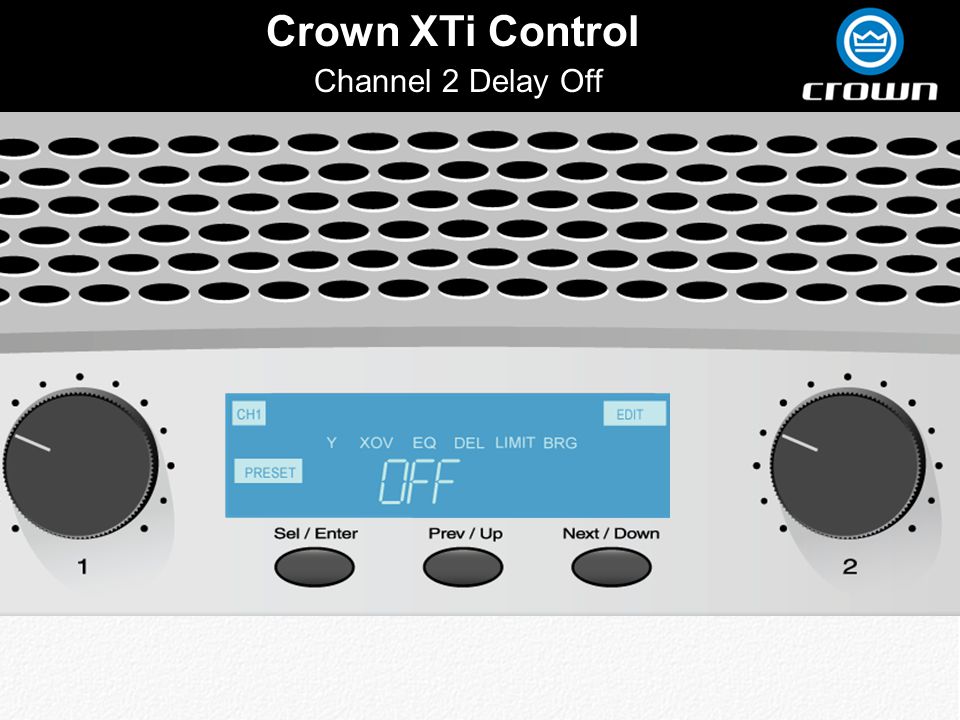

72 Click to edit Master title style Crown XTi Control Channel 2 Delay Off

73 Click to edit Master title style Crown XTi Control Channel 1 Limiter OFF

74 Click to edit Master title style Crown XTi Control Channel 1 Limiter -3dB Initiates A Limiter On Channel 1 At -3dB Below Clipping

75 Click to edit Master title style Crown XTi Control Channel 1 Limiter -6dB Initiates A Limiter On Channel 1 At -6dB Below Clipping

76 Click to edit Master title style Crown XTi Control Channel 1 Limiter -12dB Initiates A Limiter On Channel 1 At -12dB Below Clipping

77 Click to edit Master title style Crown XTi Control Channel 2 Limiter OFF

78 Click to edit Master title style Crown XTi Control Channel 2 Limiter -3dB Initiates A Limiter On Channel 2 At -3dB Below Clipping

79 Click to edit Master title style Crown XTi Control Channel 2 Limiter -6dB Initiates A Limiter On Channel 2 At -6dB Below Clipping

80 Click to edit Master title style Crown XTi Control Channel 2 Limiter -12dB Initiates A Limiter On Channel 2 At -12dB Below Clipping

81 Click to edit Master title style Crown XTi Control Stereo Output

82 Click to edit Master title style Crown XTi Control Bridge-Mono Output

83 90Hz Crossover Back Crown XTi Control Lows On Channel 1Mid /Highs On Channel 2 Output

84 100Hz Crossover Back Crown XTi Control Lows on Channel 1Mid /Highs on Channel 2 Output

85 1.2kHz Crossover Back Crown XTi Control Lows on Channel 1 Highs on Channel 2 Output

86 1.5kHz Crossover Back Crown XTi Control Lows on Channel 1 Highs on Channel 2 Output

87 2.0kHz Crossover Back Crown XTi Control Lows on Channel 1 Highs on Channel 2 Output

88 2-Channel Subs Back Crown XTi Control Both Channel Outputs 90Hz and Below For Subs

89 Back Crown XTi Control SubSynth

90 EQ Programmed in System Architect Crown XTi Control Back Screenshot Of EQ Setup In System Architect

91 Crown XTi Control Updating Firmware In System Architect If a newer version of firmware exists, System Architect will ask if you want to update the firmware.

92 Crown XTi Control Updating Firmware In System Architect Check the appropriate update box and the click the Begin Update box.

93 Crown XTi Control After the firmware is updated, you can chose to send the previous settings back to the amplifier or receive the settings from the amplifier which will leave the amplifier back at factory defaults Updating Firmware In System Architect

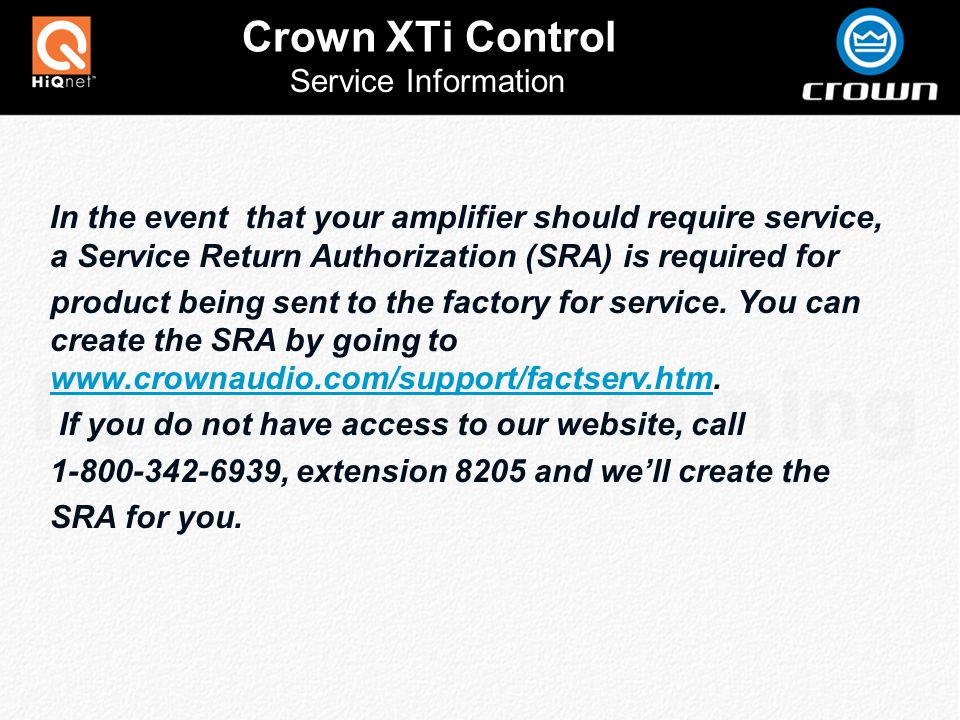

94 Crown XTi Control Service Information In the event that your amplifier should require service, a Service Return Authorization (SRA) is required for product being sent to the factory for service. You can create the SRA by going to If you do not have access to our website, call , extension 8205 and well create the SRA for you.

95 Crown XTi Control Signal Flow In System Architect

96 Crown XTi Control Input & Output In System Architect Choose Input Setup Or Test System With Onboard Pink Noise Generator Select Dual Or Bridge-Mono Output

97 Crown XTi Control EQ In System Architect Sample EQ From JBL VRX 915Monitor Biamped

98 Crown XTi Control Crossovers In System Architect View of 1.2kHz Crossover

99 Crown XTi Control Delay & Limiters In System Architect Select Up To 50ms Of Delay Selectable Clip Limiting

100 Crown XTi Control Select & Store Presets In System Architect Store & Select Up To 19 User Designed Presets

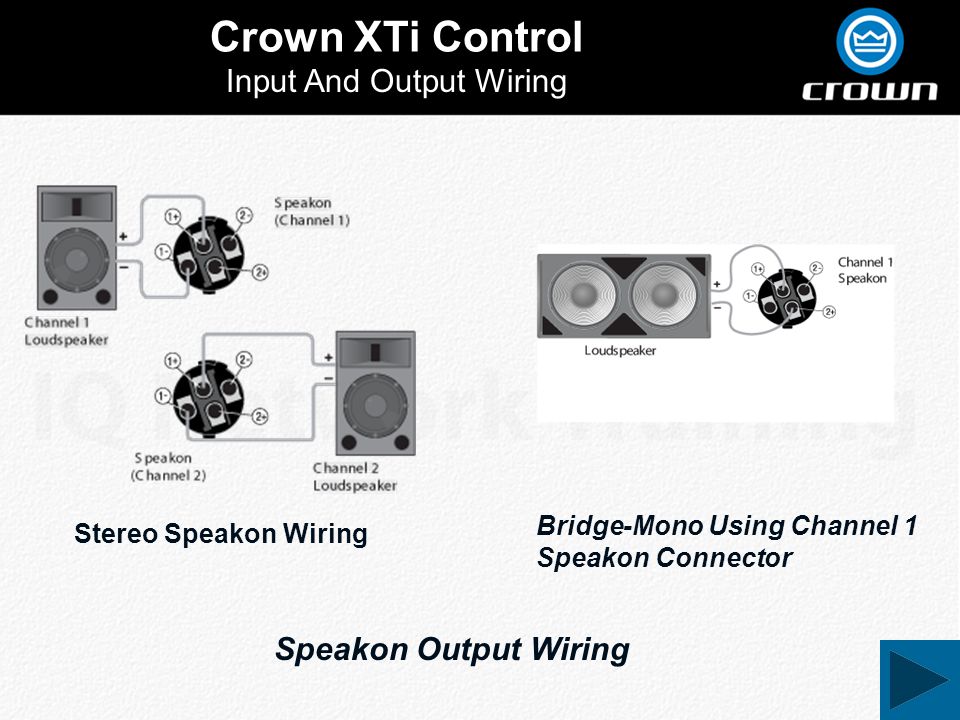

101 Crown XTi Control Input And Output Wiring Stereo Speakon Wiring Bridge-Mono Using Channel 1 Speakon Connector Speakon Output Wiring

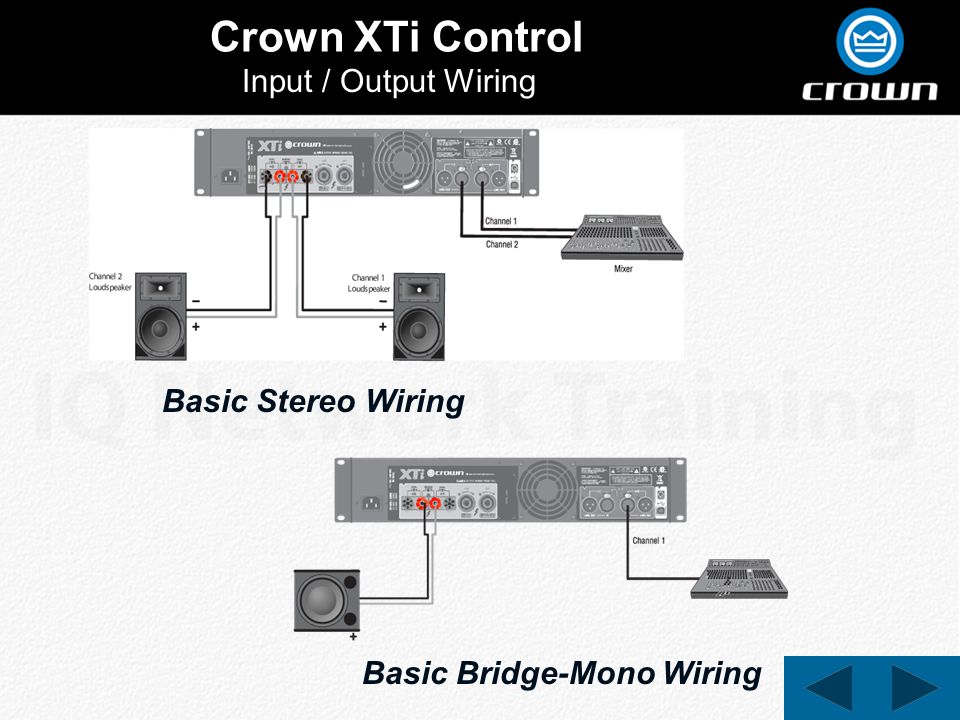

102 Crown XTi Control Input / Output Wiring Basic Stereo Wiring Basic Bridge-Mono Wiring

103 Crown XTi Control Input And Output Wiring XLR Input Connector Balanced And Unbalanced Wiring Balanced And Unbalanced Input Connections RCA to XLR Cable

104 Crown XTi Control Front Panel Controls Power Switch Blue Power LED Detented Rotary Gain Controls Backlit LCD Display Display Navigation controls Meter LEDs Indicates Amplifier Is Ready To Pass Audio Signal Will Flash With Audio Flashes When Output Exceeds -20dB Below Clip Flashes When Output Exceeds -10dB Below Clip Turns On At Onset Of Audible Distortion Turns on Under Extreme Thermal Conditions

105 Crown XTi Control Back Panel Connections Removable IEC Power Connector Dual Binding Post Output Connectors Dual Neutrik Speakon Output Connectors Balanced XLR Input And Loop- Through Connectors Type B USB Connector For Use With HiQnet System Architect Variable Speed Front to Rear Airflow

106 Back Panel Connections Crown XTi Control Follow this Link To Download The Most Current Version of System Architect

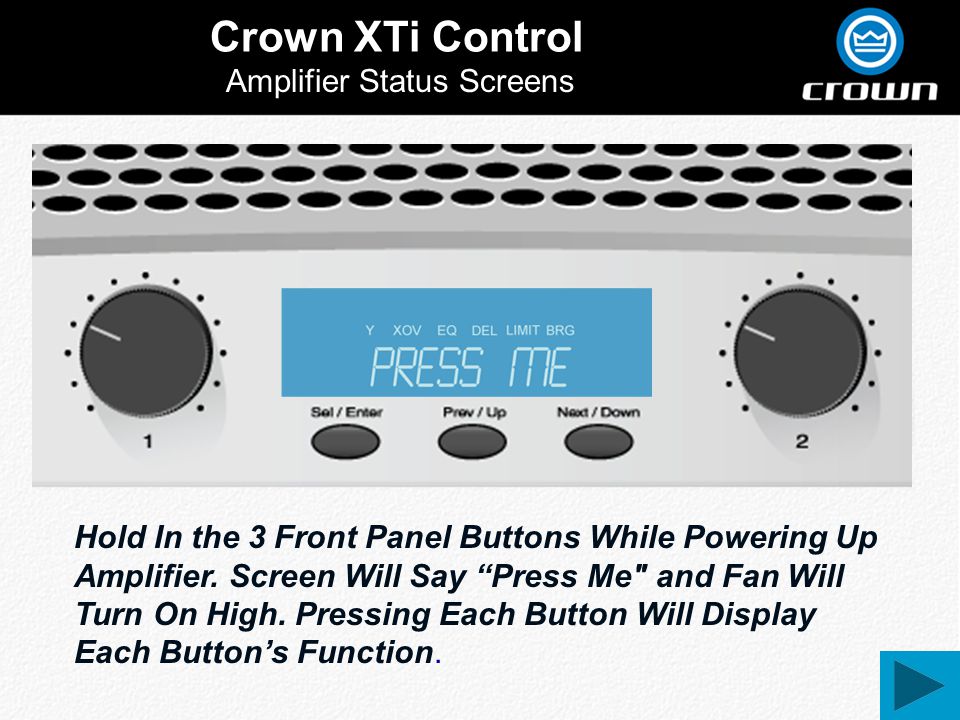

107 Crown XTi Control Amplifier Status Screens Hold In the 3 Front Panel Buttons While Powering Up Amplifier. Screen Will Say Press Me" and Fan Will Turn On High. Pressing Each Button Will Display Each Buttons Function.

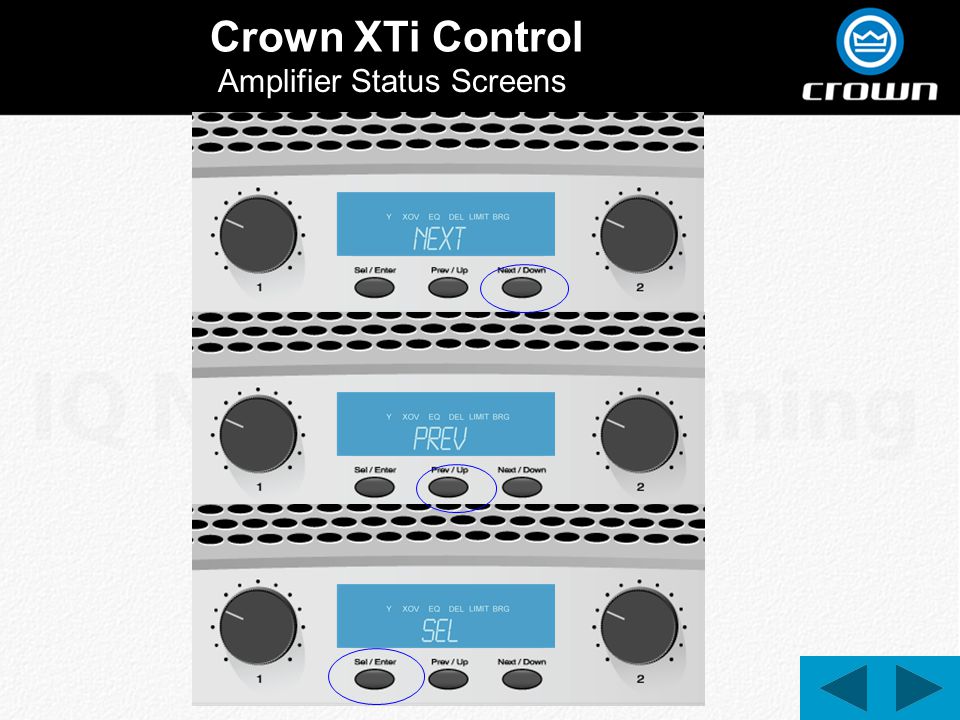

108 Crown XTi Control Amplifier Status Screens

109 Crown XTi Control Amplifier Status Screens Press The 3 Control Buttons Simultaneously While the Amplifier Is On And Use The Next and Previous buttons to Scroll Through The Status Screens Channel 1 & 2 Heat Sink Temperature

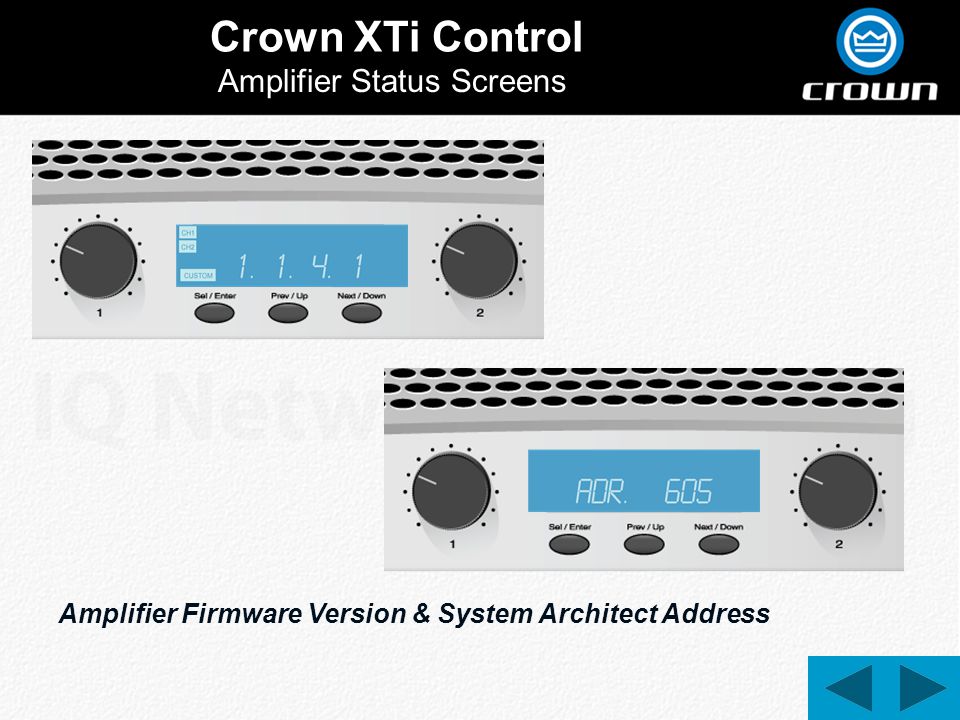

110 Crown XTi Control Amplifier Status Screens Amplifier Firmware Version & System Architect Address

111 Crown XTi Control Amplifier Status Screens Power Supply Temperature

112 Crown XTi Control Amplifier Status Screens Programmable Fan Modes In Hi mode the fan will turn on at 53C In LO mode, the fan will turn on at 33C In Fan On mode, the fan is always on high

113 Crown XTi Control Changing Fan Operation In XTi, CDi, and DSi amplifiers, the fan will turn on in Fan Hi mode when the internal heat sink temperature reaches 53C. To change the fan mode, the Next button is held down at start up. A more sensitive Fan Lo will be initiated. The fan will turn on at 33C and off at 23C. To disable it, hold down the Next button at start up and the fan will return to normal. To change to Fan On mode, hold down the Sel button at start up and the fan will stay on high continuously. To disable it, hold down the Sel at start up and the fan will return to normal.
