Presentation on theme: "Pulse Voltammetric Techniques The important parameters for pulse techniques are as follows: 1. Pulse amplitude is the height of the potential pulse. This."— Presentation transcript:

1 Pulse Voltammetric Techniques The important parameters for pulse techniques are as follows: 1. Pulse amplitude is the height of the potential pulse. This may or may not be constant depending upon the technique. 2. Pulse width is the duration of the potential pulse. 3. Sample period is the time at the end of the pulse during which the current is measured. 4. For some pulse techniques, the pulse period or drop time must also be specified. This parameter defines the time required for one potential cycle, and is particularly significant for polarography

2 Frederick Gardner Cottrell Born in Jan. 10, 1877, Oakland, California, U.S.A. Dead in November 16, 1948, Berkeley, Calififornia, U.S.A. Frederick Gardner Cottrell was U.S. educator, scientist, and inventor of the electrostatic precipitator, a device that removes suspended particles from streams of gases. However, he is the best known for electrochemists because of the "Cottrell equation".

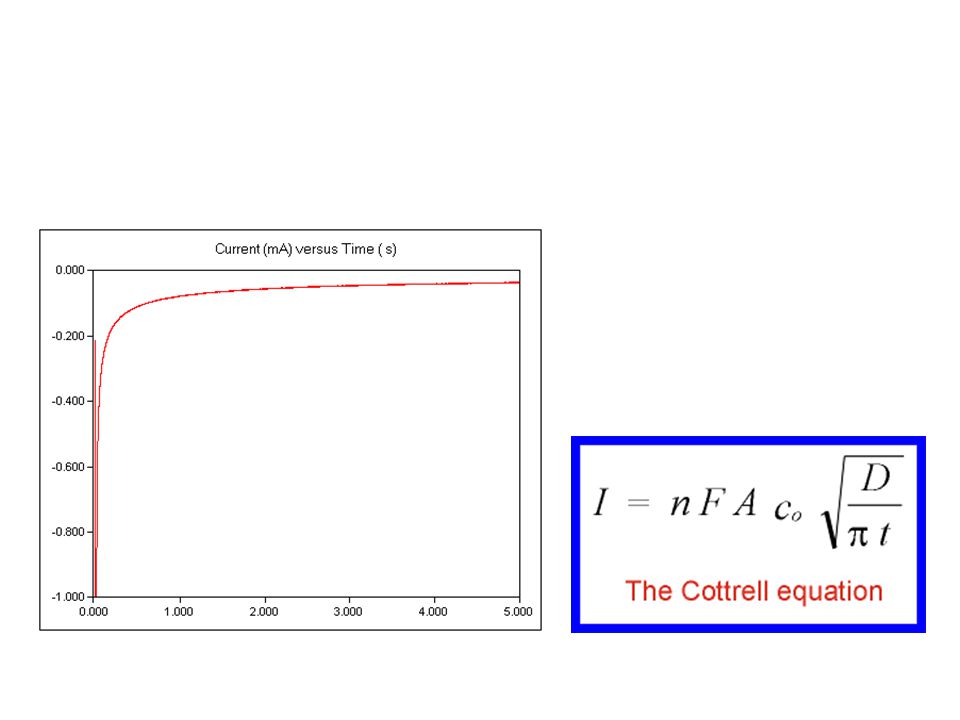

3

4 Potential Step Method

5 Concentration vs. distance above the electrode before voltage step Concentration vs. distance above the electrode a short time after a voltage step so,

6 Linear Sweep Voltammetry V1 Ep V2 E 0 = V vs. NHE (ca V vs. Ag/AgCl) Nernst equation

7 Concentration Profile of Potential Sweep

8 Effect of Scan Rate

9 Typical cyclic voltammogram

10 Concentration Profile Fig. 2. Qualitative diagrams showing concentration--distance profile at various stage of the cyclic voltammogram shown in left Fig..

11 Cyclic Voltammetry – ox + e Red 1. the peak potential separation (Epa - Epc) is equal to 57/n mV for all scan rates where n is the number of electron equivalents transferred during the redox process. 2. the peak width is equal to 28.5/n mV for all scan rates. 3. the peak current ratio (ipa/ipc) is equal to 1 for all scan rates. 4. the peak current function increases linearly as a function of the square root of v.

12

13 Animated Cyclic Voltammetry Experiment E(t) = E i + v t Nernst equation; E = E o ' + RT/nF ln a O / a R Fc Fc + + e-

14 Example of Nernstian (reversible) Behavior Electrode area = 0.1 cm 2 ks = 1 cm/s, E o = 0.3 V D O = D R = 1 x cm 2 /s i p = 2.69 x 10 5 n 3/2 A D O 1/2 v 1/2 C O

15 Determination of the Peak Current i p = 2.69 x 10 5 n 3/2 A D O 1/2 v 1/2 C O where: A is the electrode area (cm 2 ), n is the number of electrons transferred, C O is the concentration (mol.cm -3 ), v is the scan rate (volt/s.)

16 Electrochemical Cell

17 The Nernst Equation 1. The Nernst equation is named after the German physical chemist Walther Nernst who first formulated it. 2. The Nernst equation links the actual reversible potential of an electrode (measured in volts), E, to the standard reversible potential of the electrode couple, E0 which is a thermodynamic value. 3. In its most fundamental form the Nernst equation is written as: R: the universal gas constant, T: the absolute temperature in degrees Kelvin, z : the charge number of the electrode reaction (which is the number of moles of electrons involved in the reaction as written), F: is the Faraday constant (96,500 C mole -1 ). The notation ared represents the chemical activities of all of the species which appear on the reduced side of the electrode reaction and the notation aox represents the chemical activities of all of the species which appear on the oxidized side of the electrode reaction.

18 Introduction The charging current decays exponentially, whereas the faradaic current (for a diffusion-controlled current) decays as a function of 1/(time) ½ ; that is, the rate of decay of the charging current is considerably faster than the decay of the faradaic current. The charging current is negligible at a time of 5R u C dl after the potential step (R u C dl is the time constant for the electrochemical cell, and ranges from µs to ms). Therefore, after this time, the measured current consists solely of the faradaic current; that is, measuring the current at the end of a potential pulse allows discrimination between the faradaic and charging currents

19 Cyclic Voltammetry – ox + e Red 1. the peak potential separation (Epa - Epc) is equal to 57/n mV for all scan rates where n is the number of electron equivalents transferred during the redox process. 2. the peak width is equal to 28.5/n mV for all scan rates. 3. the peak current ratio (ipa/ipc) is equal to 1 for all scan rates. 4. the peak current function increases linearly as a function of the square root of v.

20 Cyclic Voltammetry i pc and i pa refer to the peak current of the cathodic and anodic sweeps. E pa and E pc refer to the potential (voltage) of the anodic and cathodic current peaks.

21 A CV of a fully reversible system will display the following characteristics: 1)The voltage separation between the current peaks is 2)The positions of peak voltage do not alter as a function of voltage scan rate 3)The ratio of the peak currents is equal to one 4)The peak currents are proportional to the square root of the scan rate

22 The influence of the voltage scan rate on the current for a reversible electron transfer can be seen below:

23 The effect of differences in the kinetic rate (k red ) constant for electron transfer on the LSV of a system are illustrated below: (Left) Both E pc and i pc shift to different values as electron transfer becomes more difficult. In cyclic voltammetry, a system can have different cathodic (K red ) and anodic (K ox ) kinetic rate constant. Such systems are known as quasi-irreversible. The CV is illustrated below: (Right)

24 Different pulse techniques A number of different pulse techniques are available on the epsilon, which differ in their potential pulse wave forms, the number of sampling points, and whether a solid electrode (voltammetry) or a mercury drop electrode (polarography) is used. The discrimination against the charging current that is inherent in these techniques leads to lower detection limits (when compared to linear sweep techniques), which makes these techniques suitable for quantitative analysis. Sampled Current Polarography Normal Pulse Voltammetry/Polarography (NPV)Normal Pulse Voltammetry/Polarography Differential Pulse Voltammetry/Polarography (DPV)Differential Pulse Voltammetry/Polarography Square Wave Voltammetry (SWV)Square Wave Voltammetry

25 Potential wave form for sampled current polarography Potential is varied in a series of steps, with the current sampled at the end of each step

26 Change Parameters dialog box for sampled current polarography Range of allowed parameter values: Potential = mV Step E = mV Quiet Time = s Step Width = ms (Polarography); ms (Voltammetry)

27 A typical sampled current polarogram i d = 708 n C D 1/2 m 2/3 t 1/6 where: n = number of electrons transferred/molecule C = concentration (mol cm -3 ) D = diffusion coefficient (cm 2 s -1 ) m = mercury flow rate (mg s -1 ) t = sampling interval (s) The limiting current (i d ) is given by the Ilkovic equation:

28 Potential wave form for normal pulse voltammetry (NPV) The potential wave form consists of a series of pulses of increasing amplitude, with the potential returning to the initial value after each pulse ss

29 Change Parameters dialog box for normal pulse voltammetry (NPV)

30 Range of allowed parameter values: Potential = mV Step E = mV Pulse Width = ms Step Width = ms (Polarography); ms (Voltammetry) Quiet Time = s

31 A typical normal pulse voltammogram (NPV)

32 Potential wave form for differential pulse voltammetry (DPV) The potential wave form consists of small pulses (of constant amplitude) superimposed upon a staircase wave form. Unlike NPV, the current is sampled twice in each Pulse Period (once before the pulse, and at the end of the pulse), and the difference between these two current values is recorded and displayed ss ( ) ss

33 Change Parameters dialog box for differential pulse voltammetry (DPV)

34 A typical differential pulse voltammogram (DPV) Potential = mV ; Step E = mV; Quiet Time = s Pulse Amplitude = mV.; Pulse Width = ms Step Width = ms (Polarography); ms (Voltammetry)

35 Simultaneous Determination of Dopamine and Ascorbic Acid at an in- site Functionalized Self-Assembled Monolayer on Gold Electrode L. Zhang, J. Jia, X. Zou, S. Dong*, Electroanalysis, 16(2004) The in-site functionalization of 4-aminothiophenol (4-ATP) self- assembled monolayer on gold electrode at physiological pH yields a redox active monolayer of 4-mercapto-N-phenylquinone diimine (MNPD). Th functionalized electrode exhibits excellent electrocatalytic responses towards dopamine (DA) and ascorbic acid (AA), reducing the overpotentials by about 0.22 V and 0.34 V, respectively, with greatly enhanced current responses. 2. Due to its different catalytic activities toward DA and AA, the modified electrode resolves the overlapping voltammetric responses of DA and AA into two well-defined voltammetric peaks by differential pulse voltammetry (DPV), which can be used for the simultaneous determination of these species in a mixture. 3. The catalytic peak current obtained from DPV was linearly related to DA and AA concentration in the ranges of 5.0x x10 -4 M and 8.0 x x10 -4 M with correlation coefficient of and 0.998, respectively. The detective limits (3s) for DA and AA were found to be 1.2x10 -6 M and 2.4 x10 -6 M, respectively.

36 The in-site functionalization of the 4-ATP SAM yields a redox active monolayer of 4-mercapto-N-phenylquinone diimine (MNPD)

37 Fig. 5. Differential pulse voltammograms of 1.25x10 4 M DA and 1.30 x10 4 MAA mixture at clear Au (A) and MNPD/Au (B) in 0.1 M PBS (pH 7.2). Fig. 4. Cyclic voltammograms of 1.0x10 4 M DA (A) and 1.0x 10 4 M AA (B) at clear Au (dashed line) and MNPD/Au (solid line) in 0.1 M PBS (pH 7.2). Scan rate: 50 mV s1.

38 Fig. 7. Differential pulse voltammograms of DA and AA mixtures at MNPD/Au in 0.1 M PBS (pH 7.2). DA contents from a) to g) are 5, 25, 45, 65, 85, 105, 125 M, respectively. AA contents from a) to g) are 8, 25, 50, 70, 90, 110, 130 M, respectively. Fig. 6. A) DPVs of DA (40 mM) at MNPD/Au in 0.1 M PBS (pH 7.2) in the different concentrations of AA (a ± f: 60, 75, 90, 105, 120, 135 mM). B) DPVs of AA (120 M) at MNPD/Au in 0.1 M PBS (pH 7.2) in the different concentrations of DA (a ± g: 5, 20, 35, 50, 65, 80, 95 M).

39 Square Wave Voltammetry (SWV) The potential wave form consists of a square wave of constant amplitude superimposed on a staircase wave form. The current is measured at the end of each half- cycle, and the current measured on the reverse half- cycle (ir) is subtracted from the current measured on the forward half-cycle (if). This difference current (if - ir) is displayed as a function of the applied potential.

40 Potential wave form for square wave voltammetry (SWV)

41 Change Parameters dialog box for square wave voltammetry (SWV) Range of allowed parameter values: Quiet Time = s Potential = mV; Step E = mV S.W. Amplitude = mV; S.W. Frequency = Hz

42 A typical square wave voltammogram

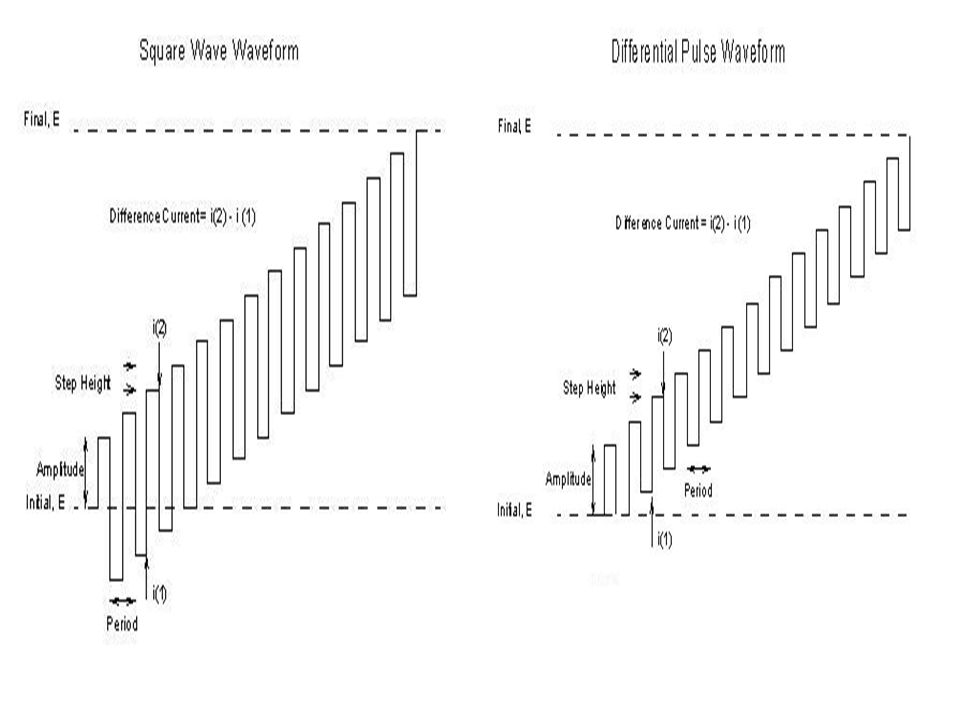

43

44 Experiment for SWV or DPV 5 mM ferrocyanide and 10 mM ferrocyanide in 0.1 M KCl Concentration Peak Height Peak Area 10 mM46.3 µ A34.8 µ C 5 mM23.7 µ A17.2 µ C Initial Potential-100 mV Final Potential650 mV Pulse Amplitude50 mV Step Height2 mV Period20 ms Pulse Amplitude50 mV Step Height2 mV Period20 ms 1 mm glassy carbon electrode, Ag/AgCl

45 Picomolar Peroxide Detection Using a Chemically Activated Redox Mediator and Square Wave Voltammetry Jennifer L. Lyon and Keith J. Stevenson* Anal. Chem. 2006, 78, Scheme 1. Depiction of Enzymatically Generated H 2 O 2 Detection Using the Amplex Red Redox Mediatora 1. A method for low-level, low-potential electrochemical detection of H2O2 using a chemically activated redox mediator is presented. This method is unique in that it utilizes a mediator, Amplex Red, which is only redox-active when chemically oxidized by H 2 O 2 in the presence of the enzyme horseradish peroxidase (HRP).

46 Abstract 2. Microelectrode square wave voltammetry was used to optimize sensing at ultralow concentrations (<1 M), this method exhibits marked improvements in analytical sensitivity and detection limits (limit of detection as low as 8 pM) over existing protocols. 3. Sensing schemes incorporating both freely diffusing and immobilized HRP are evaluated, and the resulting analytical sensitivities are 1.22±0.04 and (2.1± 0.6) A/( Mmm 2 ), respectively, for peroxide concentrations in the high picomolar to low micromolar range. A second linear region exists for lower peroxide concentrations. Furthermore, quantitative enzyme kinetics analysis using Michaelis-Menten parameters is possible through interpretation of data collected in this scheme. Km values for soluble and immobilized HRP were 84±13 and 504±19 M, respectively. 4. This method is amenable to any biological detection scheme that generates hydrogen peroxide as a reactive product.

47 Several drawbacks when using Pt as a working electrode for H 2 O 2 oxidation 1.Poor selectivity, low sensitivity and high susceptibility to electrode fouling 2.The electrochemical oxidation of generated H 2 O 2 at Pt at physiological pH values ( ) occurs at potentials (+0.4 to +0.7 V vs Ag/AgCl) where other electroactive species (ascorbic or uric acid) typically found in biological samples interfere 3.Because the electrochemical oxidation of H 2 O 2 produces protons, a pH gradient is generated at the surface of the Pt electrode, resulting in perturbation of biological samples that are sensitive to changes in pH 4.Quantitative measurements become complicated as the oxidation of H 2 O 2 at physiological pH is mechanistically complex, involving the formation of several reactive intermediates (superoxide, hydroperoxide, and hydroxyl radicals) whose stability is also pH dependent

48 Amplex Red Fig. 2. Electrochemistry of Amplex Red and resorufin in pH 5 McIlvaine buffer. Cyclic voltam- mogram: starting potential þ0.1 V (vs. Ag/AgCl), scan rate 0.01 V s1, arrow follows the initial course of CV of Amplex Red, before the occurence of electrochemically generated resorufin. Reactions of Amplex Red (N- acetyl-3,7-dihydroxyphenoxazine) and of resorufin (7-hydroxy-3H- phenoxazin-3-one). Electroanalysis, 17(2005)1043

49 Electrochemical Performance of Amplex Red Fig. 5. Amperometric flow-through detection of resorufin. Concentration dependence of peak current; glassy carbon electrode (diam. 3 mm) at 0.17 V (vs. Ag/AgCl), buffer flow rate 0.2 mL min -1, sample volume 0.1 mL, buffer deoxygenated. Fig. 4. H 2 O 2 assay with 0.2 U mL1 HRP and 50 mmol L -1 Amplex Red performed in McIlvaine buffer pH 5 with CV detection. Only the first half-cycle of each CV is plotted: þ0.1 V to 0.7 V (vs. Ag/AgCl), scan rate 0.01 V s -1. Electroanalysis, 17(2005)1043

50 Comparison of the Behaviors of SWV with CV Fig. 1. (a) Comparison of square wave (heavy trace) and cyclic(light trace) voltammograms for a 300 nM H 2 O 2 standard, demonstrating improved S/N attainable with SWV. SWV parameters: amplitude 25 mV, step height 5 mV, frequency 25 Hz. CV parameter: scan rate 125 mV/s. Experimental conditions: 10 m diameter GC working electrode, Ag/AgCl reference electrode, Au wire counter electrode, 0.1 M K 2 HPO 4 /0.05 M citric acid buffer, pH 5.0, 0.2 U/mL HRP, 10 M Amplex Red. (b) Comparison of square wave voltammograms for 300 pM H 2 O 2 collected using the same electrode as in (a) (heavy trace) and a 2 mm diameter GC disk electrode (light trace). All other experimental conditions are the same as those for (a).

51 Square Wave Voltammetry The dimensionless kinetic parameter K =ks/f is related to Ep values between 10 and 40 mV Fig. 2. Peak height vs. frequency data for a 1 nM H 2 O 2 standard detected via Amplex Red-mediated SWV (R2 ) 0.994, SD=0.028 nA). Experimental conditions are the same as those listed for Fig. 1. Overall rate constant of ks = ( 4.78 s -1 was determined for the resorufin-dihydroresorufin couple. This value is in accord with other reports for strongly adsorbing redox- active species studied via SWV.

52 H 2 O 2 Calibration Curves Fig. 3. Calibration curves for H 2 O 2 standards detected via Amplex Red-mediated electrochemical sensing, utilizing either soluble (open squares) or immobilized (closed squares) HRP. Peak currents were obtained using SWV experiments outlined in the text and normalized to the working electrode area. SWV parameters: amplitude 25 mV, step height 5 mV, frequency 25 Hz. Experimental conditions: 10 M diameter GC working electrode, Ag/AgCl reference electrode, Au wire counter electrode, 0.1 M K 2 HPO 4 /0.05 M citric acid buffer, pH 5.0, 10 M Amplex Red. For soluble HRP, [HRP] ) 0.2 U/mL. For immobilized HRP, an equivalent amount of HRP was adsorbed to a glass slide placed in the electrochemical cell. (a) Linear current response in the picomolar H 2 O 2 range for soluble HRP. (b) Linear current response in the pico- to nanomolar range for immobilized HRP. (c) Wide-range linear responses for both soluble and immobilized HRP observed between 300 pM and low micromolar H 2 O 2 concentrations. Sensitivities of these calibration curves are 3 orders of magnitude less than those in (a) and (b).

53 Quantitative Enzyme Kinetics Measurements Fig. 4. Enzymatic activity data for Amplex Red-mediated electrochemical sensing. SWV parameters and experimental conditions are the same as those for Figure 3, except that the Amplex Red concentration was increased to 1 mM. (a) Full dynamic range for 15 pMto 1 mM H 2 O 2, reflective of Michaelis-Menten enzymatic activity. (b, c) Lineweaver-Burke plots of current response data shown in Figure 3b for (b) soluble and (c) immobilized HRP. Statistics for (b): R2 ) 0.986, SD ) nA -1. Statistics for (c): R2 ) 0.996, SD ) nA -1.
