1. KIT – Universität des Landes Baden-Württemberg und nationales Forschungszentrum in der Helmholtz-Gemeinschaft Institute for Data Processing and Electronics (IPE) www.kit.edu Balloon-Experiment JEM-EUSO EC-Design Review EC-HV Board

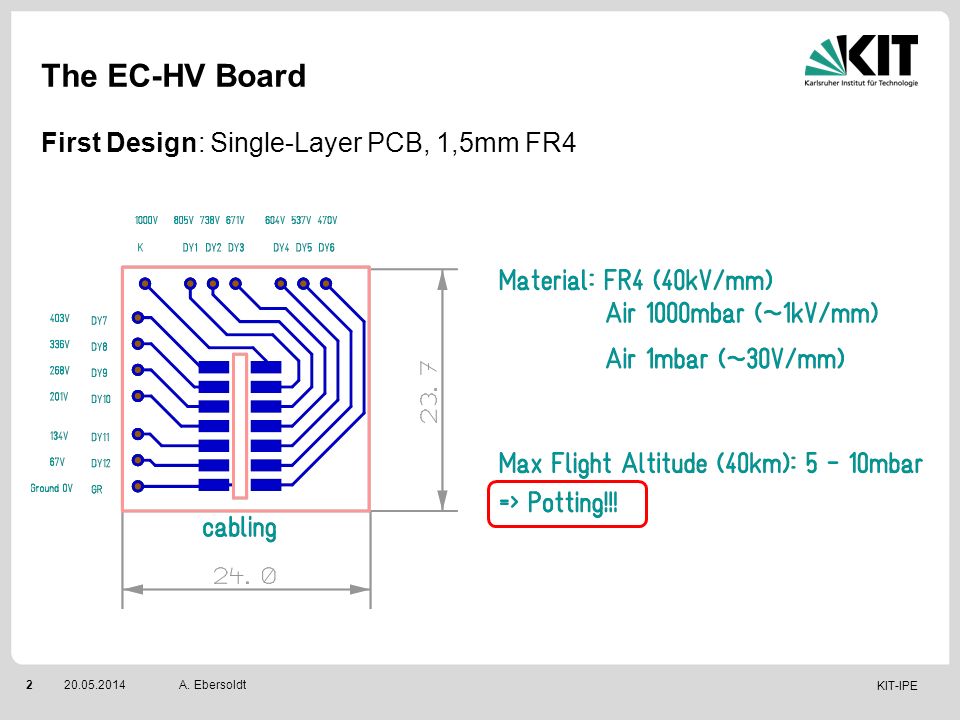

2. KIT-IPE 220.05.2014 The EC-HV Board First Design: Single-Layer PCB, 1,5mm FR4 A. Ebersoldt

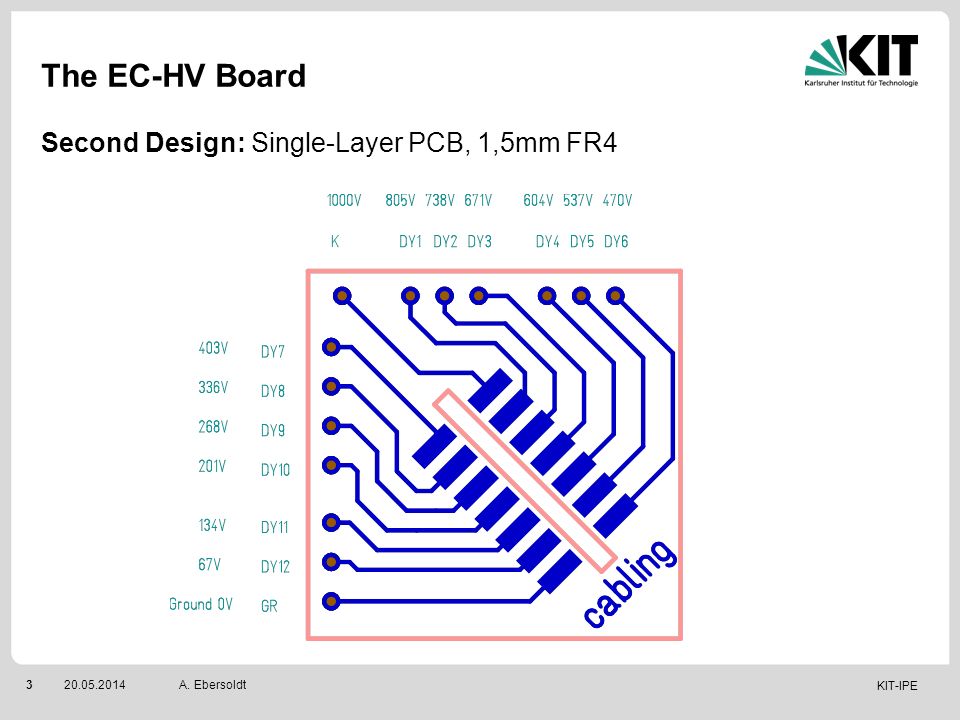

3. KIT-IPE 320.05.2014 The EC-HV Board Second Design: Single-Layer PCB, 1,5mm FR4 A. Ebersoldt

4. KIT-IPE 420.05.2014 IPE - Experience A. Ebersoldt Potting Use of 2 component silicon materials. Mass production @ IPE: Project Quench Detection (W7X, TOSKA, KATRIN, HZ-Berlin) Company-Connection: Coating & Potting: Balloon-Experiments Atmospheric measurements with MIPAS, developed @ KIT - many flights with MIPAS flown by CNES also in Kiruna (same as maiden flight for EUSO-Balloon) - Flight altitude up to 40km and 18 hours - @ IPE developed electronics: instrument control, communication, power- management, thermal design, for balloons and aircrafts

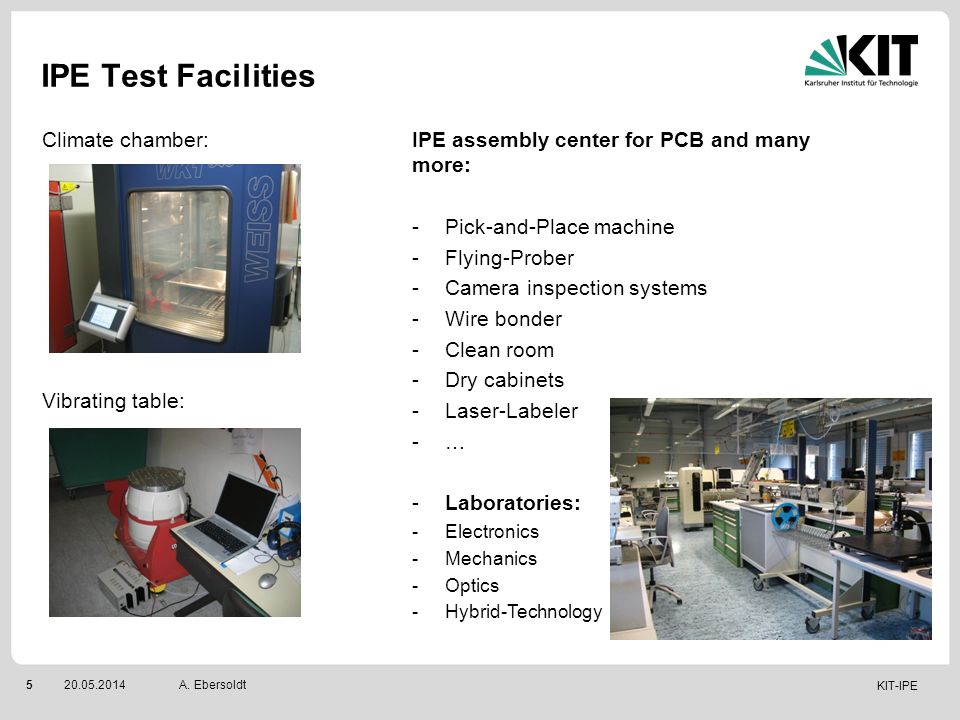

5. KIT-IPE 520.05.2014 IPE Test Facilities Climate chamber: Vibrating table: A. Ebersoldt IPE assembly center for PCB and many more: -Pick-and-Place machine -Flying-Prober -Camera inspection systems -Wire bonder -Clean room -Dry cabinets -Laser-Labeler -… -Laboratories: -Electronics -Mechanics -Optics -Hybrid-Technology
