Workshop M&D / DKRZ 22.-24. 02. 2005 Jörg Wegner Dataformats, Postprocessing and Visualization Content: 1)Dataformats: Grib, NetCDF 2)Tools for Postprocessing:

Similar presentations


Presentation on theme: "Workshop M&D / DKRZ 22.-24. 02. 2005 Jörg Wegner Dataformats, Postprocessing and Visualization Content: 1)Dataformats: Grib, NetCDF 2)Tools for Postprocessing:"— Presentation transcript:

1 Workshop M&D / DKRZ Jörg Wegner Dataformats, Postprocessing and Visualization Content: 1)Dataformats: Grib, NetCDF 2)Tools for Postprocessing: cdo, cdat, (nco, PINGO) 3)Examples for use of cdo 4)Tools for Visualization: cdat, LE-Graphics, (GrADS) 5)Examples for use of vcdat (GUI of cdat) 6)Examples for use of LE-Graphics

2 Workshop M&D / DKRZ Jörg Wegner Dataformats, Postprocessing and Visualization GRIBNetCDF Postprocessing: Visualisation: cdo, PINGOs cdo, cdat, nco GrADSGrADS, cdat, vtk Ferret, LE-Graphics

3 Workshop M&D / DKRZ Jörg Wegner Dataformats, Postprocessing and Visualization Why change from PINGO to cdo? -PINGO was designed for GRIB-files -NetCDF files have a different structure, that does not fit into the PINGO design.

4 Workshop M&D / DKRZ Jörg Wegner Dataformats, Postprocessing and Visualization netcdf zzz { dimensions: lon = 192 ; lat = 96 ; lev = 1 ; time = UNLIMITED ; // (10 currently) variables: double lon(lon) ; lon:long_name = "longitude" ; lon:units = "degrees_east" ; double lat(lat) ; lat:long_name = "latitude" ; lat:units = "degrees_north" ; double lev(lev) ; lev:long_name = "pressure" ; lev:units = "Pa" ; double time(time) ; time:units = "day as %Y%m%d.%f" ; float q(time, lev, lat, lon) ; q:long_name = "specific humidity" ; q:units = "kg/kg" ; q:code = 133 ; q:table = 128 ; q:grid_type = "gaussian" ; // global attributes: :CDO = "Climate Data Operators version " ; :source = "ECHAM5.2" ; :institution = "Max-Planck-Institute for Meteorology" ; } NetCDF file information

5 Workshop M&D / DKRZ Jörg Wegner Dataformats, Postprocessing and Visualization ds8 55%grib -ginfo zzz.grb Rec : Position Size : V PDS GDS BMS BDS : Code Level : LType GType 1 : : : : : : : : : : : : : : : : : : : : ds8 56%grib -gdsinfo zzz.grb Rec : GDS NV PVPL Typ : xsize ysize Lat1 Lon1 Lat2 Lon2 dx dy 1 : : : : : : : : : : ds8 57% Grib header information:

6 Workshop M&D / DKRZ Jörg Wegner Dataformats, Postprocessing and Visualization Climate Data Operators cdo: - by Uwe Schulzweida (MPIM) - will replace the PINGO package - significant faster than the PINGO tools - written in ansi c, runs on LINUX, UNIX, Mac OS X - reads and writes NetCDF and GRIB files -- (and EXTRA, SERVICE) - Informations and Downloads via

7 Workshop M&D / DKRZ Jörg Wegner Dataformats, Postprocessing and Visualization Documentation User's Guide (pdf 400KB)User's Guide Reference Card (pdf 100KB)Reference Card Introduction (pdf 100KB)Introduction Online help with 'cdo -h operator Release The current CDO version is 0.9.4, updated 3 January Download source code (600KB)Download source code cdo:

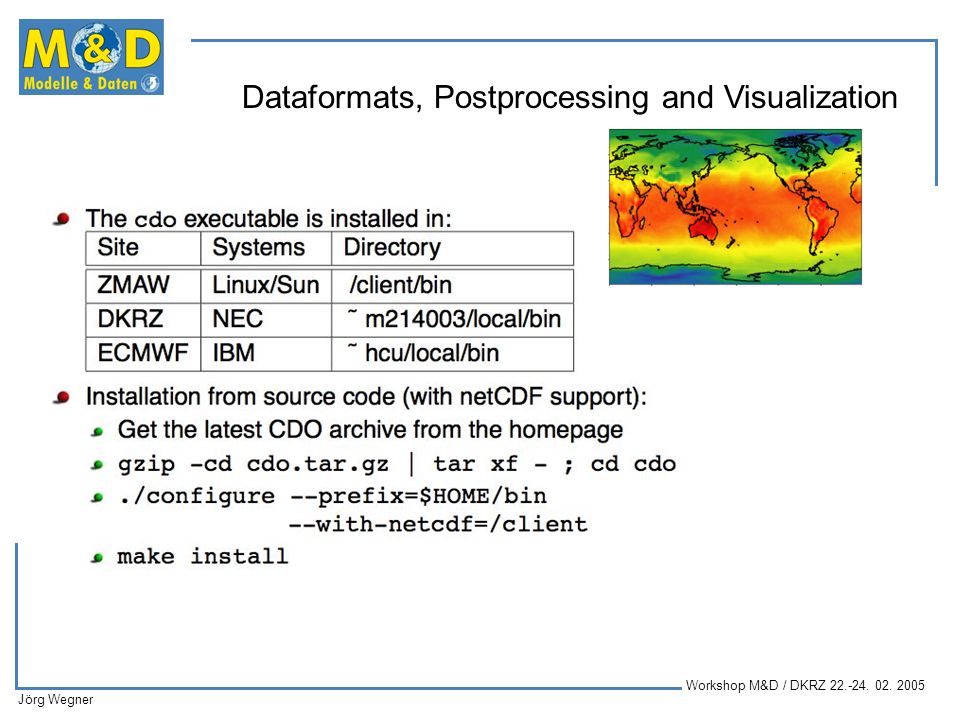

8 Workshop M&D / DKRZ Jörg Wegner Dataformats, Postprocessing and Visualization

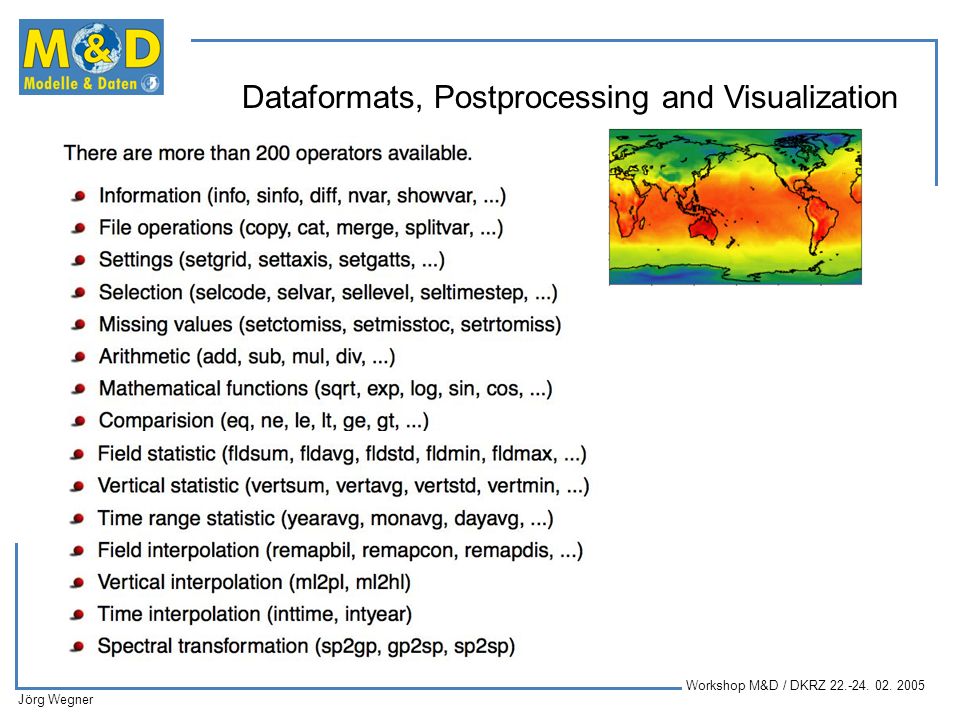

9 Workshop M&D / DKRZ Jörg Wegner Dataformats, Postprocessing and Visualization

10 Workshop M&D / DKRZ Jörg Wegner Dataformats, Postprocessing and Visualization Examples for use of cdo: Grib to netCDF cdo -f nc [-t table] copy zzz.grb zzz.nc Table (containing Code name longname units): 1 sftlf land_fraction [%] 2 tos sea_surface_temperature [K] 4 pr precipitation_flux [kg m-2 s-1] 5 so sea_water_salinity [PSU] 84 zobt sea_floor_depth [m] 167 tas air_temperature [K]

11 Workshop M&D / DKRZ Jörg Wegner Dataformats, Postprocessing and Visualization Examples for use of cdo: GrADS description file cdo gradsdes file.grb file.ctl ---the GrADS description file file.gmp ---the INDEX file creates

12 Workshop M&D / DKRZ Jörg Wegner Dataformats, Postprocessing and Visualization Examples for use of cdo: Piping, missing, etc cdo -f ext daymean MSLP.grb A1_psl cdo -f ext daymin T2MIN.grb A1_tasmin cdo -f ext daymax T2MAX.grb A1_tasmax cdo -f ext add -daymean APRL.grb -daymean APRC.grb A1_pr cdo -f ext sub -daymean TRADS.grb -daymean TRADSU.grb A1_rlds cdo -f ext sub -daymean SRADS.grb -daymean SRADSU.grb zwisch1_rsds cdo gtc,0.0 zwisch1_rsds zwisch2_rsds cdo setmisstoc,0.0 -ifthen zwisch2_rsds zwisch1_rsds A1_rsds cdo -f ext mulc,-1. -daymean AHFL.grb A1_hfls

13 Workshop M&D / DKRZ Jörg Wegner Dataformats, Postprocessing and Visualization cdat: - graphic (cdat) and postprocessing (cdms modules) package for climate data - uses Python as scripting language - available GUI vcdat - support and download via

14 Workshop M&D / DKRZ Jörg Wegner Dataformats, Postprocessing and Visualization

15 Workshop M&D / DKRZ Jörg Wegner Dataformats, Postprocessing and Visualization

16 Workshop M&D / DKRZ Jörg Wegner Dataformats, Postprocessing and Visualization LE-Graphics: - by Karin Meier-Fleischer (M&D) for PRISM - easy-to-use interface for simple 2d-graphics based on cdat/ cdms - stand-alone package for building plots with one command line - can be used with SRE for monitoring the model run

17 Workshop M&D / DKRZ Jörg Wegner Dataformats, Postprocessing and Visualization USAGE: LE-parameter.py -i -var [-p ][-lat ] [-lon ] [-bounds ][-gxo ][-gol ] [-gov ][-m][-mask ][-mvar ] [-gridfile ][-nc ][-dint ][-or ] [-pr ][-colors ][-user ][-t ][-tser] [-l ][-bg ][-u ][-yrev][-notext][-h] LE-Graphics: The easiest command: LE_parameter.py -i "$DATA/clt_A1.nc" -var "clt"

18 Workshop M&D / DKRZ Jörg Wegner Dataformats, Postprocessing and Visualization Example 1: surface pressure with contour intervall 2500 Pa LE_parameter.py -i "ps_A1.nc" -var "ps" -dint colors "BlauGelbRot32" -pr "GIF" -o ps_A1_dint2500.gif"

19 Workshop M&D / DKRZ Jörg Wegner Dataformats, Postprocessing and Visualization Example 2: 2m temperature in Mollweide projection with contour intervall 2.5 K LE_parameter.py -i "BOT_ nc" -var "temp2" -dint "2.5" -p "mollweide -colors "BlauGelbRot32" -pr "GIF" -o "temp2_mollweide.gif"

20 Workshop M&D / DKRZ Jörg Wegner Dataformats, Postprocessing and Visualization Example 3: 2m temp with wind-vector overlay: LE_parameter.py -i "BOT_ nc" -var "temp2" -dint "2.5" -p "linear" -gol "vector" -gov "u10:v10" -colors "Rainbow32"

21 Workshop M&D / DKRZ Jörg Wegner Dataformats, Postprocessing and Visualization Example 4: Sea surface Temperature on curve linear grid LE_parameter.py -i "SSTOCEAN.nc -var "SSTOCEAN" -p "linear" -m -colors "BlueToRed16"

22 Workshop M&D / DKRZ Jörg Wegner Dataformats, Postprocessing and Visualization Thank You!
