1. Artificial Neural Networks
Lab demonstration (2)

2. Python Modules

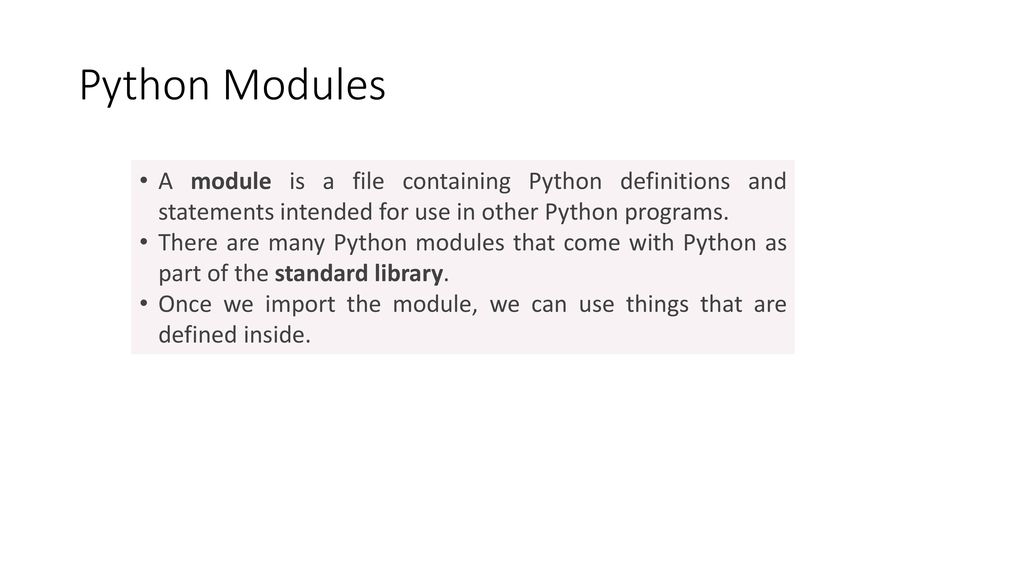

A module is a file containing Python definitions and statements intended for use in other Python programs.
There are many Python modules that come with Python as part of the standard library.
Once we import the module, we can use things that are defined inside.

3. To use elements of a module
Import the module
Use the dot to refer to the element of the module

4. Example: The turtle module
Source:

5. What modules are available in Python?
A list of modules that are part of the standard library is available in Python documentation at: modindex.html

6. In your file “network.py”

7. The random module
Example applications in which we need to generate random numbers:
To play a game of chance where the computer needs to throw some dice, pick a number, or flip a coin,
To shuffle a deck of playing cards randomly,
To randomly allow a new enemy spaceship to appear and shoot at you,
For encrypting your banking session on the Internet.

8. The random module

9. The numpy module Used to create multidimensional arrays
In numpy, dimensions of an array are called axes
The number of axes is called the rank of the array
Example: What are the rank and axes of the following numpy array?

10. The numpy module Used to create multidimensional arrays
In numpy, dimensions of an array are called axes
The number of axes is called the rank of the array
Example: What are the rank and axes of the following numpy array?
Rank = 1
1 axis of length 3

11. How to create a numpy array?

12. Create a multidimensional numpy array

13. Initializing the content of an array

14. Lab Exercise
Create a 1-dimensional array (1 axis) containing five ones
Create a 2-dimensional array (2 axes) containing 4 x 5 zeros
Create a 3-dimensional array (3 axes) containing 4x3x2 ones

15. Lab Exercise: solution
Create a 1-dimensional array (1 axis) containing five ones
Create a 2-dimensional array (2 axes) containing 4 x 5 zeros
Create a 3-dimensional array (3 axes) containing 4x3x2 ones

16. Initializing a random array from normal distribution

17. Initializing multiple arrays from a normal distribution
4 arrays: each one is 3x2

18. Exercise: Generate 3 arrays of random numbers
The first array is 3 x 1
The second array is 5 x 1
The third array is 2 x 1

19. Solution

20. Exercise: Given a list of layers for a neural network, generate random bias vectors for each layer
Example for this figure (from mid-term exam), the bias vectors can be:
𝑏 𝑏 =
𝑏 1 2 =

21. Solution

22. Specifying a neural network
Input: a vector of number of neurons in each layer
The first number in the input vector contains the number of input variables.
Ex: [3, 2, 1] ============ >

23. Initializing biases

24. Initializing weights Sizes = [3,2,1] The first weight array is 2x3
𝑤 𝑤 𝑤 𝑤 𝑤 𝑤 23 1
The second weight array is 1x2
𝑤 𝑤 12 2

25. Initializing weight arrays

26. Exercise: Create a Neural Network Class
Create an __init__ function for the network class
Initialize self.biases
Initialize self.weights

27. Getting code and data
git clone

28. For Python 3.4  we need to make some changes to the mnist_loader
Open the file mnist_loader.py
Change cPickle to picke on lines 13 and 43
On line 43: change the call to
training_data, validation_data, test_data = pickle.load(f, encoding='latin1')

29. For Python 3.4  we need to make some changes to the mnist_loader
Open the file mnist_loader.py
Wrap the zip() calls with list() calls

30. In file network.py
//Add this line

31. In file network.py
Find all xrange and replace it with range

32. The MNIST Data set
A large number of scanned images of handwritten digits
Each image is 28 x 28 = 784 pixels
We need to create a neural network that accepts 784 inputs values [X1, …. X784]

33. Load data and create network

34. Compatibility with Python 3.4

35. Output
…..

36. What is this output? Recall the algorithm of Least Mean Square:
Calculates error based on 1 input pattern x(n)
Updates weights based on 1 input pattern x(n)

37. Backpropagation Algorithm
Start with randomly chosen weights [𝒘 𝒋𝒌 𝒍 ] While error is unsatisfactory: for each input pattern x: feedforward: for each l = 1, 2,…, L compute 𝒛 𝒌 𝒍 𝒂𝒏𝒅 𝒂 𝒌 𝒍 Compute the error at output layer: 𝛿 𝑘 𝐿 = 𝑑 𝑘 𝐿 − 𝑎 𝑘 𝐿 𝜎′( 𝑧 𝑘 𝐿 ) Backpropagate the error: for l = L-1, L-2, … 2 compute 𝛿 𝑘 𝑙 = 𝛿 𝑘 𝑙+1 𝑤 𝑘𝑗 𝑙+1 𝜎′(𝑧 𝑗 𝑙 ) Calculate the gradients: 𝜕𝐸 𝜕 𝑤 𝑘𝑗 𝑙 = 𝜹 𝒋 𝒍 𝑎 𝑘 𝑙−1 and 𝜕𝐸 𝜕 𝑏 𝑗 𝑙 = 𝜹 𝒋 𝒍 end for end while
Updates weights based on 1 input pattern x(n)
© Mai Elshehaly

38. Three strategies to update the weights:
Update after the network sees every single input pattern
Update after the network sees a mini_batch of input patterns
Update after the network sees the entire batch of input patterns
The difference between the three strategies will be discussed in the lecture.

39. The mini_batch strategy: Ex.: mini_batch_size = 5

40. The mini_batch strategy:
1. Input one batch to the network:
2. Adjust weights
3. Move to the next batch
4. Repeat until no more batches in the training data set
This is one epoch

41. To increase the accuracy: التكرار يعلم الشطار
Repeat the previous process for a number of epochs
Don’t input the mini batches in the same order (random.shuffle)
With each new epoch, you can see that the accuracy increases
Correctly classified samples
Total number of test samples

42. To see the effect of parameters on accuracy
Try passing different values for epochs, mini_batch_size, and eta

43. How to implement this shuffling and batching strategy?
Example:
Say you have a deck of 30 cards with labels 1… 30
You want to take 10 cards in each draw
You want to keep drawing until no more cards
You want to shuffle the cards then repeat 8 times

44. Shuffling cards

45. Shuffle for 8 epochs

46. Explore by 10 cards in each epoch:

47. Exercise:
Write a function sum_mini_batches(training_data, epochs, mini_batch_size) that does the following for epochs times:
Shuffles the cards in training_data
Creates a number of mini batches each of which is of size mini_batch_size
Prints the sum of the numbers in each mini batch

48. Lab Demo: Second Round

49. Review items Numpy’s dot() function The weights and biases of ANN
Zip() function
Negative indices in Python
Matrix shape
The Backpropagation pseudocode

50. dot() function

51. zip() function Example: initializing weights and biases

52. zip() function Example: to iterate over layers of weights and biases

53. Exercise
Reuse the mini_batches code that we wrote earlier to generate inputs.
Iterate over layers of weights and biases to calculate the z values of different layers. Assume that actual output = net input (a=z) for simplicity.
Print z at each iteration.

54. Negative indices in Python: Try the following

55. Solution
