Elastic Circuits blending synchronous and asynchronous technologies Jordi Cortadella Universitat Politècnica de Catalunya, Barcelona (joint work with M.

Similar presentations


Presentation on theme: "Elastic Circuits blending synchronous and asynchronous technologies Jordi Cortadella Universitat Politècnica de Catalunya, Barcelona (joint work with M."— Presentation transcript:

1 Elastic Circuits blending synchronous and asynchronous technologies Jordi Cortadella Universitat Politècnica de Catalunya, Barcelona (joint work with M. Kishinevsky and M. Galceran-Oms) Collège de France May 21 st, 2013

2 Elastic circuitsCollège de France 20132

3 Synchronous circuit Elastic circuits Combinational Logic Flip Flops PLLPLL Collège de France 20133

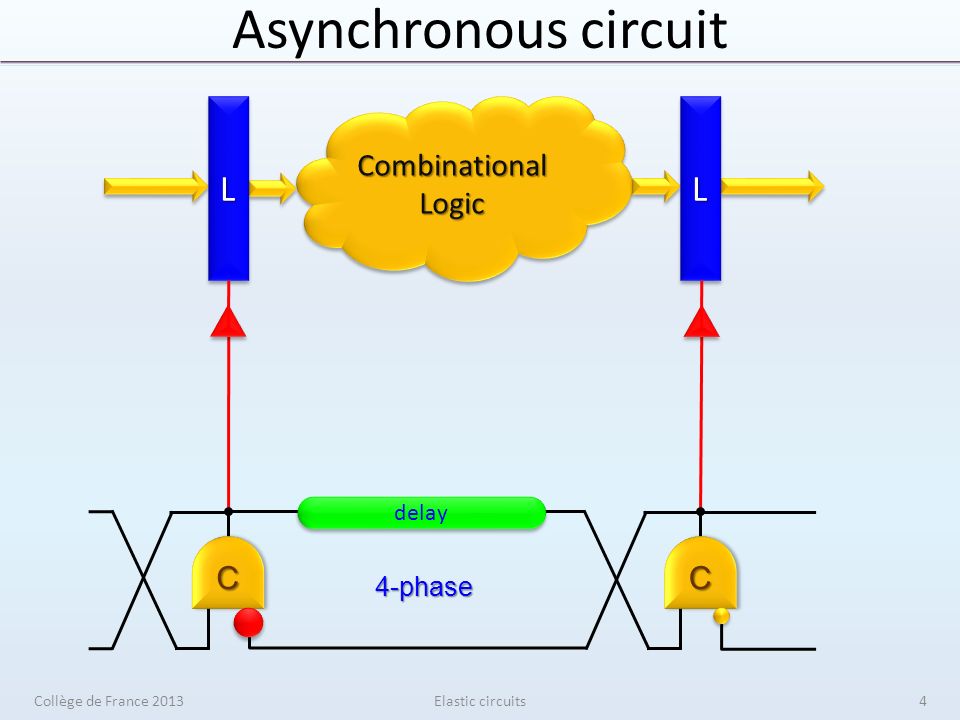

4 Asynchronous circuit Elastic circuits Combinational Logic LL LL delay CC CC 4-phase Collège de France 20134

5 Asynchronous circuitCC ReqInReqOut AckIn AckOut CC CC CC David Mullers pipeline (late 50s) Sutherlands Micropipelines (Turing award, 1989) Elastic circuitsCollège de France 20135

6 Globally-asynchronous Locally-synchronous GALS

7 SoC design with GALS Most IPs are synchronous Different components may have different operating frequencies Some components have variable latencies (e.g., cache hit/miss latency) Multiple clock domains are essential Elastic circuits BridgeBridge CDCCDC DSPDSP P P Fast Bus Slow Bus BridgeBridge CDCCDCMemMem CLK2 CLK1 CLK3 Collège de France 20137

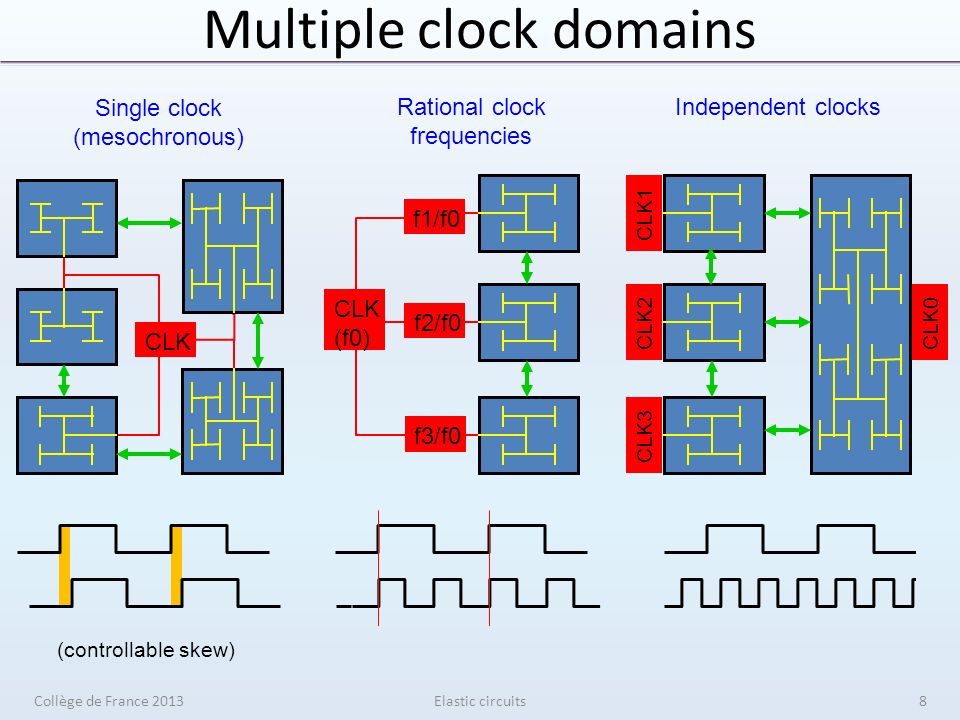

8 Multiple clock domains Elastic circuits CLK Single clock (mesochronous) f1/f0 f2/f0 f3/f0 CLK (f0) Rational clock frequencies CLK1 CLK2 CLK3 CLK0 Independent clocks (controllable skew) Collège de France 20138

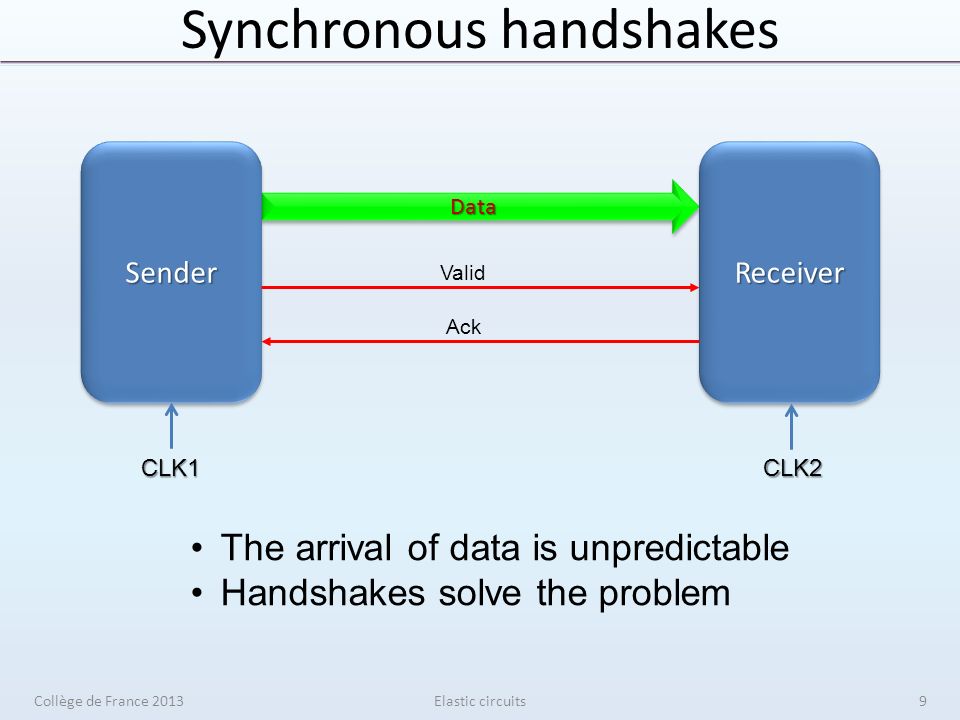

9 Synchronous handshakes Elastic circuits CLK1CLK2 DataData SenderSenderReceiverReceiver Valid Ack The arrival of data is unpredictable Handshakes solve the problem Collège de France 20139

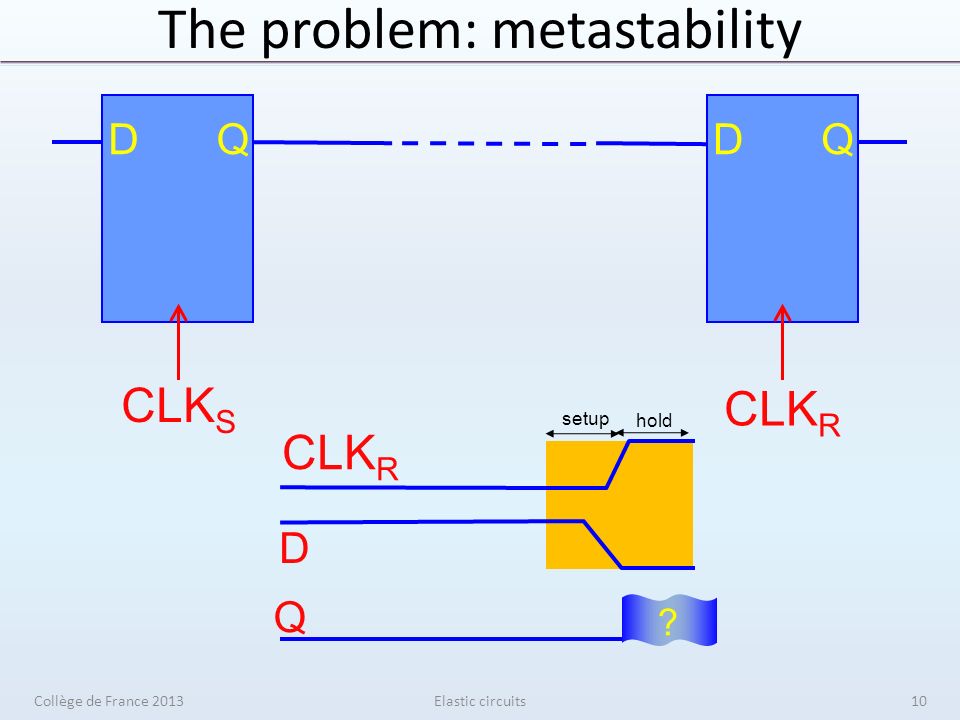

10 The problem: metastability Elastic circuits DQ CLK S DQ ? D Q CLK R setup hold Collège de France

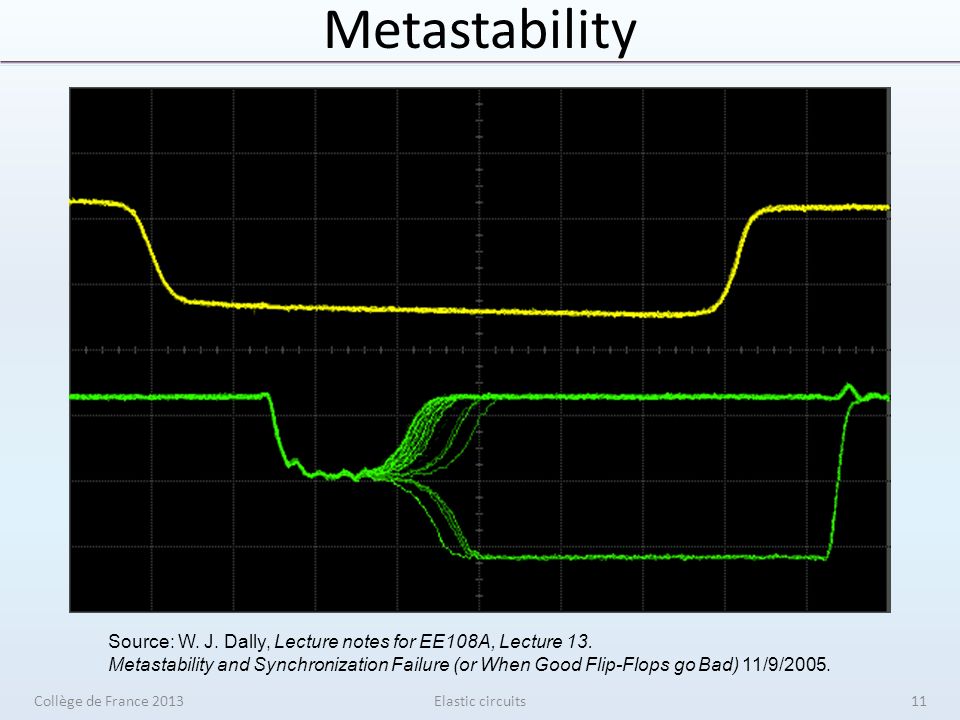

11 Metastability Elastic circuits Source: W. J. Dally, Lecture notes for EE108A, Lecture 13. Metastability and Synchronization Failure (or When Good Flip-Flops go Bad) 11/9/2005. Collège de France

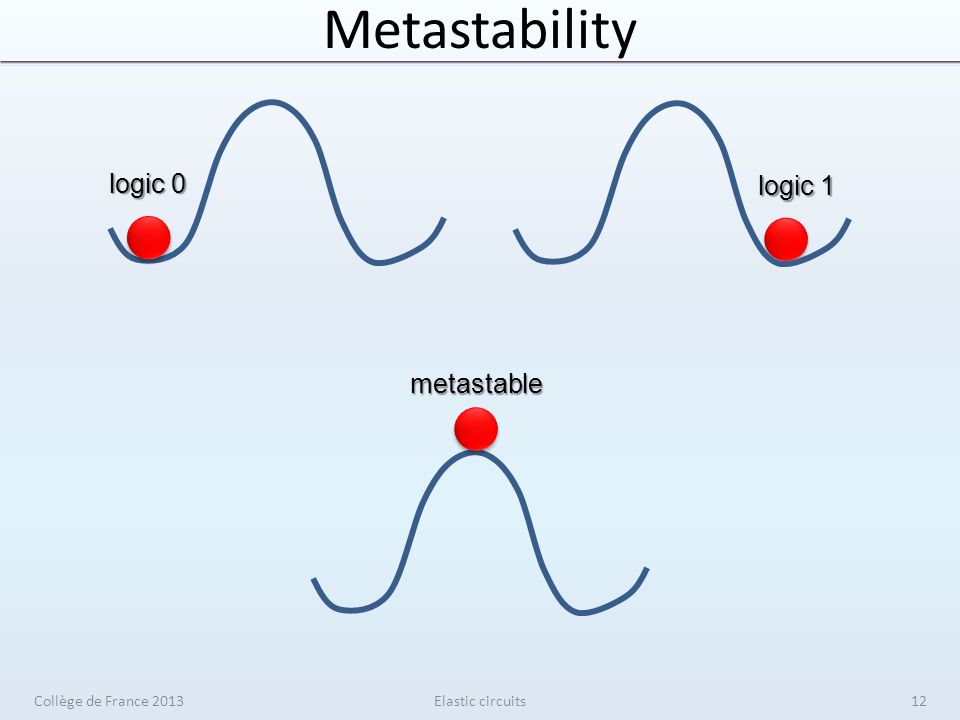

12 Metastability Elastic circuits logic 0 logic 1 metastable Collège de France

13 Classical synchronous solution Elastic circuits DQDQDQDQ CLK T CLK R Mean Time Between Failures f Ф :frequency of the clock f D :frequency of the data t r :resolve time available W:metastability window :resolve time constant # FFs MTBF 1 FF 15 min 2 FF 9 days 3 FF 23 years Example Collège de France

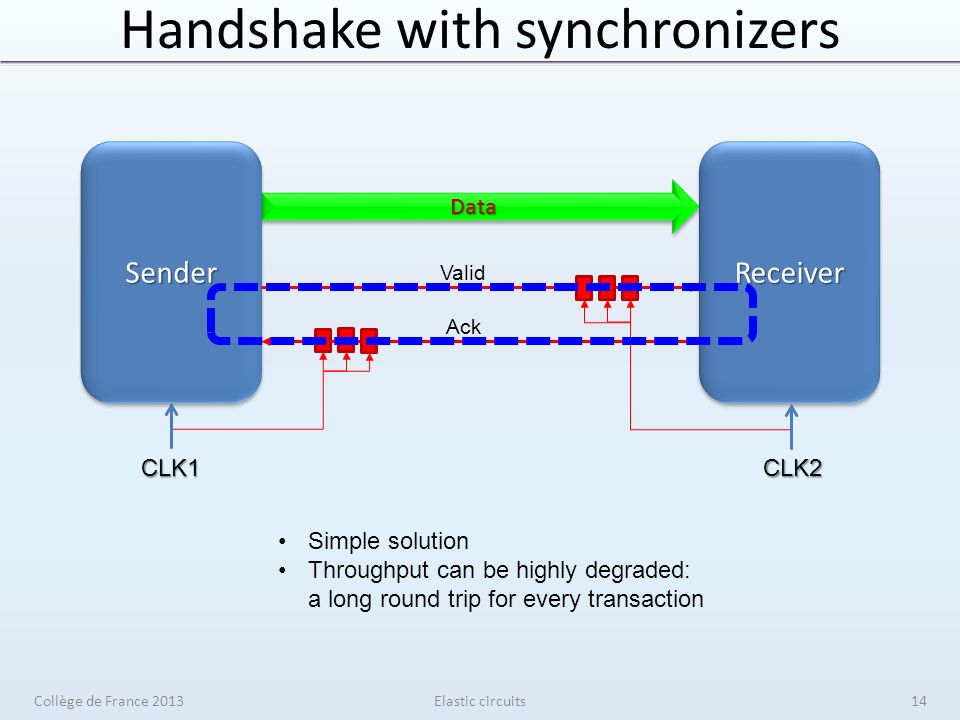

14 Handshake with synchronizers Elastic circuits CLK1CLK2 DataData SenderSenderReceiverReceiver Valid Ack Simple solution Throughput can be highly degraded: a long round trip for every transaction Collège de France

15 Asynchronous FIFOs Elastic circuits Circular buffer Valid Ack Data Clk In Clk Out FIFO control Ack is issued as soon as data has been delivered No impact on throughput (1 token/cycle) Min latency determined by the internal synchronizers Some tricky structures for the FIFO pointers (e.g. Grey encoding) Collège de France cycle 3-4 cycles

16 SoC design with GALS Elastic circuits BridgeBridge CDCCDC DSPDSP P P Fast Bus Slow Bus BridgeBridge CDCCDCMemMem CLK2 CLK1 CLK3 Bridges for Clock Domain Crossing usually contain asynchronous FIFOs Latency cost only when interfacing with synchronous domains No latency penalty between asynchronous domains Collège de France

17 Synchronous and Asynchronous meeting each other

18 AsynchroniaAsynchronia Collège de France 2013Elastic circuits Meanwhile, a small village of indomitable engineers was resisting the synchronous occupation … 18

19 Bill Grundmann (Intels director of CAD research, Technical director for CAD technology for the Alpha Microprocessor): The specification of a complex system is usually asynchronous (functional units, messages, queues, …), … however the clock appears when we move down to the implementation levels (in a technical discussion about system design with M. Kishinevsky and J. Cortadella, 2004) Elastic circuitsCollège de France

20 Async and Sync meeting each other Elastic circuits Modular (time elasticity) But hard to analyze and synthesize Easy to analyze and synthesize Not modular (time rigid) J. OLeary and G. Brown, 1997 Synchronous emulation of asynchronous circuits A. Peeters and K. Van Berkel, 2001 Synchronous handshake circuits Elastic Circuits (Sync / Async) L. Carloni et al., 1999 A methodology for correct-by-construction latency-insensitive design Cortadella et al., Desynchronization, 2003 Collège de France

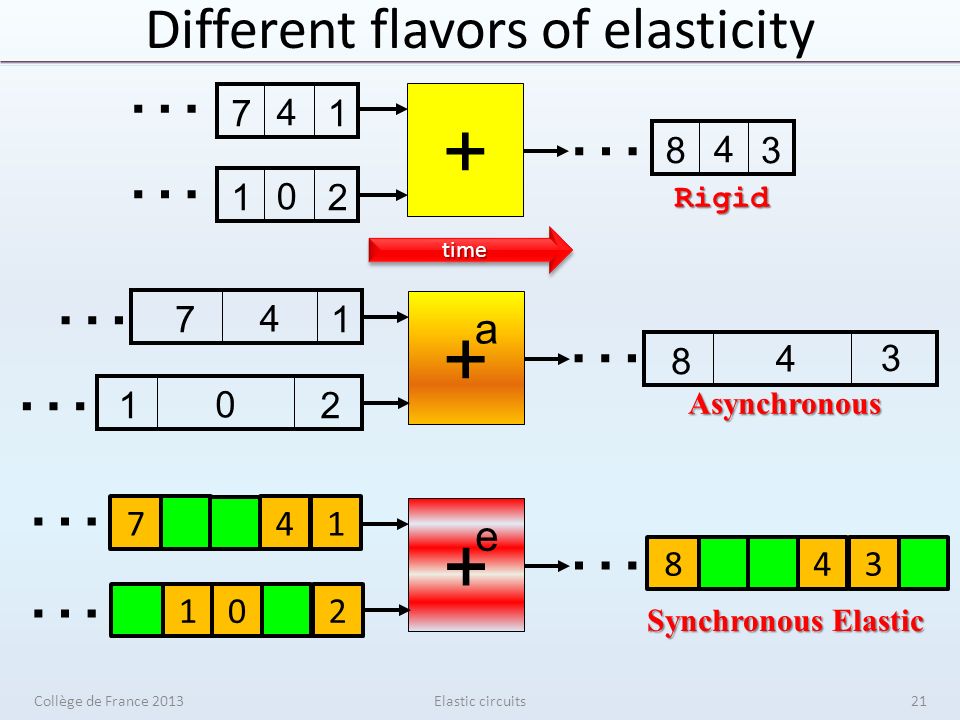

21 Different flavors of elasticity Elastic circuits … … …Rigid + a 4 8 … … … 3 Asynchronous + e … … Synchronous Elastic … timetime Collège de France

22 Why synchronous elasticity? Time is discrete (cycle based), but unpredictable (unknown number of cycles) Examples – Short/long integer addition (8 bits, 64 bits) – Floating-point units – Cache latency: fast hit(2), slow hit(3), miss(>20) – Bus arbitration – Latencies in Network-on-Chip – … and many others Elastic circuitsCollège de France

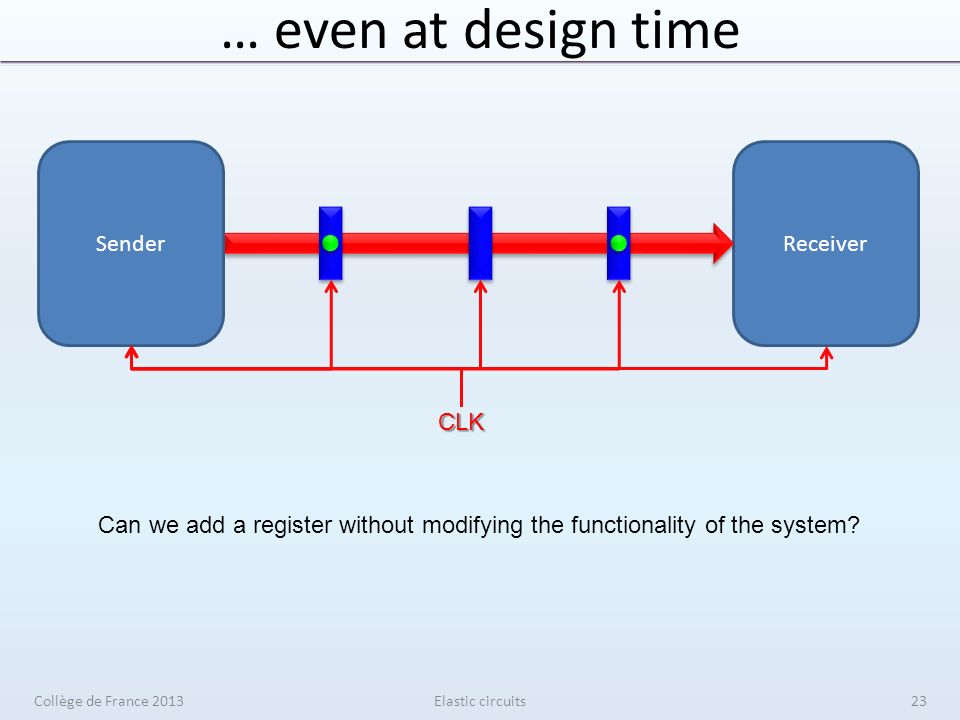

23 … even at design time Elastic circuits ReceiverSender CLK Can we add a register without modifying the functionality of the system? Collège de France

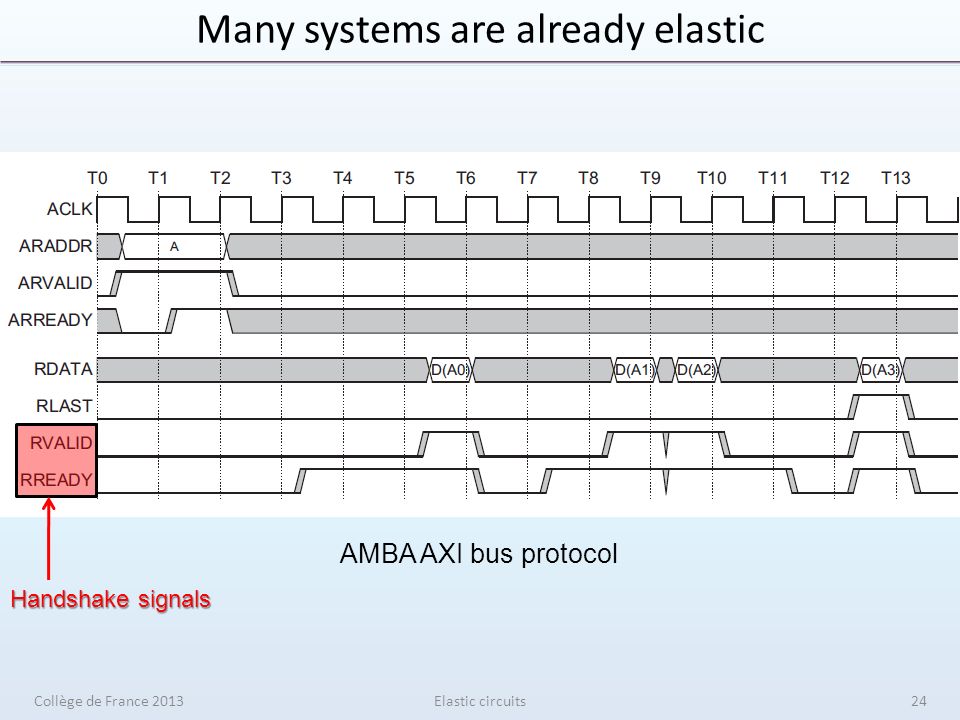

24 Many systems are already elastic AMBA AXI bus protocol Handshake signals Elastic circuitsCollège de France

25 Designing with synchronous elasticity

26 Communication channel Elastic circuits receiversender Data Long wires: slow transmission Collège de France

27 Pipelined communication Elastic circuits senderreceiver Data How about if the sender does not always send valid data? Collège de France

28 Pipelined communication Elastic circuits senderreceiver Data Collège de France

29 Pipelined communication Elastic circuits senderreceiver Data Collège de France

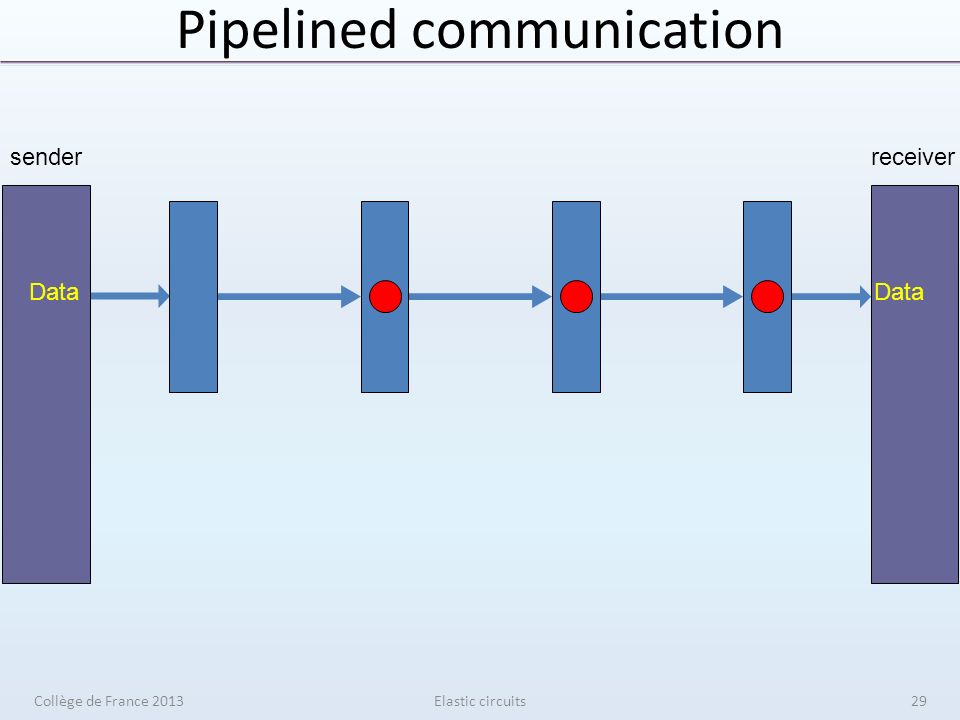

30 Pipelined communication Elastic circuits senderreceiver Data Collège de France

31 Pipelined communication Elastic circuits senderreceiver Data ??? Collège de France

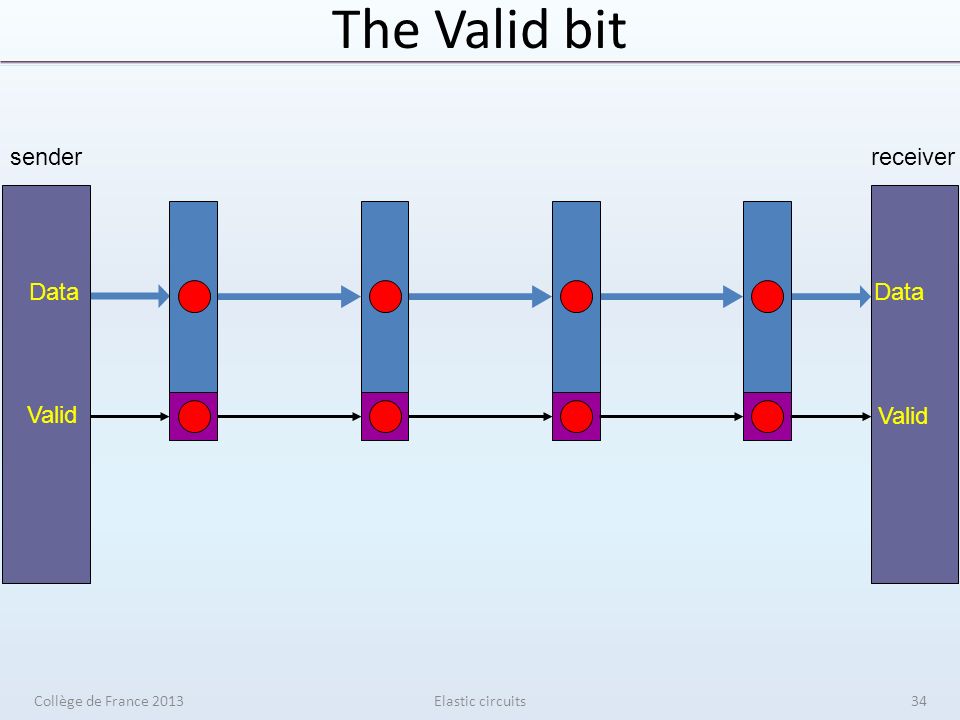

32 The Valid bit Elastic circuits senderreceiver Data Valid Collège de France

33 The Valid bit Elastic circuits senderreceiver Data Valid Data Valid Collège de France

34 The Valid bit Elastic circuits sender Data Valid receiver Data Valid Collège de France

35 The Valid bit Elastic circuits sender Data Valid receiver Data Valid Collège de France

36 The Valid bit Elastic circuits Data Valid senderreceiver Data Valid How about if the receiver is not always ready ? Collège de France

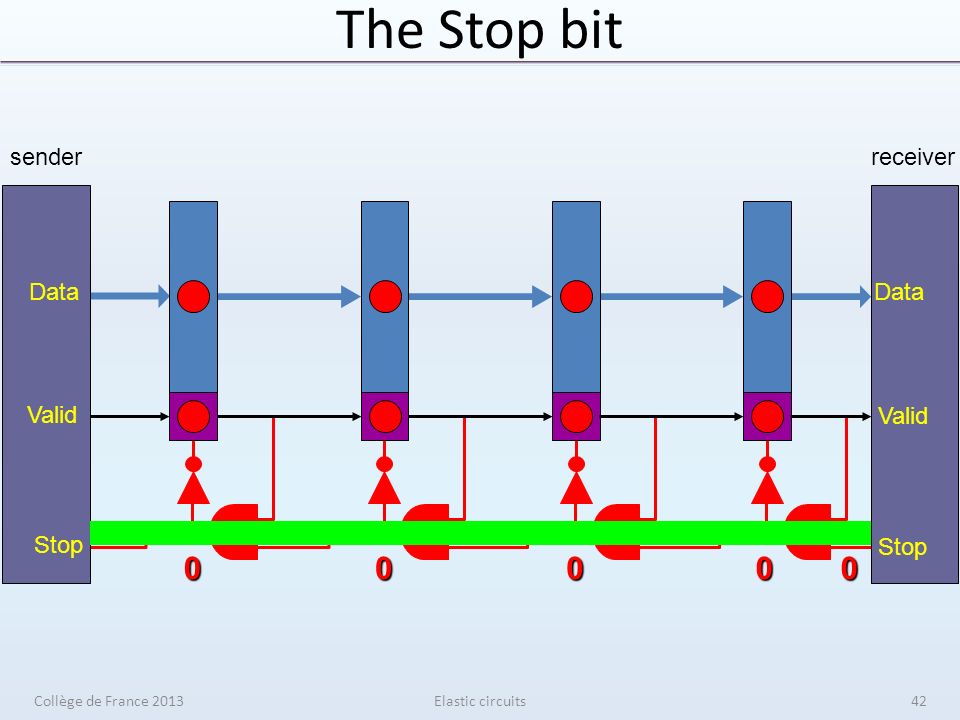

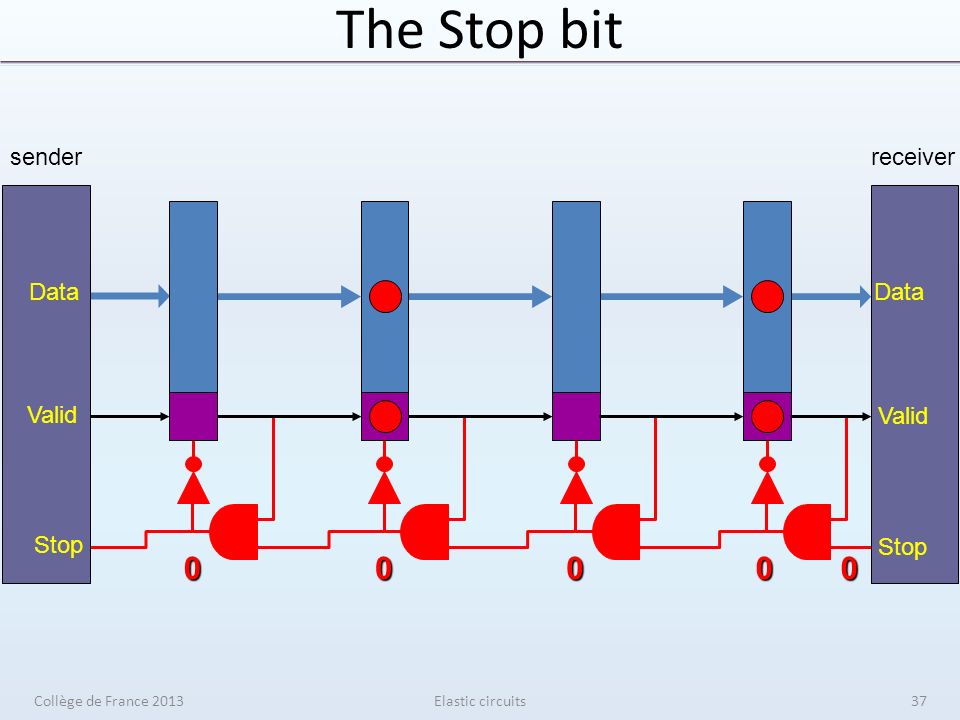

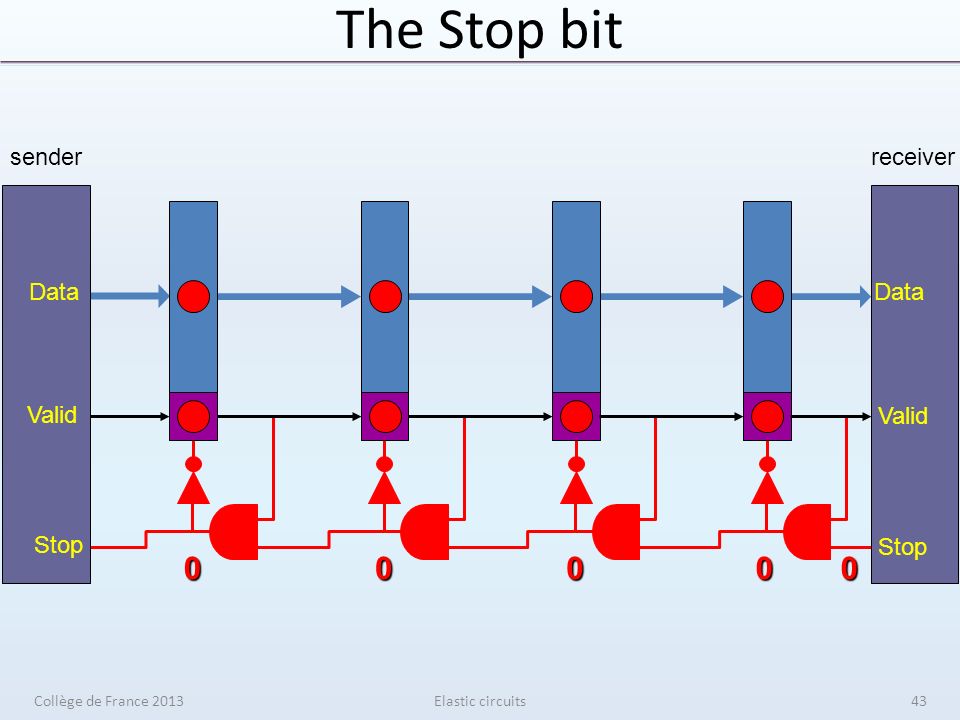

37 The Stop bit Elastic circuits00000 sender Data Valid Stop receiver Data Valid Stop Collège de France

38 The Stop bit Elastic circuits11000 sender Data Valid Stop receiver Data Valid Stop Collège de France

39 The Stop bit Elastic circuits11100 sender Data Valid Stop receiver Data Valid Stop Collège de France

40 The Stop bit Elastic circuits11111 sender Data Valid Stop receiver Data Valid Stop Back-pressure Collège de France

41 The Stop bit Elastic circuits01111 sender Data Valid Stop receiver Data Valid Stop Collège de France

42 The Stop bit Elastic circuits00000 sender Data Valid Stop receiver Data Valid Stop Collège de France

43 The Stop bit Elastic circuits00000 sender Data Valid Stop receiver Data Valid Stop Collège de France

44 The Stop bit Elastic circuits00000 sender Data Valid Stop receiver Data Valid Stop Collège de France

45 The Stop bit Elastic circuits00000 sender Data Valid Stop receiver Data Valid Stop Collège de France

46 The Stop bit Elastic circuits10000 sender Data Valid Stop receiver Data Valid Stop Long combinational path Collège de France

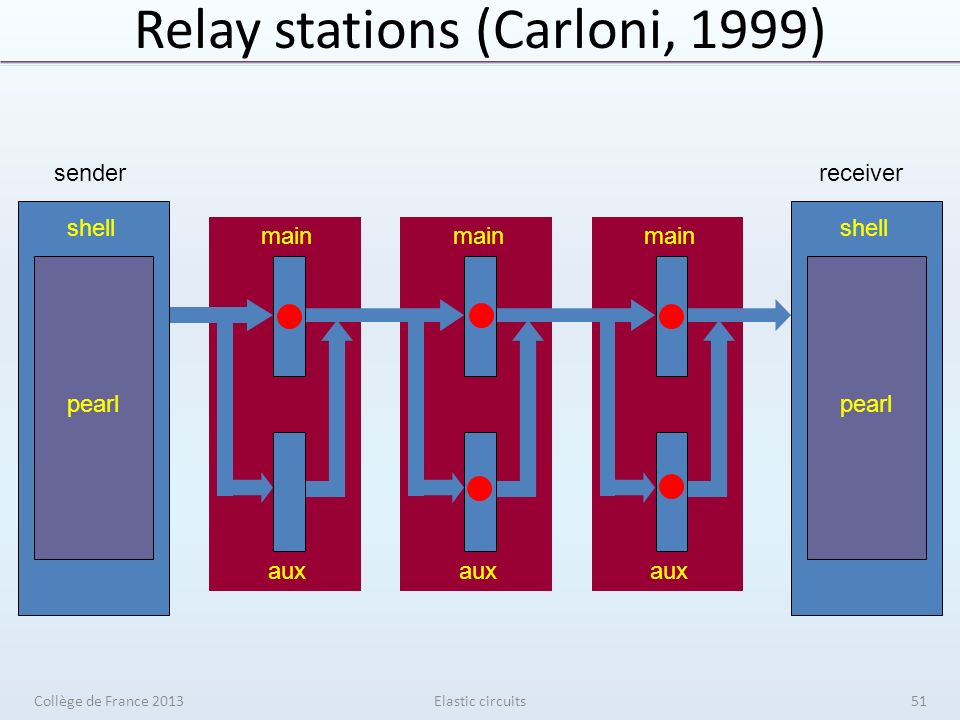

47 Relay stations (Carloni, 1999) Elastic circuits shell pearl sender shell pearl receiver main aux Collège de France

48 Relay stations (Carloni, 1999) Elastic circuits main aux shell pearl receiver shell pearl sender Collège de France

49 Relay stations (Carloni, 1999) Elastic circuits main aux shell pearl receiver shell pearl sender Collège de France

50 Relay stations (Carloni, 1999) Elastic circuits main aux shell pearl receiver shell pearl sender Collège de France

51 Relay stations (Carloni, 1999) Elastic circuits main aux shell pearl receiver shell pearl sender Collège de France

52 Relay stations (Carloni, 1999) Elastic circuits main aux shell pearl sender shell pearl receiver Collège de France

53 Relay stations (Carloni, 1999) Elastic circuits main aux shell pearl sender shell pearl receiver Collège de France

54 Relay stations (Carloni, 1999) Elastic circuits main aux shell pearl sender shell pearl receiver Collège de France

55 Relay stations (Carloni, 1999) Elastic circuits main aux shell pearl sender shell pearl receiver Collège de France

56 Relay stations (Carloni, 1999) Elastic circuits main aux shell pearl receiver shell pearl sender Handshakes with short wires Double storage required Collège de France

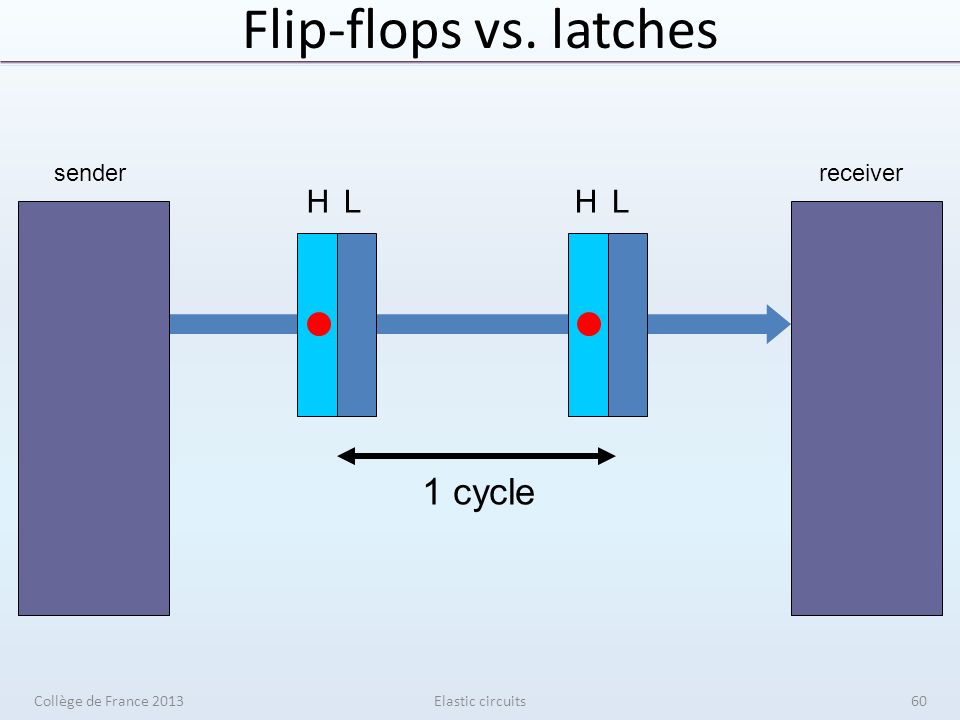

57 Flip-flops vs. latches Elastic circuits senderreceiver 1 cycle FF Collège de France

58 Flip-flops vs. latches Elastic circuits senderreceiver 1 cycle HLHL Collège de France

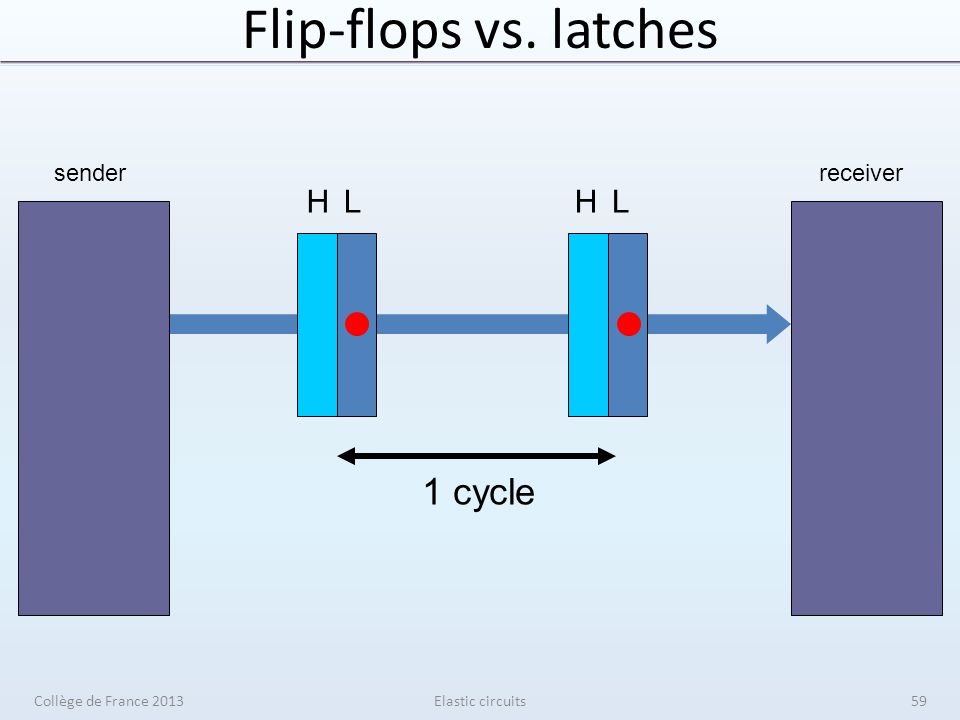

59 Flip-flops vs. latches Elastic circuits senderreceiver 1 cycle HLHL Collège de France

60 Flip-flops vs. latches Elastic circuits senderreceiver 1 cycle HLHL Collège de France

61 Flip-flops vs. latches Elastic circuits senderreceiver 1 cycle HLHL Collège de France

62 Flip-flops vs. latches Elastic circuits senderreceiver 1 cycle HLHL Collège de France

63 Flip-flops vs. latches Elastic circuits senderreceiver 1 cycle HLHL Collège de France

64 Flip-flops vs. latches Elastic circuits senderreceiver 1 cycle HLHL Flip-flops already have a double storage capability, but … Collège de France

65 Flip-flops vs. latches Elastic circuits senderreceiver 1 cycle HLHL Not allowed in conventional FF-based design ! Collège de France

66 Flip-flops vs. latches Elastic circuits senderreceiver 1 cycle HLLH Lets make the master/slave latches independent Collège de France

67 Flip-flops vs. latches Elastic circuits senderreceiver HLHL ½ cycle Lets make the master/slave latches independent Only half of the latches (H or L) can move tokens Collège de France

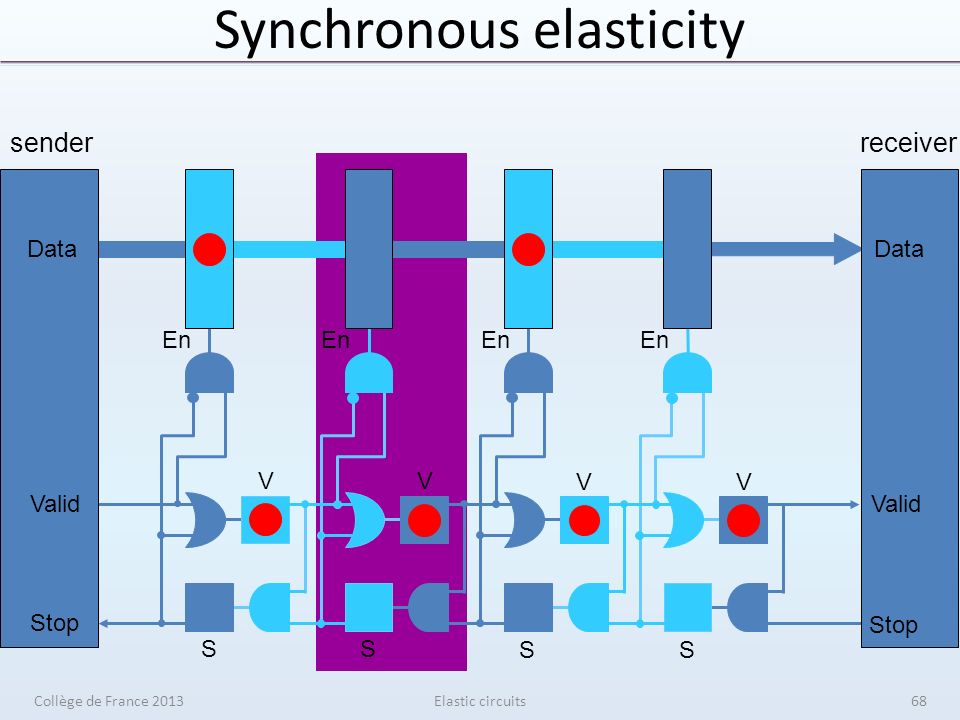

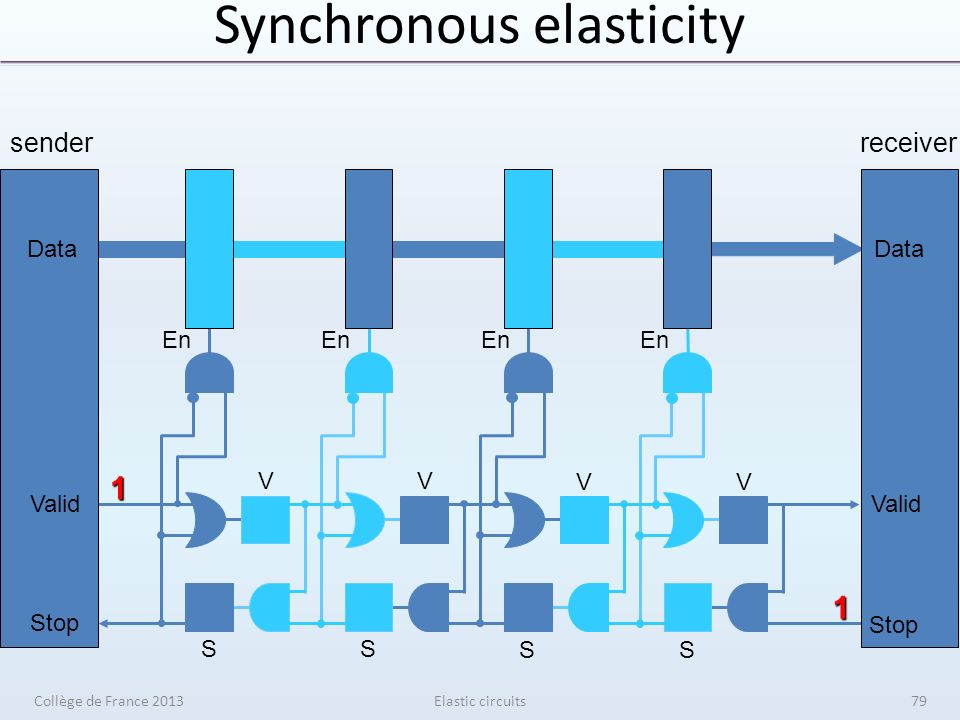

68 Synchronous elasticity Elastic circuits senderreceiver V V V V S S S S En Data Valid Stop Data Valid Stop Collège de France

69 Synchronous elasticity Elastic circuits senderreceiver V V V V S S S S En Data Valid Stop Data Valid Stop 1 0 Collège de France

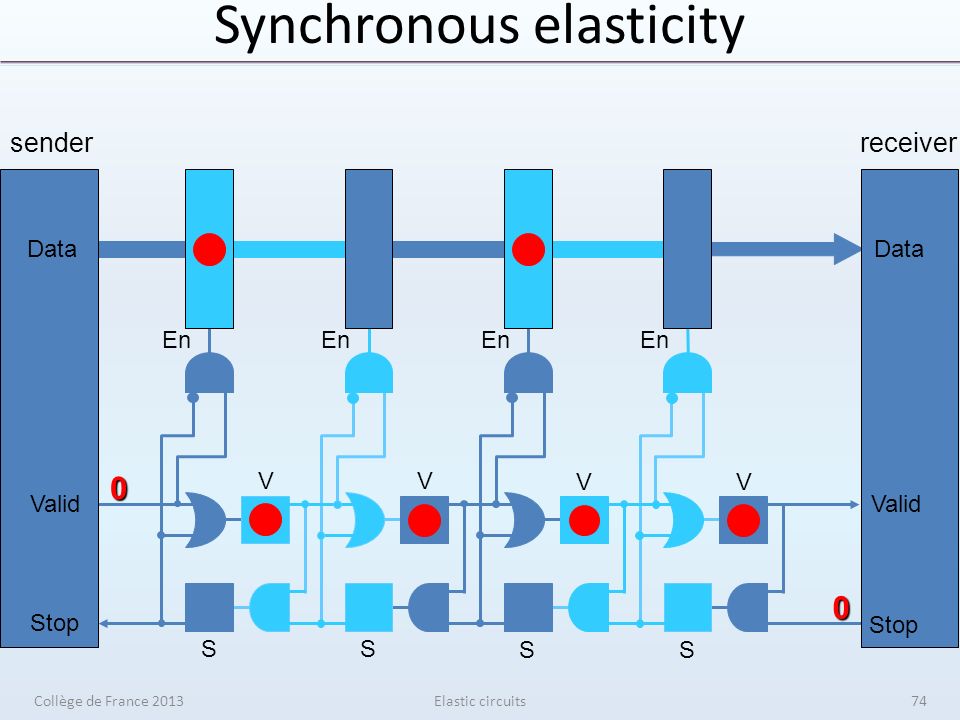

70 Synchronous elasticity Elastic circuits senderreceiver V V V V S S S S En Data Valid Stop Data Valid Stop 1 0 Collège de France

71 Synchronous elasticity Elastic circuits senderreceiver V V V V S S S S En Data Valid Stop Data Valid Stop 1 0 Collège de France

72 Synchronous elasticity Elastic circuits senderreceiver V V V V S S S S En Data Valid Stop Data Valid Stop 1 0 Collège de France

73 Synchronous elasticity Elastic circuits senderreceiver V V V V S S S S En Data Valid Stop Data Valid Stop 1 0 Collège de France

74 Synchronous elasticity Elastic circuits senderreceiver V V V V S S S S En Data Valid Stop Data Valid Stop 0 0 Collège de France

75 Synchronous elasticity Elastic circuits senderreceiver V V V V S S S S En Data Valid Stop Data Valid Stop 0 0 Collège de France

76 Synchronous elasticity Elastic circuits senderreceiver V V V V S S S S En Data Valid Stop Data Valid Stop 0 0 Collège de France

77 Synchronous elasticity Elastic circuits senderreceiver V V V V S S S S En Data Valid Stop Data Valid Stop 0 0 Collège de France

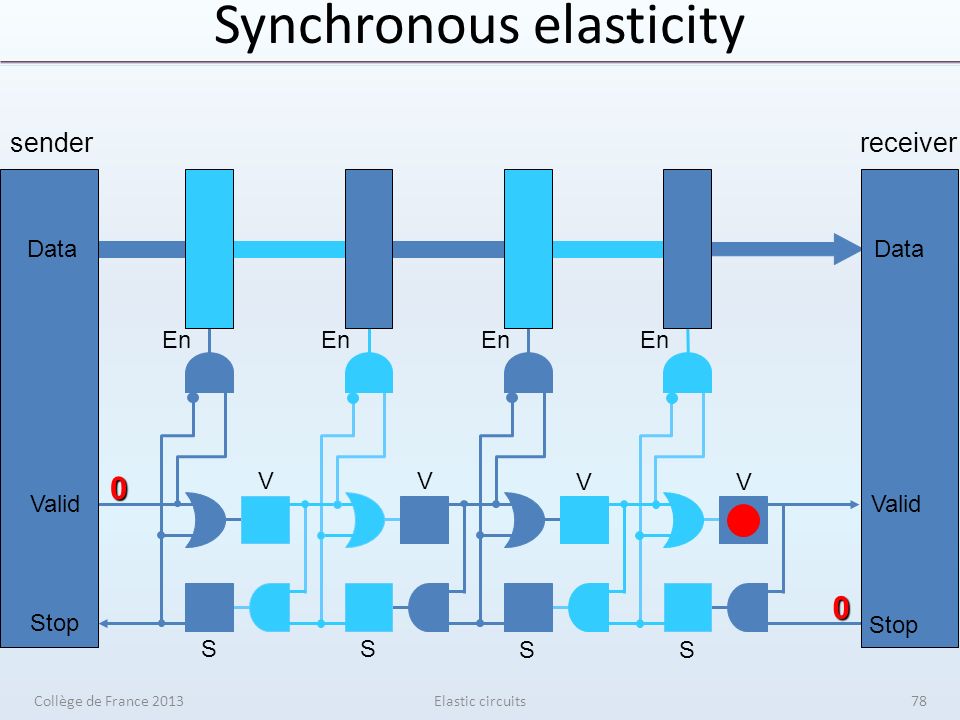

78 Synchronous elasticity Elastic circuits senderreceiver V V V V S S S S En Data Valid Stop Data Valid Stop 0 0 Collège de France

79 Synchronous elasticity Elastic circuits senderreceiver V V V V S S S S En Data Valid Stop Data Valid Stop 1 1 Collège de France

80 Synchronous elasticity Elastic circuits senderreceiver V V V V S S S S En Data Valid Stop 1 1 Data Valid Stop Collège de France

81 Synchronous elasticity Elastic circuits senderreceiver V V V V S S S S En Data Valid Stop 1 1 Data Valid Stop Collège de France

82 Synchronous elasticity Elastic circuits senderreceiver V V V V S S S S En Data Valid Stop 1 1 Data Valid Stop Collège de France

83 Synchronous elasticity Elastic circuits senderreceiver V V V V S S S S En Data Valid Stop 1 1 Data Valid Stop Collège de France

84 Synchronous elasticity Elastic circuits senderreceiver V V V V S S S S En Data Valid Stop 1 1 Data Valid Stop Collège de France

85 Synchronous elasticity Elastic circuits senderreceiver V V V V S S S S En Data Valid Stop 1 1 Data Valid Stop Collège de France

86 Synchronous elasticity Elastic circuits senderreceiver V V V V S S S S En Data Valid Stop 1 1 Data Valid Stop Collège de France

87 Synchronous elasticity Elastic circuits senderreceiver V V V V S S S S En Data Valid Stop 1 1 Data Valid Stop Collège de France

88 Synchronous elasticity Elastic circuits senderreceiver V V V V S S S S En Data Valid Stop 1 0 Data Valid Stop Collège de France

89 Synchronous elasticity Elastic circuits senderreceiver V V V V S S S S En 1 0 Data Valid Stop Data Valid Stop Collège de France

90 Synchronous elasticity Elastic circuits senderreceiver V V V V S S S S En 1 0 Data Valid Stop Data Valid Stop Collège de France

91 Synchronous elasticity Elastic circuits senderreceiver V V V V S S S S En 1 0 Data Valid Stop Data Valid Stop Collège de France

92 Synchronous elasticity Elastic circuits senderreceiver V V V V S S S S En 1 0 Data Valid Stop Data Valid Stop Collège de France

93 Synchronous elasticity Elastic circuits senderreceiver V V V V S S S S En Data Valid Stop Data Valid Stop 1 0 Collège de France

94 Synchronous elasticity Elastic circuits senderreceiver V V V V S S S S En Data Valid Stop Data Valid Stop 1 0 Collège de France

95 Synchronous elasticity Elastic circuits senderreceiver V V V V S S S S En Data Valid Stop Data Valid Stop 1 0 Collège de France

96 Basic VS block SiSiSiSi En i ViViViVi S i-1 V i-1 VSVS SiSiSiSi En i ViViViVi S i-1 V i-1 Elastic circuitsCollège de France

97 Elastic netlistsVS Fork Join Join / Fork Enable signal to data latches Elastic circuits VS VS VS VSVS VSVS VSVS VSVS Collège de France

98 JoinVSVS + V1V1 V2V2 S1S1 S2S2 V S VS VSVS VSVS Elastic circuitsCollège de France

99 Lazy Fork V1V1 V2V2 S1S1 S2S2 V S Elastic circuitsCollège de France

100 Eager Fork Elastic circuits V1V1 V2V2 S1S1 S2S2 ^ ^ V S Collège de France

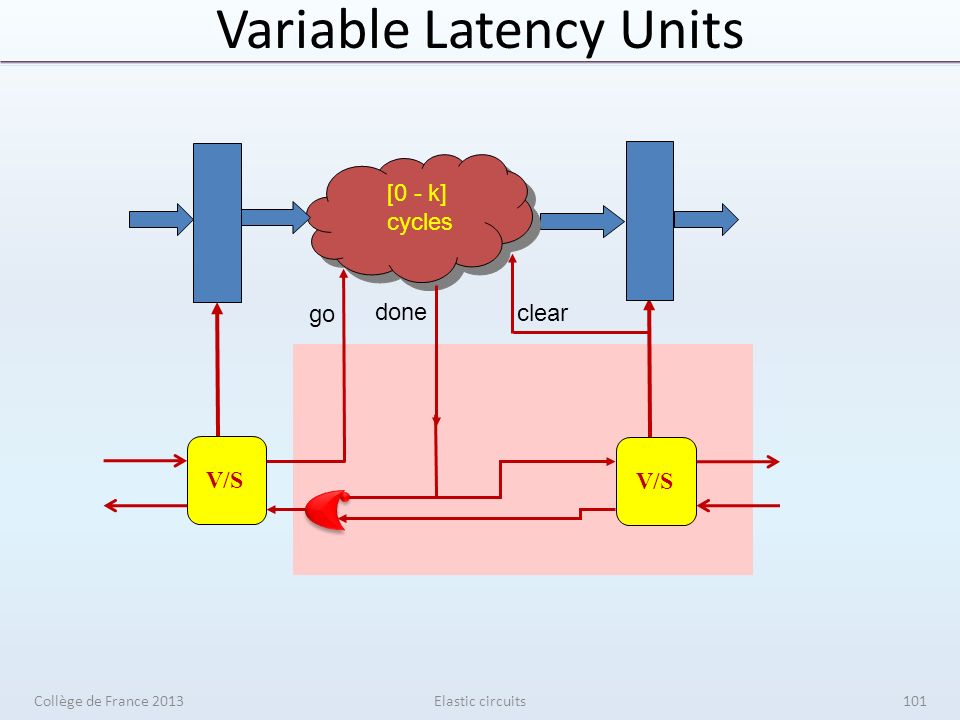

101 Variable Latency Units Elastic circuits [0 - k] cycles done go clear V/S Collège de France

102 Design automation

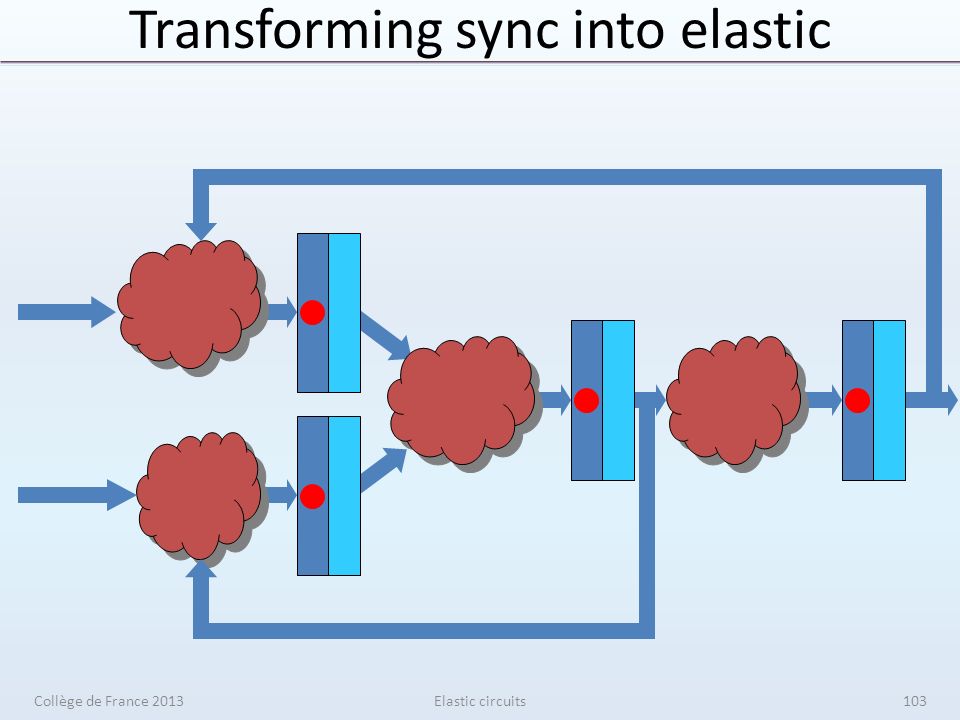

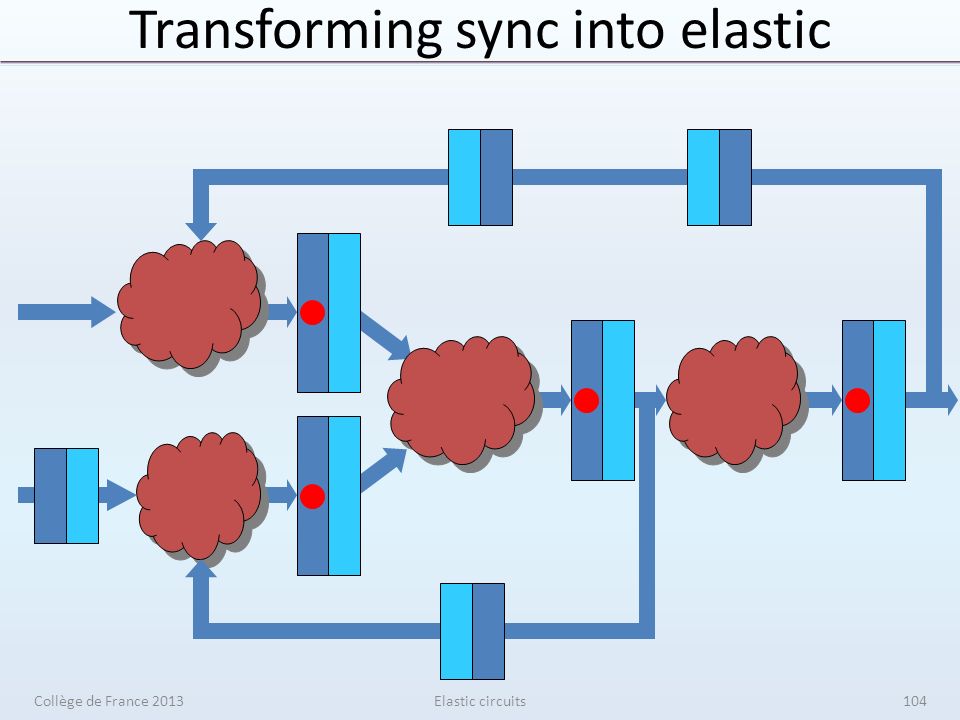

103 Transforming sync into elastic Elastic circuitsCollège de France

104 Transforming sync into elastic Elastic circuitsCollège de France

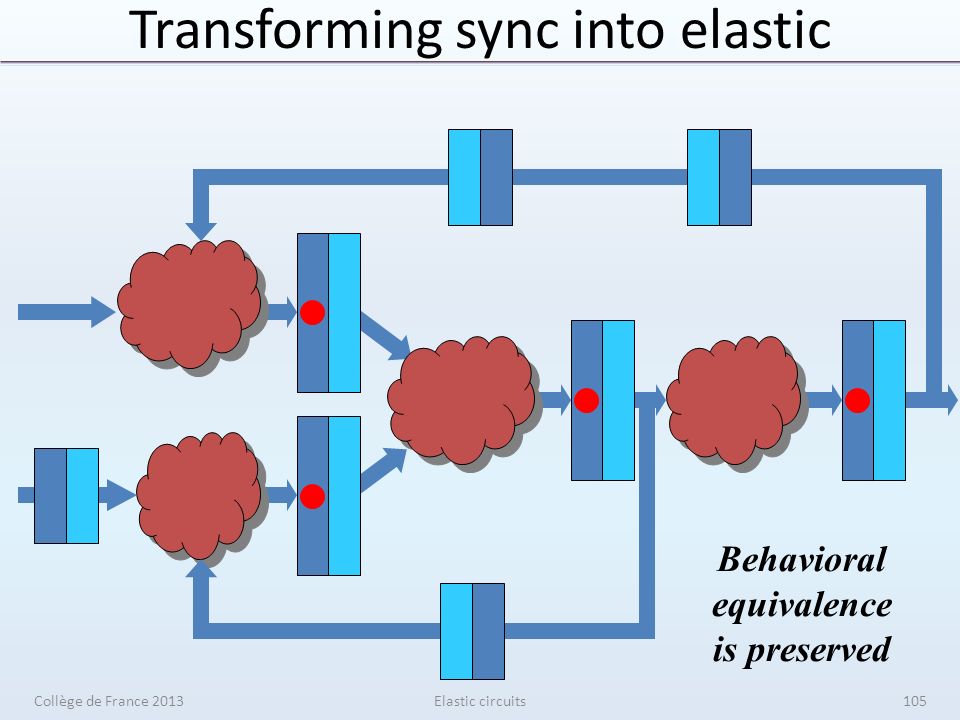

105 Transforming sync into elastic Elastic circuits Behavioral equivalence is preserved Collège de France

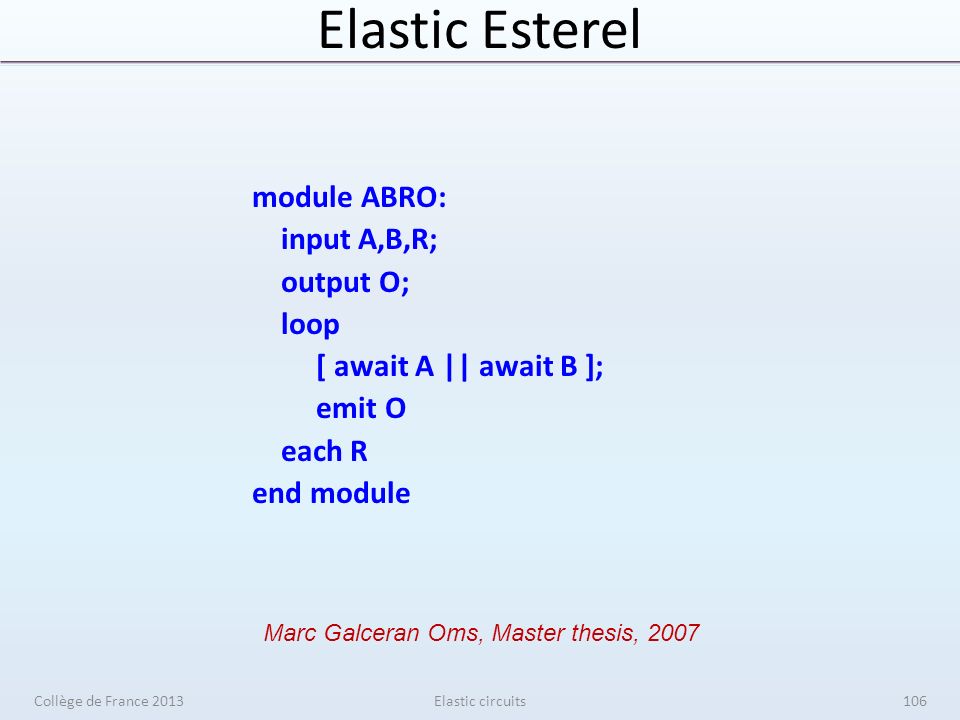

106 Elastic Esterel module ABRO: input A,B,R; output O; loop [ await A || await B ]; emit O each R end module Elastic circuitsCollège de France 2013 Marc Galceran Oms, Master thesis,

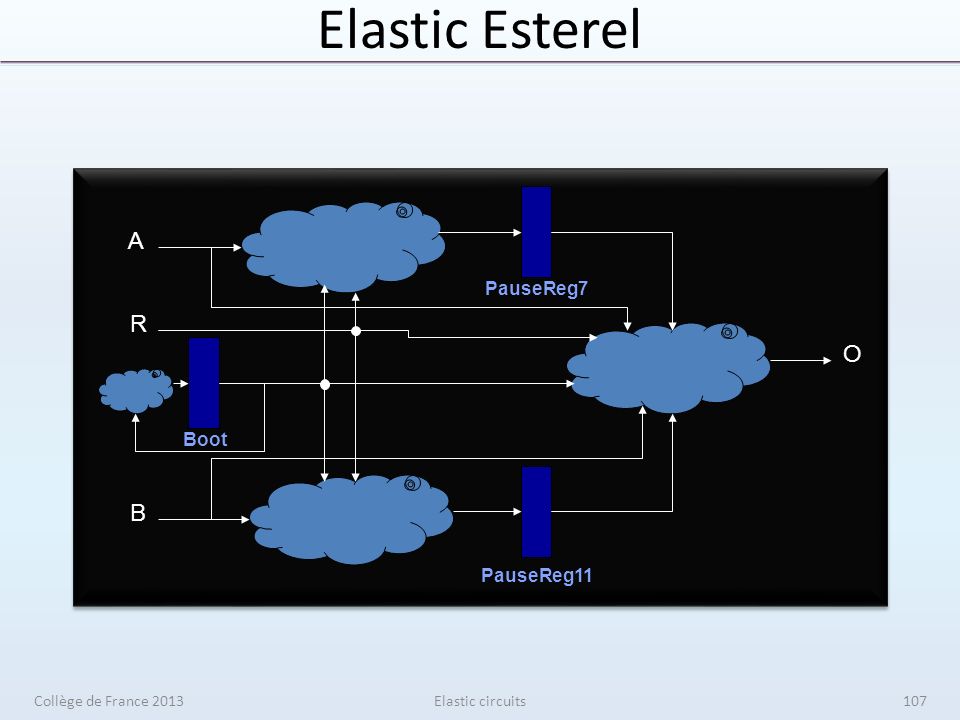

107 Elastic Esterel A B R O Boot PauseReg7 PauseReg11 Elastic circuitsCollège de France

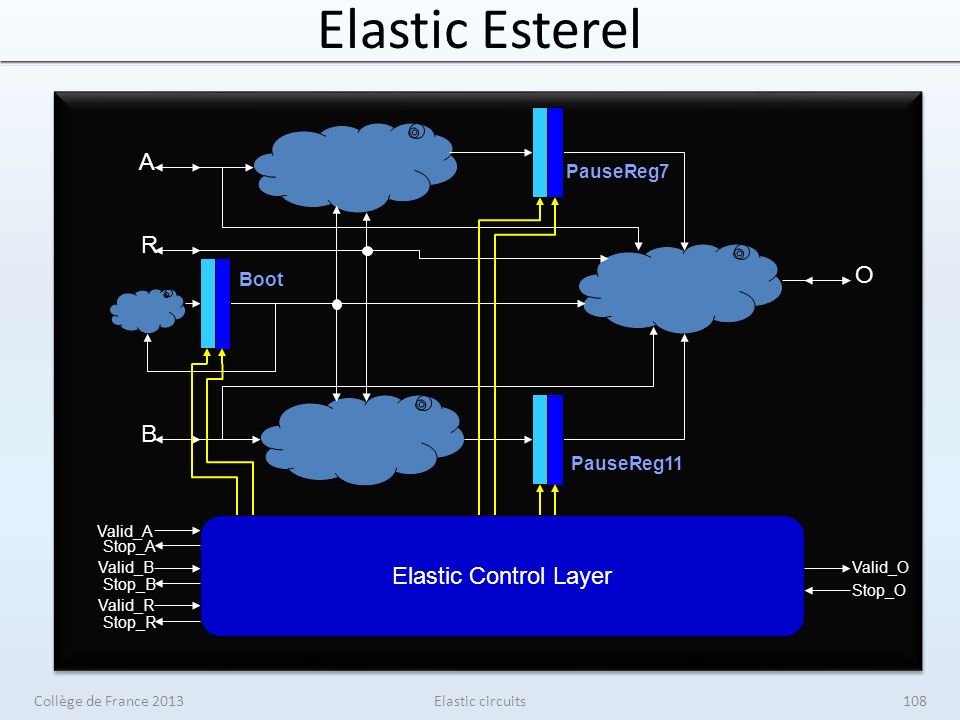

108 Elastic Esterel A B R O Elastic Control Layer Valid_A Stop_A Valid_B Stop_B Valid_R Stop_R Valid_O Stop_O Boot PauseReg7 PauseReg11 Elastic circuitsCollège de France

109 Circuit vs. μarchitectural cycles Elastic circuitsCollège de France

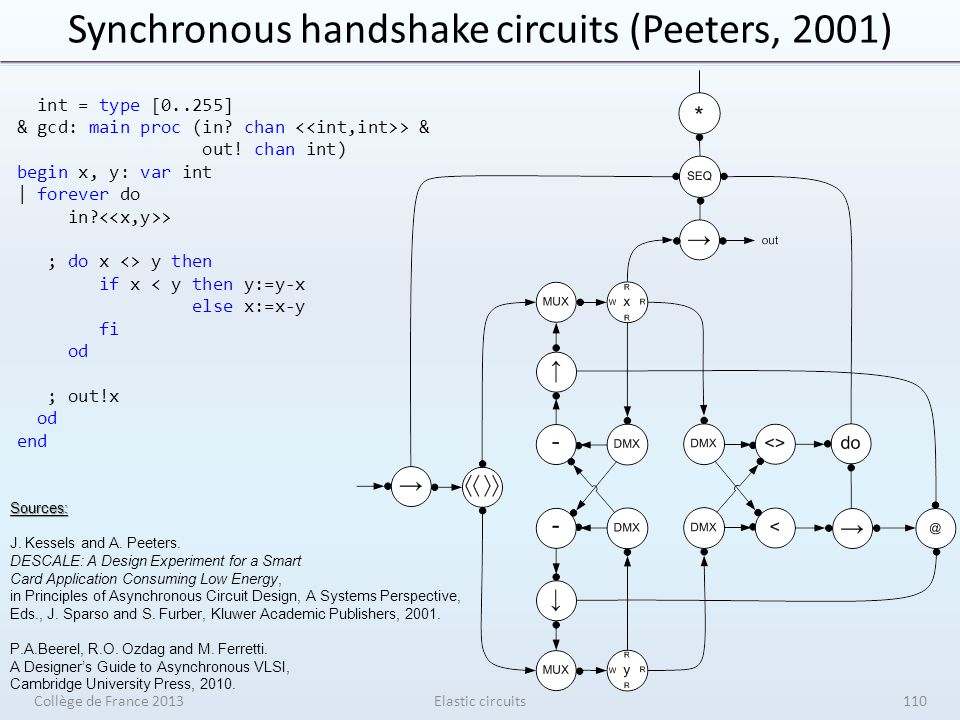

110 Synchronous handshake circuits (Peeters, 2001) Collège de France 2013Elastic circuits int = type [0..255] & gcd: main proc (in? chan > & out! chan int) begin x, y: var int | forever do in? > ; do x <> y then if x < y then y:=y-x else x:=x-y fi od ; out!x od end Sources: J. Kessels and A. Peeters. DESCALE: A Design Experiment for a Smart Card Application Consuming Low Energy, in Principles of Asynchronous Circuit Design, A Systems Perspective, Eds., J. Sparso and S. Furber, Kluwer Academic Publishers, P.A.Beerel, R.O. Ozdag and M. Ferretti. A Designers Guide to Asynchronous VLSI, Cambridge University Press,

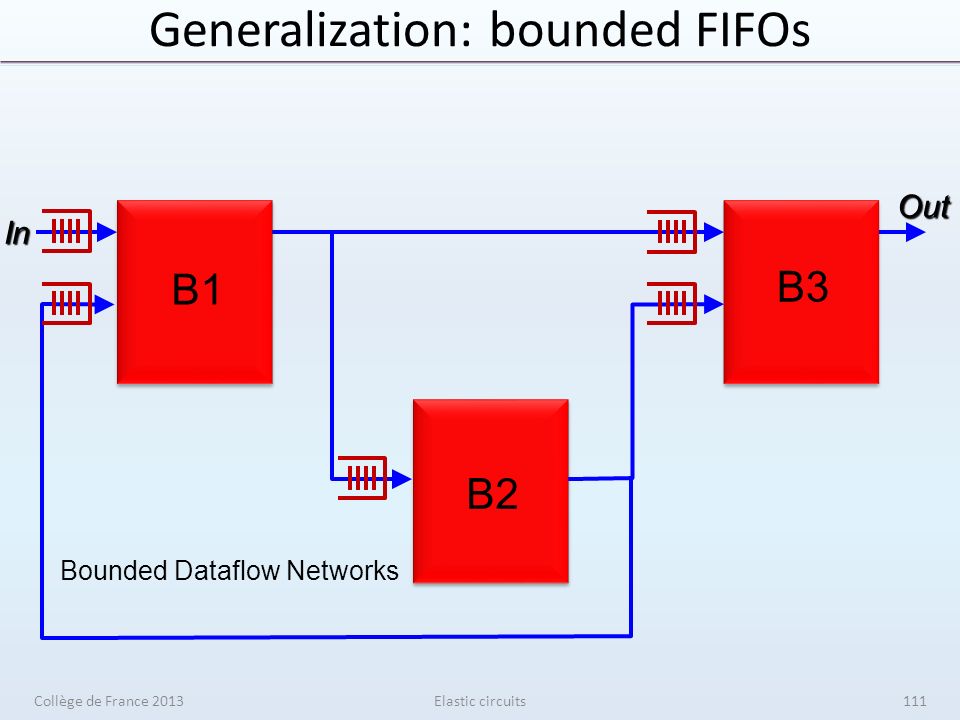

111 Generalization: bounded FIFOsIn Out B1 B3 B2 Bounded Dataflow Networks Elastic circuitsCollège de France

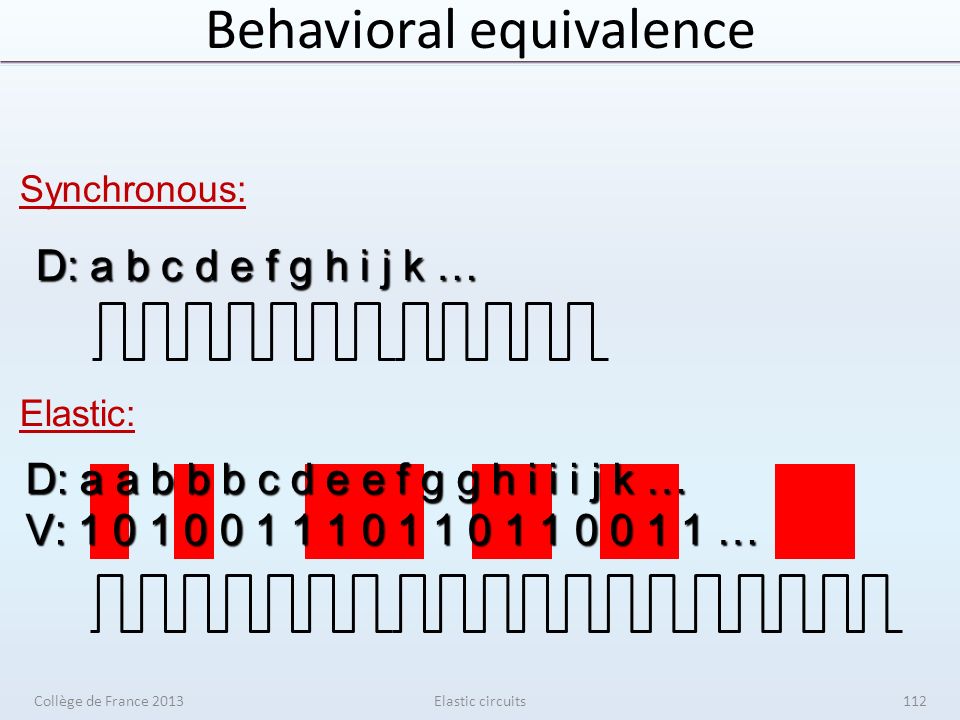

112 Behavioral equivalence Elastic circuits D: a b c d e f g h i j k … Synchronous: Elastic: D: a a b b b c d e e f g g h i i i j k … D: a a b b b c d e e f g g h i i i j k … V: … V: … Collège de France

113 Early evaluation

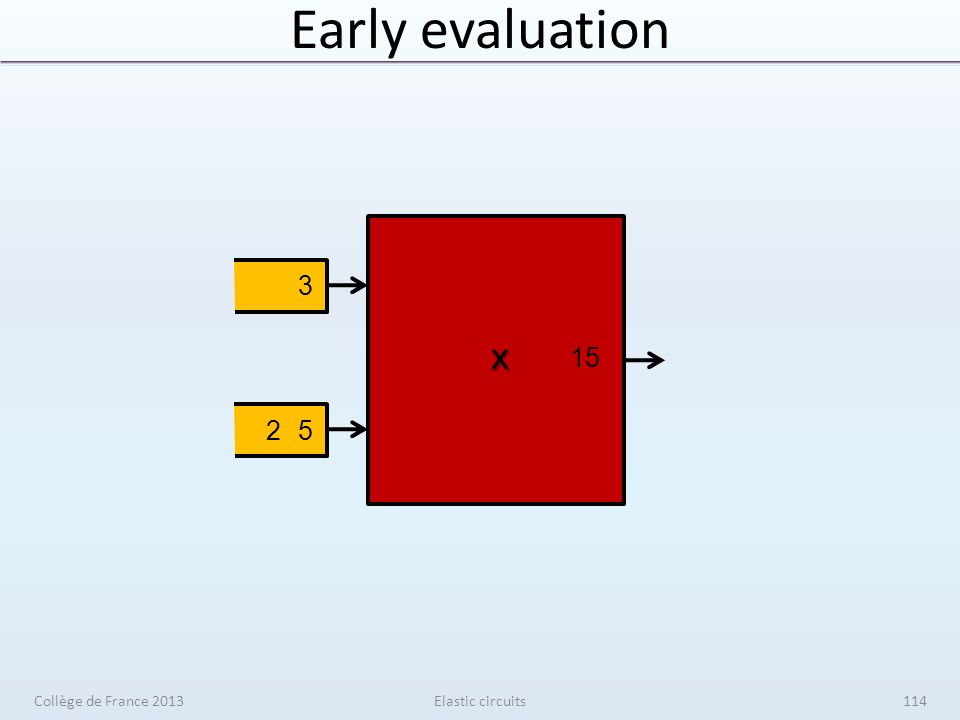

114 52 3 x 15 Elastic circuitsCollège de France

115 Early evaluation 2 3 x 6 Elastic circuitsCollège de France

116 Early evaluation 0 x 0 8 Elastic circuitsCollège de France

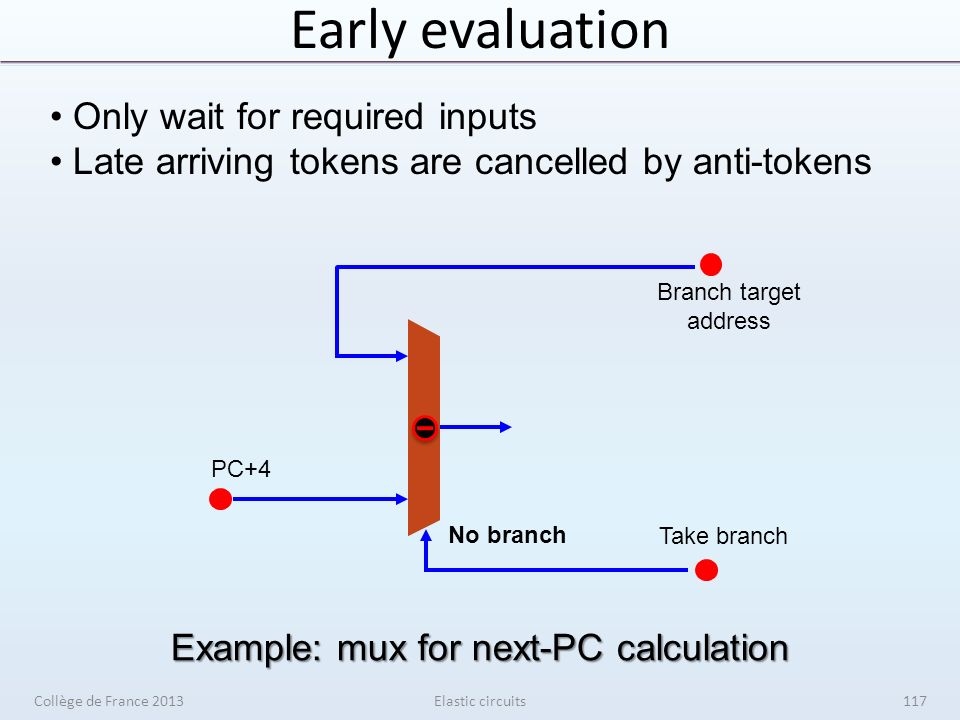

117 PC+4 Branch target address Example: mux for next-PC calculation Take branch Only wait for required inputs Late arriving tokens are cancelled by anti-tokens No branch Early evaluation Collège de France 2013Elastic circuits117

118 How to implement anti-tokens ? Valid + Valid – Valid + Stop + Valid – Stop – + - Elastic circuitsCollège de France

119 Dual elastic controllers S + V + V - S - S + V + V - S - En Elastic circuitsCollège de France

120 Fork/join Dual fork/joinJoin with early evaluation Elastic circuitsCollège de France

121 Re-designing for average performanceFF Early evaluation slow / fast F slow F fast Elastic circuitsCollège de France

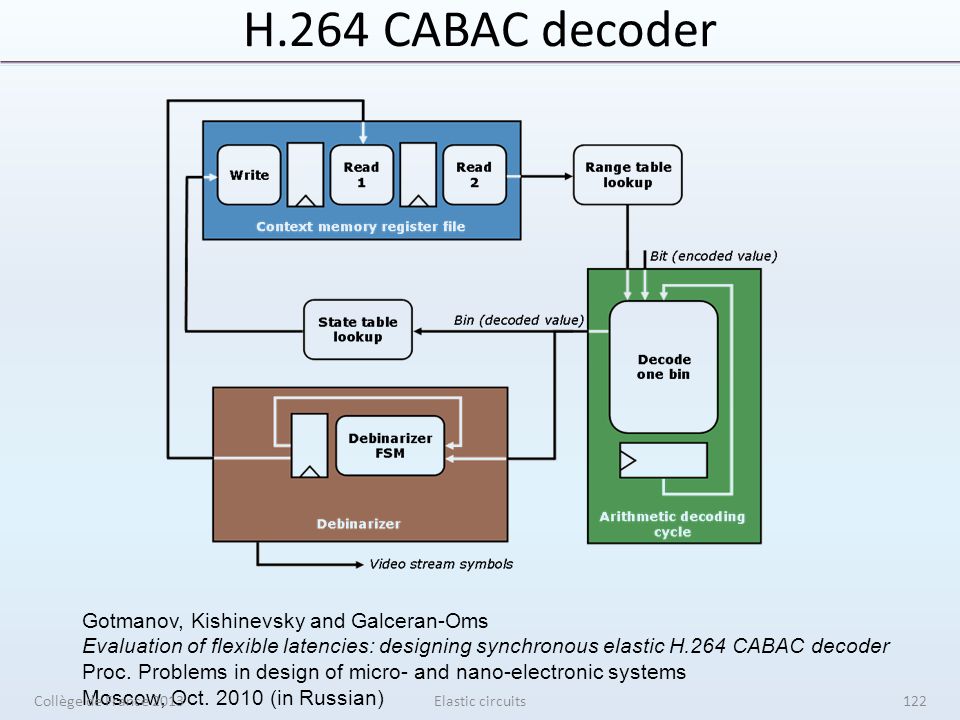

122 H.264 CABAC decoder Gotmanov, Kishinevsky and Galceran-Oms Evaluation of flexible latencies: designing synchronous elastic H.264 CABAC decoder Proc. Problems in design of micro- and nano-electronic systems Moscow, Oct (in Russian) Collège de France 2013Elastic circuits122

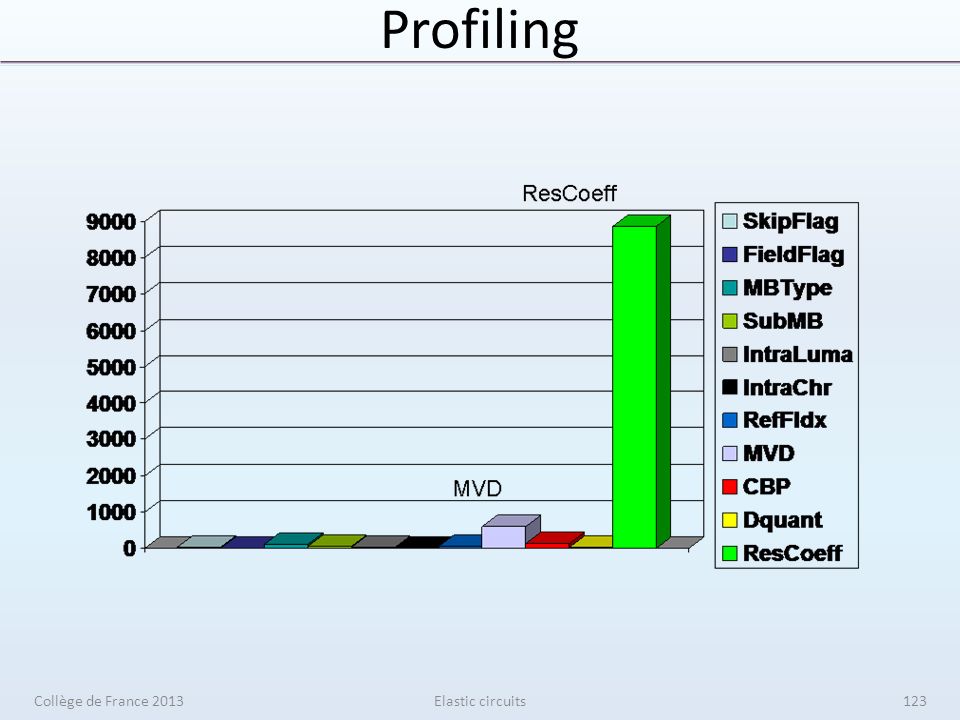

123 Profiling Collège de France 2013Elastic circuits123

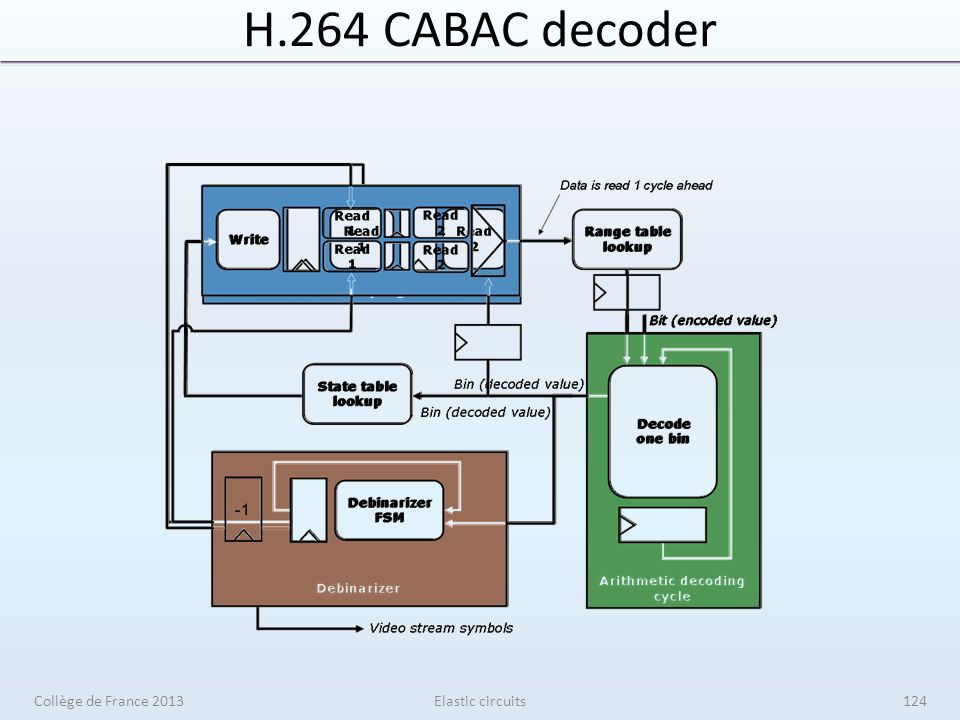

124 H.264 CABAC decoder Collège de France 2013Elastic circuits124

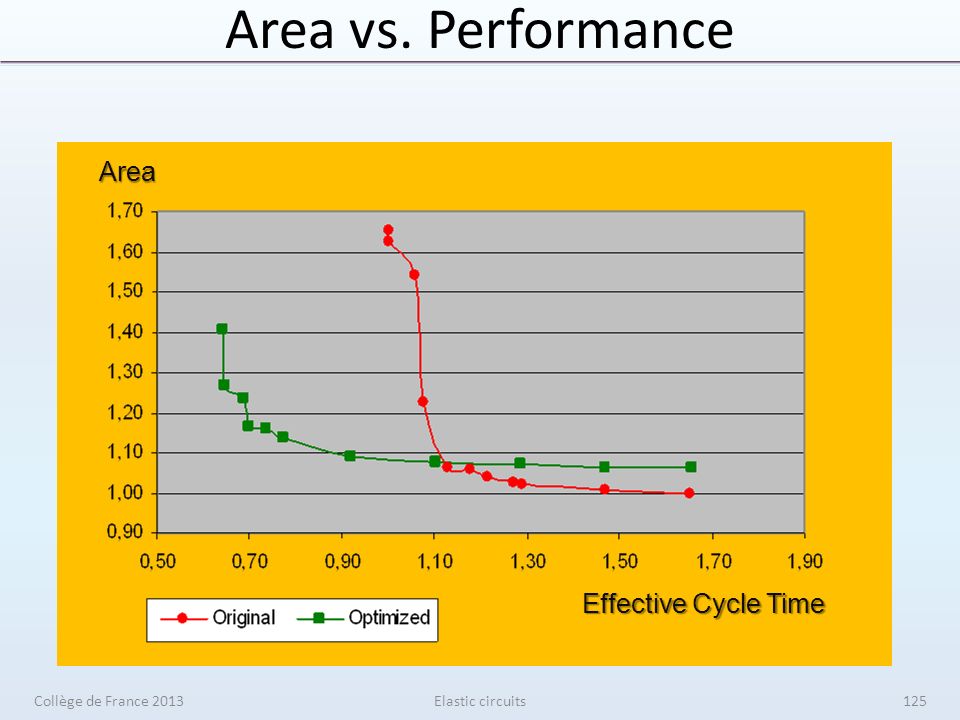

125 Area vs. PerformanceArea Effective Cycle Time Collège de France 2013Elastic circuits125

126 Conclusions Rigid systems preserve timing equivalence (data always valid at every cycle) Elastic systems waive timing equivalence to enable more concurrency (bubbles decrease throughput, but reduce cycle time) A new avenue of performance optimizations can emerge to build correct-by-construction pipelines ΘΘΘΘ Elastic circuitsCollège de France

127 Unifying sync/async elasticity J. Carmona, J. Cortadella, M. Kishinevsky and A. Taubin, Elastic Circuits, IEEE Trans. On CAD, Oct Collège de France 2013Elastic circuits127

128 Collège de France 2013Elastic circuits128
