1 Automation and Drives D410 S imotion

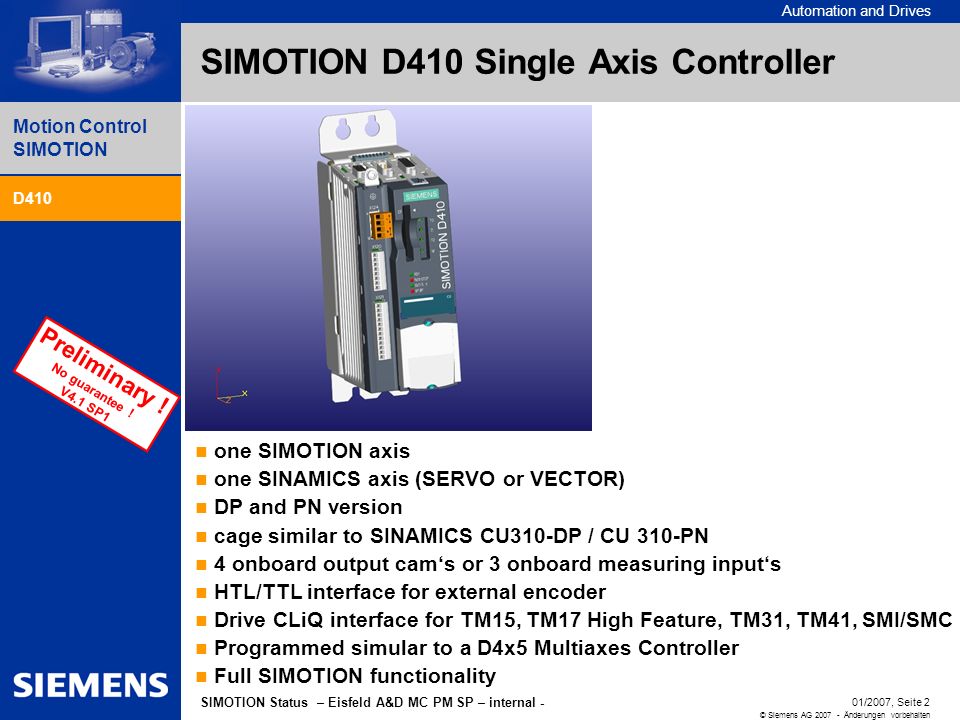

2 Automation and Drives Motion Control SIMOTION D410 SIMOTION Perspective V2.5/V /2007, Seite 2 © Siemens AG Änderungen vorbehalten SIMOTION Status – Eisfeld A&D MC PM SP – internal - SIMOTION D410 Single Axis Controller one SIMOTION axis one SINAMICS axis (SERVO or VECTOR) DP and PN version cage similar to SINAMICS CU310-DP / CU 310-PN 4 onboard output cams or 3 onboard measuring inputs HTL/TTL interface for external encoder Drive CLiQ interface for TM15, TM17 High Feature, TM31, TM41, SMI/SMC Programmed simular to a D4x5 Multiaxes Controller Full SIMOTION functionality Preliminary ! No guarantee ! V4.1 SP1 D410

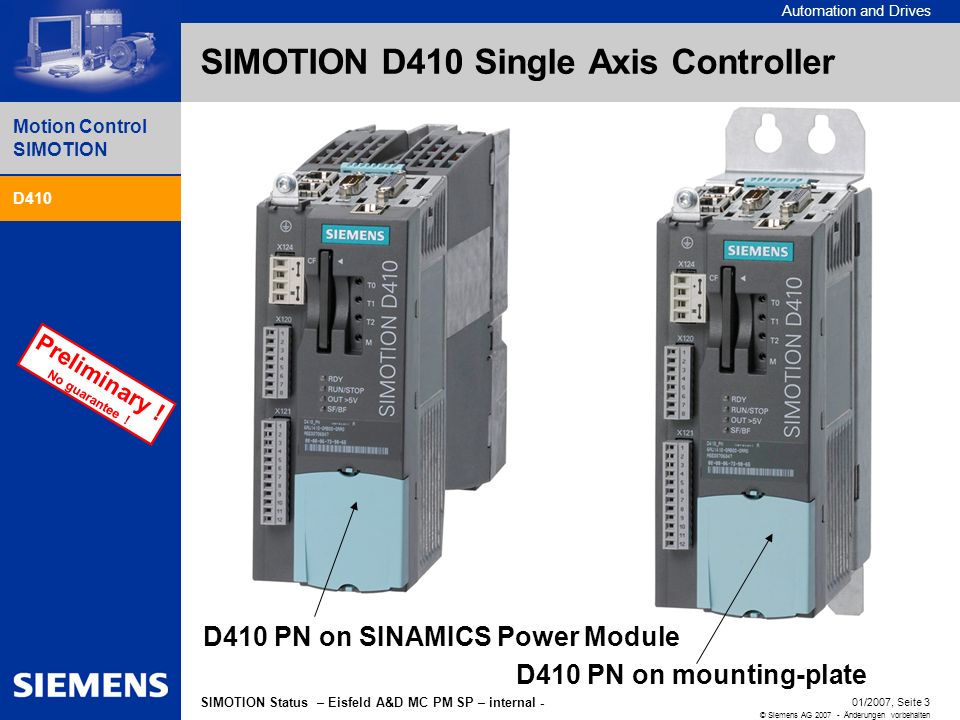

3 Automation and Drives Motion Control SIMOTION D410 SIMOTION Perspective V2.5/V /2007, Seite 3 © Siemens AG Änderungen vorbehalten SIMOTION Status – Eisfeld A&D MC PM SP – internal - Preliminary ! No guarantee ! SIMOTION D410 Single Axis Controller D410 D410 PN on mounting-plate D410 PN on SINAMICS Power Module

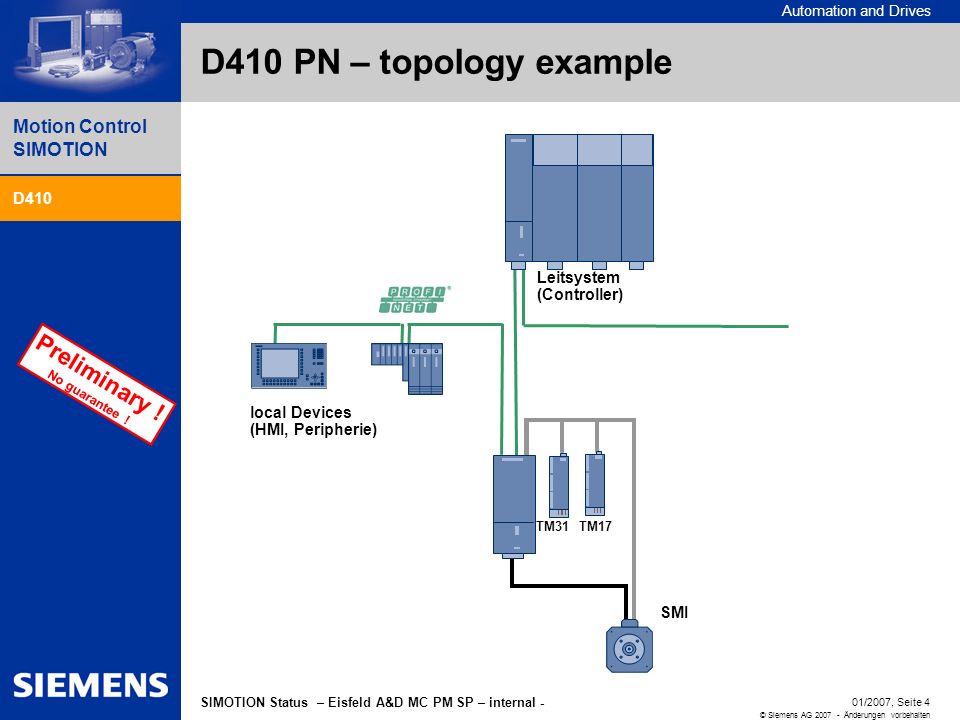

4 Automation and Drives Motion Control SIMOTION D410 SIMOTION Perspective V2.5/V /2007, Seite 4 © Siemens AG Änderungen vorbehalten SIMOTION Status – Eisfeld A&D MC PM SP – internal - D410 PN – topology example SMI TM31 TM17 D410 local Devices (HMI, Peripherie) Leitsystem (Controller) D410 Preliminary ! No guarantee !

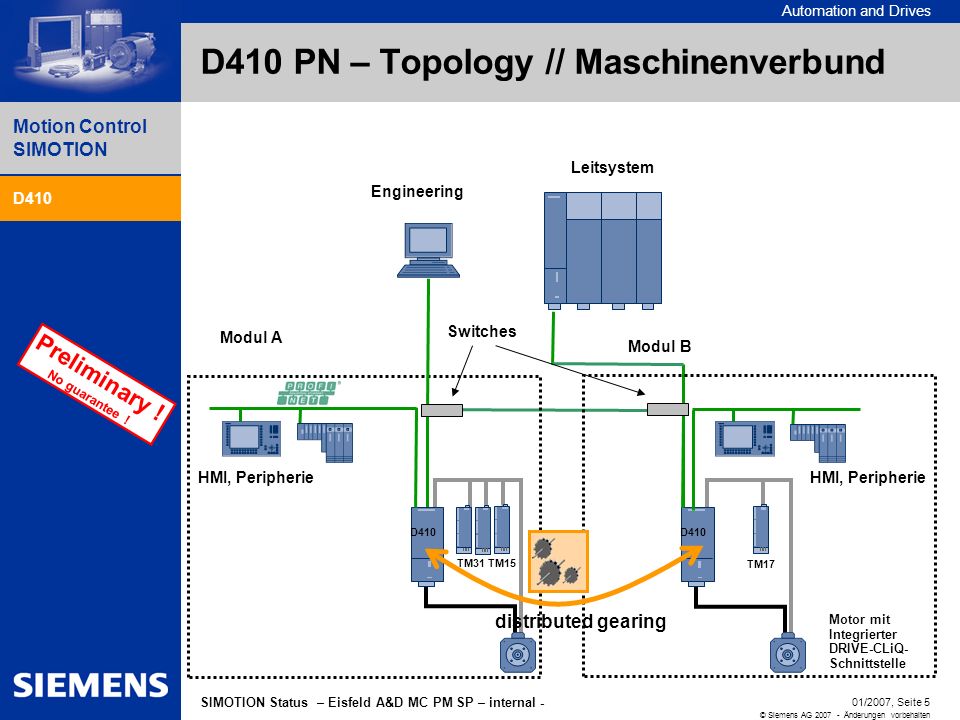

5 Automation and Drives Motion Control SIMOTION D410 SIMOTION Perspective V2.5/V /2007, Seite 5 © Siemens AG Änderungen vorbehalten SIMOTION Status – Eisfeld A&D MC PM SP – internal - D410 PN – Topology // Maschinenverbund TM31 TM15 D410 Motor mit Integrierter DRIVE-CLiQ- Schnittstelle TM17 D410 HMI, Peripherie Modul A Modul B Leitsystem Engineering Switches D410 distributed gearing Preliminary ! No guarantee !

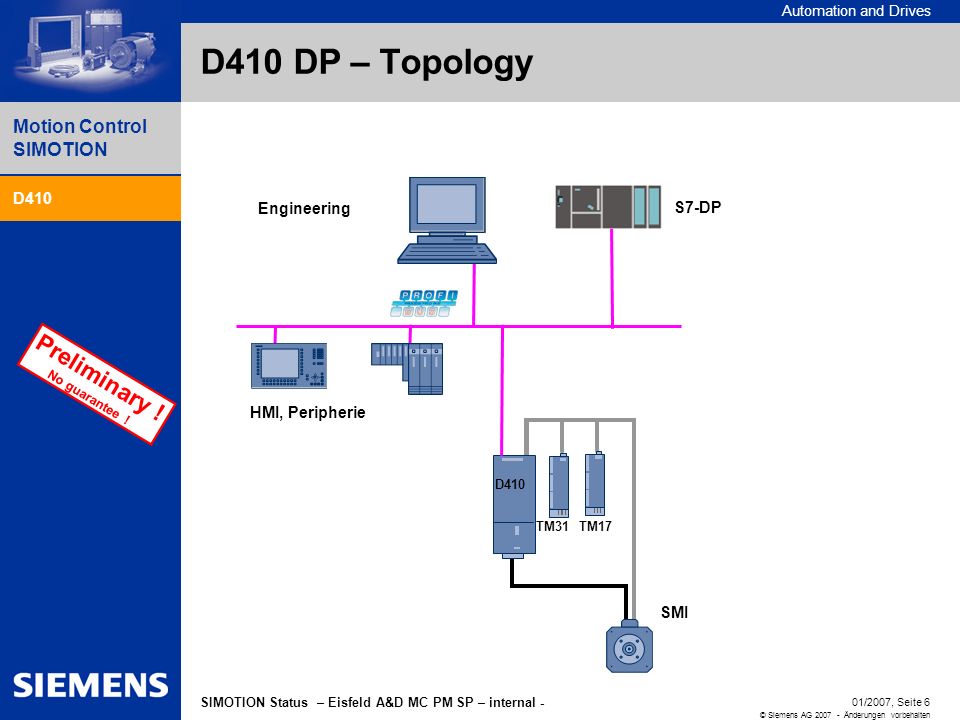

6 Automation and Drives Motion Control SIMOTION D410 SIMOTION Perspective V2.5/V /2007, Seite 6 © Siemens AG Änderungen vorbehalten SIMOTION Status – Eisfeld A&D MC PM SP – internal - D410 DP – Topology SMI TM31 TM17 D410 Engineering HMI, Peripherie S7-DP D410 Preliminary ! No guarantee !

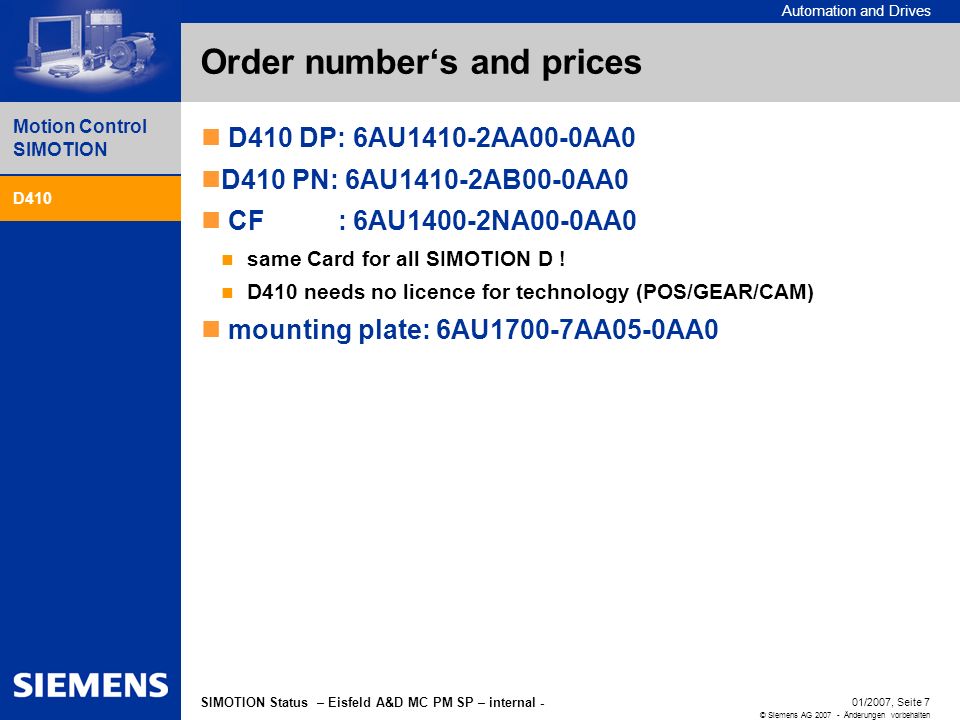

7 Automation and Drives Motion Control SIMOTION D410 SIMOTION Perspective V2.5/V /2007, Seite 7 © Siemens AG Änderungen vorbehalten SIMOTION Status – Eisfeld A&D MC PM SP – internal - Order numbers and prices D410 DP: 6AU1410-2AA00-0AA0 D410 PN: 6AU1410-2AB00-0AA0 CF : 6AU1400-2NA00-0AA0 same Card for all SIMOTION D ! D410 needs no licence for technology (POS/GEAR/CAM) mounting plate: 6AU1700-7AA05-0AA0 D410

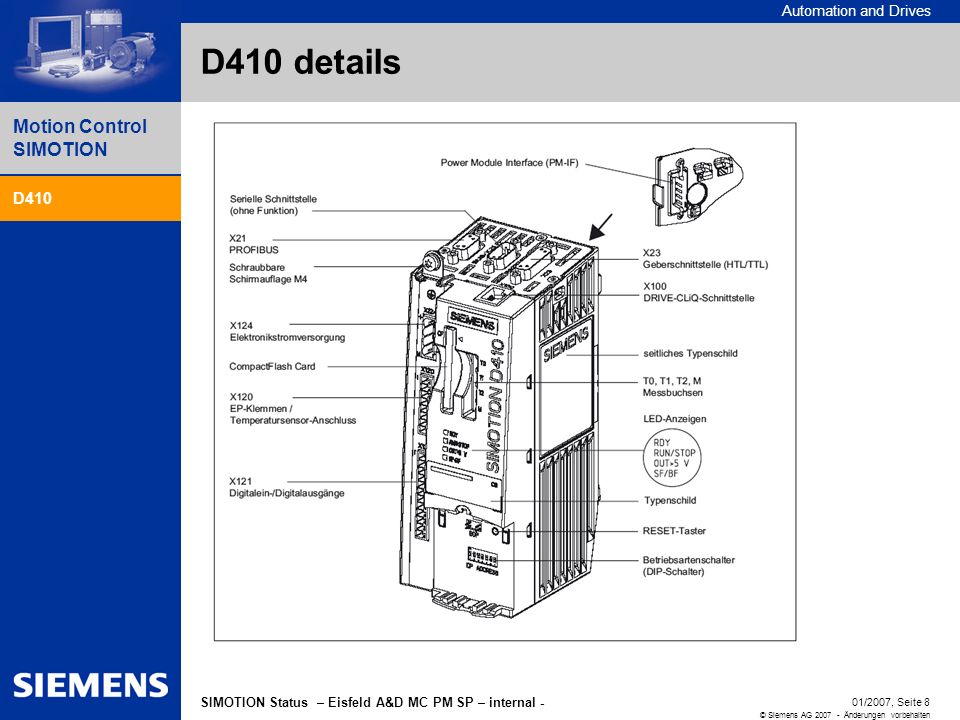

8 Automation and Drives Motion Control SIMOTION D410 SIMOTION Perspective V2.5/V /2007, Seite 8 © Siemens AG Änderungen vorbehalten SIMOTION Status – Eisfeld A&D MC PM SP – internal - D410 details D410

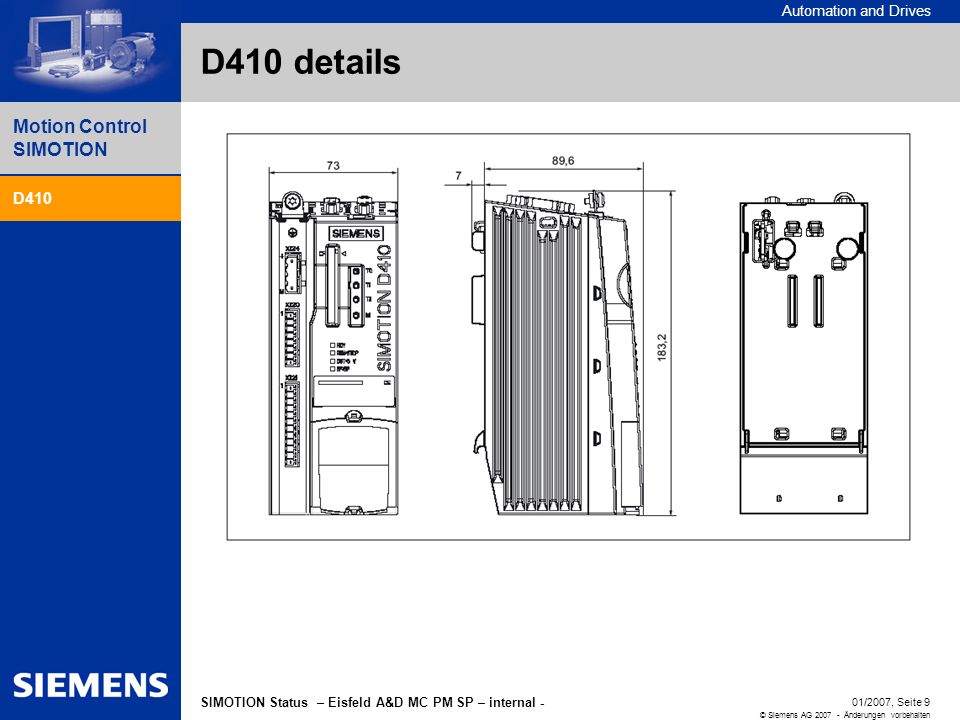

9 Automation and Drives Motion Control SIMOTION D410 SIMOTION Perspective V2.5/V /2007, Seite 9 © Siemens AG Änderungen vorbehalten SIMOTION Status – Eisfeld A&D MC PM SP – internal - D410 details D410
