1. Science Standard 1a: Biogeochemical Cycles/ Nutrient Cycles Ch. 5 Sec. 2

2. Vocabulary Biogeochemical Cycles Water Cycle carbon sinks Phosphorus Cycle Carbon Cycle fossil fuels Respiration Photosynthesis carbonates combustion

3. Earth Photo Matter is recycled within and between ecosystems.

4. Biogeochemical cycles  Biogeochemical Cycles, or Nutrient cycles, is how elements, chemical compounds, and other forms of matter are passed from one organism to another and from one part of the biosphere to another.

5. Biogeochemical cycles  Types of Biogeochemical Cycles: Hydrologic- ex water cycle Hydrologic- ex water cycle Atmospheric- ex carbon cycle and nitrogen cycle Atmospheric- ex carbon cycle and nitrogen cycle Sedimentary – ex phosphorus cycle Sedimentary – ex phosphorus cycle

6. The Water Cycle

7. The Carbon Cycle

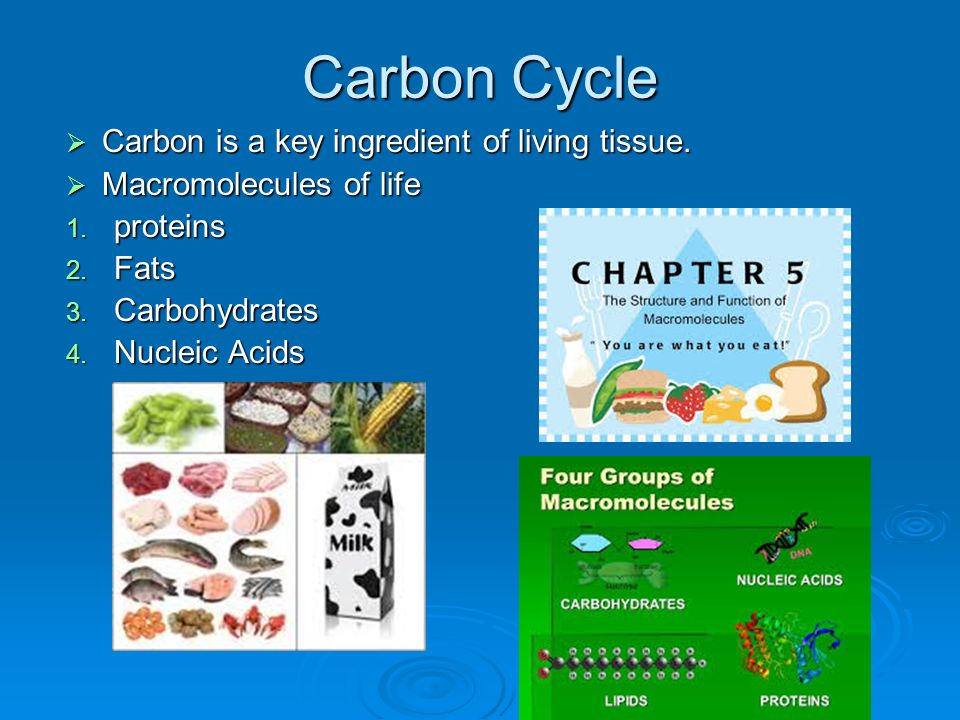

8. Carbon Cycle  Carbon is a key ingredient of living tissue.  Macromolecules of life 1. proteins 2. Fats 3. Carbohydrates 4. Nucleic Acids

9. Carbon Cycle  Short term cycle  In the atmosphere = carbon dioxide gas, CO2.  released into the atmosphere by volcanic activity volcanic activity respiration respiration human activities human activities the decomposition of organic matter the decomposition of organic matter

10. Carbon Cycle  Plants take in carbon dioxide and use the carbon to build carbohydrates during photosynthesis.  The carbohydrates are passed along food webs to animals and other consumers.

11. Carbon Cycle  In the ocean, carbon is also found, along with calcium and oxygen = calcium carbonate,  formed by many marine organisms (bones & shells)

12. Carbon Cycle  Carbonates = limestone rocks  Carbon sink = carbon reservoirs (absorbs more than it releases)

13. Carbon Cycle  Fossil Fuels =  Fossil Fuels = deposits of coal, oil and natural gas found underground  decomposition  Made of dead organisms that died millions of years ago (decomposition)

14. Human Effect Carbon Cycle  Burning fossil fuels  Burning fossil fuels - releases CO 2 in the atmosphere Cars, factories and power plants 6 billion metric tons released

15. Human Effect Carbon Cycle  Burning fossil fuels Causes an increase in CO2 in the atmosphere leading to Global warming

16. 1.Which process releases carbon into the atmosphere? 2. Which process removes carbon from the land? Respiration, Volcanic Activity, Evaporation of water, Human Activity Human activity, Uplift, Volcanic activity

17. Carbon Cycle

18. The Phosphorous Cycle

19.   Phosphorus is necessary for nucleic acids, fats, cell membranes, bones, teeth and shells   There is very little phosphorus in the atmosphere, and most phosphorus is stored in rocks and ocean sediments.   This phosphorus is slowly released into water and soil and then used by organisms   Phosphorus is a key part of DNA and RNA.

20. The Nitrogen Cycle

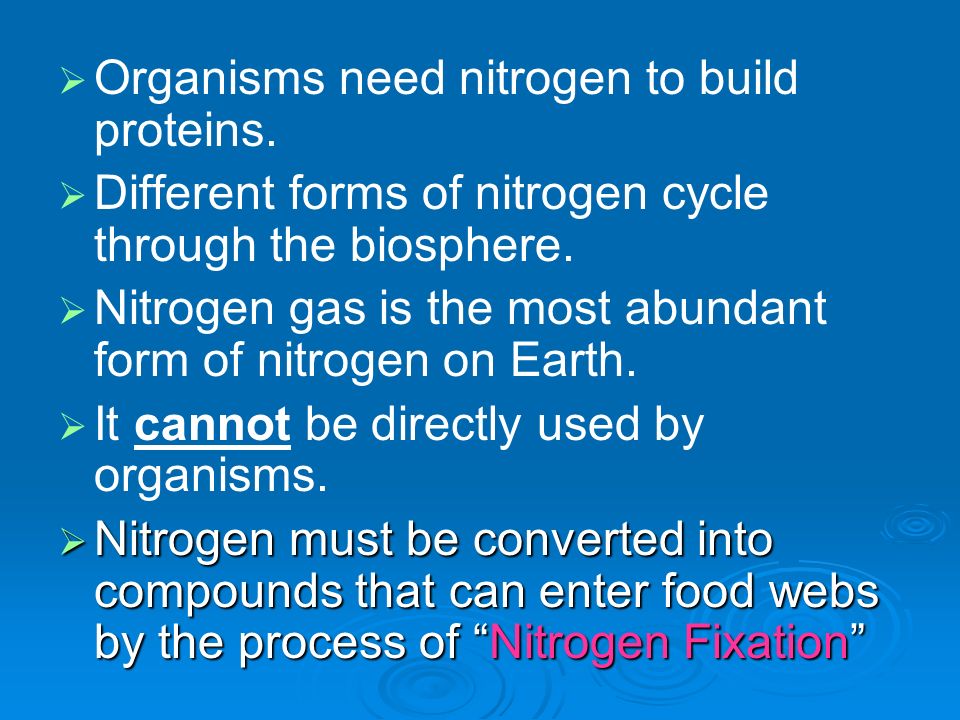

21.   Organisms need nitrogen to build proteins.   Different forms of nitrogen cycle through the biosphere.   Nitrogen gas is the most abundant form of nitrogen on Earth.   It cannot be directly used by organisms.  Nitrogen must be converted into compounds that can enter food webs by the process of “Nitrogen Fixation”

22. Nitrogen Fixation  How do we get the Nitrogen we need? Nitrogen Fixation.  Specialized bacteria convert N 2 from the atmosphere to ammonia (NH 3 ) for the plants to use.  Plants will use to the ammonia to make nitrogen-containing organic molecules  Animals get nitrogen by eating plants or plant-eating animals

24. Denitrification  How is Nitrogen returned to the soil? Denitrification.  When organisms die, decomposers return nitrogen to the soil. Other bacteria change nitrogen compounds called nitrates back into nitrogen gas.  This process is called denitrification.
