1. Introduction to portlet development Carla Carrubba (carla.carrubba@ct.infn.it) INFN Dpt. Of Catania Giuseppina Inserra (giuseppina.inserra@ct.infn.it) INFN Dpt. Of Cataniacarla.carrubba@ct.infn.itgiuseppina.inserra@ct.infn.it Web course on the development of applications for Catania Science Gateways, 16 July 2013

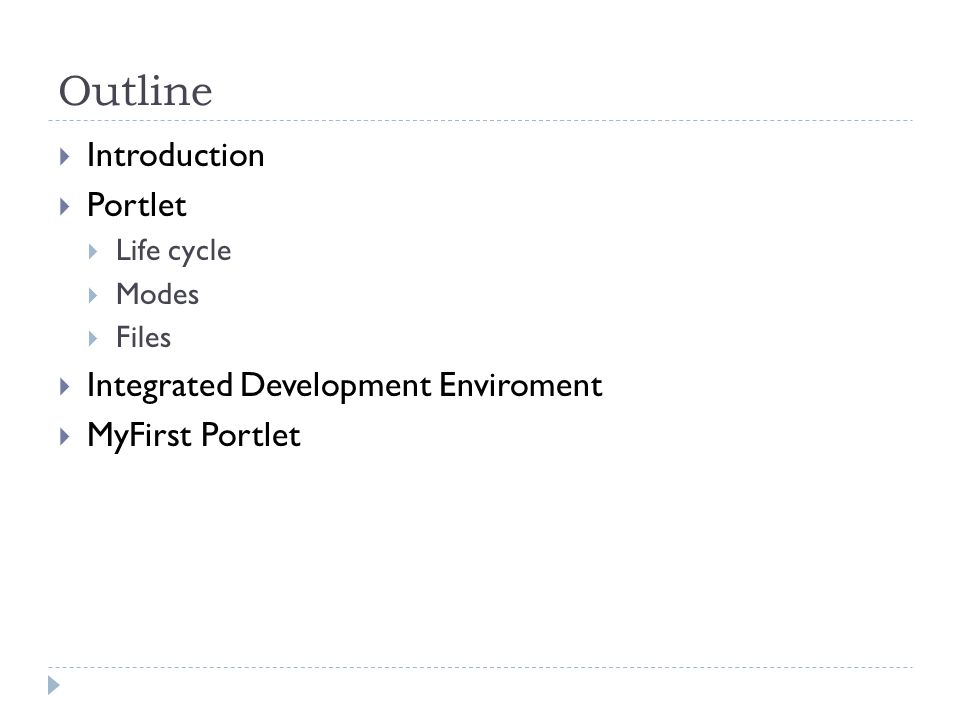

2. Outline  Introduction  Portlet  Life cycle  Modes  Files  Integrated Development Enviroment  MyFirst Portlet

3. Introduction  What is a portlet?  Portlet is pluggable user interface software component that is managed and displayed in a web portal.  Portlet applications, have become a Java standard: the JSR-168 standard defines the Portlet 1.0 specification, and the JSR-286 standard defines the Portlet 2.0 specification.  JSR-168/286 standard portlets should be deployable on any portlet container.

4. Introduction  Where use a portlet?  In a portlet container. We have chosen the award winning Liferay portal framework which offers a rich, easy-to- use "web 2.0" interface using AJAX and other presentation layer technologies.  Liferay (www.liferay.com): is a portal framework designed to be a single web-based environment from which all of a user’s applications can run, and these applications are integrated together in a consistent and systematic way.www.liferay.com

5. Introduction  Why use a portlet? Sc. Gtwy E Sc. Gtwy DSc. Gtwy CSc. Gtwy B Sc. Gtwy A Portlet Portlets

6. Portlet: Life Cycle

7. Class GenericPortlets { init (PortletConfig); processAction (ActionRequest, ActionResponse); render (RenderRequest, RenderResponse); destroy(); doView (Request, Response); doEdit (Request, Response); doHelp (Request, Response); }

8. Portlet Modes  A portlet works in three different states: View Mode: generates a markup ( a portion of a web page) Edit Mode: allows portlet customisation and setting preferences Help Mode: explains portlet functionalities

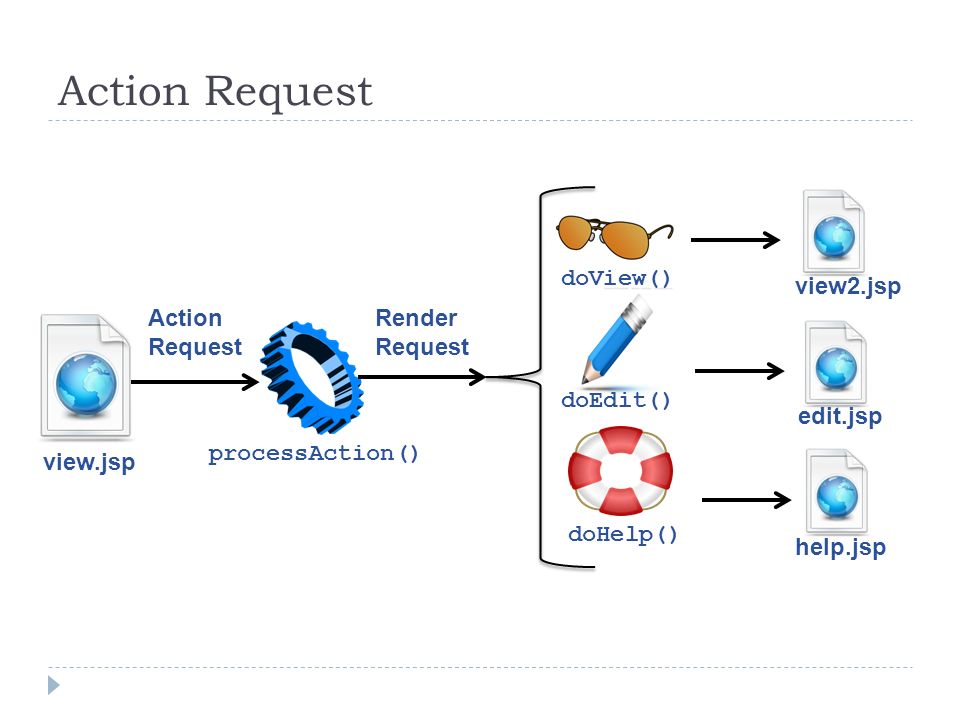

9. Action Request Action Request processAction() Render Request view.jsp doView() edit.jsp doEdit() doHelp() help.jsp view2.jsp

10. Render request Render Request view.jsp doView() view2.jsp

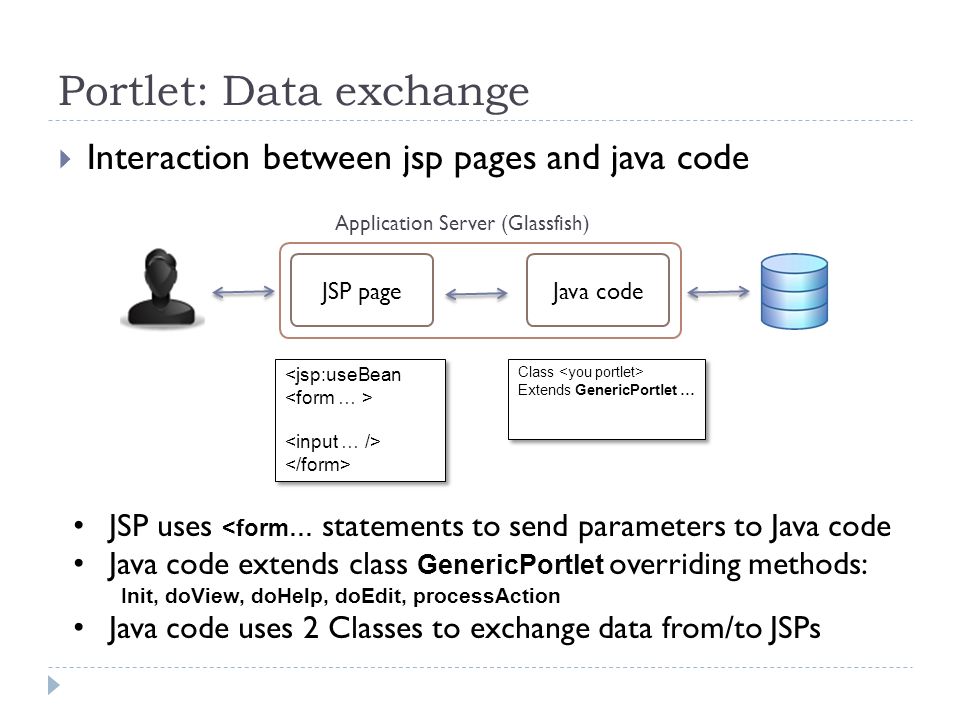

11. Portlet: Data exchange  Interaction between jsp pages and java code JSP page Java code Application Server (Glassfish) <jsp:useBean <jsp:useBean Class Extends GenericPortlet … Class Extends GenericPortlet … JSP uses <form… statements to send parameters to Java code Java code extends class GenericPortlet overriding methods: Init, doView, doHelp, doEdit, processAction Java code uses 2 Classes to exchange data from/to JSPs

12. Portlet Files (root) Used by ‘ ant ’ to compile and deploy the portlet Define here JSP’s styles JSP image files JavaScript files Portlet JSP pages

13. Portlet files(WEB-INF) Used to define database and other resources settings Portlet configuration files Portlet configuration files Jar Library directory (local scope) Java source files Tag library descriptors for XML file

14. Integrated Development Enviroment

15. Thank you Question?

16. MyFirst-Portlet Hands on!! Wiki on myFirstPortlet  Download and Deploy myFirst-portlet  View myFirst-portlet on your Liferay bundle  Customize myFirst-portlet in your personal portlet  Test your personal portlet
