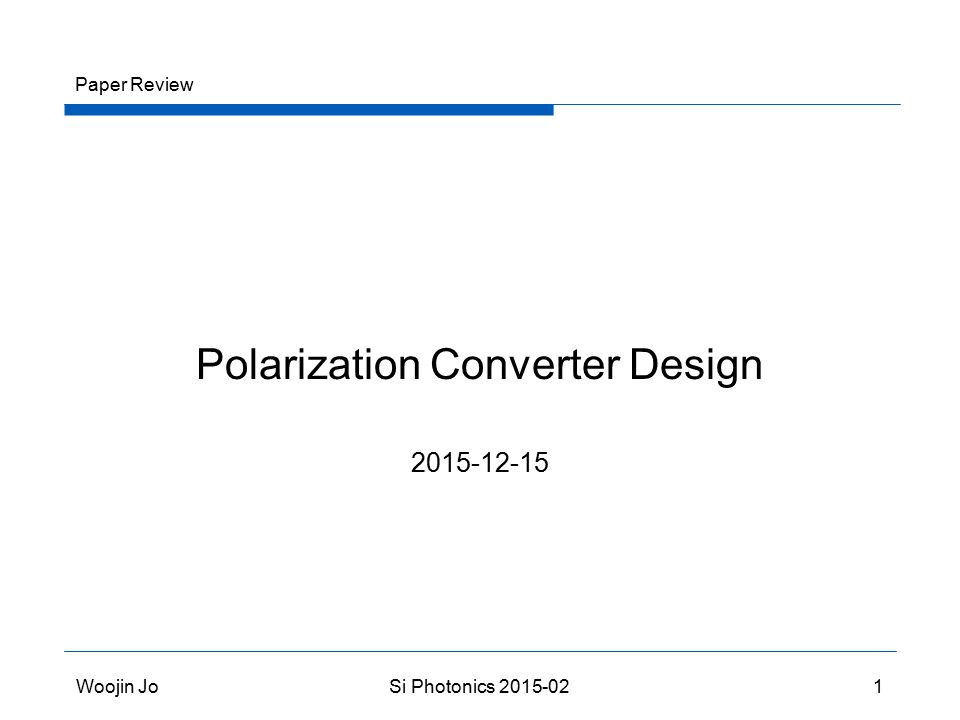

1 Polarization Converter Design 2015-12-15 Paper Review Woojin Jo Si Photonics 2015-02 1

2  For two modes in a waveguide with two different refractive indices (n1 and n2),  The modes will accumulate different phase after the propagation of a certain length (L) due to the difference in the effective indices (neff).  If the propagation length is long enough to accumulate a phase difference of pi, then L becomes Polarization Conversion Background Woojin Jo YONSEI Mixed Signal IC Lab. 2

3  For the polarization converter, the FDE solver can be used to identify the regions where mode-crossings occur.  Run a number of FDE simulations, varying the waveguide width.  At each step, the n eff are subtracted by the n eff of the slab.  Choose in/output taper width parameter from FDE result.  Run EME simulation to findout light propagation in this device.  Choose adequate the length of this device from EME results. Simulation Process Woojin Jo YONSEI Mixed Signal IC Lab. 3

4  Make simple waveguide structure.  Run a number of FDE simulations, varying the waveguide width from 0.5um to 3um.  Calculate the difference between n eff of the slab and n eff of the ridge. Simulation Setup Woojin Jo YONSEI Mixed Signal IC Lab. 4

5 FDE Analysis Results Woojin Jo YONSEI Mixed Signal IC Lab. 5  TE1: changes n eff of TE1 mode from 0.28 to 0.06.  Mode crossing occurs at 0.9um  Input Waveguide width= 1.5um  Output Waveguide width= 0.8um

6 Simulation Setup Woojin Jo YONSEI Mixed Signal IC Lab. 6  The device includes the input and output ridge waveguides, connected by a taper with 1.5um and 0.8um as the waveguide input and output respectively.  Track 3 modes: (TE0, TE1, TM0) at 1.5um, (TE0, TM0, TE1) at 0.8um  We will scan the length of this taper and track how efficiently the TE1 mode can be converted into the fundamental TM mode.

7 EME Analysis Setup Woojin Jo YONSEI Mixed Signal IC Lab. 7

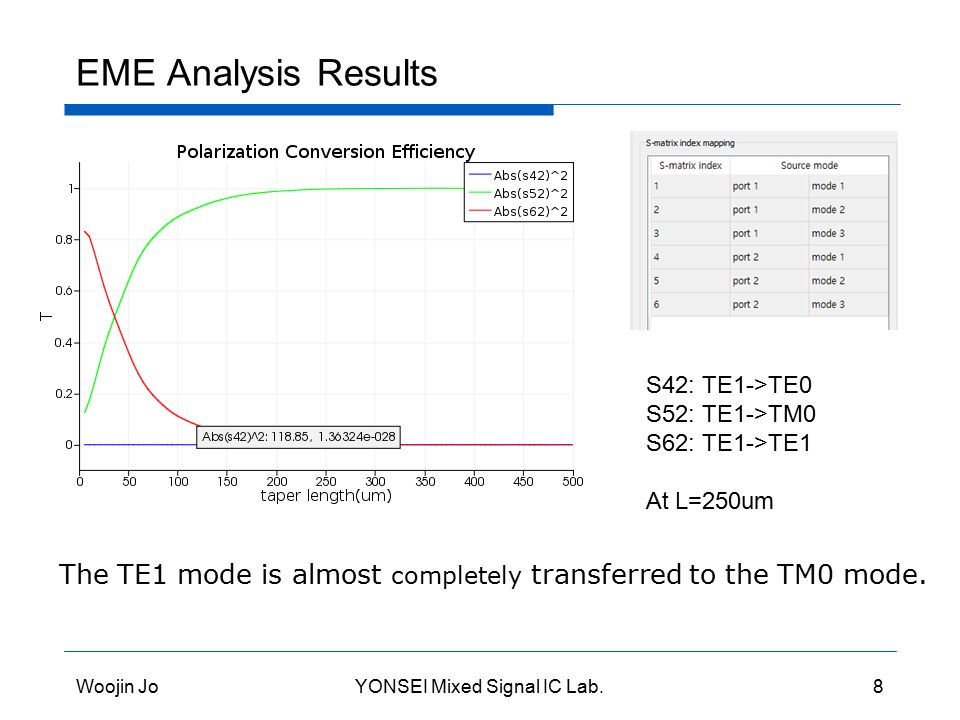

8 EME Analysis Results Woojin Jo YONSEI Mixed Signal IC Lab. 8 S42: TE1->TE0 S52: TE1->TM0 S62: TE1->TE1 At L=250um The TE1 mode is almost completely transferred to the TM0 mode.
