PARENTERAL NUTRITION FORMULA CALCULATIONS AND MONITORING PROTOCOLS KNH 411 Medical Nutrition Therapy I.

Similar presentations


Presentation on theme: "PARENTERAL NUTRITION FORMULA CALCULATIONS AND MONITORING PROTOCOLS KNH 411 Medical Nutrition Therapy I."— Presentation transcript:

1 PARENTERAL NUTRITION FORMULA CALCULATIONS AND MONITORING PROTOCOLS KNH 411 Medical Nutrition Therapy I

2 M ACRONUTRIENT C ONCENTRATIONS IN PN S OLUTIONS Macronutrient concentrations (%) = the grams of solute/100 ml of fluid D70 has 70 grams of dextrose per 100 ml. 10% amino acid solution has 10 grams amino acids/100 ml of solution 20% lipids has 20 grams of lipid/100 ml of solution

3 P ROTEIN C ONTENT C ALCULATIONS To calculate the grams of protein supplied by a TPN solution, multiply the total volume of amino acid solution (in ml*) supplied in a day by the amino acid concentration. Example Protein Calculation 1000 ml of 8% amino acids: 1000 ml x 8 g/100 ml = 80g Or 1000 x.08 = 80 g

4 C ALCULATION OF D EXTROSE C ALORIES Calculate grams of dextrose: Multiply the total volume of dextrose soln (in ml) supplied in a day by the dextrose concentration. This gives you grams of dextrose supplied in a day. Multiply the grams of dextrose by 3.4 (there are 3.4 kcal/g dextrose) to determine kcalories supplied by dextrose in a day.

5 S AMPLE D EXTROSE C ALCULATION 1000 ml of D50W (50% dextrose) 1000 ml x 50g / 100 ml = 500g dextrose OR 1000 ml x.50 = 500g dextrose 500g dextrose x 3.4 kcal/g = 1700 kcal

6 C ALCULATION OF L IPID C ONTENT To determine kcalories supplied by lipid*, multiply the volume of 10% lipid (in ml) by 1.1; multiply the volume of 20% lipid (in ml) by 2.0. If lipids are not given daily, divide total kcalories supplied by fat in one week by 7 to get an estimate of the average fat kcalories per day. * | Lipid emulsions contain glycerol, so lipid emulsion does not have 9 kcal per gram as it would if it were pure fat. Some use 10 kcal/gm for lipid emulsions. Source: http://www.csun.edu/~cjh78264/parenteral/calculation/calc07.html

7 E XAMPLE L IPID C ALCULATION FOR 2- IN -1 500 ml of 10% lipid 500 ml x 1.1 kcal/ml = 550 kcal 500 ml 20% lipid 500 ml x 2.0 kcal/ml = 1000 kcal Or, alternatively, 500 ml of 10% lipid = 50 grams lipid x 10 kcal/g or 500 kcal Source: http://www.csun.edu/~cjh78264/parenteral/calculation/calc07.html

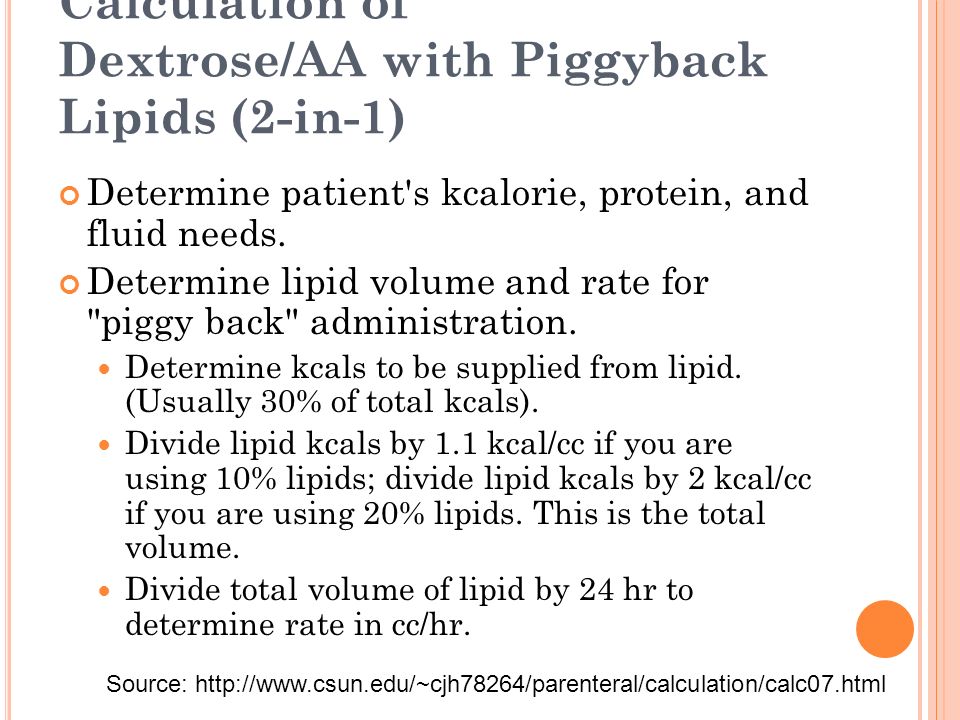

8 Calculation of Dextrose/AA with Piggyback Lipids (2-in-1) Determine patient's kcalorie, protein, and fluid needs. Determine lipid volume and rate for "piggy back" administration. Determine kcals to be supplied from lipid. (Usually 30% of total kcals). Divide lipid kcals by 1.1 kcal/cc if you are using 10% lipids; divide lipid kcals by 2 kcal/cc if you are using 20% lipids. This is the total volume. Divide total volume of lipid by 24 hr to determine rate in cc/hr. Source: http://www.csun.edu/~cjh78264/parenteral/calculation/calc07.html

9 D ETERMINE PROTEIN CONCENTRATION Subtract volume of lipid from total fluid requirement to determine remaining fluid needs. Divide protein requirement (in grams) by remaining fluid requirement and multiply by 100. This gives you the amino acid concentration in %. Multiply protein requirement in grams x 4 to determine calories from protein Source: http://www.csun.edu/~cjh78264/parenteral/calculation/calc07.html

10 Determine dextrose concentration. Subtract kcals of lipid + calories from protein from total kcals to determine remaining kcal needs. Divide "remaining kcals" by 3.4 kcal/g to determine grams of dextrose. Divide dextrose grams by remaining fluid needs (in protein calculations) and multiply by 100 to determine dextrose concentration. Determine rate of AA/dex solution by dividing "remaining fluid needs” by 24 hr. Source: http://www.csun.edu/~cjh78264/parenteral/calculation/calc07.html

11 E XAMPLE C ALCULATION Nutrient Needs: Kcals: 1800. Protein: 88 g. Fluid: 2000 cc 1800 kcal x 30% = 540 kcal from lipid Lipid (10%): 540 kcal/1.1 (kcal/cc) = 491 cc/24 hr = 20 cc/hr 10% lipid (round to 480 ml) Remaining fluid needs: 2000cc - 480cc = 1520cc

12 P ROTEIN C ALCULATIONS Protein: 88 g / 1520 cc x 100 = 5.8% amino acid solution 88 g. x 4 kcal/gm =352 kcals from protein Remaining kcal needs: 1800 – (528 + 352) = 920 kcal

13 D EXTROSE C ONCENTRATION 920 kcal/3.4 kcal/g = 270 g dextrose 270 g / 1520 cc x 100 = 17.7% dextrose solution Rate of Amino Acid / Dextrose: 1520 cc / 24hr = 63 cc/hr TPN recommendation: Suggest two-in-one PN 17.7% dextrose, 5.8% a.a. @ 63 cc/hr with 10% lipids piggyback @ 20 cc/hr

14 R E - CHECK CALCULATIONS TPN recommendation: Suggest two-in-one PN 17.7% dextrose, 5.8% a.a. @ 63 cc/hr with 10% lipids piggyback @ 20 cc/hr 63 cc/hr x 24 = 1512 ml 1512 * (.177) = 268 g D X 3.4 kcals= 911 kcals 1512 * (.058) = 88 g a.a. x 4 kcals = 352 20 cc/hr lipids*24 = 480*1.1 kcals/cc = 528 1791

15 3 in 1 TNA Solutions | Determine patient's kcalorie, protein, and fluid needs. Divide daily fluid need by 24 to determine rate of administration. Determine lipid concentration. Determine kcals to be supplied from lipid. (Usually 30% of total kcals). Determine grams of lipid by dividing kcal lipid by 10. * * Divide lipid grams by total daily volume (= fluid needs or final rate x 24) and multiply by 100 to determine % lipid.

16 3- IN -1 TNA S OLUTIONS Determine protein concentration by dividing protein needs (grams) by total daily volume and multiply by 100. Multiply protein needs in grams x 4 kcal/gm = kcals from protein Determine dextrose grams. Subtract kcals of lipid and kcals from protein from total kcals to determine remaining kcal needs. Divide "remaining kcals" by 3.4 kcal/g to determine grams of dextrose. Determine dextrose concentration by dividing dextrose grams by total daily volume and multiply by 100

17 S AMPLE C ALCULATION 3- IN -1 Nutrient Needs: Kcals: 1800 Protein: 88 g Fluid: 2000 cc Lipid : 1800 kcal x 30% = 540 kcal 540 kcal / 10 kcal per gram = 54 g 54 g / 2000 cc x 100 = 2.7% lipid Protein: 88 g / 2000 cc x 100 = 4.4% amino acids 88 g x 4 = 352 kcals from protein

18 S AMPLE C ALCULATION 3- IN -1( CONT ) Dextrose: 908 kcal (1800 – 540 - 352) 908/3.4 kcal/g = 267 g dextrose 267 g / 2000 cc x 100 = 13.4% dextrose solution Rate of Amino Acid / Dextrose/Lipid: 2000 cc / 24hr = 83 cc/hr TPN prescription: Suggest TNA 13.4% dextrose, 4.4% amino acids, 2.7% lipids at 83 cc/hour provides 88 g. protein, 1800 kcals, 2000 ml. fluid

19 E VALUATION OF A TNA O RDER PN 15% dextrose, 4.5% a.a., 3% lipid @ 100 cc/hour

20 E VALUATION OF A PN O RDER PN 15% dextrose, 4.5% a.a., 3% lipid @ 100 cc/hour Total volume = 2400 Dextrose: 15g/100 ml * 2400 ml = 360 g 360 g x 3.4 kcal/gram = 1224 kcals Lipids 3 g/100 ml x 2400 ml = 72 g lipids 72 x 10 kcals/gram = 720 kcals

21 E VALUATION OF A PN O RDER Amino acids: 4.5 grams/100 ml * 2400 ml = 108 grams protein 108 x 4 = 432 kcals 1224 + 720 + 432 = 2376 total kcals Lipid is 30% of total calories Dextrose is 51.5% of total calories Protein is 18% of total calories

22 C ALCULATION OF N ONPROTEIN C ALORIES Some clinicians discriminate between protein and nonprotein calories although this is falling out of favor This is more commonly used in critically ill patients

23 C ALCULATION OF N ON -P ROTEIN C ALORIES To determine the nonprotein kcalories (NPC) in a TPN prescription, add the dextrose calories to the lipid calories In the last example, 1224 kcals (dextrose) + 720 kcals (lipid) = 1944 non-protein kcals Dextrose is 63% of nonprotein kcals (1224/1944) Lipid is 37% of nonprotein calories In critically ill patients, some clinicians restrict lipid to 30% of nonprotein kcals

24 C ALCULATION OF NPC:N R ATIO | Calculate grams of nitrogen supplied per day (1 g N = 6.25g protein) Divide total nonprotein calories by grams of nitrogen Desirable NPC:N Ratios: 80:1 the most severely stressed patients 100:1 severely stressed patients 150:1 unstressed patient Source: http://www.csun.edu/~cjh78264/parenteral/calculation/calc07.html

25 E XAMPLE NPC:N C ALCULATION 80 grams protein 2250 nonprotein kcalories per day 80g protein/ 6.25 = 12.8 2250/12.8 = 176 NPC:N = 176:1 Source: http://www.csun.edu/~cjh78264/parenteral/calculation/calc07.html

26 E XAMPLE %NPC F AT C ALCULATION * 2250 nonprotein kcal 550 lipid kcal 550/2250 x 100 = 24% fat kcals *Limit is 60% NPC

27 O SMOLARITY IN PPN When a hypertonic solution is introduced into a small vein with a low blood flow, fluid from the surrounding tissue moves into the vein due to osmosis. The area can become inflamed, and thrombosis can occur.

28 IV-R ELATED P HLEBITIS

29 C ALCULATING THE O SMOLARITY OF A P ARENTERAL N UTRITION S OLUTION 1. Multiply the grams of dextrose per liter by 5. Example: 100 g of dextrose x 5 = 500 mOsm/L 2. Multiply the grams of protein per liter by 10. Example: 30 g of protein x 10 = 300 mOsm/L 3. Multiply the grams of lipid per liter by 1.5. Example: 40 g lipid x 1.5 = 60. 4. Multiply the (mEq per L sodium + potassium + calcium + magnesium) X 2 Example: 80 X 2 = 160 5. Total osmolarity = 500 + 300 + 60 + 160 = 1020 mOsm/L Source: K&M and PN Nutrition in ADA, Nutrition in Clinical Practice. P 626

30 O SMOLARITY Q UICK C ALCULATION To calculate solution osmolarity: multiply grams of dextrose per liter by 5 multiply grams of protein per liter by 10 add a & b add 300 to 400 to the answer from "c". (Vitamins and minerals contribute about 300 to 400 mOsm/L.) Source: http://www.csun.edu/~cjh78264/parenteral/calculation/calc07.html

31 I S THE SOLUTION COMPOUNDABLE ? TPN is compounded using 10% or 15% amino acids, 70% dextrose, and 20% lipids The TPN prescription must be compoundable using standard base solutions This becomes an issue if the patient is on a fluid restriction

32 I S THE S OLUTION C OMPOUNDABLE ? What is the minimum volume to compound the PN prescription? Example: 75 g AA 350 g dextrose 50 g lipid 2000 ml fluid restriction AA: 10 g = 75 g = 750 ml using 10% AA 100 ml X ml OR divide 75 grams by the % base solution, 75 g/.10

33 I S THE SOLUTION COMPOUNDABLE ? Dextrose: 70 g = 350 g x = 500 ml 100 ml X ml Lipid: 20 g = 50g X = 250 ml 100 ml x ml Total volume = 750 ml AA + 500 ml D + 250 ml lipid + 100 ml (for electrolytes/trace) = 1600 ml (minimum volume to compound solution) Tip: Substrates should easily fit in 1 kcal/ml solutions

34 I S THIS SOLUTION COMPOUNDABLE ? PN prescription: AA 125 g D 350 g Lipid 50 g Fluid restriction 1800 ml/day

35 I S THIS SOLUTION COMPOUNDABLE ? AA: 10 g = 125 g = 1250 ml 10% AA 100 ml X ml Dextrose: 70 g = 350 g x = 500 ml (350/.70) 100 ml X ml Lipid: 20 g = 50g X = 250 ml (50/.20) 100 ml x ml Total volume = 1250 ml AA + 500 ml D + 250 ml lipid + 100 ml (for electrolytes/trace) = 2100 ml (minimum volume to compound solution) Verdict: not compoundable in 1800 ml. Action: reduce dextrose content or use 15% AA base solution if available (could deliver protein in 833 ml of 15%)

36 P ARENTERAL N UTRITION Monitoring

37 M ONITORING FOR C OMPLICATIONS Malnourished patients at risk for refeeding syndrome should have serum phosphorus, magnesium, potassium, and glucose levels monitored closely at initiation of SNS. (B) In patients with diabetes or risk factors for glucose intolerance, SNS should be initiated with a low dextrose infusion rate and blood and urine glucose monitored closely. (C) Blood glucose should be monitored frequently upon initiation of SNS, upon any change in insulin dose, and until measurements are stable. (B) ASPEN BOD. Guidelines for the use of enteral and parenteral nutrition in adult and pediatric patients. JPEN 26;41SA, 2002

38 M ONITORING FOR C OMPLICATIONS Serum electrolytes (sodium, potassium, chloride, and bicarbonate) should be monitored frequently upon initiation of SNS until measurements are stable. (B) Patients receiving intravenous fat emulsions should have serum triglyceride levels monitored until stable and when changes are made in the amount of fat administered. (C) Liver function tests should be monitored periodically in patients receiving PN. (A) ASPEN BOD. Guidelines for the use of enteral and parenteral nutrition in adult and pediatric patients. JPEN 26;41SA, 2002

39 A CUTE I NPATIENT PN M ONITORING ParameterDaily Frequency 3x/weekWeekly GlucoseInitially√ ElectrolytesInitially√ Phos, Mg, BUN, Cr, Ca Initially√ TG√ Fluid/Is & Os√ Temperature√ T. Bili, LFTsInitially√ Adapted from K&M, p. 549

40 I NPATIENT M ONITORING PN ParameterDaily Frequency WeeklyPRN Body WeightInitially√ Nitrogen BalanceInitially√ HGB, HCT√ Catheter Site√ Lymphocyte Count√√ Clinical Status

41 MONITOR—CONT’D Urine: Glucose and ketones (4-6/day) Specific gravity or osmolarity (2-4/day) Urinary urea nitrogen (weekly) Other: Volume infusate (daily) Oral intake (daily) if applicable Urinary output (daily) Activity, temperature, respiration (daily) WBC and differential (as needed) Cultures (as needed)

42 M ONITORING : N UTRITION Serum Hepatic Proteins Parameter t ½ Albumin 19 days Transferrin9 days Prealbumin2 – 3 days Retinol Binding Protein~12 hours

43 C OMPLICATIONS OF PN Refeeding syndrome Hyperglycemia Acid-base disorders Hypertriglyceridemia Hepatobiliary complications (fatty liver, cholestasis) Metabolic bone disease Vascular access sepsis

44 R EFEEDING S YNDROME Patients at risk are malnourished, particularly marasmic patients Can occur with enteral or parenteral nutrition Results from intracellular electrolyte shift

45 R EFEEDING S YNDROME S YMPTOMS Reduced serum levels of magnesium, potassium, and phosphorus Hyperglycemia and hyperinsulinemia Interstitial fluid retention Cardiac decompensation and arrest

46 R EFEEDING S YNDROME P REVENTION /T REATMENT Monitor and supplement electrolytes, vitamins and minerals prior to and during infusion of PN until levels remain stable Initiate feedings with 15-20 kcal/kg or 1000 kcals/day and 1.2-1.5 g protein/kg/day Limit fluid to 800 ml + insensible losses (adjust per patient fluid tolerance and status) Fuhrman MP. Defensive strategies for avoiding and managing parenteral nutrition complications. P. 102. In Sharpening your skills as a nutrition support dietitian. DNS, 2003.

47 G LYCEMIC C ONTROL IN C RITICAL C ARE Until recently, BG<200 mg/dl was tolerated in critically ill patients. Now greater attention is given to glycemic control due to evidence that glucose is associated with morbidity/mortality and risk of infection New recommendation is to keep BG<150 mg/dl or as close to normal as possible Van den Berghe et al. NEJM, 2001

48 G LYCEMIC C ONTROL IN PN In critically ill patients, recommendation is to keep dextrose infusion <5 mg/kg/minute or <60% of total kcals. ASPEN Nutrition Support Practice Manual, 2005, p. 267

49 G LYCEMIC C ONTROL IN PN For Patients Not Previously on Insulin Monitor blood glucose levels prior to initiating PN When therapy is initiated, monitor BG q 4-6 hours and use sliding scale or insulin drip as needed Add a portion of the previous day’s insulin to TPN to maintain blood glucose levels Charney P. A Spoonful of Sugar: Glycemic Control in the ICU. In Sharpening your skills as a nutrition support dietitian. DNS, 2003.

50 G LYCEMIC C ONTROL IN PN For Patients Previously on Insulin Determine amount of insulin needed prior to illness Determine amount of feedings to be given Provide a portion of daily insulin needs in first PN along with sliding scale or insulin drip to maintain glucose levels (generally insulin needs will increase while on PN) Charney P. A Spoonful of Sugar: Glycemic Control in the ICU. In Sharpening your skills as a nutrition support dietitian. DNS, 2003.

51 R EGULAR I NSULIN IN PN Availability in TPN : 53 – 100% Short half-life Delivery coincides with nutrient infusion

52 F LUID E XCESS Critically ill pts and those with cardiac, renal, hepatic failure may require fluid restriction May need to restrict total calories to reduce total volume Use most concentrated source of PN components (70% dextrose = 2.38 kcal/ml; 20% lipid = 2 kcal/ml) PPN may be contraindicated due to fluid volume of 2-4 liters

53 F LUID D EFICIT Patients with excessive losses may require sterile water added to the PN Provide consistently required fluid volume in PN Monitor I/O, weight, serum sodium, BUN, HCT, skin turgor, pulse rate, BP, urine specific gravity

54 E LECTROLYTES Electrolytes in PN should be given at a stable dose with intermittent requirements for supplementation given outside the PN Sodium levels often reflect fluid distribution versus sodium status Hypokalemia may be due to excessive GI losses, metabolic alkalosis, and refeeding Hyperkalemia may be due to renal failure, metabolic acidosis, potassium administration, or hyperglycemia

55 A CID -B ASE B ALANCE Balance chloride and acetate to maintain/achieve equilibrium The standard acetate/chloride ratio is 1:1 Increase proportion of chloride with metabolic alkalosis; increase proportion of acetate with metabolic acidosis Consider chloride and acetate content of amino acids

56 M ETABOLIC A CIDOSIS E TIOLOGY Increased renal or GI loss of bicarbonate Addition of strong acid or underexcretion of H+ ion Ketoacidosis Renal failure Lactic acidosis Excessive Cl- administration

57 M ETABOLIC A CIDOSIS T REATMENT Determine and treat underlying cause Prove acetate forms of electrolytes with HCO3- losses Decrease chloride concentration in TNA Consider chloride concentration in other IV fluids

58 M ETABOLIC A LKALOSIS E TIOLOGY loss of H+ ion from increased gastric losses Excessive base administration Contraction alkalosis

59 M ETABOLIC A LKALOSIS T REATMENT Determine and treat underlying cause Increase Cl- when alkalosis is due to diuretics or NG losses

60 T RANSITIONAL F EEDING Maintain full PN support until pt is tolerating 1/3 of needs via enteral route Decrease TPN by 50% and continue to taper as the enteral feeding is advanced to total TPN can reduce appetite if >25% of calorie needs are met via PN TPN can be tapered when pt is consuming greater than 500 calories/d and d-c’d when meeting 60% of goal TPN can be rapidly d-c’d if pt is receiving enteral feeding in amount great enough to maintain blood glucose levels

61 C ESSATION OF TPN Rebound hypoglycemia is a potential complication Decrease the volume by 50% for 1-2 hours before discontinuing the solution to minimize risk PPN can be stopped without concern for hypoglycemia

62 D EFENSE A GAINST PN C OMPLICATIONS Select appropriate patients to receive PN Aseptic technique for insertion and site care of IV catheters Do not overfeed Maintain glycemic control <150-170 mg/dl Limit lipids to 1 gm/kg and monitor TG levels Adjust protein based on metabolic demand and organ function Monitor fluid/electrolyte/mineral status Provide standard vitamin and trace element preps daily
