1. Integrate NGN Services and IPTV ETSI: IMS-based IPTV Dr. M. Oskar van Deventer

2. ETSI: IMS-based IPTV2 Contents TNO vision and mission regarding IPTV Example: ConnecTV TNO in ETSI TISPAN ETSI TISPAN IPTV Relation with other standardization bodies Documentation of IPTV in TISPAN Release 2 IMS-based IPTV architecture TV URI: television-channel identification

3. ETSI: IMS-based IPTV3 TNO vision and mission regarding IPTV Vision: After triple-play bundling follow combinational services TV market will open up and mature similar to telephony Mission: promote and support advanced IPTV services Combinational services: content + context + communication Advanced forms of interactivity IPTV “interconnection”, wholesale interfaces PhoneTV Intern et Triple Play bundle Communication Content Context Combinational services

4. ETSI: IMS-based IPTV4 ConnecTV: See what buddies are watching My buddy list shows who is watching TV…

5. ETSI: IMS-based IPTV5 ConnecTV: Send and receive program recommendations … so I can send a recommendation if I’m watching an interesting program… … and see when my buddy accepts the recommendation!

6. ETSI: IMS-based IPTV6 ConnecTV: Record and play content for and from buddies … and share it with my budddies! Store my recorded or personal content…

7. ETSI: IMS-based IPTV7 ConnecTV: … and many more services! Receive recommendations even if I am offline… …get recommendations from my Sport Buddy. …schedule a movie with my buddies using the Program Guide…

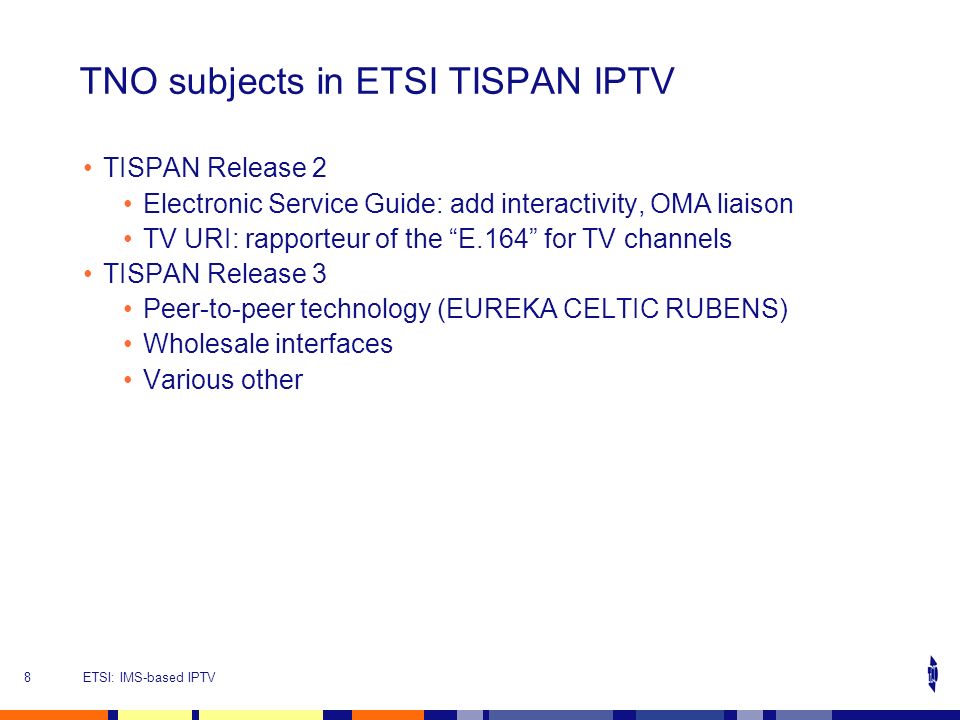

8. ETSI: IMS-based IPTV8 TNO subjects in ETSI TISPAN IPTV TISPAN Release 2 Electronic Service Guide: add interactivity, OMA liaison TV URI: rapporteur of the “E.164” for TV channels TISPAN Release 3 Peer-to-peer technology (EUREKA CELTIC RUBENS) Wholesale interfaces Various other

9. ETSI: IMS-based IPTV9 Lots of standardisation activity on IPTV DVB IPTV: Technical standards for digital television OMA BCAST: Mobile TV with interactivity ETSI TISPAN IPTV: Integrating IPTV with NGN and IMS ATIS IIF: IPTV network architecture ITU-T FG IPTV: Coordination, architectural overview Open IPTV Forum: Personalized IPTV services, plug and play IETF: Protocols, SIP, SDP, IGMP, RTSP, RTP, TV URI, CRID Various liaison relationships ETSI-DVB: Electronic Program Guide ETSI-OMA: Electronic Service Guide ETSI-ATIS: NGN-based architecture ITU-many: Architecture coordination

10. ETSI: IMS-based IPTV10 ETSI TISPAN IPTV: Integrate NGN Services and IPTV TS 181 014 Transport requirements TS 181 016 Use cases & service requirements TS 182 028 IPTV architecture TS 182 027 IPTV Architecture TS 183 063 IPTV Protocol TS 183 064 IPTV Protocol TS 184 009 TV channel identification TS 185 009 Set-top boxes Dedicated IPTV system IMS-based IPTV : Will be explained in more detail

11. ETSI: IMS-based IPTV11 TS 181 016: integrate NGN service and IPTV Informative use cases Normative service requirements

12. ETSI: IMS-based IPTV12 TS 182 027: IMS-based IPTV, leveraging IMS Leveraging (planned) investments in IMS session-control layers Common identity and authentication mechanisms: public-, private ID Common resource management, common charging mechanisms Multi-access solution based on access-independent IMS Basic broadcast and streaming services Broadcast television Content on demand Network personal video recorder (User-generated content: expected in TISPAN Release 3) Value-added services Service discovery & selection Electronic program/service guide Combining IPTV with communication services IPTV + conversation: talk with your buddies IPTV + presence: see what your buddy is watching IPTV + messaging: text to your buddy Click-to-dial from TV: response to game or advertisement Caller ID on TV: accept or reject the call Call forwarding while watching TV

13. ETSI: IMS-based IPTV13 IMS-based IPTV architecture, TS 182 027

14. ETSI: IMS-based IPTV14 IMS-based IPTV architecture, TS 182 027 UE: User Equipment Set-top box, Residential Gateway, Home-Theater PC, … Core IMS: Bunch of SIP servers and User Profile Server “HSS” SCF and SDF: dedicated SIP application servers for IPTV

15. ETSI: IMS-based IPTV15 IMS-based IPTV architecture, TS 182 027 Media control and delivery, e.g. video-on-demand jukebox Transport, network attachment, resource reservation

16. ETSI: IMS-based IPTV16 IMS-based IPTV architecture, TS 182 027 NASS: Network Attachment Subsystem (“DHCP server”)

17. ETSI: IMS-based IPTV17 IMS-based IPTV architecture, TS 182 027 SDF: Service Discovery Function, “what are my IPTV services”, “where can I change my user profile”, “where can I select my service”, address of service portal

18. ETSI: IMS-based IPTV18 IMS-based IPTV architecture, TS 182 027 Setting my user profile, e.g. parental control

19. ETSI: IMS-based IPTV19 IMS-based IPTV architecture, TS 182 027 SSF: Service Selection Function, getting an Electronic Programme Guide, “what programs are available”

20. ETSI: IMS-based IPTV20 IMS-based IPTV architecture, TS 182 027 SCF: Service Control Function, Set up an IPTV session using SIP-based session control, select Media Function RACS: Resource & Admission Control Subsystem

21. ETSI: IMS-based IPTV21 IMS-based IPTV architecture, TS 182 027 RTSP protocol for media control: Broadcast trick modes, Content on Demand and Network PVR RTP protocol for media transport IGMP protocol for control of plain Broadcast Television

22. ETSI: IMS-based IPTV22 TS 184 009: Rules for use of TV URI TV URI: the “E164” for television channels

23. ETSI: IMS-based IPTV23 TS 184 009: Harmonisation approach Nederland 1  tv:nederland1.nl

24. ETSI: IMS-based IPTV24 Further reading Bruno Chatras, Mikhaël Saïd (France Telecom R&D): “Delivering Quadruple Play with IPTV over IMS”, http://events.projectliberty.org/files/programmes/Session8A-1.pdfhttp://events.projectliberty.org/files/programmes/Session8A-1.pdf Andre Beck, Bob Ensor, Jairo Esteban, (Alcatel-Lucent): “IMS and IPTV Service Blending – Lessons and Opportunities”, http://events.projectliberty.org/files/programmes/Session8A-2.pdf http://events.projectliberty.org/files/programmes/Session8A-2.pdf Download ETSI TISPAN documents at: Published: http://pda.etsi.org/pda/queryform.asp, search e.g. for “TS 182 027”http://pda.etsi.org/pda/queryform.asp Not yet published: http://portal.etsi.org/docbox/tispan/Open/NGN_LATEST_DRAFTS,http://portal.etsi.org/docbox/tispan/Open/NGN_LATEST_DRAFTS (Document coded by Work Item number, which in turn can be mapped to the document number at http://portal.etsi.org/Portal_Common/home.asp)http://portal.etsi.org/Portal_Common/home.asp

25. ETSI: IMS-based IPTV25 Thank you! Dr.ir. M. Oskar van Deventer TNO, Delft, Netherlands +31 651 914 918 oskar.vandeventer@tno.nl Acknowledgement This contribution has been partly supported by SenterNovem, an agency of the Dutch Ministry of Economic Affairs. Its writing has been carried out in the context of the European EUREKA CELTIC RUBENS project.
