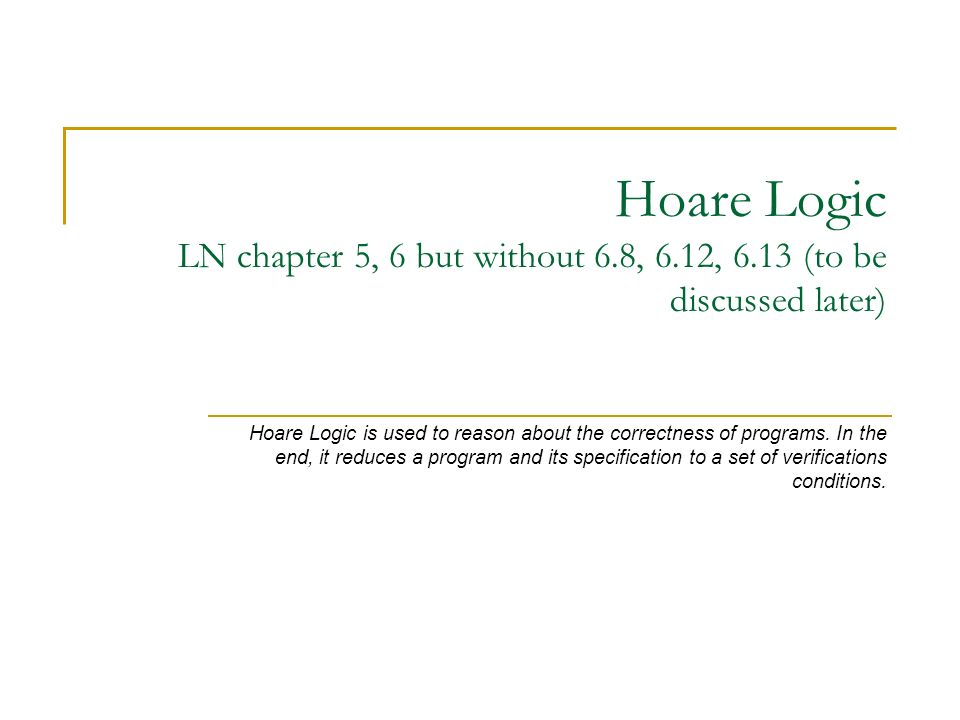

1. Hoare Logic LN chapter 5, 6 but without 6.8, 6.12, 6.13 (to be discussed later) Hoare Logic is used to reason about the correctness of programs. In the end, it reduces a program and its specification to a set of verifications conditions.

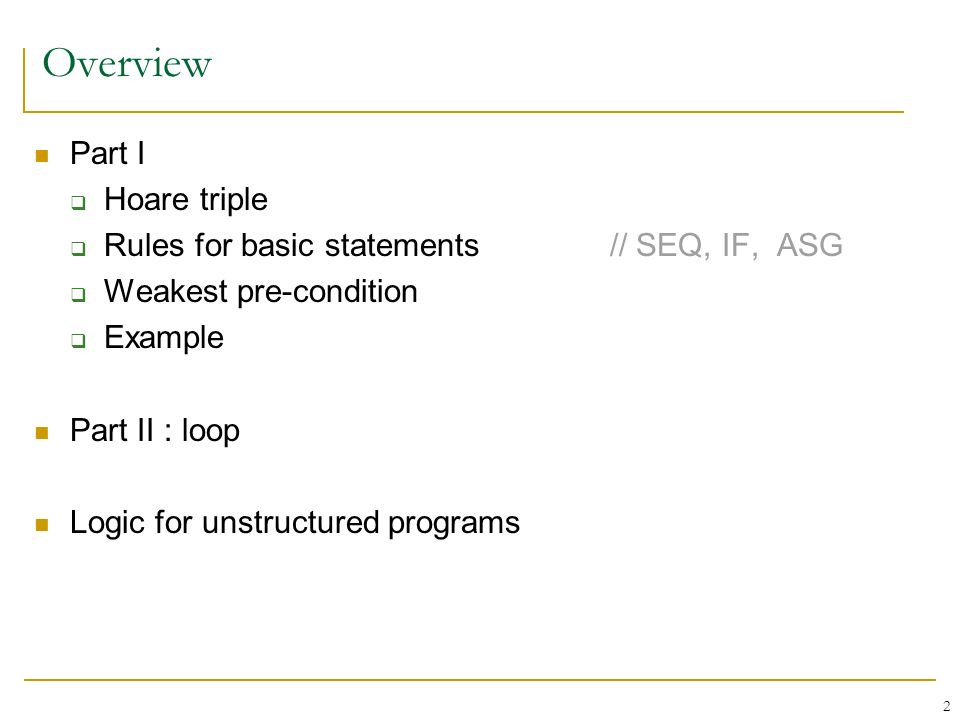

2. Overview Part I  Hoare triple  Rules for basic statements// SEQ, IF, ASG  Weakest pre-condition  Example Part II : loop Logic for unstructured programs 2

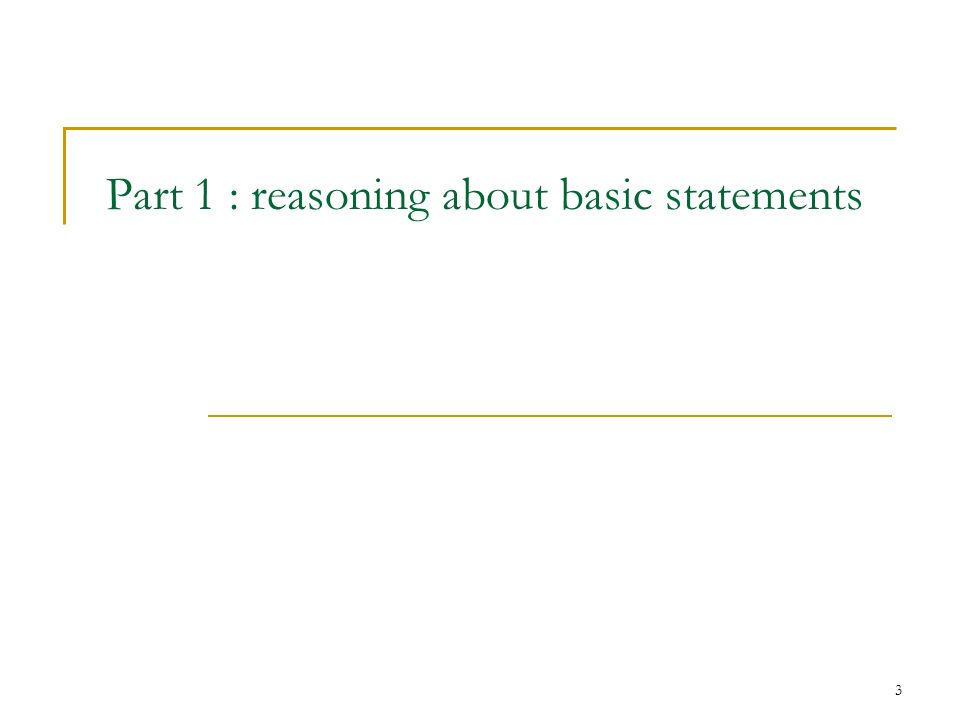

3. Part 1 : reasoning about basic statements 3

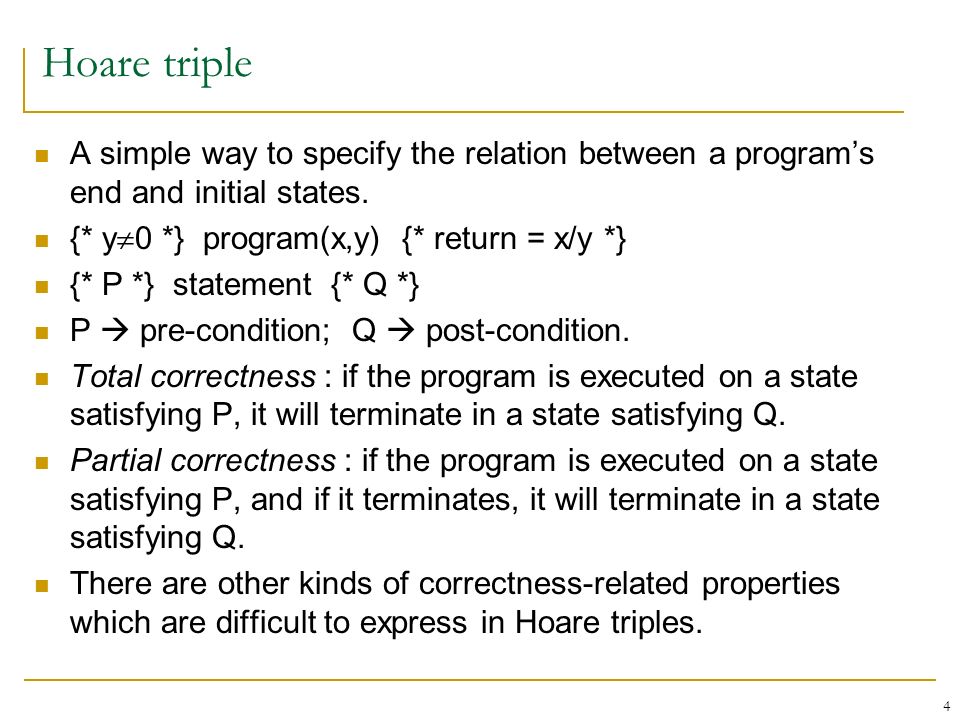

4. Hoare triple A simple way to specify the relation between a program’s end and initial states. {* y  0 *} program(x,y) {* return = x/y *} {* P *} statement {* Q *} P  pre-condition; Q  post-condition. Total correctness : if the program is executed on a state satisfying P, it will terminate in a state satisfying Q. Partial correctness : if the program is executed on a state satisfying P, and if it terminates, it will terminate in a state satisfying Q. There are other kinds of correctness-related properties which are difficult to express in Hoare triples. 4

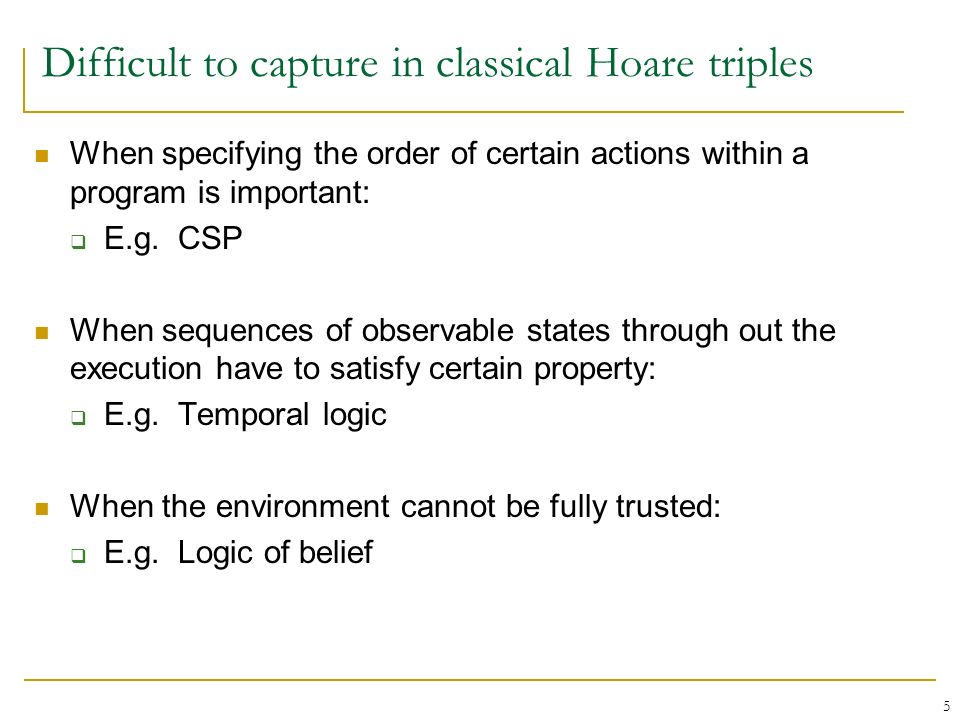

5. Difficult to capture in classical Hoare triples When specifying the order of certain actions within a program is important:  E.g. CSP When sequences of observable states through out the execution have to satisfy certain property:  E.g. Temporal logic When the environment cannot be fully trusted:  E.g. Logic of belief 5

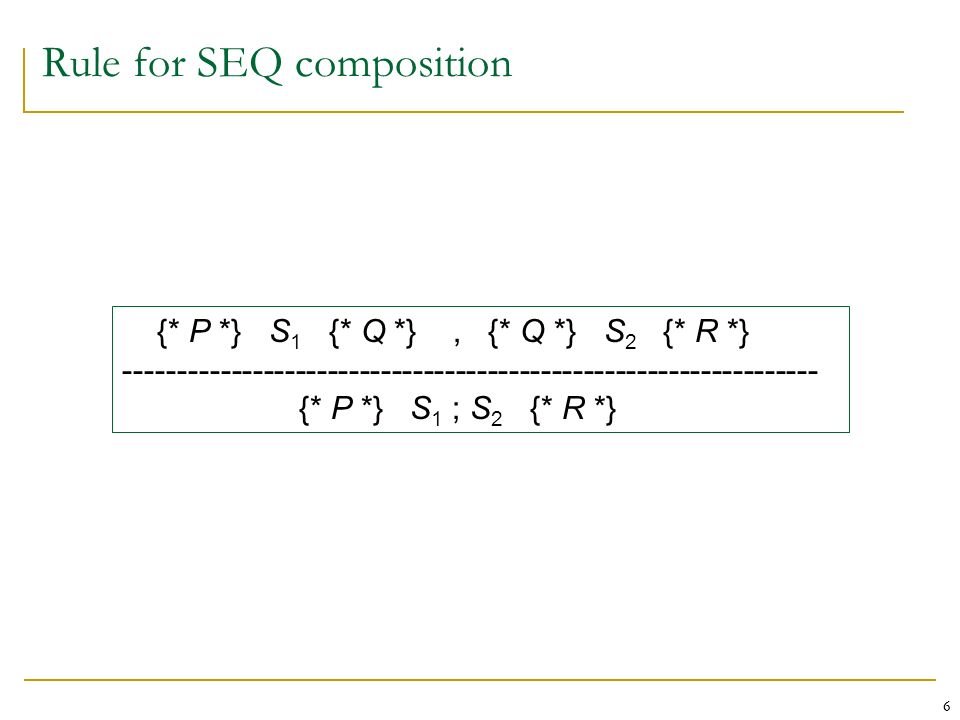

6. Rule for SEQ composition 6 6 {* P *} S 1 {* Q *}, {* Q *} S 2 {* R *} ----------------------------------------------------------------- {* P *} S 1 ; S 2 {* R *}

7. 7 7 Rule for IF {* P /\ g *} S 1 {* Q *} Q g gg S1S1 P S2S2 {* P /\  g *} S 2 {* Q *} {* P /\ g *} S 1 {* Q *}, {* P /\  g *} S 2 {* Q *} -------------------------------------------------------------------------- {* P *} if g then S 1 else S 2 {* Q *}

8. 8 8 Rule for Assignment Find a pre-condition W, that holds before the assignment, if an only if Q holds after the assignment. Then we can equivalently prove P  W ?? -------------------------------- {* P *} x:=e {* Q *}

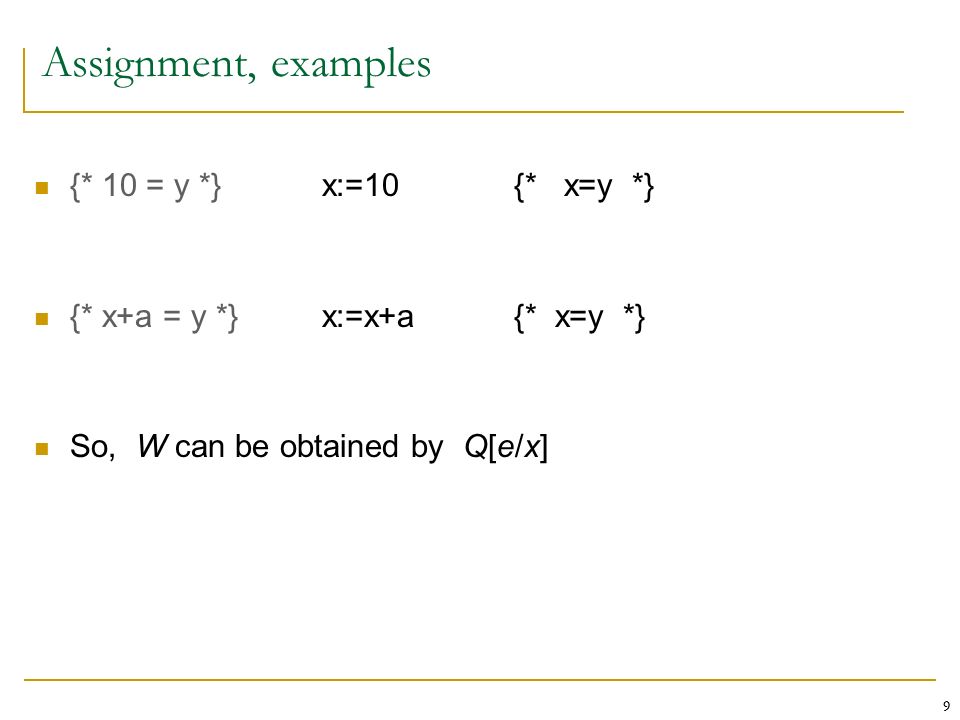

9. 9 9 Assignment, examples {* 10 = y *} x:=10 {* x=y *} {* x+a = y *}x:=x+a{* x=y *} So, W can be obtained by Q[e/x]

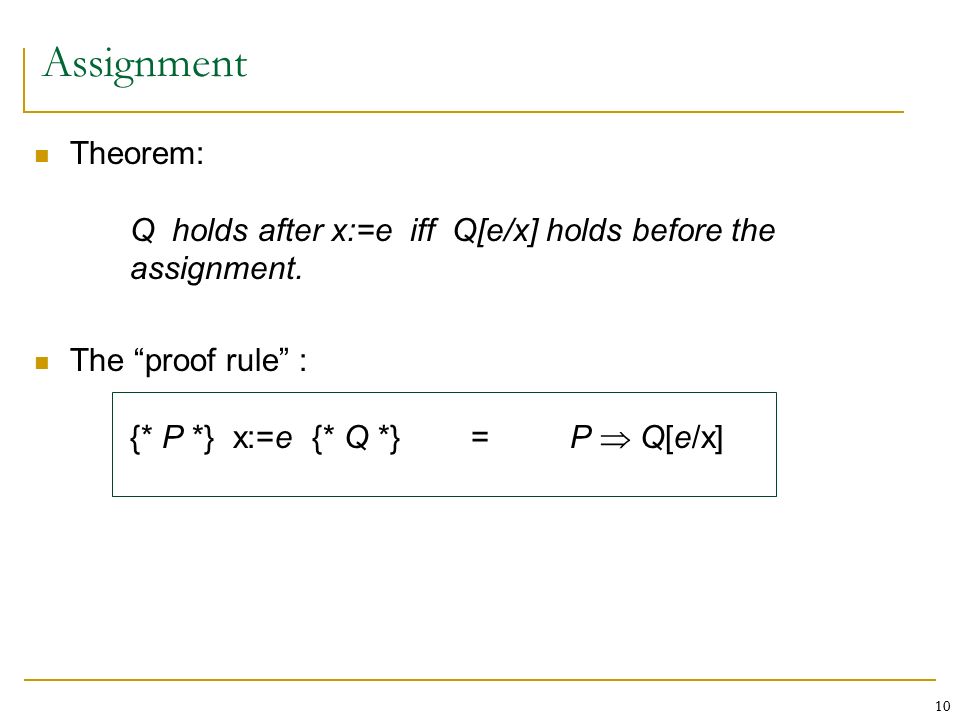

10. 10 Assignment Theorem: Q holds after x:=e iff Q[e/x] holds before the assignment. The “proof rule” : {* P *} x:=e {* Q *} = P  Q[e/x]

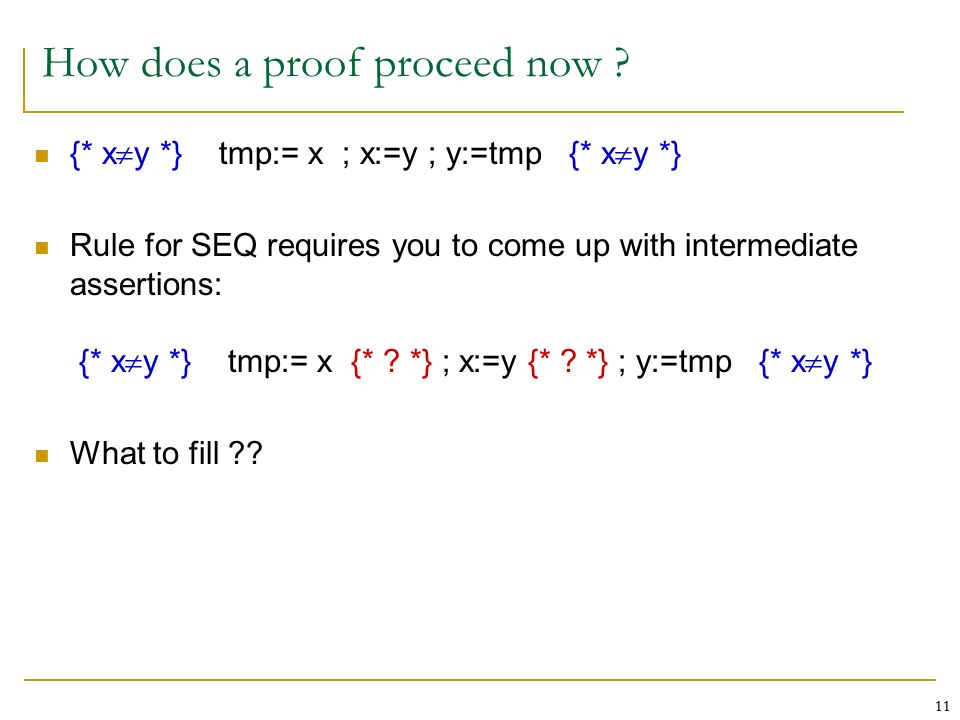

11. 11 How does a proof proceed now ? {* x  y *} tmp:= x ; x:=y ; y:=tmp {* x  y *} Rule for SEQ requires you to come up with intermediate assertions: {* x  y *} tmp:= x {* ? *} ; x:=y {* ? *} ; y:=tmp {* x  y *} What to fill ??

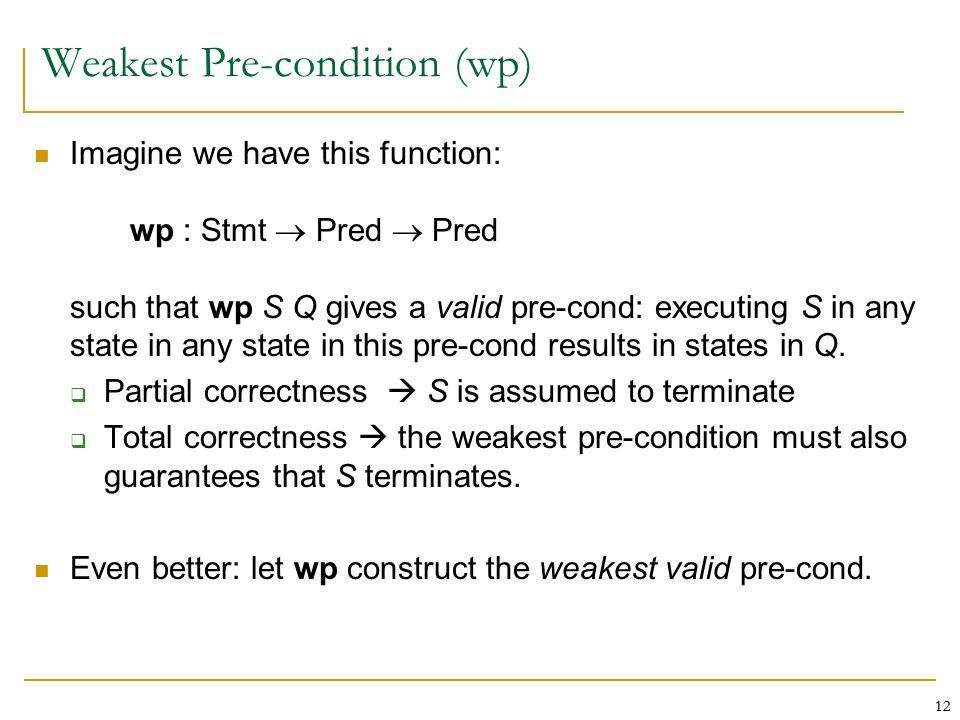

12. 12 Weakest Pre-condition (wp) Imagine we have this function: wp : Stmt  Pred  Pred such that wp S Q gives a valid pre-cond: executing S in any state in any state in this pre-cond results in states in Q.  Partial correctness  S is assumed to terminate  Total correctness  the weakest pre-condition must also guarantees that S terminates. Even better: let wp construct the weakest valid pre-cond.

13. Weaker and stronger If p  q is valid, we say that p is stronger than q Conversely, q is weaker than p. A state-predicate p can also be seen as characterizing a set of states, namely those states on which p is true. “p is stronger than q” is the same as saying, in terms of set, that “p is subset of q“. 13

14. 14 Weakest pre-condition We can “characterize” wp, as follows: {* P *} S {* Q *}  P  wp S Q Does this define a valid pre-cond? Yes, you can prove: {* wp S Q *} S {* Q *} Corollary: this reduces program verification problems to proving implications! Corollary: the reduction is complete. That is, if the implication above is not valid, so is the specification.

15. 15 Weakest pre-condition But the previous def. is not a constructive one: we still don’t know how to construct this wp  Possible for assignments, if-then-else,...  Not possible if the code of S is not known  Not possible for loops and recursions wp skip Q = Q wp (x:=e) Q = Q[e/x]

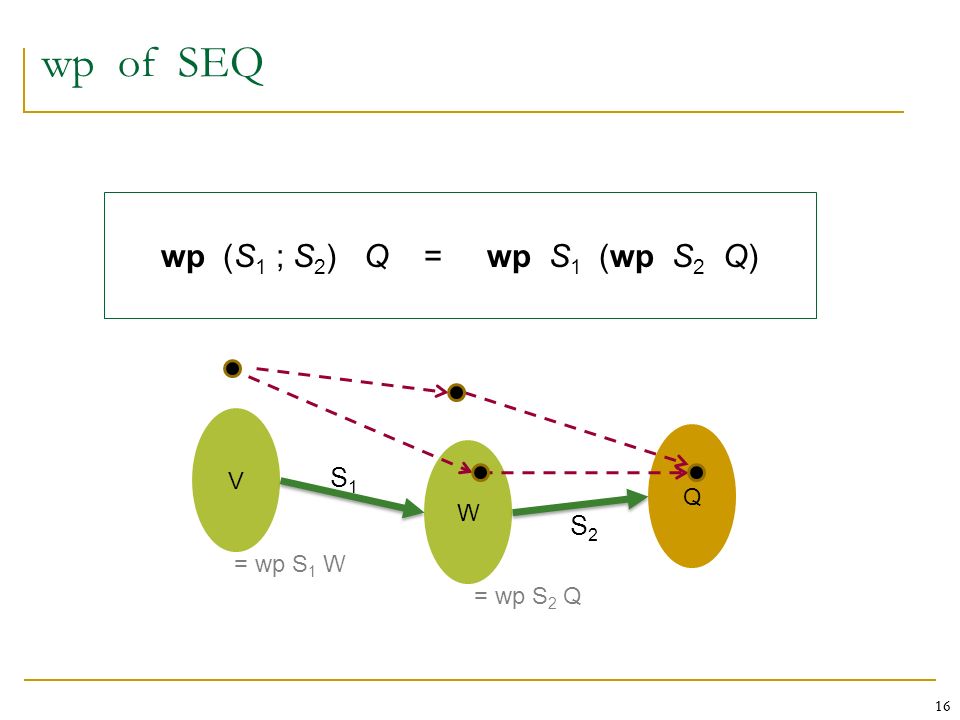

16. 16 wp of SEQ wp (S 1 ; S 2 ) Q = wp S 1 (wp S 2 Q) Q W = wp S 2 Q V = wp S 1 W S2S2 S1S1

17. 17 wp of IF wp (if g then S 1 else S 2 ) Q = (g /\ wp S 1 Q) \/ (  g /\ wp S 2 Q) Q W = wp S 2 Q V = wp S 1 Q S2S2 S1S1 g gg (g  wp S 1 Q) /\ (  g  wp S 2 Q) Other formulation :

18. 18 How does a proof proceed now ? {* x  y *} tmp:= x ; x:=y ; y:=tmp {* x  y *} 1. Calculate: W = wp (tmp:= x ; x:=y ; y:=tmp) x  y 2. Then prove: x  y  W We calculate the intermediate assertions, rather than figuring them out by hand!

19. 19 Example {* 0  i /\ ¬found /\ (found = (  k : 0  k<i : a[k]=x)) *} found := a[i]=x ; i:=i+1 {* found = (  k : 0  k<i : a[k]=x) *} found = (  k : 0  k<i+1 : a[k]=x) (a[i]=x) = (  k : 0  k<i+1 : a[k]=x) wp (x:=e) Q = Q[e/x] 

20. Some notes about the verification approach In our training, we prove P  W by hands. In practice, to some degree this can be automatically checked using e.g. a SAT solver. It checks if:  (P  W) is satisfiable If it is, then P  W is not valid. If the calculation of W was “complete”, the witness of the satisfiability of  (P  W) is essentially an input that will expose a bug in the program  useful for debugging. 20

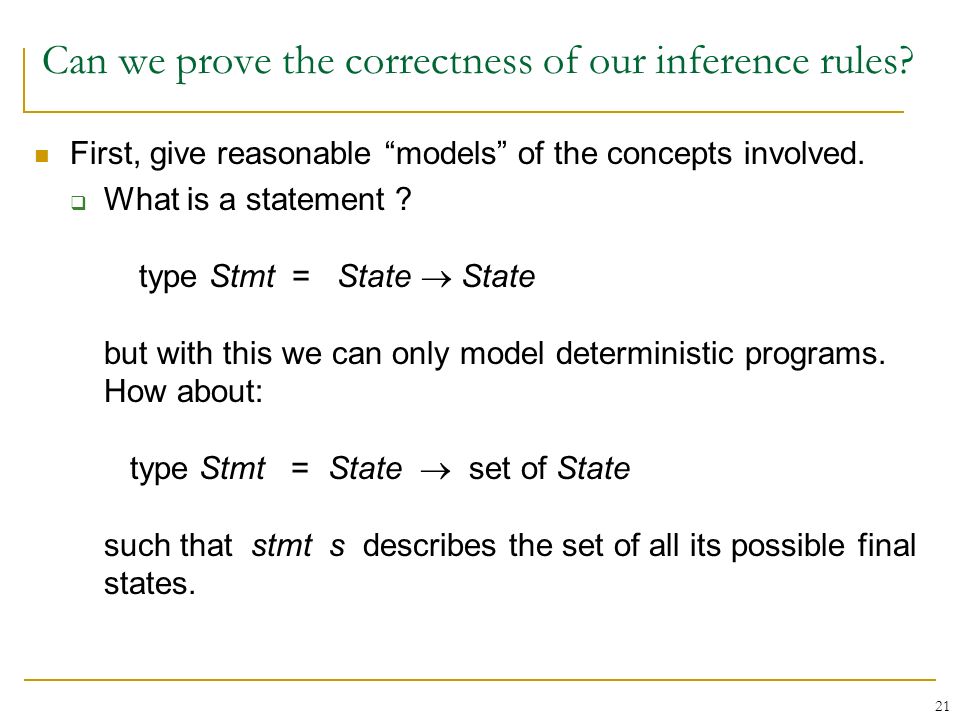

21. Can we prove the correctness of our inference rules? First, give reasonable “models” of the concepts involved.  What is a statement ? type Stmt = State  State but with this we can only model deterministic programs. How about: type Stmt = State  set of State such that stmt s describes the set of all its possible final states. 21

22. Meta What are “;” and “if-then” ? What is a pre-/post condition.e.g x  0 we can model it by a function of type State  bool What is Hoare triple? (partial correctness) 22 (S 1 ; S 2 ) s =  {S 2 t | t  S 1 s } (if g then S 1 else S 2 ) s = if g s then S 1 s else S 2 s {* P *} S {* Q *} = (  s: P s : (  t : t  S s : Q t))

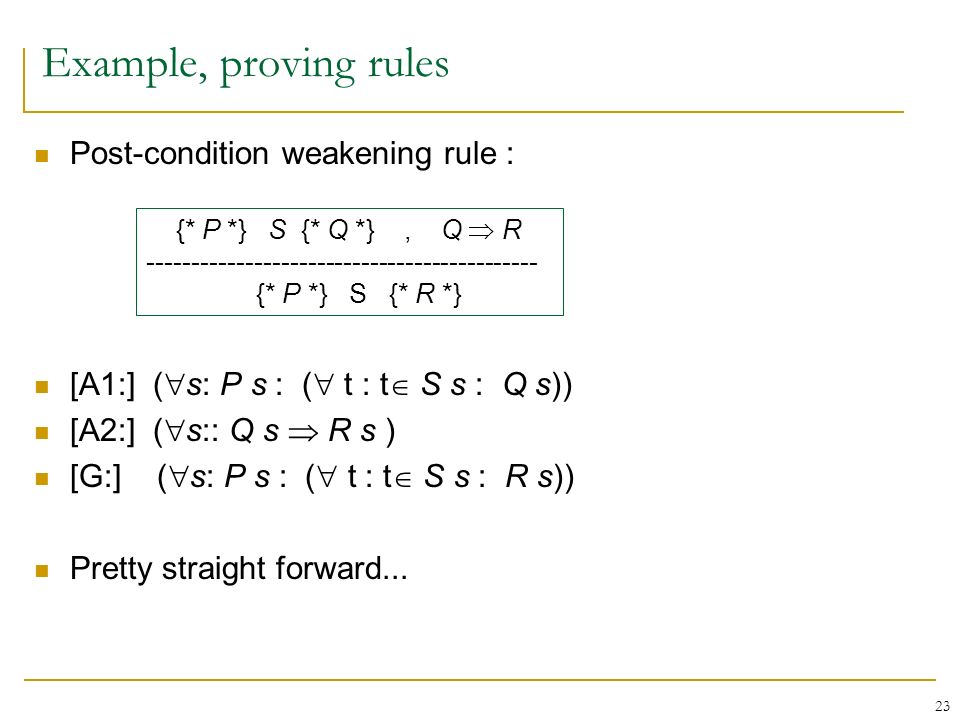

23. Example, proving rules Post-condition weakening rule : [A1:] (  s: P s : (  t : t  S s : Q s)) [A2:] (  s:: Q s  R s ) [G:] (  s: P s : (  t : t  S s : R s)) Pretty straight forward... 23 {* P *} S {* Q *}, Q  R -------------------------------------------- {* P *} S {* R *}

24. Btw, few more rules Pre-condition weakening: Conjunction and disjunction 24 {* Q *} S {* R *}, P  Q -------------------------------------------- {* P *} S {* R *} {* P 1 *} S {* Q 1 *}, {* P 2 *} S {* Q 2 *} -------------------------------------------------------------------------- {* P 1 /\ P 2 *} S 1 {* Q 1 /\ Q 2 *} {* P 1 \/ P 2 *} S 1 {* Q 1 \/ Q 2 *}

25. Part II : reasoning about loops 25

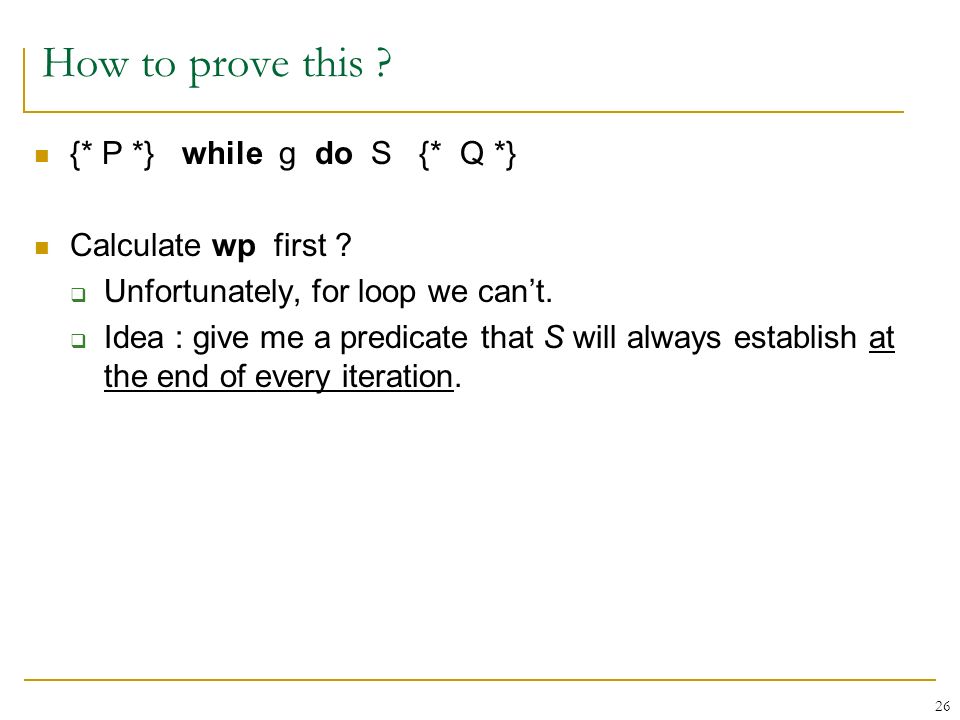

26. How to prove this ? {* P *} while g do S {* Q *} Calculate wp first ?  Unfortunately, for loop we can’t.  Idea : give me a predicate that S will always establish at the end of every iteration. 26

27. Idea {* P *} while g do S {* Q *} Try to come up with a predicate I that holds at the end of every iteration. iter 1 :// g // ; S{* I *} iter 2 :// g // ; S{* I *} … iter n :// g // ; S{* I *}// last iteration! exit ://  g // I /\  g holds as the loop exit! 27 So, to establish postcond Q, sufficient to prove: I /\  g  Q

28. Ok, what kind of predicate is that?? while g do S I has to holds at the end of each iteration 28 … S {* I *}// g // S {* I *} iter i+1 iter i Sufficient to prove: {* I /\ g *} S {* I *} Except for the first iteration !

29. Idea {* P *} while g do S For the first iteration : 29 {* I *}// g // S {* I *} Iter 1 We know this from the given pre-cond Recall the condition: {* I /\ g *} S {* I *} {* P *} Additionally we need : P  I

30. To Summarize Capture this in an inference rule: P  I// setting up I {* g /\ I *} S {* I *}// invariance I /\  g  Q // exit cond ---------------------------------------- {* P *} while g do S {* Q *} This rule is only good for partial correctness though. an “I” satisfying the second premise above is called invariant. 30

31. Few things to note An I satisfying the 2 nd and 3 rd conditions of the previous rule is always a valid pre-condition of the loop, towards the post- cond Q. That is, we also have this rule: Indeed, I is not necessarily the weakest one. The previous rule can just as well be obtained from the above rule + pre-condition weakening. Nothing prevent us from chaining I into wp calculation, although the resulting predicate may then not be the weakest pre-cond. 31 {* g /\ I *} S {* I *} I /\  g  Q ---------------------------------------- {* I *} while g do S {* Q *}

32. Examples Prove (partial correctness) : {* true *} while i  n do i++ {* i=n *} Prove: {* i=0 /\ n=10 *} while i<n do i++ {* i=n *} 32

33. Examples Prove: {* i=0 /\ s=0 *} while i<n do { s = s+2 ; i++ } {* isEven(s) *} Prove (will return to this later) : {* 0  n *} i := 0 ; r := true ; while i<n do { r := r /\ (a[i]=0) ; i++ } {* r = (  k : 0  k<n : a[k]=0) *} 33

34. Proving termination {* P *} while g do S {* Q *} Idea: come up with an integer expression m, satisfying : 1. At the start of every iteration m > 0 2. Each iteration decreases m These imply that the loop will terminates. 34

35. Capturing the termination conditions At the start of every iteration m > 0 :  g  m  0  If you have an invariant: I /\ g  m > 0 Each iteration decreases m : {* I /\ g *} C:=m; S {* m<C *} 35

36. To Summarize P  I // setting up I {* g /\ I *} S {* I *} // invariance I /\  g  Q // exit cond {* I /\ g *} C:=m; S {* m 0 // m bounded below ---------------------------------------- {* P *} while g do S {* Q *} Since we also have this pre-cond strengthening rule: P  I, {* I *} while g do S {*Q*} ------------------------------------------------------ {* P *} while g do S {* Q *} 36

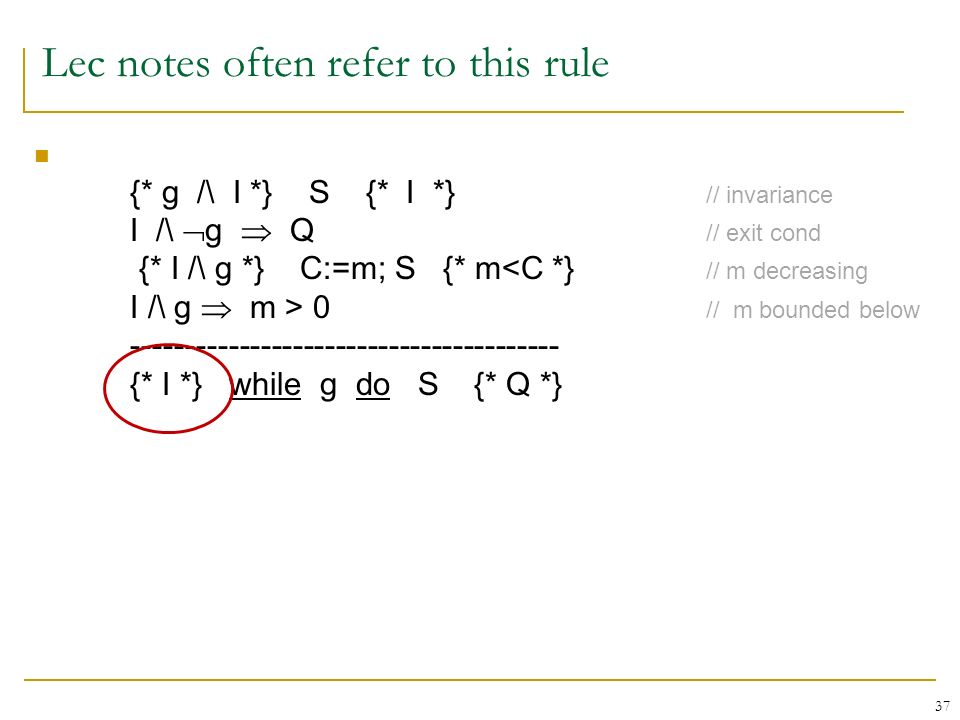

37. Lec notes often refer to this rule {* g /\ I *} S {* I *} // invariance I /\  g  Q // exit cond {* I /\ g *} C:=m; S {* m 0 // m bounded below ---------------------------------------- {* I *} while g do S {* Q *} 37

38. Examples {* i  n *} while i<n do i++ {* true *} {* true *} while i  n do i++ {* true *} {* reds=100 /\ blues=100 } while reds>0 \/ blues>0 do { if reds>0 then { reds-- ; blues += 2 } else { blues-- } } {* true *} 38

39. Structuring the proof(s) Recall this example: {* 0  n *} i := 0 ; r := true ; while i<n do { r := r /\ (a[i]=0) ; i++ } {* r = (  k : 0  k<n : a[k]=0) *} Chosen invariant & termination metric: I : (r = (  k : 0  k<i : a[k]=0)) /\ 0  i  n m : n - i 39 I1I1 I2I2

40. It comes down to proving these (Exit Condition) I /\  g  Q (Initialization Condition) {* given-pre-cond *} i := 0 ; r := true {* I *}, Equivalently : given-pre-cond  wp (i := 0 ; r := true) I (Invariance) I /\ g  wp body I (Termination Condition) I /\ g  wp (C:=m ; body) (m<C) (Termination Condition) I /\ g  m>0 40

41. Top level structure of the proofs 1 PROOF PEC [A1] r = (  k : 0  k<i : a[k]=0) [A2] 0  i  n [A3] i  n [G] r = (  k : 0  k<n : a[k]=0).... (the proof itself) PROOF PInit [A1] 0  n [ G ] (true = (  k : 0  k<0 : a[k]=0)) /\ 0  0  n // calculated wp 41

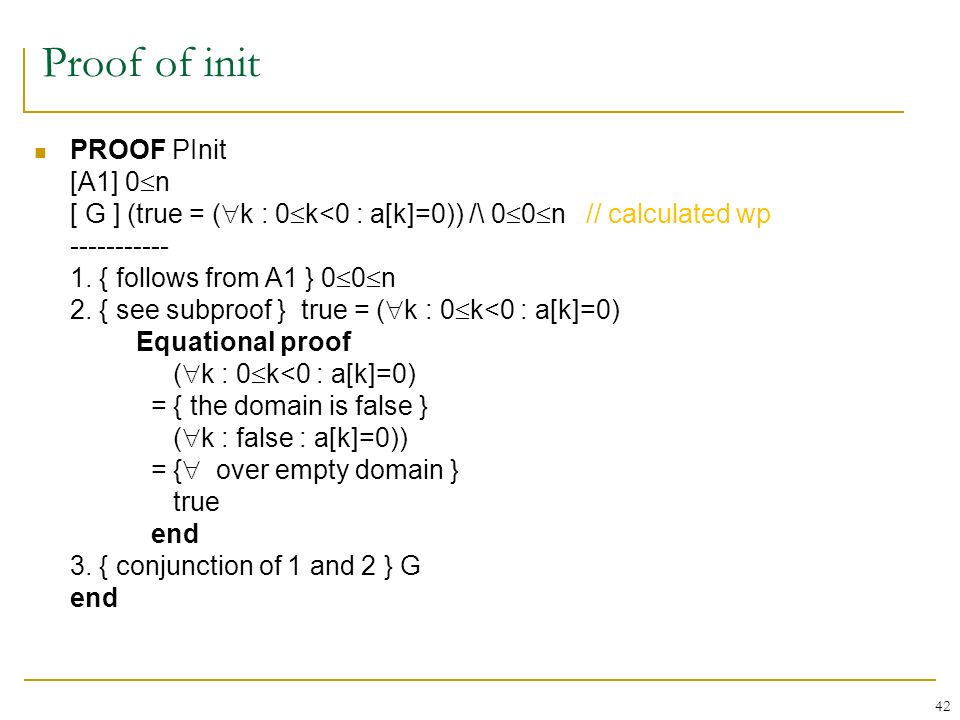

42. Proof of init PROOF PInit [A1] 0  n [ G ] (true = (  k : 0  k<0 : a[k]=0)) /\ 0  0  n // calculated wp ----------- 1. { follows from A1 } 0  0  n 2. { see subproof } true = (  k : 0  k<0 : a[k]=0) Equational proof (  k : 0  k<0 : a[k]=0) = { the domain is false } (  k : false : a[k]=0)) = {  over empty domain } true end 3. { conjunction of 1 and 2 } G end 42

43. Top level structure of the proofs 2 PROOF PIC [A1] r = (  k : 0  k<i : a[k]=0) [A2] 0  i  n [A3] i<n [G1] r/\(a[i]=0) = (  k : 0  k<i+1 : a[k]=0) [G2] 0  i+1  n ---------------------------------------------------------------------- 1. { see eq. subproof below } G1 EQUATIONAL PROOF ---------------------------- (  k : 0  k<i+1 : a[k]=0) = { dom. merge, PIC.A2 } (  k : 0  k<i \/ k=i : a[k]=0) = {  domain-split } (  k : 0  k<i: a[k]=0) /\ (  k : k=i : a[k]=0) = { PIC.A1 } r /\ (  k : k=i : a[k]=0) = { quant. over singleton } r /\ (a[i]=0) END ------------------------------------------------------- 2........ END 43

44. Top level structure of the proofs 3 PROOF TC1 [A1] r = (  k : 0  k<i : a[k]=0) [A2] 0  i  n [A3] i  n [G] n - (i+1) < n-1 // calculated wp PROOF TC2 [A1] r = (  k : 0  k 0 44

45. Reducing a program spec to a statement spec {* x > 0 *} P(x:int) { x++ ; return... } {* return = x+1 *} Things to take into account :  How are parameters passed? in uPL  by-value and by- copy-restore  only return at the end is allowed in uPL  its value is represented by an assignment to a dummy variable “return” The above reduces to: {* x > 0 *} X:= x ; x++ ; return :=... {* return = X+1 *} We introduce an auxiliary variable X to represent x’s original value. 45

46. Reducing a program to its body How about this : {* y  -1 *} P(x, OUT y) { y++ ; x++ ; return x/y } {* return = (x+1)/y *}  It makes sense to agree that y in the post-cond refers to its new value, whereas x to its old value. Reduce to: {* y  -1 *} X:=x; y++; x++ ; return :=x/y {* return = (X+1)/y *} 46

47. Unstructured programs “Structured” program: the control flow follows the program’s syntax. Unstructured program: if y=0 then goto red ; x := x/y ; red:S 2 The “standard” Hoare logic rule for sequential composition is broken! Exceptions and “return” in the middle create a similar issue. 47

48. Adjusting Hoare Logic for Unstructured Programs 48 0 2 3 x<n  x++ x=n  skip Program S : represented by a graph of guarded assignments 1.Node represents “control location” 2.Edge is an assignment that moves the control of S, from one location to another. 3.An assignment can only execute if its guard is true. x=n  skip 0  x  n x=n

49. Floyd Assertion Network 49 1.Decorate nodes with assertions. 2.Prove enter and exit 3.Prove for each edge, the corresponding Hoare triple. 0 2 3 x<n  x++ x=n  skip 0  x  n x=n 0  x  n x = n

50. Handling exception and return-in-the-middle With Flyod we can handle those. if g then { S ; return } T ; return ; try S catch T ; 50 T S S g gg T
