Daily Quiz. Calculate the cell potential of voltaic cells that contain the following pairs of half-cells:

Similar presentations


Presentation on theme: "Daily Quiz. Calculate the cell potential of voltaic cells that contain the following pairs of half-cells:"— Presentation transcript:

1 Daily Quiz

2 Calculate the cell potential of voltaic cells that contain the following pairs of half-cells:

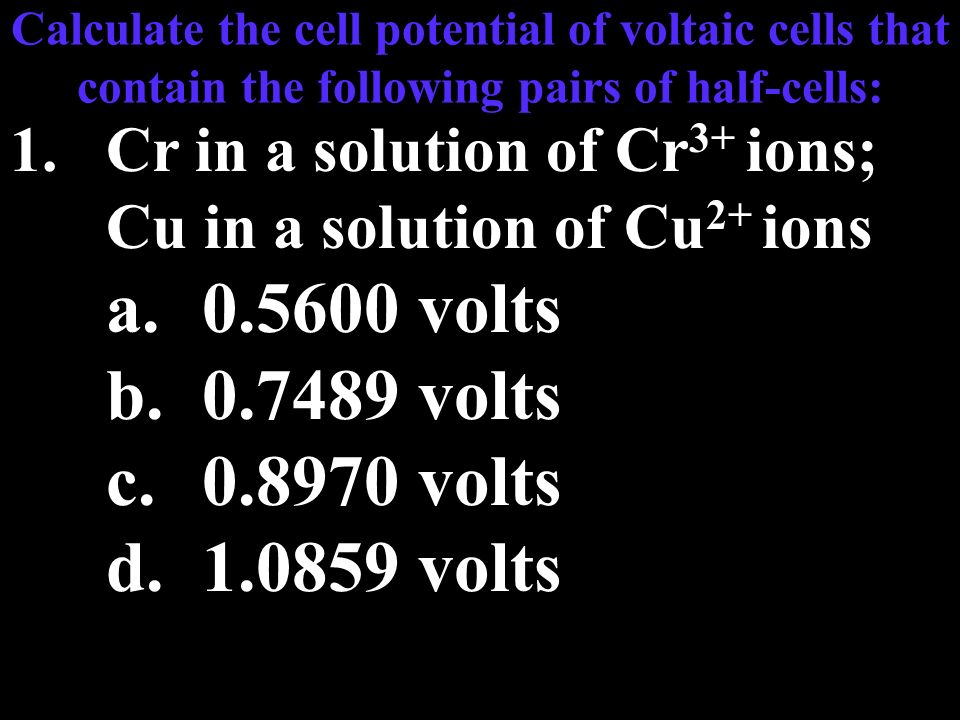

3 1.Cr in a solution of Cr 3+ ions; Cu in a solution of Cu 2+ ions a.0.5600 volts b.0.7489 volts c.0.8970 volts d.1.0859 volts

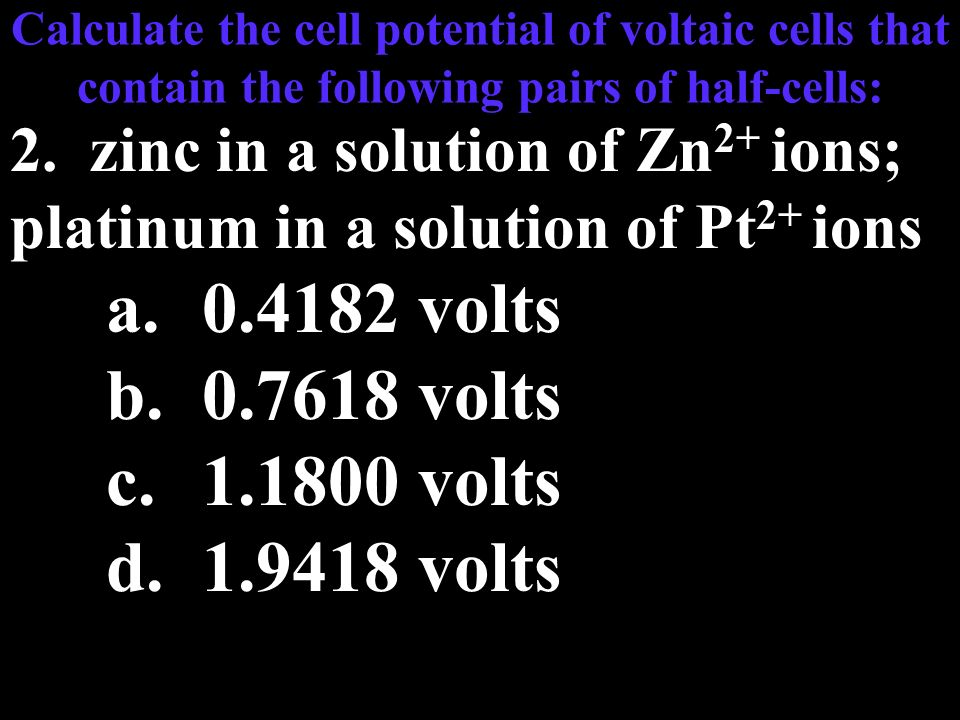

4 Calculate the cell potential of voltaic cells that contain the following pairs of half-cells: 2. zinc in a solution of Zn 2+ ions; platinum in a solution of Pt 2+ ions a.0.4182 volts b.0.7618 volts c.1.1800 volts d.1.9418 volts

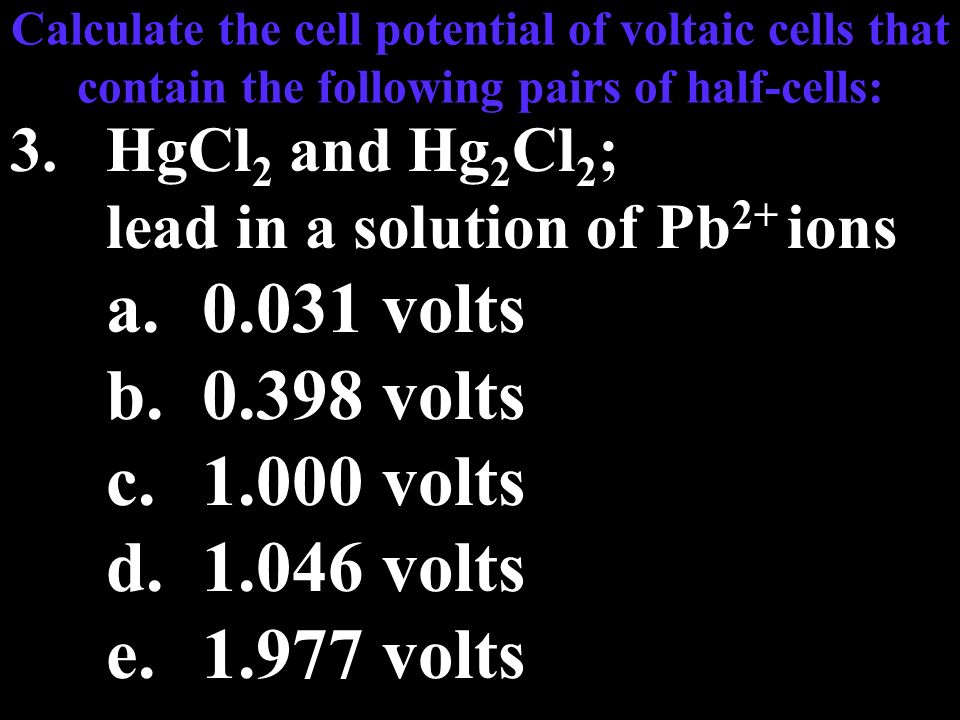

5 Calculate the cell potential of voltaic cells that contain the following pairs of half-cells: 3. HgCl 2 and Hg 2 Cl 2 ; lead in a solution of Pb 2+ ions a.0.031 volts b.0.398 volts c.1.000 volts d.1.046 volts e.1.977 volts

6 Calculate the cell potential of voltaic cells that contain the following pairs of half-cells: 4.tin in a solution of Sn 2+ ions; iodine in a solution of I - ions a.0.3845 volts b.0.6730 volts c.0.6865 volts d.1.0050 volts e.1.2935 volts.

7 Calculate the cell potential of voltaic cells that contain the following pairs of half-cells: 1.Cr in a solution of Cr 3+ ions; Cu in a solution of Cu 2+ ions a.0.5600 volts b.0.7489 volts c.0.8970 volts d.1.0859 volts

8 Calculate the cell potential of voltaic cells that contain the following pairs of half-cells: 1.Cr in a solution of Cr 3+ ions; Cu in a solution of Cu 2+ ions Cr 3+ + 3e - → Cr-0.913 Cu 2+ + 2e - → Cu 0.153 -(-0.913) 1.066 V

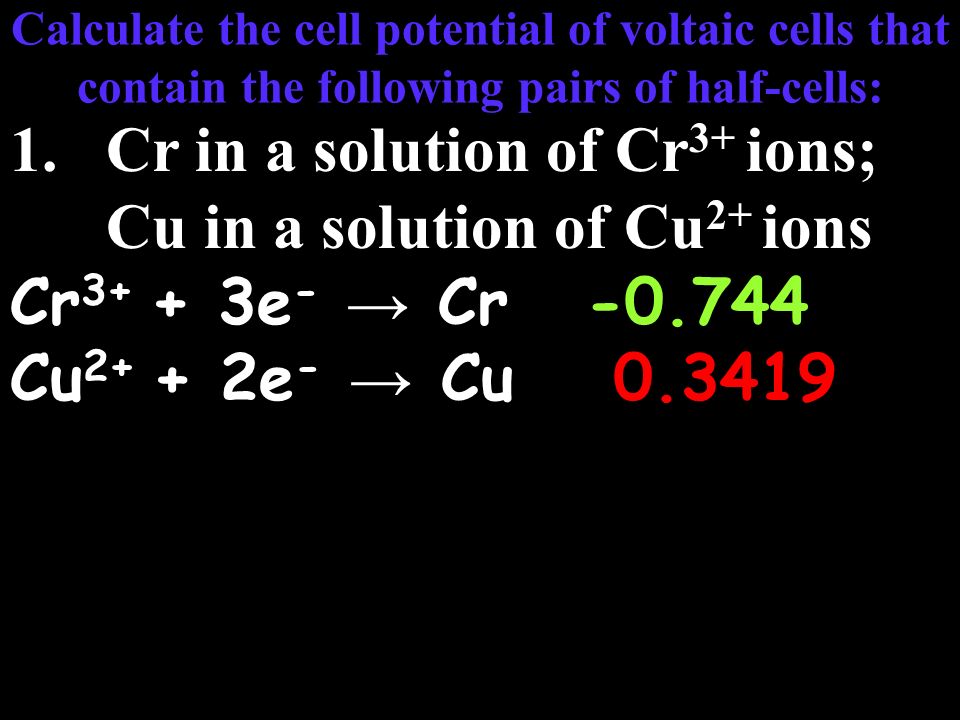

9 Calculate the cell potential of voltaic cells that contain the following pairs of half-cells: 1.Cr in a solution of Cr 3+ ions; Cu in a solution of Cu 2+ ions Cr 3+ + 3e - → Cr-0.744 Cu 2+ + 2e - → Cu 0.3419 -(-0.913) 1.066 V

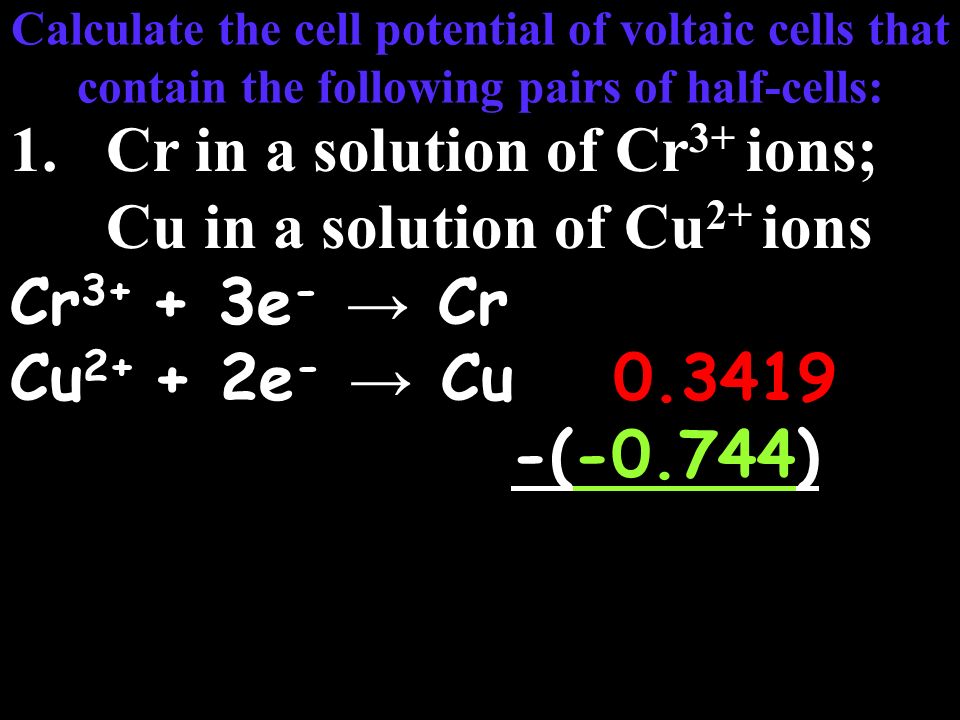

10 Calculate the cell potential of voltaic cells that contain the following pairs of half-cells: 1.Cr in a solution of Cr 3+ ions; Cu in a solution of Cu 2+ ions Cr 3+ + 3e - → Cr-0.744 Cu 2+ + 2e - → Cu 0.3419 -(-0.744) 1.066 V

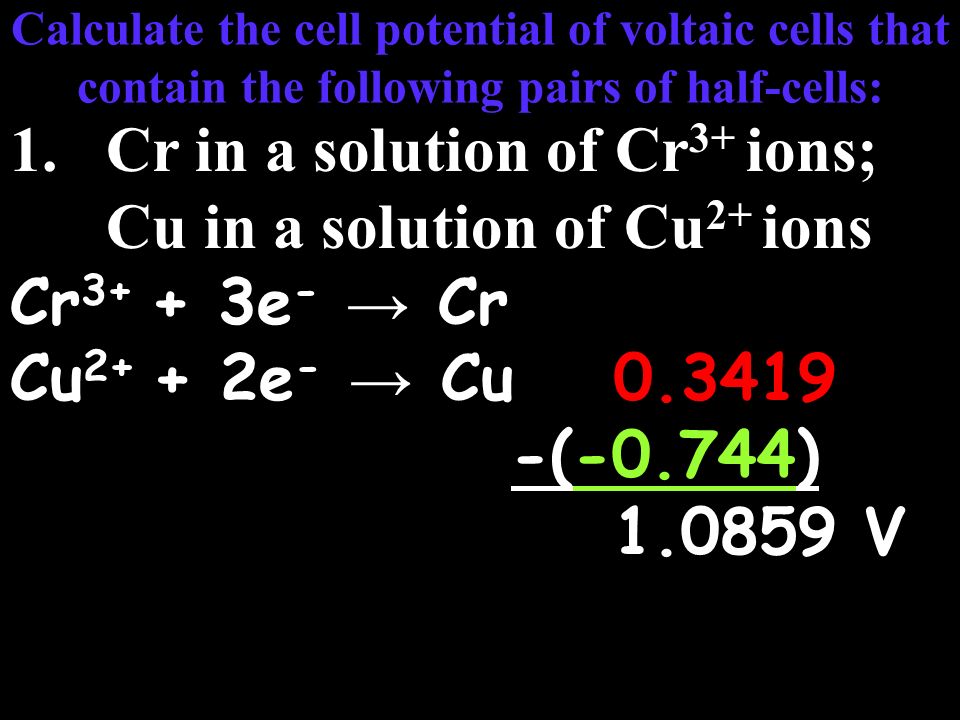

11 Calculate the cell potential of voltaic cells that contain the following pairs of half-cells: 1.Cr in a solution of Cr 3+ ions; Cu in a solution of Cu 2+ ions Cr 3+ + 3e - → Cr-0.744 Cu 2+ + 2e - → Cu 0.3419 -(-0.744) 1.0859 V

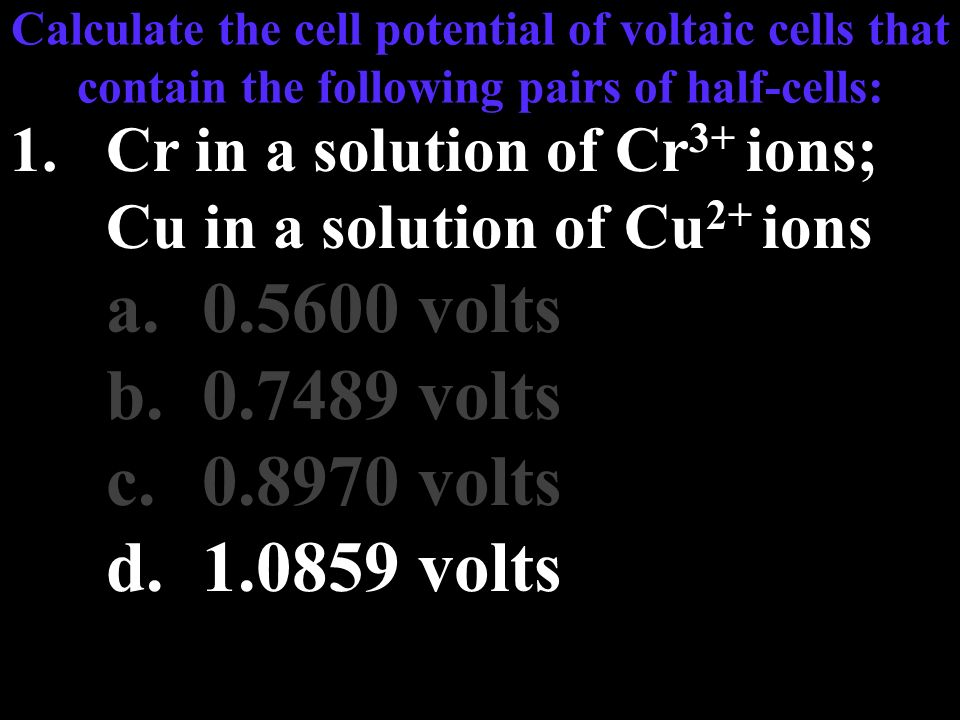

12 Calculate the cell potential of voltaic cells that contain the following pairs of half-cells: 1.Cr in a solution of Cr 3+ ions; Cu in a solution of Cu 2+ ions a.0.5600 volts b.0.7489 volts c.0.8970 volts d.1.0859 volts

13 Calculate the cell potential of voltaic cells that contain the following pairs of half-cells: 2. zinc in a solution of Zn 2+ ions; platinum in a solution of Pt 2+ ions a.0.4182 volts b.0.7618 volts c.1.1800 volts d.1.9418 volts

14 Calculate the cell potential of voltaic cells that contain the following pairs of half-cells: 2. zinc in a solution of Zn 2+ ions; platinum in a solution of Pt 2+ ions Zn 2+ + 2e - → Zn-0.7618 Pt 2+ + 2e - → Pt 1.18 -(-0.7618) 1.94 V

15 Calculate the cell potential of voltaic cells that contain the following pairs of half-cells: 2. zinc in a solution of Zn 2+ ions; platinum in a solution of Pt 2+ ions Zn 2+ + 2e - → Zn-0.7618 Pt 2+ + 2e - → Pt 1.18 -(-0.7618) 1.94 V

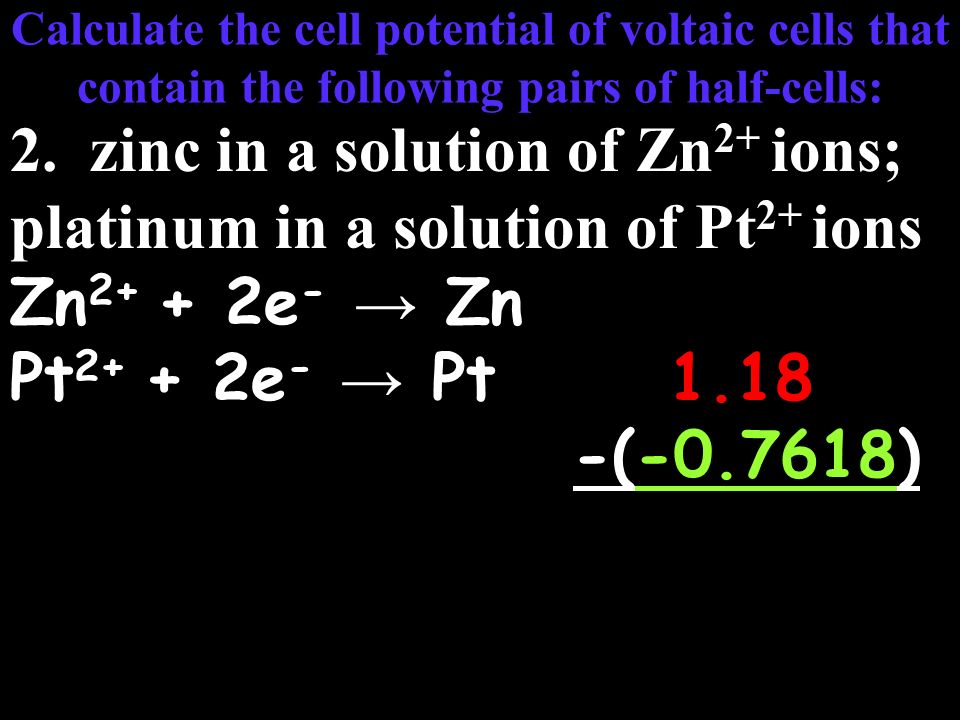

16 Calculate the cell potential of voltaic cells that contain the following pairs of half-cells: 2. zinc in a solution of Zn 2+ ions; platinum in a solution of Pt 2+ ions Zn 2+ + 2e - → Zn-0.7618 Pt 2+ + 2e - → Pt 1.18 -(-0.7618) 1.94 V

17 Calculate the cell potential of voltaic cells that contain the following pairs of half-cells: 2. zinc in a solution of Zn 2+ ions; platinum in a solution of Pt 2+ ions Zn 2+ + 2e - → Zn-0.7618 Pt 2+ + 2e - → Pt 1.18 -(-0.7618) 1.94 V

18 Calculate the cell potential of voltaic cells that contain the following pairs of half-cells: 2. zinc in a solution of Zn 2+ ions; platinum in a solution of Pt 2+ ions a.0.4182 volts b.0.7618 volts c.1.1800 volts d.1.9418 volts

19 Calculate the cell potential of voltaic cells that contain the following pairs of half-cells: 3. HgCl 2 and Hg 2 Cl 2 ; lead in a solution of Pb 2+ ions a.0.031 volts b.0.398 volts c.1.000 volts d.1.046 volts e.1.977 volts

20 Calculate the cell potential of voltaic cells that contain the following pairs of half-cells: 3. HgCl 2 and Hg 2 Cl 2 ; lead in a solution of Pb 2+ ions 2Hg 2+ + 2e - → 2Hg 2 2+ 0.920 Pb 2+ + 2e - → Pb -(-0.1262) 1.046 V

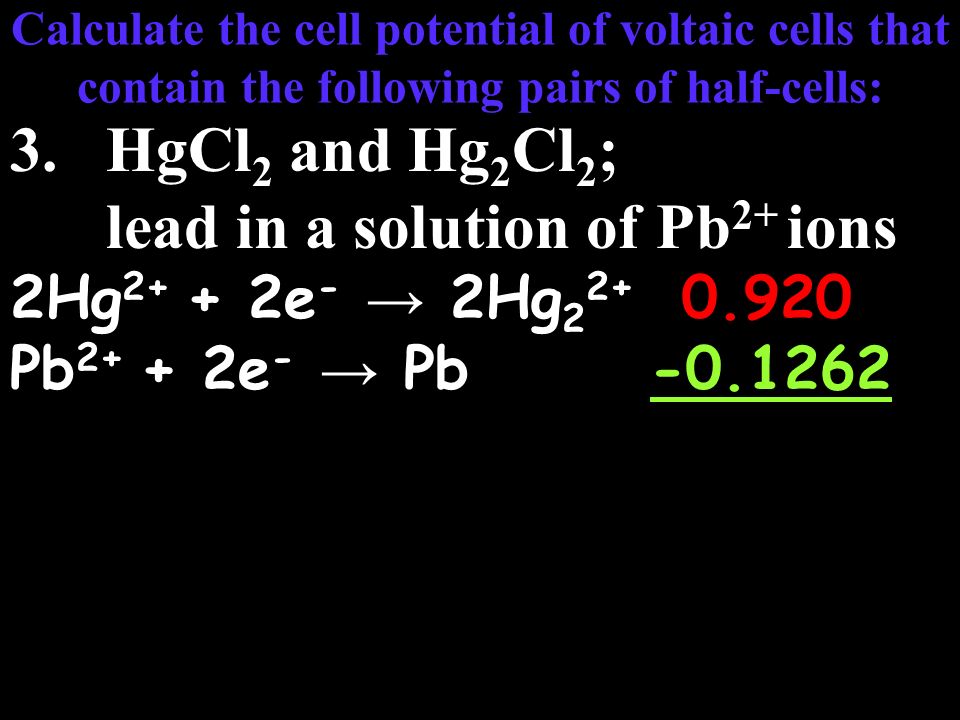

21 Calculate the cell potential of voltaic cells that contain the following pairs of half-cells: 3. HgCl 2 and Hg 2 Cl 2 ; lead in a solution of Pb 2+ ions 2Hg 2+ + 2e - → 2Hg 2 2+ 0.920 Pb 2+ + 2e - → Pb -(-0.1262) 1.046 V

22 Calculate the cell potential of voltaic cells that contain the following pairs of half-cells: 3. HgCl 2 and Hg 2 Cl 2 ; lead in a solution of Pb 2+ ions 2Hg 2+ + 2e - → 2Hg 2 2+ 0.920 Pb 2+ + 2e - → Pb -(-0.1262) 1.046 V

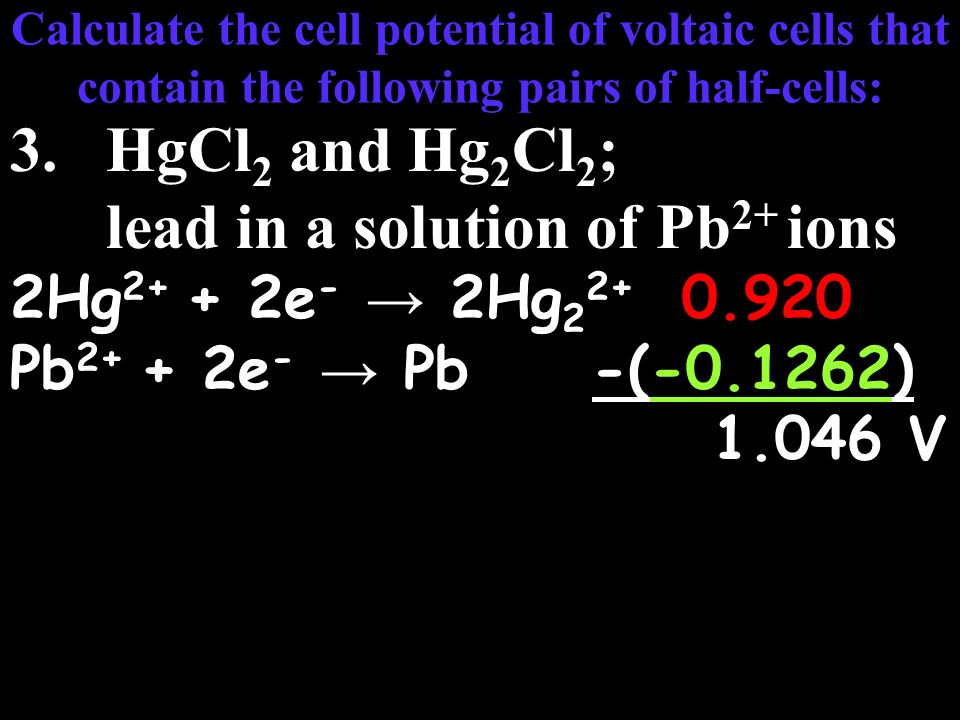

23 Calculate the cell potential of voltaic cells that contain the following pairs of half-cells: 3. HgCl 2 and Hg 2 Cl 2 ; lead in a solution of Pb 2+ ions 2Hg 2+ + 2e - → 2Hg 2 2+ 0.920 Pb 2+ + 2e - → Pb -(-0.1262) 1.046 V

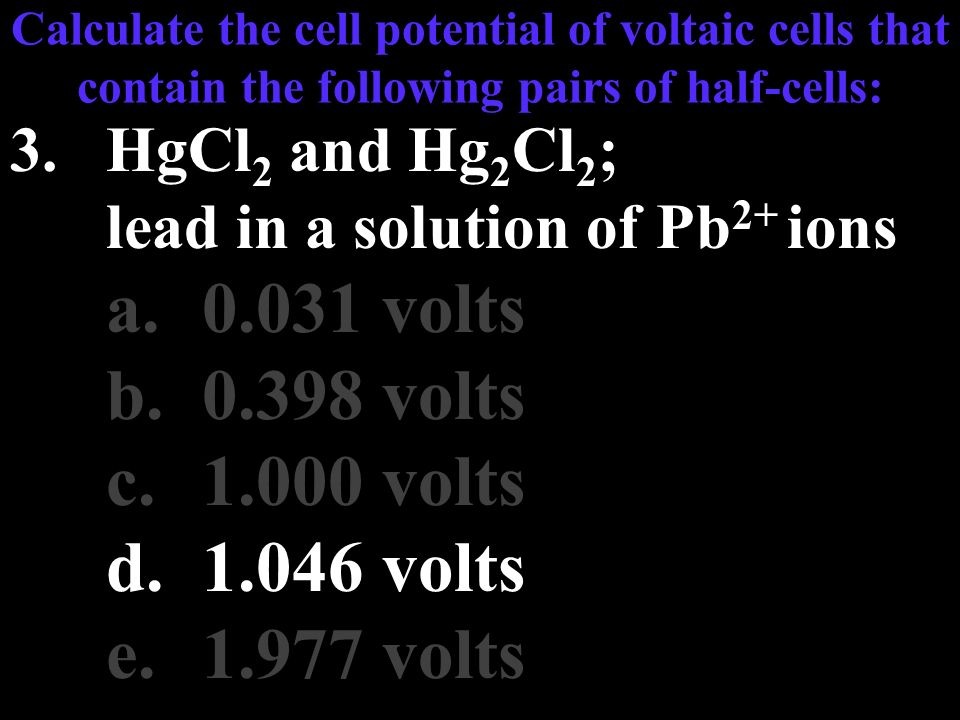

24 Calculate the cell potential of voltaic cells that contain the following pairs of half-cells: 3. HgCl 2 and Hg 2 Cl 2 ; lead in a solution of Pb 2+ ions a.0.031 volts b.0.398 volts c.1.000 volts d.1.046 volts e.1.977 volts

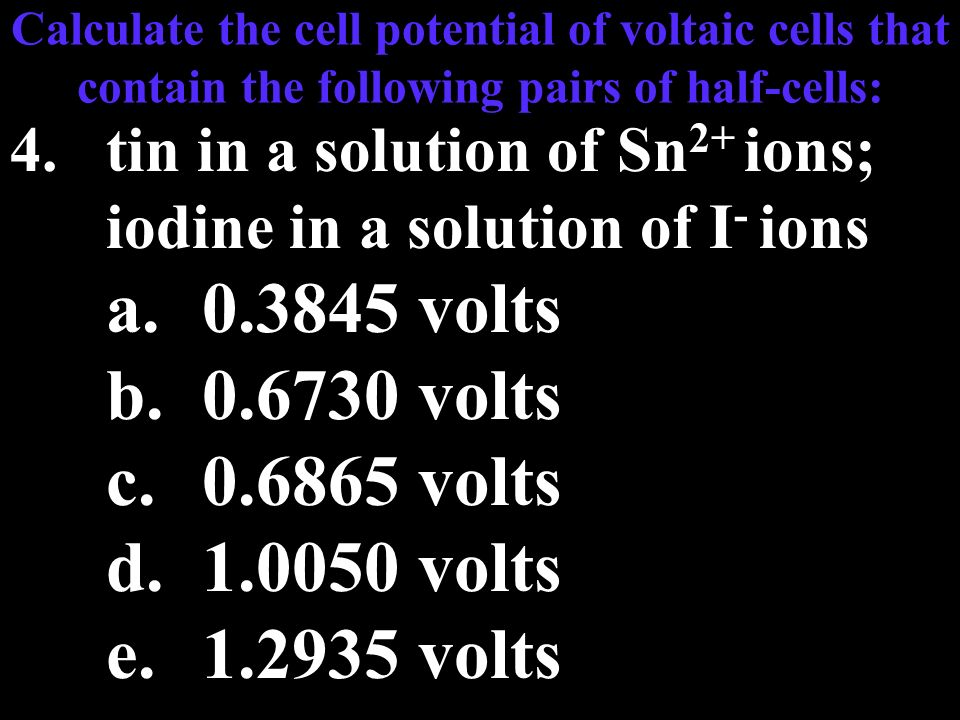

25 Calculate the cell potential of voltaic cells that contain the following pairs of half-cells: 4.tin in a solution of Sn 2+ ions; iodine in a solution of I - ions a.0.3845 volts b.0.6730 volts c.0.6865 volts d.1.0050 volts e.1.2935 volts

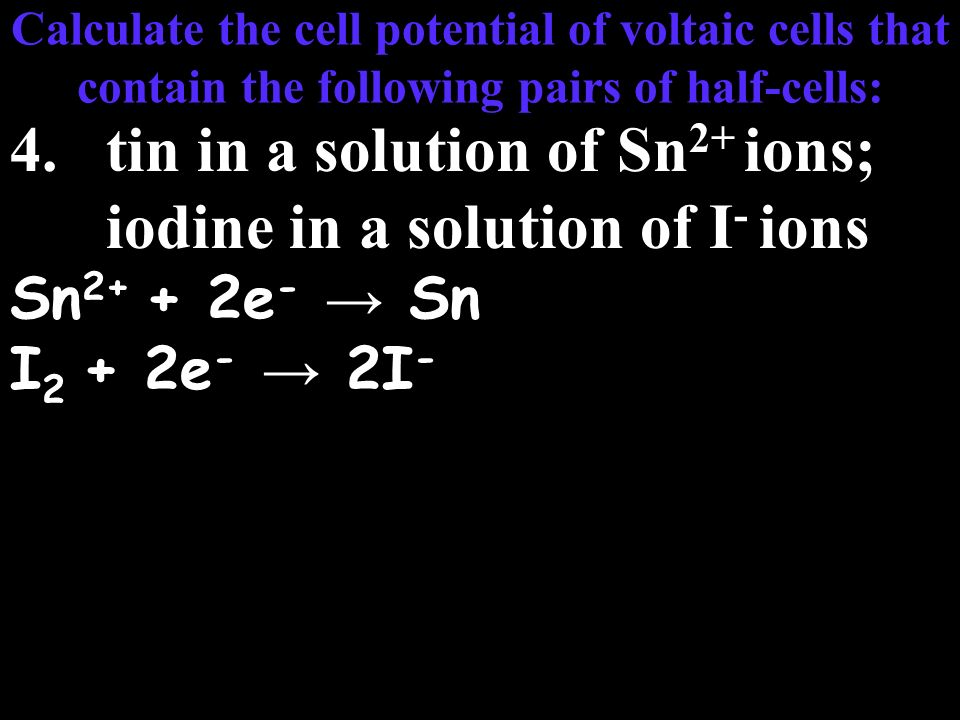

26 Calculate the cell potential of voltaic cells that contain the following pairs of half-cells: 4.tin in a solution of Sn 2+ ions; iodine in a solution of I - ions Sn 2+ + 2e - → Sn-0.1375 I 2 + 2e - → 2I - 0.5355 -(-0.1375) 0.6730 V

27 Calculate the cell potential of voltaic cells that contain the following pairs of half-cells: 4.tin in a solution of Sn 2+ ions; iodine in a solution of I - ions Sn 2+ + 2e - → Sn-0.1375 I 2 + 2e - → 2I - 0.5355 -(-0.1375) 0.6730 V

28 Calculate the cell potential of voltaic cells that contain the following pairs of half-cells: 4.tin in a solution of Sn 2+ ions; iodine in a solution of I - ions Sn 2+ + 2e - → Sn-0.1375 I 2 + 2e - → 2I - 0.5355 -(-0.1375) 0.6730 V

29 Calculate the cell potential of voltaic cells that contain the following pairs of half-cells: 4.tin in a solution of Sn 2+ ions; iodine in a solution of I - ions Sn 2+ + 2e - → Sn-0.1375 I 2 + 2e - → 2I - 0.5355 -(-0.1375) 0.6730 V

30 Calculate the cell potential of voltaic cells that contain the following pairs of half-cells: 4.tin in a solution of Sn 2+ ions; iodine in a solution of I - ions a.0.3845 volts b.0.6730 volts c.0.6865 volts d.1.0050 volts e.1.2935 volts.
