1 Mike Cruise University of Birmingham Searches for very high frequency gravitational waves

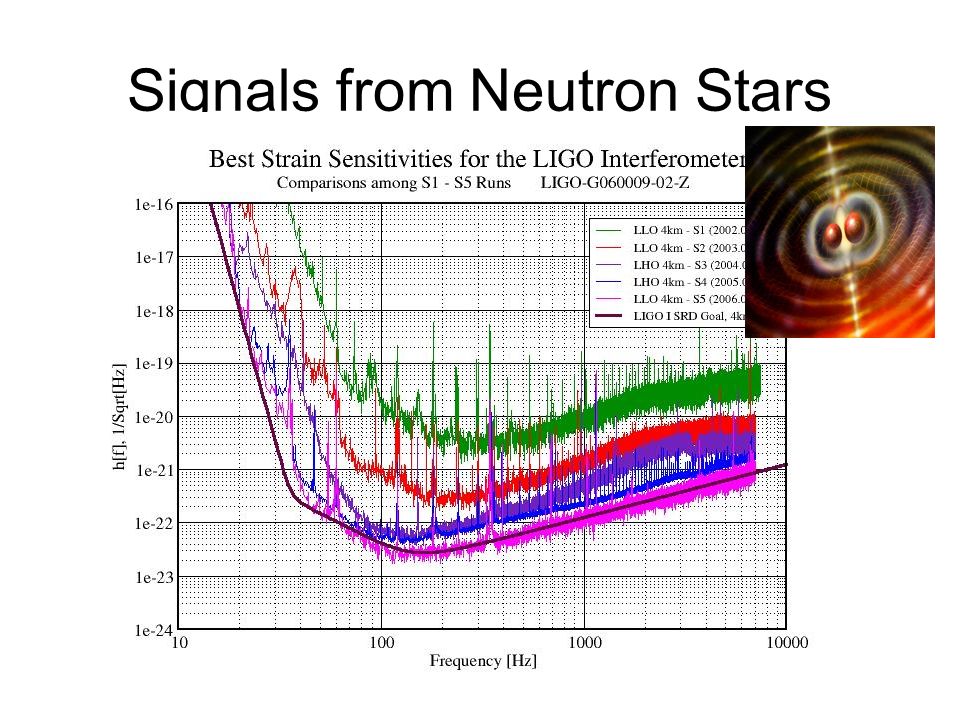

2 Signals from Neutron Stars

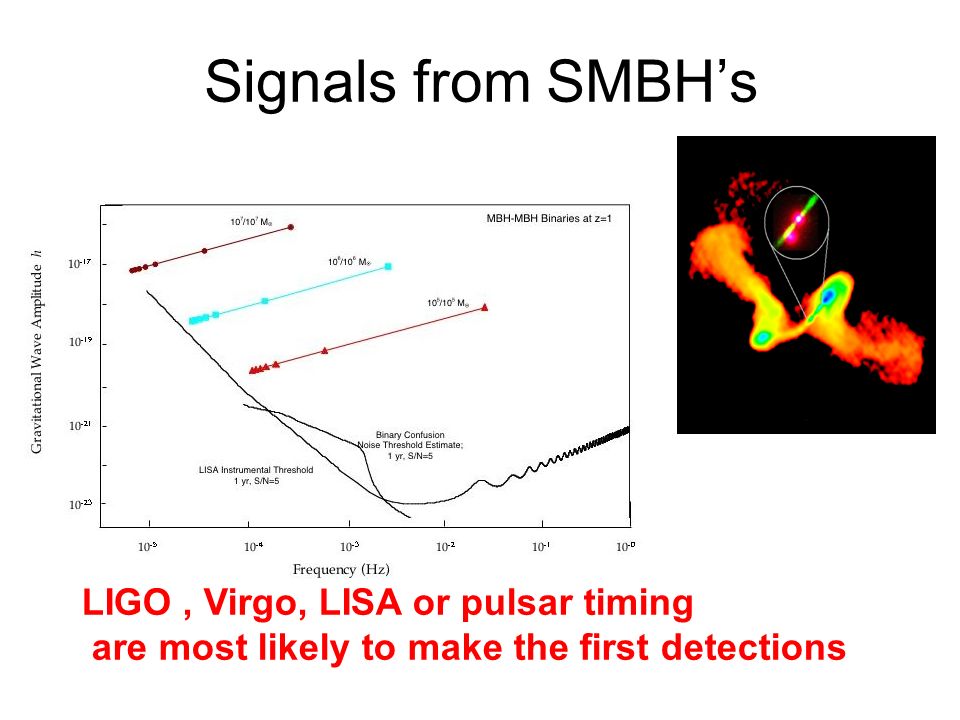

3 Signals from SMBH’s LIGO, Virgo, LISA or pulsar timing are most likely to make the first detections

4 Why go to higher frequencies? Other branches of astronomy developed through mullti-frequency observations For frequencies >1 MHz –Cosmological signals from the Planck era. –KK mode oscillations in higher dimensions –EMW-plasma instabilities generate GW’s –Radiation from non-minimal coupling of the EM and G fields

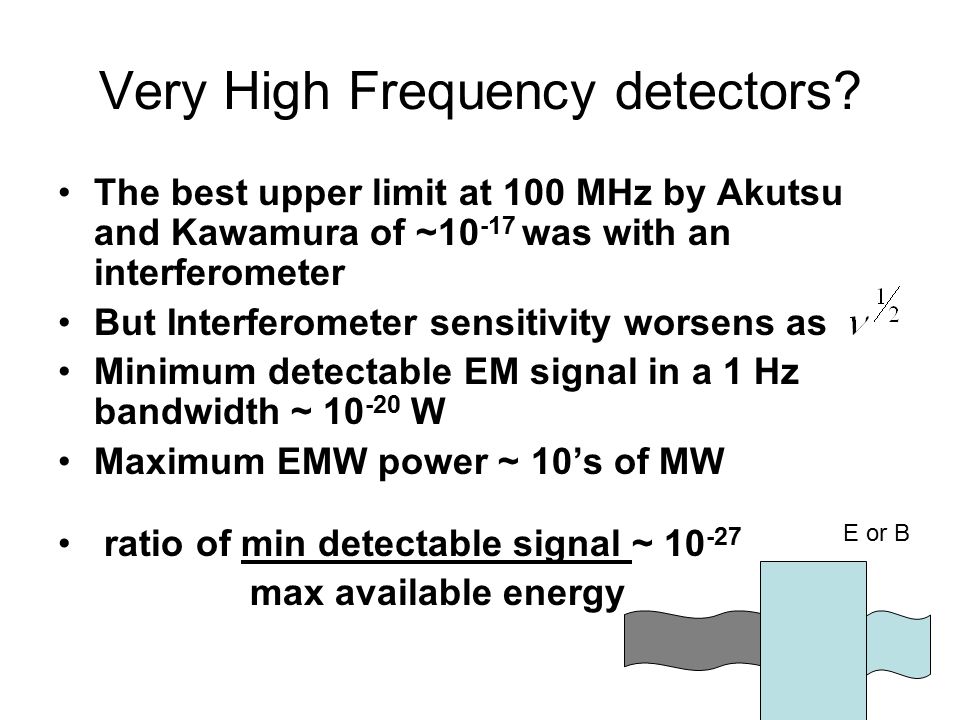

5 Very High Frequency detectors? The best upper limit at 100 MHz by Akutsu and Kawamura of ~10 -17 was with an interferometer But Interferometer sensitivity worsens as Minimum detectable EM signal in a 1 Hz bandwidth ~ 10 -20 W Maximum EMW power ~ 10’s of MW ratio of min detectable signal ~ 10 -27 max available energy E or B

6 Pathways for coupling EM and Gravity May contain EM Fields Contain G potentials

7 How does a GW interact with a static EM Field? De Logi and Mickelson (1977) Graviton Virtual Photon ( Static Magnetic Field ) Photon Spin states of g, B and For one incoming graviton per second

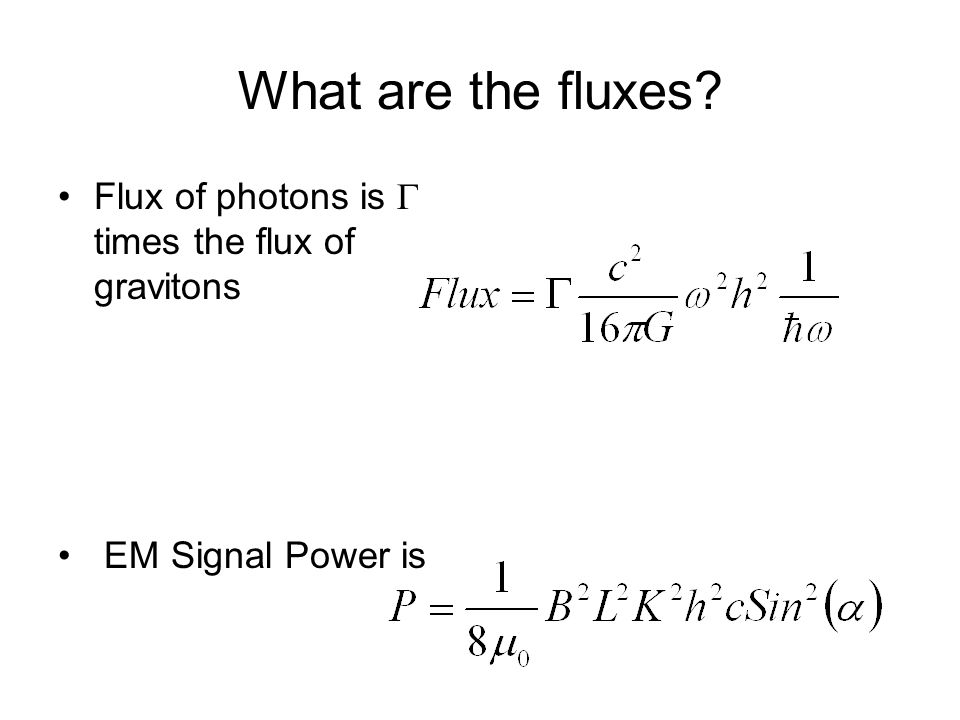

8 What are the fluxes? Flux of photons is  times the flux of gravitons EM Signal Power is

9

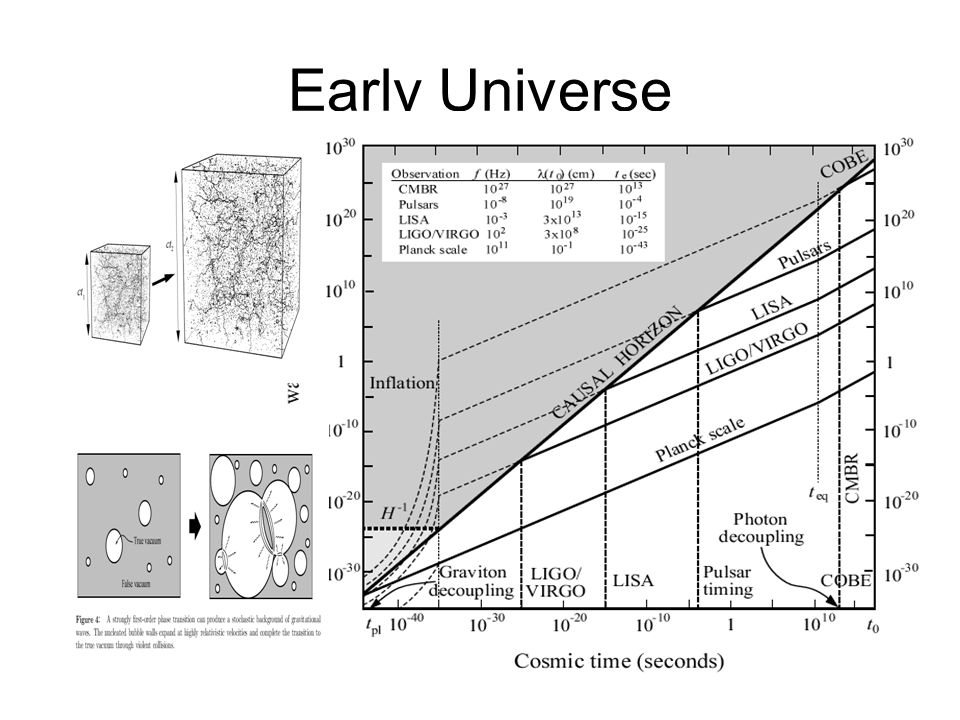

10 Early Universe

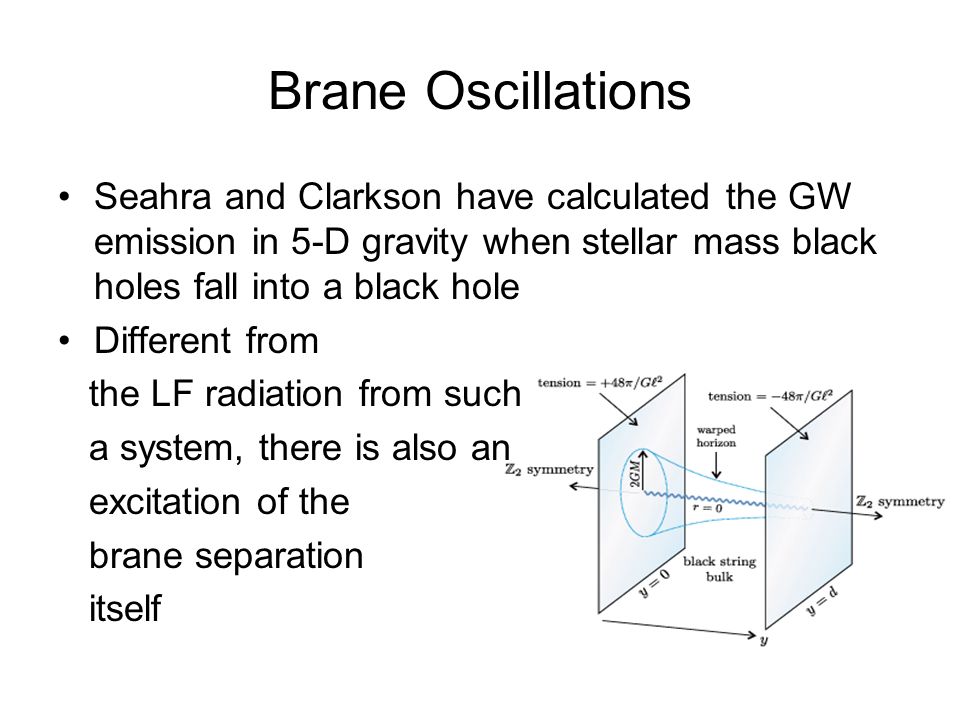

11 Brane Oscillations Seahra and Clarkson have calculated the GW emission in 5-D gravity when stellar mass black holes fall into a black hole Different from the LF radiation from such a system, there is also an excitation of the brane separation itself

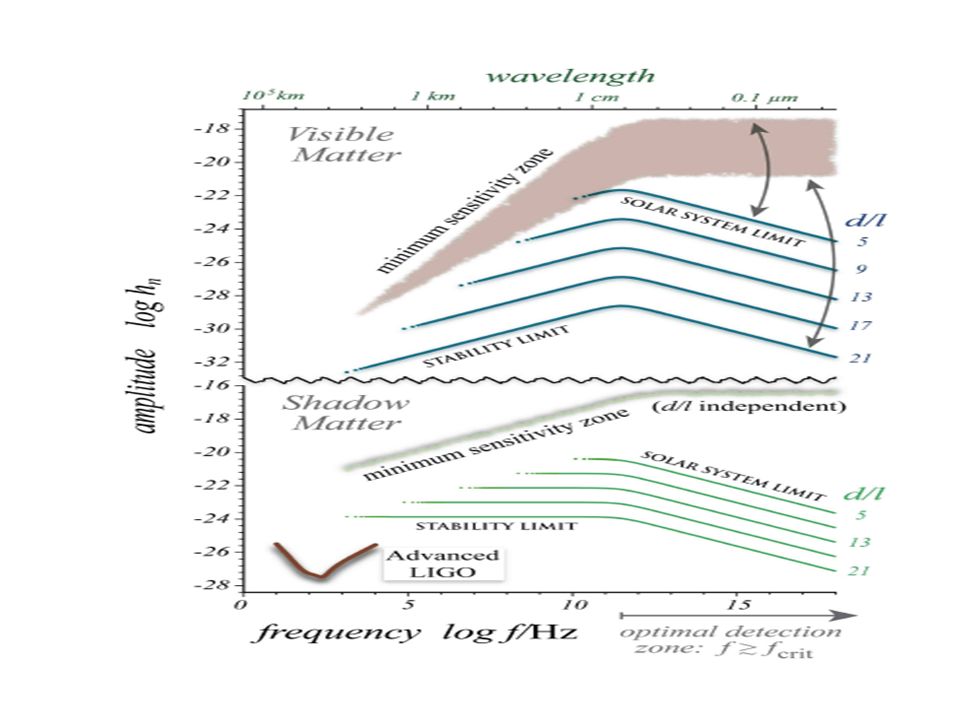

12

13 This is a Source which exists! But maybe in a universe which doesn’t

14 Plasma-EMW instabilities Linearised field equations in terms of a small metric perturbation, h  Interaction of EM Fields and EM Waves Increased charge density contributes to stress energy tensor Tidal forces affect charge density

15 Nucleosynthesis limit Cosmological Models Current Detectors

16

17

18 Higher Energy Density

19

20

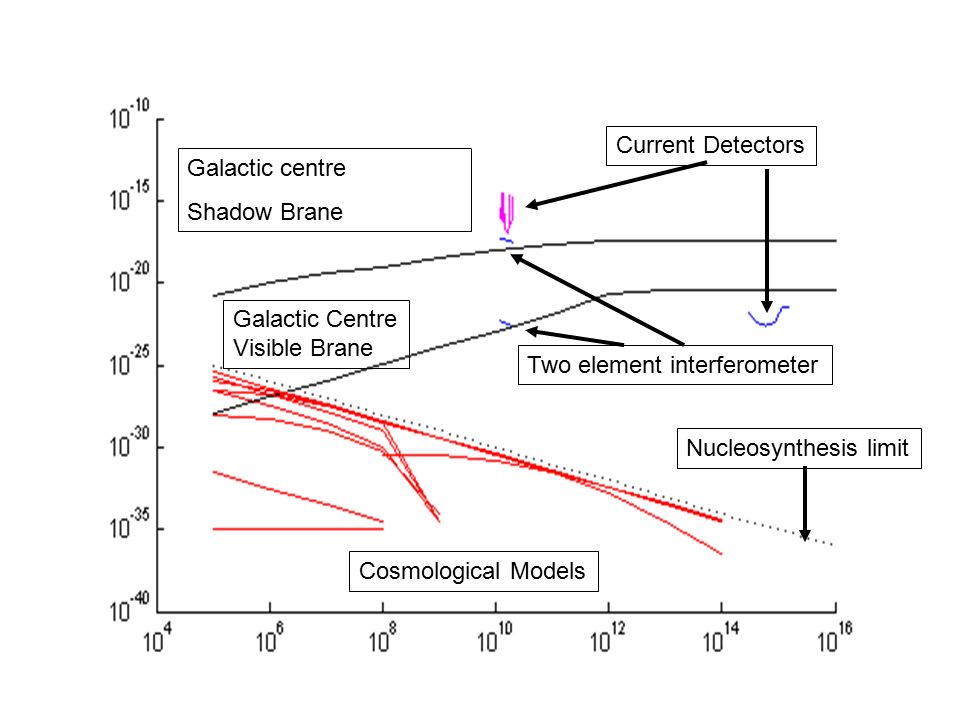

21 Cosmological Models Current Detectors Galactic centre Shadow Brane Galactic Centre Visible Brane Two element interferometer Nucleosynthesis limit

22 Statement The work presented here derives from many papers on EM-GW interactions published in properly peer reviewed journals since the 1970’s This work has no connection with (and does not support or endorse) ideas published by the HFGW group

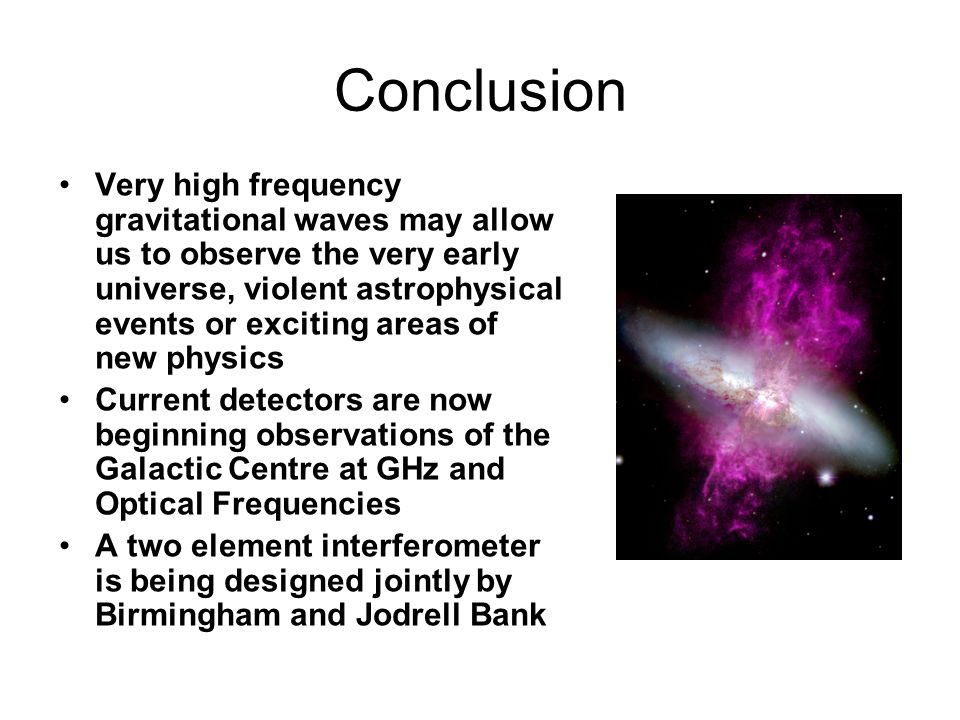

23 Conclusion Very high frequency gravitational waves may allow us to observe the very early universe, violent astrophysical events or exciting areas of new physics Current detectors are now beginning observations of the Galactic Centre at GHz and Optical Frequencies A two element interferometer is being designed jointly by Birmingham and Jodrell Bank

24

25 Higher sensitivity

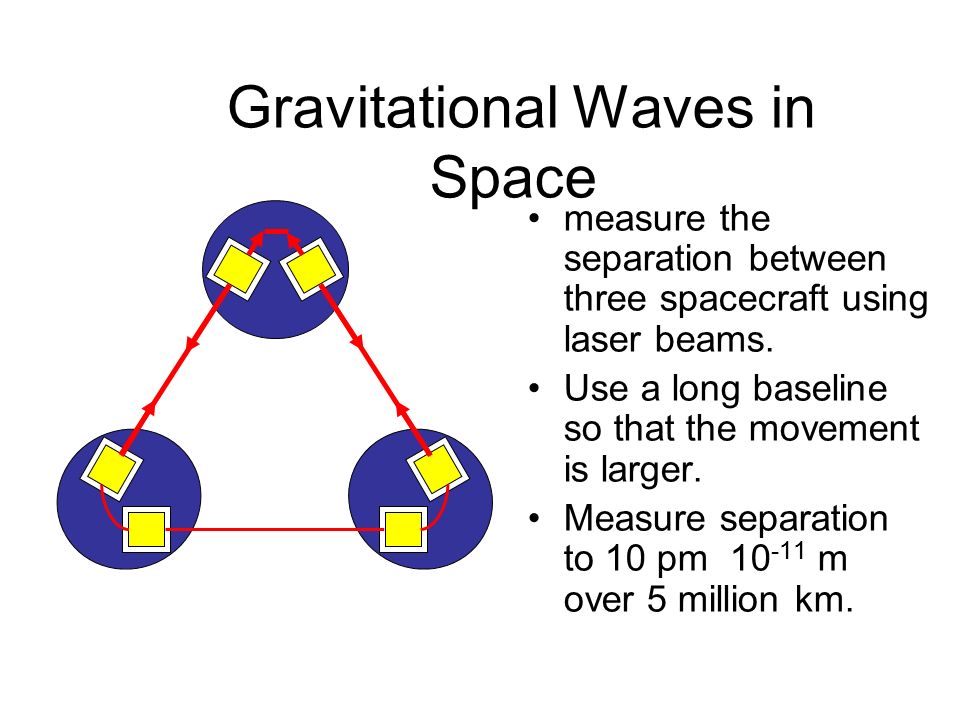

26 Gravitational Waves in Space measure the separation between three spacecraft using laser beams. Use a long baseline so that the movement is larger. Measure separation to 10 pm 10 -11 m over 5 million km.

27 Other mechanisms Bubble collisions Decay of Cosmic Strings

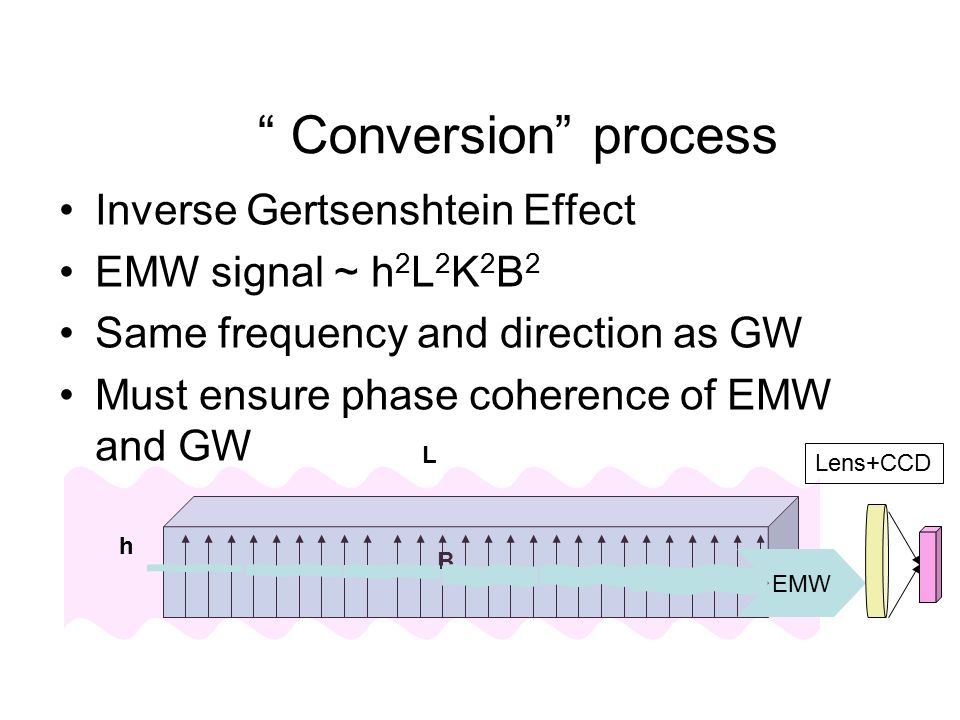

28 “ Conversion” process Inverse Gertsenshtein Effect EMW signal ~ h 2 L 2 K 2 B 2 Same frequency and direction as GW Must ensure phase coherence of EMW and GW B EMW L h Lens+CCD

29 The Universe- and how we study it Everything we know about the Universe comes from studying electromagnetic waves ( Infra-red, X-rays, radio waves, etc) of different frequencies Different frequencies tell us about different temperature regimes But many of the problems in astrophysics are to do with mass, not temperature. What can Gravity tell us?

30 Measuring the waves: Interferometer Laser Photodiode Mass MassMass

31 The Largest Instrument Ever! Three spacecraft with laser beams between them in a solar orbit. The pattern rotates each year to scan the sky.

32 How does a GW affect an EMW? Amplitude Direction Frequency Polarisation state GW

33

34 Other Inflation Theories Garcia -Bellido

35 What kind of Instrument? Interferometer sensitivity worsens as Current best Upper Limit is by Akutsu, Kawamura et al –10 -17 at 100 MHz So h ~ 10 -23 at 1000Hz will be 10 -20 at 1 GHz

36
