1. MapReduce: Simplified Data Processing on Large Clusters Jeff Dean, Sanjay Ghemawat Google, Inc.

2. Motivation: Large Scale Data Processing Many tasks: Process lots of data to produce other data Want to use hundreds or thousands of CPUs... but this needs to be easy MapReduce provides: Automatic parallelization and distribution Fault-tolerance I/O scheduling Status and monitoring

3. Programming model Input & Output: each a set of key/value pairs Programmer specifies two functions: map (in_key, in_value) -> list(out_key, intermediate_value) Processes input key/value pair Produces set of intermediate pairs reduce (out_key, list(intermediate_value)) -> list(out_value) Combines all intermediate values for a particular key Produces a set of merged output values (usually just one) Inspired by similar primitives in LISP and other languages

4. Example: Count word occurrences map(String input_key, String input_value): // input_key: document name // input_value: document contents for each word w in input_value: EmitIntermediate(w, "1"); reduce(String output_key, Iterator intermediate_values): // output_key: a word // output_values: a list of counts int result = 0; for each v in intermediate_values: result += ParseInt(v); Emit(AsString(result)); Pseudocode: See appendix in paper for real code

5. Model is Widely Applicable MapReduce Programs In Google Source Tree Example uses: distributed grep distributed sort web link-graph reversal term-vector per hostweb access log statsinverted index construction document clusteringmachine learningstatistical machine translation...

6. Implementation Overview Typical cluster: 100s/1000s of 2-CPU x86 machines, 2-4 GB of memory Limited bisection bandwidth Storage is on local IDE disks GFS: distributed file system manages data (SOSP'03) Job scheduling system: jobs made up of tasks, scheduler assigns tasks to machines Implementation is a C++ library linked into user programs

7. Execution

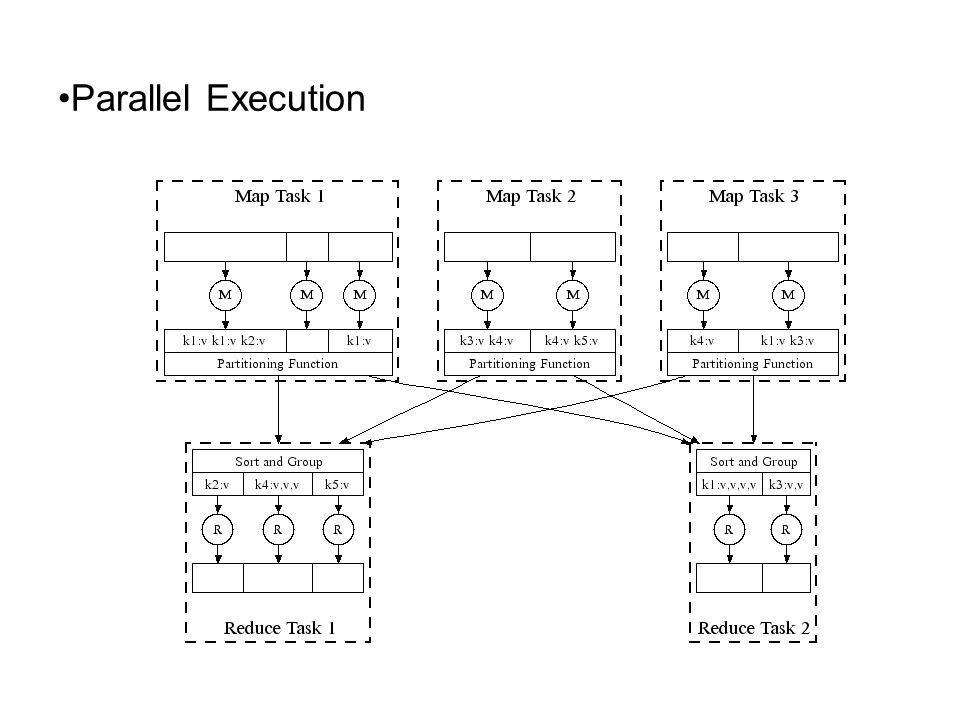

8. Parallel Execution

9. Task Granularity And Pipelining Fine granularity tasks: many more map tasks than machines * Minimizes time for fault recovery * Can pipeline shuffling with map execution * Better dynamic load balancing Often use 200,000 map/5000 reduce tasks w/ 2000 machines

21. Fault tolerance: Handled via re-execution  On worker failure: ▫Detect failure via periodic heartbeats ▫Re-execute completed and in-progress map tasks ▫Re-execute in progress reduce tasks ▫Task completion committed through master  Master failure: ▫Could handle, but don't yet (master failure unlikely) Robust: lost 1600 of 1800 machines once, but finished fine Semantics in presence of failures: see paper

22. Refinement: Redundant Execution Slow workers significantly lengthen completion time ▫Other jobs consuming resources on machine ▫Bad disks with soft errors transfer data very slowly ▫Weird things: processor caches disabled (!!) Solution: Near end of phase, spawn backup copies of tasks ▫Whichever one finishes first "wins" Effect: Dramatically shortens job completion time

23. Refinement: Locality Optimization Master scheduling policy:  Asks GFS for locations of replicas of input file blocks  Map tasks typically split into 64MB (== GFS block size)  Map tasks scheduled so GFS input block replica are on same machine or same rack Effect: Thousands of machines read input at local disk speed  Without this, rack switches limit read rate

24. Refinement: Skipping Bad Records Map/Reduce functions sometimes fail for particular inputs  Best solution is to debug & fix, but not always possible  On seg fault: ▫Send UDP packet to master from signal handler ▫Include sequence number of record being processed  If master sees two failures for same record: ▫Next worker is told to skip the record Effect: Can work around bugs in third-party libraries

25. Other Refinements (see paper)  Sorting guarantees within each reduce partition  Compression of intermediate data  Combiner: useful for saving network bandwidth  Local execution for debugging/testing  User-defined counters

26. Performance Tests run on cluster of 1800 machines:  4 GB of memory  Dual-processor 2 GHz Xeons with Hyperthreading  Dual 160 GB IDE disks  Gigabit Ethernet per machine  Bisection bandwidth approximately 100 Gbps Two benchmarks: MR_GrepScan1010 100-byte records to extract records matching a rare pattern (92K matching records) MR_SortSort 1010 100-byte records (modeled after TeraSort benchmark)

27. MR_Grep Locality optimization helps:  1800 machines read 1 TB of data at peak of ~31 GB/s  Without this, rack switches would limit to 10 GB/s Startup overhead is significant for short jobs

28.  Backup tasks reduce job completion time significantly  System deals well with failures Normal No backup tasks 200 processes killed MR_Sort

29. Experience: Rewrite of Production Indexing System Rewrote Google's production indexing system using MapReduce  Set of 10, 14, 17, 21, 24 MapReduce operations  New code is simpler, easier to understand  MapReduce takes care of failures, slow machines  Easy to make indexing faster by adding more machines — — — — —

30. Usage: MapReduce jobs run in August 2004 Number of jobs 29,423 Average job completion time634secs Machine days used 79,186days Input data read 3,288TB Intermediate data produced 758TB Output data written 193TB Average worker machines per job 157 Average worker deaths per job 1.2 Average map tasks per job 3,351 Average reduce tasks per job 55 Unique map implementations 395 Unique reduce implementations 269 Unique map/reduce combinations 426

31. Related Work  Programming model inspired by functional language primitives  Partitioning/shuffling similar to many large-scale sorting systems  NOW-Sort ['97]  Re-execution for fault tolerance  BAD-FS ['04] and TACC ['97]  Locality optimization has parallels with Active Disks/Diamond work  Active Disks ['01], Diamond ['04]  Backup tasks similar to Eager Scheduling in Charlotte system  Charlotte ['96]  Dynamic load balancing solves similar problem as River's distributed queues  River ['99]

32. Conclusions  MapReduce has proven to be a useful abstraction  Greatly simplifies large-scale computations at Google  Fun to use: focus on problem, let library deal w/ messy details Thanks to Josh Levenberg, who has made many significant improvements and to everyone else at Google who has used and helped to improve MapReduce.
