1. Site BDII and CE Installation Muhammad Farhan Sjaugi, UPM farhansj@biruni.upm.myfarhansj@biruni.upm.my.KLACGRID 2009 November 2-14 2009, UM Malaysia 1

2. Short Introduction 2

3. Login to Virtual Machine Start SSH to ui.thinkgrid.org Use the username and password specified in your tutorial worksheet to ssh to your VM 3

4. Time Syncronization A general requirement for the gLite nodes is that they are synchronized. Configure the file /etc/ntp.conf by adding the lines dealing with your time server configuration such as, for instance: # Prohibit general access to this service. restrict default ignore restrict 193.206.144.10 mask 255.255.255.255 nomodify notrap noquery server 127.127.1.0 # local clock fudge 127.127.1.0 stratum 10 server ntp-1.infn.it 4

5. Time Syncronization Edit the file /etc/ntp/step-tickers adding a list of your time server(s) hostname(s) cat /etc/ntp/step-tickers 193.206.144.10 If you are running a kernel firewall, you will have to allow inbound communication on the NTP port. If you are using iptables, you can add the following to /etc/sysconfig/iptables -A INPUT -s -p udp --dport 123 -j ACCEPT You can then reload the firewall : service iptables restart 5

6. Time Synchronization Activate the ntpd service with the following commands: # ntpdate # service ntpd start # chkconfig ntpd on You can check ntpd's status by running the following command : # ntpq -p 6

7. The Installation Startup VM for Site BDII, CE installation Configure yum repositories yourself, Under /etc/yum.repos.d The middleware repos: –wget ftp://mirror.biruni.upm.my/repos/3.1/lcg-CE.repo –wget ftp://mirror.biruni.upm.my/repos/3.1/lcg-CA.repo –wget ftp://mirror.biruni.upm.my/repos/3.1/glite-BDII.repo –wget ftp://mirror.biruni.upm.my/repos/3.1/glite-TORQUE_server.repo –wget ftp://mirror.biruni.upm.my/repos/3.1/glite-TORQUE_utils.repo –wget ftp://mirror.biruni.upm.my/repos/3.1/jpackage.repo –wget ftp://mirror.biruni.upm.my/klacgrid/gilda.repo Install metapackages for site BDII, CE, torque server: –yum install lcg-CA lcg-CE glite-BDII glite-TORQUE_server glite- TORQUE_utils gilda_utils java-1.6.0-sun-compat 7

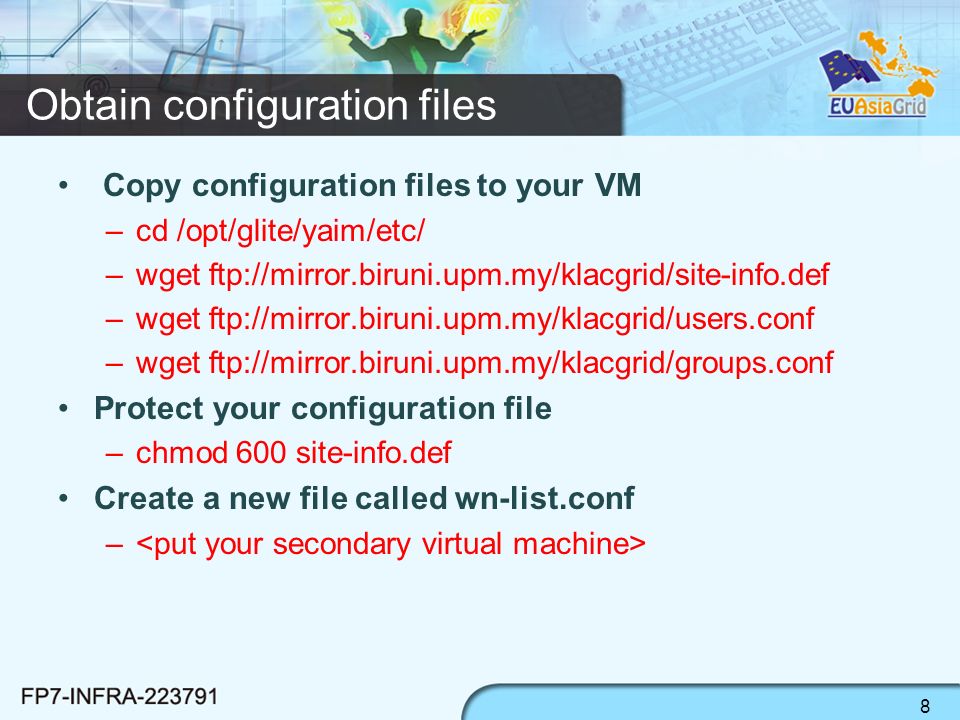

8. Obtain configuration files Copy configuration files to your VM –cd /opt/glite/yaim/etc/ –wget ftp://mirror.biruni.upm.my/klacgrid/site-info.def –wget ftp://mirror.biruni.upm.my/klacgrid/users.conf –wget ftp://mirror.biruni.upm.my/klacgrid/groups.conf Protect your configuration file –chmod 600 site-info.def Create a new file called wn-list.conf – 8

9. Obtain Host Certificates Copy host certificates: cd /etc/grid-security/ wget ftp://mirror.biruni.upm.my/klacgrid/hostcert/vmXXX.thinkgrid.org/ vmXXX.thinkgrid.org-cert.pem wget ftp://mirror.biruni.upm.my/klacgrid/hostcert/vmXXX.thinkgrid.org/ vmXXX.thinkgrid.org-key.pem Rename and change permission of host certificates: mv vmXXX.thinkgrid.org-cert.pem hostcert.pem mv vmXXX.thinkgrid.org-key.pem hostkey.pem chmod 400 hostkey.pm chmod 644 hostcert.pem 9

10. General YAIM Parameters -BDII For Site_BDII, the mandatory variables in site- info.def – SITE_BDII_HOST – BDII_REGIONS – BDII_ _URL – SITE_LOC, SITE_LAT, SITE_LONG – CE_HOST – SE_LIST – SITE_NAME – SITE_EMAIL – SITE_SECURITY_EMAIL,SITE_SUPPORT_EMAIL 10

11. General YAIM Parameters -CE For CE, the mandatory variables in site-info.def : – CE_HOST – SubCluster configuration : 11

12. General YAIM Parameters -CE VOs related variables: VOS, _GROUP_ENABLE VO_ _SW_DIR, VO_ _VOMS_SERVERS, VO_ _VOMSES, VO_ _VOMS_CA_DN. Torque server configuration variables: BATCH_SERVER, JOB_MANAGER, CE_HOST CE_BATCH_SYS, BATCH_VERSION, BATCH_LOG_DIR GROUPS_CONF, MON_HOST QUEUES, SE_LIST USERS_CONF WN_LIST 12

13. Configure CE Settings for the site-info.def MY_DOMAIN="thinkgrid.org“ # Human-readable name of your site SITE_NAME=ACGRID-CE-  Customize here! # The contact e-mail of your site SITE_EMAIL=“”  Add your email here # Hostname of the CE CE_HOST=  Customize here! TORQUE_SERVER=$CE_HOST BATCH_SERVER=$CE_HOST BATCH_VERSION=2.3.0 # Jobmanager specific settings. Please, define: # lcgpbs, lcglfs, lcgsge or lcgcondor JOB_MANAGER=lcgpbs # Number of Logical CPUs (cores) of the WN in the SubCluster CE_SMPSIZE=1

14. Configure CE # torque, lsf, sge or condor CE_BATCH_SYS=torque BATCH_LOG_DIR=/var/spool/pbs_server/logs/ # Space separated list of SEs hostnames SE_LIST=se.$MY_DOMAIN # Hostname of the RGMA server MON_HOST=ui.$MY_DOMAIN # Space separated list of VOs supported by your site VOS="gilda euasia" # Prefix of the experiment software directory in your CE VO_SW_DIR=/opt/exp_soft # Space separated list of queues configured in your CE QUEUES="gilda euasia" GILDA_GROUP_ENABLE="gilda" EUASIA_GROUP_ENABLE="euasia"

15. Configure CE ########## # EUASIA # ########## VO_EUASIA_SW_DIR=$VO_SW_DIR/euag VO_EUASIA_DEFAULT_SE=$DPM_HOST VO_EUASIA_STORAGE_DIR=$CLASSIC_STORAGE_DIR/euasia VO_EUASIA_VOMS_SERVERS="vomss://voms.grid.sinica.edu.tw:8443/v oms/euasia?/euasia" VO_EUASIA_VOMSES="'euasia voms.grid.sinica.edu.tw 15015 /C=TW/O=AS/OU=GRID/CN=voms.grid.sinica.edu.tw euasia'" VO_EUASIA_VOMS_CA_DN="'/C=TW/O=AS/OU=GRID/CN=voms.grid.sinica. edu.tw'" VO_EUASIA_CA_DN="'/C=TW/O=AS/CN=Academia Sinica Grid Computing Certification Authority Mercury' '/C=TW/O=AS/CN=Academia Sinica Grid Computing Certification Authority Mercury'"

16. Configure (cont.) ######### # GILDA # ######### VO_GILDA_SW_DIR=$VO_SW_DIR/gilda VO_GILDA_DEFAULT_SE=$DPM_HOST VO_GILDA_STORAGE_DIR=$CLASSIC_STORAGE_DIR//gilda VO_GILDA_QUEUES= "gilda" VO_GILDA_VOMS_SERVERS="vomss://voms.ct.infn.it:8443/voms/gilda ?/gilda" VO_GILDA_VOMSES="'gilda voms.ct.infn.it 15001 /C=IT/O=INFN/OU=Host/L=Catania/CN=voms.ct.infn.it gilda'" VO_GILDA_VOMS_CA_DN="'/C=IT/O=INFN/CN=INFN CA' '/C=IT/O=INFN/CN=INFN CA'"

17. Install VOMS CE Download under /etc/grid-security/vomsdir/ the EUASIA voms host certificate wget http://ca.grid.sinica.edu.tw/publication/newCRT/newcerts/0341.crt and rename this file to voms.grid.sinica.edu.tw.pem

18. Use YAIM to Configure Check syntax of site-info.def –cd /opt/glite/yaim/etc/ –source site-info.def Verify parameter for metapackages –/opt/glite/yaim/bin/yaim –v -s site-info.def –n BDII_site -n lcg-CE –n TORQUE_server -n TORQUE_utils Start configuring for metapackages –/opt/glite/yaim/bin/yaim –c -s site-info.def –n BDII_site -n lcg-CE –n TORQUE_server -n TORQUE_utils 18

19. Port checks 19 Complete list: http://glite.cvs.cern.ch/cgi-bin/glite.cgi/org.glite.site- info.ports/doc/middleware- ports.txt?revision=1.15&view=markupthe

20. Site BDII Test To check the information published in site BDII, $ ldapsearch -x –h :2170 -b o=grid # extended LDIF # # LDAPv3 # base with scope sub # filter: (objectclass=*) # requesting: ALL # # grid dn: o=grid objectClass: GlueTop # MY-TOTOR, grid dn: Mds-Vo-name=MY-TOTOR,o=grid objectClass: GlueTop # ce.euag.org:2119/jobmanager-lcgpbs-gilda, resource, grid dn: GlueCESEBindGroupCEUniqueID=ce.euag.org:2119/jobmanager-lcgpbs-gilda,Mds-V o-name=resource,o=grid objectClass: GlueGeneralTop objectClass: GlueCESEBindGroup objectClass: GlueSchemaVersion GlueCESEBindGroupCEUniqueID: ce.euag.org:2119/jobmanager-lcgpbs-gilda GlueCESEBindGroupSEUniqueID: dpm.euag.org GlueSchemaVersionMajor: 1 GlueSchemaVersionMinor: 3 20

21. References Generic Installation and Configuration Guide gLite 3.1 https://twiki.cern.ch/twiki/bin/view/LCG/GenericInstallGuide 310 YAIM 4 Guide https://twiki.cern.ch/twiki/bin/view/LCG/YaimGuide400 Site-info.def Parameters https://twiki.cern.ch/twiki/bin/view/LCG/Siteinfo_configurati on_variables More resource http://www.euasiagrid.org/wiki/index.php/Training_material s_and_other_resources 21

22. Question??? 22
