1 RENAISSANCE es un proyecto del programa CONCERTO co-financiado por la Comisión Europea dentro del Sexto Programa Marco RENAISSANCE - ZARAGOZA - SPAIN 1 LYON, 30 NOV 2007 Technical session: Monitoring Grupo de Energía y Edificación (GEE) Universidad de Zaragoza

2 RENAISSANCE es un proyecto del programa CONCERTO co-financiado por la Comisión Europea dentro del Sexto Programa Marco RENAISSANCE - ZARAGOZA - SPAIN 2 Technical session: monitoring Statement of objectives Data acquisition Data storage and analysis Data diffusion Conclusions Key points

3 RENAISSANCE es un proyecto del programa CONCERTO co-financiado por la Comisión Europea dentro del Sexto Programa Marco RENAISSANCE - ZARAGOZA - SPAIN 3 KEY POINTS Statement of objectives (1) 1.To check the performance of buildings Validation of specific design features Validation of simulation procedures 2.Other partners needs Correlation: social behaviour-selective information-effects on consumption Profile of electric consumption Demonstration

4 RENAISSANCE es un proyecto del programa CONCERTO co-financiado por la Comisión Europea dentro del Sexto Programa Marco RENAISSANCE - ZARAGOZA - SPAIN 4 KEY POINTS Statement of objectives (2) 1.To check the performance of buildings Simulation validity (method and climatic data: TRY…) Energy certification analysis (comparison between project/reality) Thermography Energy consumptions Infiltration/Ventilation Comparison of normative and standards Conclusions on performance: specific design features

5 RENAISSANCE es un proyecto del programa CONCERTO co-financiado por la Comisión Europea dentro del Sexto Programa Marco RENAISSANCE - ZARAGOZA - SPAIN 5 KEY POINTS Statement of objectives (3) 2.Other partners needs Getting data concerning users behaviour to compare with energy consumption data (+ECODES) Profile of electric consumptions (+ENDESA+Urbic) Demonstration (+EVZ in Demonstrative Building +the other partners)

6 RENAISSANCE es un proyecto del programa CONCERTO co-financiado por la Comisión Europea dentro del Sexto Programa Marco RENAISSANCE - ZARAGOZA - SPAIN 6 KEY POINTS Data acquisition (1) Data requirements: Analogical/Digital data (analogical only from statistic analysis) Rank and sensibility Kind of probes (precision and reproducibility) Comfort controls (what, where, how many…) Ambient data (what, where, how many…) Energy gains/savings data: Solar gains (passive/active thermal and PV) Avoiding solar and increased ventilation (summer) Auxiliary equipment efficiency Energy consumed (heating, HDW, air conditioning (refrigeration), lighting,…) Frequency, precision of measurements

7 RENAISSANCE es un proyecto del programa CONCERTO co-financiado por la Comisión Europea dentro del Sexto Programa Marco RENAISSANCE - ZARAGOZA - SPAIN 7 Definition of technical specifications for the monitoring sensors. Some of our probes´ specifications are: TEMPERATURE Accuracy: 0,5ºC RELATIVE HUMIDITY Accuracy: 1% REGISTRATION PERIOD Data registered every 10 sec: Statistic reduction with data control: every 10 min LON-WORKS PROTOCOL KEY POINTS Data acquisition (2)

8 RENAISSANCE es un proyecto del programa CONCERTO co-financiado por la Comisión Europea dentro del Sexto Programa Marco RENAISSANCE - ZARAGOZA - SPAIN 8 KEY POINTS Data acquisition (3) 2) Selection of monitoring variables for verifying the MICROCLIMATE in Valdespartera

9 RENAISSANCE es un proyecto del programa CONCERTO co-financiado por la Comisión Europea dentro del Sexto Programa Marco RENAISSANCE - ZARAGOZA - SPAIN 9 KEY POINTS Data acquisition (4) 2) Selection of monitoring variables for CONFORT inside buildings P12, P13, P17, P18; Neighbours informed by the SMRUZ. P14, P24, P27, P21; Neighbour informed as a result of meetings with the community administrators. P29, P20, Information phase.

10 RENAISSANCE es un proyecto del programa CONCERTO co-financiado por la Comisión Europea dentro del Sexto Programa Marco RENAISSANCE - ZARAGOZA - SPAIN 10 KEY POINTS What type of Data 2) Selection of monitoring variables: ENERGY CONSUMPTION

11 RENAISSANCE es un proyecto del programa CONCERTO co-financiado por la Comisión Europea dentro del Sexto Programa Marco RENAISSANCE - ZARAGOZA - SPAIN 11 KEY POINTS Data acquisition (2) Data reduction: Standard procedures for validating and rejecting data and To make comparable data from different sources Data outputs Data resumes Data presentation

12 RENAISSANCE es un proyecto del programa CONCERTO co-financiado por la Comisión Europea dentro del Sexto Programa Marco RENAISSANCE - ZARAGOZA - SPAIN 12 Data presentation Various consumption data Hourly profile Weekly and monthly profile Creating a historic Dispersion data Specific situations concerning users habits (for users´ interactions) PLOTS REFLECTING

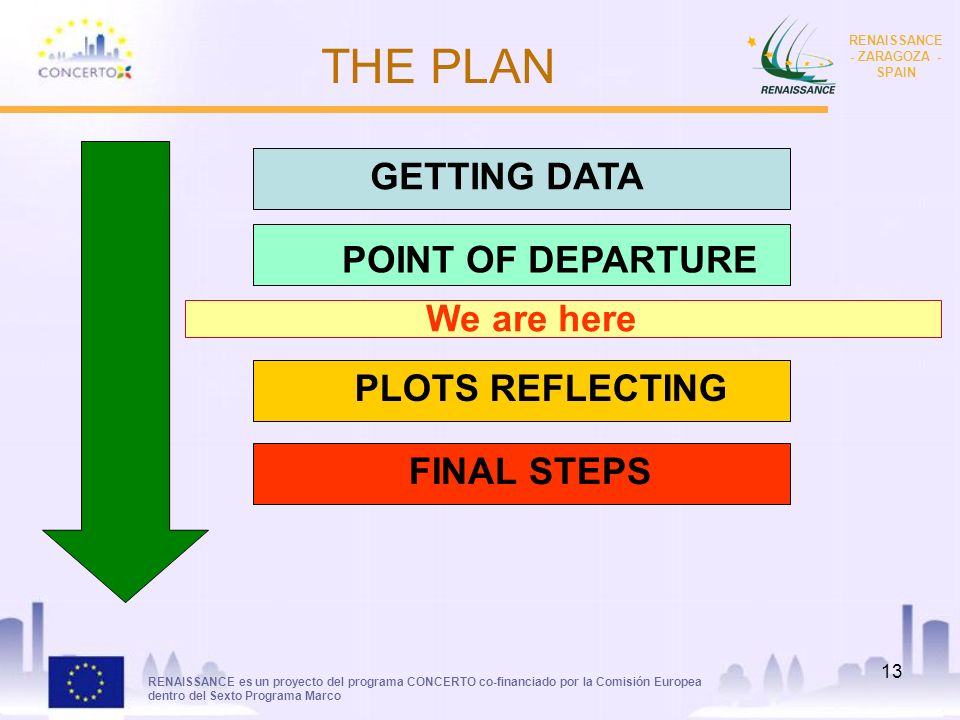

13 RENAISSANCE es un proyecto del programa CONCERTO co-financiado por la Comisión Europea dentro del Sexto Programa Marco RENAISSANCE - ZARAGOZA - SPAIN 13 THE PLAN GETTING DATA POINT OF DEPARTURE PLOTS REFLECTING FINAL STEPS We are here

14 RENAISSANCE es un proyecto del programa CONCERTO co-financiado por la Comisión Europea dentro del Sexto Programa Marco RENAISSANCE - ZARAGOZA - SPAIN 14 FORESEEN ACTIVITIES 2008 Comfort controls (what, where, how many…) Energy consumption (different values: HDW, Heating, Air conditioning, Electric consumption concerning lighting, electro-domestic devices…) Definition of standard conditions for climate and comfort (local values) Reduction to standard comfort conditions and standard climate: new energy consumption: kwh/m2-año Identification of difficulties (technical, economical, social…) UoZ will prepare the first sheet form to propose an standardization of minimum requirements of monitoring by January 2008 defining:

15 RENAISSANCE es un proyecto del programa CONCERTO co-financiado por la Comisión Europea dentro del Sexto Programa Marco RENAISSANCE - ZARAGOZA - SPAIN 15 Contact JA Turégano Tel: +34 976 762140 jat@unizar.es Contact S Diaz de Garayo Tel: +34 976 762237 sgaraio@unizar.es Contact
