1. Splash Screen

2. Over Lesson 3–2 5-Minute Check 1 A.24 B.34 C.146 D.156 In the figure, m ∠ 4 = 146. Find the measure of ∠ 2.

3. Over Lesson 3–2 5-Minute Check 1 A.24 B.34 C.146 D.156 In the figure, m ∠ 4 = 146. Find the measure of ∠ 2.

4. Over Lesson 3–2 5-Minute Check 2 A.24 B.34 C.146 D.156 In the figure, m ∠ 4 = 146. Find the measure of ∠ 7.

5. Over Lesson 3–2 5-Minute Check 2 A.24 B.34 C.146 D.156 In the figure, m ∠ 4 = 146. Find the measure of ∠ 7.

6. Over Lesson 3–2 5-Minute Check 3 A.160 B.146 C.56 D.34 In the figure, m ∠ 4 = 146. Find the measure of ∠ 10.

7. Over Lesson 3–2 5-Minute Check 3 A.160 B.146 C.56 D.34 In the figure, m ∠ 4 = 146. Find the measure of ∠ 10.

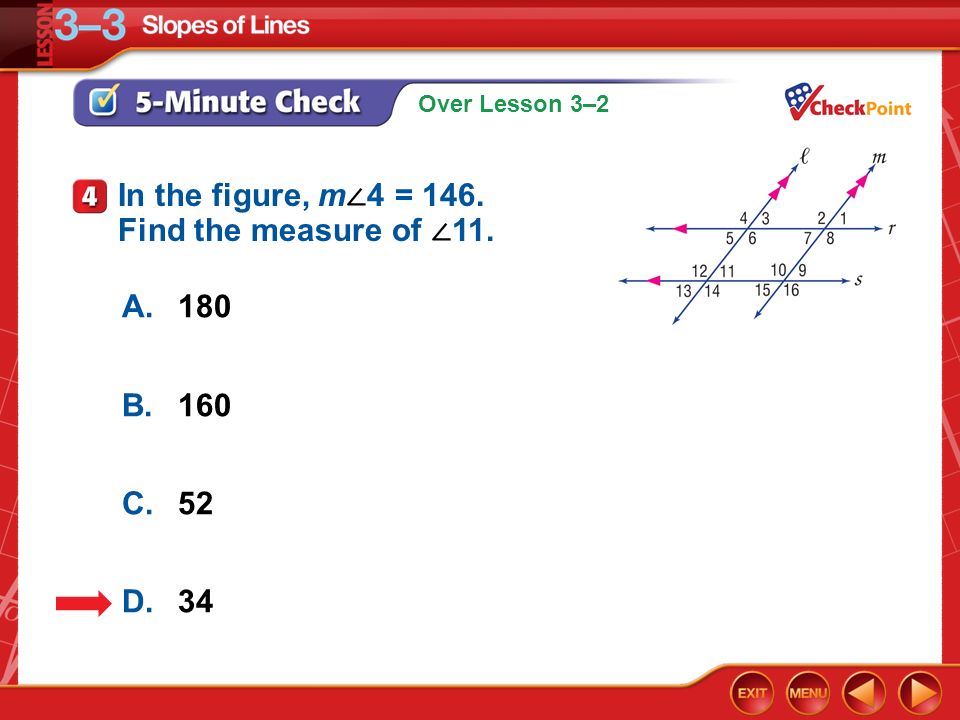

8. Over Lesson 3–2 5-Minute Check 4 A.180 B.160 C.52 D.34 In the figure, m ∠ 4 = 146. Find the measure of ∠ 11.

9. Over Lesson 3–2 5-Minute Check 4 A.180 B.160 C.52 D.34 In the figure, m ∠ 4 = 146. Find the measure of ∠ 11.

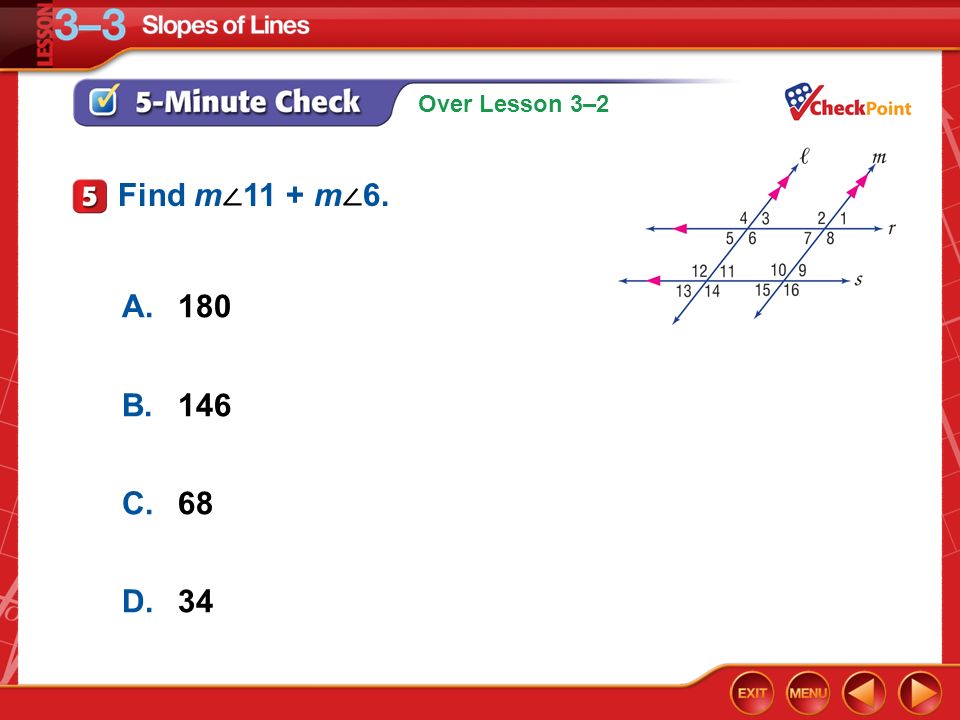

10. Over Lesson 3–2 5-Minute Check 5 A.180 B.146 C.68 D.34 Find m ∠ 11 + m ∠ 6.

11. Over Lesson 3–2 5-Minute Check 5 A.180 B.146 C.68 D.34 Find m ∠ 11 + m ∠ 6.

12. Over Lesson 3–2 5-Minute Check 6 A.76 B.75 C.53 D.52 In the map shown, 5 th Street and 7 th Street are parallel. At what acute angle do Strait Street and Oak Avenue meet?

13. Over Lesson 3–2 5-Minute Check 6 A.76 B.75 C.53 D.52 In the map shown, 5 th Street and 7 th Street are parallel. At what acute angle do Strait Street and Oak Avenue meet?

14. CCSS Content Standards G.GPE.5 Prove the slope criteria for parallel and perpendicular lines and use them to solve geometric problems (e.g., find the equation of a line parallel or perpendicular to a given line that passes through a given point). Mathematical Practices 4 Model with mathematics. 7 Look for and make use of structure. 8 Look for and express regularity in repeated reasoning.

15. Then/Now You used the properties of parallel lines to determine congruent angles. Find slopes of lines. Use slope to identify parallel and perpendicular lines.

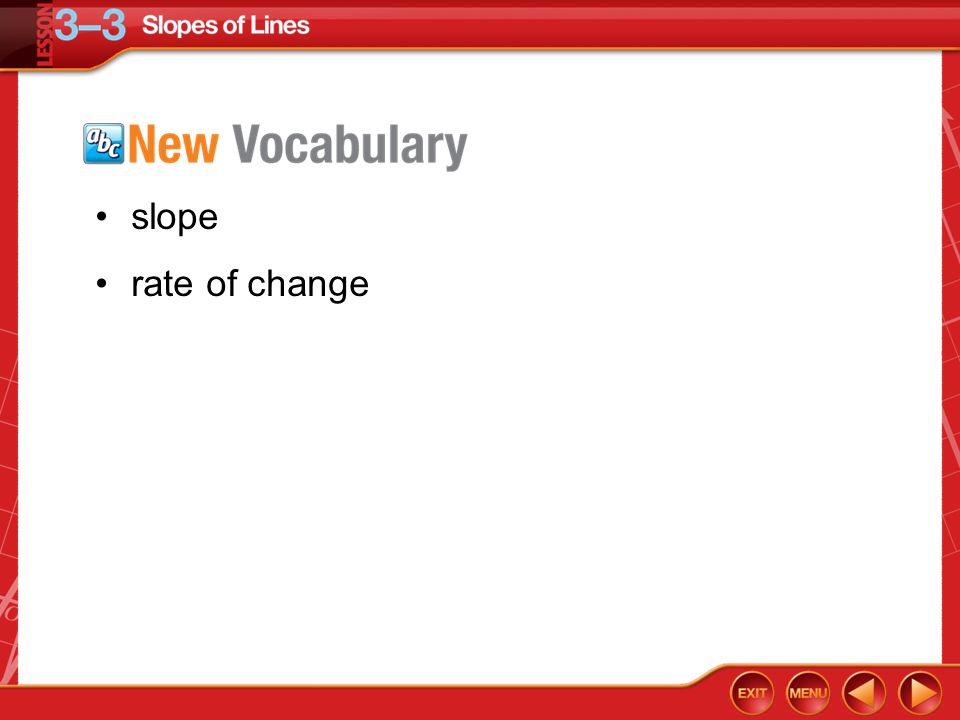

16. Vocabulary slope rate of change

17. Concept

18. Example 1 Find the Slope of a Line A. Find the slope of the line. Substitute (–3, 7) for (x 1, y 1 ) and (–1, –1) for (x 2, y 2 ). Answer: Slope formula Substitution Simplify.

19. Example 1 Find the Slope of a Line A. Find the slope of the line. Substitute (–3, 7) for (x 1, y 1 ) and (–1, –1) for (x 2, y 2 ). Answer:–4 Slope formula Substitution Simplify.

20. Example 1 Find the Slope of a Line B. Find the slope of the line. Substitute (0, 4) for (x 1, y 1 ) and (0, –3) for (x 2, y 2 ). Answer: Slope formula Substitution Simplify.

21. Example 1 Find the Slope of a Line B. Find the slope of the line. Substitute (0, 4) for (x 1, y 1 ) and (0, –3) for (x 2, y 2 ). Answer:The slope is undefined. Slope formula Substitution Simplify.

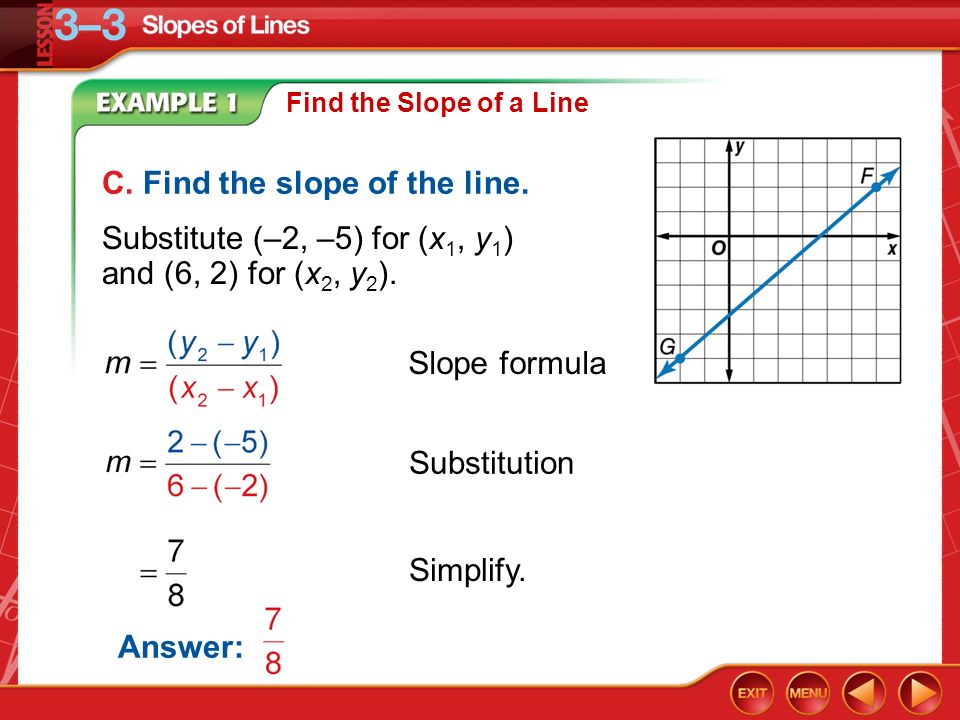

22. Example 1 Find the Slope of a Line C. Find the slope of the line. Answer: Slope formula Substitution Simplify. Substitute (–2, –5) for (x 1, y 1 ) and (6, 2) for (x 2, y 2 ).

23. Example 1 Find the Slope of a Line C. Find the slope of the line. Answer: Slope formula Substitution Simplify. Substitute (–2, –5) for (x 1, y 1 ) and (6, 2) for (x 2, y 2 ).

24. Example 1 Find the Slope of a Line D. Find the slope of the line. Answer: Slope formula Substitution Simplify. Substitute (–2, –1) for (x 1, y 1 ) and (6, –1) for (x 2, y 2 ).

25. Example 1 Find the Slope of a Line D. Find the slope of the line. Answer:0 Slope formula Substitution Simplify. Substitute (–2, –1) for (x 1, y 1 ) and (6, –1) for (x 2, y 2 ).

26. A. B. C. D. Example 1a A. Find the slope of the line.

27. A. B. C. D. Example 1a A. Find the slope of the line.

28. A.0 B.undefined C.7 D. Example 1b B. Find the slope of the line.

29. A.0 B.undefined C.7 D. Example 1b B. Find the slope of the line.

30. A. B. C.–2 D.2 Example 1c C. Find the slope of the line.

31. A. B. C.–2 D.2 Example 1c C. Find the slope of the line.

32. A.0 B.undefined C.3 D. Example 1d D. Find the slope of the line.

33. A.0 B.undefined C.3 D. Example 1d D. Find the slope of the line.

34. Concept

35. Example 2 Use Slope as Rate of Change RECREATION In 2000, the annual sales for one manufacturer of camping equipment was $48.9 million. In 2005, the annual sales were $85.9 million. If sales increase at the same rate, what will be the total sales in 2015? Understand Use the data given to graph the line that models the annual sales y as a function of the years x since 2000. The sales increase is constant. Plot the points (0, 48.9) and (5, 85.9) and draw a line through them. You want to find the sales in 2015.

36. Example 2 Use Slope as Rate of Change Plan Find the slope of the line. Use this rate of change to find the amount of sales in 2015. Solve Use the slope formula to find the slope of the line. The sales increased at an average of $7.4 million per year.

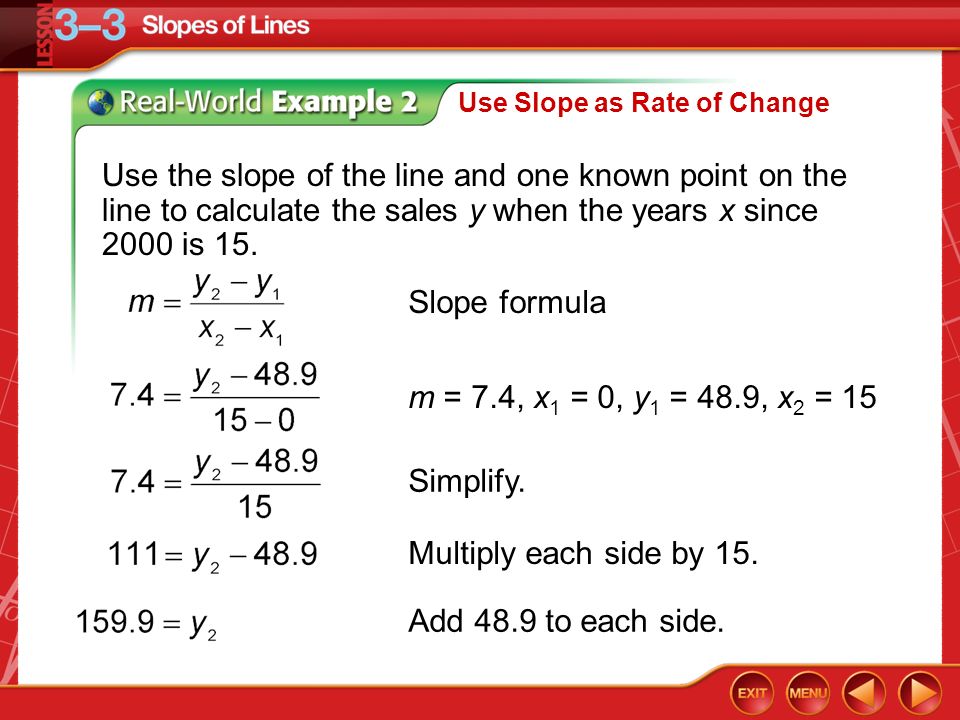

37. Example 2 Use Slope as Rate of Change Use the slope of the line and one known point on the line to calculate the sales y when the years x since 2000 is 15. Slope formula m = 7.4, x 1 = 0, y 1 = 48.9, x 2 = 15 Simplify. Multiply each side by 15. Add 48.9 to each side.

38. Example 2 Use Slope as Rate of Change Answer:

39. Example 2 Use Slope as Rate of Change Answer:Thus, the sales in 2015 will be about $159.9 million. CheckFrom the graph we can estimate that in 2015, the sales will be a little more than $150 million. Since 159.9 is close to 150, our answer is reasonable.

40. Example 2 A.about 251.5 million B.about 166.3 million C.about 180.5 million D.about 194.7 million CELLULAR TELEPHONES Between 1994 and 2000, the number of cellular telephone subscribers increased by an average rate of 14.2 million per year. In 2000, the total subscribers were 109.5 million. If the number of subscribers increases at the same rate, how many subscribers will there be in 2010?

41. Example 2 A.about 251.5 million B.about 166.3 million C.about 180.5 million D.about 194.7 million CELLULAR TELEPHONES Between 1994 and 2000, the number of cellular telephone subscribers increased by an average rate of 14.2 million per year. In 2000, the total subscribers were 109.5 million. If the number of subscribers increases at the same rate, how many subscribers will there be in 2010?

42. Concept

43. Example 3 Determine Line Relationships Step 1Find the slopes of and. Determine whether and are parallel, perpendicular, or neither for F(1, –3), G(–2, –1), H(5, 0), and J(6, 3). Graph each line to verify your answer.

44. Example 3 Determine Line Relationships Step 2Determine the relationship, if any, between the lines. The slopes are not the same, so and are not parallel. The product of the slopes is So, and are not perpendicular.

45. Example 3 Determine Line Relationships Answer:

46. Example 3 Determine Line Relationships Answer:The lines are neither parallel nor perpendicular. CheckWhen graphed, you can see that the lines are not parallel and do not intersect in right angles.

47. Example 3 A.parallel B.perpendicular C.neither Determine whether AB and CD are parallel, perpendicular, or neither for A(–2, –1), B(4, 5), C(6, 1), and D(9, –2)

48. Example 3 A.parallel B.perpendicular C.neither Determine whether AB and CD are parallel, perpendicular, or neither for A(–2, –1), B(4, 5), C(6, 1), and D(9, –2)

49. Example 4 Use Slope to Graph a Line First, find the slope of. Slope formula Substitution Simplify. Graph the line that contains Q(5, 1) and is parallel to MN with M(–2, 4) and N(2, 1).

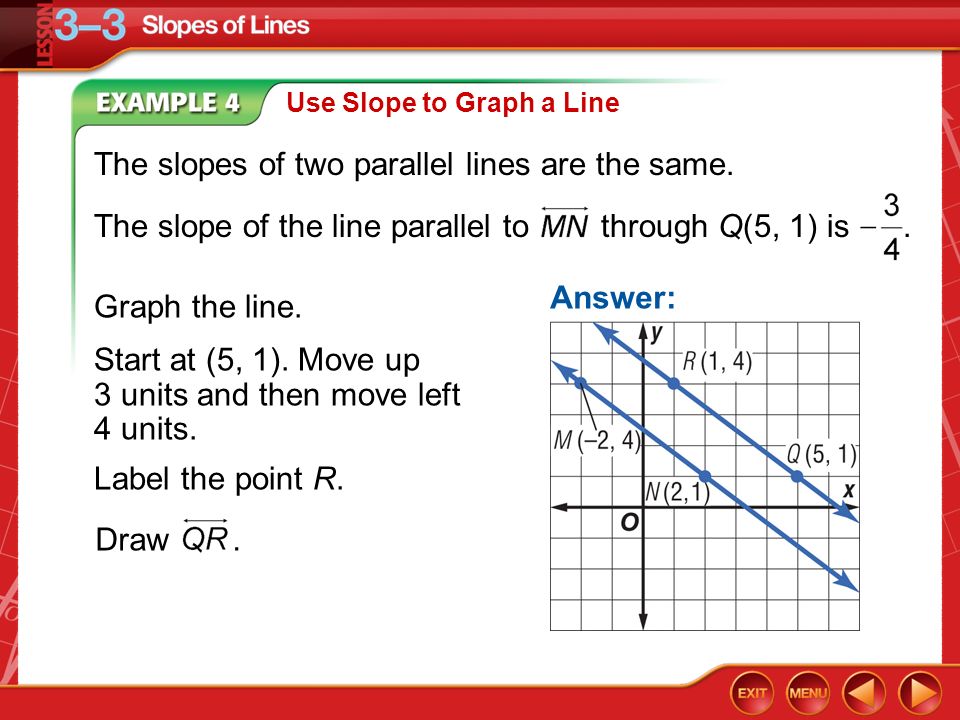

50. Example 4 Use Slope to Graph a Line The slope of the line parallel to through Q(5, 1) is. The slopes of two parallel lines are the same. Graph the line. Draw. Start at (5, 1). Move up 3 units and then move left 4 units. Label the point R. Answer:

51. Example 4 Use Slope to Graph a Line The slope of the line parallel to through Q(5, 1) is. The slopes of two parallel lines are the same. Graph the line. Draw. Start at (5, 1). Move up 3 units and then move left 4 units. Label the point R. Answer:

52. Example 4 Graph the line that contains R(2, –1) and is parallel to OP with O(1, 6) and P(–3, 1). A.B. C.D.none of these

53. Example 4 Graph the line that contains R(2, –1) and is parallel to OP with O(1, 6) and P(–3, 1). A.B. C.D.none of these

54. End of the Lesson
