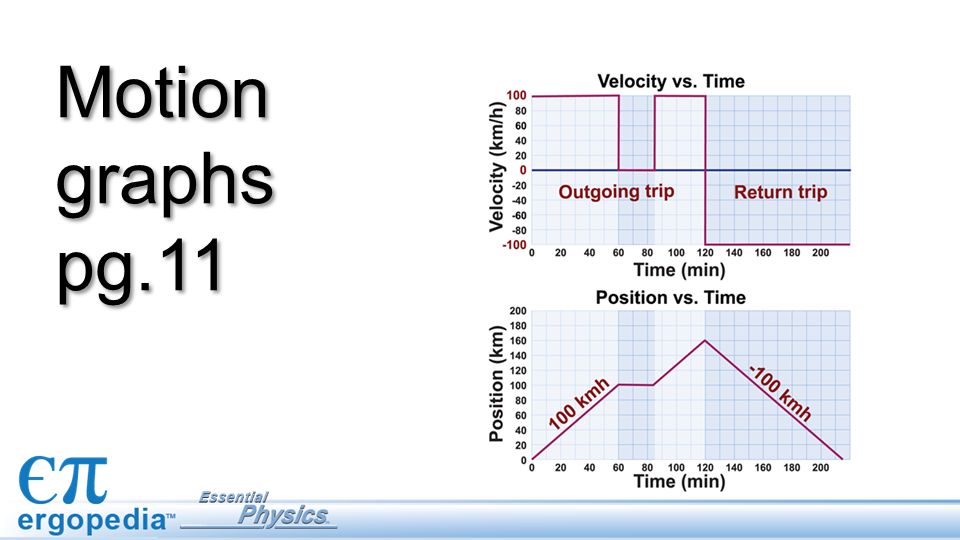

1. Motion graphs pg.11

2. Create and interpret graphs of position versus time. Calculate velocity from the slope of the position vs. time graph. Create and interpret graphs of velocity versus time. Objectives Physics terms slope average velocity instantaneous velocity Equations

3. In order to understand motion, you first need be able to describe it. One way to do this is with graphs. The simplest motion graph shows the position of an object at each moment of time. Graphing motion

4. Position (+/-) is on the vertical (y) axis Time is on the horizontal (x) axis Position vs. time Position vs. time graphs show how the position of an object changes over time. Each point on the graph represents an object being at a particular place at a particular time.

5. Position vs. time graph practice How would you represent an object at a position of 10 meters at 8 seconds? How would you represent an object at a position of -2m at 2 seconds?

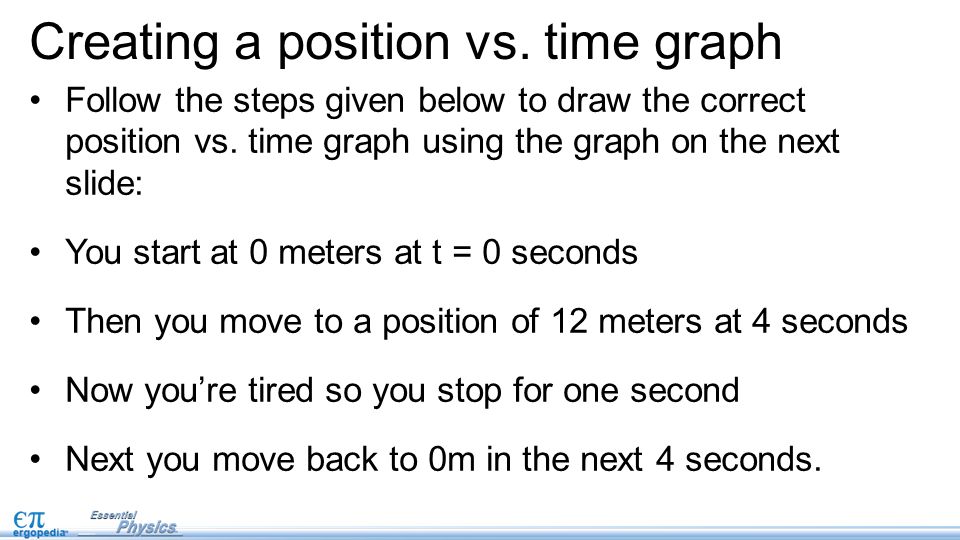

6. Creating a position vs. time graph Follow the steps given below to draw the correct position vs. time graph using the graph on the next slide: You start at 0 meters at t = 0 seconds Then you move to a position of 12 meters at 4 seconds Now you’re tired so you stop for one second Next you move back to 0m in the next 4 seconds.

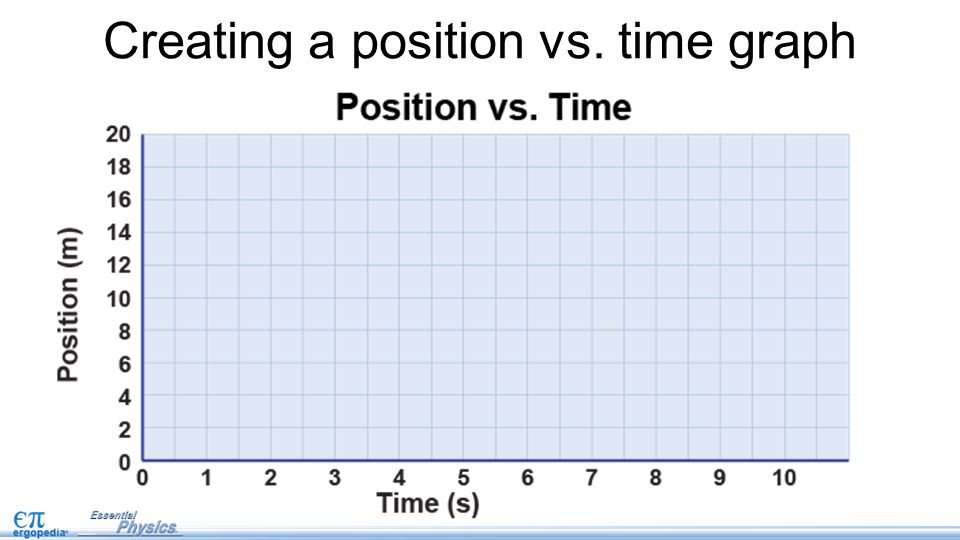

7. Creating a position vs. time graph

8. P vs. t graph & velocity For line 1 on your graph (from 0s-4s): –Object is: Changing positionORStaying still –Position change is:Constant OR Not constant OR Zero –Speed is: ConstantORNot constant –Velocity is: PositiveORNegativeORZero –Slope is: PositiveORNegativeORZero For line 2 on your graph (from 4s-5s): –Object is: Changing positionORStaying still –Position change is:Constant OR Not constant OR Zero –Speed is: ConstantORNot constant –Velocity is: PositiveORNegativeORZero –Slope is: PositiveORNegativeORZero

9. P vs. t graph & velocity For line 3 on your graph (from 5s-9s): –Object is: Changing positionORStaying still –Position change is:Constant OR Not constant OR Zero –Speed is: ConstantORNot constant –Velocity is: PositiveORNegativeORZero –Slope is: PositiveORNegativeORZero

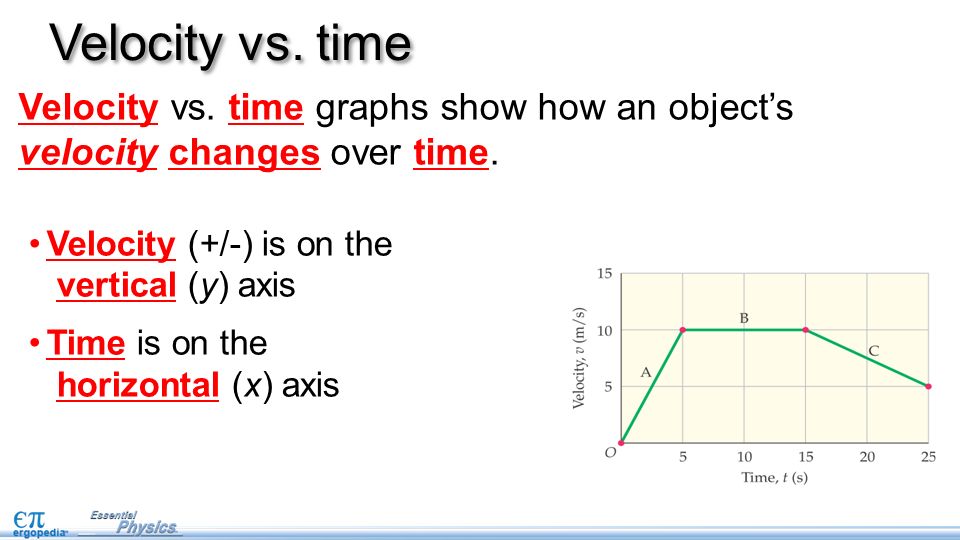

10. Velocity (+/-) is on the vertical (y) axis Time is on the horizontal (x) axis Velocity vs. time Velocity vs. time graphs show how an object’s velocity changes over time.

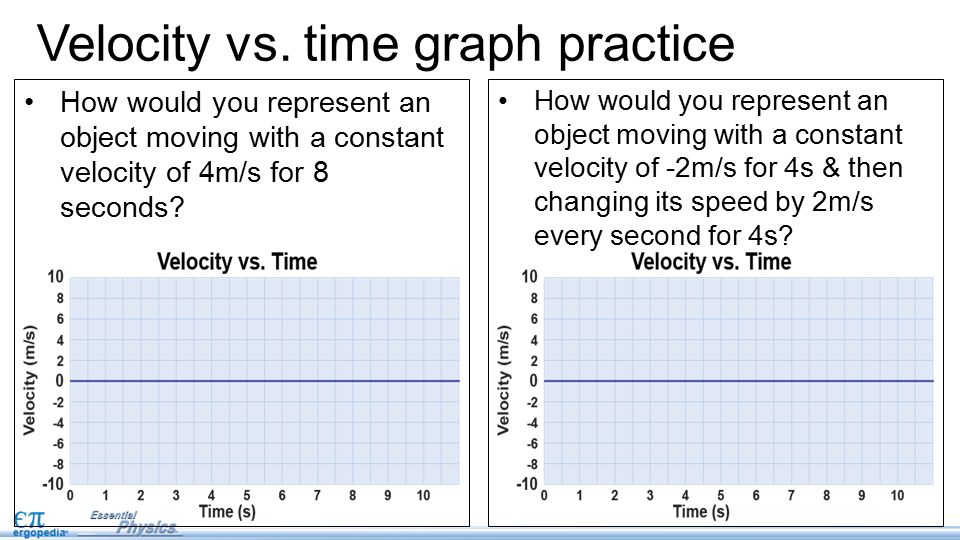

11. Velocity vs. time graph practice How would you represent an object moving with a constant velocity of 4m/s for 8 seconds? How would you represent an object moving with a constant velocity of -2m/s for 4s & then changing its speed by 2m/s every second for 4s?

12. Creating a velocity vs. time graph Follow the steps given below to draw the correct velocity vs. time graph using the graph on the next slide: An object moves forward at 5m/s for 5 seconds Then it turns around & moves backward at 5m/s for 5 more seconds

13. Creating a velocity vs. time graph

14. Importance of Slope Finding slope can help us describe how an object’s motion is changing. Taking the slope of a line on a position vs. time graph tells you the objects velocity. Taking the slope of a line on a velocity vs. time graph tells you the objects acceleration.

15. Slope To find slope of a line pick 2 points on the line & plug them into the slope formula

16. Using slope Below on the left is a p vs. t graph. Draw the V vs. t graph that corresponds to the p vs. t graph.

17. 3 m/s Put the graphs together An object moves from 0 meters to 12 meters in 4 seconds. Next, it stands still for 1 second, then moves back again in 4 more seconds.

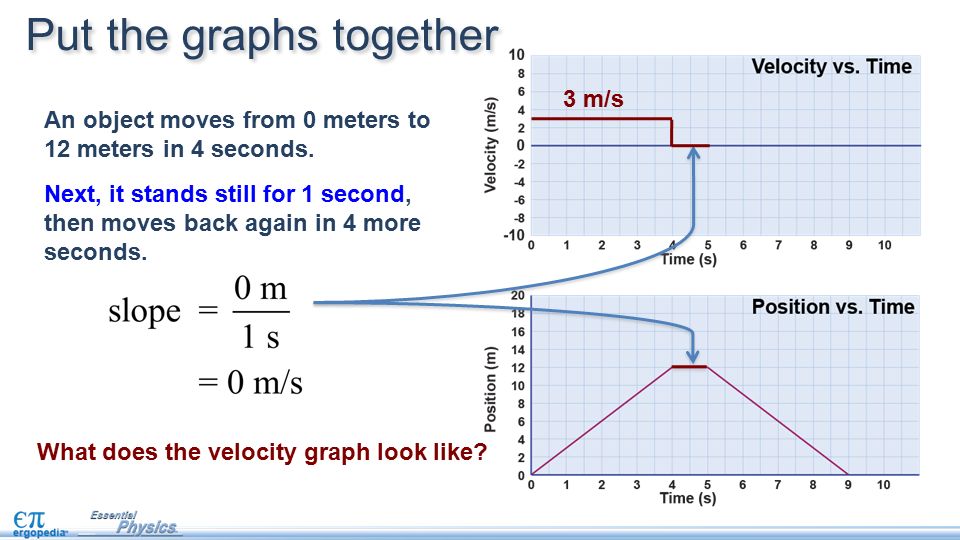

18. 3 m/s What does the velocity graph look like? Put the graphs together An object moves from 0 meters to 12 meters in 4 seconds. Next, it stands still for 1 second, then moves back again in 4 more seconds.

19. 3 m/s -3 m/s Put the graphs together An object moves from 0 meters to 12 meters in 4 seconds. Next, it stands still for 1 second, then moves back again in 4 more seconds.

20. In most situations the velocity is not constant. The instantaneous velocity is the velocity at a given instant. Can you find this object’s instantaneous velocity at: 4 seconds? 8 seconds? 13 seconds? Instantaneous velocity

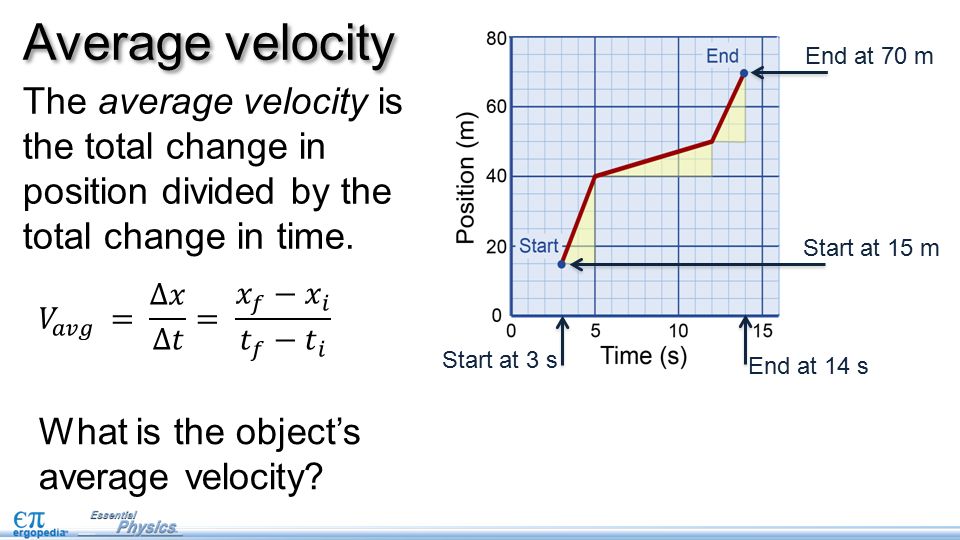

21. End at 70 m Start at 15 m Start at 3 s End at 14 s Average velocity The average velocity is the total change in position divided by the total change in time. What is the object’s average velocity?

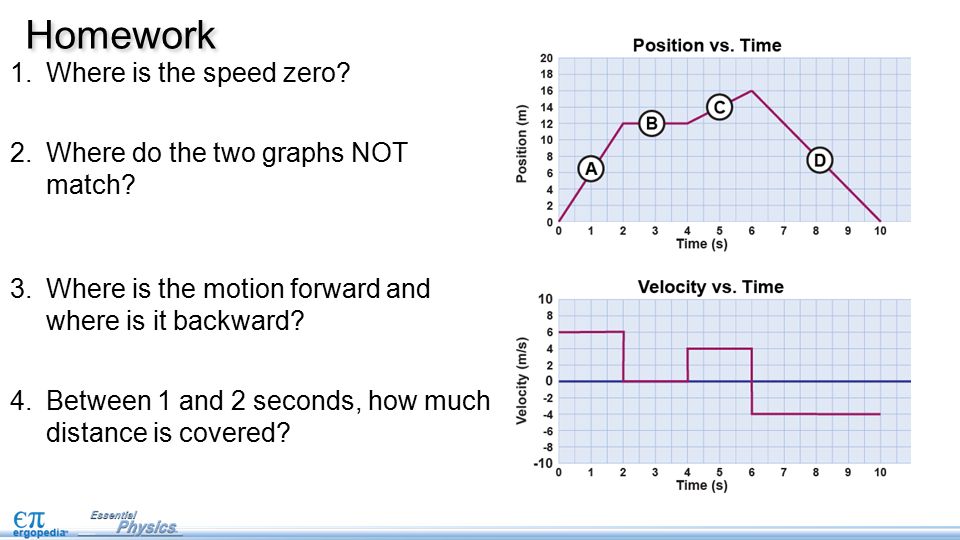

22. 1.Where is the speed zero? 2.Where do the two graphs NOT match? 3.Where is the motion forward and where is it backward? 4.Between 1 and 2 seconds, how much distance is covered? Homework

23. 4. Sketch these graphs if the velocity at (A) and (C) were changed to 3 m/s. Homework
