1. Topics to be covered (ni) Client side validation JSF (free tools as well) Webservices Tell Resources e.g. sites Packaging and deploying web applications Big Enterprise diagram re-visit What to do next (EJBs) Wrap up Give acknowledgment

2. Packaging and Deploying Web Application (ni) Agenda –Web application, components and Web container –Web application development and deployment steps –Web Application Archive (*.WAR file) WAR directory structure WEB-INF subdirectory –Configuring Web application Web application deployment descriptor (web.xml file) Web application life-cycle management –Installing & Deploying Web application –Listing Web applications

3. Put a better pic here (NI)

4. Web Components & Container (NI) –Web components are in the form of either Servlet or JSP (along with JavaBean's, JSTL and custom tags) –Web components run in a Web container e.g. Tomcat –Web container provides system services to Web components Request dispatching, security, and life cycle management

5. NI Web Application & Components –Web Application is a deployable package Web components (Servlets and JSP's) Static resource files such as images Helper classes. Libraries Deployment descriptor (web.xml file) –Web Application can be represented as A hierarchy of directories and files (unpacked form) or WAR file reflecting the same hierarchy (packed form) Development mode vs Deployment mode

6. NI Web Application Development and Deployment Steps 1.Write (and compile) the Web component code (Servlet or JSP) and helper classes referenced by the web component code 2.Create any static resources (for example, images or HTML pages) 3.Create deployment descriptor (web.xml) 4.Build the Web application (*.war file or deployment-ready directory) 5.Install or deploy the web application into a Web container Web clients are now ready to access it via URL

7. NI 4. Build the Web application –Either *.WAR file or unpacked form of *.WAR file 5. Install or Deploy Web application –Deploy the application over deployment platform such as Sun Java System App Server or Tomcat –Ways to deploy –Use some console based command asadmin deploy --port 4848 --host localhost –passwordfile "c:\j2eetutorial14\examples\common\adminpassword. –Use some graphical interface of the server. App server admin console –NetBeans

8. What is *.WAR file? –Ready to deploy'able package over web container –Similar to *.jar file –Contains things to be deployed Web services components Server-side utility classes –Static Web presentation content (HTML, image, etc) –Client-side classes (applets and utility classes) –Reflects contents in build directory

9. NI Document Root & Context –Document Root of the Web application is the Top-level directory of WAR –Contains JSP pages, client-side classes and archives, static Web resources –Also contains WEB-INF directory A context is a name that gets mapped to the document root of a Web application –/hello1 is context for hello1 example –A way to distinguish Web applications in a single Web container –Has to be specified as part of client URN (request path) –Name of document root

10. NI HTTP request URL & Webcomponent URN (alias) & Context Request URL: User specified access point of a web resource –http://[host]:[port]/[request path]?[query string] –[request path] is made of context and web component's URN –http://localhost:8080/hello1/greeting?username=Monicahttp://localhost:8080/hello1/greeting?username=Monica Context: Name of the root document of a web application –Identifies a particular application on that server –/hello1 is context

11. This picture shows the directory structure of *.war file. Please note that the “WebApplicationName” directory reflects the Document root, thus the context.

12. How to Create *.WAR file? 3 different ways –Use IDE (NetBeans) –Use ant tool after putting proper build instruction in build.xml file –Use “jar cvf.war.” command under build directory

13. Show demo here

14. Evolutionary Path (NI) Client Server Model Web-based Computing Web Services Model-SOA (Remove below after describing) In the beginning, things were built and deployed typically in the form of client and server model in which clients talk to a single server, for example, doing remote procedure calls or sockets The second phase can be called web-based computing in which many clients talk to many servers through the net. In this phase, communicating partners still have to go through some pre-arrangement in terms of what common object model they have to use or what common communication protocol they have to agree upon. Largely end user interaction with site Finally, the web services model. As we will see in the following slides, under web services model, service users and service providers can be dynamically connected. And the pretty much every computing device and application participate as both service user and service provider. Example of service (NADRA-PASSPORT-PIA- TRAVEL AGENT)

16. WEB Services (NI) Web services are Web-based enterprise applications that use open, XML-based standards and transport protocols to exchange data with calling clients. Java Platform, Enterprise Edition (Java EE) provides the APIs and tools you need to create and deploy interoperable Web services and clientsJava Platform, Enterprise Edition (Java EE)

17. What is Web Services? (NI) Web Services Definition by W3C –A Web service is a software application –identified by a URI, –whose interfaces and binding are capable of being defined, described and discovered by XML artifacts –and supports direct interactions with other software applications –using XML based messages via internet-based protocols

18. NI

20. Comparison to the Server/Browser Model Web page Web Service –Has a UI No UI –Interacts with users Interacts with applications –Works with web Works with any browser clienttype client

21. (NI) Web application in its current form is typically focused on between an end user and program while under web services model, program to program communication would be much more common form of communication. Also under web application model, things are pretty much in static mode. That is, in order to integrate various applications, you have to statically configure them to talk each other. Under web services model, things could be a lot more dynamic, that is, service users will find service provider and use the services of those providers more dynamically. Also under Web services model, services can be aggregated again in a adhoc and dynamic fashion.

22. Types of Web Services Data providers, e.g., a service providing stock quotes Business-to-business process integration, e.g., purchase orders Enterprise application integration –Different applications work together simply by adding a webservice wrapper.

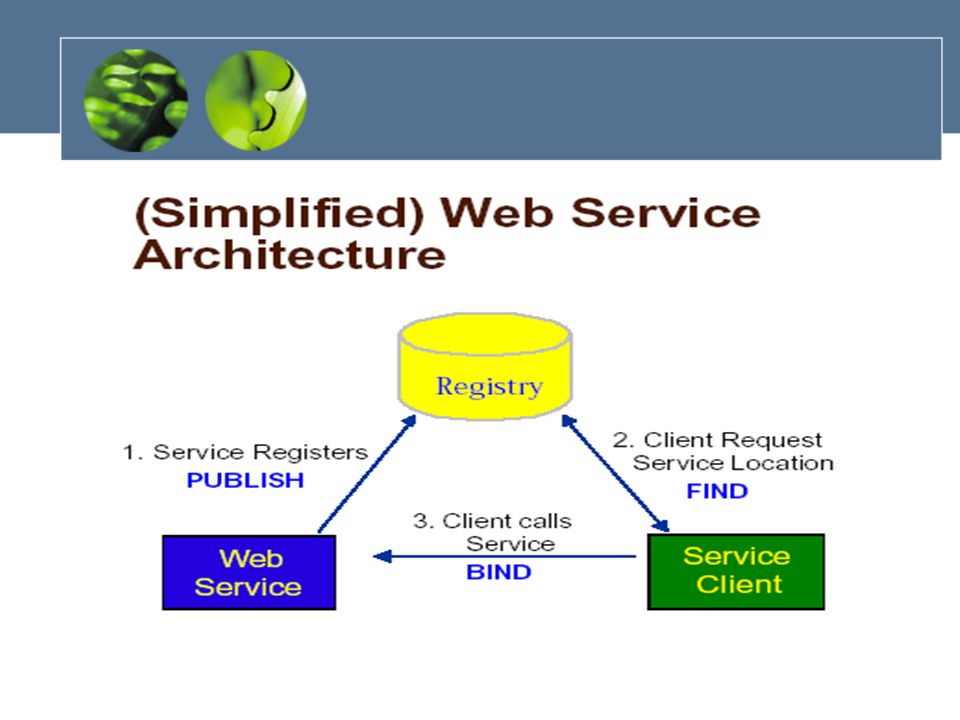

24. Web Service Architecture (correct it accd. To VHS) Publishing the service—how do clients find it? –UDDI (Universal Description, Discovery & Integration). –A way to publish and find web services. A repository of web services on the internet where a machine or a human can find different web services –www.uddi.org Describing the service—how do clients know how it works (which functions, parameters etc)? –WSDL (Web service description language) pronounced as viz-dal –An XML format for describing web services in terms of methods, properties, data types and protocols. –Makes the web service self describing

25. Some Web Service Issues & Solutions… (NI) Network—how can we avoid firewall issues (firewalls generally block binary data)? –Easy, we use HTTP and send XML over it (SOAP) Development tools—how can we build services in any language? –Very easy, use Visual studio.NET, JBuilder, Studio Creator Plumbing—how can we simplify making all of this work? –Again very easy, use Visual studio.NET, JBuilder, Studio Creator

26. XML Web Service Infrastructure Make Your own

27. Summing up WebServices (NI) Characteristics of Web Services –XML based everywhere –Message-based –Programming language independent –Could be dynamically located –Could be dynamically assembled or aggregated –Accessed over the internet –Loosely coupled –Based on industry standards

28. NI

29. Resources http://www.apl.jhu.edu/~hall/java/

30. Acknowledgment Sang Shin, sang.shin@sun.comsang.shin@sun.com http://java.sun.com http://www.jsfcentral.com http://www.corejsf.com http://www.theserverside.com http://www.javaworld.com
