1. Command Line Interface Introduction Configuration Example Alcatel-Lucent Security Products Configuration Example Series

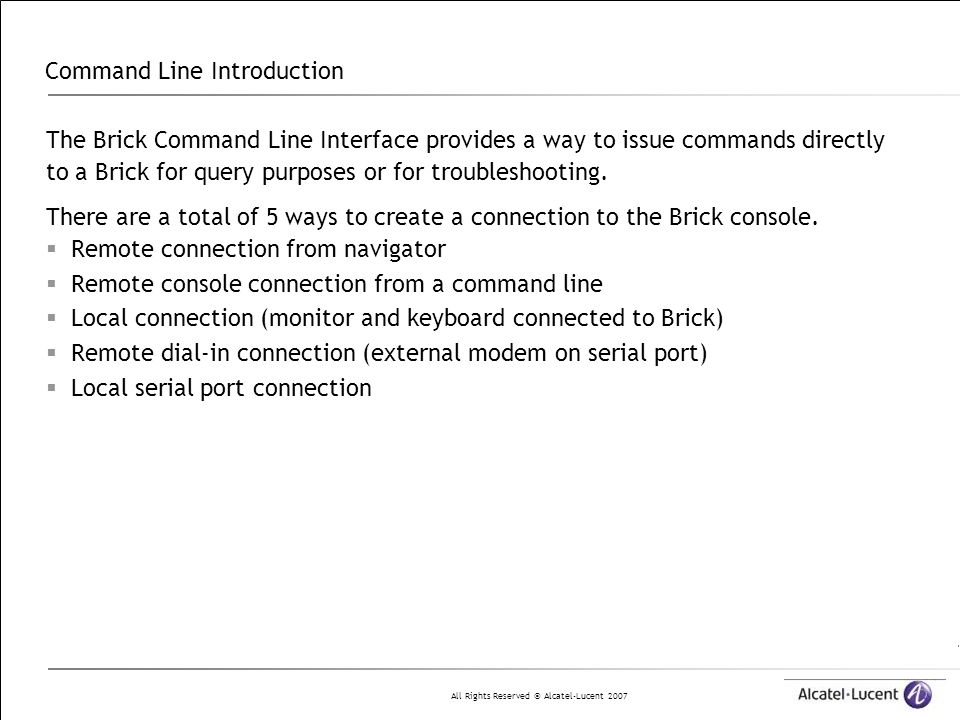

2. All Rights Reserved © Alcatel-Lucent 2007 Command Line Introduction The Brick Command Line Interface provides a way to issue commands directly to a Brick for query purposes or for troubleshooting. There are a total of 5 ways to create a connection to the Brick console.  Remote connection from navigator  Remote console connection from a command line  Local connection (monitor and keyboard connected to Brick)  Remote dial-in connection (external modem on serial port)  Local serial port connection

3. All Rights Reserved © Alcatel-Lucent 2007 Command Line Introduction For this example we will connect via the ALSMS navigator. Login to the ALSMS locally or via the Remote Navigator. Select the Bricks Folder. Select the Brick that you want to connect to. Select Brick Utilities>Open Brick Console.

4. All Rights Reserved © Alcatel-Lucent 2007 Command Line Introduction You can enter commands at the bottom of the screen. If you aren’t sure what commands you want or the syntax of the commands enter Help. Or you can Click on the Commands menu at the top of the page.

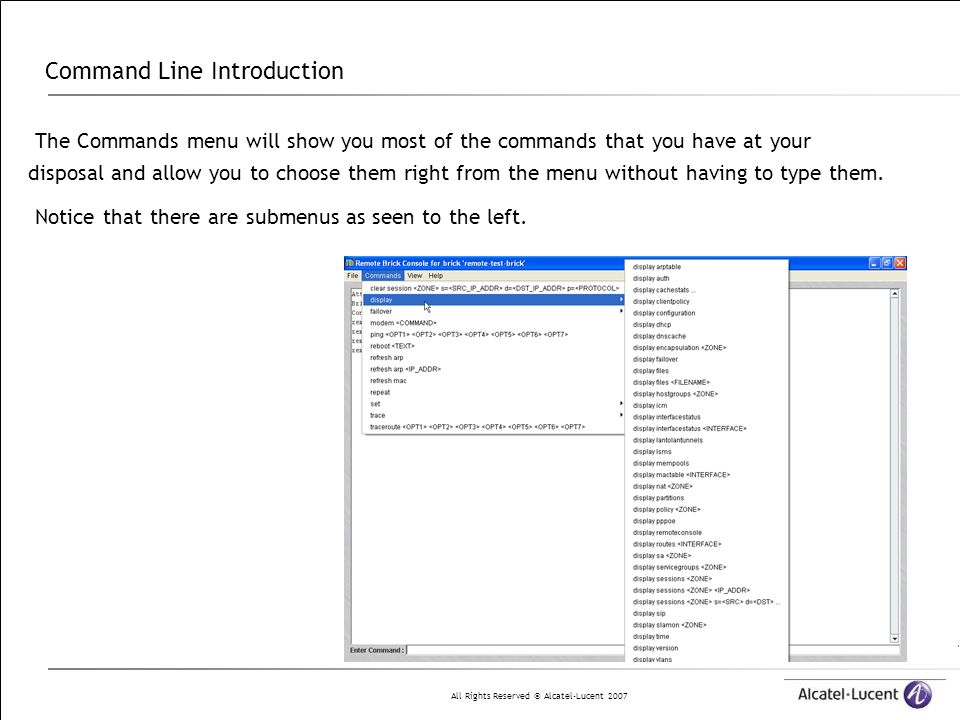

5. All Rights Reserved © Alcatel-Lucent 2007 Command Line Introduction The Commands menu will show you most of the commands that you have at your disposal and allow you to choose them right from the menu without having to type them. Notice that there are submenus as seen to the left.

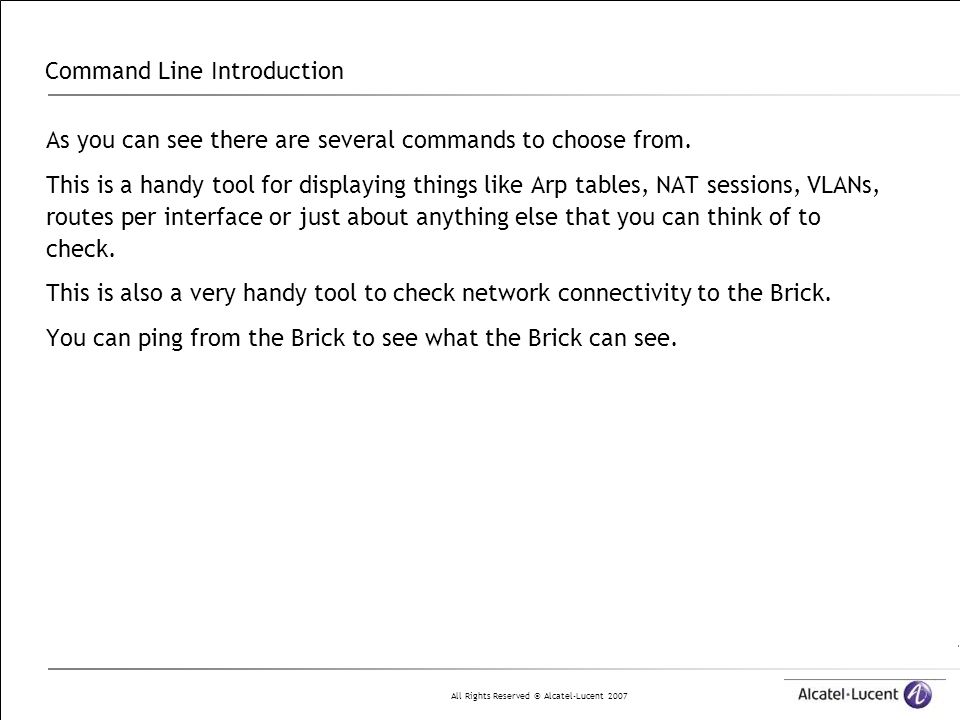

6. All Rights Reserved © Alcatel-Lucent 2007 Command Line Introduction As you can see there are several commands to choose from. This is a handy tool for displaying things like Arp tables, NAT sessions, VLANs, routes per interface or just about anything else that you can think of to check. This is also a very handy tool to check network connectivity to the Brick. You can ping from the Brick to see what the Brick can see.

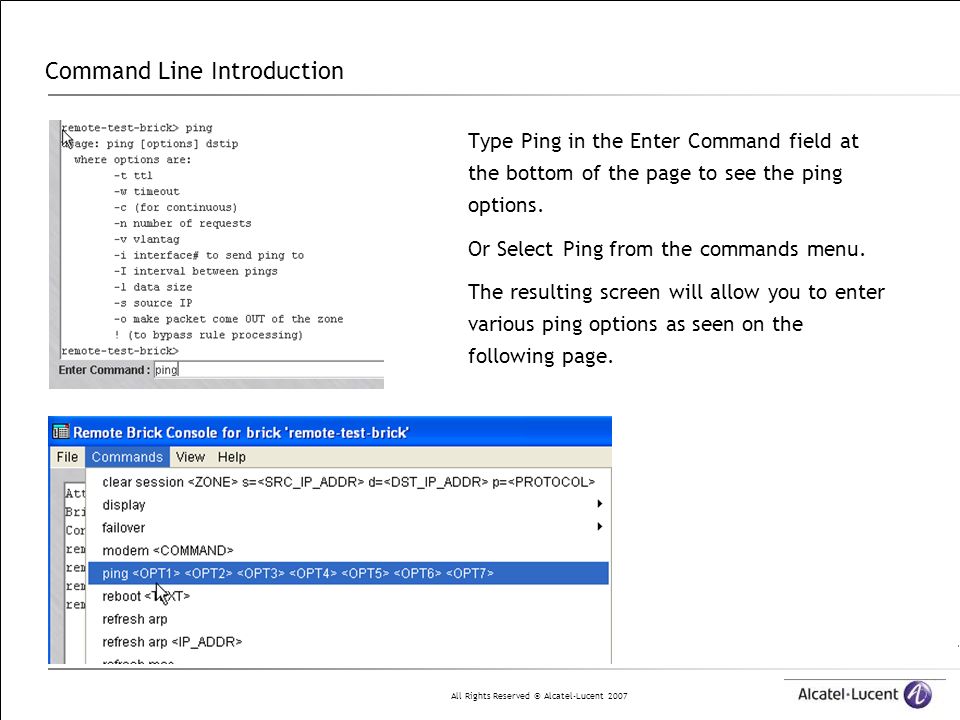

7. All Rights Reserved © Alcatel-Lucent 2007 Command Line Introduction Type Ping in the Enter Command field at the bottom of the page to see the ping options. Or Select Ping from the commands menu. The resulting screen will allow you to enter various ping options as seen on the following page.

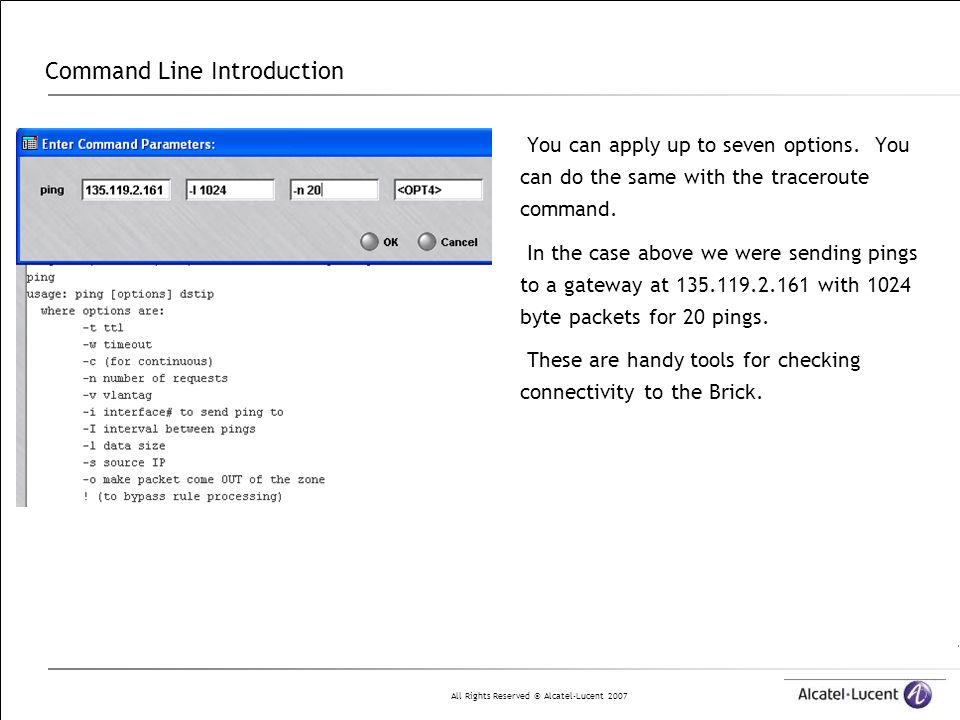

8. All Rights Reserved © Alcatel-Lucent 2007 Command Line Introduction You can apply up to seven options. You can do the same with the traceroute command. In the case above we were sending pings to a gateway at 135.119.2.161 with 1024 byte packets for 20 pings. These are handy tools for checking connectivity to the Brick.

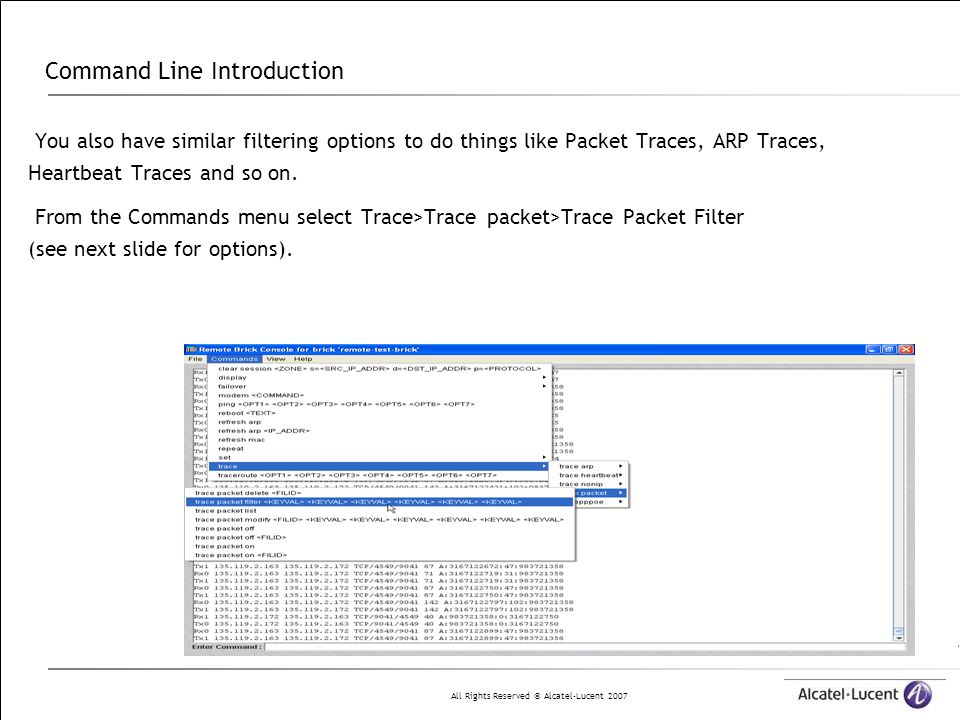

9. All Rights Reserved © Alcatel-Lucent 2007 Command Line Introduction You also have similar filtering options to do things like Packet Traces, ARP Traces, Heartbeat Traces and so on. From the Commands menu select Trace>Trace packet>Trace Packet Filter (see next slide for options).

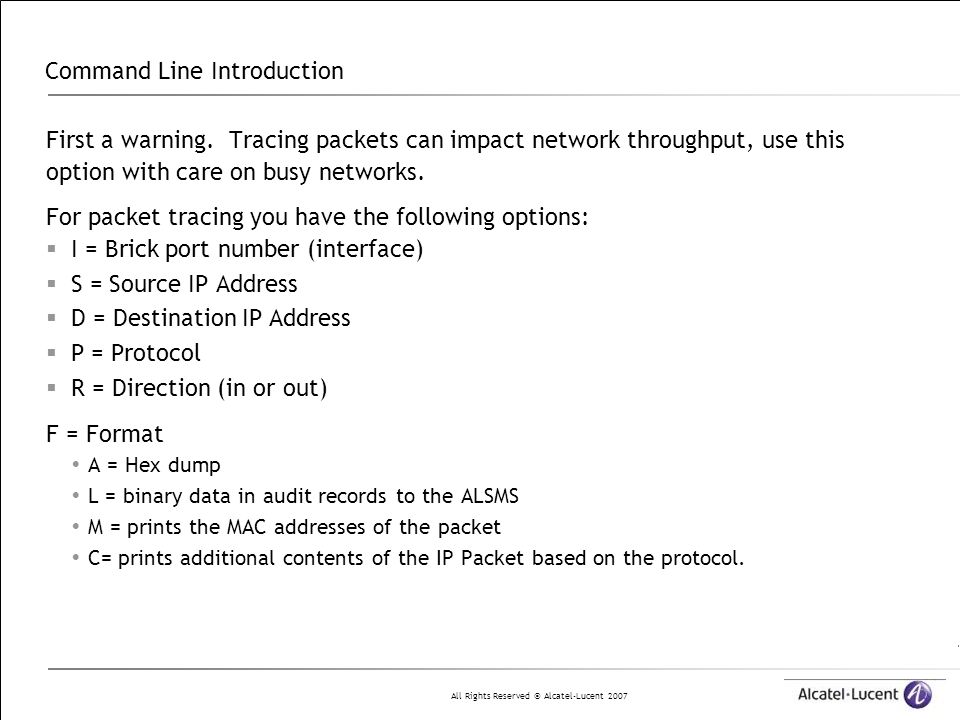

10. All Rights Reserved © Alcatel-Lucent 2007 Command Line Introduction First a warning. Tracing packets can impact network throughput, use this option with care on busy networks. For packet tracing you have the following options:  I = Brick port number (interface)  S = Source IP Address  D = Destination IP Address  P = Protocol  R = Direction (in or out) F = Format  A = Hex dump  L = binary data in audit records to the ALSMS  M = prints the MAC addresses of the packet  C= prints additional contents of the IP Packet based on the protocol.

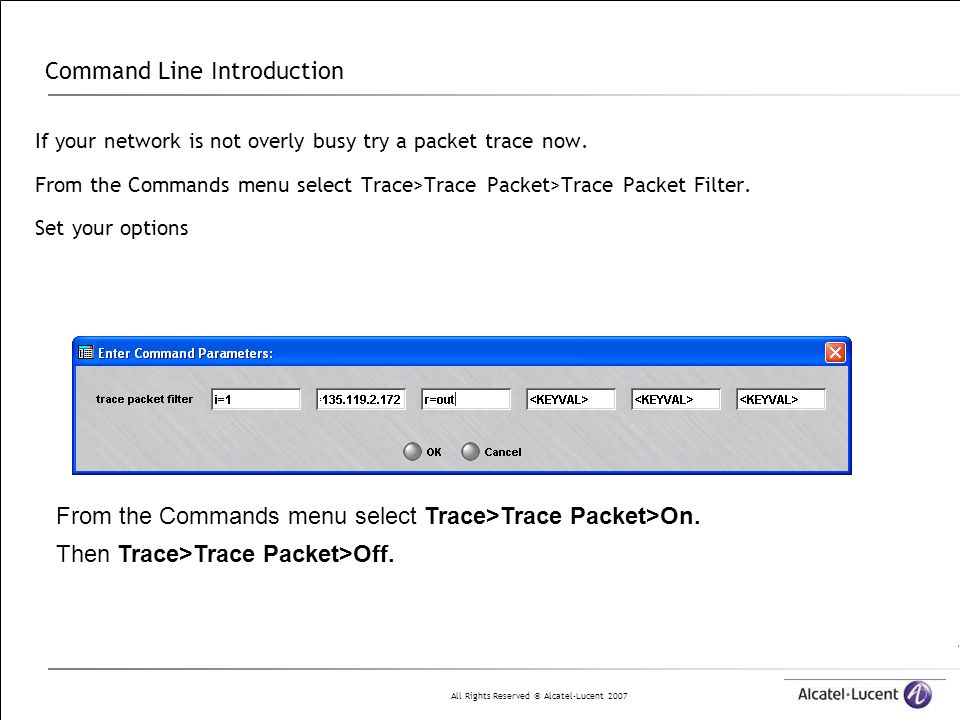

11. All Rights Reserved © Alcatel-Lucent 2007 Command Line Introduction If your network is not overly busy try a packet trace now. From the Commands menu select Trace>Trace Packet>Trace Packet Filter. Set your options From the Commands menu select Trace>Trace Packet>On. Then Trace>Trace Packet>Off.

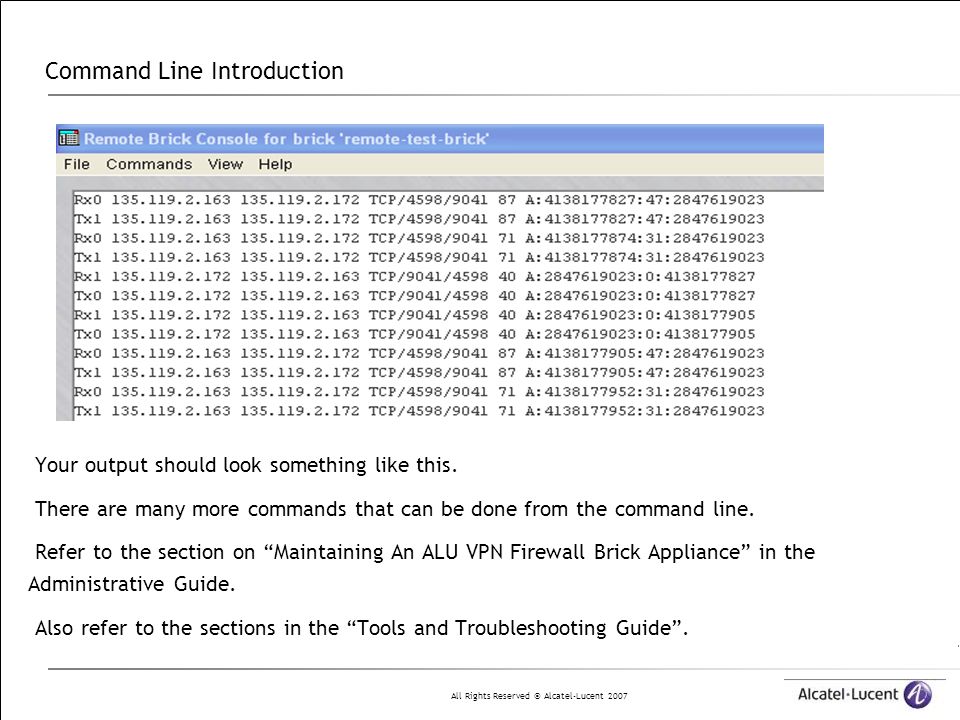

12. All Rights Reserved © Alcatel-Lucent 2007 Command Line Introduction Your output should look something like this. There are many more commands that can be done from the command line. Refer to the section on “Maintaining An ALU VPN Firewall Brick Appliance” in the Administrative Guide. Also refer to the sections in the “Tools and Troubleshooting Guide”.

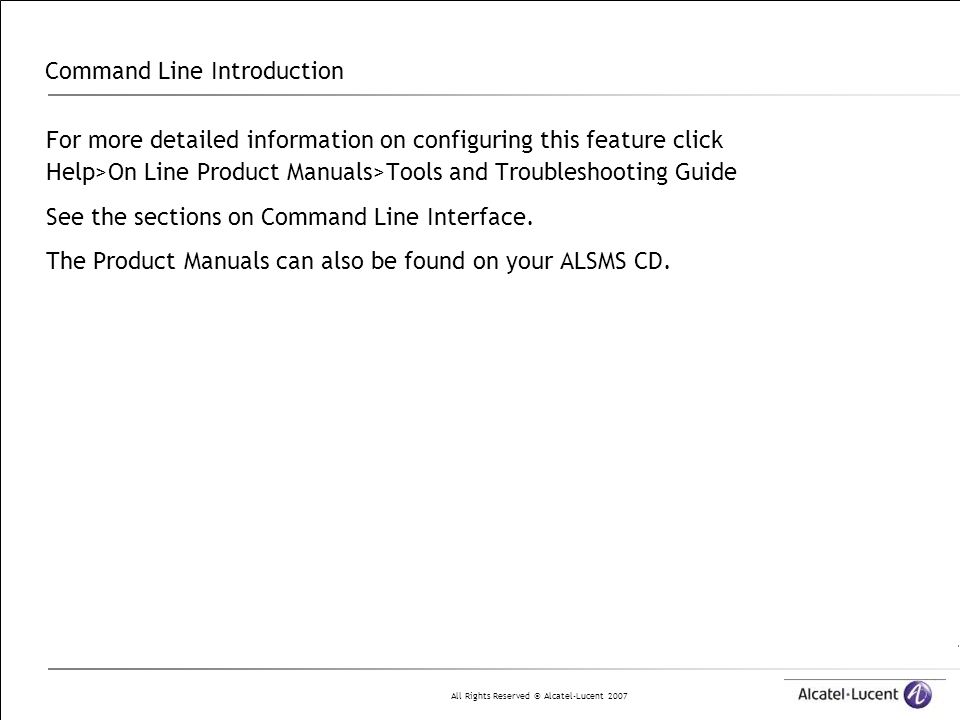

13. All Rights Reserved © Alcatel-Lucent 2007 Command Line Introduction For more detailed information on configuring this feature click Help>On Line Product Manuals>Tools and Troubleshooting Guide See the sections on Command Line Interface. The Product Manuals can also be found on your ALSMS CD.
