1. doc.: IEEE 802.15-11-0487-01-0006 Submission July 2011 Arthur AstrinSlide 1 Project: IEEE P802.15 Working Group for Wireless Personal Area Networks (WPANs) Submission Title: Opening Report for the TG6 Session in July 2011 Date Submitted: July 18, 2011 Source: Arthur Astrin Contact: Arthur Astrin, Astrin Radio Voice: +1 (650) 704-2517, e-mail: astrin@ieee.orgastrin@ieee.org Re: TG6 Opening Report for July 2011 Session Abstract: Opening report for the TG6 Session. Purpose:To focus activities during the meeting Notice:This document has been prepared to assist the IEEE P802.15. It is offered as a basis for discussion and is not binding on the contributing individual(s) or organization(s). The material in this document is subject to change in form and content after further study. The contributor(s) reserve(s) the right to add, amend or withdraw material contained herein. Release:The contributor acknowledges and accepts that this contribution becomes the property of IEEE and may be made publicly available by P802.15.

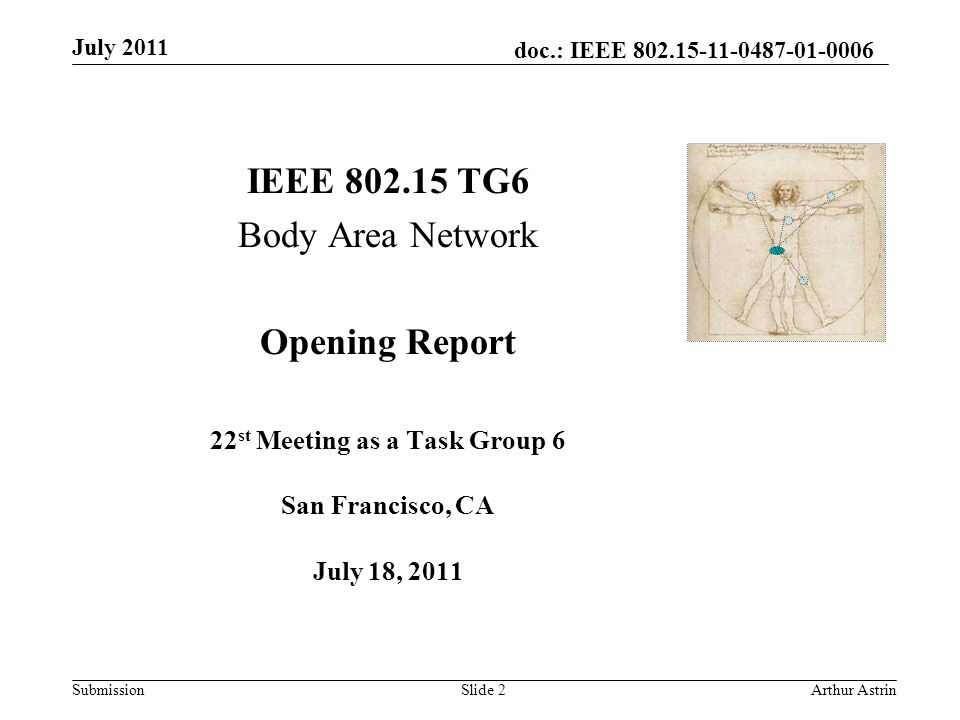

2. doc.: IEEE 802.15-11-0487-01-0006 Submission July 2011 Arthur AstrinSlide 2 IEEE 802.15 TG6 Body Area Network Opening Report 22 st Meeting as a Task Group 6 San Francisco, CA July 18, 2011

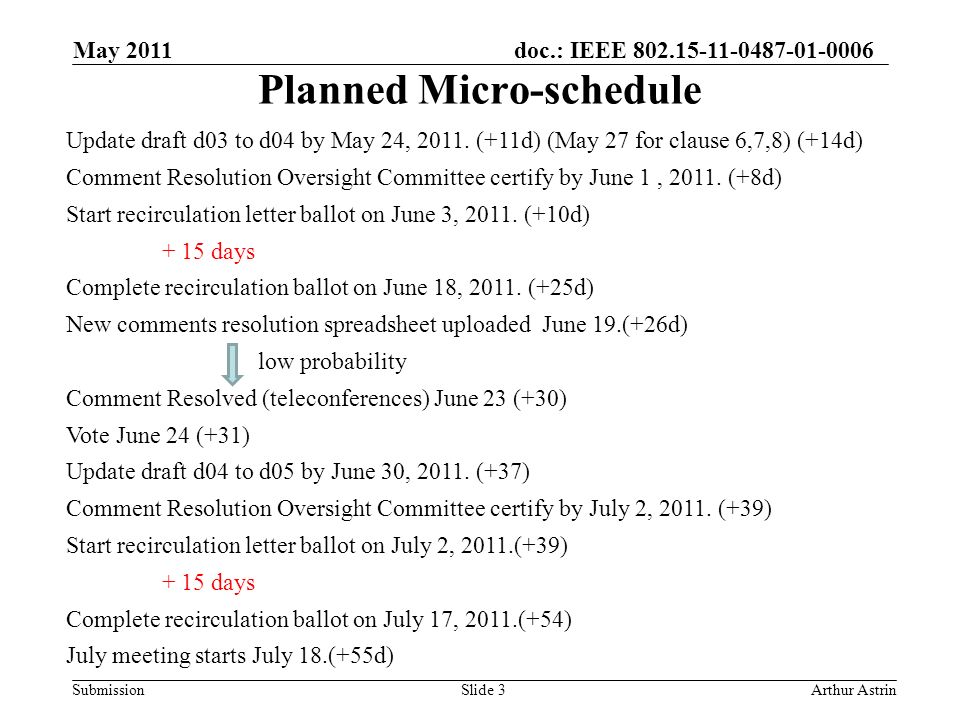

3. doc.: IEEE 802.15-11-0487-01-0006 Submission Planned Micro-schedule May 2011 Arthur AstrinSlide 3 Update draft d03 to d04 by May 24, 2011. (+11d) (May 27 for clause 6,7,8) (+14d) Comment Resolution Oversight Committee certify by June 1, 2011. (+8d) Start recirculation letter ballot on June 3, 2011. (+10d) + 15 days Complete recirculation ballot on June 18, 2011. (+25d) New comments resolution spreadsheet uploaded June 19.(+26d) low probability Comment Resolved (teleconferences) June 23 (+30) Vote June 24 (+31) Update draft d04 to d05 by June 30, 2011. (+37) Comment Resolution Oversight Committee certify by July 2, 2011. (+39) Start recirculation letter ballot on July 2, 2011.(+39) + 15 days Complete recirculation ballot on July 17, 2011.(+54) July meeting starts July 18.(+55d)

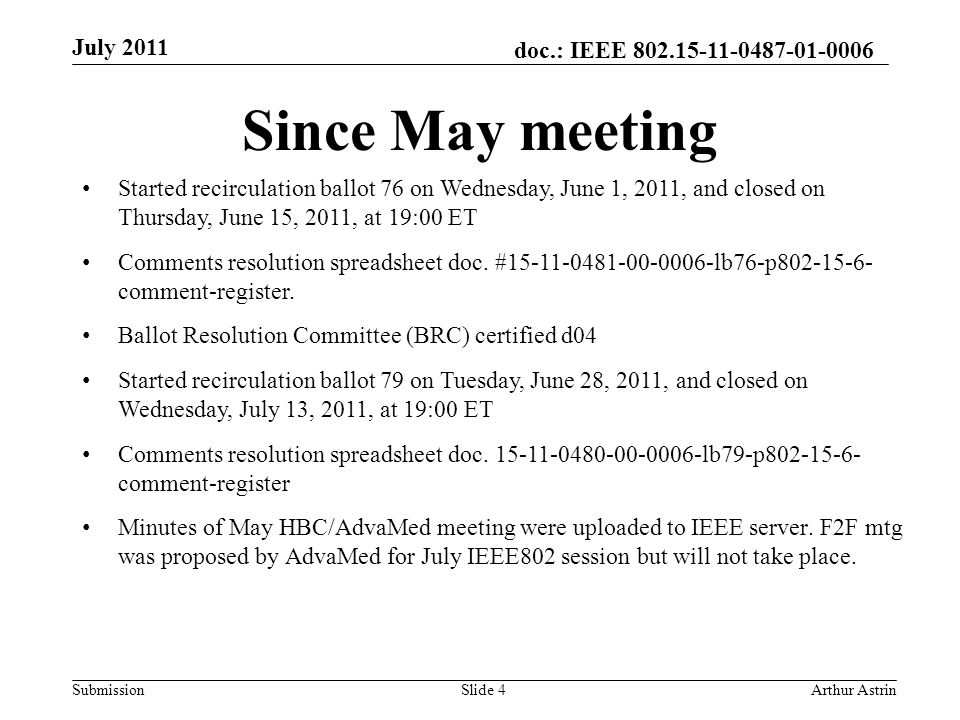

4. doc.: IEEE 802.15-11-0487-01-0006 Submission July 2011 Arthur AstrinSlide 4 Since May meeting Started recirculation ballot 76 on Wednesday, June 1, 2011, and closed on Thursday, June 15, 2011, at 19:00 ET Comments resolution spreadsheet doc. #15-11-0481-00-0006-lb76-p802-15-6- comment-register. Ballot Resolution Committee (BRC) certified d04 Started recirculation ballot 79 on Tuesday, June 28, 2011, and closed on Wednesday, July 13, 2011, at 19:00 ET Comments resolution spreadsheet doc. 15-11-0480-00-0006-lb79-p802-15-6- comment-register Minutes of May HBC/AdvaMed meeting were uploaded to IEEE server. F2F mtg was proposed by AdvaMed for July IEEE802 session but will not take place.

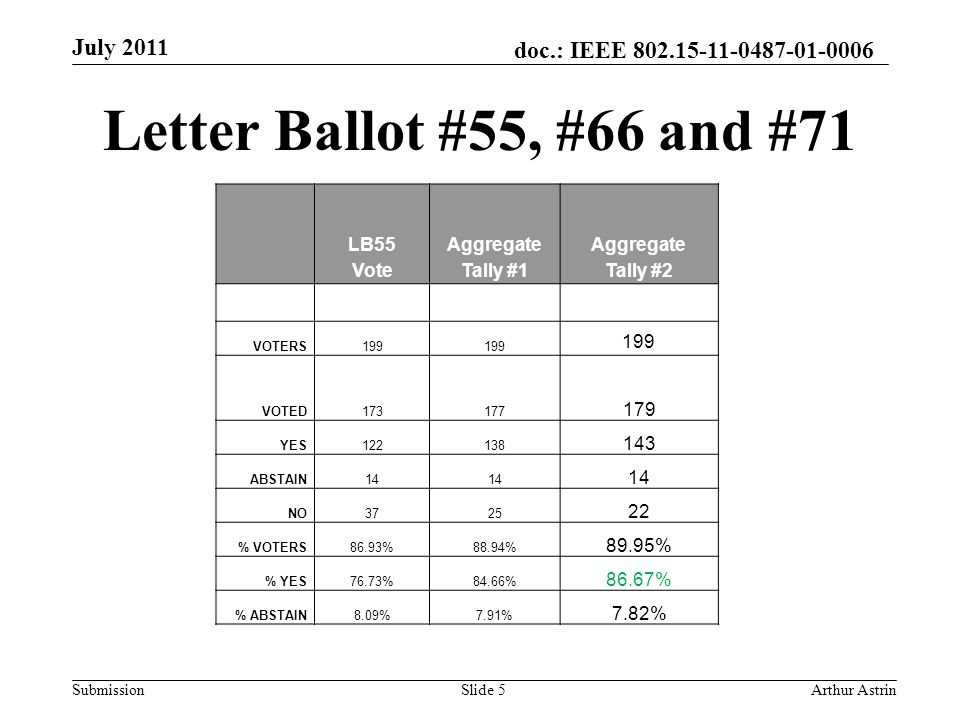

5. doc.: IEEE 802.15-11-0487-01-0006 Submission Letter Ballot #55, #66 and #71 July 2011 Arthur AstrinSlide 5 LB55 Vote Aggregate Tally #1 Aggregate Tally #2 VOTERS199 VOTED173177 179 YES122138 143 ABSTAIN14 NO3725 22 % VOTERS86.93%88.94% 89.95% % YES76.73%84.66% 86.67% % ABSTAIN8.09%7.91% 7.82%

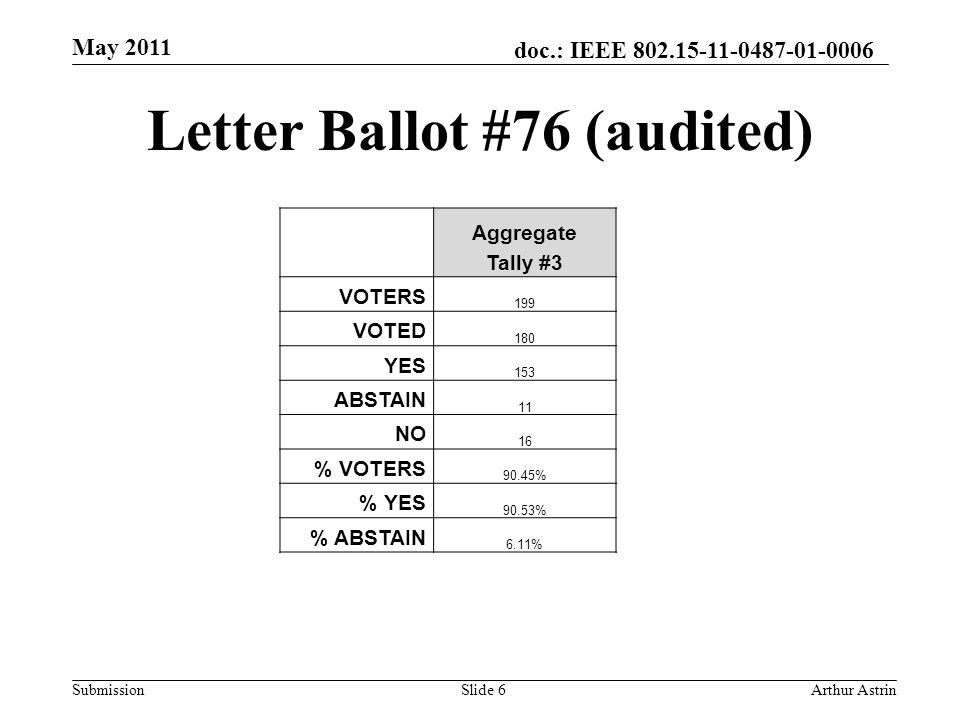

6. doc.: IEEE 802.15-11-0487-01-0006 Submission Letter Ballot #76 (audited) May 2011 Arthur AstrinSlide 6 Aggregate Tally #3 VOTERS 199 VOTED 180 YES 153 ABSTAIN 11 NO 16 % VOTERS 90.45% % YES 90.53% % ABSTAIN 6.11%

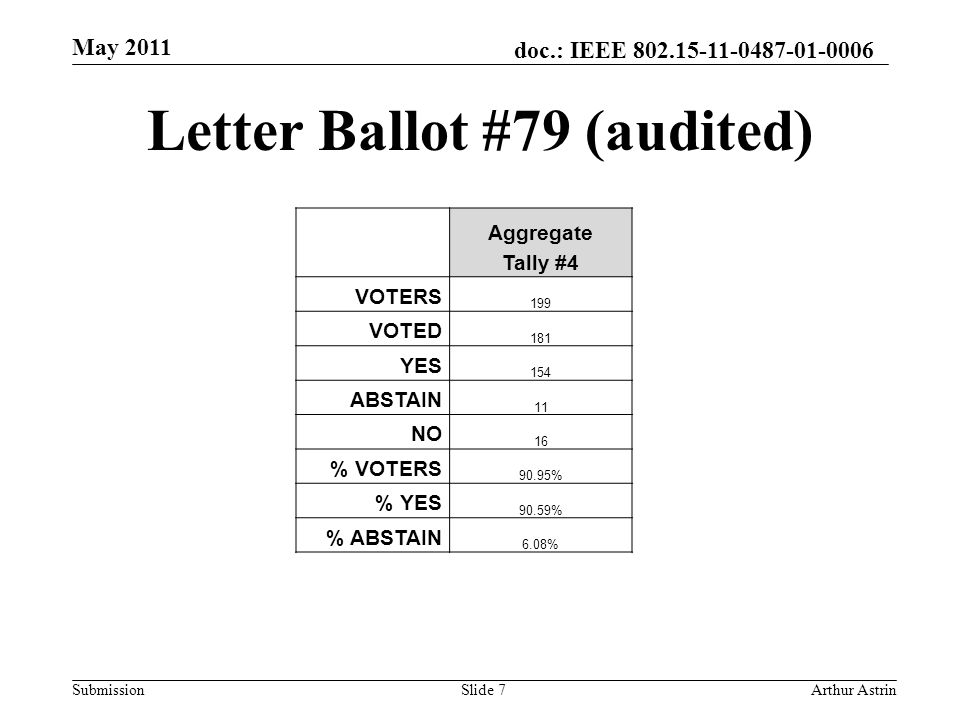

7. doc.: IEEE 802.15-11-0487-01-0006 Submission Letter Ballot #79 (audited) May 2011 Arthur AstrinSlide 7 Aggregate Tally #4 VOTERS 199 VOTED 181 YES 154 ABSTAIN 11 NO 16 % VOTERS 90.95% % YES 90.59% % ABSTAIN 6.08%

8. doc.: IEEE 802.15-11-0487-01-0006 Submission Coexistence Document May 2011 Arthur Astrin (Astrin Radio)Slide 8 Received no comments.

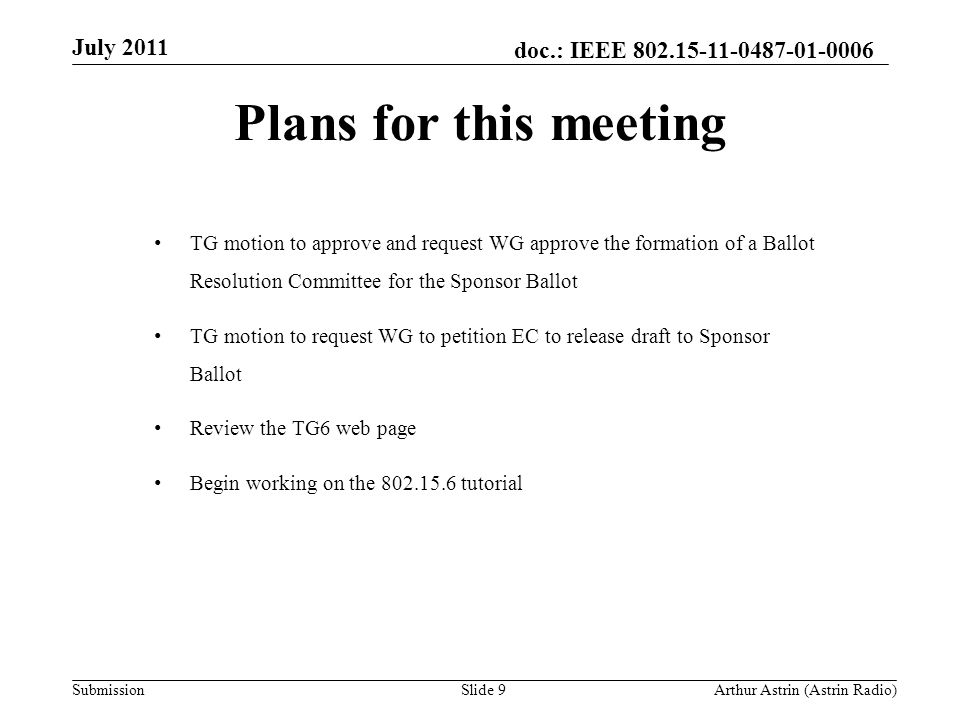

9. doc.: IEEE 802.15-11-0487-01-0006 Submission Plans for this meeting July 2011 Arthur Astrin (Astrin Radio)Slide 9 TG motion to approve and request WG approve the formation of a Ballot Resolution Committee for the Sponsor Ballot TG motion to request WG to petition EC to release draft to Sponsor Ballot Review the TG6 web page Begin working on the 802.15.6 tutorial

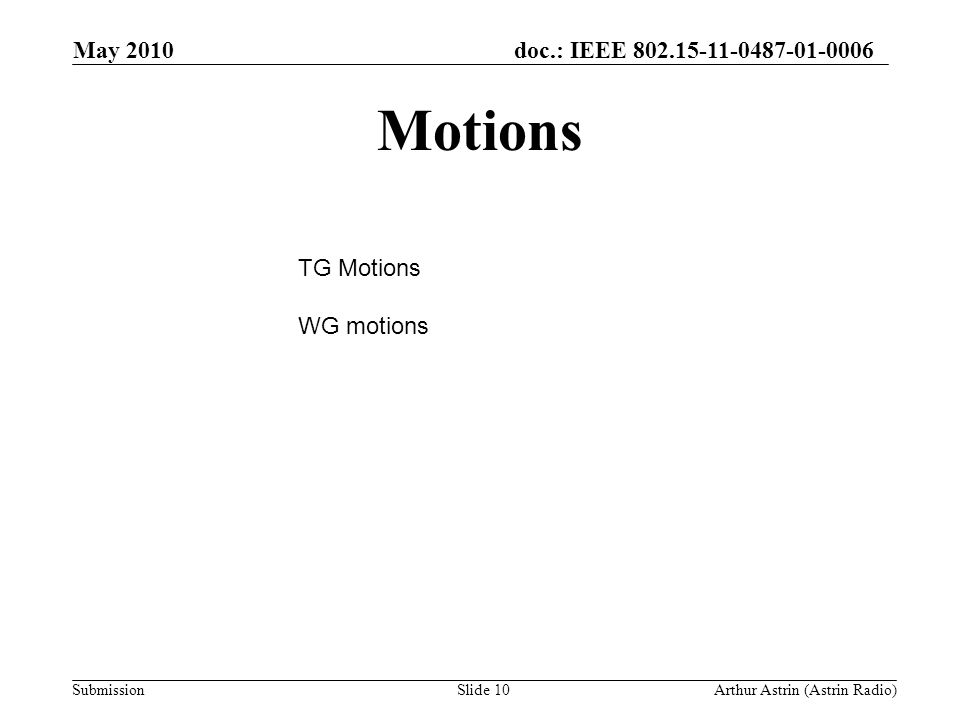

10. doc.: IEEE 802.15-11-0487-01-0006 Submission Motions May 2010 Arthur Astrin (Astrin Radio)Slide 10 TG Motions WG motions

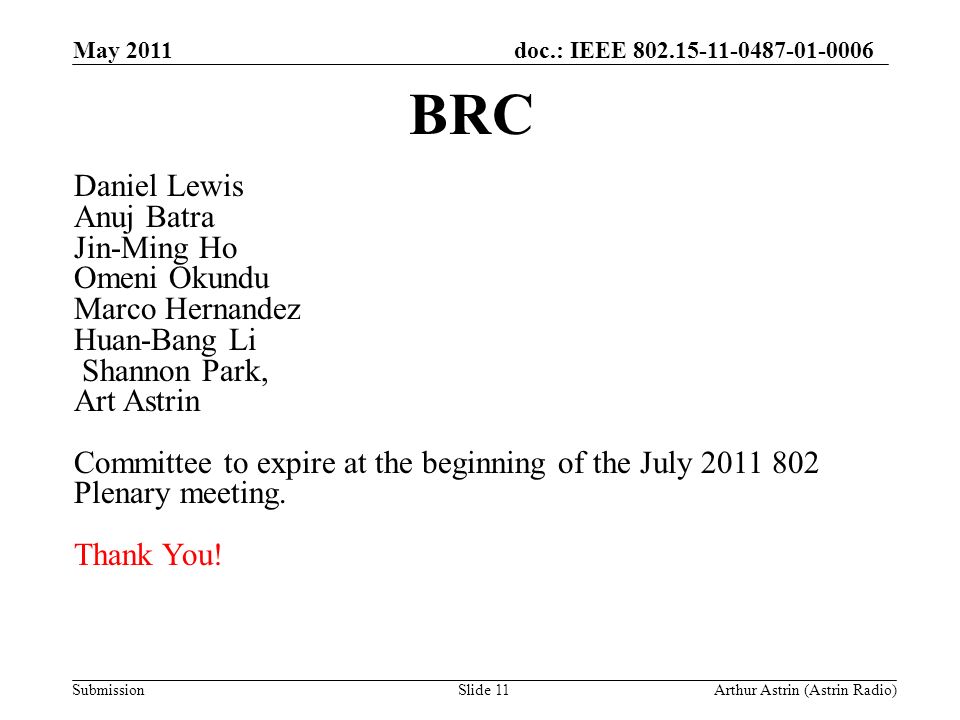

11. doc.: IEEE 802.15-11-0487-01-0006 Submission BRC May 2011 Arthur Astrin (Astrin Radio)Slide 11 Daniel Lewis Anuj Batra Jin-Ming Ho Omeni Okundu Marco Hernandez Huan-Bang Li Shannon Park, Art Astrin Committee to expire at the beginning of the July 2011 802 Plenary meeting. Thank You!

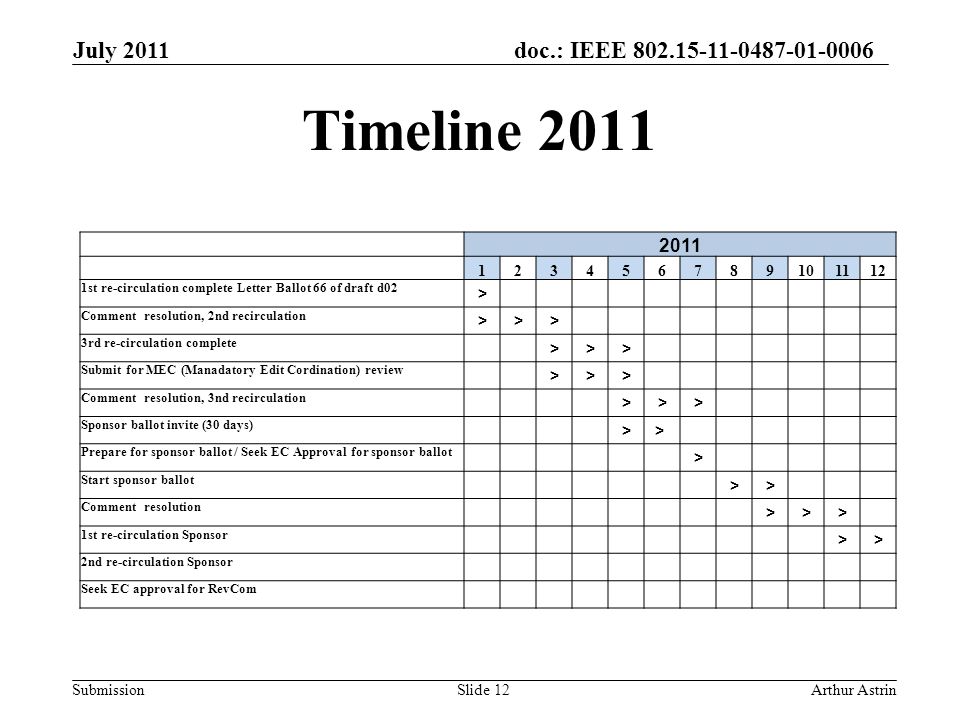

12. doc.: IEEE 802.15-11-0487-01-0006 Submission Timeline 2011 July 2011 Arthur AstrinSlide 12 2011 123456789101112 1st re-circulation complete Letter Ballot 66 of draft d02 > Comment resolution, 2nd recirculation >>> 3rd re-circulation complete >>> Submit for MEC (Manadatory Edit Cordination) review >>> Comment resolution, 3nd recirculation >>> Sponsor ballot invite (30 days) >> Prepare for sponsor ballot / Seek EC Approval for sponsor ballot > Start sponsor ballot >> Comment resolution >>> 1st re-circulation Sponsor >> 2nd re-circulation Sponsor Seek EC approval for RevCom

13. doc.: IEEE 802.15-11-0487-01-0006 Submission The light at the end of the tunnel… July 2011 Arthur Astrin (Astrin Radio)Slide 13 IEEE P802.15.6™/D04 Draft Standard for Body Area Network

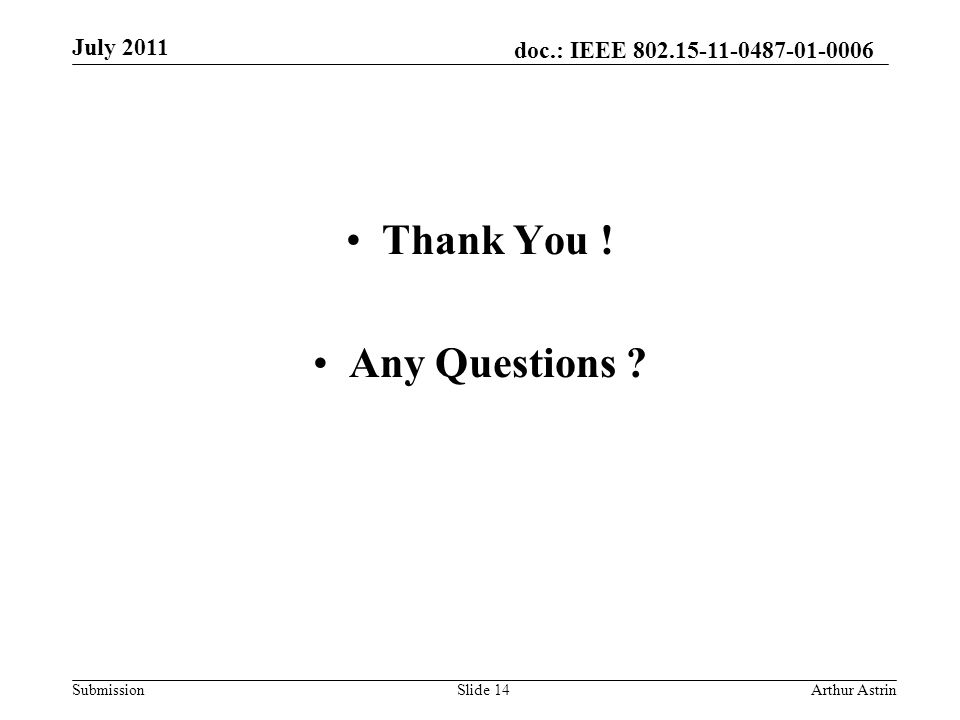

14. doc.: IEEE 802.15-11-0487-01-0006 Submission Thank You ! Any Questions ? July 2011 Arthur AstrinSlide 14

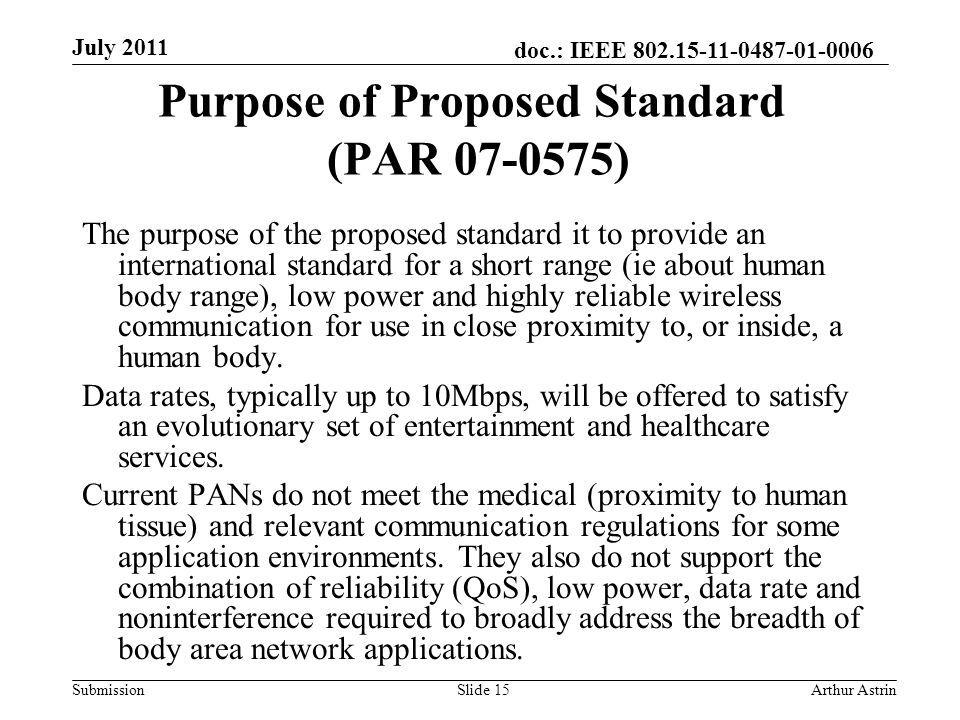

15. doc.: IEEE 802.15-11-0487-01-0006 Submission Purpose of Proposed Standard (PAR 07-0575) The purpose of the proposed standard it to provide an international standard for a short range (ie about human body range), low power and highly reliable wireless communication for use in close proximity to, or inside, a human body. Data rates, typically up to 10Mbps, will be offered to satisfy an evolutionary set of entertainment and healthcare services. Current PANs do not meet the medical (proximity to human tissue) and relevant communication regulations for some application environments. They also do not support the combination of reliability (QoS), low power, data rate and noninterference required to broadly address the breadth of body area network applications. July 2011 Arthur AstrinSlide 15

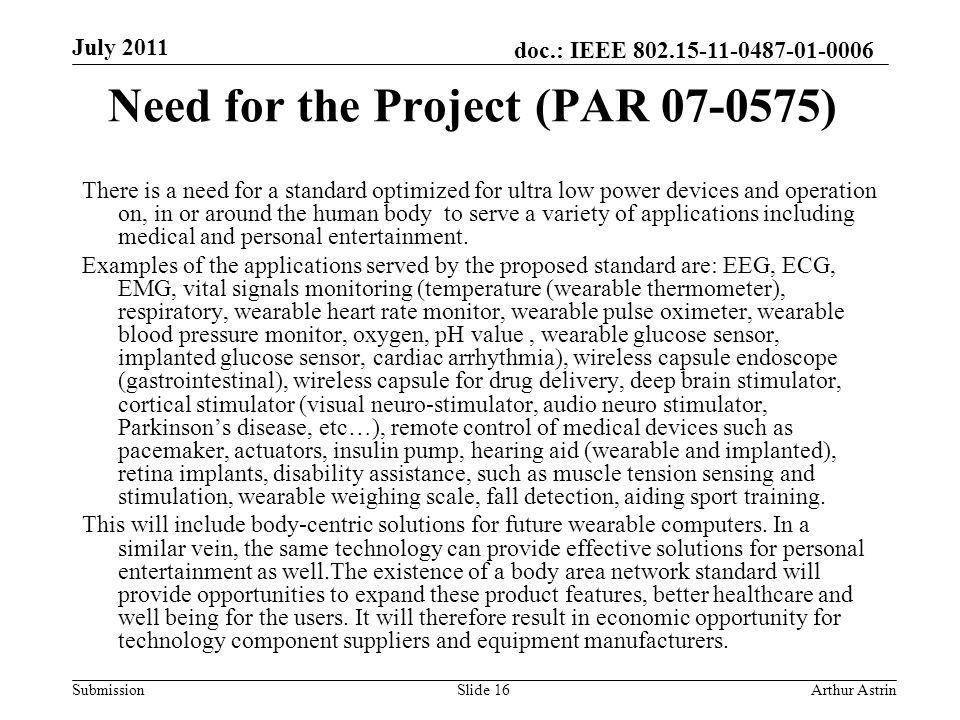

16. doc.: IEEE 802.15-11-0487-01-0006 Submission Need for the Project (PAR 07-0575) There is a need for a standard optimized for ultra low power devices and operation on, in or around the human body to serve a variety of applications including medical and personal entertainment. Examples of the applications served by the proposed standard are: EEG, ECG, EMG, vital signals monitoring (temperature (wearable thermometer), respiratory, wearable heart rate monitor, wearable pulse oximeter, wearable blood pressure monitor, oxygen, pH value, wearable glucose sensor, implanted glucose sensor, cardiac arrhythmia), wireless capsule endoscope (gastrointestinal), wireless capsule for drug delivery, deep brain stimulator, cortical stimulator (visual neuro-stimulator, audio neuro stimulator, Parkinson’s disease, etc…), remote control of medical devices such as pacemaker, actuators, insulin pump, hearing aid (wearable and implanted), retina implants, disability assistance, such as muscle tension sensing and stimulation, wearable weighing scale, fall detection, aiding sport training. This will include body-centric solutions for future wearable computers. In a similar vein, the same technology can provide effective solutions for personal entertainment as well.The existence of a body area network standard will provide opportunities to expand these product features, better healthcare and well being for the users. It will therefore result in economic opportunity for technology component suppliers and equipment manufacturers. July 2011 Arthur AstrinSlide 16
