Seeding the ICM: Primordial or Astrophysical? Jungyeon Cho Chungnam National University, Korea Cho & Yoo (2012; ApJ) Cho (2013; PRD) Cho (2014, ApJ) Origin.

Similar presentations


Presentation on theme: "Seeding the ICM: Primordial or Astrophysical? Jungyeon Cho Chungnam National University, Korea Cho & Yoo (2012; ApJ) Cho (2013; PRD) Cho (2014, ApJ) Origin."— Presentation transcript:

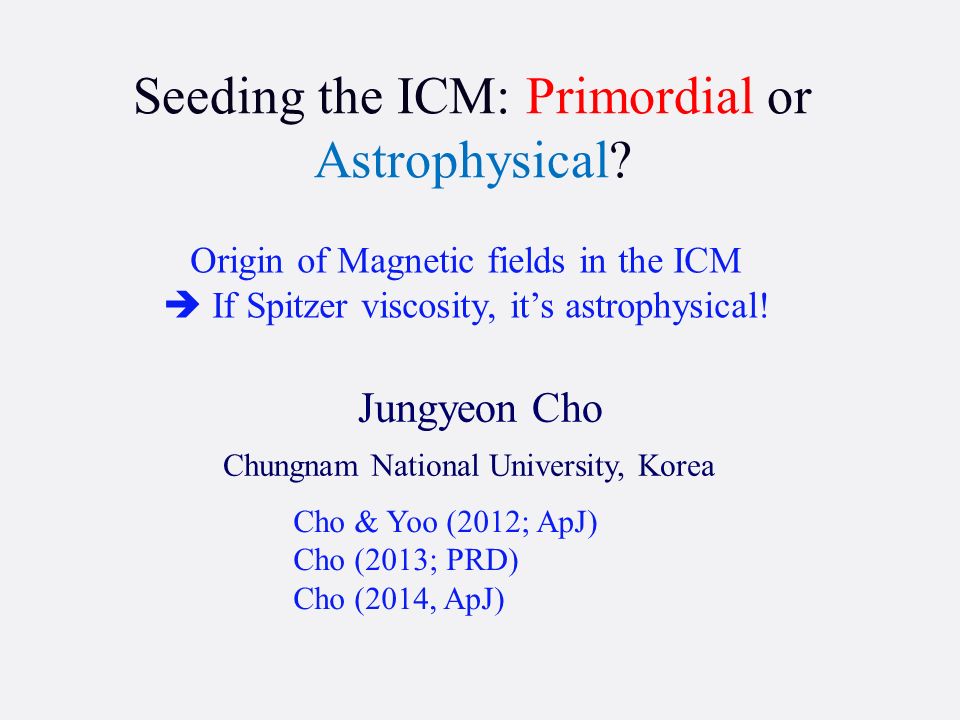

1 Seeding the ICM: Primordial or Astrophysical? Jungyeon Cho Chungnam National University, Korea Cho & Yoo (2012; ApJ) Cho (2013; PRD) Cho (2014, ApJ) Origin of Magnetic fields in the ICM  If Spitzer viscosity, it’s astrophysical!

2 Nearby Galaxies (2MASS) B in the large-scale structure of the universe? Observations: ~  G in clusters ~nG in filaments???  Turbulence can amplify magnetic fields

3 Origin of cosmic seed magnetic fields is uncertain Primordial? Astrophysical? B from the early universe? Battery effects during the large-scale structure formation? (jets, winds, stripped gases, …)

4 Viscosity in the ICM: Spitzer or not? Spitzer viscosity ~ l mfp v th In the ICM, the mean free path can be > kpc. e.g.) l pp > 10kpc, l ee > 1kpc  Viscosity can be large  Reynolds number  100  Turbulence dynamo is inefficient! *Efficiency of turbulence dynamo depends on viscosity

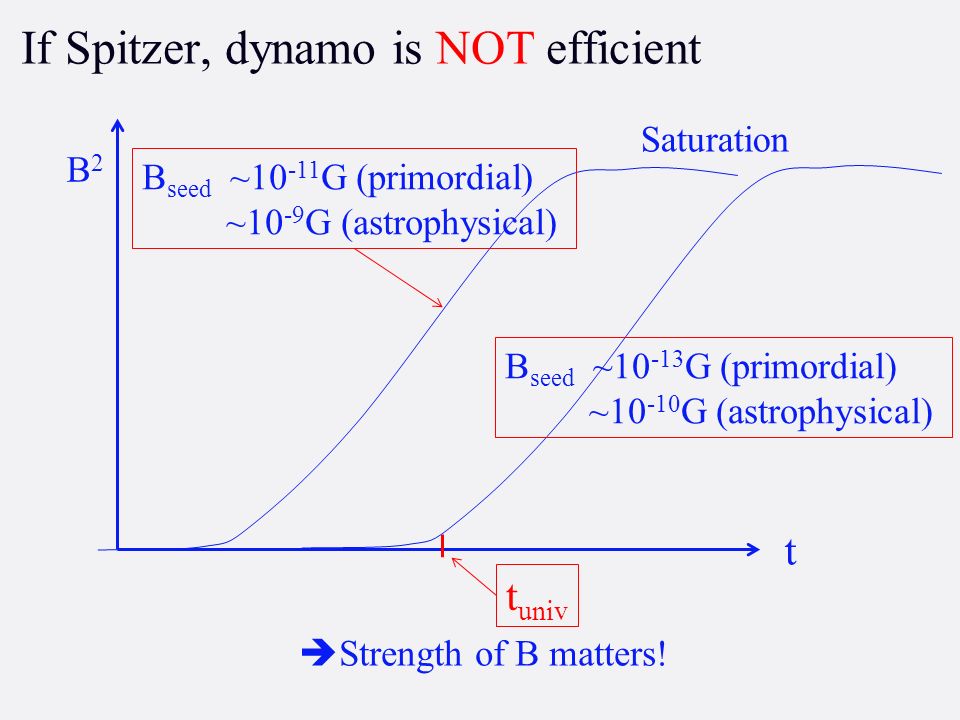

5 If Spitzer, dynamo is NOT efficient t B2B2 Saturation t univ  Strength of B matters! B seed ~10 -11 G (primordial) ~10 -9 G (astrophysical) B seed ~10 -13 G (primordial) ~10 -10 G (astrophysical)

6 Simulation results (for Spitzer ) B max t un i v 10 -7 G 10 -9 G 10 -11 G t un i v 10 -7 G 10 -9 G

7 Expectations for Spitzer viscosity  Turbulence dynamo is inefficient  Strength of the seed field matters  Primordial B should be stronger than 10 -11 G  It’s close to the upper limit of 10 -9 G cf) Dr.Trivedi’s talk, Dr. Kobayashi’s talk  Astrophysical B should stronger than 10 -9 G  It may be easy to satisfy the condition!  Therefore, if the Spitzer viscosity is correct, primordial seed B may not be the origin!

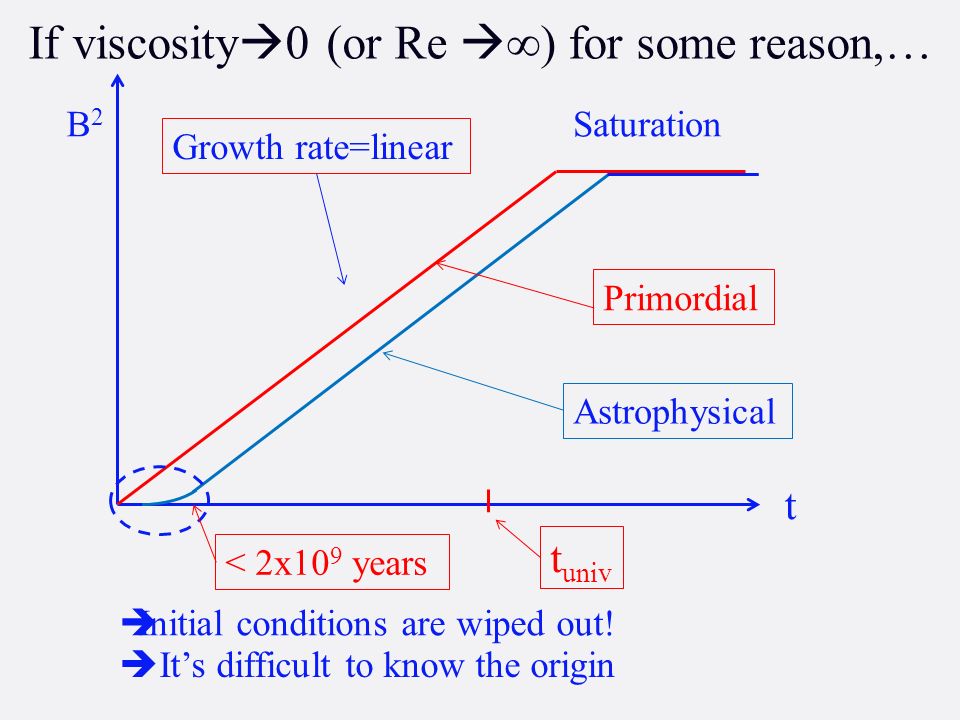

8 If viscosity  0 (or Re   ) for some reason,… t B2B2 Astrophysical Growth rate=linear Saturation Primordial  Initial conditions are wiped out! t univ < 2x10 9 years  It’s difficult to know the origin

9 Astrophysical seed fields need homogenization  Homogenization is in general fast! Homogenization time ~ L sys /V This is a general result  It does not depend on viscosity

10 Expectations for viscosity  0  Turbulence dynamo is so efficient that strength and shape of the seed field doesn’t matter  It is difficult to tell the origin!  Both primordial and astrophysical seed fields can produce B of order O(  G) in the ICM  Note: For a typical cluster, B saturation  10  G  For a cluster with size 1 Mpc, homogenization time 75 km/sec.

11 Conclusions B in the ICM: Primordial or Astrophysical? in the ICM: Spitzer or Not? ~ Spitzer B in the ICM =Astrophysical! << Spitzer B in the ICM =?
