1 CMS Week, CERN, Sep Sep 2003Tracker Week - Bonding WGSalvatore Costa - Catania Working Group Business

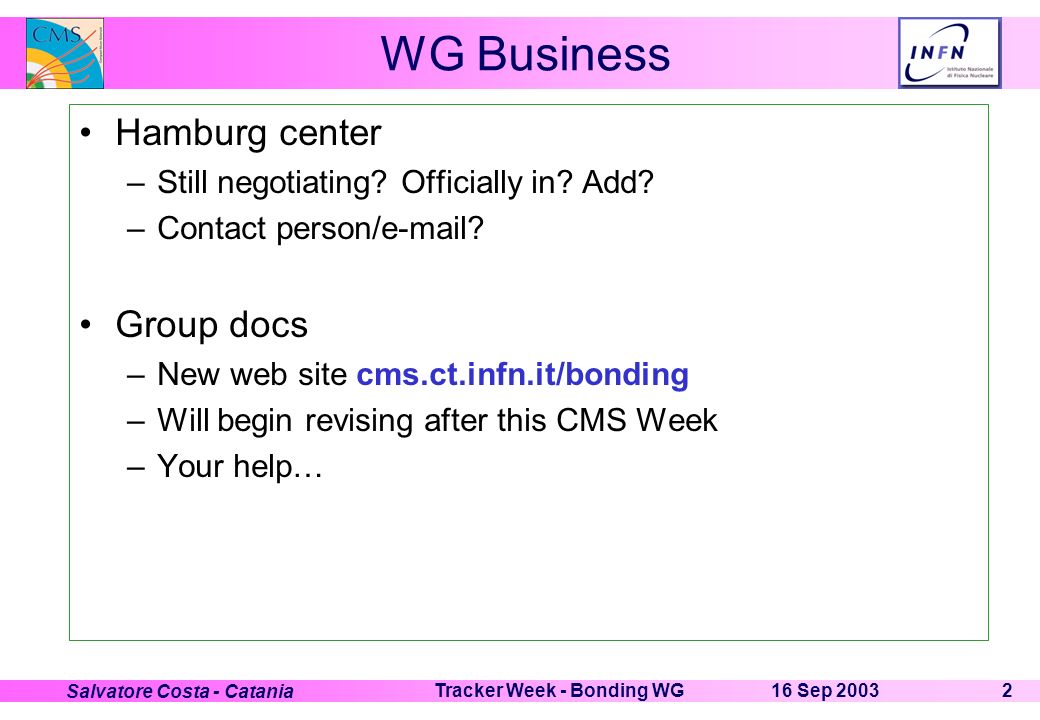

2 16 Sep 2003Tracker Week - Bonding WG2 Salvatore Costa - Catania WG Business Hamburg center –Still negotiating? Officially in? Add? –Contact person/ ? Group docs –New web site cms.ct.infn.it/bonding –Will begin revising after this CMS Week –Your help…

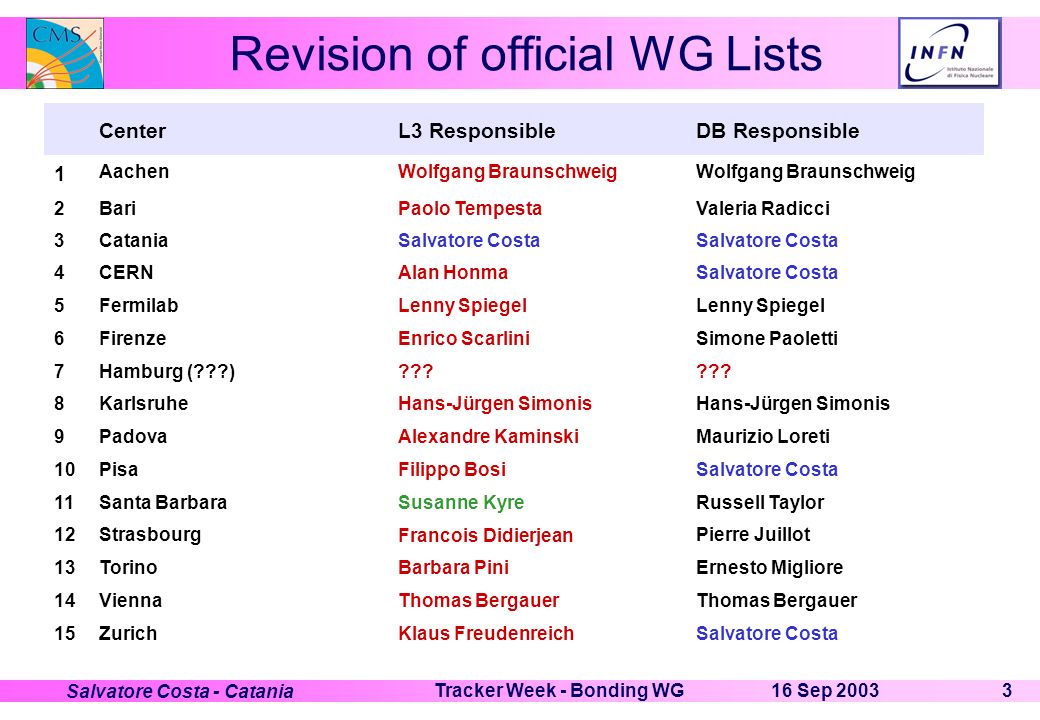

3 16 Sep 2003Tracker Week - Bonding WG3 Salvatore Costa - Catania Revision of official WG Lists CenterL3 ResponsibleDB Responsible 1 AachenWolfgang Braunschweig 2BariPaolo TempestaValeria Radicci 3CataniaSalvatore Costa 4CERNAlan HonmaSalvatore Costa 5FermilabLenny Spiegel 6FirenzeEnrico ScarliniSimone Paoletti 7Hamburg (???)??? 8KarlsruheHans-Jürgen Simonis 9PadovaAlexandre KaminskiMaurizio Loreti 10PisaFilippo BosiSalvatore Costa 11Santa BarbaraSusanne KyreRussell Taylor 12Strasbourg Francois Didierjean Pierre Juillot 13TorinoBarbara PiniErnesto Migliore 14ViennaThomas Bergauer 15ZurichKlaus FreudenreichSalvatore Costa

4 16 Sep 2003Tracker Week - Bonding WG4 Salvatore Costa - Catania Summary of recent TIB&/TOB prod

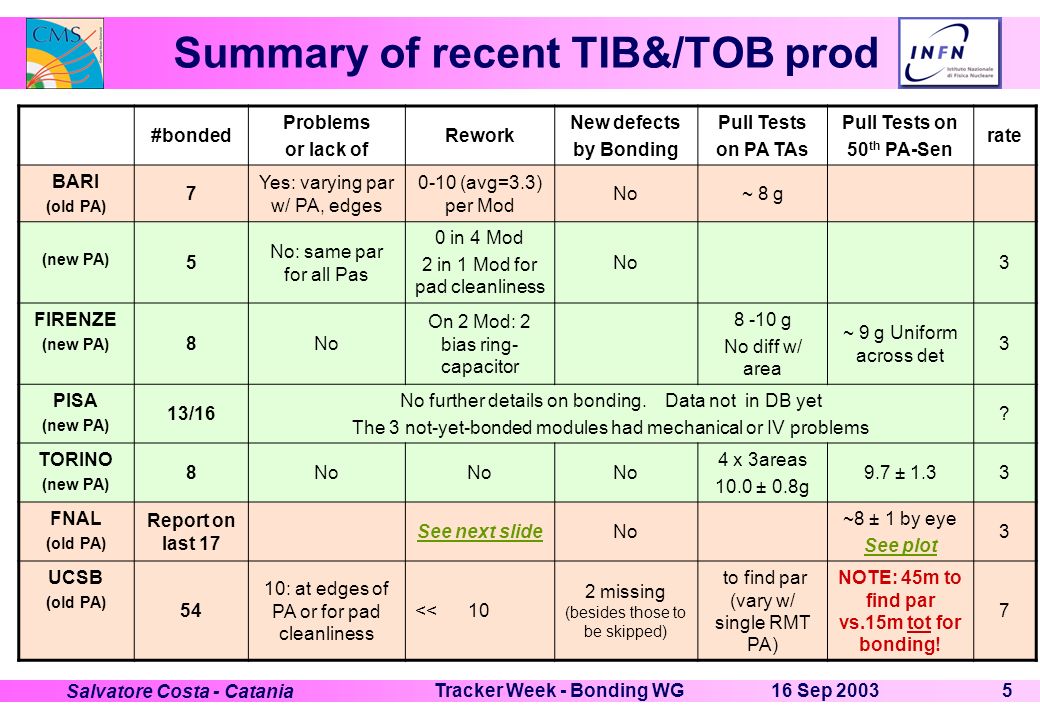

5 16 Sep 2003Tracker Week - Bonding WG5 Salvatore Costa - Catania Summary of recent TIB&/TOB prod #bonded Problems or lack of Rework New defects by Bonding Pull Tests on PA TAs Pull Tests on 50 th PA-Sen rate BARI (old PA) 7 Yes: varying par w/ PA, edges 0-10 (avg=3.3) per Mod No~ 8 g (new PA) 5 No: same par for all Pas 0 in 4 Mod 2 in 1 Mod for pad cleanliness No3 FIRENZE (new PA) 8No On 2 Mod: 2 bias ring- capacitor g No diff w/ area ~ 9 g Uniform across det 3 PISA (new PA) 13/16 No further details on bonding. Data not in DB yet The 3 not-yet-bonded modules had mechanical or IV problems ? TORINO (new PA) 8No 4 x 3areas 10.0 ± 0.8g 9.7 ± 1.33 FNAL (old PA) Report on last 17 See next slideNo ~8 ± 1 by eye See plot 3 UCSB (old PA) 54 10: at edges of PA or for pad cleanliness << 10 2 missing (besides those to be skipped) to find par (vary w/ single RMT PA) NOTE: 45m to find par vs.15m tot for bonding! 7

6 CMS Week, CERN, Sep Sep 2003Tracker Week - Bonding WGSalvatore Costa - Catania Review of DB Usage

7 16 Sep 2003Tracker Week - Bonding WG7 Salvatore Costa - Catania Review of DB usage +

8 CMS Week, CERN, Sep Sep 2003Tracker Week - Bonding WGSalvatore Costa - Catania DB Interface v. 3.0

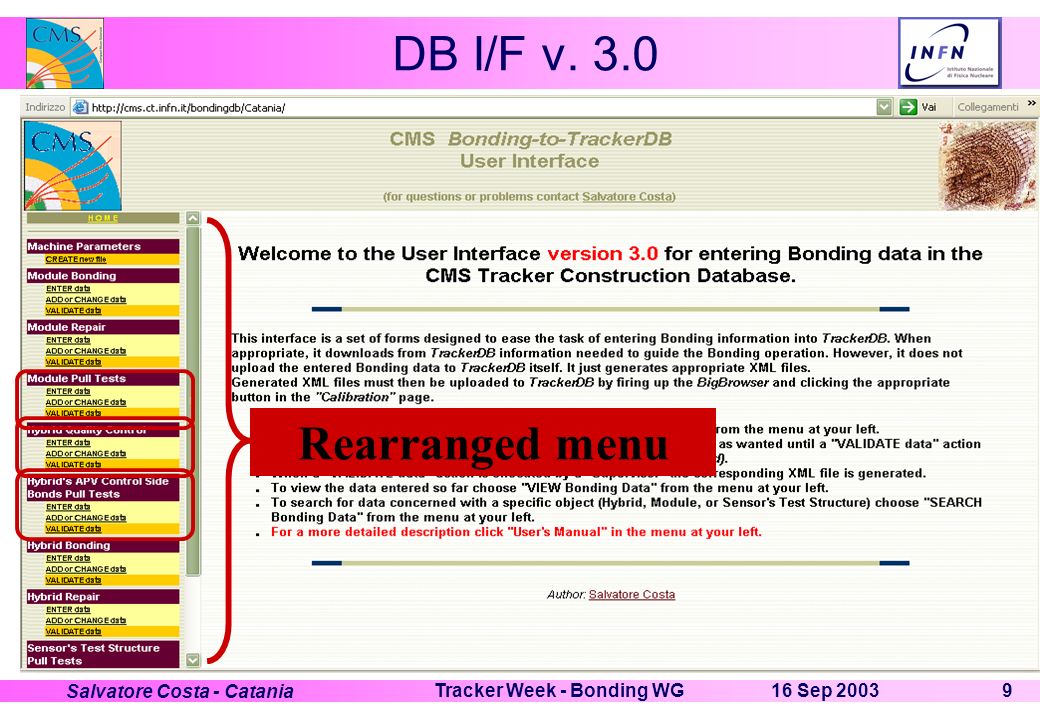

9 16 Sep 2003Tracker Week - Bonding WG9 Salvatore Costa - Catania DB I/F v. 3.0 Rearranged menu

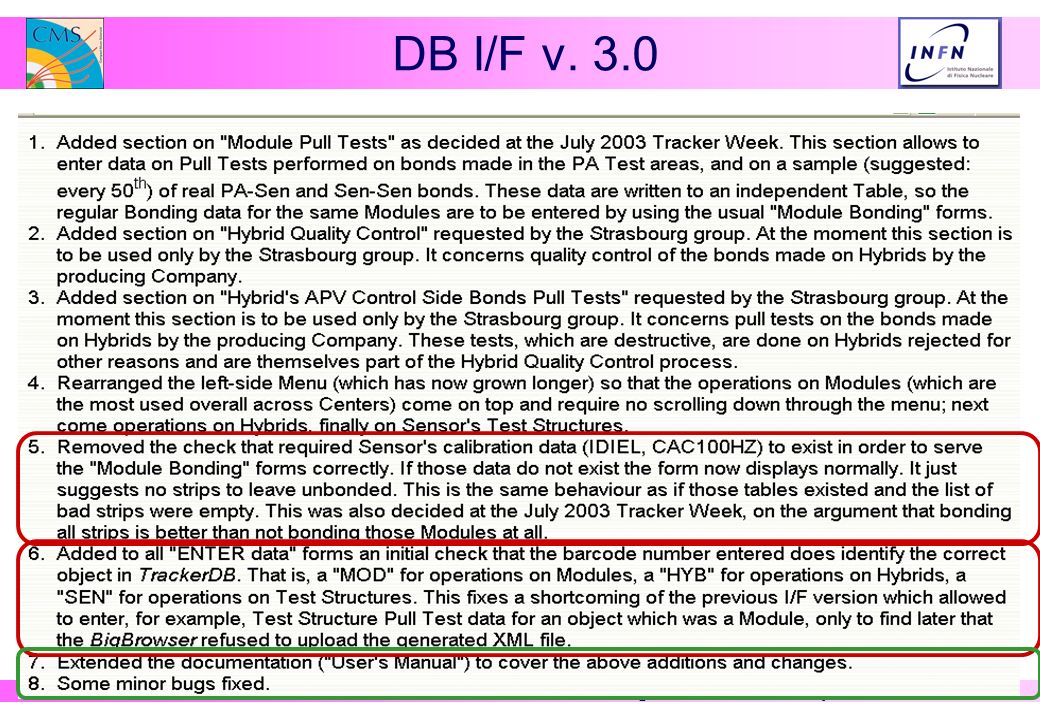

10 16 Sep 2003Tracker Week - Bonding WG10 Salvatore Costa - Catania DB I/F v. 3.0

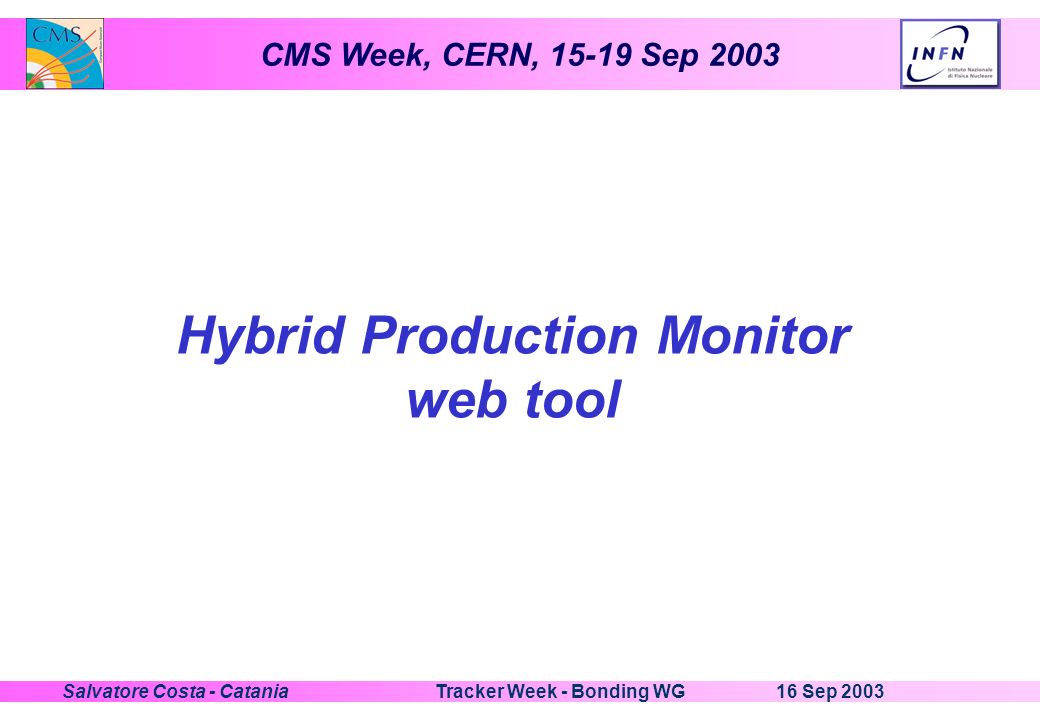

11 CMS Week, CERN, Sep Sep 2003Tracker Week - Bonding WGSalvatore Costa - Catania Hybrid Production Monitor web tool

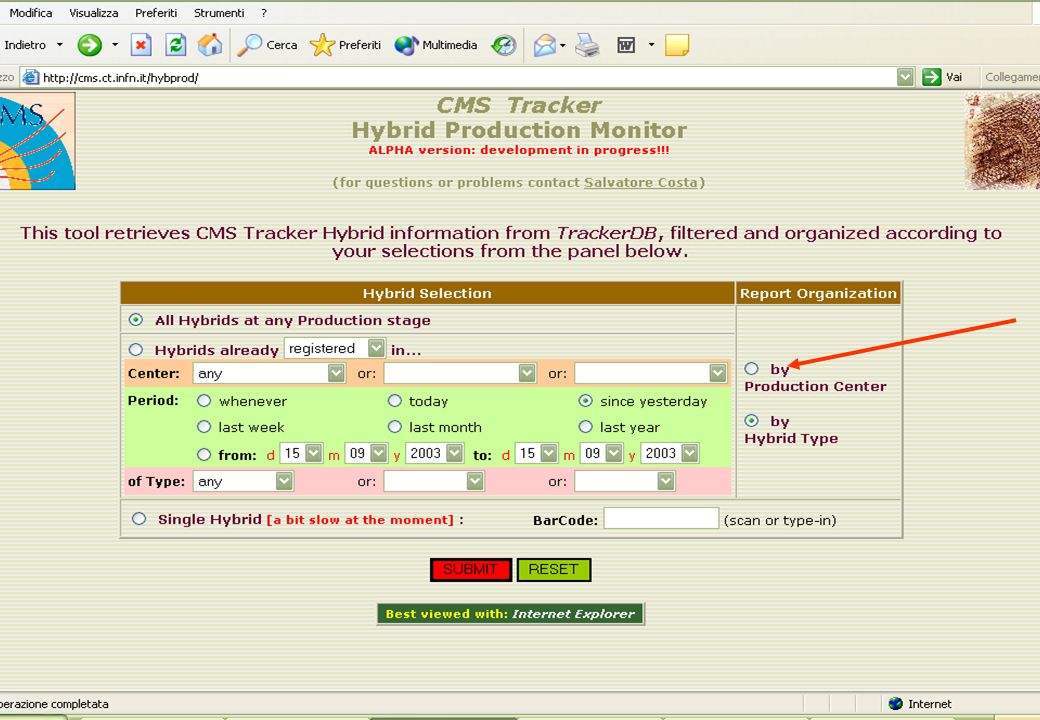

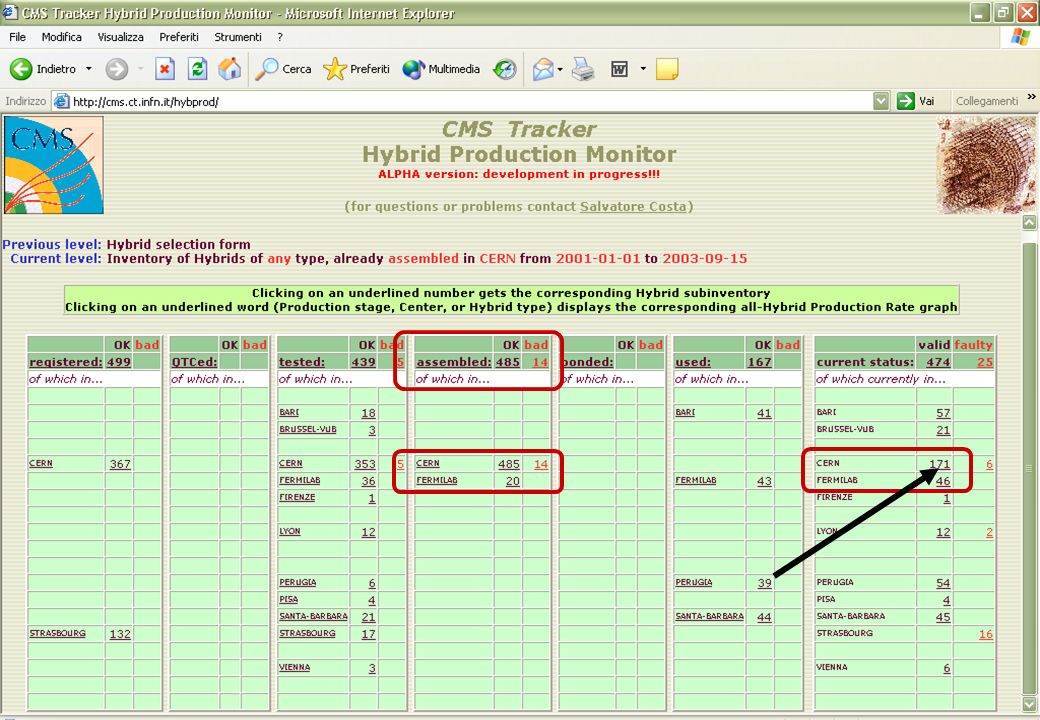

12 16 Sep 2003Tracker Week - Bonding WG12 Salvatore Costa - Catania Hyb Prod Monitor! cms.ct.infn.it/hybprod

13 16 Sep 2003Tracker Week - Bonding WG13 Salvatore Costa - Catania

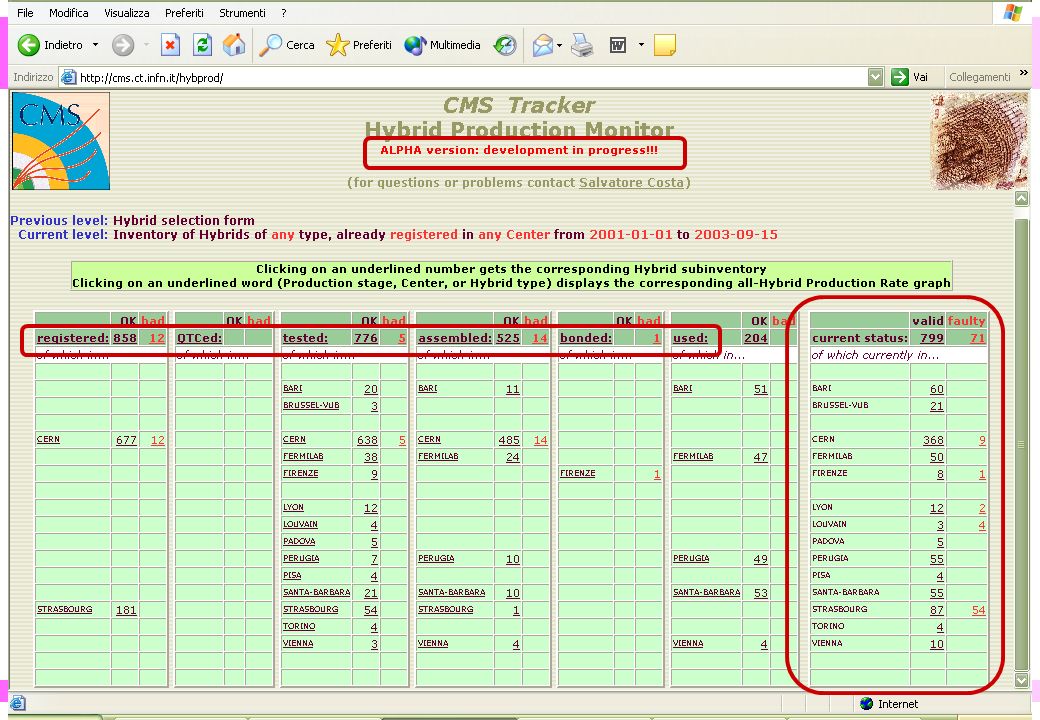

14 16 Sep 2003Tracker Week - Bonding WG14 Salvatore Costa - Catania

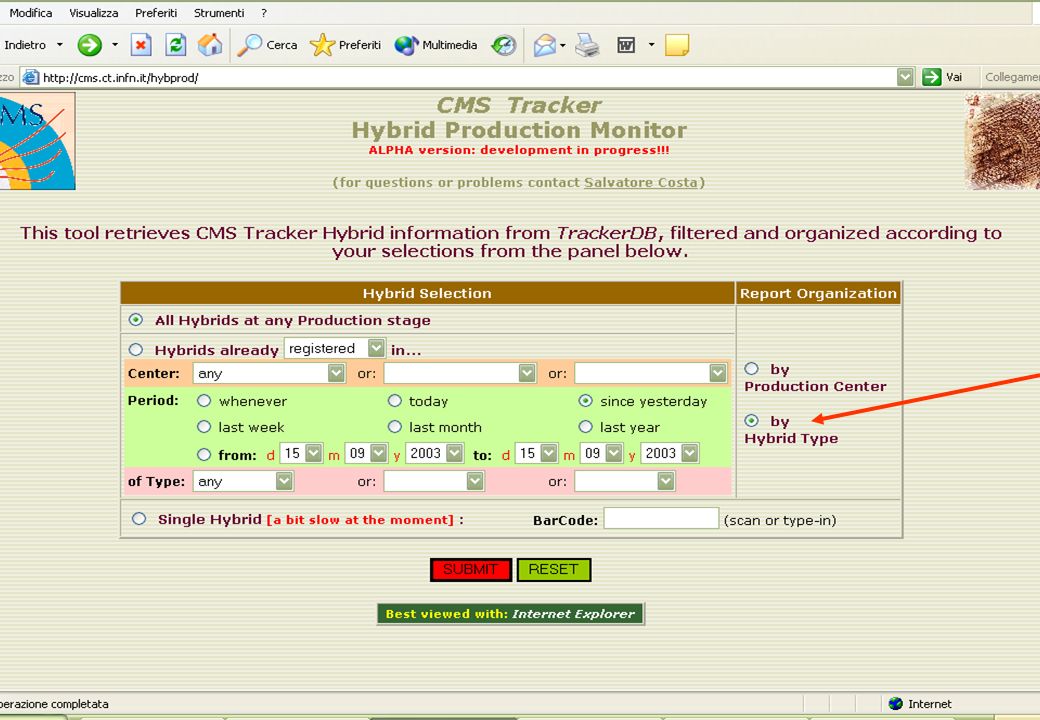

15 16 Sep 2003Tracker Week - Bonding WG15 Salvatore Costa - Catania

16 16 Sep 2003Tracker Week - Bonding WG16 Salvatore Costa - Catania

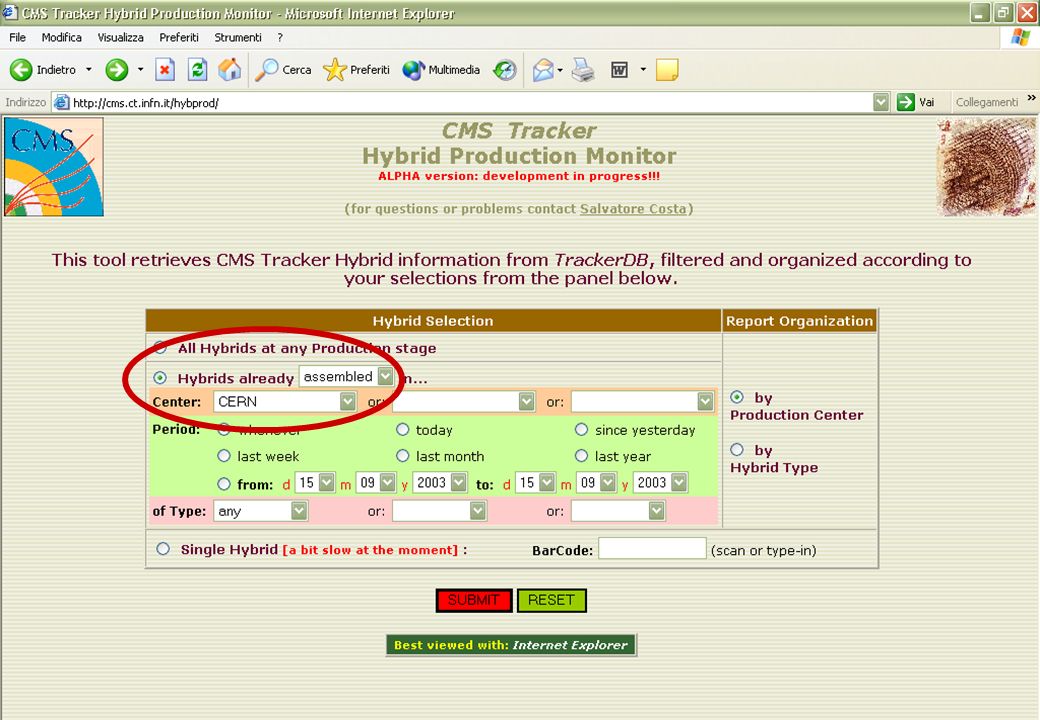

17 16 Sep 2003Tracker Week - Bonding WG17 Salvatore Costa - Catania

18 16 Sep 2003Tracker Week - Bonding WG18 Salvatore Costa - Catania

19 16 Sep 2003Tracker Week - Bonding WG19 Salvatore Costa - Catania
